vertical three phase marine oily water fuel filter Mineral Oil water separator
- Category: >>>
- Supplier: Nanjing FiveMen Machine Co. Ltd.
Share on (1601096037575):
Product Overview
Description
Marine Oily Water Separator
More than ten years of successful industry experience
The best materials and strict control system
Equipment quality gaurantee
original design for customized service
Full refund money in case of bad quality.
Product Description
| Product Description |
Introduction:

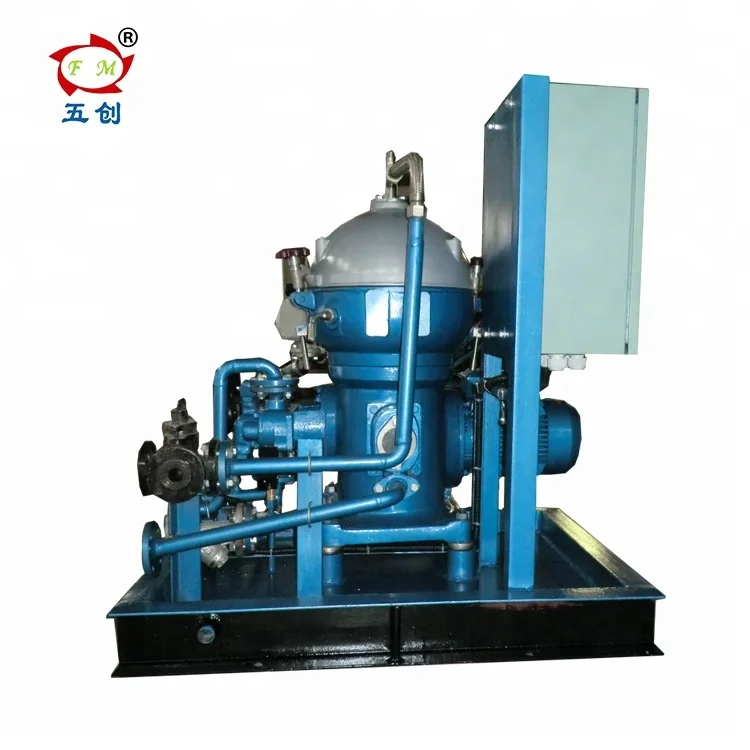

KYDH207SD-23 oil purifier are mainly applied in:
1.the purification and clarification of the diesel, light fuel oil, heavy fuel oil, transformer oil,
lube oil,Marine mineral oil.
2.other mineral oil.used to remove the water, moisture, mechanical impurities
3.some harmful substances of the oil.
This series is oil purifier and clarifier, we also have other clarifier series and concentrator series.
Main Feature:
Simple, compact and robust design
• Highest separation efficiency in removing solids and water
• No pre-filtration necessary
• Environmentally friendly sludge disposal (no cartridges)
• Automatic, unattended operation
• Easy maintenance
• Low operating cost
• Proven reliability and long lifespan
• Reliable process for maximum performance

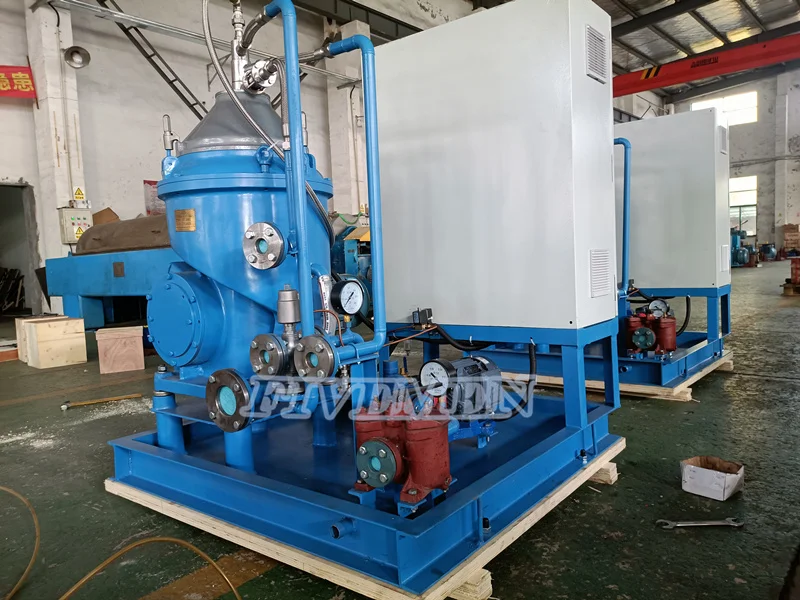

Designing including as below
• Feed pump with electric motor

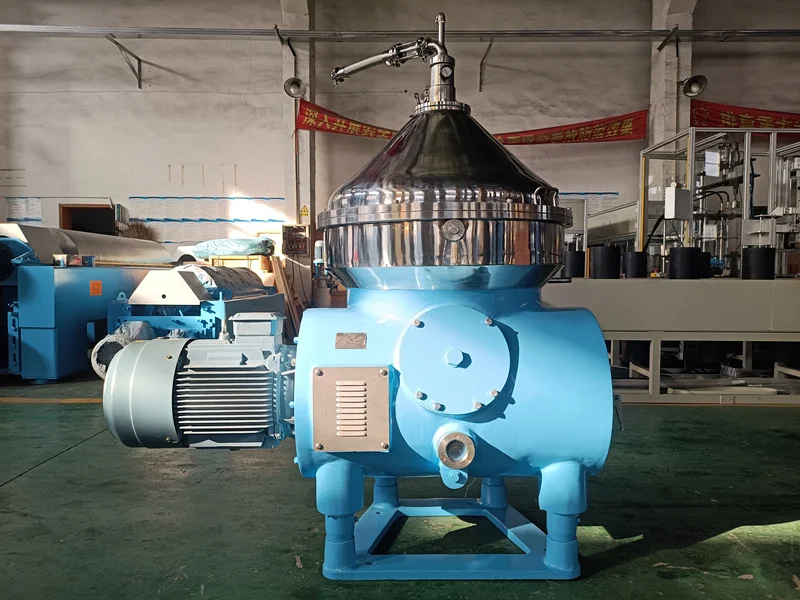

• Self-cleaning centrifugal separator with electric motor

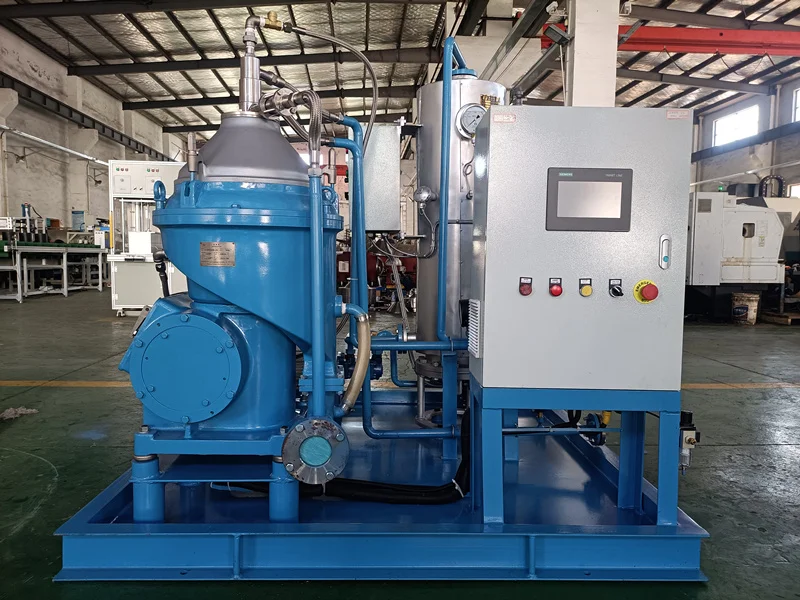

• Control panel with local operator device
• Atmospheric sludge tank complete with sludge pump
• Instrument air distribution system
• Wired and piped to skid limit
• Module base frame with drip pan, lifting lugs and earthing
• Suitable offshore painting
• Tagging and marking
• Factory Acceptance Test (FAT)
• Documentation
Moled and Parameters of oil purifier:
No. | Model | Capacity (l/h) | Drum diameter (mm) | Drum speed | Motor Power (KW) | Discharge way | Separator factor | Weight(kg) | Size(mm*mm*mm) |

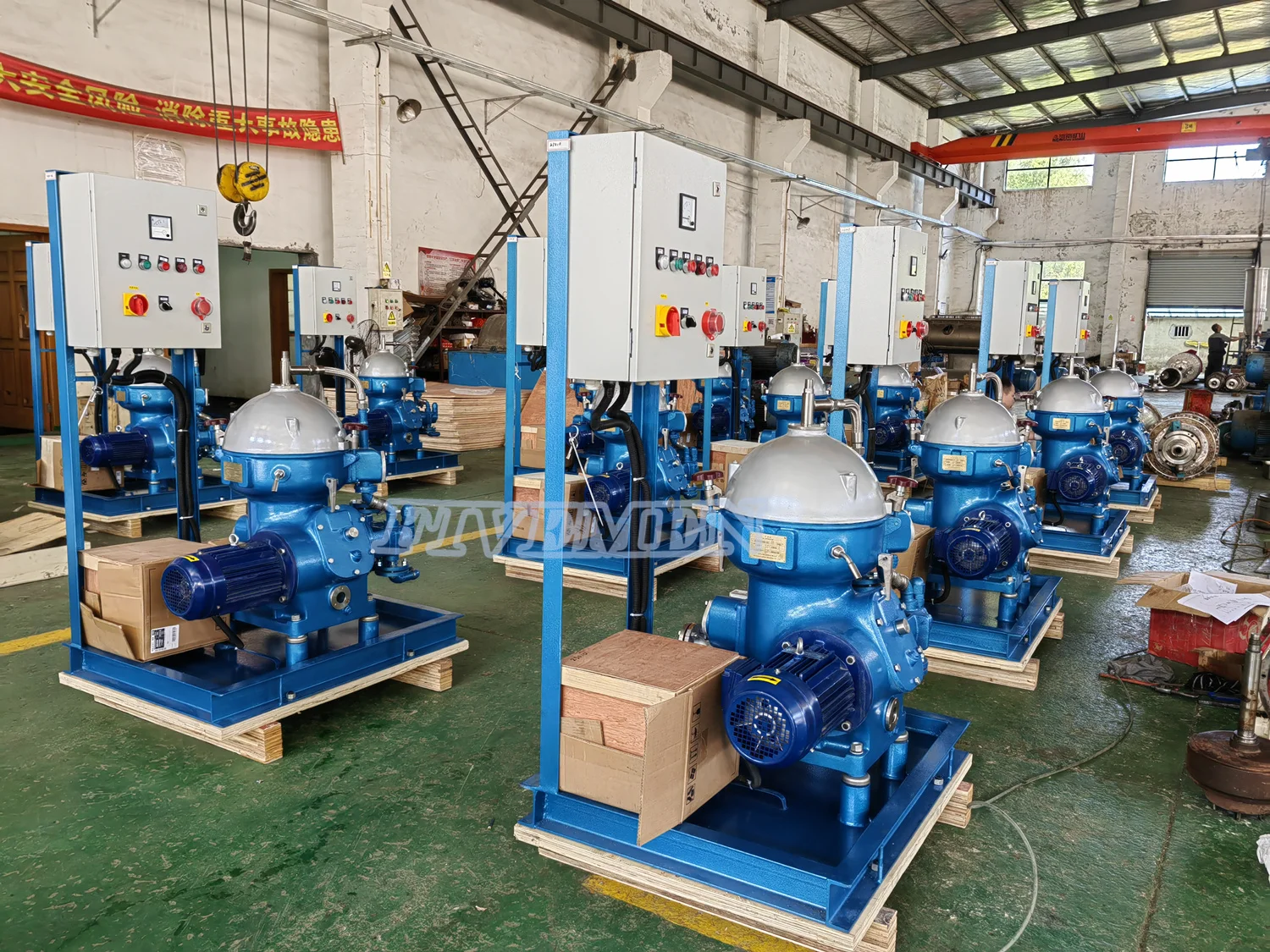

1 | KYDR203CD-23 | 1500 | 230 | 6930 | 2.2 | Manual | 6170 | 245 | 850*625*985 |
2 | KYDH204SD-23 | 2000 | 270 | 7200 | 4 | Automatic | 6950 | 550 | 865*645*1100 |
3 | KYDH206SD-23 | 3000 | 315 | 6500 | 5.5 | Automatic | 7000 | 650 | 900*600*1150 |
4 | KYDH207SD-23 | 4000 | 385 | 6500 | 7.5 | Automatic | 7500 | 750 | 1100*1050*1250 |
5 | KYDH209SD-23 | 5000 | 430 | 6000 | 11 | Automatic | 8050 | 900 | 1200*950*1400 |
6 | KYDH211SD-23 | 10000 | 500 | 5500 | 18.5 | automatic | 8000 | 1200 | 1250*1000*1550 |
Speration conditions and actual productioivity of mineral oil:

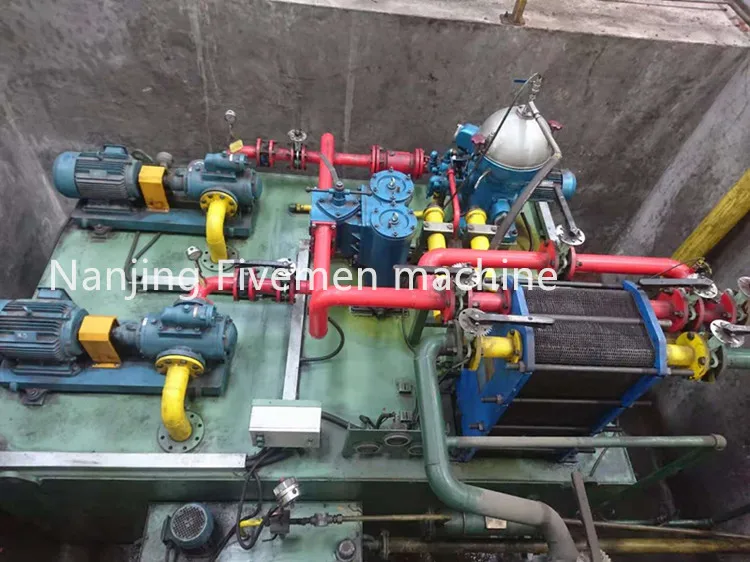

Application site
Packaging & Shipping
Packing & Shipping |
The parts are bolted to the wooden cases. with layers of plastic and standard wooden cases
for packaging, it provide safe and convenient shippings.
Company Information
| Company Information |
Over the years, our products have been successfully applied in liquid-solid or liquid-liquid-solid separation of biomedicine, traditional Chinese medicine, phytoextraction , health foods, beverages, dairy products, lanolin, animal and plant oil, mineral oil, petroleum, chemical industry, environmental protection and other industries. For some materials with small difference in specific gravity of liquid and solid phase ,small solid particle size and low content by use of centrifuge extraction, concentration and clarification , our company can provide you with ideal separation equipment.
We have passed ISO9000 quality system certification awarded by China Classification Society; our mineral oil separators used in inland rivers, offshore and ocean shipping have achieved CCS approval certificate, and the products used in fishing boats also passed the fishery inspection.
