High Gradient Iron Sand Dry Permanent Magnetic Separator Machine No Water Region Separation of Iron Ore
- Category: >>>
- Supplier: Shanghai Taixiong Magnetic Industrial Co. Ltd.
Share on (1601096508830):
Product Overview
Description
Product Description

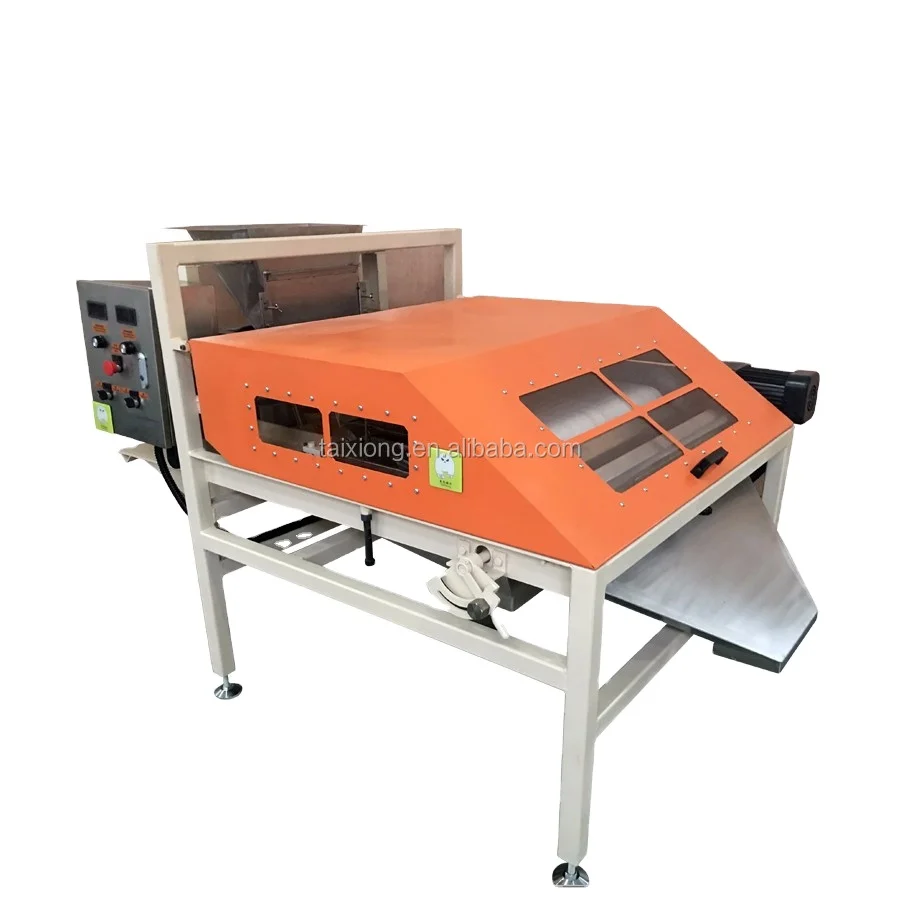

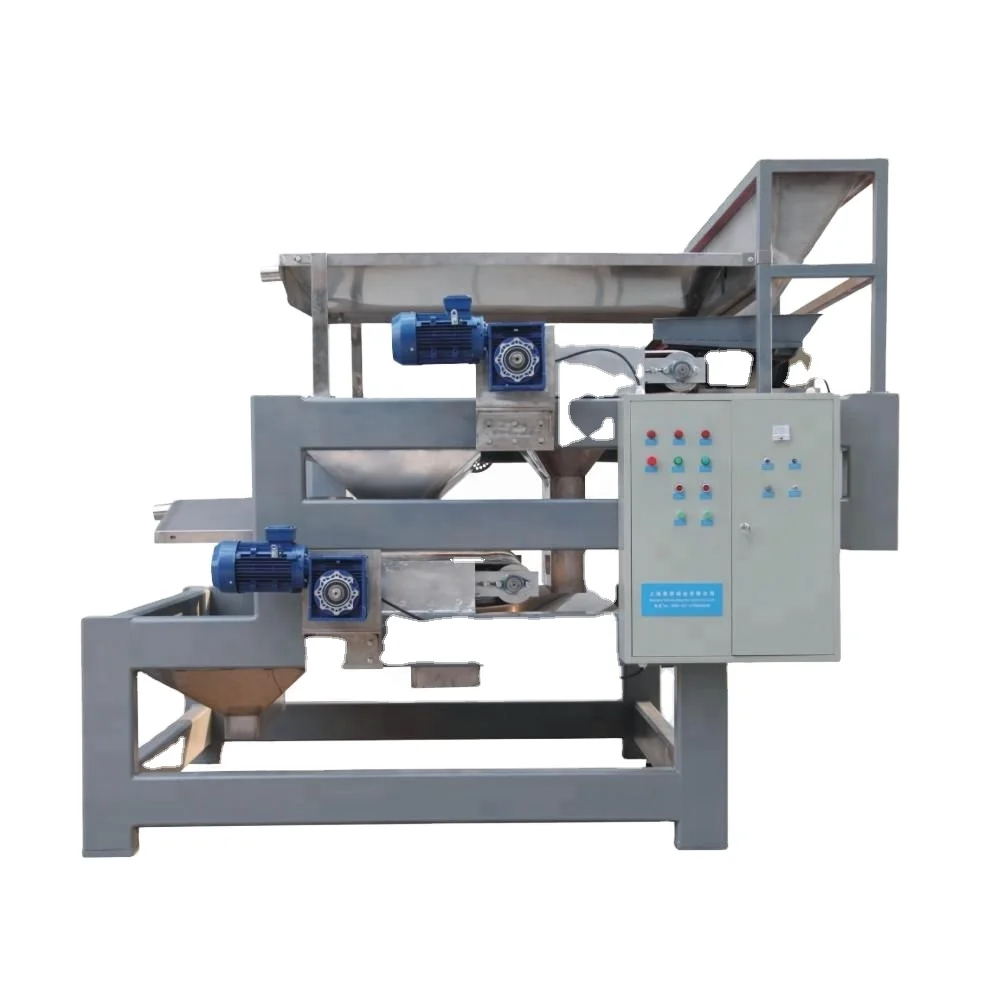

High Intensity Permanent Automatic Magnetic Roller Separator Machine
Features:
The Strongest Magnetic Roll Separators--- High Purity Non-Step Separation for weakly Magnetic Materials.
The Strongest Magnetic Roll Separators employ high intesisty, high gradient and trajectiory deflection to provide an alternative in handling a wide variety of materials which do not respond well to traditional methods such as magnetic
drum separators or grate magnets. Induced by Powerful high gradient circuits, the weakly magnetic particles present different parabolic trajectory from non-magnetic particles. The difference becomes separation criteria. Magnetic Roll Separators are capable of purification or concentration of weakly magnetic material automatically and continuously.

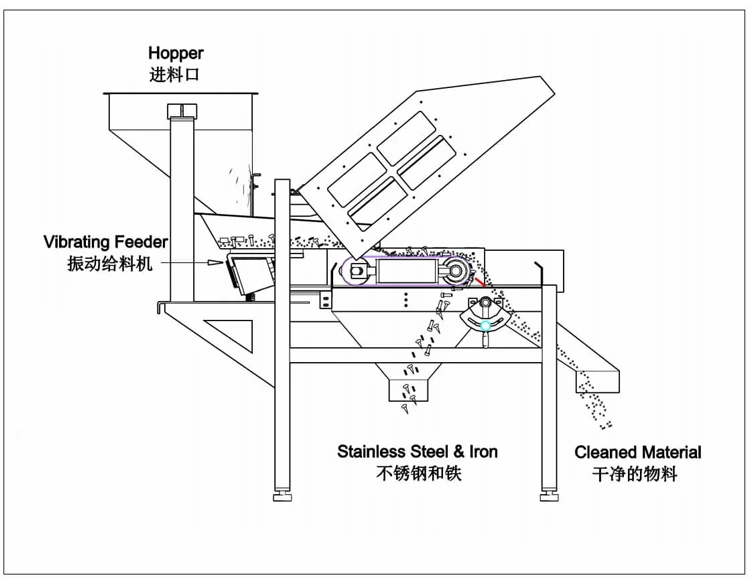

Working Principle
Characteristics
1.Absorb and clean iron automatically, high collection capacity.
2.Permanent and Powerful magnetic force, peak Gauss over 15000 Gauss.
3.Temperature resistance up to 300℃.
4.Single-layer, multi-layer optional, Multiple layers preferable bring better separation effect.
5.A wide range of types and sizes of products are provided, and do personalized design according to customer requirements.
Note: 1. Special sizes available upon request.
2. Dimensions and specifications are subject to change without notice.
Standard Parts:
1. 1 set of 15000 Gauss magnetic roller, can be customized;
2. 0.5mm thickness conveyor belt;
3. 1 set storage bin;
4. 1 set motor;
5. 1 set reducer;
6. 1set frequency converter;
7. 1 setcontrol cabinet.
8. Frame, custom COLOUR.
Option Parts:
1. 1 set vibration feeder;
2. Dustproof cover.
Magnetic Separator Testing
Testing information:
Material Name:Silica Sand
Testing Machine:Permanent Magnetic Roller Separator

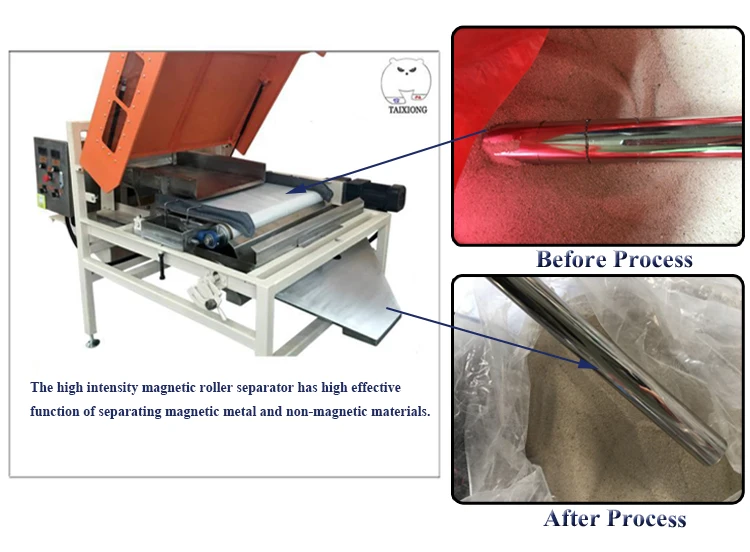

Permanent Magnetic Roller Separator Testing Pictures Comparing with 3.0kg raw material
(We put 12000Gs magnetic bar in the material bystirring：12000 Gauss bar beofre testing, iron flakes are adsorbed on the surface；12000 Gauss bar after magnetic roller testing, almost no iron flakes left)
Testing information:
Material Name:Silica Sand
Testing Machine:Permanent Magnetic Roller Separator
Permanent Magnetic Roller Separator Testing Pictures Comparing with 3.0kg raw material
(We put 12000Gs magnetic bar in the material bystirring：12000 Gauss bar beofre testing, iron flakes are adsorbed on the surface；12000 Gauss bar after magnetic roller testing, almost no iron flakes left)
Application
The super-strong full-magnetic roller is mainly used to remove ferro magnetic impurities in powder, Sand, gravel, limestone, recyclables, wood products, food,chemical, mining, rock products, ceramic, paper, coal handling and foundry operation.and other industries.
Related Products
Our Company
Shanghai Taixiong is a specialized supplier and manufacturer of permanent magnets and magnetic assemblies, magnetic motors, etc. Our products include NdFeB magnet, rubber magnet, SmCo magnet, alnico magnet, ferrite magnet, educational magnet, magnetic separator, pot magnet,magnetic lifter, lifting magnet, magnetic badge holder. With over 10 years' history, our factory has established and implemented a quality management system in conformity with ISO9001:2008 standard. All magnet materials and coatings meet the standards of SGS and RoHS. Our factory has passed ISO9000 and TS16949 certificates. Our factory makes high quality magnet to meet our customers' different requirements. Our products sell well in over 50 countries and regions all over the world such as America, the EU, the Middle East, Hong Kong, etc. Our factory has adopted the most advanced technology (thin strip alloy and hydrogen decrepitation).
FAQ
Q1: What is the iron removing rate of your Magnetic Separators?
A: ABOVE 99%.
Q2: How about your delivery date?
A: 25-35 days.
Q3: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q4: What is the usual payment method?
A: T/T, Paypal, L/C, VISA, e-Checking,Western Union.
Q5: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q6: How can I get the quotation IN TIME?
A: For a timely and responsible quotation, please inform us more details as following:
1. What kind of material you are going to deal with?
2. What is the size of the materials?
3. What is the width of the conveying belt?
