High speed Advanced PLC Programmable Control Laminate Flooring Production Line Hot Press Machine
- Category: >>>
- Supplier: Romeroca Industry Co. Limited
Share on (1601096509978):
Product Overview
Description
Product Description
LAMINATE FLOORING PRODUCTION LINE
HOT PRESS MACHINE
Model: | RFS-2800 |
Brand: | Romeroca |
Size: | 1400mm×2600mm×160/120mm |
Power: | 23KW |

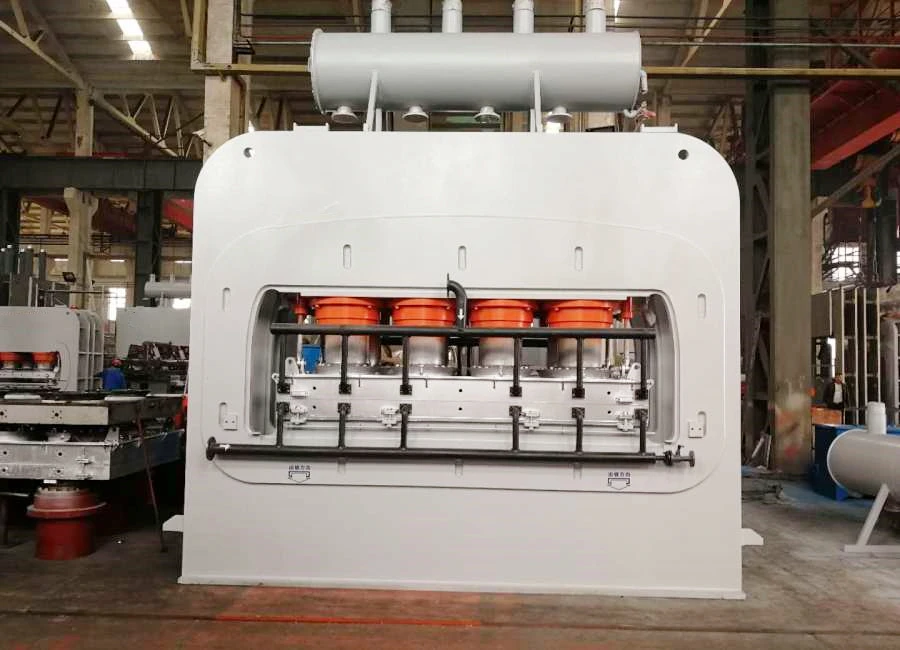

Short-cycle hot pressing machine, mainly used for pressing laminate flooring and furniture board. Its function is to press the wear-resistant paper, decorative paper, and balance paper on the high density fiberboard together, by high temperature and high pressure.
Romeroca hot press machine adopts frame structure, equipped with frequency conversion speed control board entry trolley and board exit rolling bracket. The equipment adopts advanced PLC programmable control. It has the advantages of simple operation, convenient maintenance, high output, reasonable design, easy installation and small footprint.
Our press machine is same design as the German WEMHONER brand. Its efficiency is 15% -20% higher than others and has been used well in China and overseas market for over 20 years.
Romeroca hot press machine adopts frame structure, equipped with frequency conversion speed control board entry trolley and board exit rolling bracket. The equipment adopts advanced PLC programmable control. It has the advantages of simple operation, convenient maintenance, high output, reasonable design, easy installation and small footprint.
Our press machine is same design as the German WEMHONER brand. Its efficiency is 15% -20% higher than others and has been used well in China and overseas market for over 20 years.
HOT PRESS MACHINE INFORMATION
Specifications of Laminate Flooring Hot Press Machine:
Short-cycle hot press machine mainly has 4ft×8ft, 6ft×9ft, and also can customize according to customer’s requirement. For producing laminate flooring, the most used is 4ft×8ft.
Short-cycle hot press machine mainly has 4ft×8ft, 6ft×9ft, and also can customize according to customer’s requirement. For producing laminate flooring, the most used is 4ft×8ft.
Serial number | Specification | Details |
1 | Pressure | 20000kN |
2 | Laminated way | Double size |
3 | Loading direction | Horizontal |
4 | Power | ~40kW |
5 | Size | 2600×1400×160mm Upper hot platen 2600×1400×120mm Down hot platen |
6 | Day light opening | 250mm |
7 | Main oil cylinder (Diameter X Stroke) | Φ360×250mm |
8 | Lifting cylinder (Diameter X Stroke) | Φ80×250mm |
9 | System working oil pressure | ≤25Mpa |
10 | Hot platen temperature | ≤210℃ |
11 | Heating medium | Hot oil |
12 | Loading speed | 10~120m/min(Speed is adjustable) |

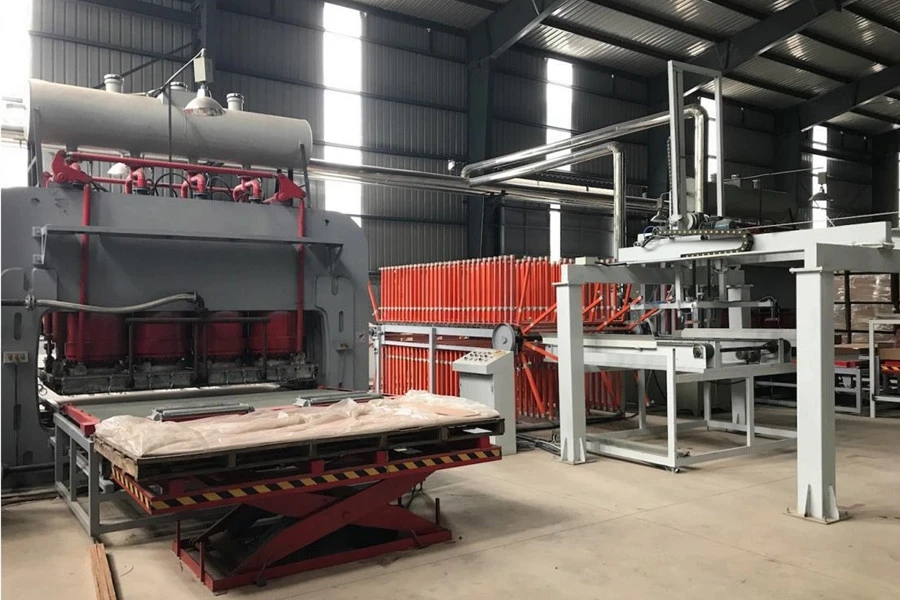

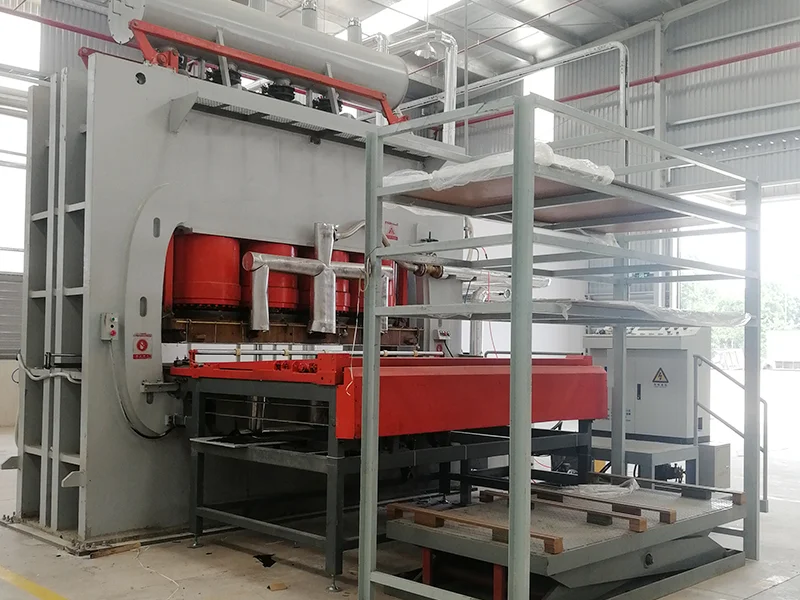

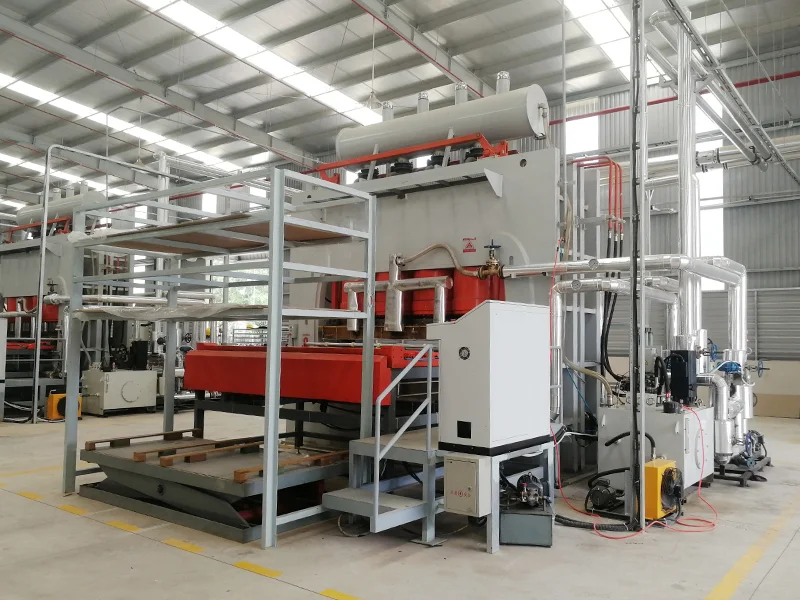

HOT PRESS MACHINE PROJECT CASES
What we are offering about Laminate flooring project?
1.Laminate flooring full production line:
Laminate flooring Hot Press machine, Cooling line, Cutting machine,
Click slotting machine, Dust Collection machine, V-groove painting machine,
Wax coating machine, Packing machine.
2.Raw materials for producing Laminate flooring:
Overlay/Wear Layer Paper, Decorative Paper,Balance Paper.
Melamine paper ( after Impregnation) for all above.
To save shipping cost for our partners, Romeroca can mix different raw materials to ship together.
3.Spare parts for Laminate flooring manufacturing line:
PCD cutters, PCD saw blades, Cushion Pad ( Silicon& Cooper), Chroming Plate.
Romeroca can supply all kinds of accessories for all machines of laminate flooring production.
4.Test equipments for Laminate flooring factory:
Romeroca can supply all kinds of test equipments that laminate flooring manufacturing factory needs.
For example: Wear tester, Click Strengthen tester, Click Projector, and so on.
Full production processes of Laminate flooring
1. Boiler
Boiler supply heat to hot press machine by thermal oil.
Fuels for boiler are coal, natural gas, diesel, electricity.
2. Hot Pressing
Main size of hot press machine is 4'x8 ft, Press is 2800T.
We press the exquisite patterns on HDF board by stainless steel chroming plate.
3. Cooling Platform
When temperature of hot press machine reach 200℃, can ensure decorative paper and overlay paper sticking onto HDF board tightly,
so cooling platform is needed to cool down the flooring quickly and increase stability of flooring sizes.
4. Cutting
Use automatic multiple ripsaw to cut the big laminate board into the small planks of the required size.
5. Slotting
Through the longitudinal and transverse double-end tenoner slotting machine, four sides edges of the plank after cutting are
processed into certain lock shape. The important thing is that need to choose the suitable click system and the perfect
Polycrystalline diamond (PCD) click profiling cutters.
6.Dust Collection
During Cutting and slotting，will be heavy dust. Dust collection system can collect the dust and offering a cleaner floooring and
work environment.
7.V-Groove Painting
In global market some customers prefer to the edges of Laminate flooring to be V-groove and painted. They think this kind of
flooring looks nicer.
8. Wax Coating
Wax Coating machine is mainly used for wooden flooring by the paraffin wax. Through heating to form a low viscosity of liquid
spray on the flooring.Because paraffin wax is white and non-toxic, it is very widely used. After processing, the products have the
functions of preventing formaldehyde dissociation, preventing odor emanating, waterproof and moisture-proof, anti-aging,
preventing moisture volatilization and lubrication.
9. Packing
Choose packing machine with different degrees of automation according to your needs, and there are fully automatic and
semi-automatic machines can be optional.
Boiler supply heat to hot press machine by thermal oil.
Fuels for boiler are coal, natural gas, diesel, electricity.
2. Hot Pressing
Main size of hot press machine is 4'x8 ft, Press is 2800T.
We press the exquisite patterns on HDF board by stainless steel chroming plate.
3. Cooling Platform
When temperature of hot press machine reach 200℃, can ensure decorative paper and overlay paper sticking onto HDF board tightly,
so cooling platform is needed to cool down the flooring quickly and increase stability of flooring sizes.
4. Cutting
Use automatic multiple ripsaw to cut the big laminate board into the small planks of the required size.
5. Slotting
Through the longitudinal and transverse double-end tenoner slotting machine, four sides edges of the plank after cutting are
processed into certain lock shape. The important thing is that need to choose the suitable click system and the perfect
Polycrystalline diamond (PCD) click profiling cutters.
6.Dust Collection
During Cutting and slotting，will be heavy dust. Dust collection system can collect the dust and offering a cleaner floooring and
work environment.
7.V-Groove Painting
In global market some customers prefer to the edges of Laminate flooring to be V-groove and painted. They think this kind of
flooring looks nicer.
8. Wax Coating
Wax Coating machine is mainly used for wooden flooring by the paraffin wax. Through heating to form a low viscosity of liquid
spray on the flooring.Because paraffin wax is white and non-toxic, it is very widely used. After processing, the products have the
functions of preventing formaldehyde dissociation, preventing odor emanating, waterproof and moisture-proof, anti-aging,
preventing moisture volatilization and lubrication.
9. Packing
Choose packing machine with different degrees of automation according to your needs, and there are fully automatic and
semi-automatic machines can be optional.
Company Profile
1.Romeroca is a trading?
Romeroca is focus on technical , innovation and one-stop solution in flooring industry.
2.What can Romeroca supply?
Machinery, raw materials,accessories,instaltion,standard production process training, products standard and test, innovation etc
3.What is the delivery time?
Machinery:60-90 WORKING DAYS
Raw materials:15-25 WORKING DAYS
Spare Parts:15-30 WORKING DAYS
4.How to guarantee the quality?
All products from Romeroca will be tested & inspected before shipping.
5.What is the after sales services?
36 months tracking service,life-time technical support
Romeroca is focus on technical , innovation and one-stop solution in flooring industry.
2.What can Romeroca supply?
Machinery, raw materials,accessories,instaltion,standard production process training, products standard and test, innovation etc
3.What is the delivery time?
Machinery:60-90 WORKING DAYS
Raw materials:15-25 WORKING DAYS
Spare Parts:15-30 WORKING DAYS
4.How to guarantee the quality?
All products from Romeroca will be tested & inspected before shipping.
5.What is the after sales services?
36 months tracking service,life-time technical support
