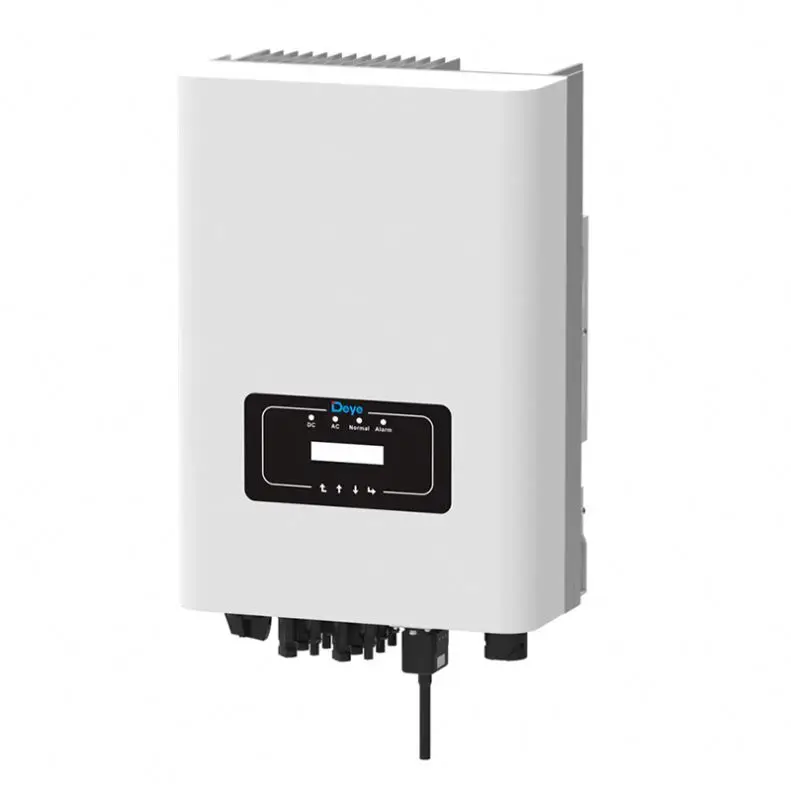

Deye 8KW 10kw 12kw 15kw On Grid Three Phase String Solar Inverter Low Voltage Battery Wide AC Output
- Category: >>>
- Supplier: Yichun Hertz Energy Storage Co. Ltd.
Share on (1601096519875):
Product Overview
Description
Product Paramenters
Model | SUN-10K-G03-LV | SUN-12K-G02-LV | SUN-15K-G02-LV | ||
InputSide | |||||
Max.DCInputPower(kW) | 13 | 15.6 | 19.5 | ||
Max.DCInputVoltage(V) | 800 | ||||
Start-upDCInputVoltage(V) | 250 | ||||
MPPT OperatingRange(V) | 200~700 | ||||
Max.DCInputCurrent(A) | 32+32 | ||||
Max.ShortCircuitCurrent(A) | 48+48 | ||||
NumberofMPPT/StringsperMPPT | 2/2 | ||||
OutputSide | |||||
RatedOutputPower(kW) | 10 | 12 | 15 | ||
Max.ActivePower(kW) | 11 | 13.2 | 16.5 | ||
NominalOutputVoltage/Range(V) | 3L/N/PE 127/220 176Vac~242Vac (this may vary with grid standards) | ||||
RatedGridFrequency(Hz) | 60 / 50 (Optional) | ||||
OperatingPhase | Three phase | ||||
RatedACGridOutputCurrent(A) | 26.2 | 31.5 | 39.4 | ||
Max.ACOutputCurrent(A) | 28.9 | 34.6 | 43.3 | ||
OutputPowerFactor | 0.8 leading to 0.8 lagging | ||||
GridCurrentTHD | <3% | ||||
DCInjectionCurrent(mA) | <0.5% | ||||
GridFrequencyRange | 57~62 | ||||
Efficiency | |||||
Max.Efficiency | 98.6% | ||||
EuroEfficiency | 98% | ||||
MPPTEfficiency | >99% | ||||
Protection | |||||
DCReverse-PolarityProtection | Yes | ||||
ACShortCircuitProtection | Yes | ||||
ACOutputOvercurrentProtection | Yes | ||||
OutputOvervoltageProtection | Yes | ||||
InsulationResistanceProtection | Yes | ||||
GroundFaultMonitoring | Yes | ||||
Anti-islandingProtection | Yes | ||||
TemperatureProtection | Yes | ||||
IntegratedDCSwitch | Yes | ||||
Remotesoftwareupload | Yes | ||||
Remotechangeofoperatingparameters | Yes | ||||
Surgeprotection | DC Type II / AC Type II | ||||
GeneralData | |||||
Size(mm) | 330W×508H×206D | ||||
Weight(kg) | 20.8 | ||||
Topology | Transformerless | ||||
InternalConsumption | <1W (Night) | ||||
RunningTemperature | -25~65℃, >45℃ derating | ||||
IngressProtection | IP65 | ||||
NoiseEmission(Typical) | <45 dB | ||||
CoolingConcept | Smart cooling | ||||
Max.OperatingAltitudeWithoutDerating | 2000m | ||||
DesignedLifetime | >20 years | ||||
GridConnectionStandard | CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11 | ||||
OperatingSurroundingsHumidity | 0-100% | ||||
SafetyEMC/Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | ||||
Features | |||||
DCConnection | MC-4 mateable | ||||
ACConnection | IP65 rated plug | ||||
Display | LCD1602 | ||||
Interface | RS485/RS232/Wifi/LAN | ||||
Products Description
This series inverter is specially designed for 127/220Vac three-phase system, especially suits for South American areas. With compactness design, easy to install and operate. It supports wide AC output voltage to adapt to poor grid, extending the inverter working hours.
