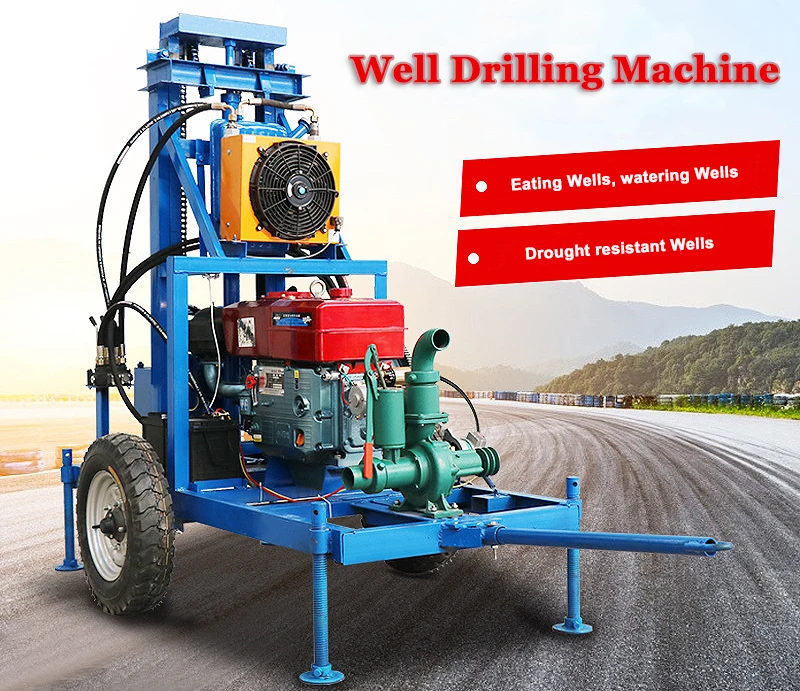

Portable Diesel Water Well Rotary Borehole Water Well Drilling Rig Water Drilling Machine
- Category: >>>
- Supplier: Henan Wisely Machinery Equipment Co. Ltd.
Share on (1601096661510):
Product Overview
Description
Hydraulic 200mm Drilling Machine For Water Portable Borehole Depth Water Well Drill Rig Machine

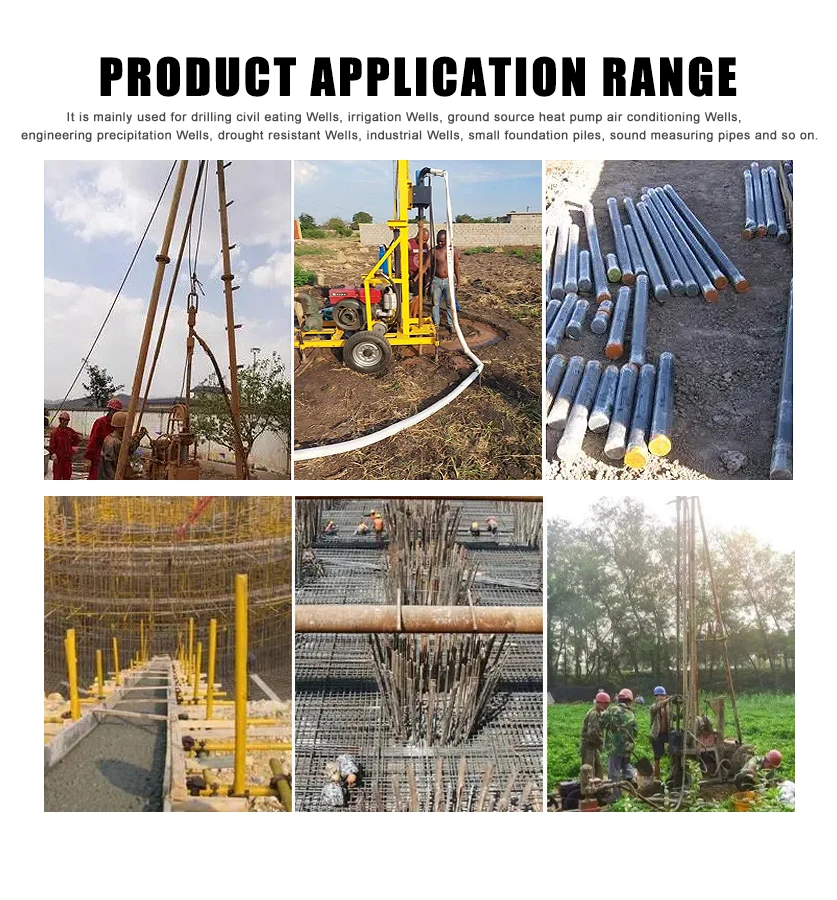

Diesel hydraulic drilling machine is suitable for soil layer, quicksand layer and a small number of rock strata drilling, mainly used for drilling civil eating Wells, irrigation Wells, ground source heat pump air conditioning Wells, engineering precipitation Wells, drought Wells, industrial Wells, small foundation piles, through the sound test pipe and so on.
Model | WSL-150 |
Size | 1900*1000*2600mm |
Weight | 500kg |
Drilling and grinding system | Impact cyclotron |
Pump power | 3 inch centrifugal pump |
Lifting height | 2.7m |
Pipe diameter | 50mm |
Length of drill pipe | 1.5m |
Diesel engine power | 22hp |
Drilling depth | 150-200m |
Hole diameter | ≤400mm |
Lifting power | 3000kg |

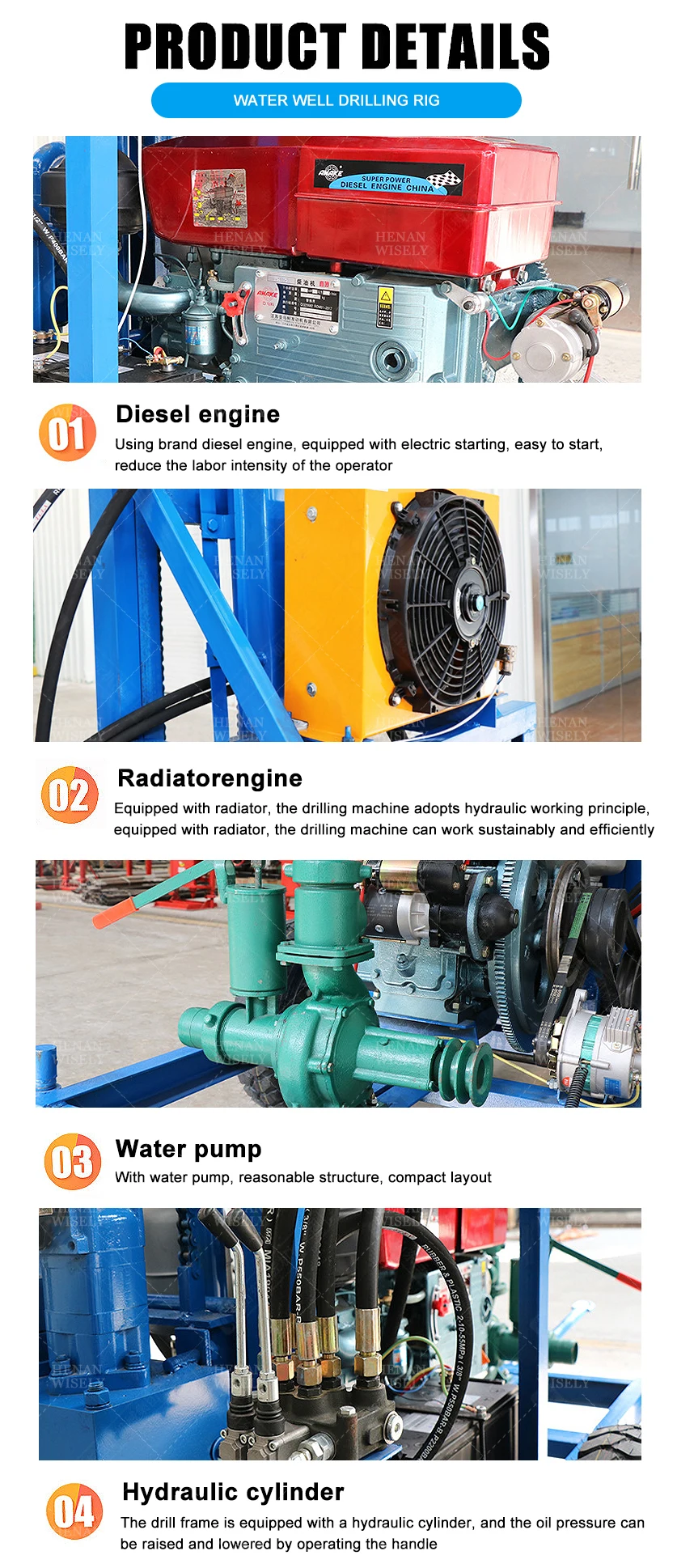

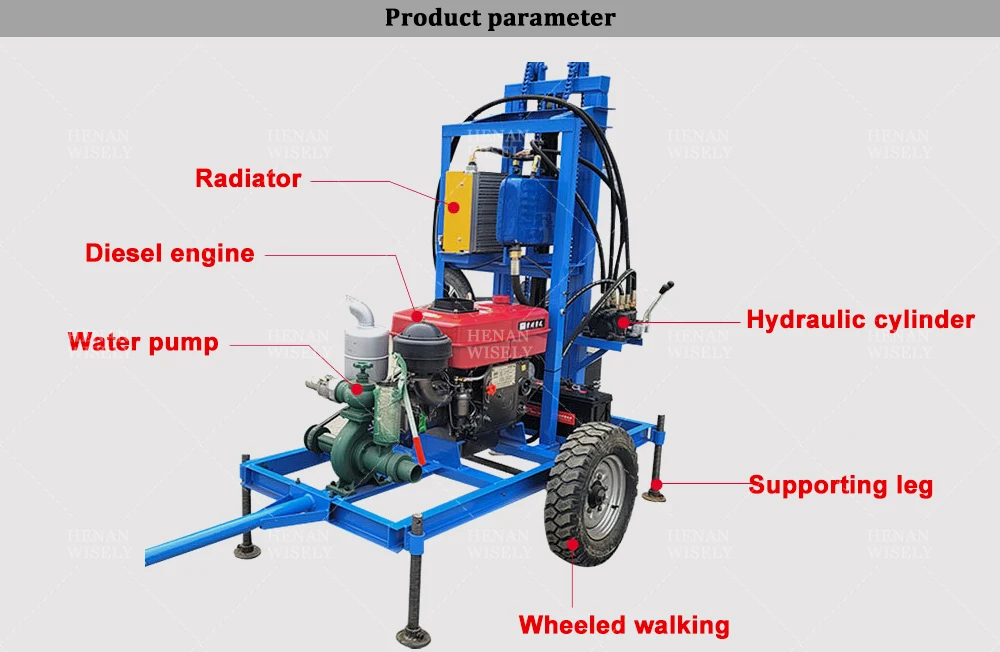

Features of the well drilling machine
*The diesel engine is equipped with electric starting, which is convenient to start and reduces the labor intensity of the operator.
*The drilling machine adopts hydraulic working principle, equipped with radiator, the drilling machine can work with high efficiency continuously.
*Equipped with high-power hydraulic motor, the power head can turn positive and negative.
*The drill frame is equipped with a hydraulic cylinder, and the oil pressure can be lifted and lowered by operating the handle.
*The rig comes with water pump, reasonable structure, compact layout, good slag discharge effect.
*Equipped with traction bar and wheeled walking mechanism, the rig is convenient to move.
*Equipped with silk brace legs for drilling rig leveling.
*The diesel engine is equipped with electric starting, which is convenient to start and reduces the labor intensity of the operator.
*The drilling machine adopts hydraulic working principle, equipped with radiator, the drilling machine can work with high efficiency continuously.
*Equipped with high-power hydraulic motor, the power head can turn positive and negative.
*The drill frame is equipped with a hydraulic cylinder, and the oil pressure can be lifted and lowered by operating the handle.
*The rig comes with water pump, reasonable structure, compact layout, good slag discharge effect.
*Equipped with traction bar and wheeled walking mechanism, the rig is convenient to move.
*Equipped with silk brace legs for drilling rig leveling.
