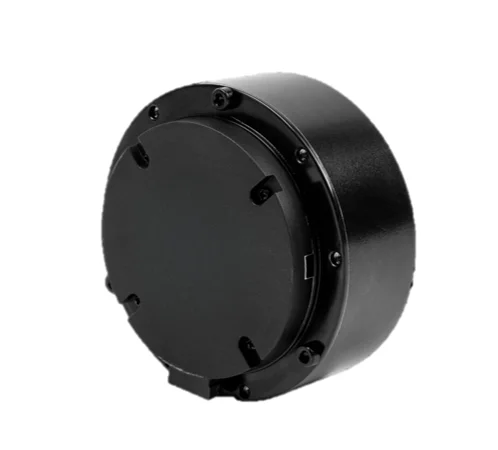

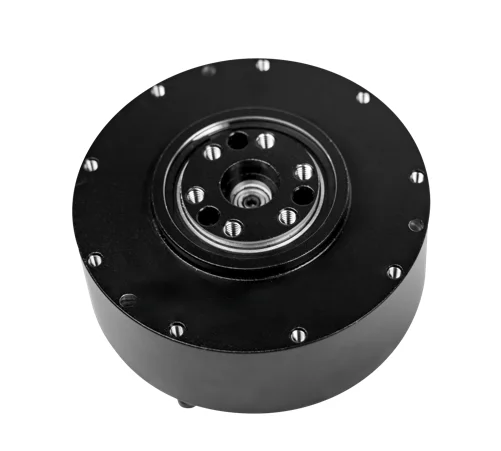

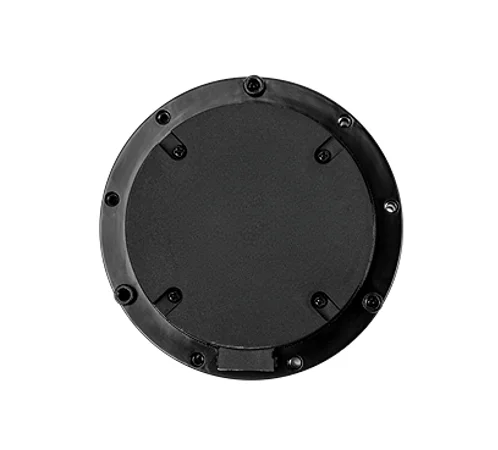

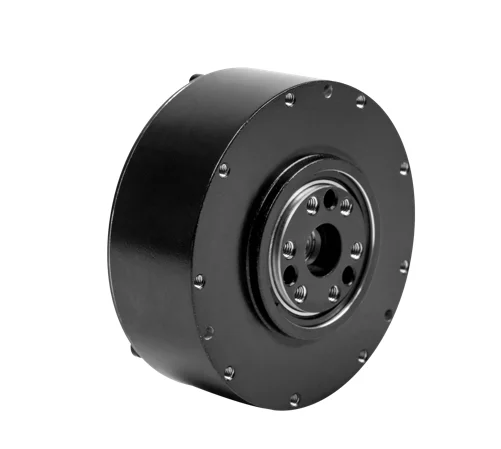

17Nm integrated QDD motor module Xiaomi Cyber dog geared motor reducer and driver are three in one
17Nm integrated QDD motor module Xiaomi Cyber dog geared motor reducer and driver are three-in-one
17Nm integrated QDD motor module Xiaomi Cyber dog geared motor reducer and driver are three-in-one
17Nm integrated QDD motor module Xiaomi Cyber dog geared motor reducer and driver are three-in-one
17Nm integrated QDD motor module Xiaomi Cyber dog geared motor reducer and driver are three-in-one
17Nm integrated QDD motor module Xiaomi Cyber dog geared motor reducer and driver are three-in-one

17Nm integrated QDD motor module Xiaomi Cyber dog geared motor reducer and driver are three in one

Share on (1601096958715):


Price:$89.00 - $109.00

Quantity:


Product Overview

Description



Product Description










Mechanical Specs
Weight
380g ± 3g
Pole
28
Phase
3
Drive Method
FOC
Reduction Ratio
7.75
Electrical Specs
Rated Voltage
36V
Rated Load Speed
275 rpm ± 10%
Voltage Range
24-48V
Rated Load Phase Current
7Apk ± 10%
Rated Output Power
170w ± 10%
Peak Phase Current
23Apk ± 10%
Rated Torque
6N.m
Insulation Resistance / Stator Winding
DC 500VAC, 100M 0hms

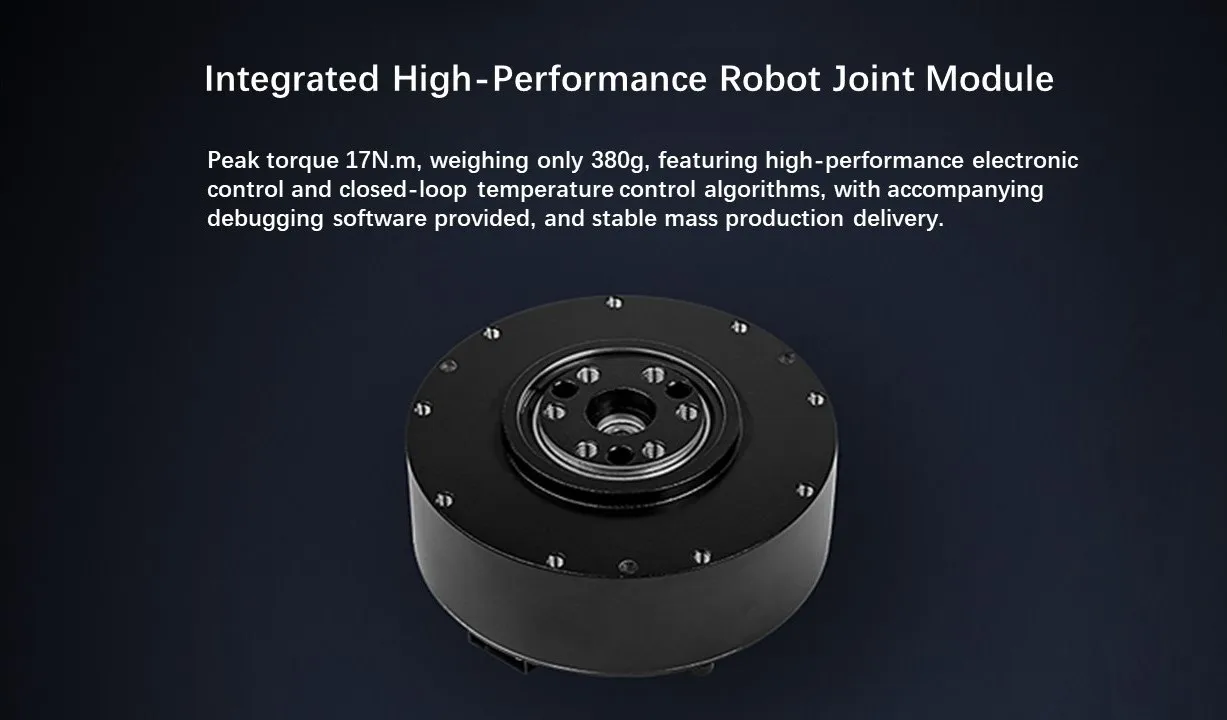

Peak Torque
17N.m
High Voltage Resistance / Stator and Casing
600VAC, 1s, 2mA
Running Direction
CW/CCW
Back-EMF
0.096 Vrms/rpm ±10%
Temperature Range
-20~50℃
Line Resistance
0.58Ω
Humidity Range
5~85%
Torque Constant
1.22 N.m/Arms
Storage Temperature Range
-30~70℃
Inductance
187~339μH
Insulation Level
Class B
Baud Rate
1MbpS
No-load Speed
315 rpm ± 10%
Encoder Type
Absolute value of single compilation
No-load Current
0.5 Arms
Encoder Resolution
14bit
