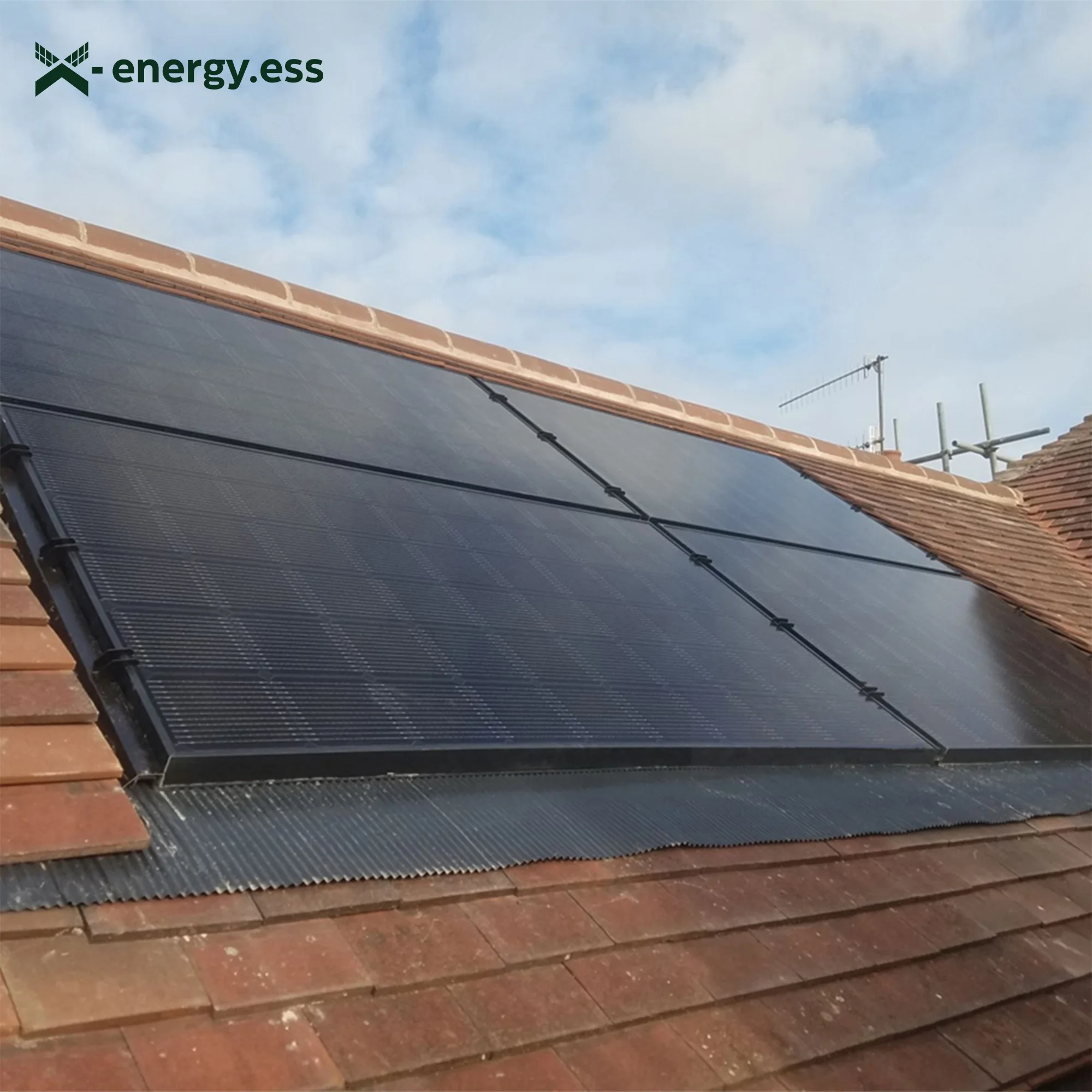

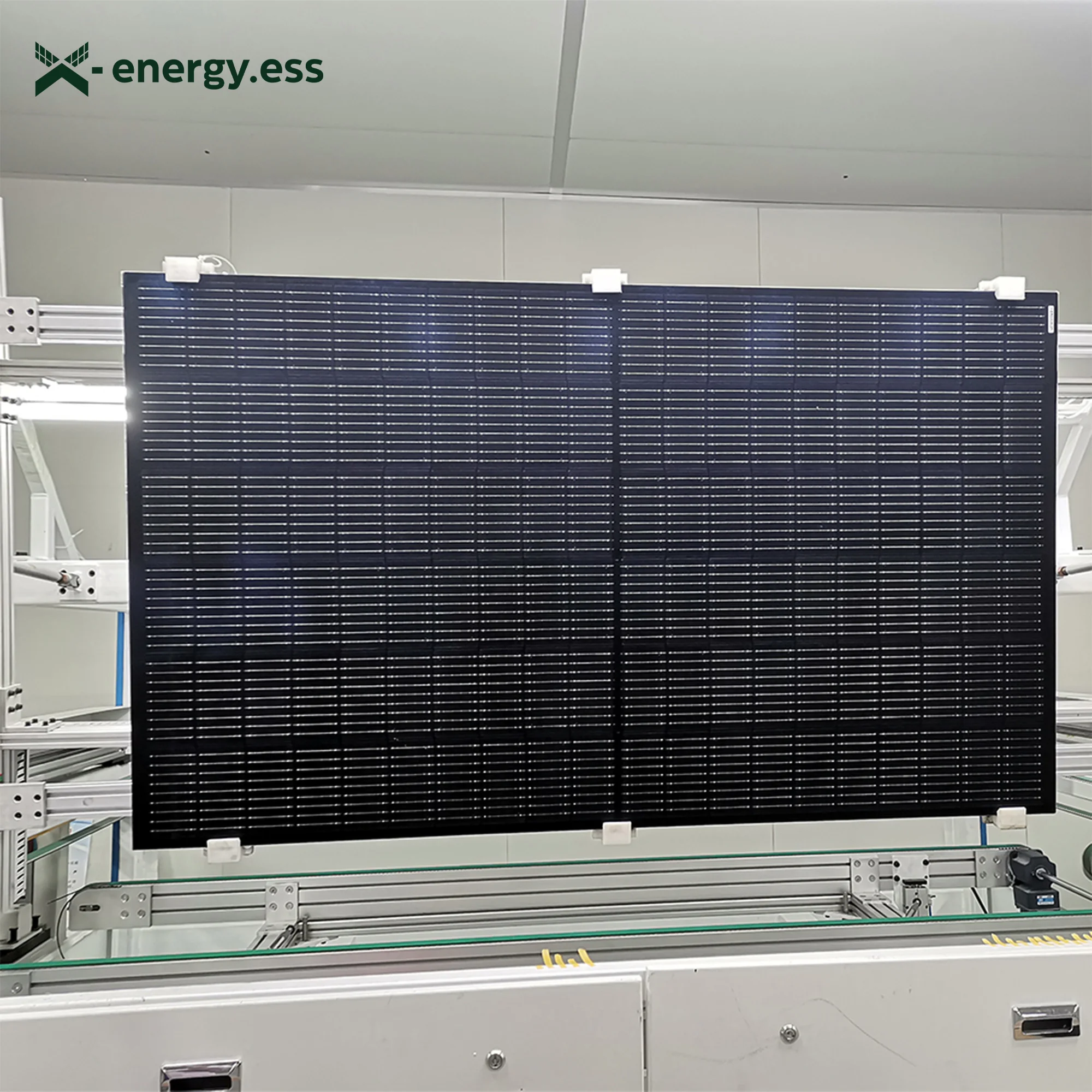

Home Use Roof Mounting Solar Panels 450W
- Category: >>>
- Supplier: X Energy Co. Ltd.
Share on (1601097102638):
Product Overview
Description
Product Description

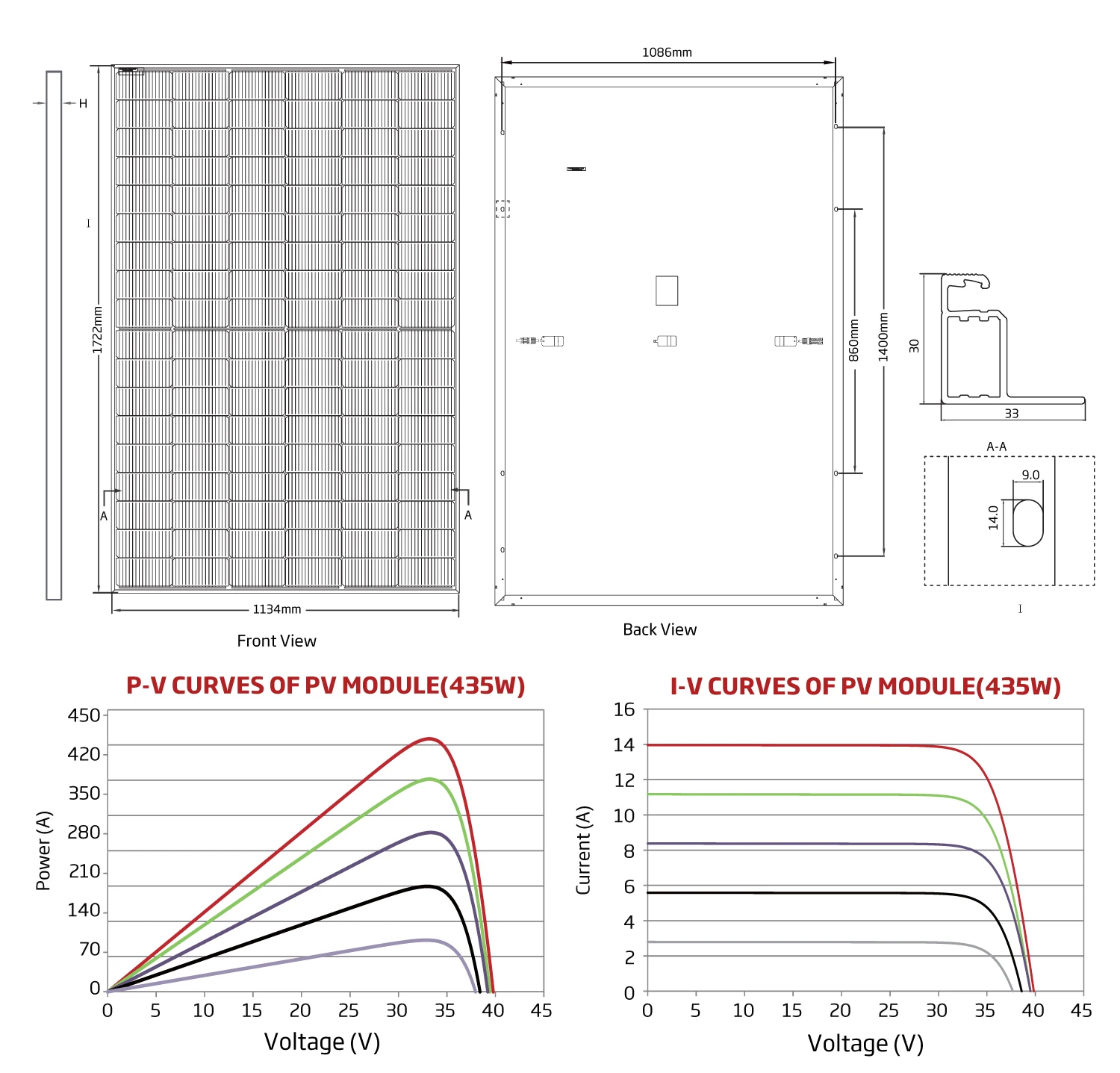

Technical Specification
Model | XM420-108HC | XM430-108HC | XM440-108HC | XM450-108HC | ||||
Rated Maximum Power at STC | 420W | 430W | 440W | 450W | ||||
Maximum Power Voltage(Vmp/V) | 31.98 | 32.38 | 32.80 | 33.0 | ||||
Maximum Power Current(Imp/A) | 13.14 | 13.28 | 13.42 | 13.49 | ||||
Open Circuit Voltage(Voc/V) | 38.55 | 38.95 | 39.38 | 39.58 | ||||
Short Circuit Current(Isc/A) | 13.59 | 13.73 | 13.86 | 13.93 | ||||
Module Efficiency(%) | 21.76 | 22.02 | 22.53 | 23.04 | ||||
Standard Test Condition(STC) ： Irradiance 1000w/m², Cell Temperature 25℃, AM1.5G | ||||||||
ELECTRICAL DATA(NOCT) | ||||||||
Maximum Power-PMAX (Wp) | 317W | 323W | 331W | 339W | ||||
Maximum Power Voltage(Vmp/V) | 29.89 | 30.11 | 30.57 | 30.97 | ||||
Maximum Power Current(Imp/A) | 10.61 | 10.73 | 10.83 | 10.95 | ||||
Open Circuit Voltage(Voc/V) | 36.62 | 37.00 | 37.41 | 37.81 | ||||
Short Circuit Current(Isc/A) | 10.97 | 11.09 | 11.19 | 11.31 | ||||
NOCT: Irradiance at 800W/m², Ambient Temperature 20°C, Wind Speed 1m/s. AM 1.5G | ||||||||

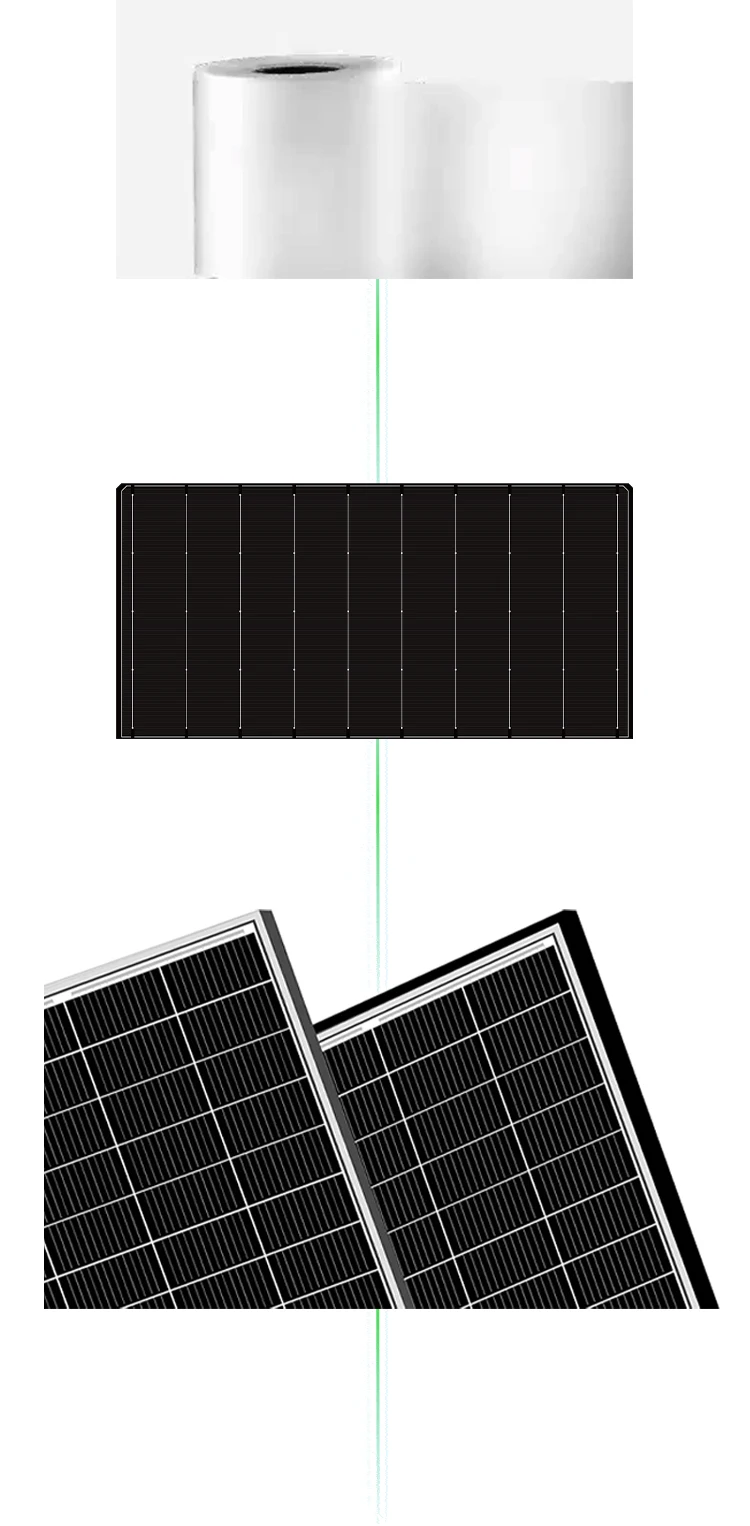

Solar EVA
Longer Durability.
High Transmittance High GEL Content
Provide Good Encapsulation And Protect Cells From Vibration
Solar Cell
N Type
182mm * 182mm
MBB 16BB
High Efficiency Tier 1 Cells Material
Solar Frame
Anodized Aluminium Alloy
Thickness 30mm
Black / Silver Color Optional
Black / Silver Color Optional

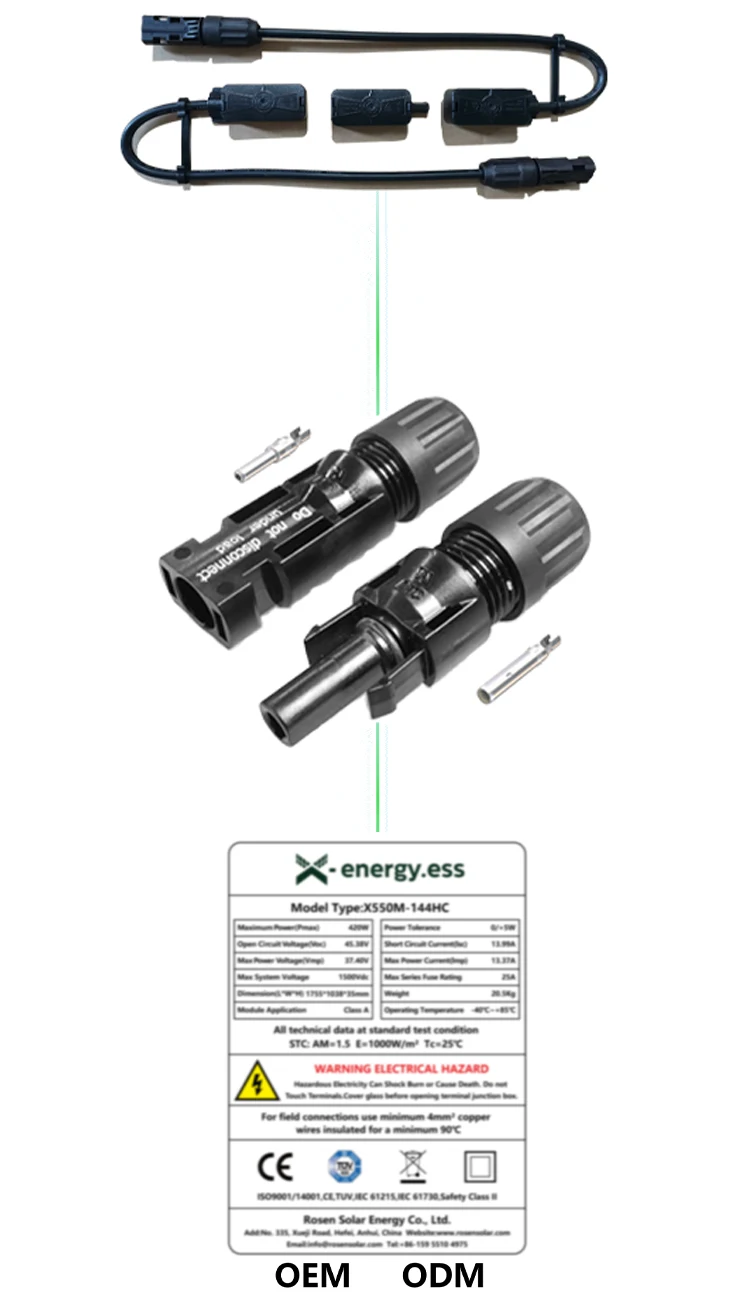

Junction Box
IP 68 Rated Waterproof
With 3 Diodes
Innovative Full-Glue-FilledCustomized PV Cables Length
Compatible MC4
500N Tensile Strength
Female/Male/Fuse
Compatible 1500V System Voltage
Solar Panel Label
Waterproof Label
Customized Logo
Customized Logo
More Convenient For Brand Promotion
Clear Understanding Of Product Parameters

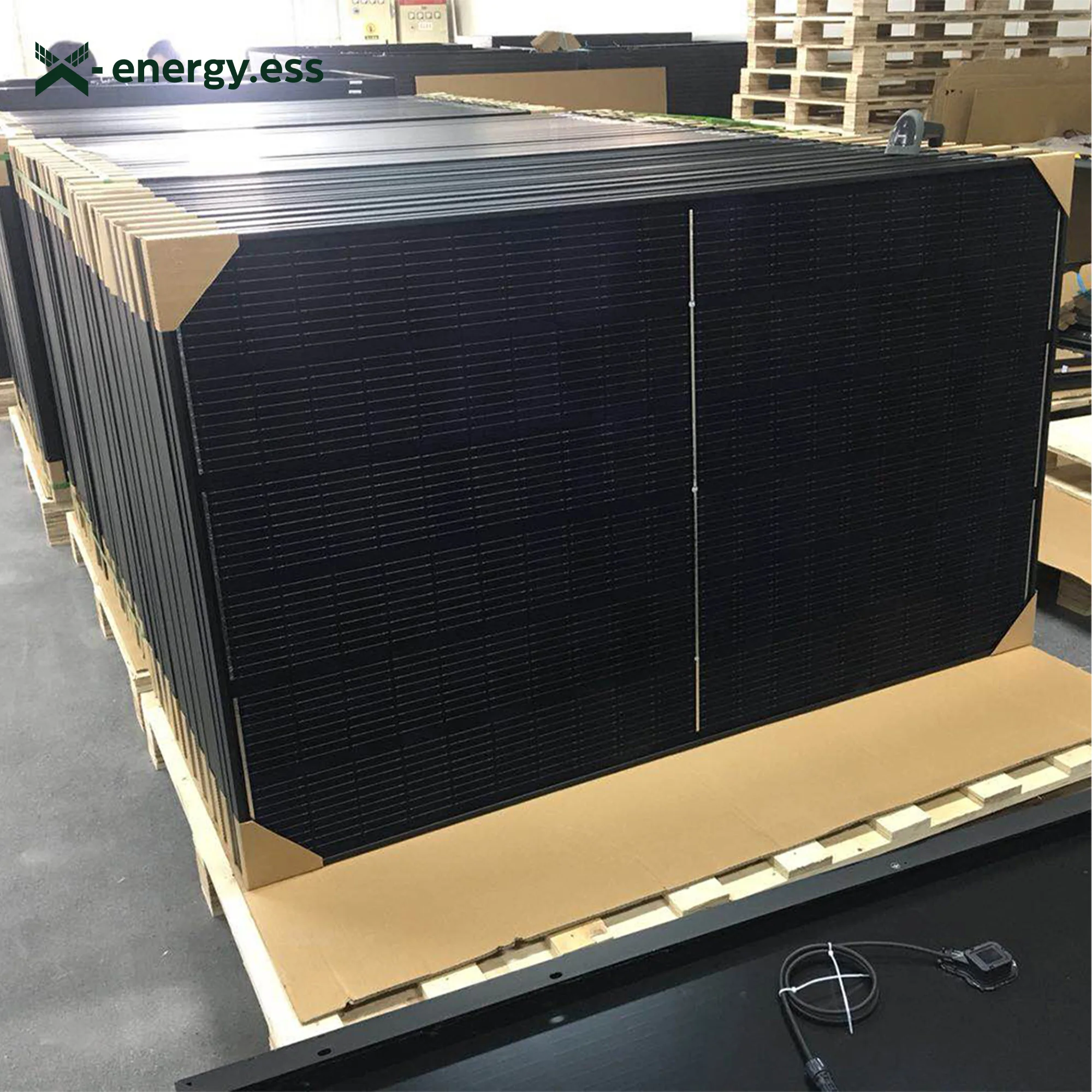

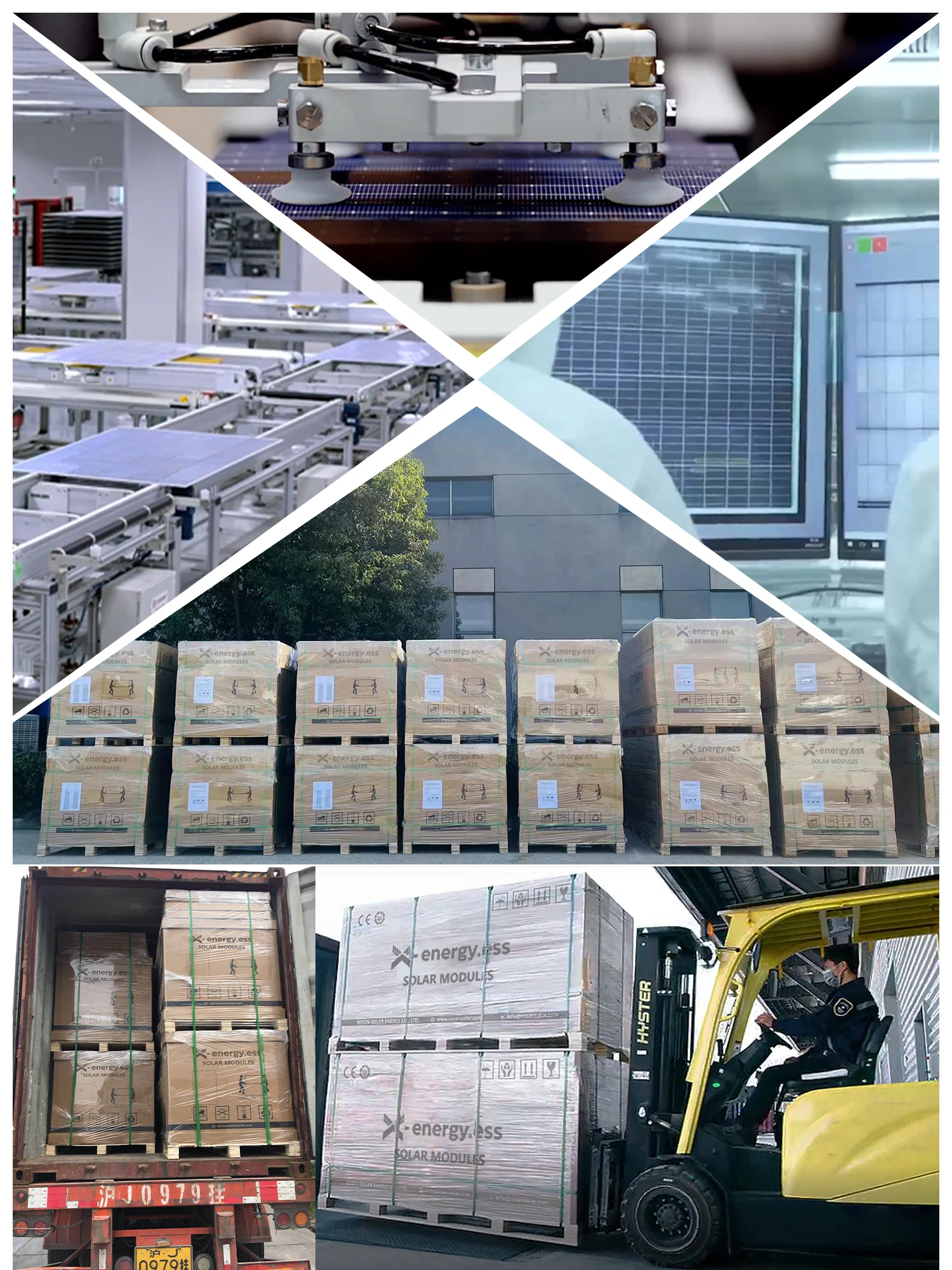

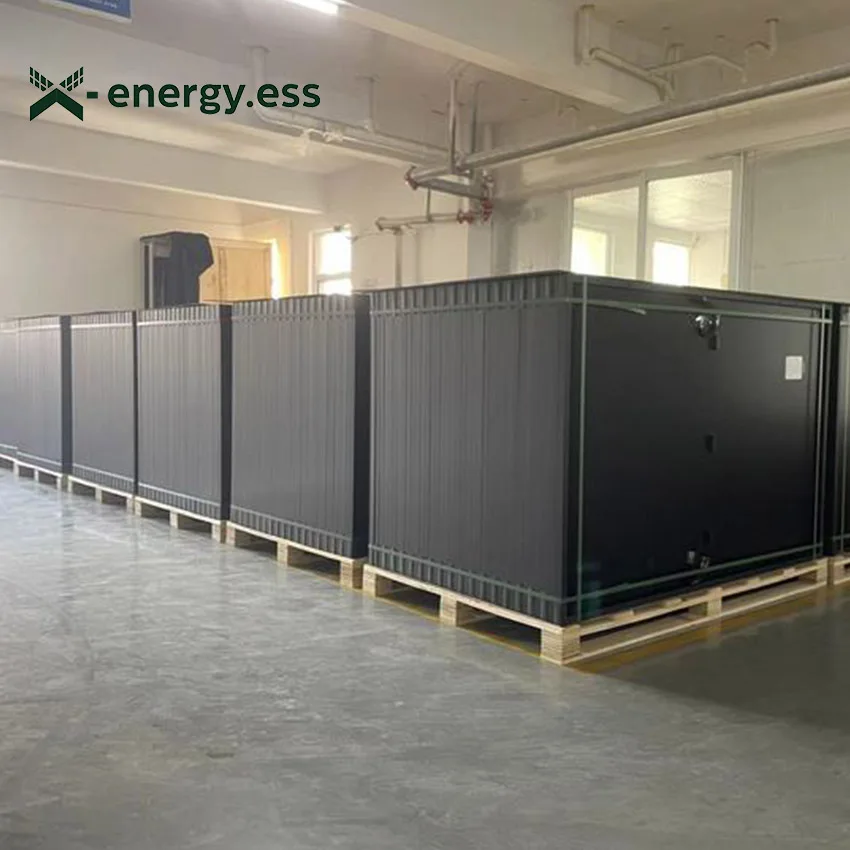

Production & Packaging

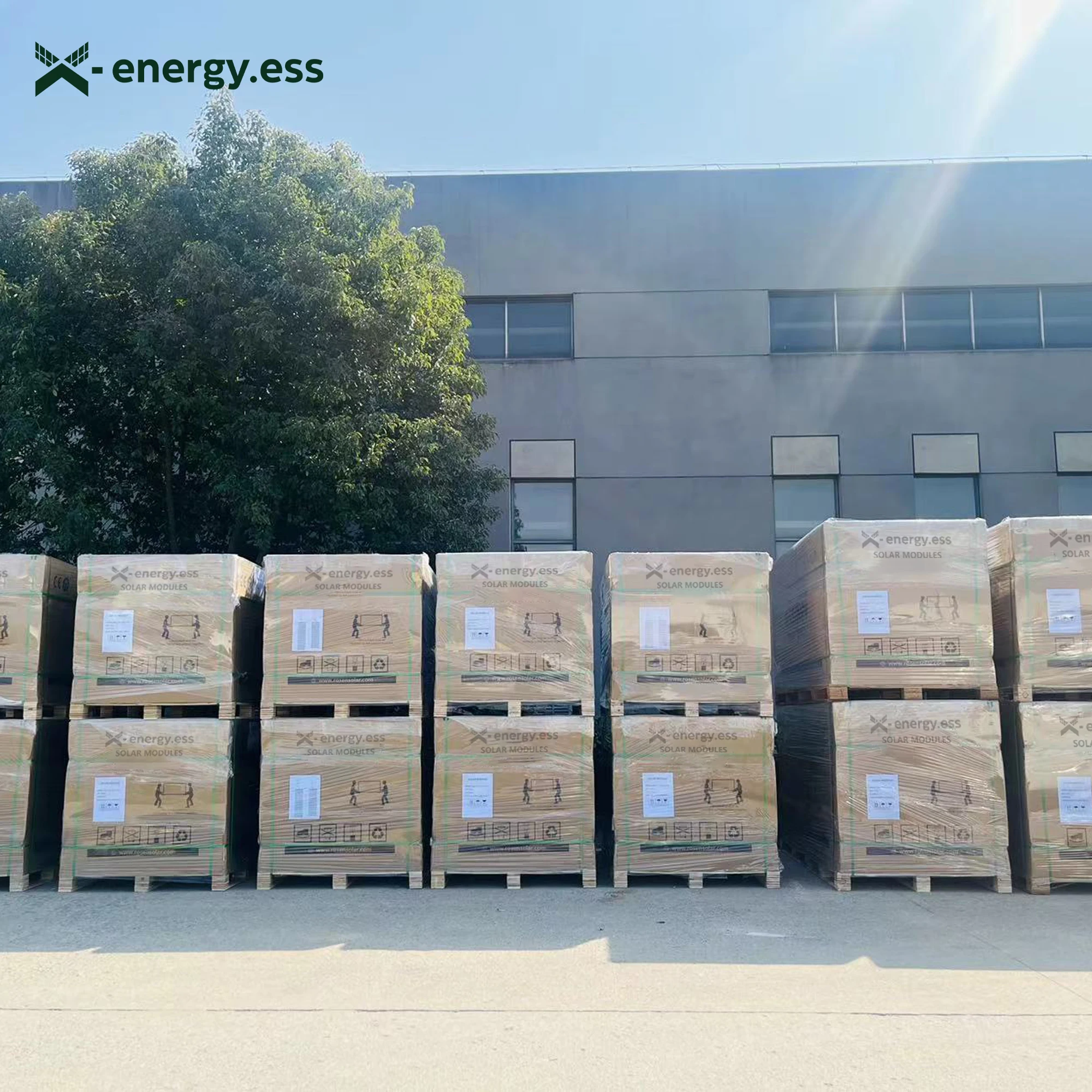

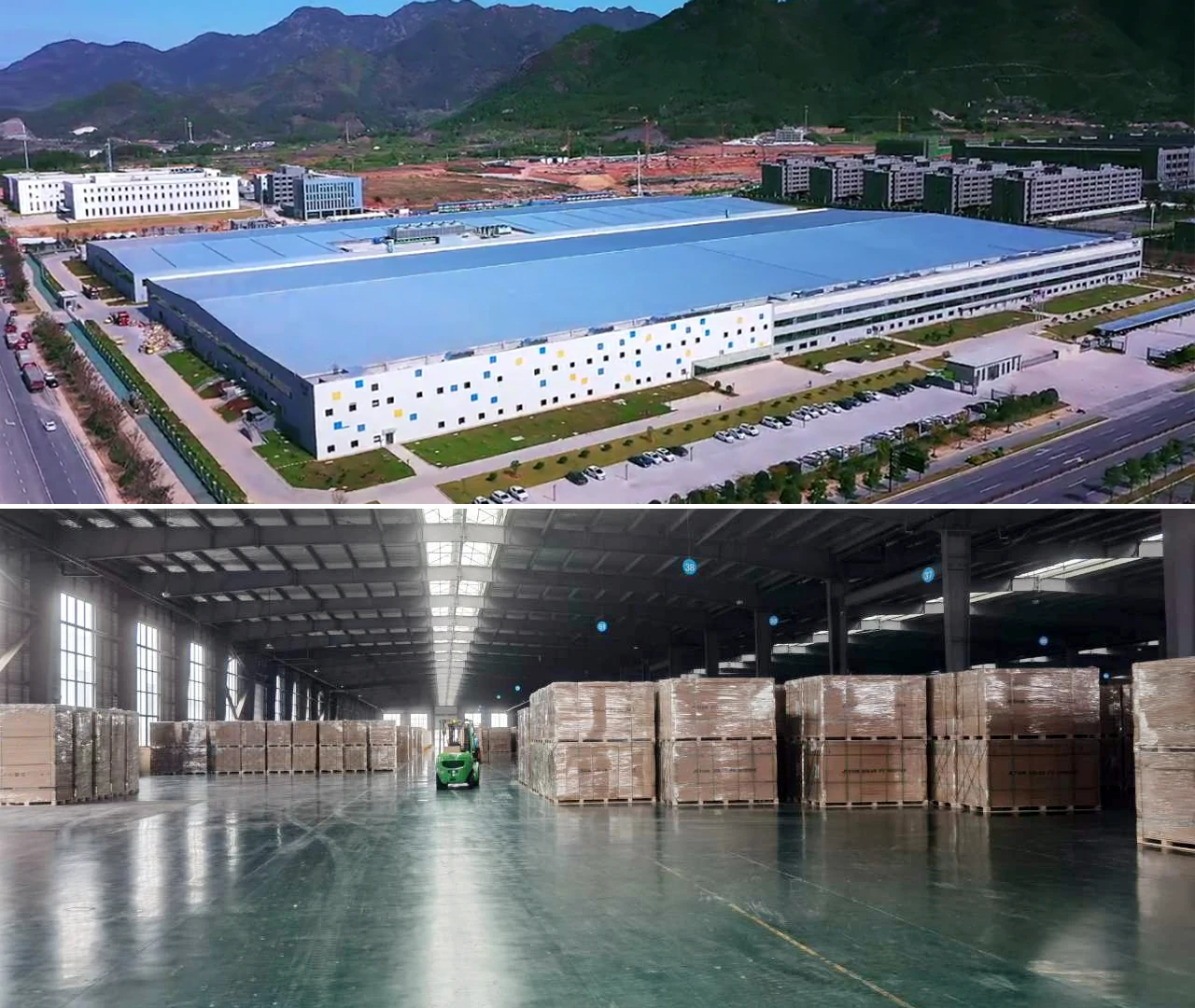

Factory & Stock
Projects

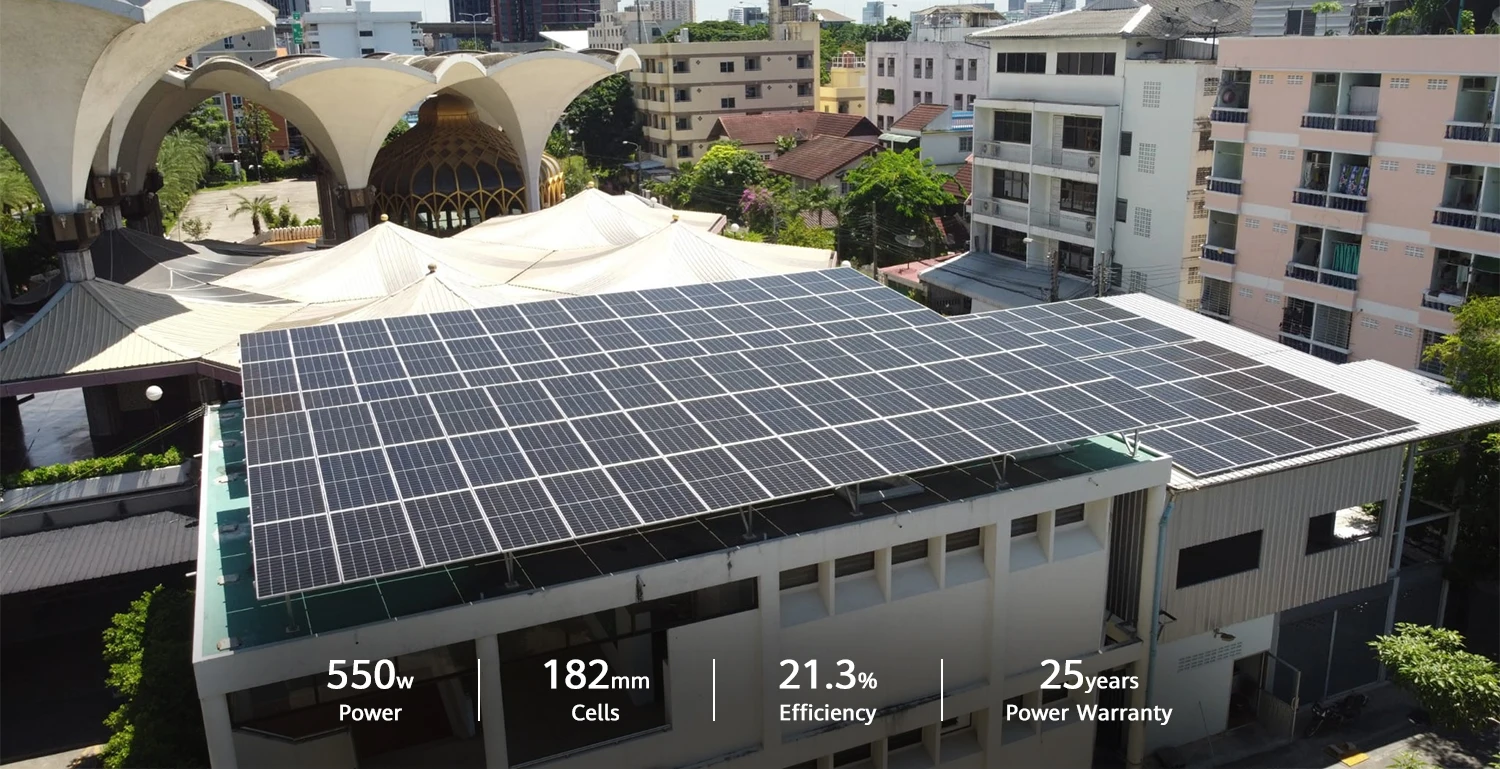

550W Solar Panels System
• Installation Date : July 2021
• Installation Location: Chiang Mai, Tailandia
• Solar Cells : 144 Half Mono Cells 182MM 10BB
• Module Dimensions: 2279 * 1134 *35 mm

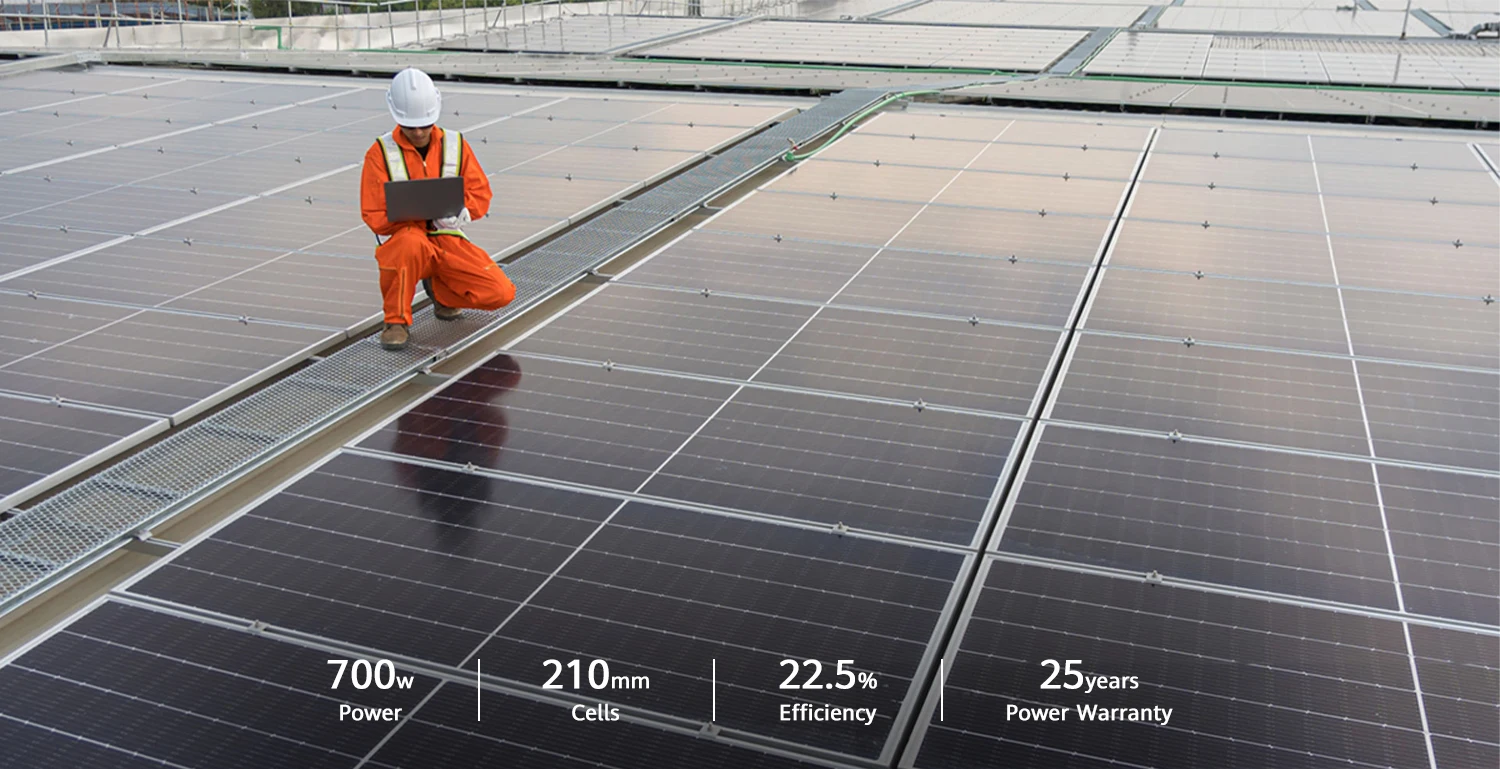

700W PV Module System
• Installation Date : May 2022
• Installation Location: Deva, Romania
• Solar Cells : 132 Half Mono Cells 210MM 12BB
• Module Dimensions: 2385 * 1303 *35 mm

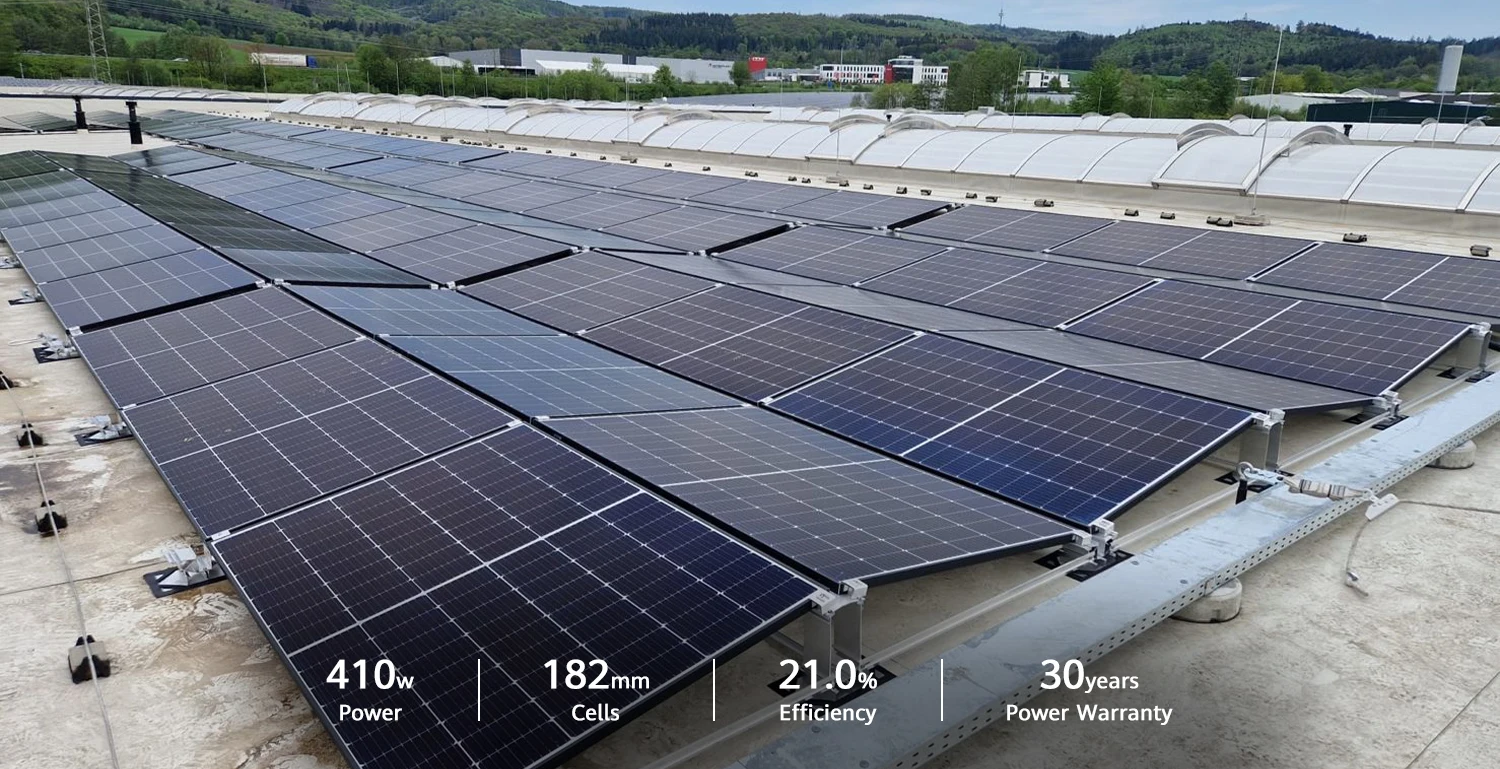

410W Black Solar Panels System
• System Installation Time ：February 2023
• Installation Location: Brussels, Belgium
• Installation Location: Brussels, Belgium
• Solar Cells : 108 Half Mono Cells 182MM 10BB
• Module Dimensions: 1722 * 1134 *30 mm

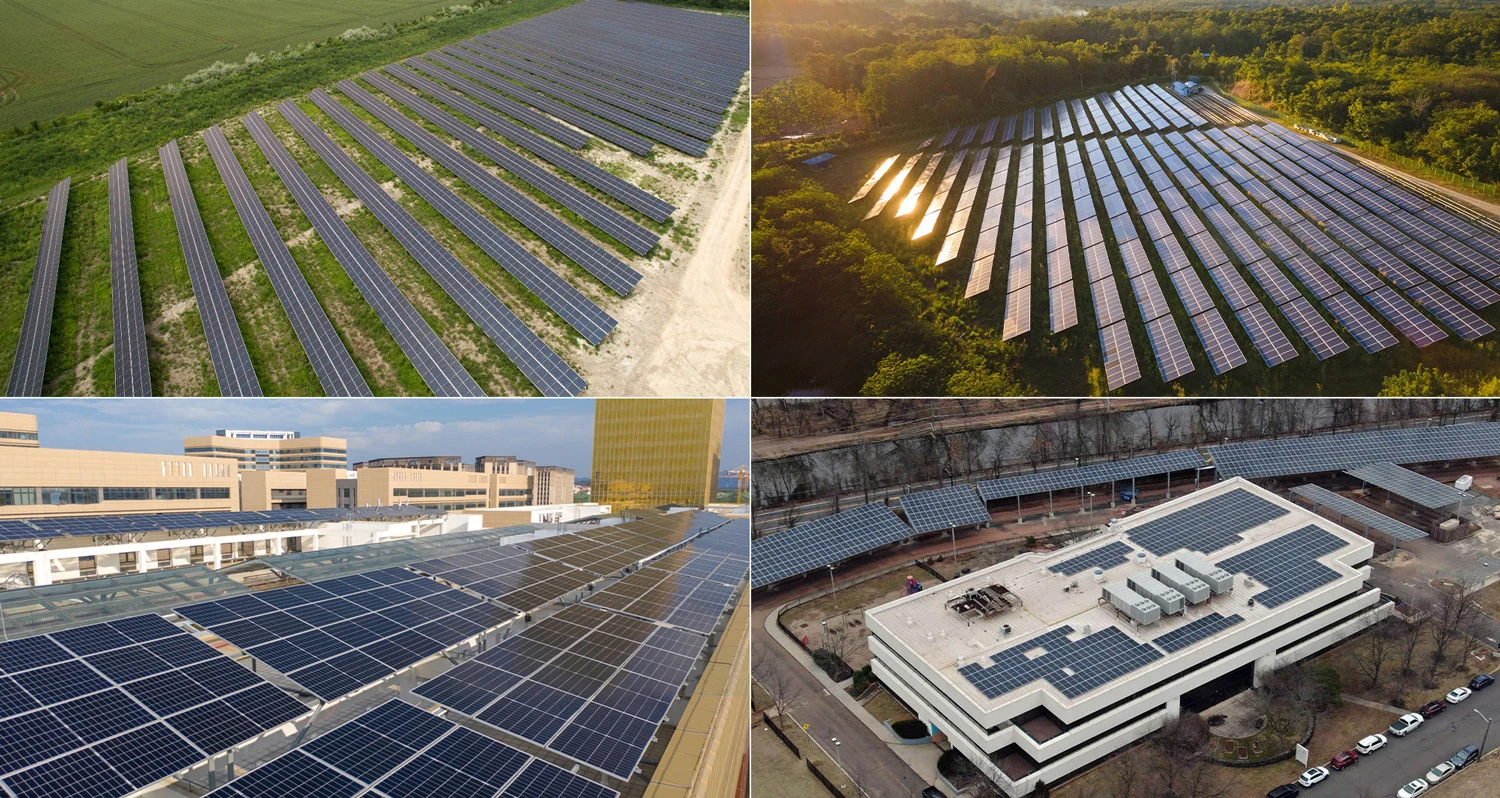

Large Photovoltaic Power Station
• On Grid Solar System
• ESS Container System
• ESS Container System
• Farm Power Supply Solar Battery System
• Micro Grid Solar Power Station
FAQ
1, How long is the delivery time of photovoltaic solar systems?
"Usually delivery time about 10work days for pv solar systems, please note in advance if you need it to be faster"
2, Solar panels are fragile, how to avoid damage during transportation?
"We pack all solar panels by customized solid wooden box for better protection"
3, Which types of solar panels do you use for solar system?
"PERC or N- type Topcon are all available，hot selling items are 410W, 450W, 550W, 620W, 650W and 700w solar panels etc. All are compatible with the whole PV system"
4, How does the client know about the whole solar energy system connection？
"Not only get products, customers also get our technical support and services，customer can install as per the wiring diagram. or call us directly to get online installation guide service"
5, How many kwh batteries does customer need for the photovoltaic system?
"Usually, 5kw system with 5-20kwh battery energy storage, 10kw system with 10-30kwh batteries. our sales will help you choose the suitable solar energy storage system solution"
6, Which types of battery you supply for energy storage systems?
"Now we mainly have storage batteries of deep cycle maintenance free lead acid battery or most popular Lithium ion Batteries powerwall or stackable rack types, which is compatible with most hybrid solar inverter communication"
7, Do you manufacture large containerized lithium ESS?
"Yes, we design the complete ESS for you with connection layout, PV simulation, ROI,installation, training, commissioning etc. Now we are mainly installing factory projects about 100kwh to 500kwh storage ESS with 10/20feet containers, HVAC, hybrid inverter, PCS chargers, battery storage, mounting brackets etc"
8, How does customer get best quotation and technical datasheet?
"Please send enquiry and leave your contact，our sales will get in touch with you and discuss the solar system in details"
"Usually delivery time about 10work days for pv solar systems, please note in advance if you need it to be faster"
2, Solar panels are fragile, how to avoid damage during transportation?
"We pack all solar panels by customized solid wooden box for better protection"
3, Which types of solar panels do you use for solar system?
"PERC or N- type Topcon are all available，hot selling items are 410W, 450W, 550W, 620W, 650W and 700w solar panels etc. All are compatible with the whole PV system"
4, How does the client know about the whole solar energy system connection？
"Not only get products, customers also get our technical support and services，customer can install as per the wiring diagram. or call us directly to get online installation guide service"
5, How many kwh batteries does customer need for the photovoltaic system?
"Usually, 5kw system with 5-20kwh battery energy storage, 10kw system with 10-30kwh batteries. our sales will help you choose the suitable solar energy storage system solution"
6, Which types of battery you supply for energy storage systems?
"Now we mainly have storage batteries of deep cycle maintenance free lead acid battery or most popular Lithium ion Batteries powerwall or stackable rack types, which is compatible with most hybrid solar inverter communication"
7, Do you manufacture large containerized lithium ESS?
"Yes, we design the complete ESS for you with connection layout, PV simulation, ROI,installation, training, commissioning etc. Now we are mainly installing factory projects about 100kwh to 500kwh storage ESS with 10/20feet containers, HVAC, hybrid inverter, PCS chargers, battery storage, mounting brackets etc"
8, How does customer get best quotation and technical datasheet?
"Please send enquiry and leave your contact，our sales will get in touch with you and discuss the solar system in details"
9, How do customers know how many KW photovoltaic system they need?
"We will comprehensively calculate the photovoltaic system suitable for you based on your monthly electricity bill and the total power of home appliances"
10, Can you provide solar system solutions for free before ordering?
"Yes, X Energy provide free and professional solar system solutions , and customers place the order after everything is clear."
"We will comprehensively calculate the photovoltaic system suitable for you based on your monthly electricity bill and the total power of home appliances"
10, Can you provide solar system solutions for free before ordering?
"Yes, X Energy provide free and professional solar system solutions , and customers place the order after everything is clear."
