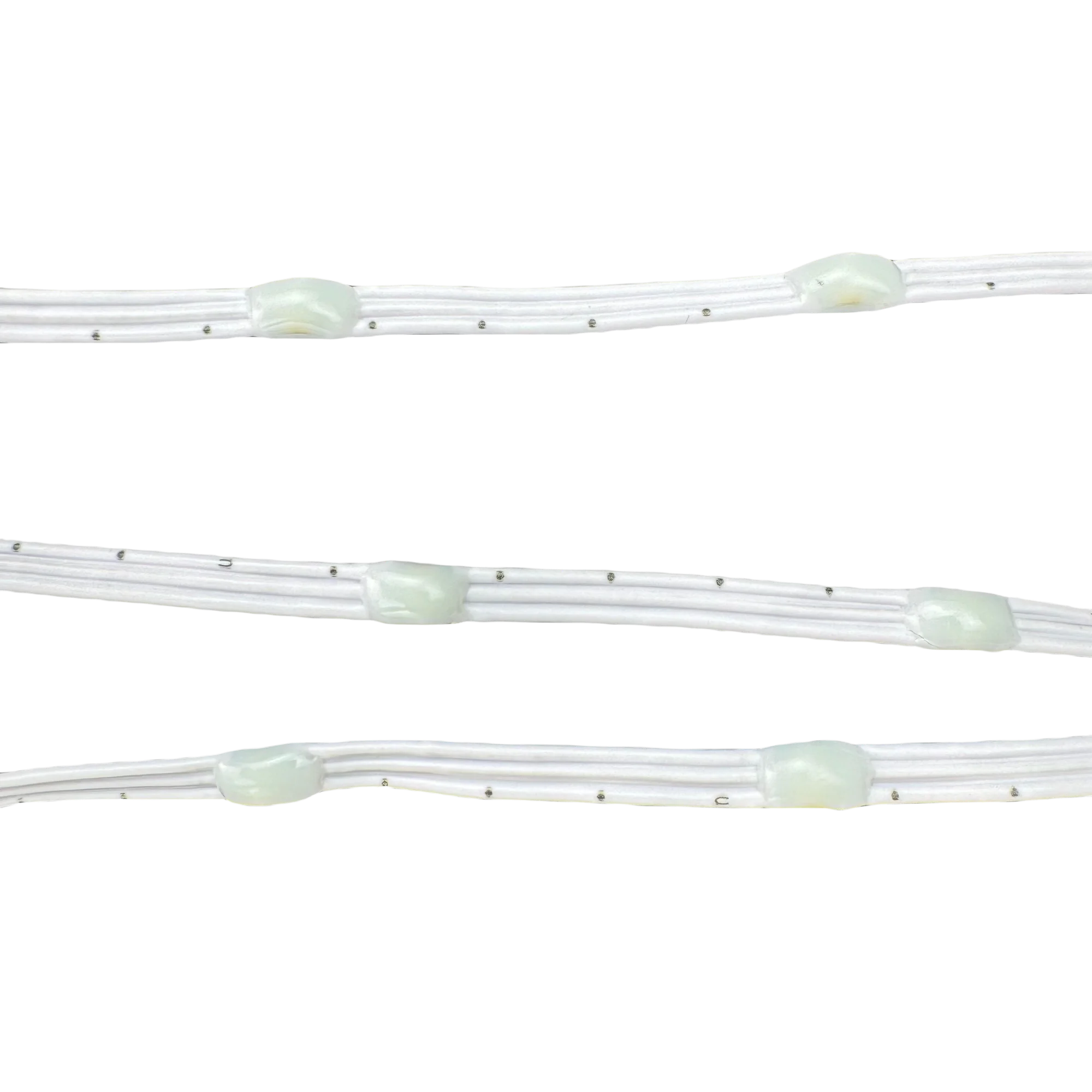

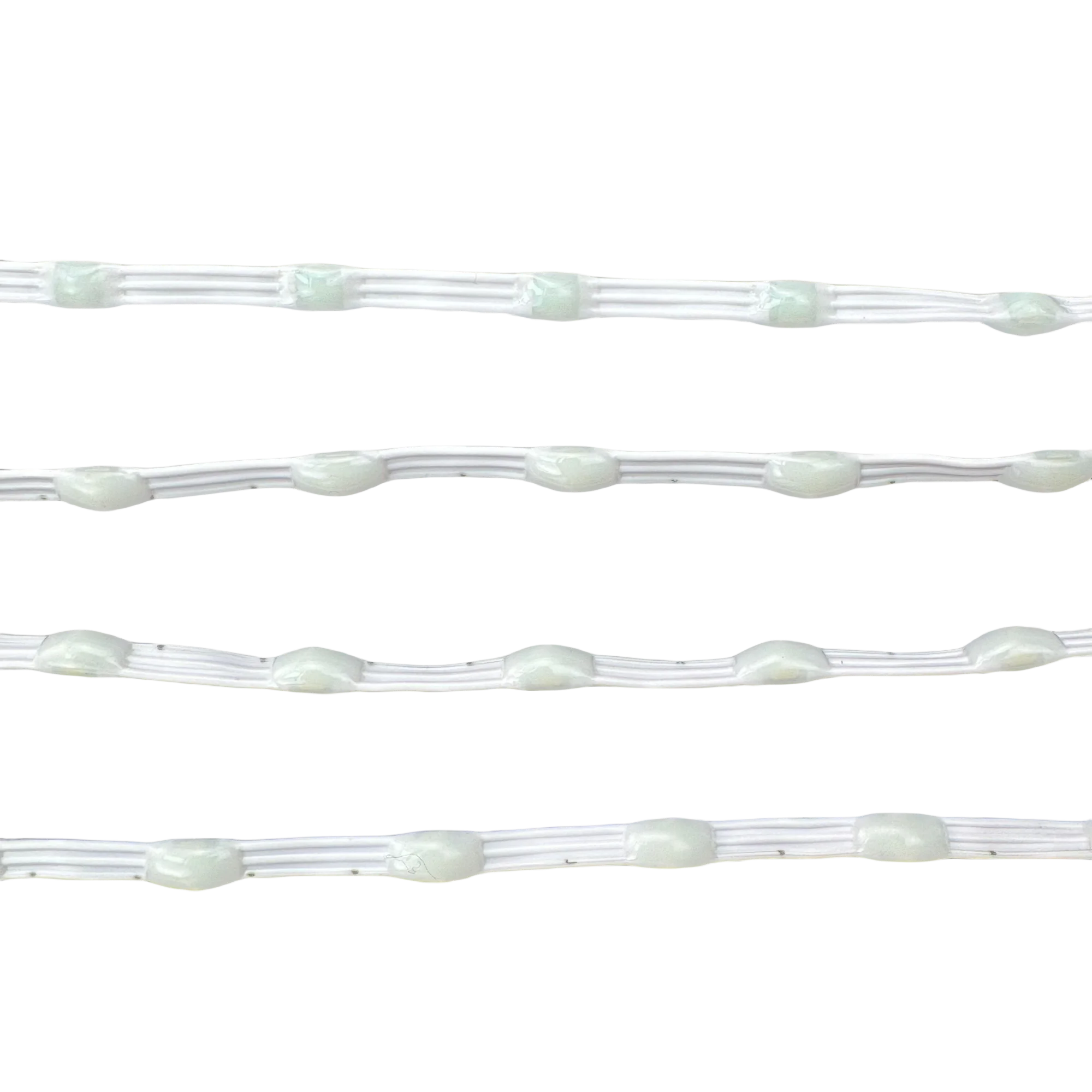

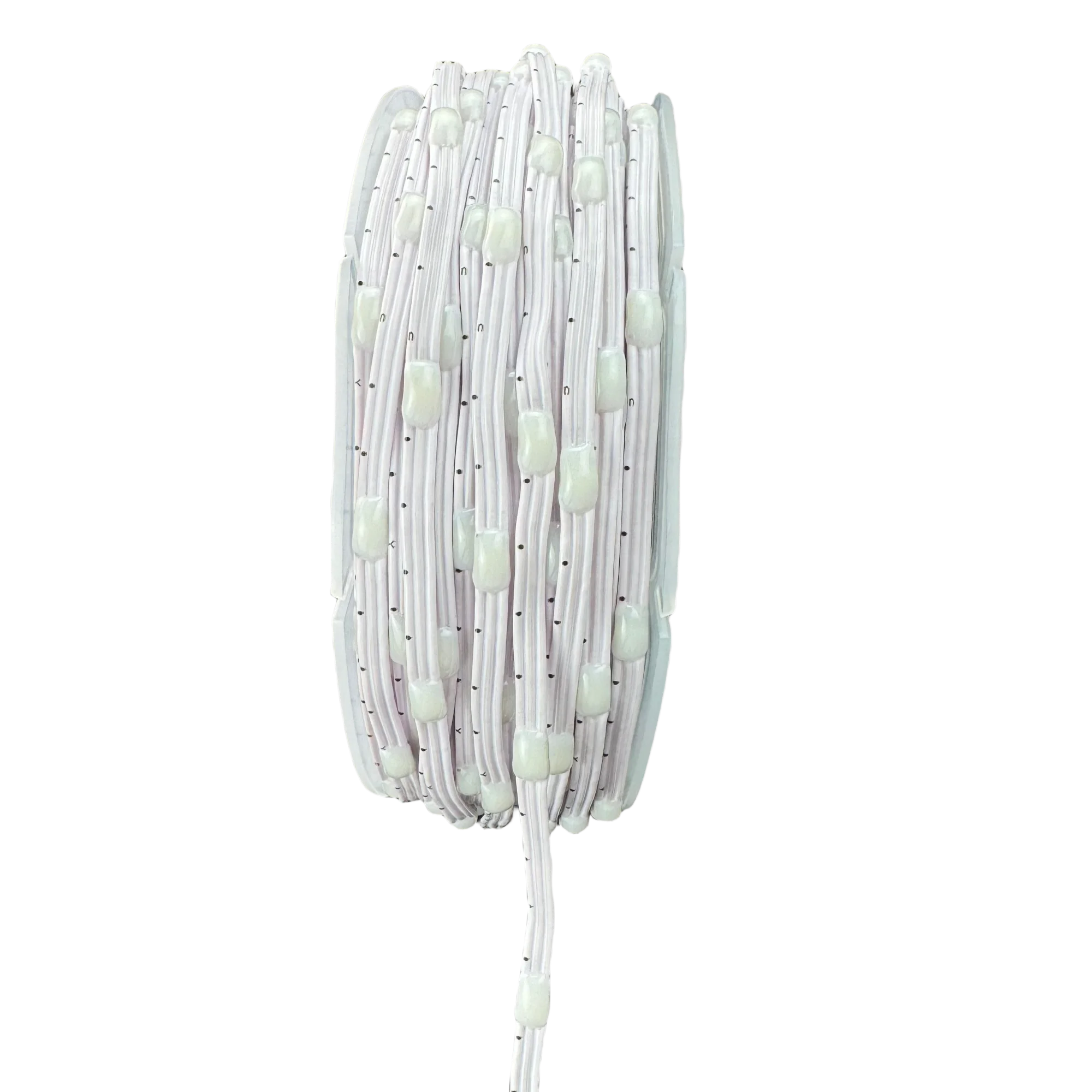

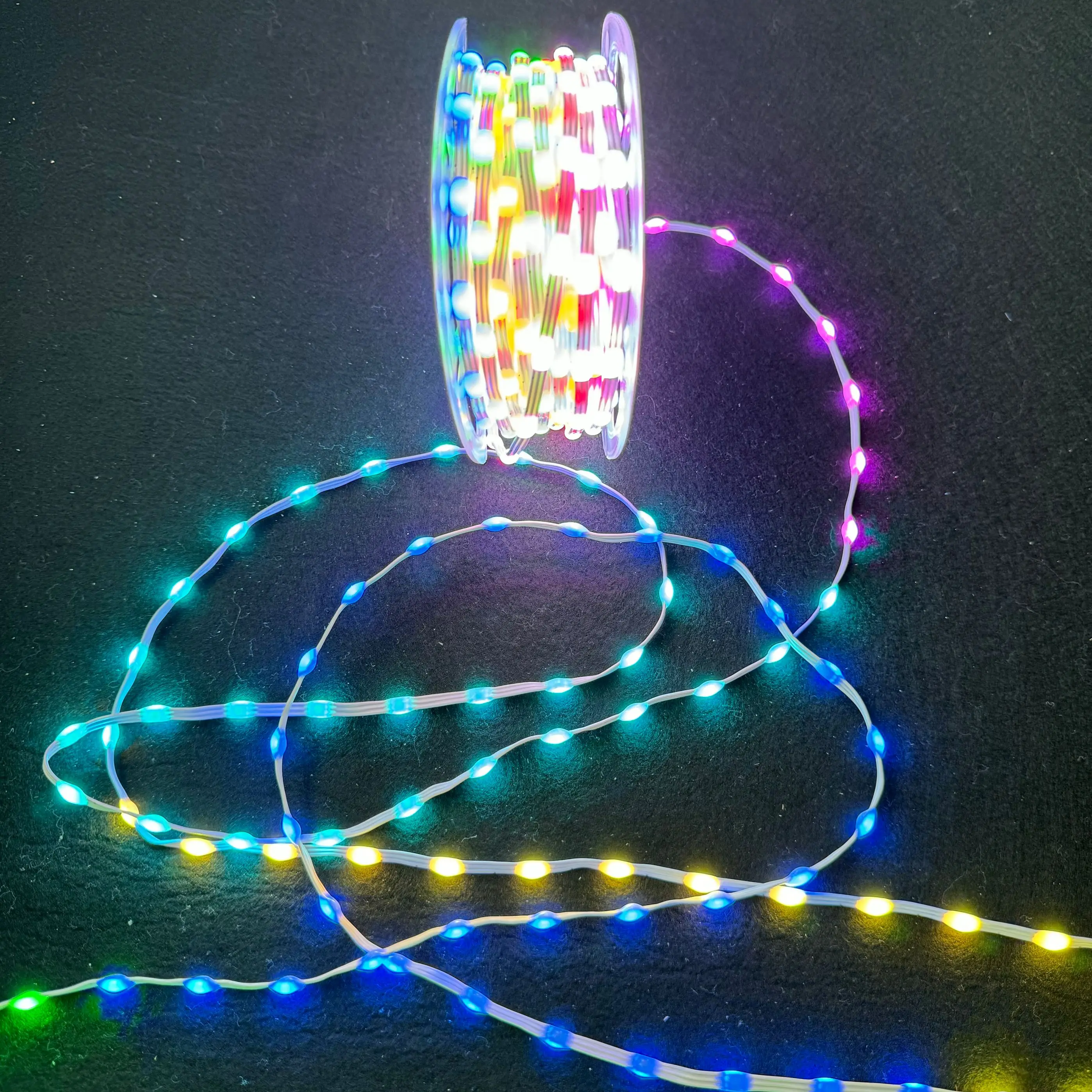

DC12V 1000ct Pixels 25mm/50mm Pitch WS2811 LED Pebble Seed Pixel String Light RGB Addressable Full Color IP67 White Wire

Product Overview

Description



Working Input Voltage:                        DC12V

Output Power:                                     0.01W/pcs led.

Emitted Color:                                     WS2811 RGB IC,addressable RGB full color

Color Order:                                        G R B (not RGB)

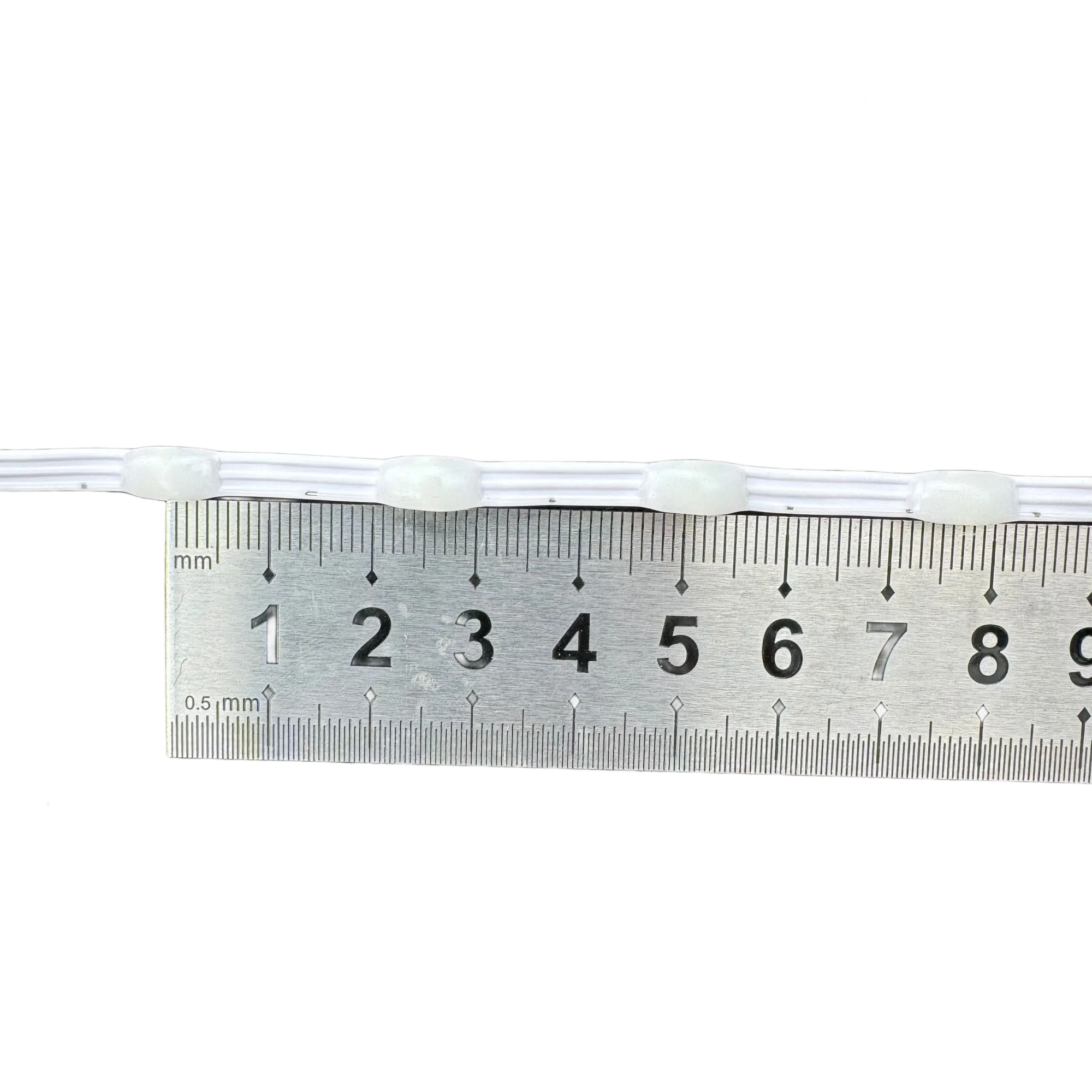

LED Space:                                        25mm/50mm pitch

LED quantity:                                      one LED as one pixel(addressable);total 1000ct/string

Power injection:                                   suggest to add voltage at every 100 LED

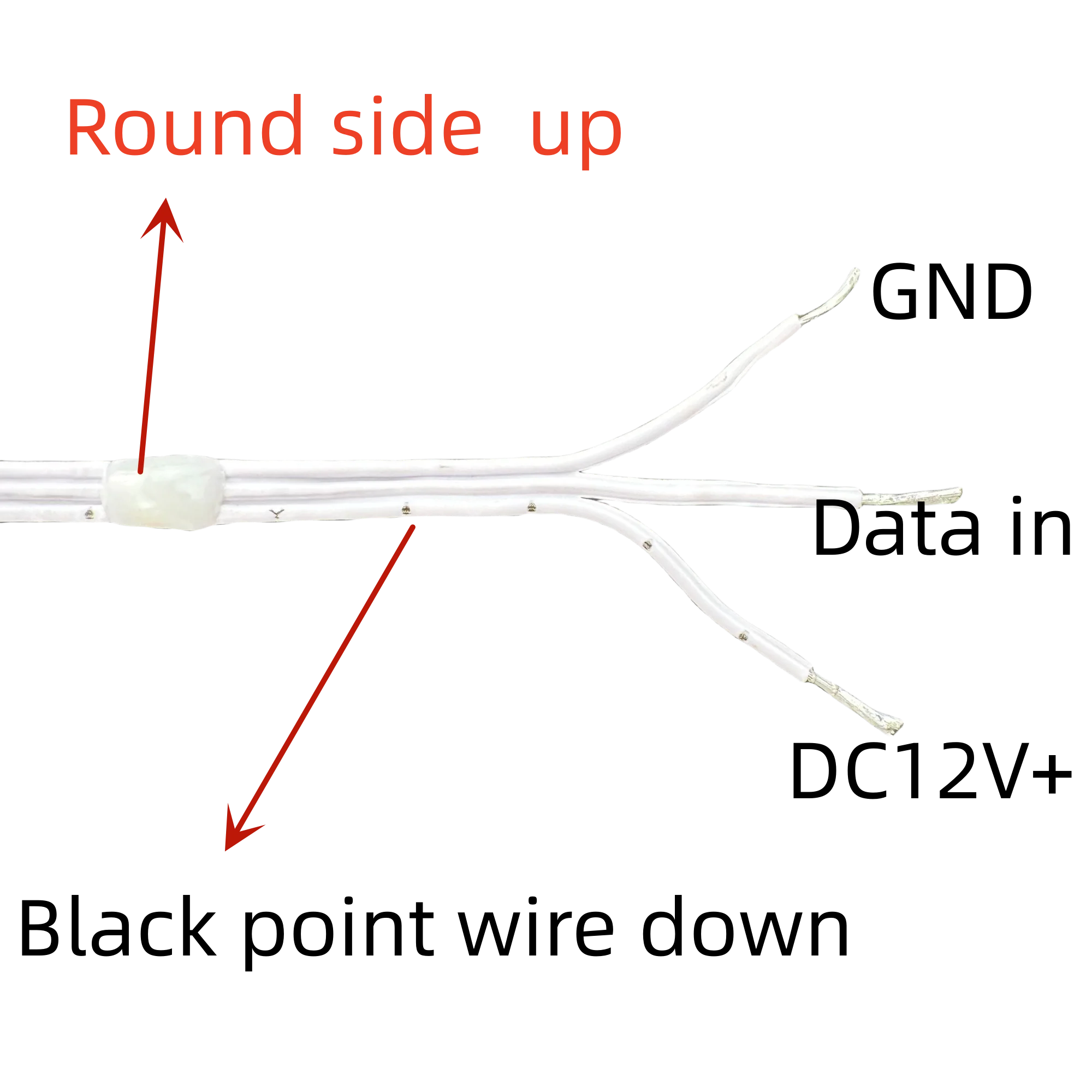

Wire color:                                           24AWG all White 3PIN wire (VCC+,DATA,GND)

Wire length:                                         1.5m wire spacing; so 1000 pixels/string is 15m long

                                                             2.0cm wire spacing; so 1000 pixels/string is 20m long

                                                             2.5cm wire spacing; so 1000 pixels/string is 25m long

                                                            3.0cm wire spacing; so 1000 pixels/string is 30m long

                                                             5.0cm wire spacing; so 1000 pixels/string is 50m long

                                                            10.0cm wire spacing; so 1000 pixels/string is 100m long

View Angle:                                         360 degree.

Long Life:                                            more than 50000 hours.

Working Tempreture:                           -20~50°.

Waterproof level:I                                P67 Waterproof

Warranty:                                             2 Year.



Warm Tips:   for this 1000ct/3000ct pixels string, you can not light them up without adding power injection every 200-300 pixels, so need to cut them up to use.



Recommended Controllers:

APP bluetooth & WIFI/SD card/Artent SPI etc
