free energy wind generator 1000w 2000w 3000w 5kw 10kw 20kw horizontal wind turbine

Model

RC-1000-A

Rated Output

1000W

Peak Output

1050W

Rated Voltage

24/48V AC

Start-up Wind Speed

2.5m/s

Cut-in Wind Speed

3m/s

Rated Wind speed

12m/s

Survival Max. wind

45m/s

Number of Blades

3

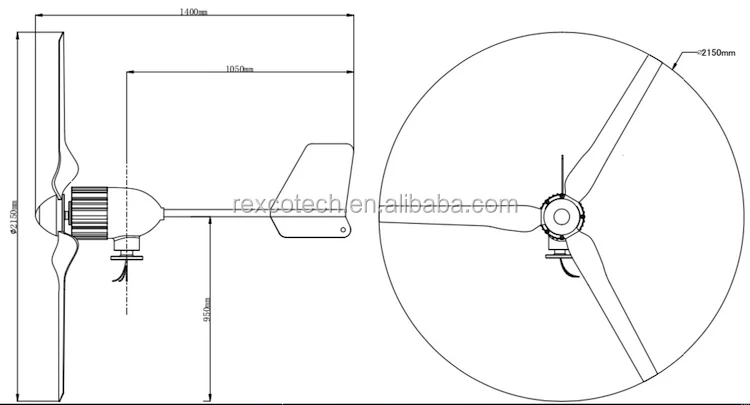

Rotor Diameter

195m

Swept Area

2.83M2

Blade Material

fiberglass reinforced composite

Generator Type

  3-phase PMA with high performance Neodymium Magnets

Generator case

Casting aluminum alloy

Controller Type

PWM

Over speed control

Automatically adjust windward direction

Net Weight

28kg

Tower Connector

Flange or Hoop

Flange Size *

DN40

Tower Type *

Guy Cable Tower

Tower Size *

3mX2, Φ76-3mm

Working Temp. range

from -40°C to 60°C

Product Life

15 years

Warranty

1 years

Applications

solar & wind hybrid lighting, off-grid power system etc.

Measurement

132*40*30 cm

Gross Weight

31kg
