Product Overview
Description
Item | Product Parameter | ||||
Model | YY48100LS | YY48200LS | YY48300LS | ||
Batteries materials | Lithium iron phosphate | ||||
Series parallel mode (S series, P parallel) | 16S1P | 16S1P | 16S1P | ||
Nominal voltage | 51.2V | 51.2V | 51.2V | ||
Nominal capacity | 100Ah | 200Ah | 300Ah | ||

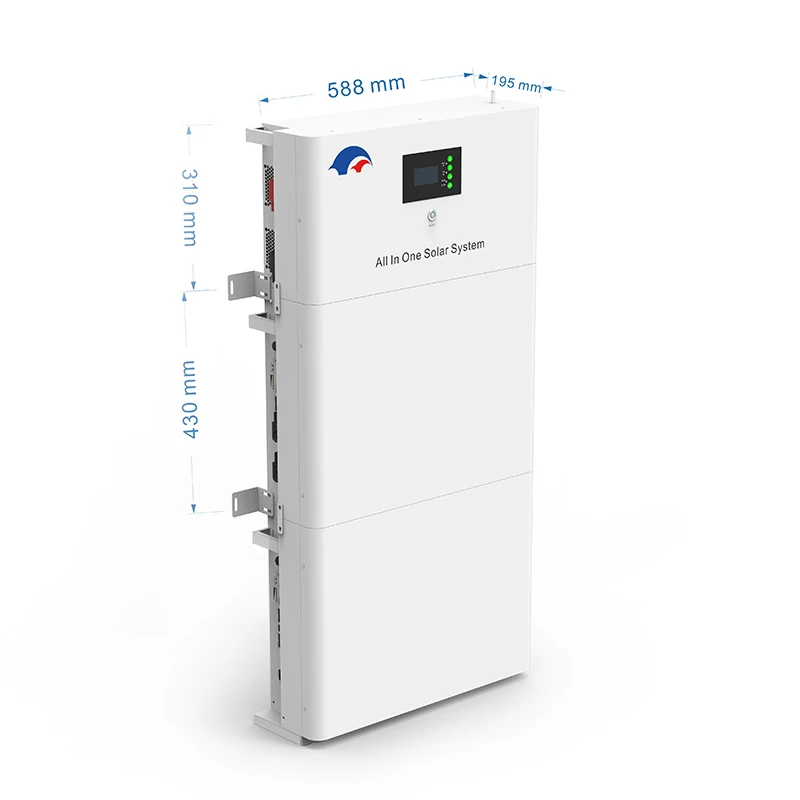

Size（mm） | 588*195*430/module | 588*195*430/module | 588*195*430/module | ||
Weight | 48KG | 96KG | 144KG | ||
Color | Optional | ||||
Parallel support | Parallel terminals are supported | ||||
Output port mode | terminal | ||||
Charging way | CC/CP/VP | ||||
Charging current0.2C(standard） | 0.2C(standard） | ||||
Maximum charging current | Max1C @25℃ | ||||
Charge cut-off voltage | 58.4V | ||||
Discharge way | CC/CP/VP | ||||
Discharge current | 1C | ||||
Maximum discharge current | Max1C @25℃ | ||||
Discharge cut-off voltage | 44.8V | ||||

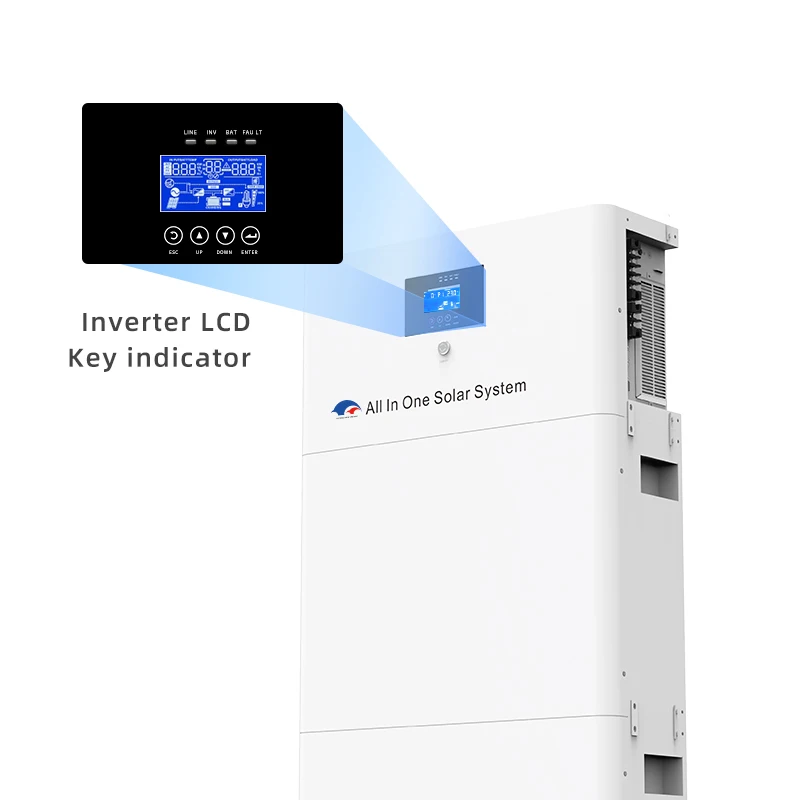

According to | LCD | ||||
Communication interface | RS485/RS232/CAN | ||||
Charging operating temperature | charging0~+50℃ | ||||
Discharge operating temperature | discharge-20~+55℃ | ||||
Warranty | 5 years | ||||
Inverter | 3.5/5.5KW | ||||
Scope of application | hospital, bank data center, wall-mounted home, enterprise energy storage backup power supply, wind complementary system, office, military, base station and other uninterrupted energy storage power supply. | ||||
