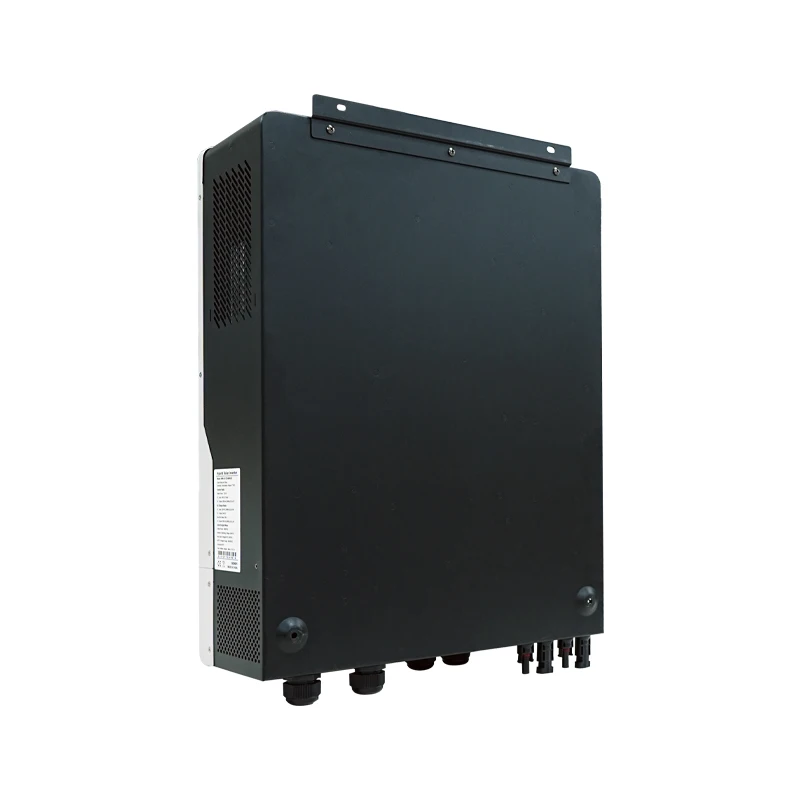

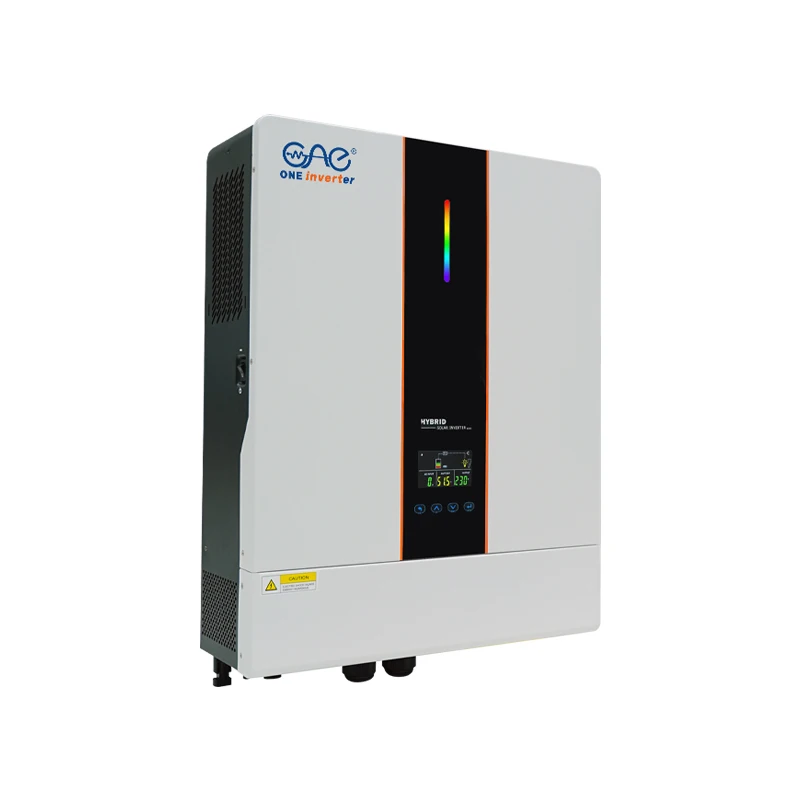

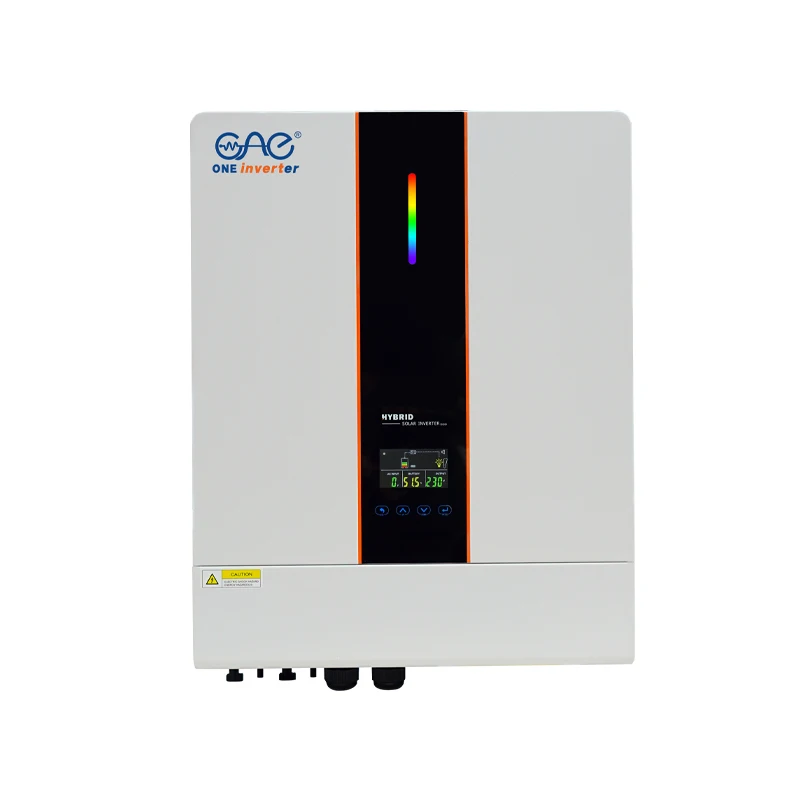

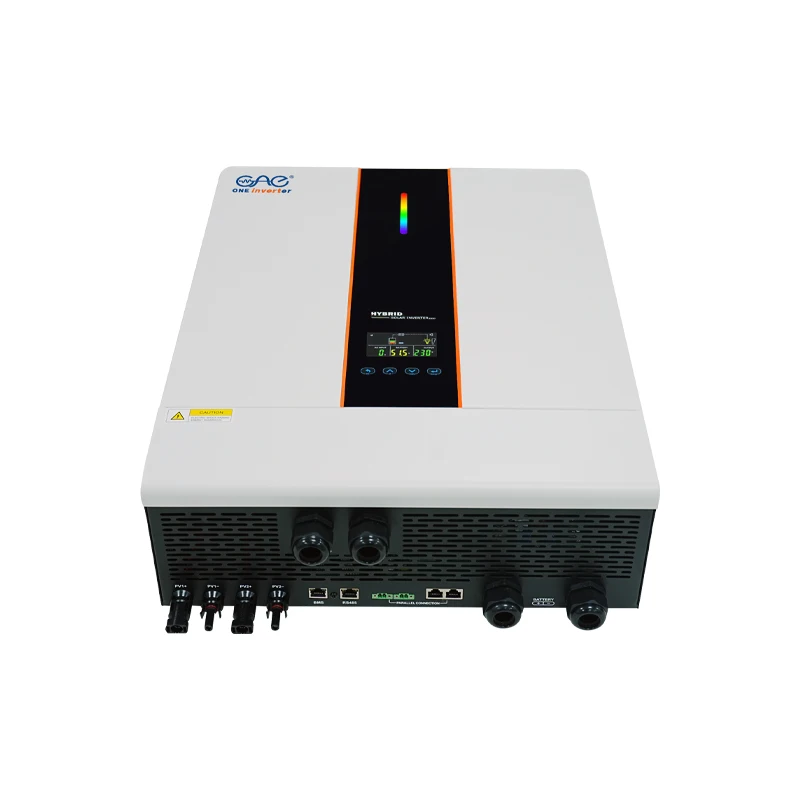

high frequency inverters off grid 7.2kw 7200w 48v hybrid solar inverter support parallel with 3 phase inverter
- Category: >>>
- Supplier: Foshan Top One Power Technology Co. Ltd.
Share on (1601097224834):
Product Overview
Description
Products Description
Specification
Model | HMK-F3-72248M160 | HMK-F3-10348M160 | ||
Rated Power | 7.2KW | 10.2KW | ||
Surge Power | 14.4KW | 20.4KW | ||
Parallel Function | YES | NO | ||
Norminal Battery Voltage | 48VDC | |||
Wave Form | Pure Sine Wave | |||
AC Voltage Regulation | 220/230/240VAC±5% | |||
Output Frequency | 50Hz or 60Hz | |||
Peak Efficiency | 93% | |||
Transfer Time | 10ms (UPS) ; 20ms ( Appliances) | |||
AC input | ||||
Norminal Input Voltage | 230VAC±5% | |||
Max AC input Voltage | 300VAC | |||
Voltage Range | 170-280VAC(UPS) ; 90-280VAC (Appliances) | |||
Solar Charger & AC Charger | ||||
AC Charging Current | 80A | 140A | ||
Maximum PV Array Open Circuit Voltage | 500VDC | |||
Start Up Voltage | 80VDC | 90VDC | ||
Solar Charging Current | 80/80A | 160A | ||
Solar Input | 8000W | 10200W | ||
Charging Algorithm | AGM/GEL/Lead Acid/Lithium Battery | |||
Dimension | ||||
Dimension,D x W x H (mm) | 589*437*152mm | 561*405*151mm | ||
Net Weight (kgs) | 18.7 | 14.5 | ||
Environment | ||||
Humidity | 5% to 95% Relative Humidty (Non-condensing) | |||
Operatng Temperature | -10℃~50℃ | |||
Storage Temperature | -10℃~60℃ | |||
Note: Product specifications are subject to change without further notice. | ||||
Company Profile
Certifications
FAQ
FAQ
Q1: Does your company also provide other solar products except Inverter?
A1: Yes, we also provide other solar products, like MPPT Solar Controller,off grid solar inverter, lithium battery, High frequency solar inverter etcm, related to the solar power system.
Q2: How to choose a right inverter?
A2: Tell us your demand, our sales will recommend a suitable inverter to you.
Q3: How about the delivery time?
A3: 7-15 days for sample, bulk order will be negotiated.
Q4: What is the warranty of inverter?
A4: 1 year warranty.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
Q1: Does your company also provide other solar products except Inverter?
A1: Yes, we also provide other solar products, like MPPT Solar Controller,off grid solar inverter, lithium battery, High frequency solar inverter etcm, related to the solar power system.
Q2: How to choose a right inverter?
A2: Tell us your demand, our sales will recommend a suitable inverter to you.
Q3: How about the delivery time?
A3: 7-15 days for sample, bulk order will be negotiated.
Q4: What is the warranty of inverter?
A4: 1 year warranty.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
