Product Overview
Description
Local warehouse in Germany/ South Africa/ Philippines/Thailand/Burma : Fast delivery within 7 days
It's best time to have quick shipping! Feel free to contact us any time!
It's best time to have quick shipping! Feel free to contact us any time!
Products Description
Product Paramenters
Model | LFH51100 | LFH51200 | LFH10050 | |||||||
Battery pack parameter | ||||||||||
Cell type | LFP | |||||||||
Nominal Voltage | 51.2V | 51.2V | 102.4V | |||||||
Nominal Capacity | 100Ah | 200Ah | 50Ah | |||||||
Rated capacity | 5.12kWh | 10.24kWh | 5.12kWh | |||||||
Max Charging/Discharging rate | 1C/100A | 0.5C/100A | 0.5C/100A | |||||||
Size | 421*480*165mm | 773*560*165mm | 421*480*180mm | |||||||
Weight | 40kg | 80kg | 40kg | |||||||
Usage | 8-10 Years | |||||||||
8-10 Years | 6000 (@ 80% DoD) | |||||||||
Stackable pc(s) | ||||||||||
Stackable pc(s) | 8 PCS | 12 PCS | 8 PCS | 12 PCS | 6 PCS | |||||
Nominal Voltage | 409.6V | 614.4V | 409.6V | 614.4V | 614.4V | |||||
Work Voltage | 345.6-460.8V | 518.4-691.2V | 345.6-460.8V | 518.4-691.2V | 518.4-691.2V | |||||
Relevant capacity | 40.93kWh | 61.44kWh | 81.92kWh | 122.88kWh | 30.72kWh | |||||
General Parameter | ||||||||||
Cabinet Size | 506*556*1835 mm | 506*556*2410 mm | 826*636*1723 mm | 826*636*2410 mm | 506*556*1835 mm | |||||
Cabinet Weight | 75kg | 98kg | 95kg | 130kg | 75kg | |||||
Case Material | Industrial Grade Iron | |||||||||
Enclosure Protection | IP20 | |||||||||
Installation | Cabinet | |||||||||
Communication | CAN/RS485(WIFI,bluetooth is optional and need extra cost) | |||||||||
Certifications | CE,FCC, CCC | |||||||||
Shipping Classification | UN 38.3. UN 3480, MSDS | |||||||||
Lvfu Lifepo4 High Voltage Battery 60Kwh 80Kwh 120Kwh Hv 48V 100Ah 200Ah Lithium Battery
LVFU 100Ah 200Ah Lifepo4 Bms 48V 100Kwh Ip54 Lithium 1Mw Battery High Voltage
LVFU 100Ah 200Ah Lifepo4 Bms 48V 100Kwh Ip54 Lithium 1Mw Battery High Voltage
LVFU 100Ah 200Ah Lifepo4 Bms 48V 100Kwh Ip54 Lithium 1Mw Battery High Voltage
LVFU 100Ah 200Ah Lifepo4 Bms 48V 100Kwh Ip54 Lithium 1Mw Battery High Voltage

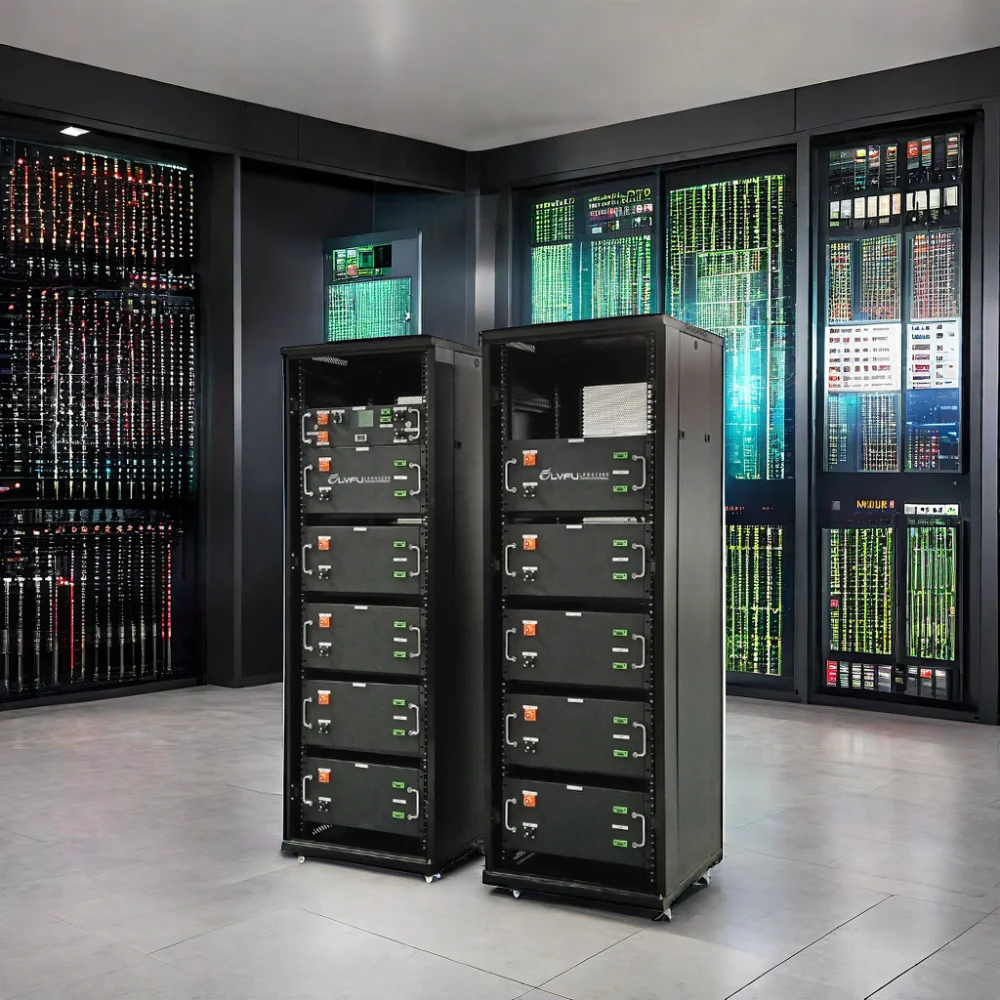

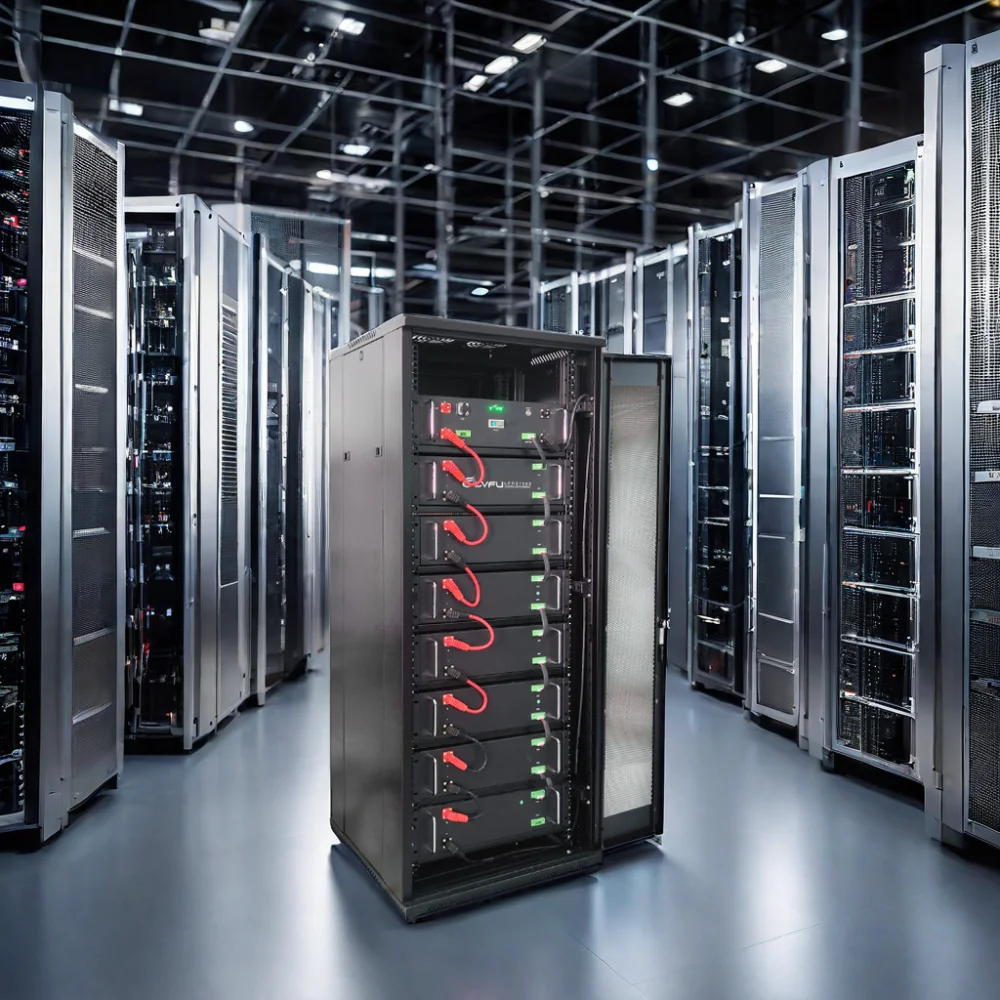

This rack-mounted battery designed for high-voltage applications (three-phase residential systems, industrial and commercial energy storage, microgrids, high-voltage UPS).And the high-voltage box is equipped with GPS, WIFI, Bluetooth, etc., which allows for real-time monitoring of the battery's data and information, is Modular, lightweight, intelligent, easy to install and portable high voltage battery system.

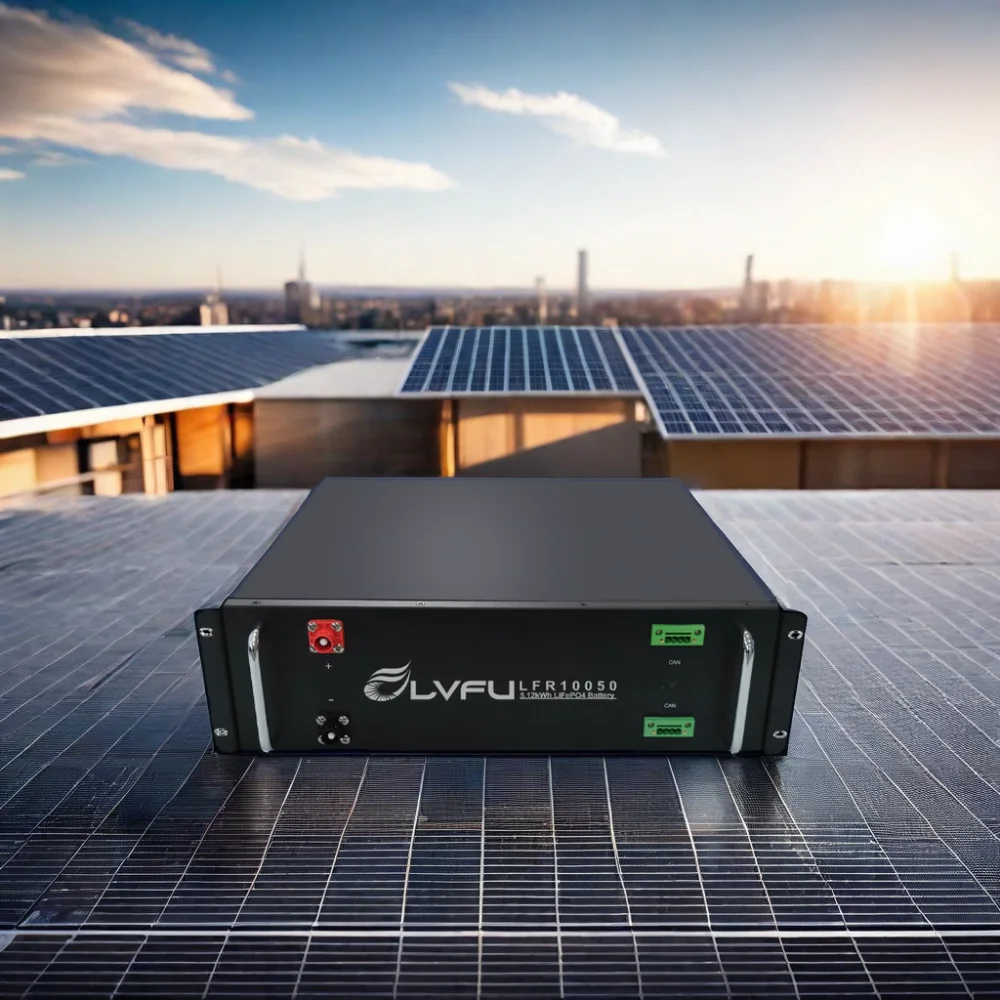

Each module is 102.4V50AH, connected in series, up to 614.4v.
• Can be connected in series to ensure high efficiency
• Can be connected in series to ensure high efficiency
• Well-connected to provide more power
• Parallel connection of up to 6
battery strings, max. 890.88 kWh
battery strings, max. 890.88 kWh
• Simple and flexible, adaptable to different scenarios

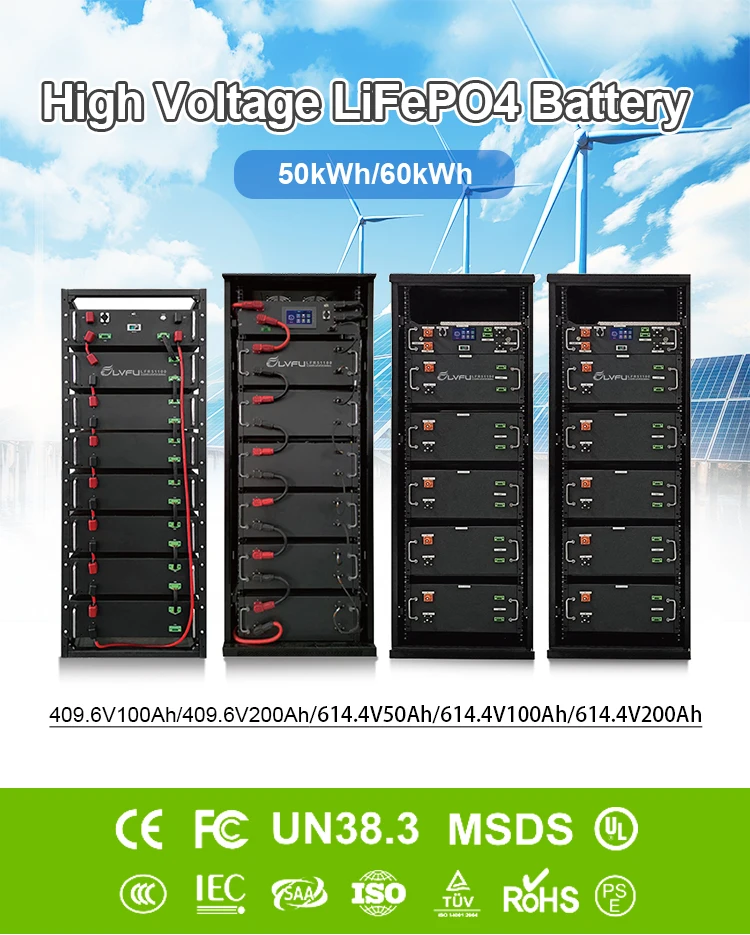

409.6V100Ah
614.4V100Ah
Each module is 51.2V100AH,
connected in series, up to 409.6v and 614.4v.
• high voltage design
connected in series, up to 409.6v and 614.4v.
• high voltage design
• High conversion efficiency, energy saving and environmental protection
• TI embedded design, very low
standby power consumption
standby power consumption
• Support well Hybrid inverter, off-grid inverter
409.6V200Ah
614.4V200Ah
Each module is 51.2V200AH, connected in series, up to 409.6v and 614.4v.

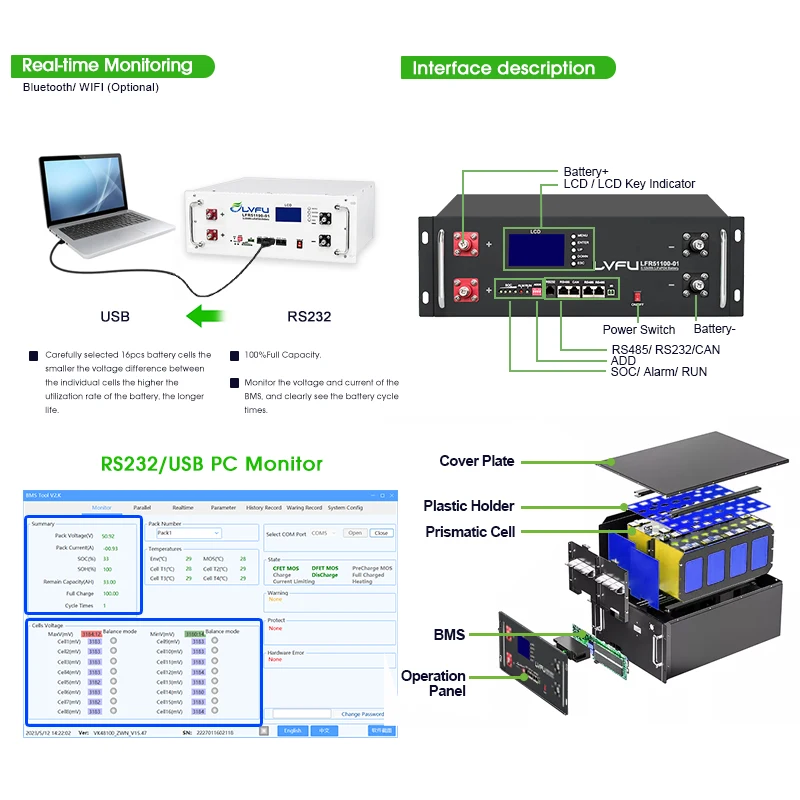

• RS485, CAN and other communication interfaces
• RS485, CAN and other communication interfaces
• Support remote online upgrade, simple maintenance
• Support cloud system,
accurate to each group of electric core operation
accurate to each group of electric core operation
• Support Bluetooth WiFi function
