Bely Energy Factory price 12V 300AH lifepo4 battery in bluetooth and self heating for Yachit home appliance
- Category: >>>
- Supplier: Shenzhen Bely Energy Technology Co. Ltd.
Share on (1601097488486):
Product Overview
Description
Product Description
ELECTRICAL SPECIFICATIONS | ||
Nominal Voltage | 12.8V | |
Nominal Capacity | 300Ah | |
Energy | 3840Wh | |
Resistance | ≤ 10mΩ | |
Efficiency | ≥ 99% | |
Self Discharge | ＜3% per Month | |
MECHANICAL SPECIFICATIONS | ||

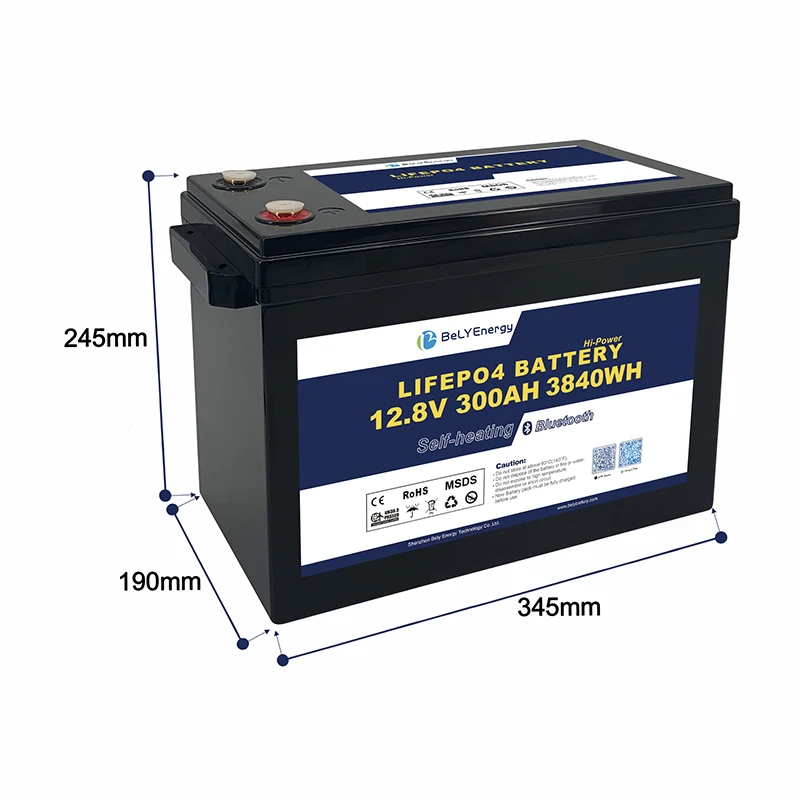

Dimensions (L x W x H) | 345 x 190 x 245mm | |
Weight | ≤26KG | |
Terminal Type | M8 x 1.25 x 12mm Terminal | |
Case Material | ABS & PC | |
Enclosure Protection | IP65 | |
Cell Type | New Grade A+ Automotive Prismatic Cells | |
Chemistry | LiFePO4 | |
CHARGE SPECIFICATIONS | ||
Recommended Charge Current | ≤ 100A | |
Maximum Charge Current | 200A | |
DISCHARGE SPECIFICATIONS | ||
Maximum Continuous Discharge Current | 200A | |
Peak Discharge Current | 260A (10S) | |
Under Voltage Protection | 10V | |
Over Charge Voltage Protection | 14.6V | |
Short Circuit Current Protection | 900A | |
Short Circuit Protection Delay time | ≤ 500uS | |
Cells Balancing Voltage | 3.5V (Voltage Difference 15mV between each Cells) | |
TEMPERATURE SPECIFICATIONS | ||
Discharge Temperature | -20 ℃~+60℃ | |
Charge Temperature | -30 ℃ ~+ 60℃ | |
Temperature Range Storage <1 months | -20℃ ~+50℃ | |
Temperature Range Storage >1 months | -5℃~+40℃ | |
COMPLIANCE SPECIFICATIONS | ||
Certifications | CE, ROHS, MSDS, UN38.3, DGM, BQB (Battery); UL1642, UL1973, IEC62619 (Cells) | |
Shipping Classification | UN3480, CLASS 9 | |
Package | UN Carton | |
Product performance description
Features include:
* Long cycle life more than 3000 cycles @ DOD 80%
* High Energy Density up to 100% usable
* Fast charging
* Easy installation, Safe & Reliable
* Low self-discharge less than 3% per month
* Built-in smart BMS with overcharge/ over discharge protection, over current protection, short-circuit protection, Cells balancing protection, High/low temperature protection.
* Long cycle life more than 3000 cycles @ DOD 80%
* High Energy Density up to 100% usable
* Fast charging
* Easy installation, Safe & Reliable
* Low self-discharge less than 3% per month
* Built-in smart BMS with overcharge/ over discharge protection, over current protection, short-circuit protection, Cells balancing protection, High/low temperature protection.
Product Usage
Description of product use effect
With the large capacity and relatively light weight and safe use, Bely LiFePO4 lithium
batteries have a diverse range of applications. They can be used for stationary or mobile applications. They are especially common for, but not limited to, mobile
homes, RV’s, campers and leisure, solar systems, boats, sonar, golf carts,wheelchairs,
electric scooters, e-bikes, emergency power supply, UPS and house batteries.
batteries have a diverse range of applications. They can be used for stationary or mobile applications. They are especially common for, but not limited to, mobile
homes, RV’s, campers and leisure, solar systems, boats, sonar, golf carts,wheelchairs,
electric scooters, e-bikes, emergency power supply, UPS and house batteries.
Related Products

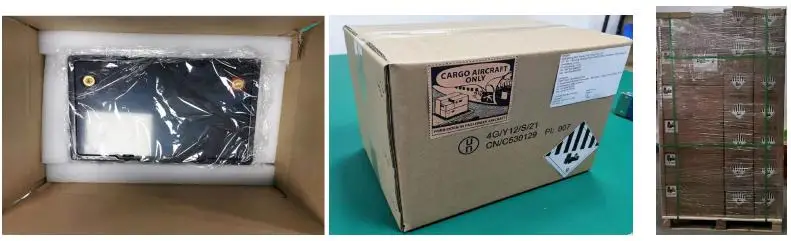

Packing&Shipping
UN Carton, Pallet with Film protection, Wooden carton

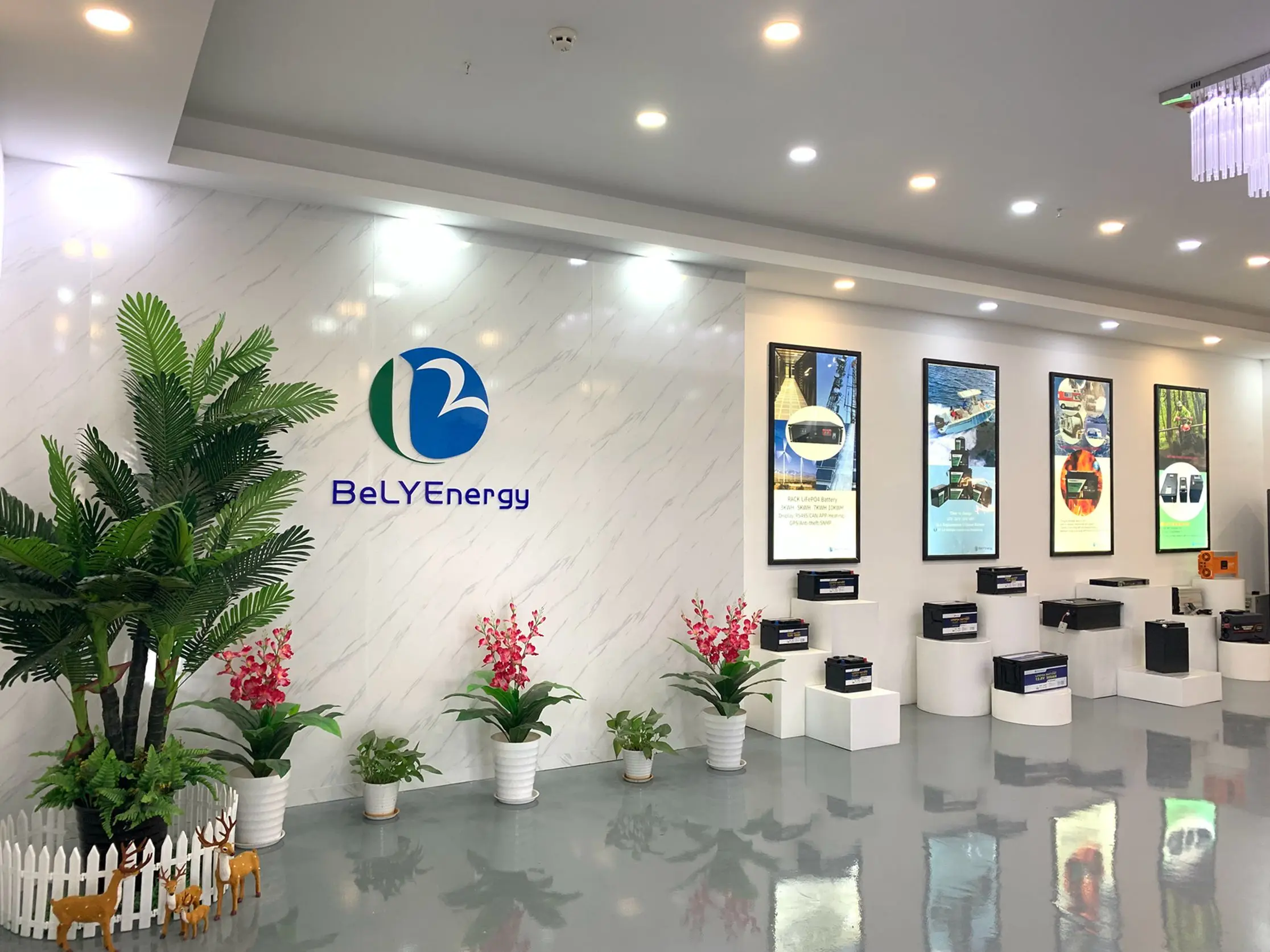

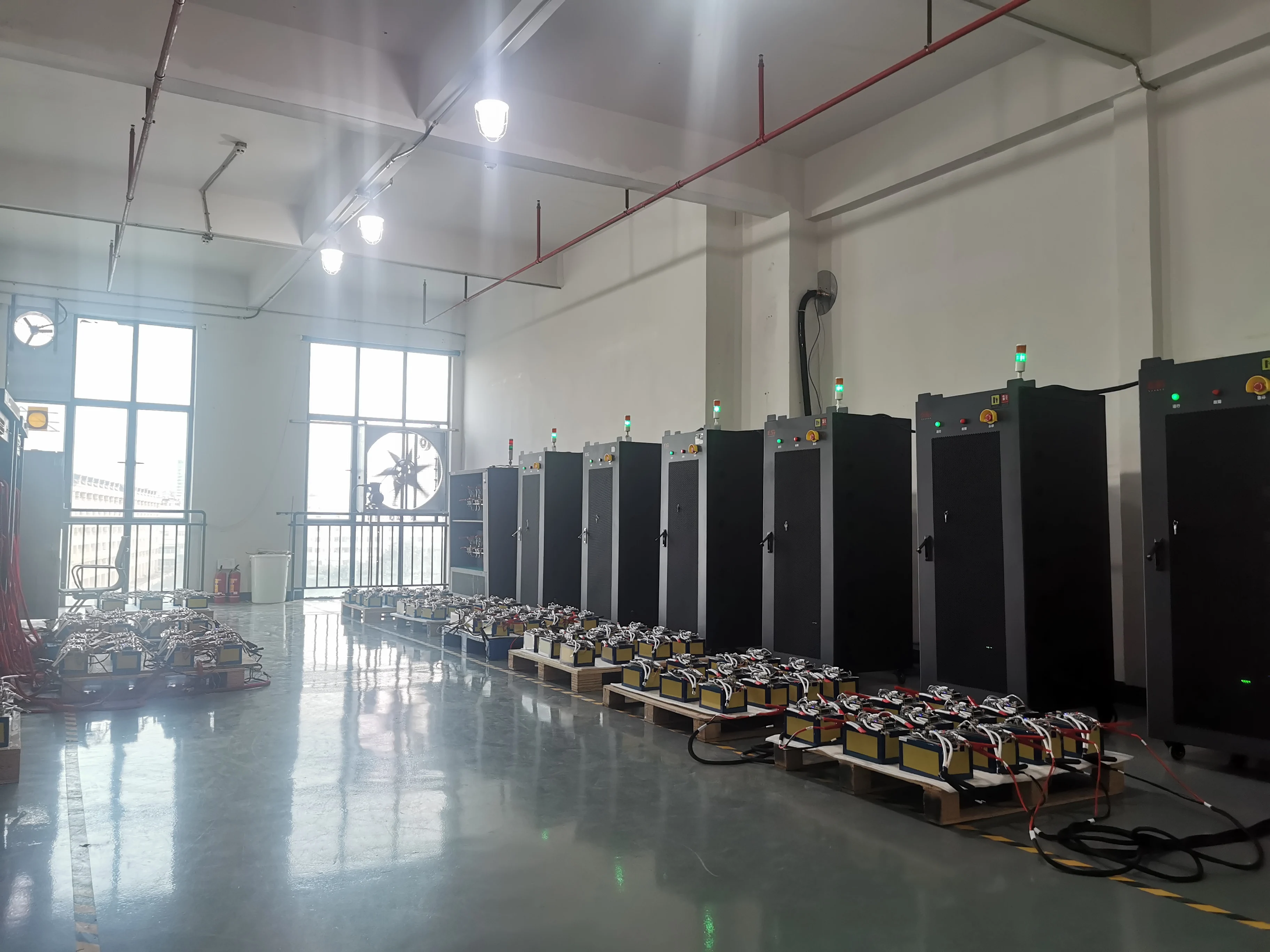

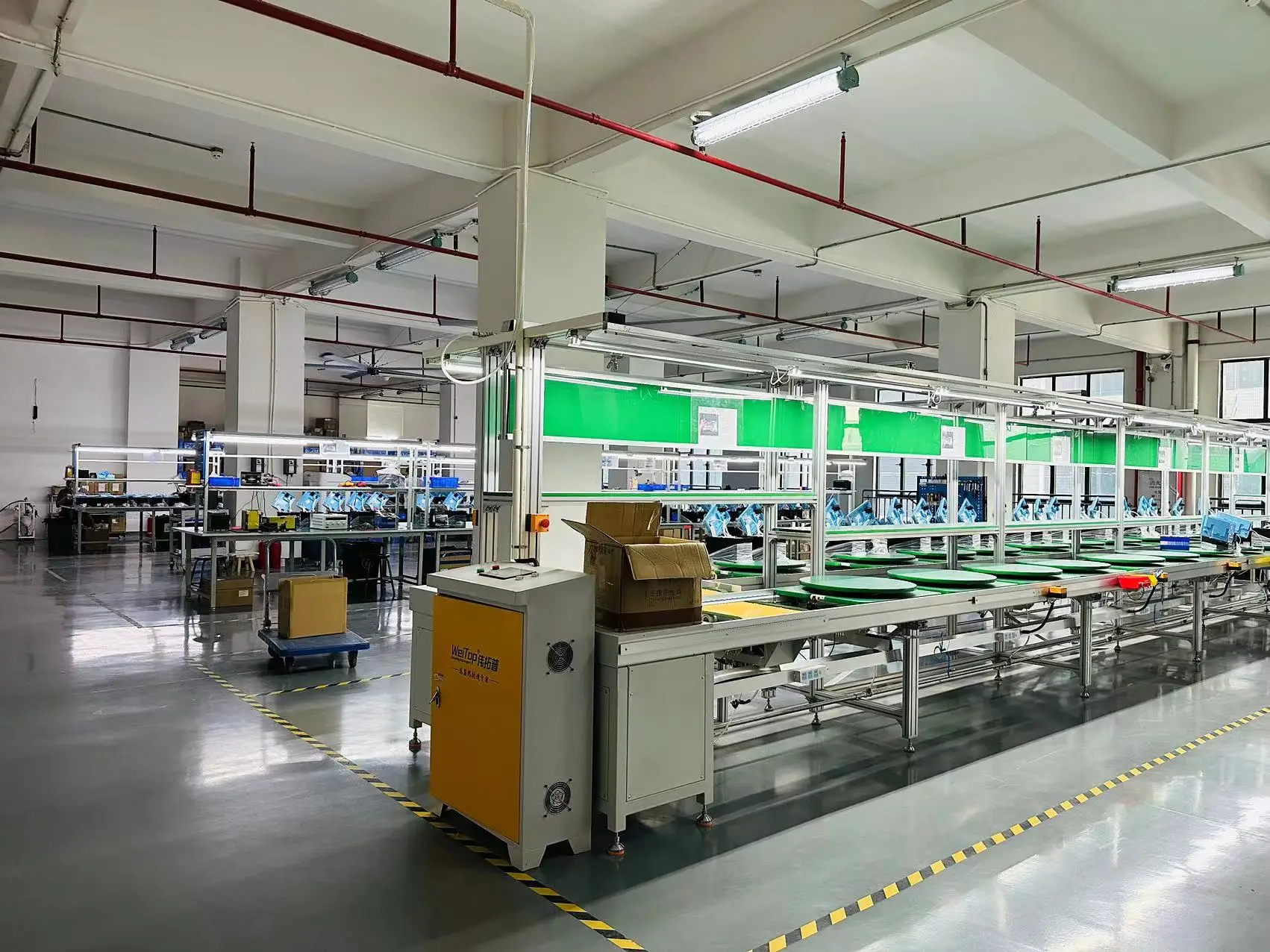

Company Introduction
Bely, a professional company is specialized in lithium battery cells and battery module pack that integrates R&D, production,sales and relevant services. Sales team is located in Shenzhen China. We own two battery cells outsourcing production bases in Shandong and own our battery packing factory in Dongguan.There are more than 10 experienced engineers who are in lithium battery industry and BMS industry for more than 15 years. Core solutions are developed by ourselves and we can develop according to customers' requirements for BMS function, pack size and capacity customization. Now Bely's lithium batteries are widely used in many area.
Bely has passed ISO9001:2015 quality system certificate. Almost all batteries have passed CE, UN38.3, MSDS certificates and approvals. For other certificates required by the customers, Bely can assist to pass with our reliable labs.
With the backup of strong R&D team, the high efficiency management, the rich manufacture experience, the advanced production technology and equipment, Bely has developed rapidly to become the high quality lithium battery pack manufacturer.
Bely has been constantly transcending itself, creating customer value, integrating industry resources, activating business
organization, actuating the industrial transformation and developing its position in international battery industry.
Bely always provides the professional service and good quality products to the customers all over the world. Bely is committed to "Enjoy the life with Bely energy!"
Bely has passed ISO9001:2015 quality system certificate. Almost all batteries have passed CE, UN38.3, MSDS certificates and approvals. For other certificates required by the customers, Bely can assist to pass with our reliable labs.
With the backup of strong R&D team, the high efficiency management, the rich manufacture experience, the advanced production technology and equipment, Bely has developed rapidly to become the high quality lithium battery pack manufacturer.
Bely has been constantly transcending itself, creating customer value, integrating industry resources, activating business
organization, actuating the industrial transformation and developing its position in international battery industry.
Bely always provides the professional service and good quality products to the customers all over the world. Bely is committed to "Enjoy the life with Bely energy!"
FAQ
1. Can this battery put in parallel connections?
Yes, the battery can be put in parallel connections to reach more capacity.
2. How is the warranty time for this battery we can get? How to keep the warranty if there is something wrong with the battery?
Normally warranty is valid for 3 years starting at the date of purchase. Manufacturer warranty covers any manufacturing defects or break downs due to design or manufacturing flaws. It DOES NOT cover user ever or damage occurred due to incorrect use. During the time, if something wrong with the battery, please contact the sales and we will analyze and send some spare accessories to do replace with our instruction. But that defect rate is less than 0.02%.
3. What kind of inverters we can use with this battery?
Suitable inverters will be within 2000W.
4. How can i buy the battery?
Please contact our sales and fix the shipping cost by different shipping ways and then issue the order in Alibaba trade insurance system which accept Paypal, T/T, Online transfer, Credit Card and so on.
5. More questions....
Please be kind to contact our sales.
