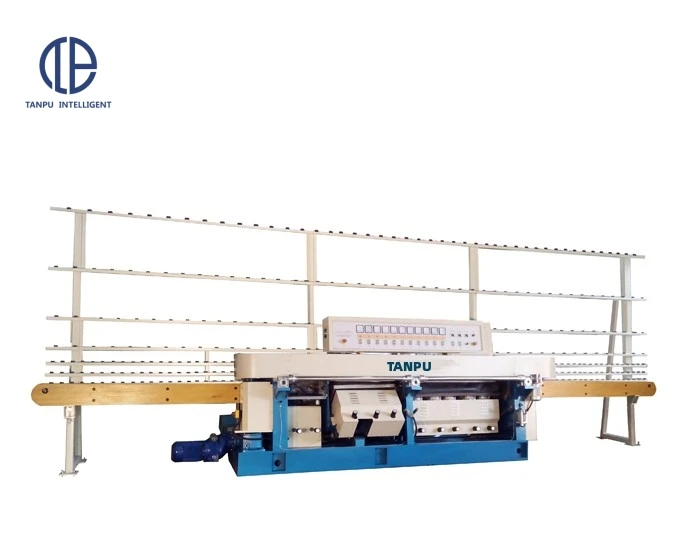

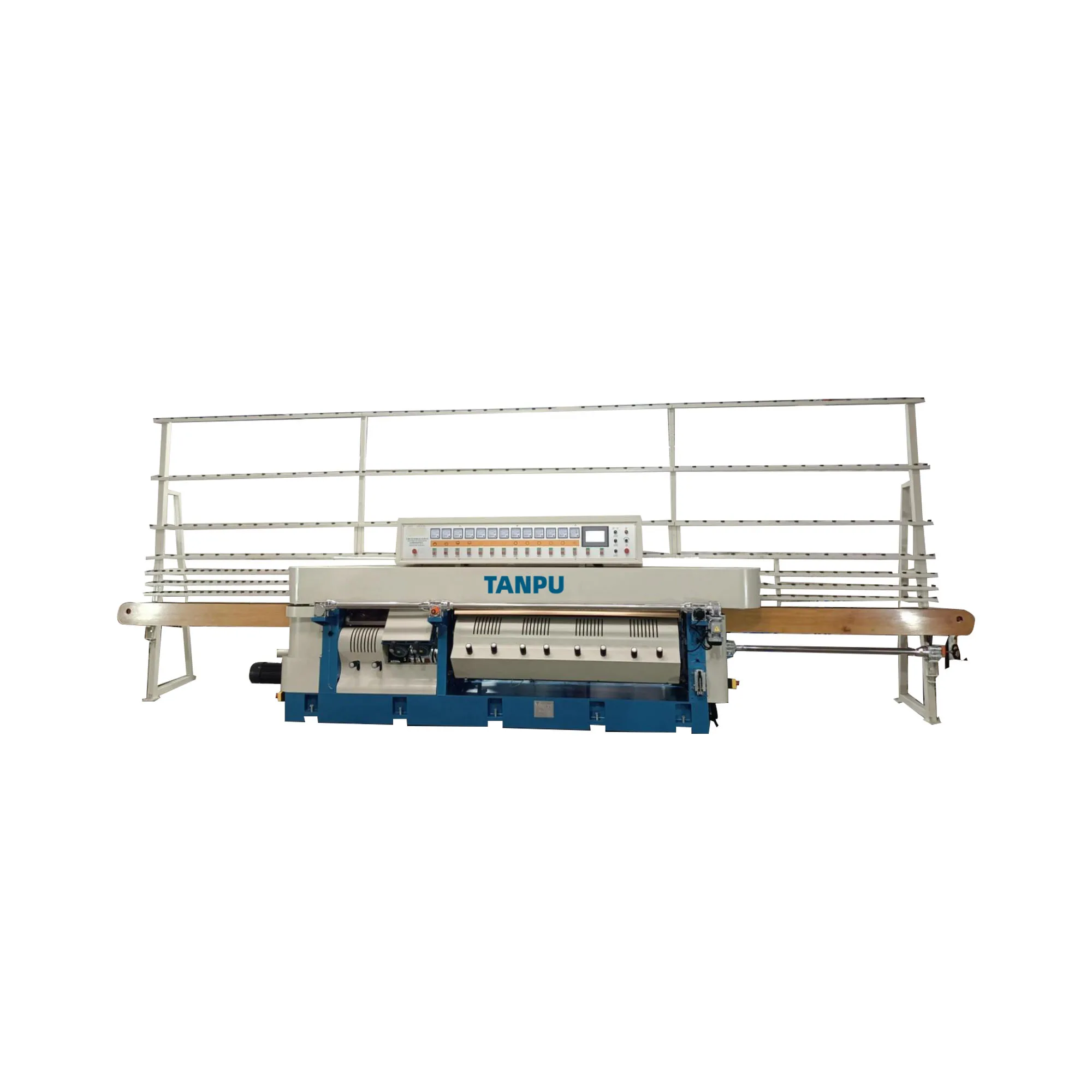

Shaft Straight Line Machine Chain Type Automatic Edge New Ce Certificate Glass Edging Machine
Shaft Straight Line Machine Chain Type Automatic Edge New Ce Certificate Glass Edging Machine
Shaft Straight Line Machine Chain Type Automatic Edge New Ce Certificate Glass Edging Machine
Shaft Straight Line Machine Chain Type Automatic Edge New Ce Certificate Glass Edging Machine
Shaft Straight Line Machine Chain Type Automatic Edge New Ce Certificate Glass Edging Machine
Shaft Straight Line Machine Chain Type Automatic Edge New Ce Certificate Glass Edging Machine
Shaft Straight Line Machine Chain Type Automatic Edge New Ce Certificate Glass Edging Machine

Shaft Straight Line Machine Chain Type Automatic Edge New Ce Certificate Glass Edging Machine

Share on (1601097521895):


Price:$6,800.00 - $9,700.00

Quantity:


Product Overview

Description












TPJM9
TPJM10
Overall size:
L*W*H
7450×1200×2530mm
7450×1200×2530mm
Machine body size:
L*W*H
4500×950×1680mm
4500×950×1680mm
Machine base size:
L*W
3315×650mm
3315×650mm
In-feed conveyor length
2000mm
2000mm
Out-feed conveyor length
2000mm
2000mm
Gross weight
3500kg
3500kg
Glass thickness
4~25mm
4~25mm

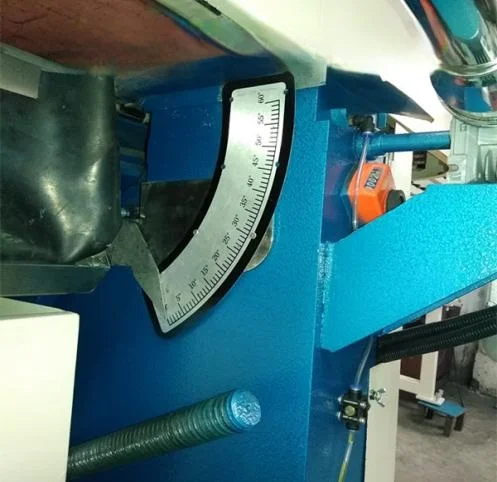

Mitering angle
0°~60°
0°~60°
Arris angle
45°
45°
Max. Miter width
30 mm
30 mm
Min. Glass size
100×100mm
100×100mm
Max. Glass weight
200kg
200kg
Processing speed
1.2～6.2m/min
1.2～6.2m/min
Installed power
20.1kW
20.1kW

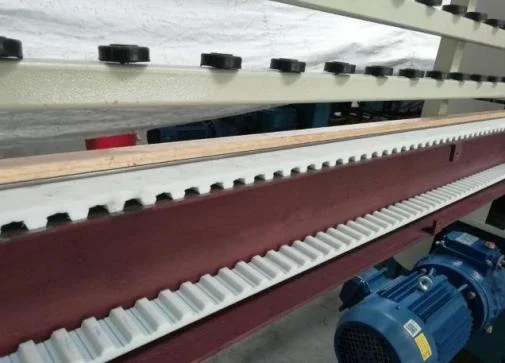

The input and output guide rails use reinforced synchronous belts to transport the glass to solve the sliding phenomenon of the rear heavy glass synchronous belts;

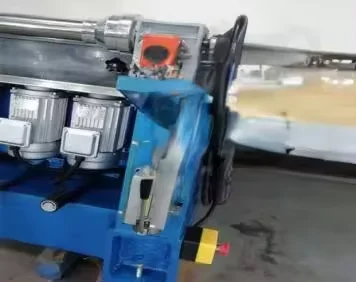

The specially designed brush holder structure can quickly replace the brush (without dismantling the motor and water tank);
24V safety voltage control and open door power-off protection, the use and operation are more assured and safer;
The hand pump lubricates the front guide rail to move the carriage; the glass input guide rail adds a synchronous lifting
mechanism;
The key structural parts such as the base, column, front guide rail and rear guide rail adopt anti-deformation casting structure; (the middle column is welded)
The 3-column structure of the main frame improves the rigidity of the machine and effectively prevents the deformation of the beam;
The main electrical components are Chint Electric; general accessories in the wearing parts market, with low cost of use;
The synchronous belt drive shaft bearing is sealed with a skeleton oil seal, and the synchronous belt drive shaft bearing seat sleeve can be easily disassembled (the drive sprocket shaft is not removed)

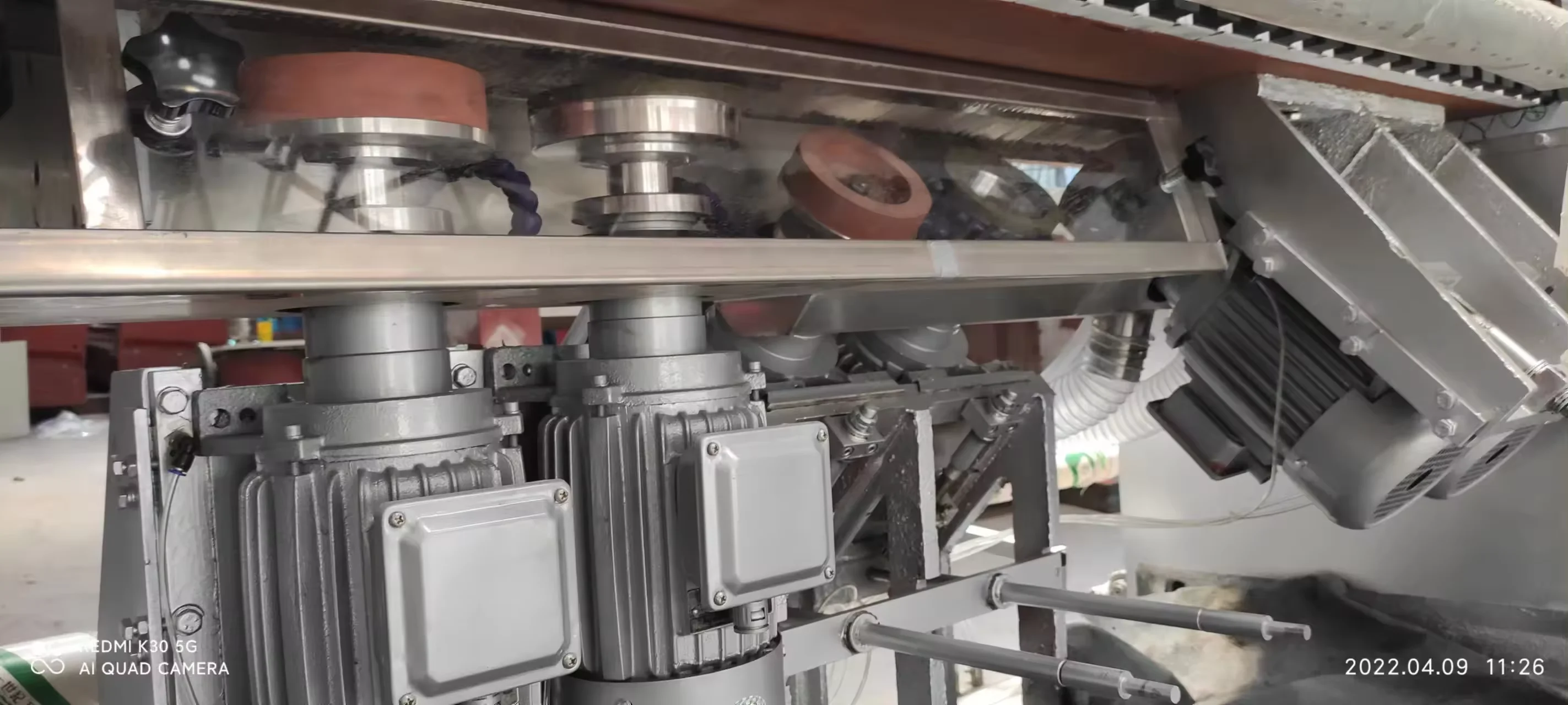

The grinding head carriage adopts a dovetail structure, which solves the grinding head vibration during glass processing.
































1.Who are we?
TANPU INTELLIGENT is a design and fabrication oriented company for Flat Glass Deep processing technology. We are based on Guangdong, China, start from 2015, sell to Eastern Europe(30.00%), South America(20.00%), Southeast Asia(20.00%), North America(10.00%), Mid East(10.00%), Southern Europe(10.00%). There are total about 5-10 people in our office.

2.When can we arrange shipment?
We usually arrange shipment within 30 days after getting deposit, but customized machines should be between 60~100 days.

3.How to provide after-sales service?
Free warranty for one year. Provide remote services and video guidance.

4.What operating language is the machine?
Standard English, can also be changed as required

5.How to operate the machine ?
We will deliver English manual and video with the machine to you. If you still need our help, please contact us for engineer
dispatching.

6.How can I contact you?
You can contact us directly on Ali International platform or add WA:008613703234074 or yt-machinery@vip.163.com.

7.Can l have a sample?
Yes, we can provide you with samples, but you need to pay the price of individual samples.
