Product Overview
Description
Products Description
Application:
1.The chocolate pump is specialized for delivery of chocolate mass.
2.The pump body is with water-circulating heat preservation system.
3.Customers can choose different model according to the flow rate required.
4.The pump can be used individually or with other production lines for automatic chocolate mass feeding.
1.The chocolate pump is specialized for delivery of chocolate mass.
2.The pump body is with water-circulating heat preservation system.
3.Customers can choose different model according to the flow rate required.
4.The pump can be used individually or with other production lines for automatic chocolate mass feeding.
Technical parameters
Model Project | 20~35L | 60~70L | ||||
Flow rate(L/min) | 20 | 35 | 60 | 70 | ||
Delivery lift(m) | 6 | 8 | 10 | 12 | ||
Rotational speed(rpm) | 35~195 | 165~300 | 150~200 | 200~300 | ||
Power(kw) | 0.75 | 1.1 | 2.5 | 4 | ||
Caliber(mm) | 40 | 40 | 63 | 63 | ||
Electrical heating power(kw) | 0.6 | 2.5 | 5 | 2×2 | ||
Weight(kg) | 295 | 1050 | 2572 | 3050 | ||
Outside dimensions(mm) | 920×600×1110 | 1200×1150×1050 | 2465×1146×1312 | 2627×1280×1520 | ||

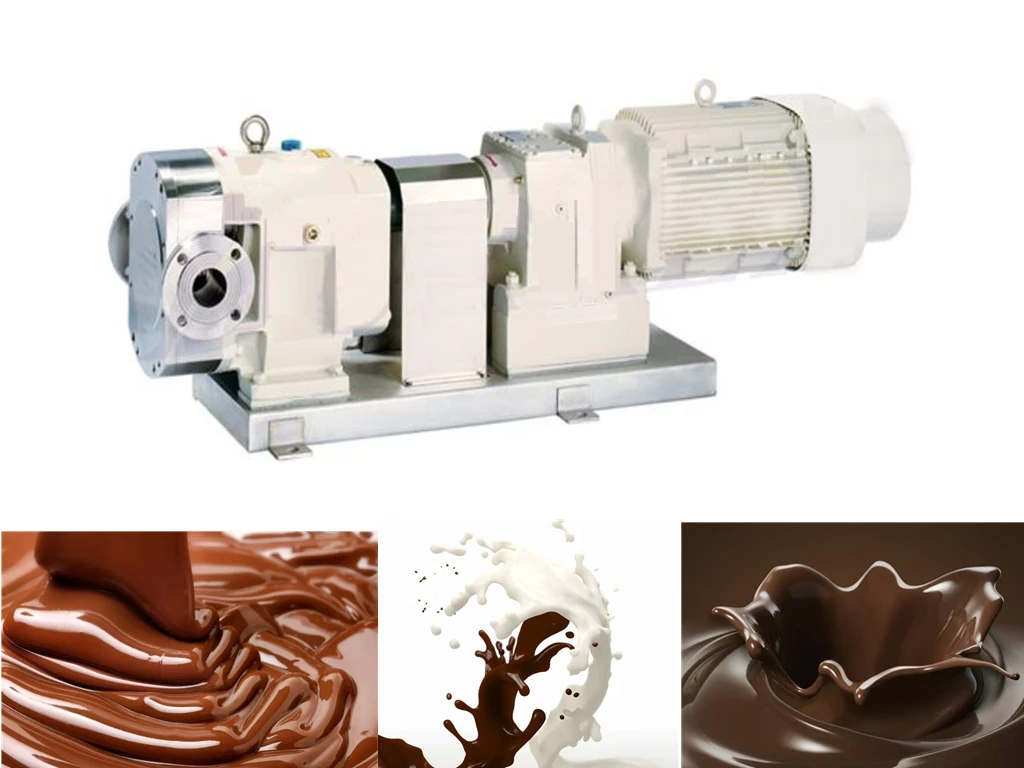

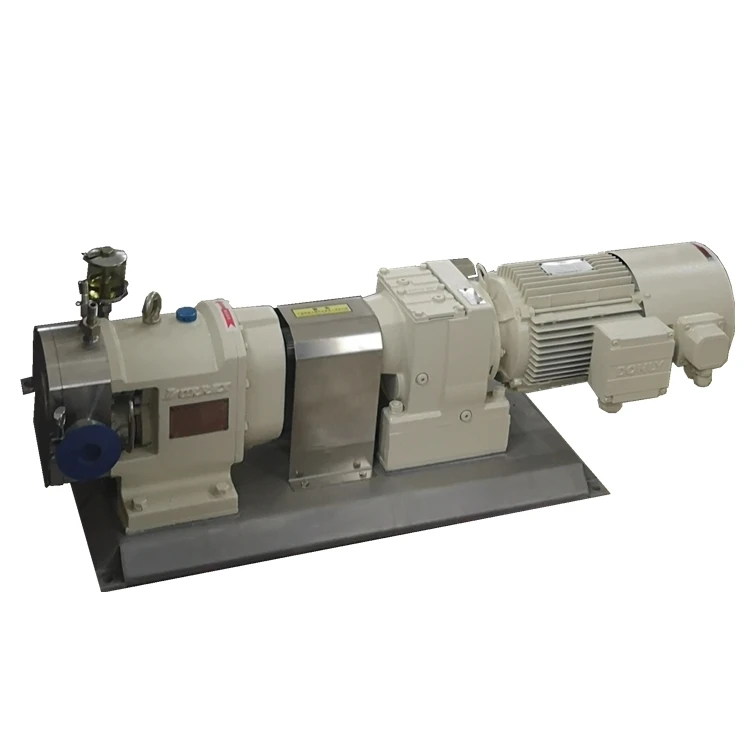

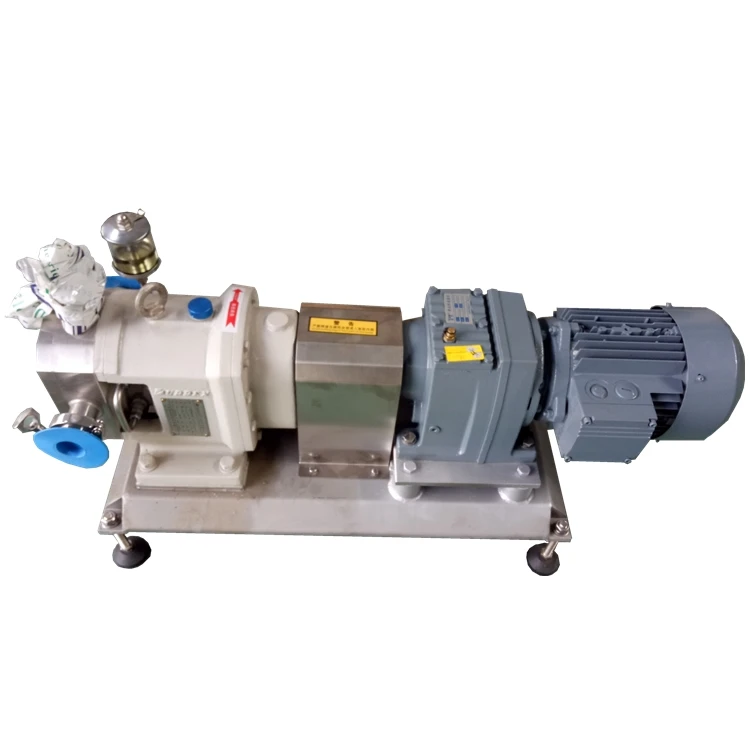

Product Picture

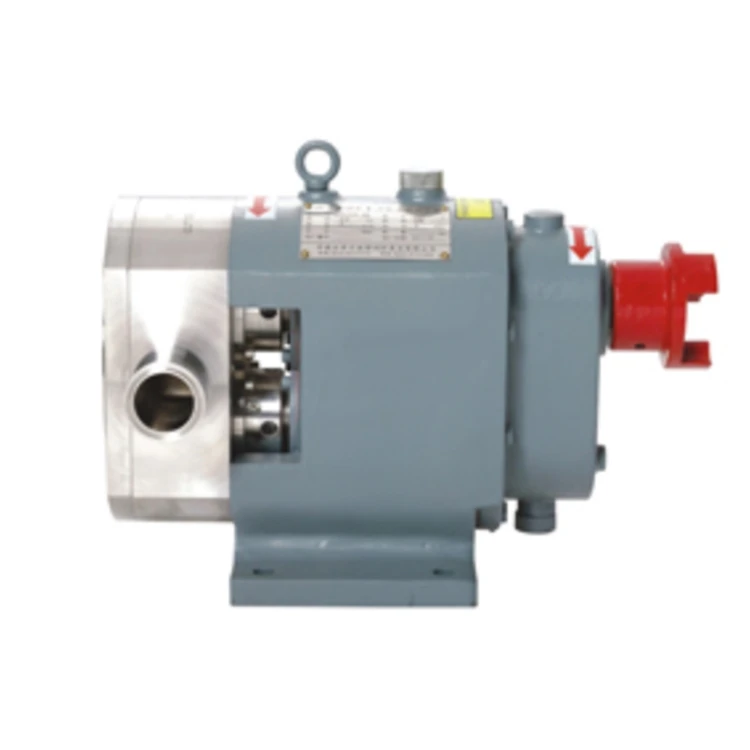

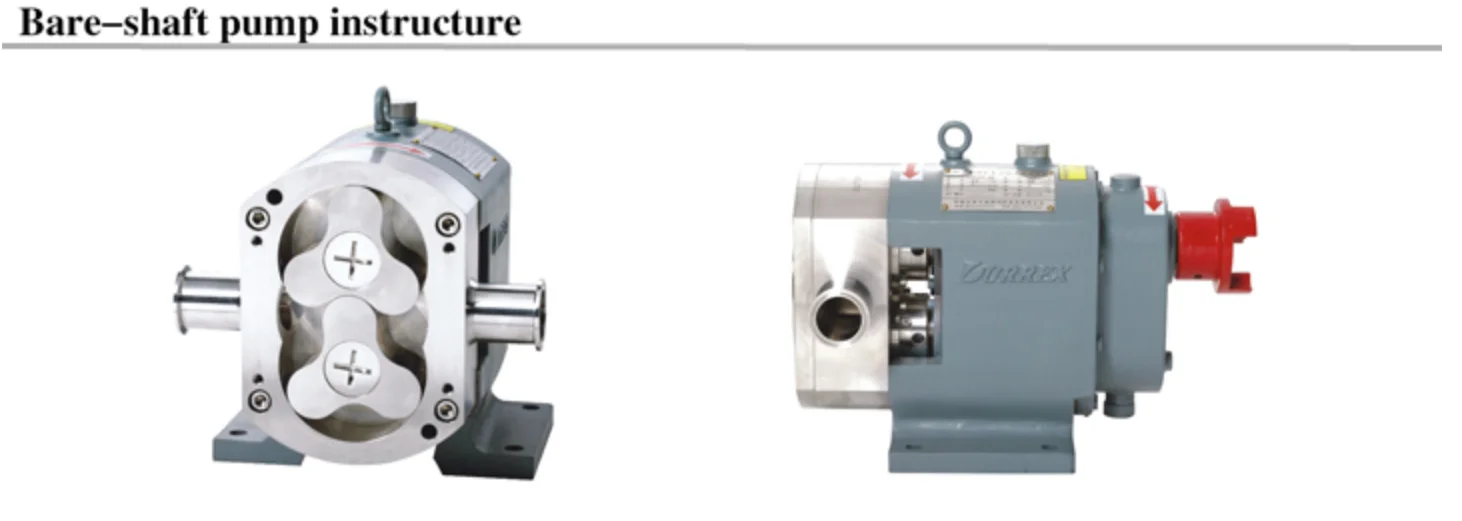

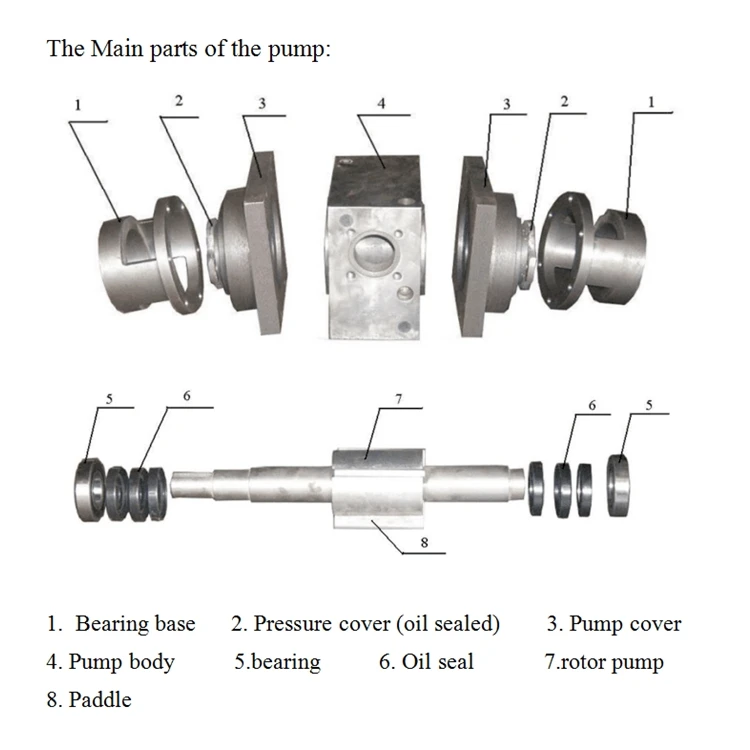

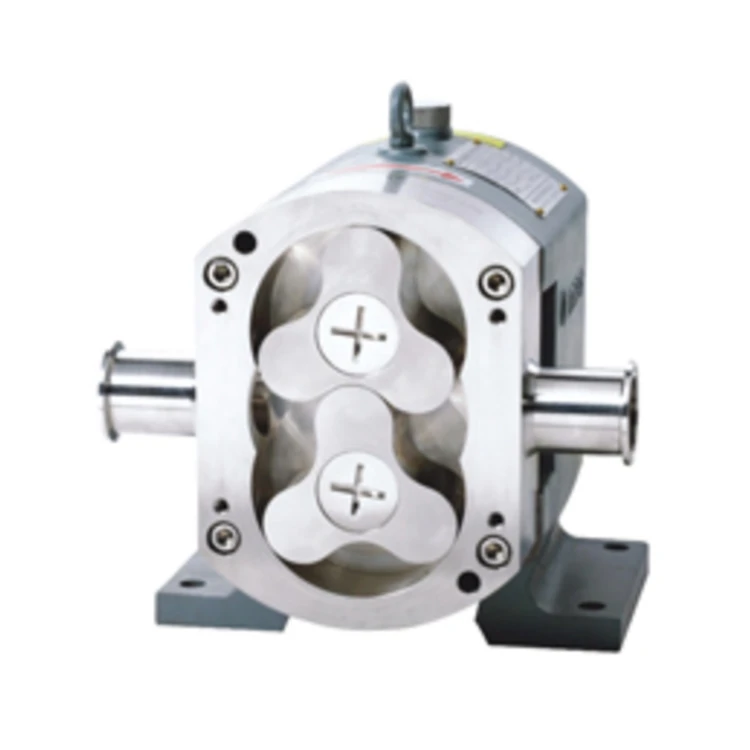

Detail Picture

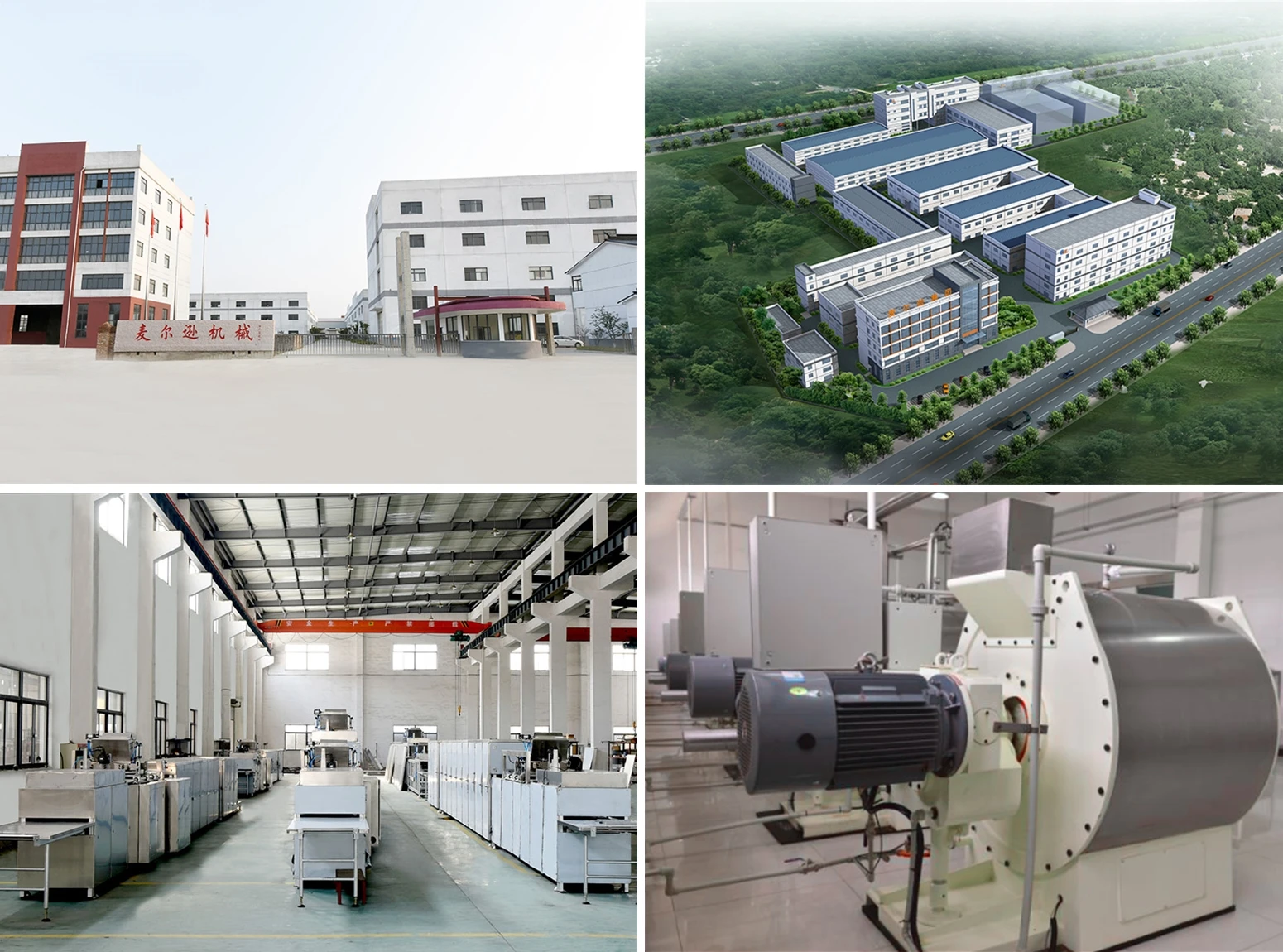

Company Profile
Suzhou Harmo Food Machinery is founded in Suzhou, China. We are professional chocolate machine supplier with full set of chocolate machine manufacturing facility. Except motors and electrical components, almost all parts are made by ourselves, so we can control quality from raw materials to finished products.
We export our chocolate machines to USA, Canada, South America, Middle East, North Africa, Eastern Europe and Asia. What made our company so special is our manufacturing experience which supply the best use of chocolate equipment and production processes for our customers around the world.
Quality is our culture, and service is our principle. This is why quality takes precedence over the price always. We know that you value service and we can prove it for you. So when we receive your questions,we strive to answer as promptly as possible.
It’s our purpose that learn from customers, work with customers and provide reliable chocolate equipment and proper production solutions for customers.
We export our chocolate machines to USA, Canada, South America, Middle East, North Africa, Eastern Europe and Asia. What made our company so special is our manufacturing experience which supply the best use of chocolate equipment and production processes for our customers around the world.
Quality is our culture, and service is our principle. This is why quality takes precedence over the price always. We know that you value service and we can prove it for you. So when we receive your questions,we strive to answer as promptly as possible.
It’s our purpose that learn from customers, work with customers and provide reliable chocolate equipment and proper production solutions for customers.
Certifications
Product packaging
FAQ
Q1: Can you provide invitation letter for customers and arrange pick-up at the airport, if they want to visit your factory?
A1: Yes. We can provide invitation letter and arrange our driver or sales to pick up customers at Shanghai airport or train station.
Q2: What is your warranty period?
A2: Our warranty is 12 months or 14 months after shipment.
Q3: Will you test the machine after manufacturing?
A3: Yes. All our machines will be tested with oil or raw materials before shipping by our technician.
Q4: Can you supply machines which conform to European Standard or American standard?
A4: Yes. We exported our machines to USA, Canada, Hungary and Belgium, etc.
Q5: What can we do if goods were damaged during shipping?
A5: Firstly, We will pack goods and fix them well in our factory;
Secondly, If goods were damaged during sea shipping, we will deliver parts to you try our best. So you can replace damaged parts and run machines ASAP;
Q6: Can you arrange loading in your factory if customer bought products from different suppliers?
A6: Yes,we can load all products in our factory and ship all goods by one or two containers.
Q7: Do you provide installation and commissioning service?
A7: Yes, we can deliver our technician to do installation and commissioning in customers’ factory.
After installation, our technician will provide training for stuff in the factory.
Q8: Do you provide recipe if customer buys whole production line?
A8: Yes, we can provide a basic recipe, then customer can adjust the recipe according to customer's local market demand.
Q9: Do you provide instruction manual and maintenance schedule?
A9: Yes. We will provide detailed instruction manual and maintenance schedule before shipping.
Q10: Can you make customized machine?
A10: Yes, we can customize the machine according to the final product. Also we can provide turnkey project for our customers.
