Full automatic Cereal Bar Production Line Factory Price / Cereal Bar Making Machine Forming Machine
- Category: >>>
- Supplier: Shanghai Papa Industrial Co. Ltd.Shanghai Ltd.
Share on (1601097588428):
Product Overview
Description
Product Description
Factory Price Continuous Automatic Cereal Bar Pressing Machine Cereal Granola Bar Making Machine
Peanut Bar Machine Description:

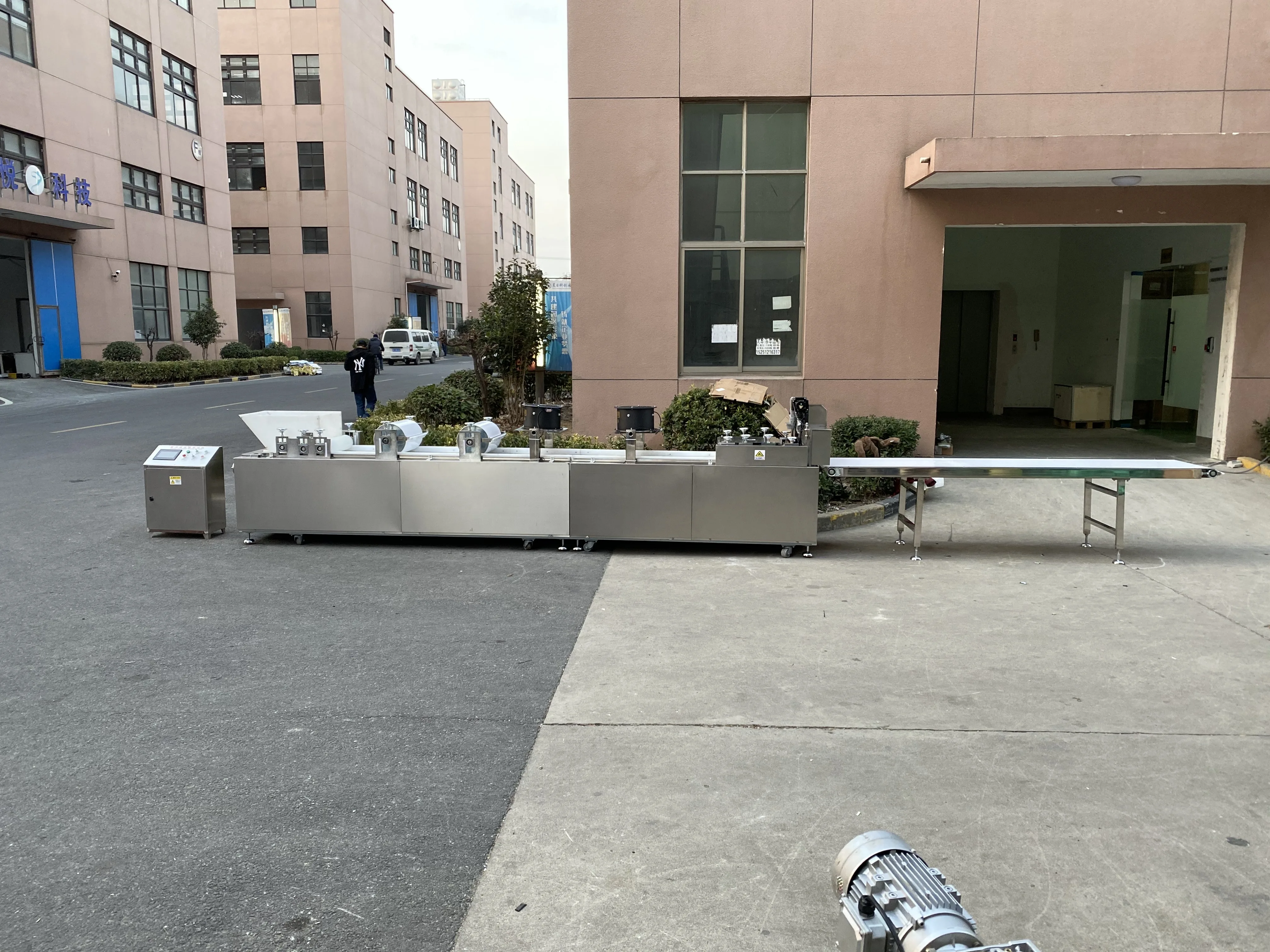

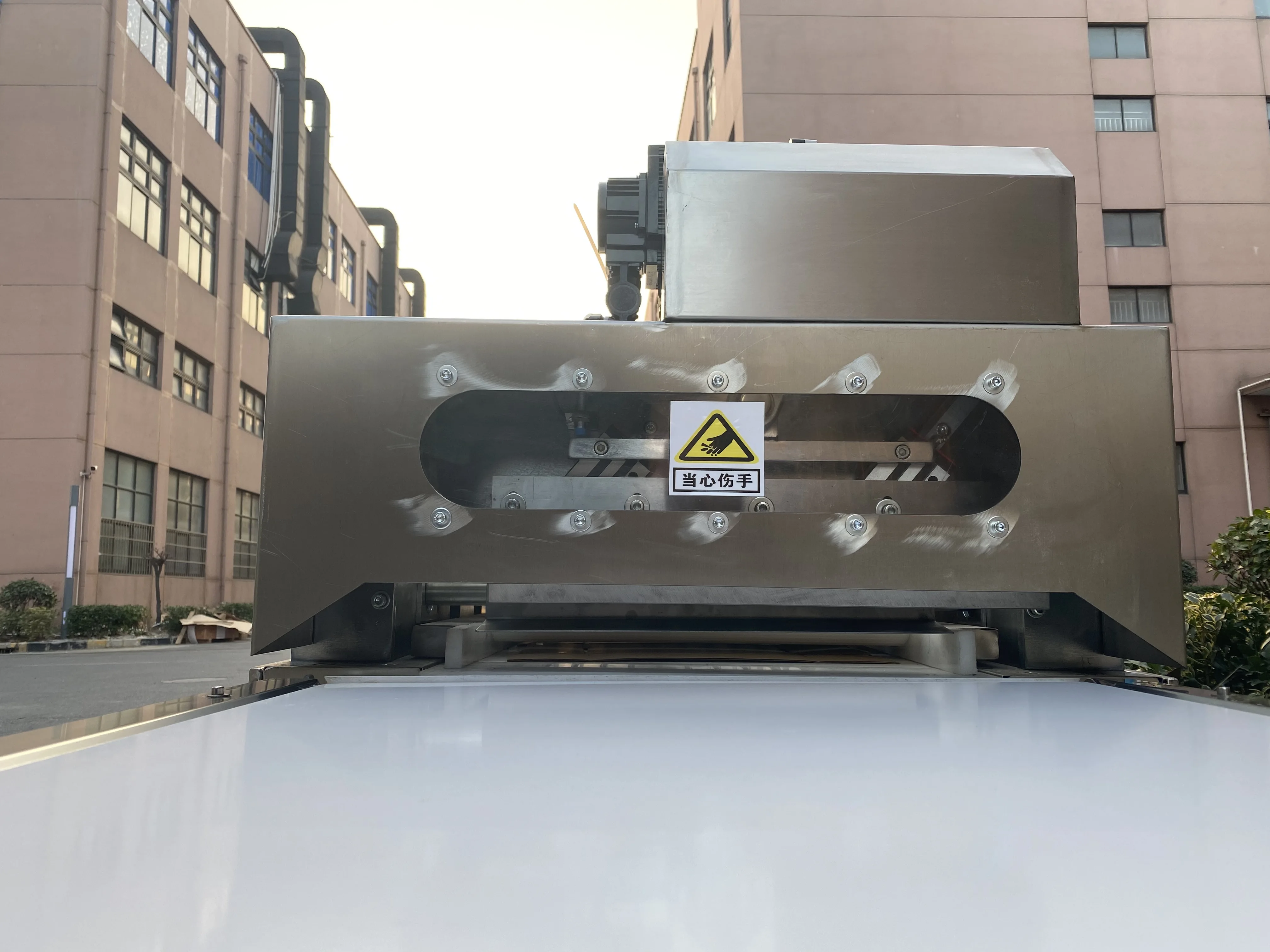

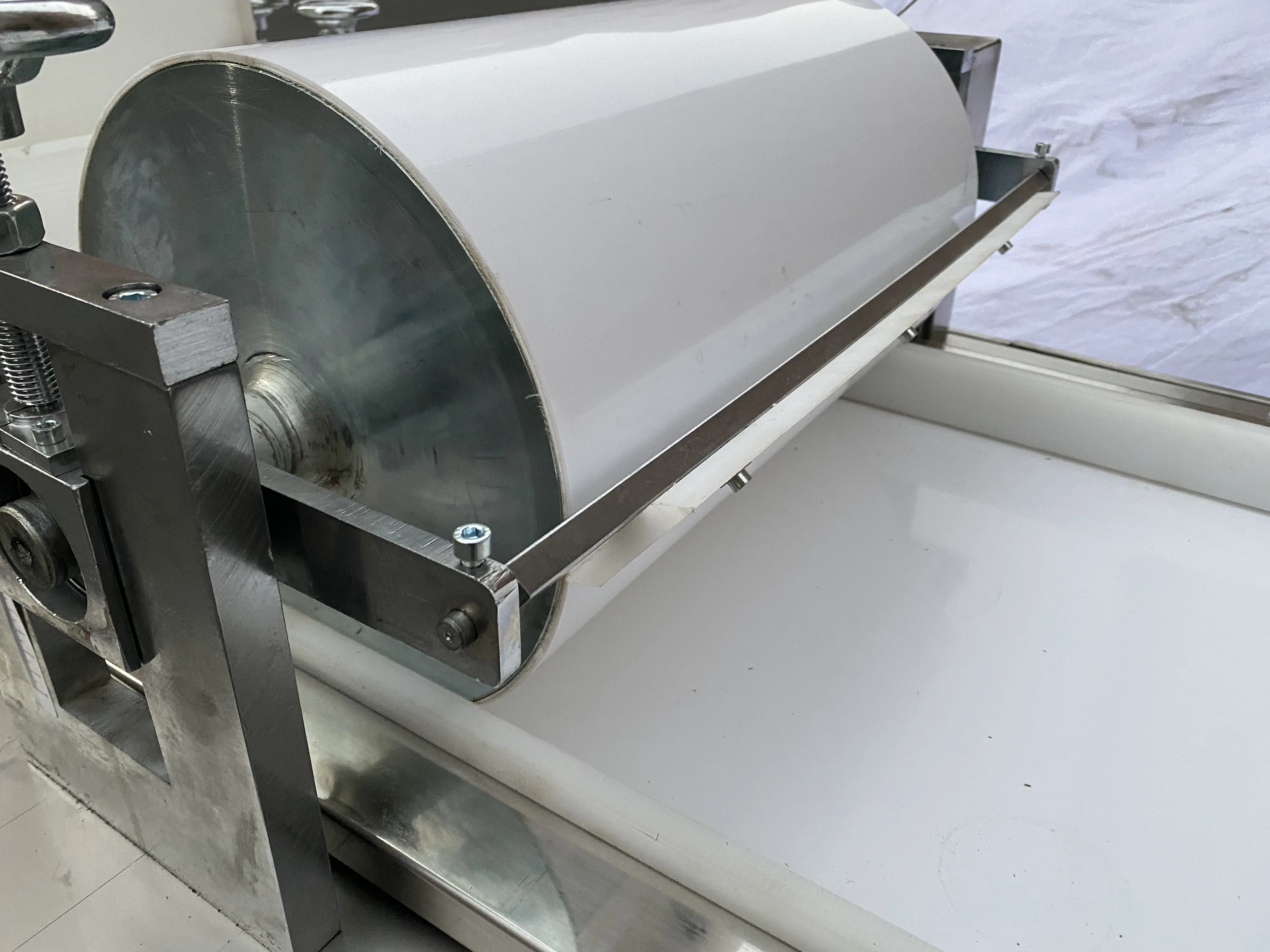

Structure: This machine is composed of frame conveyor, unload device, leveling device, cooling device, slitting, and cross-cutting device,
Features:
1. The hopper is a scraper, auger and feeding roller structure, separate motor, frequency conversion speed regulation, uniform feeding, without manual intervention.
2. The conveying and cutting power of the main machine are double servo motors, stable cutting, accurate size.
3. The machine speed, frequency and cut-off size can be adjust by the PLC control panel.
Features:
1. The hopper is a scraper, auger and feeding roller structure, separate motor, frequency conversion speed regulation, uniform feeding, without manual intervention.
2. The conveying and cutting power of the main machine are double servo motors, stable cutting, accurate size.
3. The machine speed, frequency and cut-off size can be adjust by the PLC control panel.
Model | P401 | P402 | P403 |
Capacity | 150-250kg/h | 250-350KG/H | 300-800kg/h |
Power | 5KW | 5.5KW | 10KW |
Voltage | 380V 3 phase | 380V 3 phase | 380V 3 phase |
Dimension | 4800*920*1200mm | 6000*920*1200mm | 12000x1400x1300mm |
Weight | 1200KG | 1500KG | 1800KG |

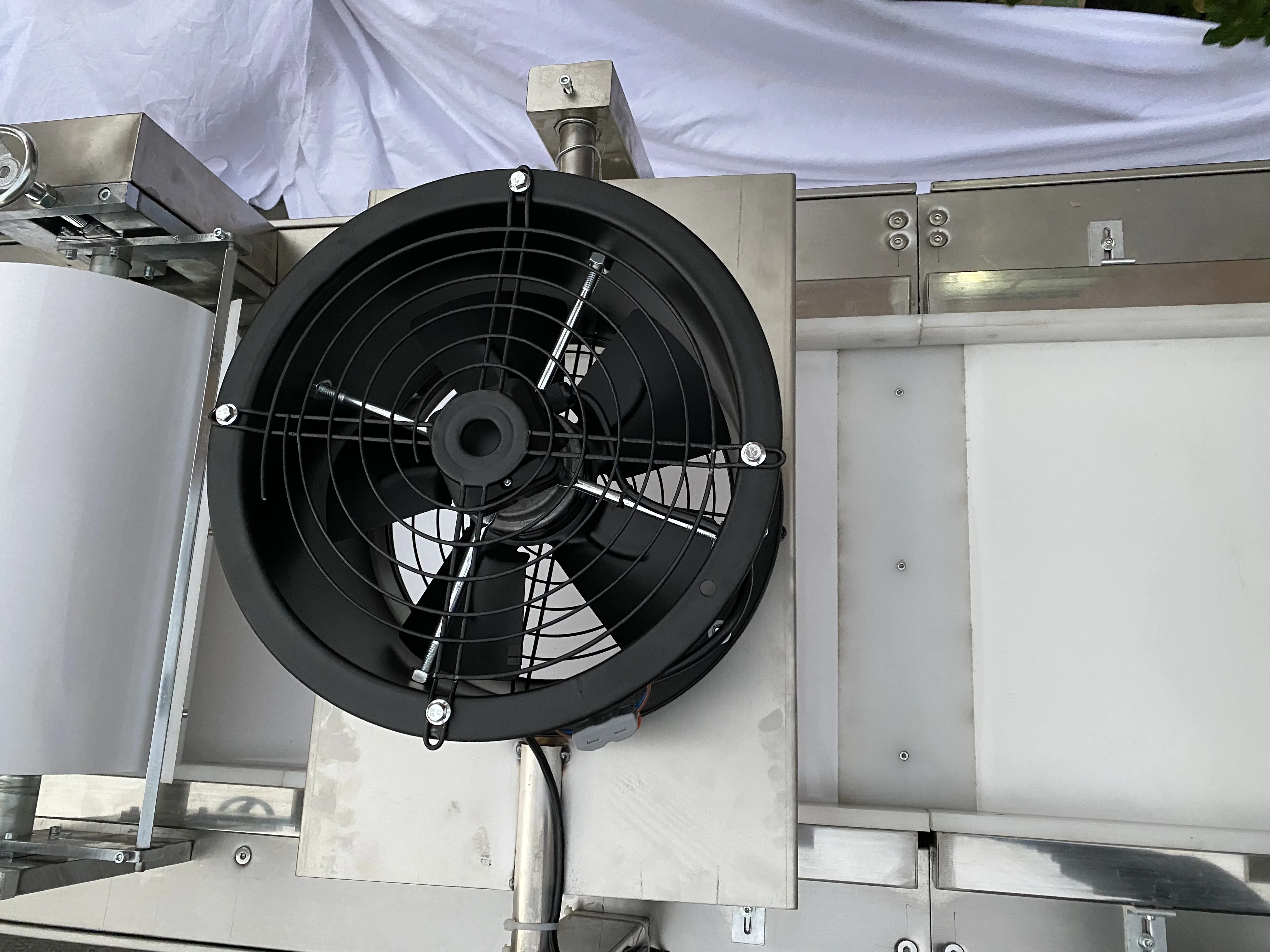

Cooling Type | Fan cooling | Fan cooling | Refrigerator |

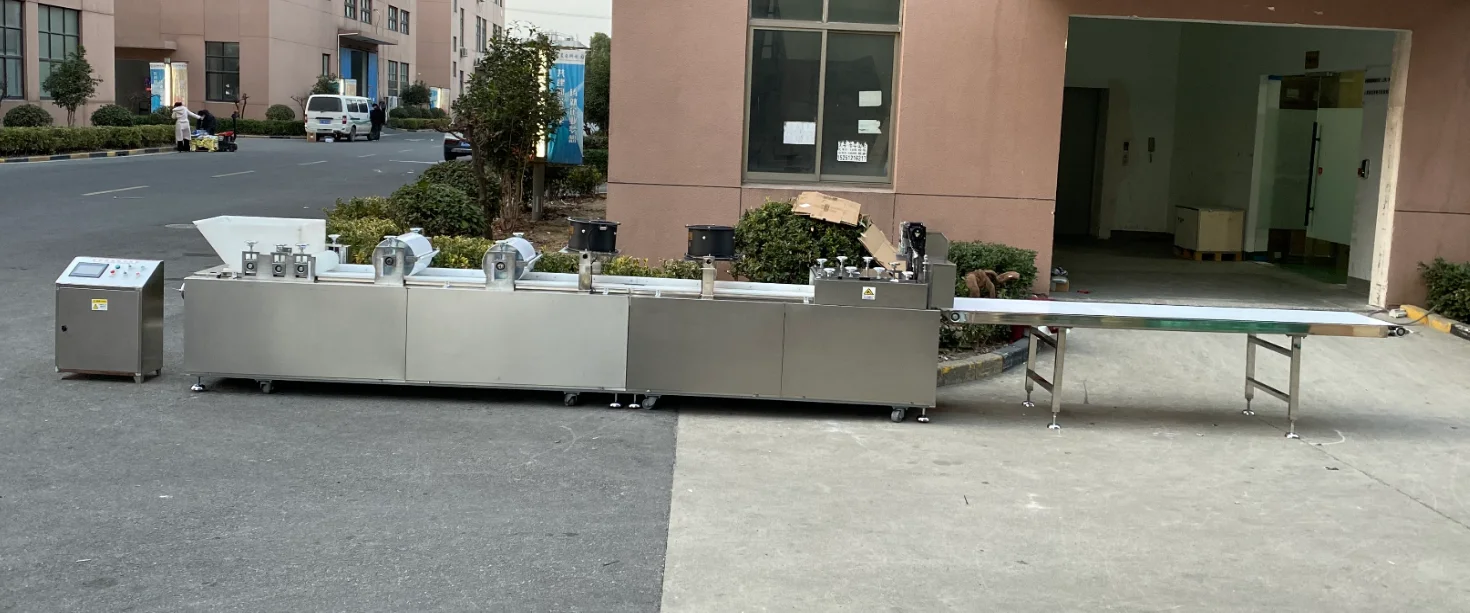

Detailed Image
Company Profile
We found in 2004, Shanghai Papa Industrial Co., Ltd has been an integrated industrial company specializing in food machinery for years. We have designed and developed the most advanced whole sets of food machinery used to produce cereal bars, protein bars, chocolates, mooncake, cookies, cakes and so on. We also provide procurement service for customers according to their special needs.
FAQ
Q1: Are you a manufacturer?
A1: Yes,we are.We are the manufacturer of food machinery, but we also provide Procurement Service if customer require.
Q2: What is your warranty for machinery?
A2:Our warranty is 12 months,with whole life service.
Q3: Do you provide formula for machine?
A3:Yes,we provide the formula.We can help adjust the formula according to customer's local taste if customer require.
Q4: Do you provide installation and commissioning?
A4:Yes,we send technicians for machine installation and commissioning,machine running and local team training.
Q5: Do you make customized machine?
A5:Yes,we can provide customized machine according to customer's requirements. We also provide turnkey solution if customer require.
Q6: Can you arrange factory inspection and machine checking before order?
A6:Yes,we arrange factory inspection and machine checking if customer require.
Q7: Can you arrange shipment?
A7:Yes,we can arrange the shipment for customer if customer require.
Q8: Can you send sample?
A8: No.Our machine is not available to send sample. But we can invite customer for factory visiting, or customer can send us his product samples. For small machine parts, we can negotiate with customer and arrange shipping by air.
Q9: How is your machine quality?
A9: Our machine are all food grade,all parts connecting with food are stainless steel304, configuration (electrical part, motor,transducer,etc)according to customer's require.
Q10: How many employee is needed for the machine?
A10: Depends on customer's machine condition.for single machine,need 1-2employees,for production line, need 5-8employees or more.
Q11: What is your delivery time?
A11: For single machine,normally within 30days; for medium production line,normally within 45days; for big production line, normally above 60days.
Q12: What is your payment term?
A12: 30%T/T as down payment, 70%balance paid before shipping.Or Irrevocable L/C at sight.
