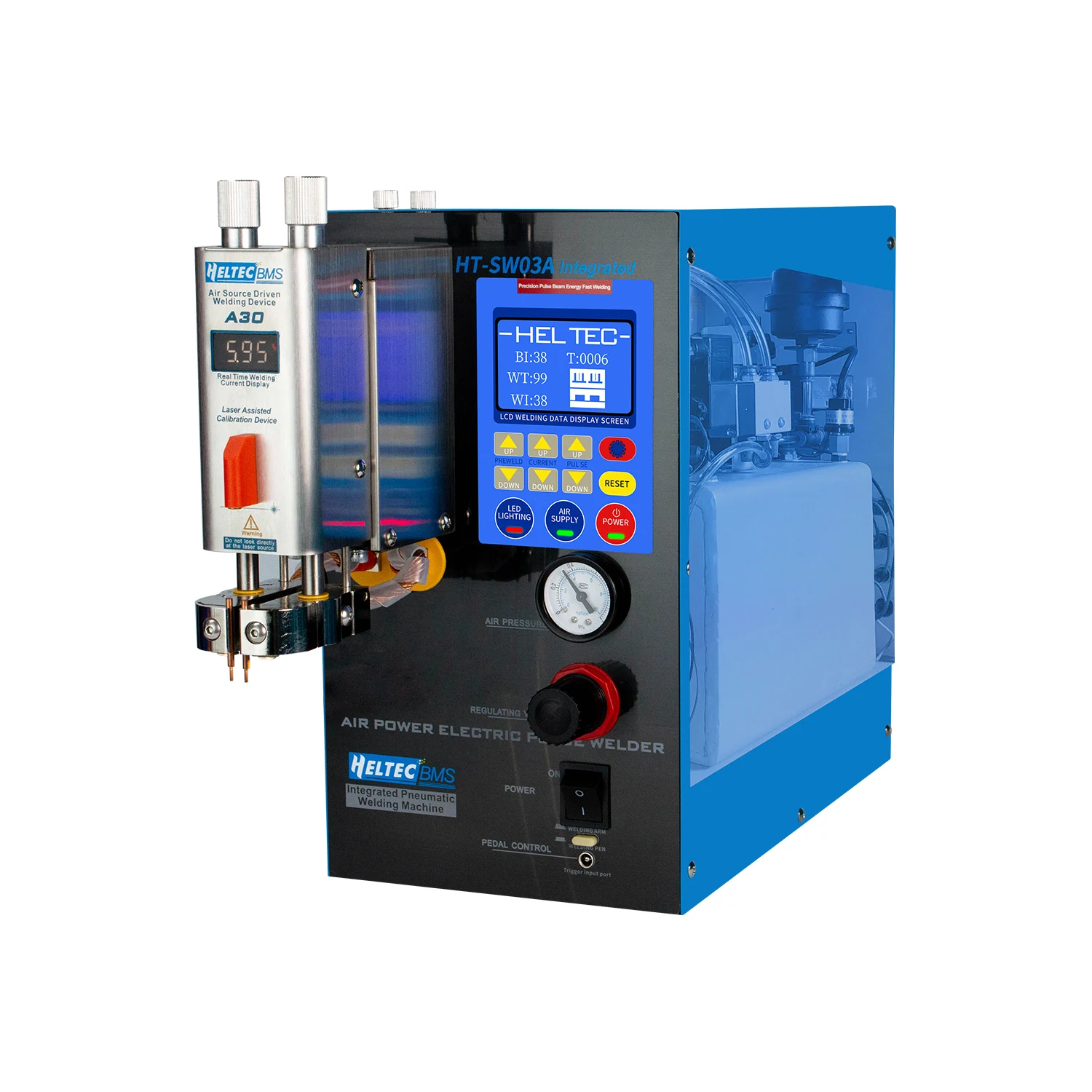

Pneumatic 6KW 1200A Spot Welding Machine With Built In Air Compressor HT SW03A Welding Point Battery Cell Welding Machine
- Category: >>>
- Supplier: Chengdu Heltec Energy Technology Co. Ltd.
Share on (1601097595317):
Product Overview
Description
Product Description

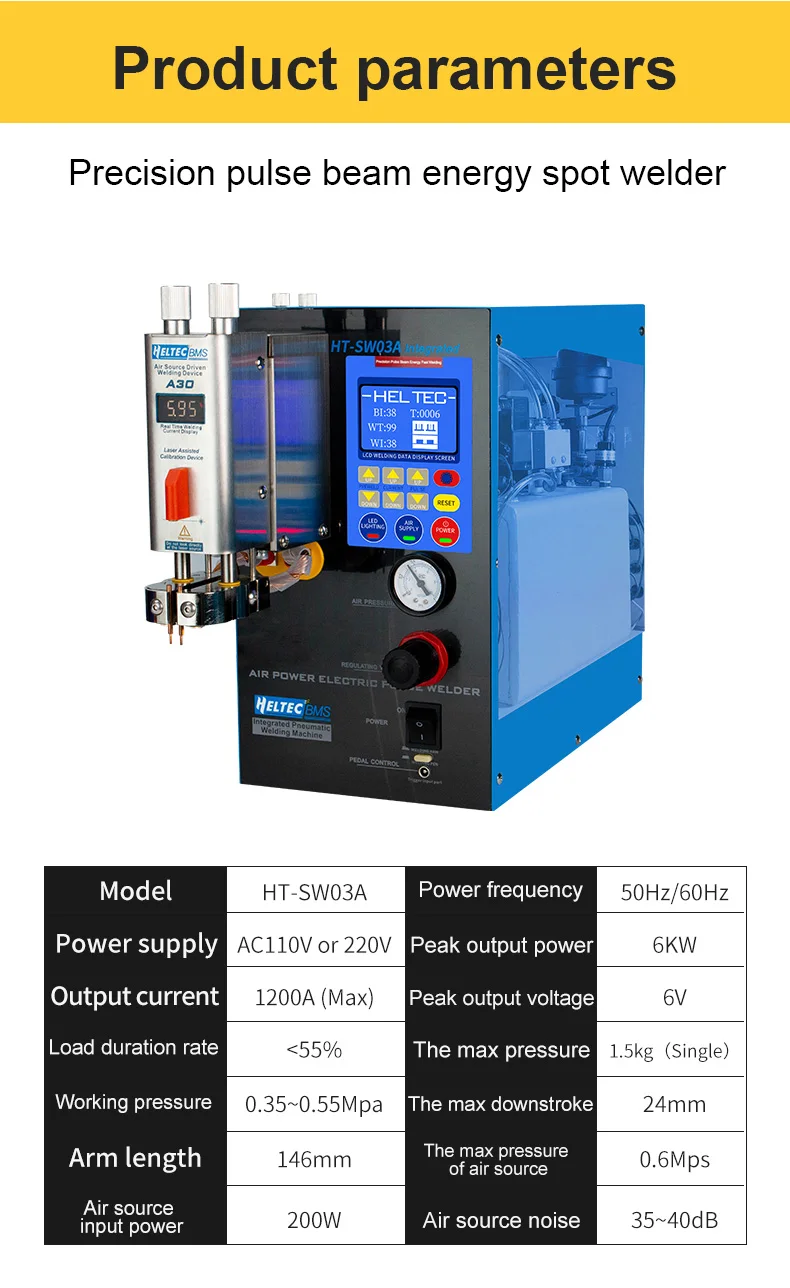

Model | HT-SW33A | Power frequency | 50HZ/60HZ |
Pulse power | 6KW | Power supply | AC 110V or 220V |
Spot welding output voltage | AC 6V | Output current | 100~1200A |
Duty cycle | ＜55% | Operating air presssure | 0.35~0.55MPa |
Downward pressure of electrode | 1.5KG(single) | Electrode stroke | 24mm |
Arm length of welding electrode | 146mm | Number of pulses | 01-05 |
Pre-welding energy grade | 01-99 | Continuous welding current grade | 01-99 |
Dimension | 50.5x19x34 cm | Net weight | 19.8KG |
Our Advantage
* Pneumatic spot welding:
The pneumatic spot welding head adopts a buffer design, the pressure of the two welding needles is independently adjustable, and the adjustment is convenient. When the left and right electrodes are not at the same height or there is a slight height difference between the left and right sides of the battery, the force of the two electrodes is still balanced, and the welding quality will not be affected.

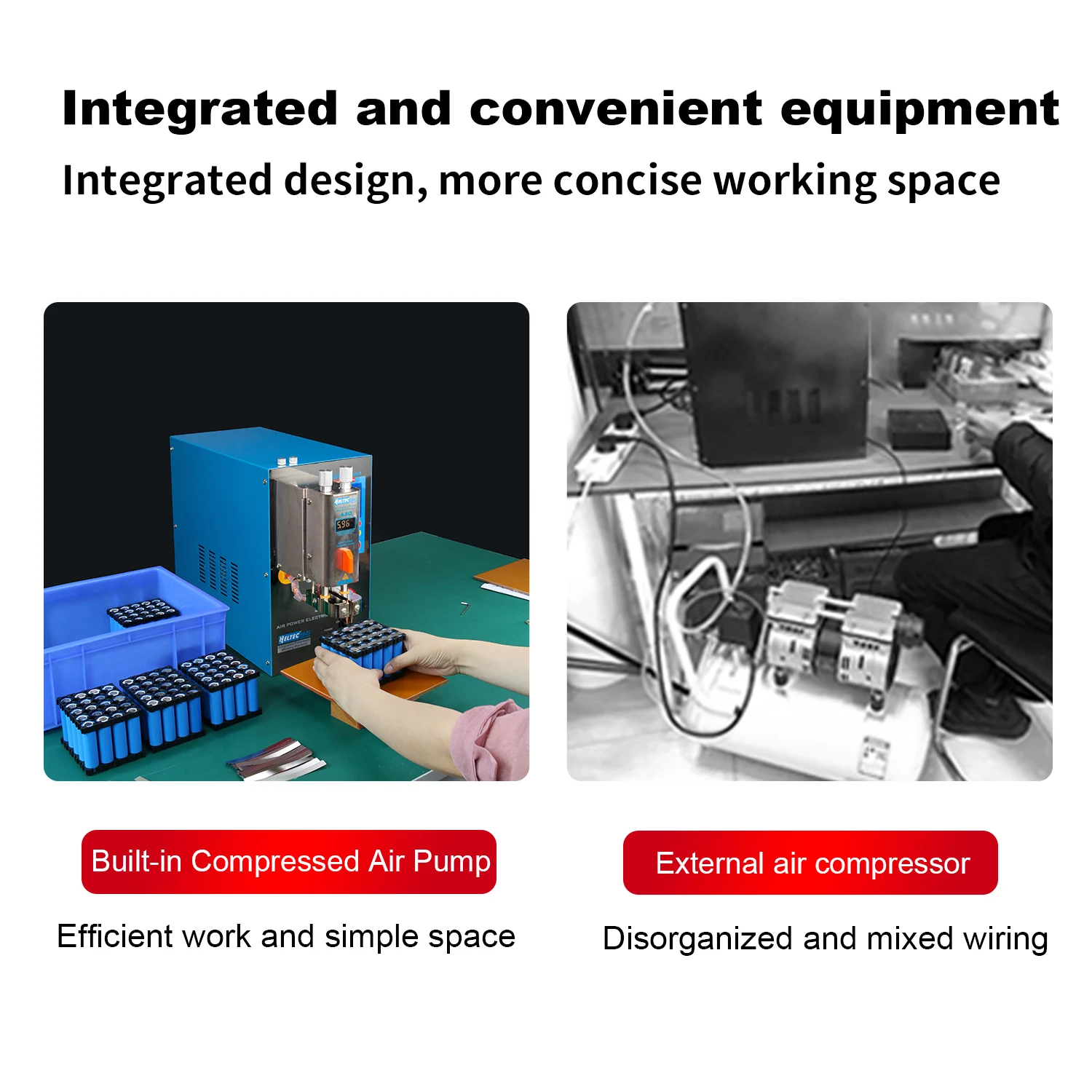

* Built-in Compressed Air Pump:
Laser alignment positioning and solder pins, lighting device, spot welding position more professional, detailed and accurate.
* Accurate microcomputer single-chip control:
It can realize single-pulse, double-pulse and multi-pulse welding.The microcomputer inside scans the input voltage at high speed for a long time, and when the current fluctuates, the compensation data will be calculated immediately, and the welding energy will be changed, no false welding or fire explosion will occur due to voltage fluctuation, and the welding effect is consistent each time. The welding spark is small, which has little impact on the battery.

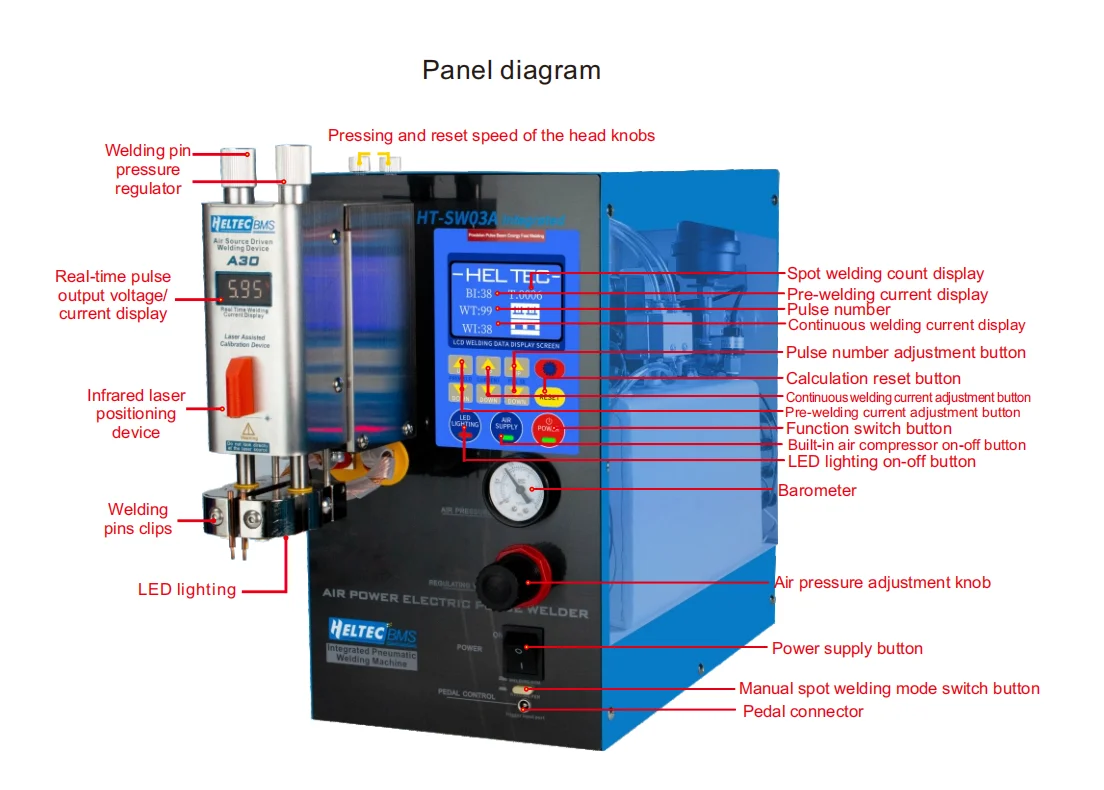

* Large LCD display:
Graphical display of the current working status.
* Automatic counting function:
Single-day output can be automatically counted from 0000-9999, which is convenient to calculate single-day output and improve work efficiency.
FAQ
1. Can you accept customization?
A: Yes, our company has a design department. We provide hardware design, ARM and Mbed system software design, etc. If you want to know more about our service, please click here: why choose us.
2. How long will it take for sample making and mass production?
A: It takes about 3-5 days to make the sample, and 7-30 days for mass production.
3.How about the productivity of your company?
A: We have enough storage for most of our products, if you need customize we have SMT factory to fulfill your needs after you pay for the products.
4.What about the mode of transportation ?
A: According to the quantity and volume, we will choose the most suitable and cost-effective way of transportation for you. Of course, you are also free to choose the most convenient one.
5.How do you guarantee the quality of your products?
A: We have professional instruments and equipment for development and test, and we use manual inspection. Each product will be tested before packaging.
Packing & Shipping
Company Profile
Chengdu Heltec Energy Technology Co., Ltd, as known as HeltecBMS, is one professional manufacture located in Chengdu, Sichuan, China. We focus on battery management system for many years. We design, produce, and sell hardware BMS, Smart BMS, Active Balancer, battery welding machine, battery maintenance and test instruments and other accessories. All these products are widely used in lithium battery industry.
We have strong technical R&D teams, scientific production platform and strict quality control system that allow us to provide all kinds of services including BMS design and manufacturing, sample orders and batch orders, OEM and ODM orders. We have professional engineer support, high efficiency sales team and reliable quality products that attract customers from all over the world. We are honored as the excellent supplier of many companies all around the world including Europe, USA, Canada, Australia, Brazil, Japan, Korea and South Africa.
We are reliable supplier of the battery management system industry with 1 year warranty. We deeply believe that on the road to innovation, we are not standing still. We constantly, with reliable quality requirements, to meet the market demand as the goal, development and production of exquisite appearance, excellent performance, energy conservation and environmental protection green products, is committed to be a leader in the market. We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success.
