NMEA2000 Connector Network With 5 Pin M12 Connector Gateway Interface Cable nmea 2000 marine display
- Category: >>>
- Supplier: Shenzhen Hysik Electronics Co. Ltd.
Share on (1601097597707):
Product Overview
Description
Product Description
NMEA 2000 Components
Poles: 5 Pin
Connector Size: M12 x 1.0mm
Shielded
Coding:A coding
Connector Nut:Plastic
Connector Gender: Male, Female
Mating Style: Screw, Quick Lock
Waterproof Rating: IP66, IP67, IP68
Standard Cable: 2 pairs twist 22+24AWG
Technical Data
Hysik NMEA 2000 trunk cable

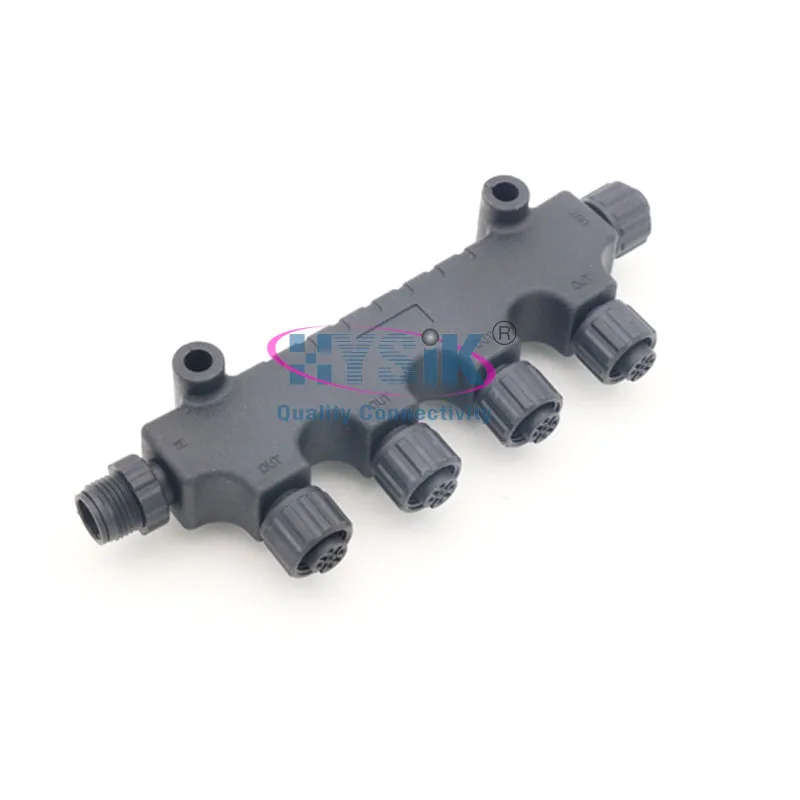

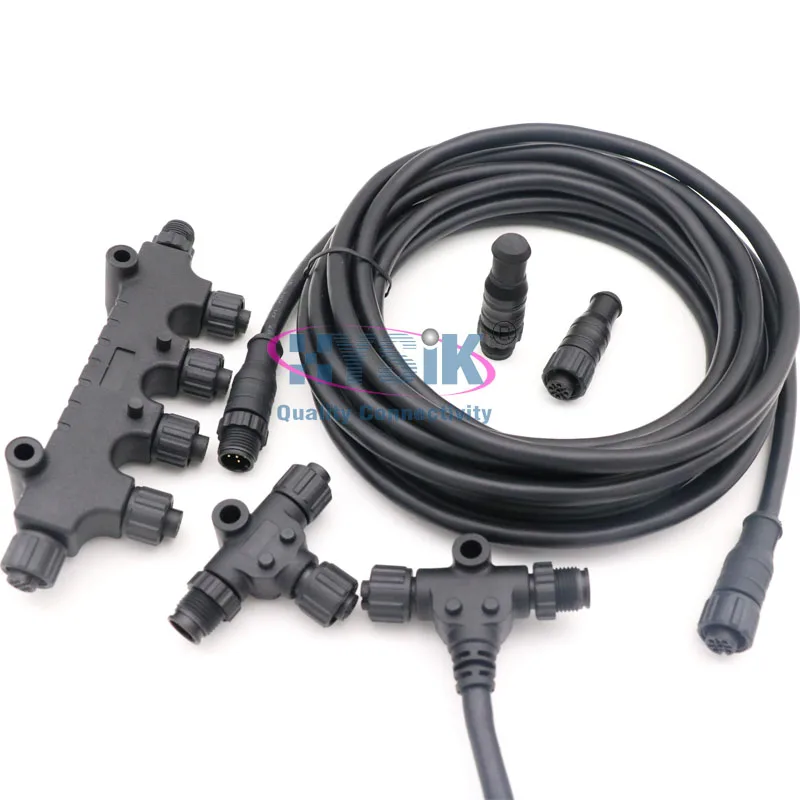

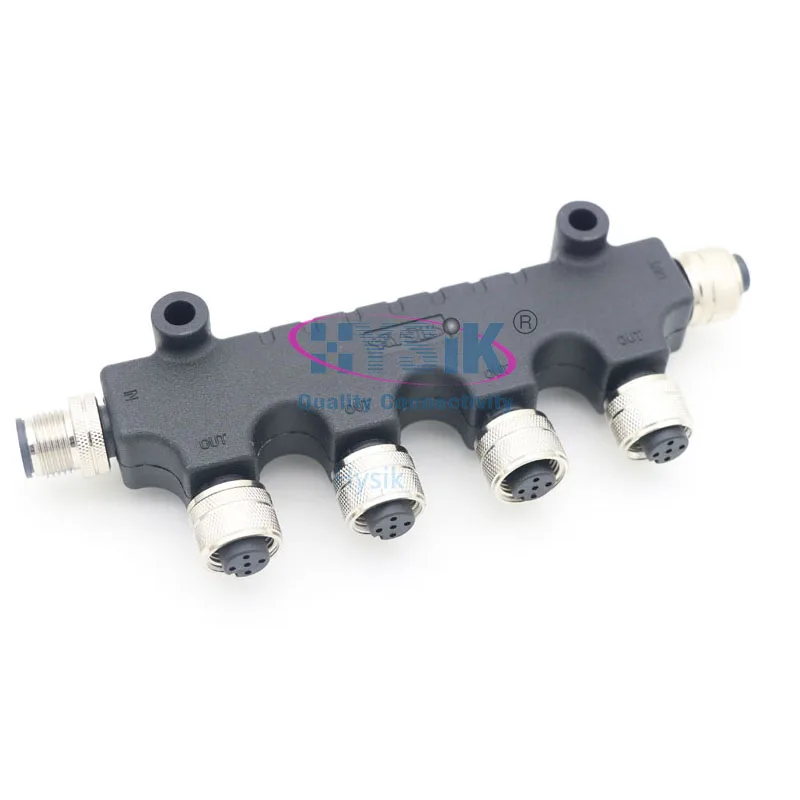

The NMEA2000 network comprises of a single trunk or backbone cable running through the length of the vessel with Tee Adaptors positioned where devices are to be attached to the network and a terminator at each end.

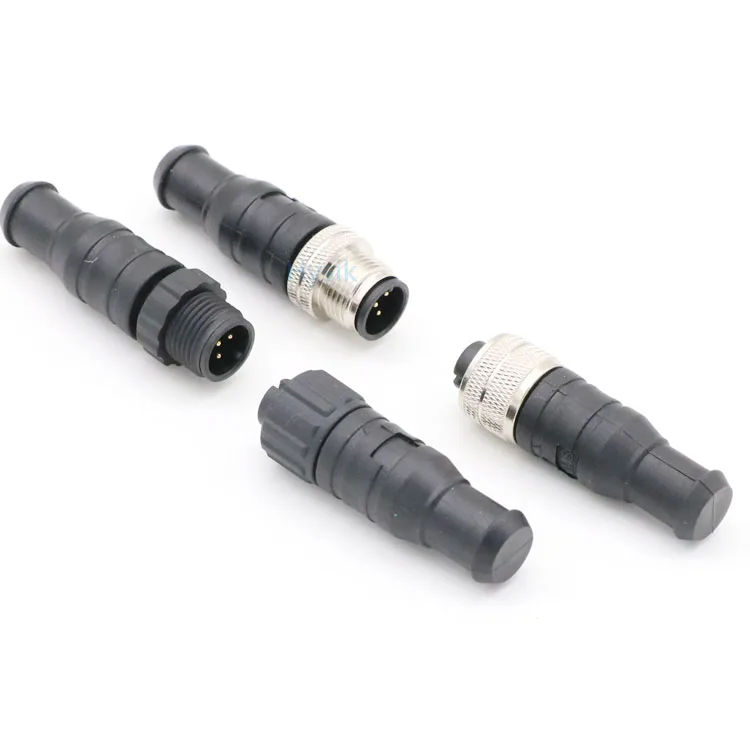

The trunk or backbone cable can be created by either using made up cables or cordsets that come in a range of lengths or by running bulk cable and using field installable connectors where Tee connectors are required.
Trunk cables come in two sizes, a larger “Mini” size which is rated to carry 8 Amps or a smaller “Micro” size which is rated to carry 4 Amps.The “Mini” trunk cable uses 12mm diameter cable and 25mm diameter connectors. The “Micro” trunk cable uses 7.5mm diameter cable and 14.5mm diameter connectors. Both types of cable are available in 0.5, 1, 2, 5 and 10 metre lengths and as bulk cable.Most installers are using the Micro size cable as this is much easier to handle and install.
Contacts | 5-Pin |
Wire gauge | 22-26awg |
Temperature range | – 40 °C /+ 105 °C |
Rated voltage | 250v |
Pollution degree | 3 |
Contact plating | Golded plated |
Detailed Images
Applications
● Sensors, actuators, encoders, motors, industrial cameras, ships and other equipment
● Factory automation process control
●Packaging label printing equipment
● Industrial equipment
● EMS circuit board assembly
● Industrial safety grating light curtain
●Equipment batteries, semiconductors
● Fieldbus: DeviceNet, CANopen, Profibus, Ethernet,
● Ship electronics NMEA 2000, rail transit
● LED outdoor display, outdoor LED lighting
● LED outdoor display, outdoor LED lighting
Packing & Delivery
Packing:5pcs packing in a sealing bag then put in a inner box,or according to Customer's Request.
Delivery:We can not ship out on weekend or China's Holiday.
Shipping:5-7days after received the payment.
Payment Methods:
1:T/T , PAYPAL , L/C , Western Union
2:Trade Assurance on Alibaba.com
Company Profile
Shenzhen Hysik Electronics Co. Ltd is an innovative corporation which is dedicated to providing high quality connectivity products to customers.
Our Product Ranges
Standard products (M5, M8, M12, 7/8",M16, M23), waterproof IP68 connectors, valve connectors, AISG cables and connectors that comply to IEC and IEEE. Our products are mainly used in the fields of industry, automation, IoT, telecommunication,
automotive,energy and marine. We are able to offer tailor-make solutions that suit the need of our customers from initial ideals to finished products to meet either standard or harsh environment signal and power transmission application. Our wide range of metric circular connectors and cable assembly fit almost any standard sensor or actuator application and includes features such as accurate IP ratings, a wide range of cable jackets, and multiple contacts pin configurations, and high quality rugged materials
