Outdoor billboards LED display screen 3D HD advertising p6 LED programmable sign display board outdoor
- Category: >>>
- Supplier: Shenzhen Vision Display Technology Co. Limited
Share on (1601097611151):
Product Overview
Description
Product Description
Outdoor HD LED display screen
Efficient and energy-saving LED outdoor display screens are designed with special curved and diagonal modules, making it easy to bud corner screens and achieve naked eve 3D effects. The realistic three-dimensional image of space and depth is displayed on LED screens with its vivid expression, beautiful environmental appeal and strong visual impact, which is highly favored by the audience.
PRODUCT DETAILS
Higher brightness, longer life, low dead lamp rate，the picture is bright and clearly visible.
Seamless splicing,the surface of the screen is flat,the color is uniform,the contrast is high,the picture quality is clear and gorgeous.
FUNCTIONS
PRODUCT SUPERIORITY
Waterproof and dustproof,high protection
The lamp beads are treated with waterproof glue, dustproof and waterproof, fearless of wind and rain, and adapt all kinds of severe environment.
Modular installation

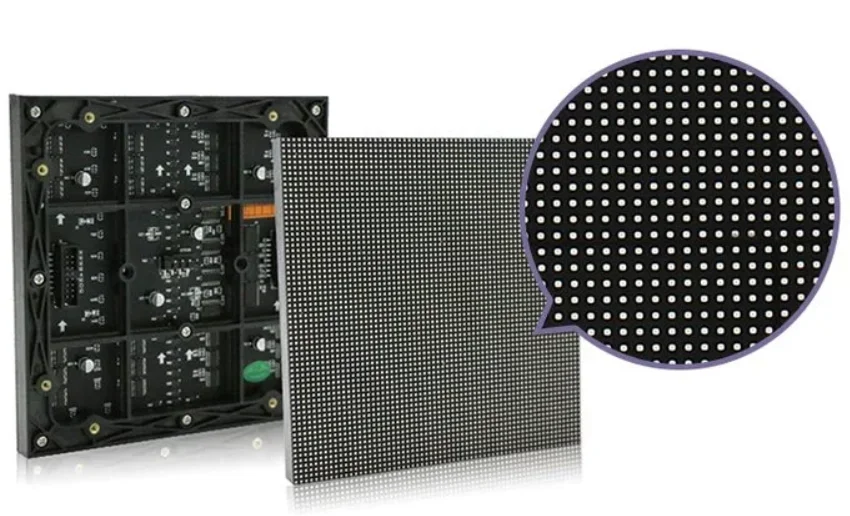

With module as the basic unit, it can be seamlessly spliced according to the required size, making installation, maintenance and transportation more convenient.
HD LED screen, rich color, high saturation, display gorgeous,3840Hz high refresh rate, fast response dynamic picture.

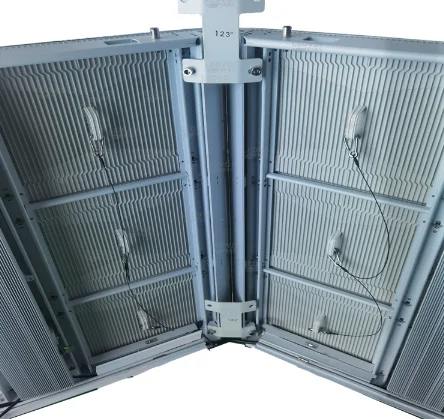

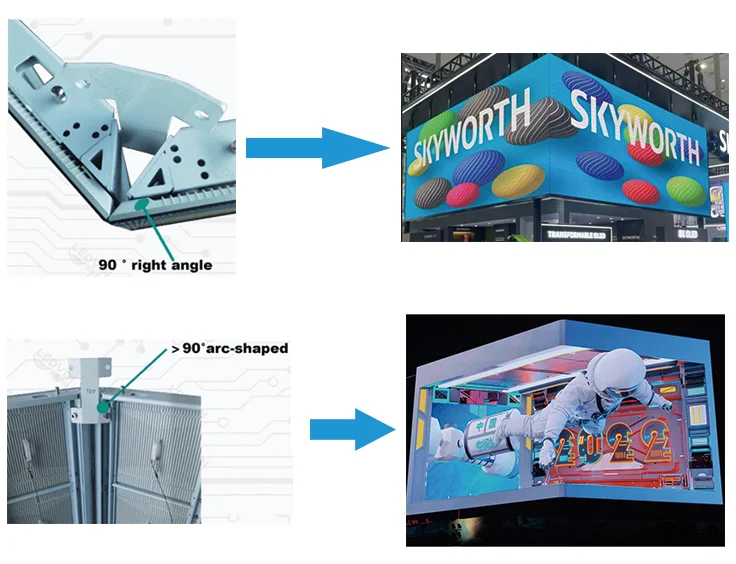

Special diagonal module and cunved module design make it easy to create outdoor comer naked eye 3D display screens, giving viewers a unique visual impac

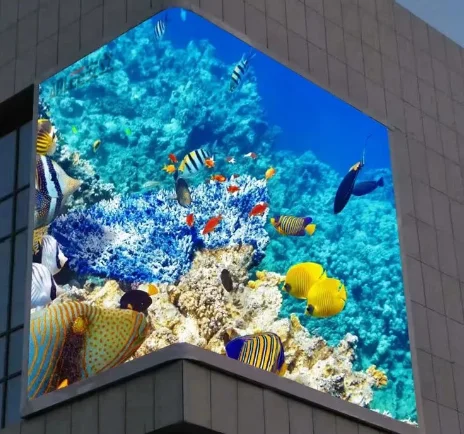

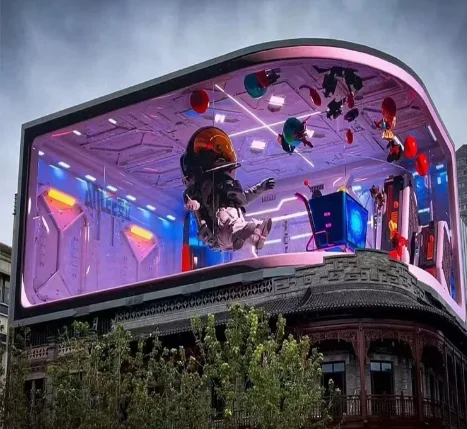

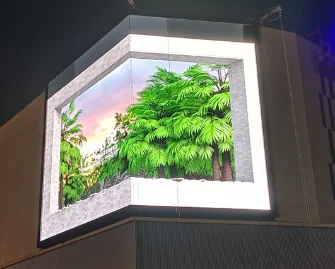

SHOW CASE
Specification
Pixel pitch | 6.67mm |
Panel dimension | 480*320mm |
Pixel resolution | 72*48dots |
Pixel density | 22477dots/㎡ |
Pixel configeration | 1R1G1B |
Cabinet size | 960*960mm |
Cabinet weight | 28KG/PCS |
Corner angle | ≥90° or arc angle |
Scan rate | 1/6S |
Brightness | 7000cd/㎡ |
IP protective index | IP65 |
Refresh frequency | 3840Hz |
Best viewing angle | H160°V160° |
Gray level | 14-16bits |
Screen power supply | AC100V/240V(50/60HZ) |
Operating temperature | -30℃~65℃ |
Packing & Delivery

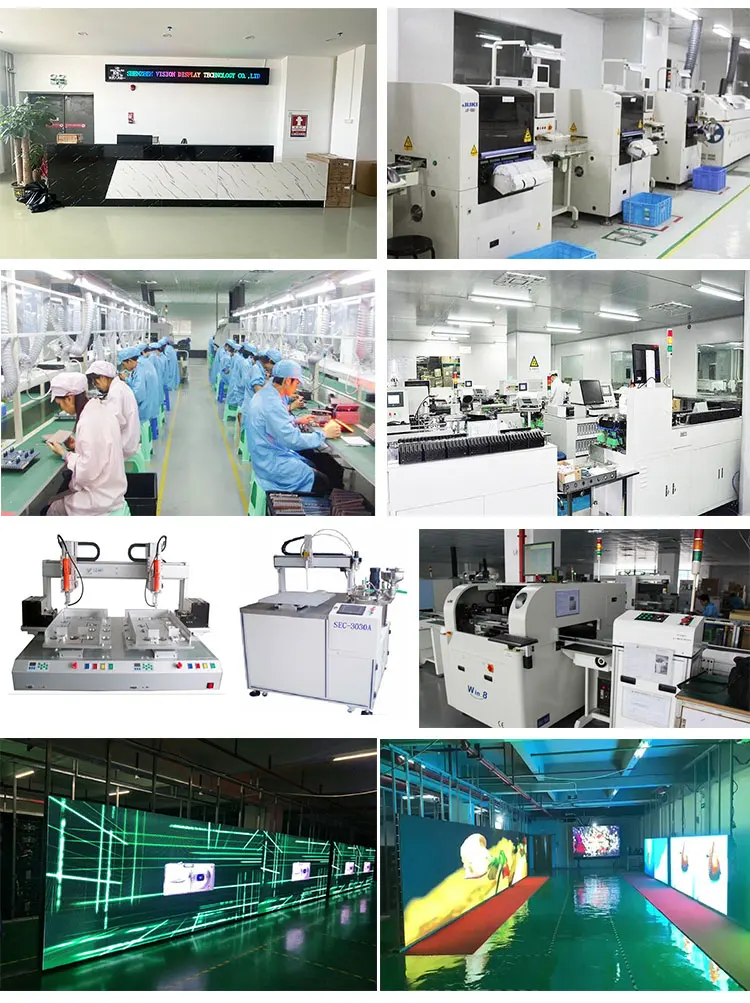

Company Profile
SHENZHEN VISION DISPLAY TECHNOLOGY CO,.LTD is a professional LED display manufacturer in China.With the constantly enhanced innovation ability, quality control ability, efficient and professional service ability and continuously improved product delivery ability, LEDVDI win the trust of customers around the world .
With 10 + years of technology accumulation and project precipitation, VISION DISPLAY provides indoor LED display, outdoor LED display, Flexible LED screen, Rental LED display, Transparent LED display ,UHD LED display, Dance floor LED display, Customized LED display ,Stadium LED screen ,Poster LED screen and Various series of LED optoelectronic products. It is widely used in outdoor media, airport stations, commercial landmarks, sports venues, tourist attractions, municipal publicity and other major industries. We adhere to the core concept of "integrity first, quality first, and customer first" and continuously provide customers with first-class products and services.
FAQ
Q1:LED display models are generally expressed in PX, such as P1.5 P2 P2.5.....P8, P10, what does this mean?
A: P1.5 P2 P2.5.....P8, P10 means that the pixel pitch is 1.5mm 2mm....10mm, which determines resolution of a display .Pixel pitch is smaller, led display resolution is higher.
Q2:What pixel pitch should I choose on my display?
A:Using the PX screen, it is determined mainly by the viewing distance, the size of the display screen, the desired effect and the customer budget.
Q3: To order a display ,What kind of information do I have to offer you?
A:You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements, then I can provide you with a detailed list of quotations.
Q4:How to install?
A:Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram, free remote debugging. We can also send our engineers to the site to guide the installation if needed.
Q5:What about your quality?
A:The quality of our display is excellent. We use the materials of high quality suppliers in the world, strictly control the
production process, and pass the multiple quality inspection to ensure that every product is qualified.
Q6:What about the warranty?
A:Two year warranty，life-long maintenance.
Q7:What about the lead time?
A:Orders less than 50 square meter display, lead time is 15 working days.
Q8:Can I order a sample?
A:Yes,We welcome customers to order samples to check our product quality of our products and service.
A: P1.5 P2 P2.5.....P8, P10 means that the pixel pitch is 1.5mm 2mm....10mm, which determines resolution of a display .Pixel pitch is smaller, led display resolution is higher.
Q2:What pixel pitch should I choose on my display?
A:Using the PX screen, it is determined mainly by the viewing distance, the size of the display screen, the desired effect and the customer budget.
Q3: To order a display ,What kind of information do I have to offer you?
A:You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements, then I can provide you with a detailed list of quotations.
Q4:How to install?
A:Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram, free remote debugging. We can also send our engineers to the site to guide the installation if needed.
Q5:What about your quality?
A:The quality of our display is excellent. We use the materials of high quality suppliers in the world, strictly control the
production process, and pass the multiple quality inspection to ensure that every product is qualified.
Q6:What about the warranty?
A:Two year warranty，life-long maintenance.
Q7:What about the lead time?
A:Orders less than 50 square meter display, lead time is 15 working days.
Q8:Can I order a sample?
A:Yes,We welcome customers to order samples to check our product quality of our products and service.
After-sales service

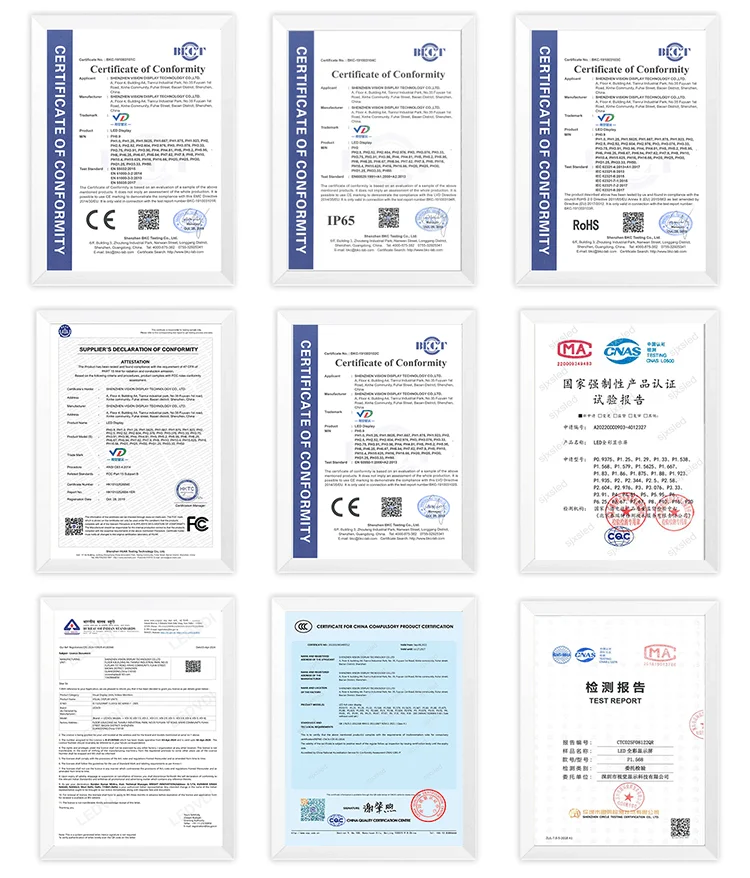

Certification
