Product Overview
Description

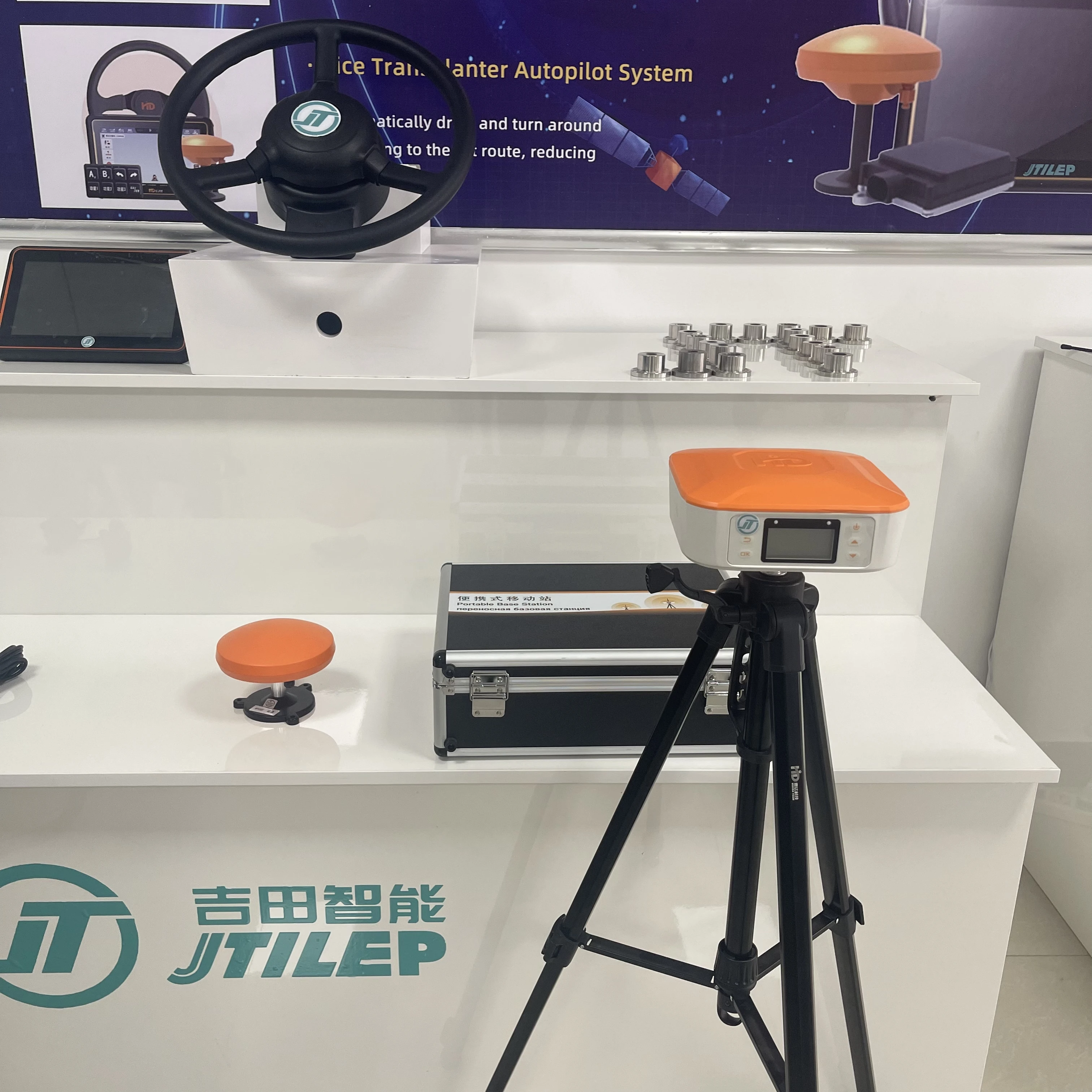

Products Description
Jtilep Intelligent 408 Beidou navigation agricultural machinery automatic driving system adopts the terminal core integration solution, and its main components include intelligent navigation terminal, motor steering wheel (hydraulic valve), body attitude sensor, GNSS antenna and gyroscope. Support single/dual antenna scheme at the same time. The satellite leveling system and operation detection system can be simultaneously expanded.
Manufacturing Technique
Physical properties | Parameter details | ||||||
Size | 178mmx178mm x 74mm | ||||||
Weight | 1.05kg(Base station host) | ||||||
Key | Power Key* 1; Up and Down Key* 2; OK Key* 1; Return Key* 1 | ||||||
Display screen | 2.5-inch LCD | ||||||
Indicator light | Power lamp* 1;Radio lamp*1 | ||||||
Shell material | Industrial-grade modulated PC | ||||||
Electrical properties | Parameter details | ||||||
Operating voltage | DC4-20V | ||||||
power dissipation | 3W | ||||||
Standard charger | Valid endurance>24h | ||||||
Environmental properties | Parameter details | ||||||
Operating temperature | -40℃~+70℃ | ||||||
Storage temperature | -40℃~+85℃ | ||||||
Protection Grade | IP67 | ||||||
Impact and vibration | Resistance to 1m free fall | ||||||

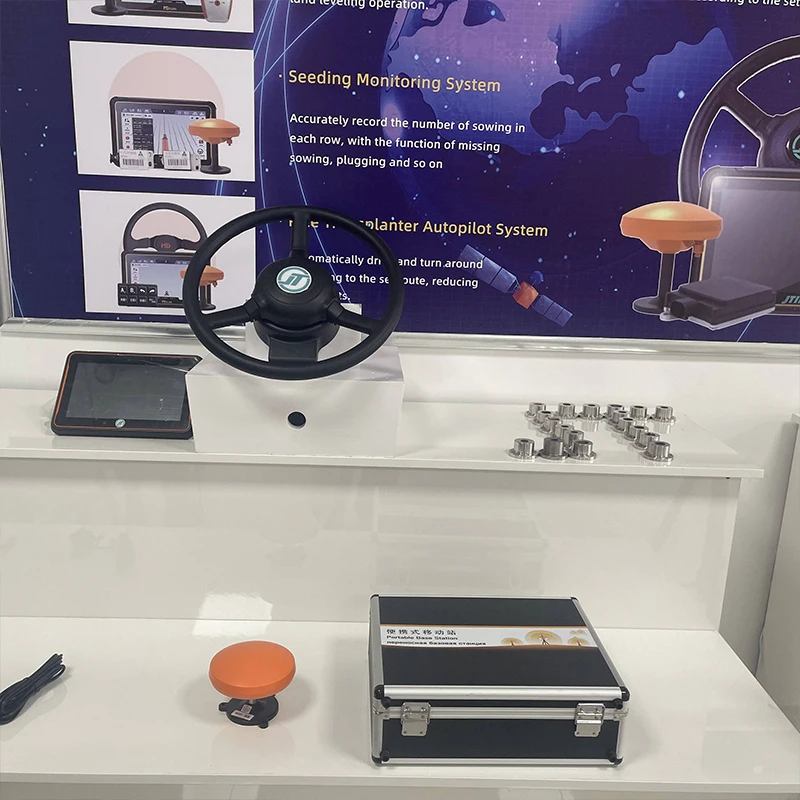

Details Images
Satellite Antenna
Function: receive satellite signal Composition: antenna body, transition rod, antenna base Installation method: glue + drill tail
screw / nail-free glue reinforcement Pre-installation scheme: relevant components realize factory pre-installation
screw / nail-free glue reinforcement Pre-installation scheme: relevant components realize factory pre-installation
Installation position of the single-antenna solution
Installation location selection The installation of satellite antennas needs to follow two basic principles: 1. The center point
of the antenna must coincide with the longitudinal centerline of the vehicle; 2. The main body of the antenna needs to be kept
perpendicular to the top reference plane of the vehicle, that is, when the vehicle is stationary and the ground is level, the
antenna is vertically upward. In the actual installation process, it is preferable to pre-select the plane area suitable for
installing the antenna on the top of the vehicle cab and clean it well, and then use the symmetrical reference object on the top
of the cab to mark the longitudinal centerline of the vehicle in the plane area before installation. Prepare.
of the antenna must coincide with the longitudinal centerline of the vehicle; 2. The main body of the antenna needs to be kept
perpendicular to the top reference plane of the vehicle, that is, when the vehicle is stationary and the ground is level, the
antenna is vertically upward. In the actual installation process, it is preferable to pre-select the plane area suitable for
installing the antenna on the top of the vehicle cab and clean it well, and then use the symmetrical reference object on the top
of the cab to mark the longitudinal centerline of the vehicle in the plane area before installation. Prepare.
Installation position of the dual-antenna solution
Installation location selection The dual-antenna solution follows the same basic principles as the single-antenna solution. The difference is that two GNSS antennas are arranged longitudinally on the center line of the vehicle. The positioning antenna is connected to the display terminal GNSS-1 interface in front, and the heading antenna is connected to the display terminal GNSS-1 interface in the rear. 2 interface, the straight-line distance between the installation positions of the two antennas should be kept at least 1m
Installation location for vehicles without a cab
Installation location selection Satellite dish installations for non-cab vehicles follow the same basic guidelines. The
installation position can be selected to be installed on the front and rear beams or the roll cage according to the actual
situation of the vehicle
installation position can be selected to be installed on the front and rear beams or the roll cage according to the actual
situation of the vehicle
radio antenna
Function: Receive radio signal Composition: radio antenna, base + feeder Installation method: glue + drill tail screw / nail-free
glue reinforcement
glue reinforcement
Radio Antenna Fixing Method
Installation location selection The installation position of the radio antenna needs to follow two basic principles: 1. The main body of the antenna needs to be kept perpendicular to the top reference plane of the vehicle, that is, when the vehicle is stationary and the ground is level, the antenna is vertically upward; 2. The straight-line distance between the radio antenna and
any satellite antenna installation position is at least >30cm. a fixed way Take the same fixing method as the satellite dish
any satellite antenna installation position is at least >30cm. a fixed way Take the same fixing method as the satellite dish

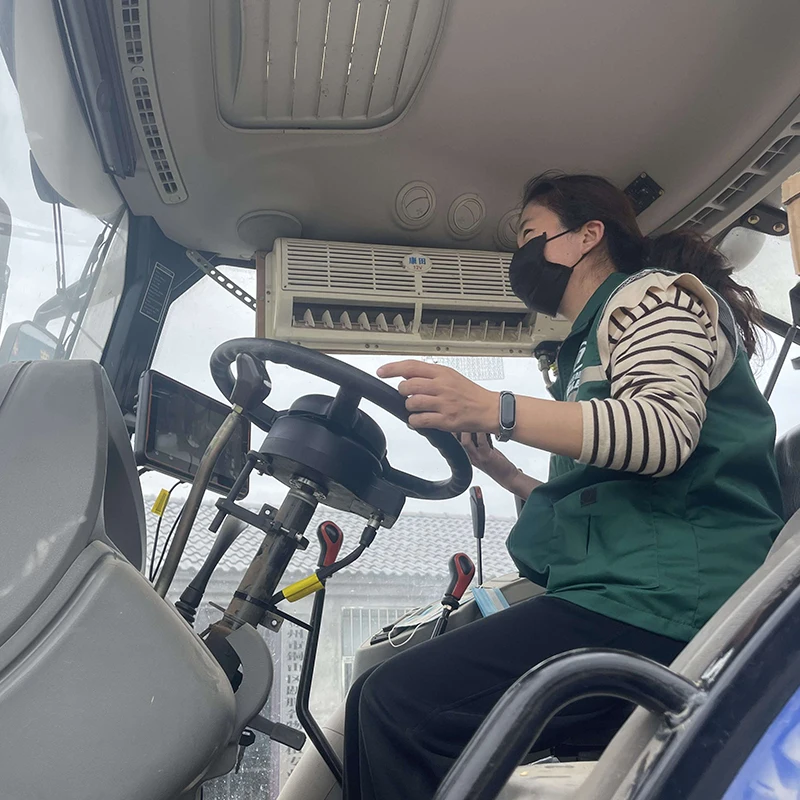

motor steering wheel
Function: executive control unit Composition: motor, steering wheel, steering wheel cover, flange, Motor Bracket Assembly
Installation method: overall replacement of the original car steering wheel
Installation method: overall replacement of the original car steering wheel
Pre-installation scheme: relevant components have been
pre-installed at the factory
pre-installed at the factory

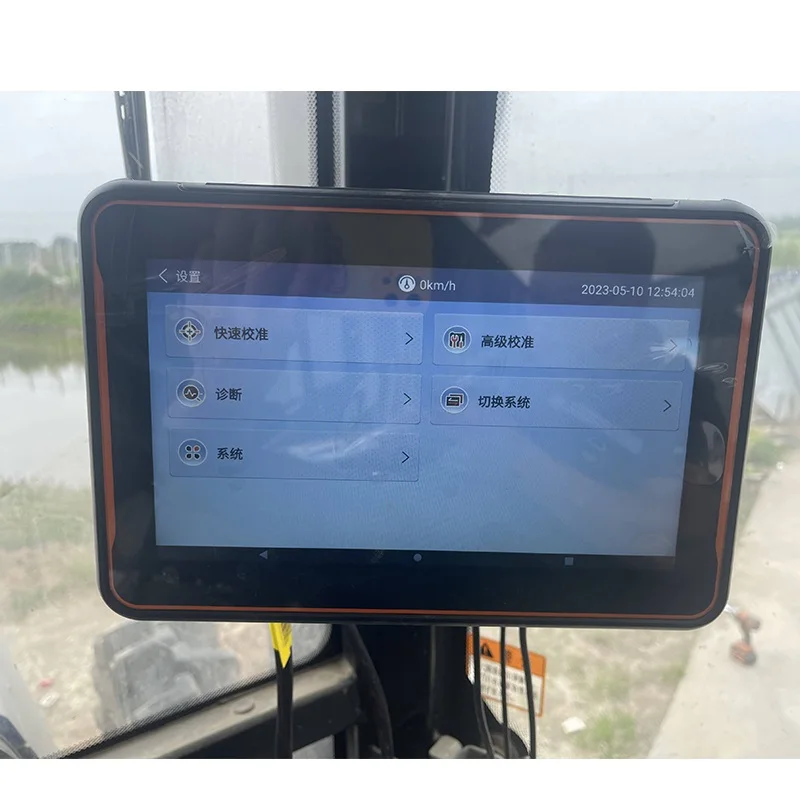

display terminal
Function: core unit, interactive unit Composition: display terminal, RAM bracket Internal integration: 10-inch high-definition
touch screen, driving controller, high precision Positioning board, 4G module, radio station Installation method: installed inside
the cab through the bracket
touch screen, driving controller, high precision Positioning board, 4G module, radio station Installation method: installed inside
the cab through the bracket
Pre-installation scheme: relevant components have been pre-installed at the factory
Harness connection
Harness composition In addition to antenna-related feeders, the wiring harness also includes power supply + gyroscope one-to-two
wiring harness, motor wiring harness and body attitude sensor wiring harness.
wiring harness, motor wiring harness and body attitude sensor wiring harness.
Flange Specifications
