Crawler Solar Pile Driver Attachment Deep Hole Hammer Pile Driver Machine for Sale
$15,999.00-18,999.00
Excavator Attachment Pile Driver Machine Sheet Pile Driver Cement Piles
- Category: >>>
- Supplier: Henan Yulu Machinery Co. Ltd.
Share on (1601097650984):
Product Overview
Description
Product Description

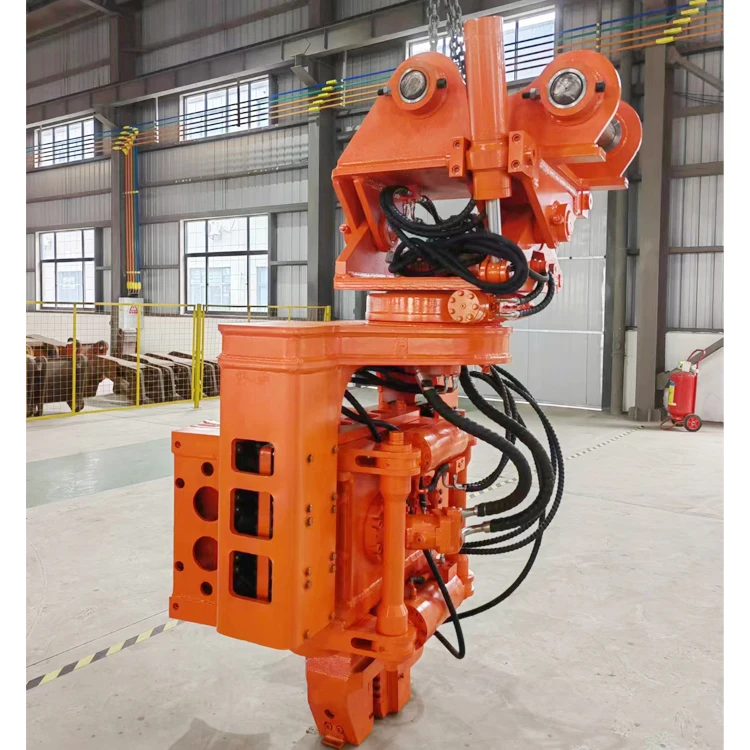

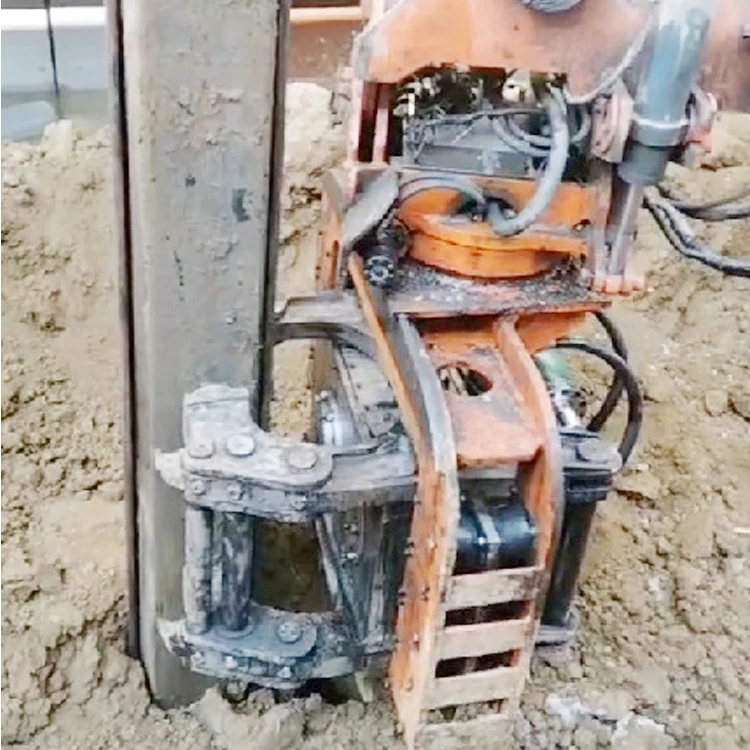

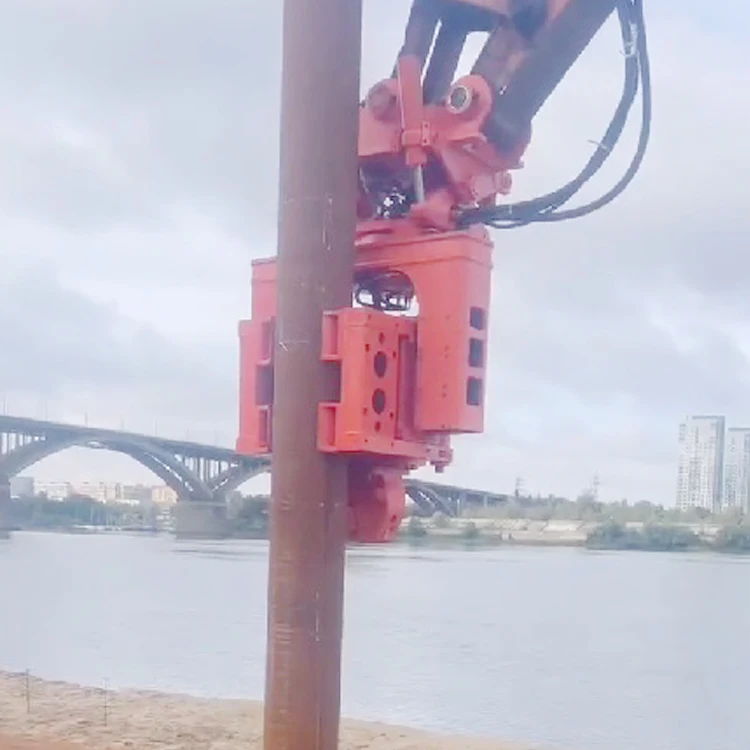

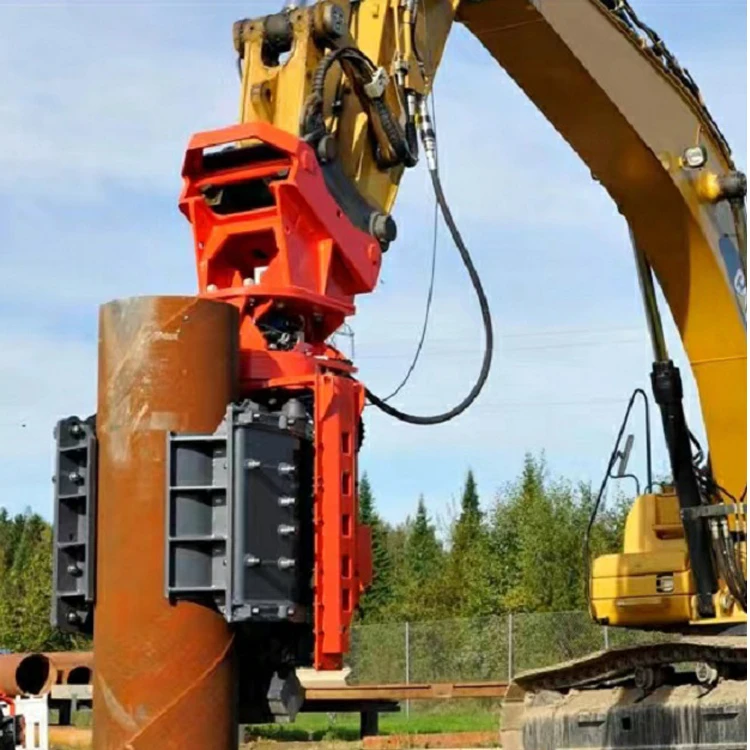

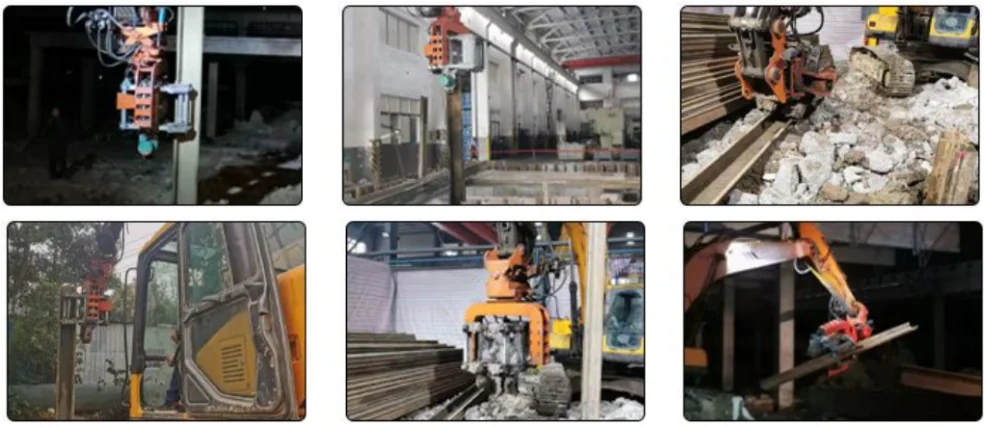

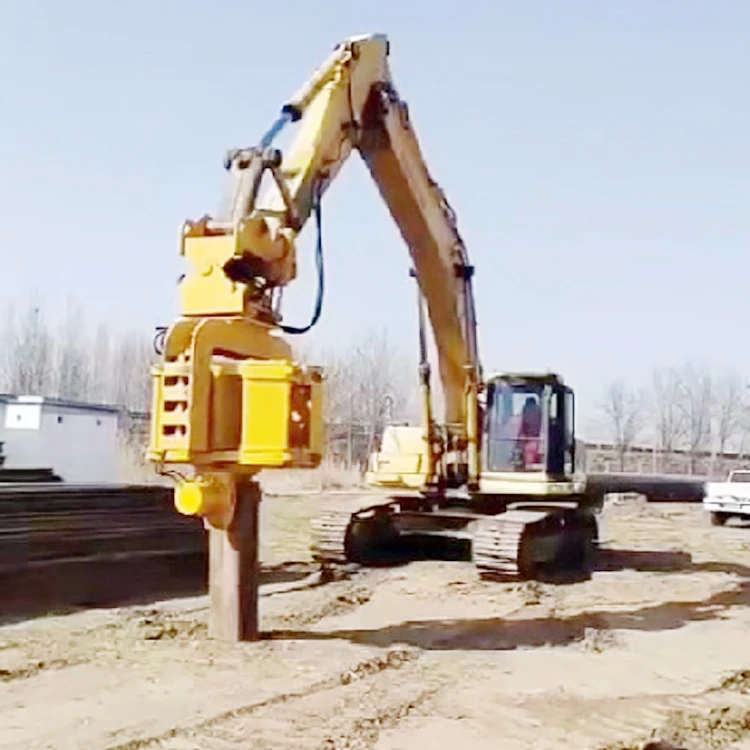

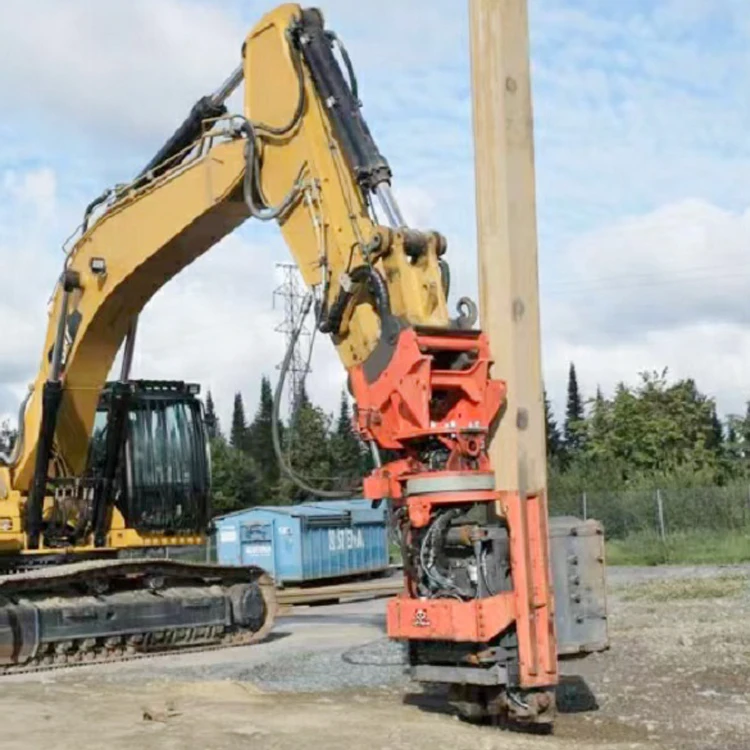

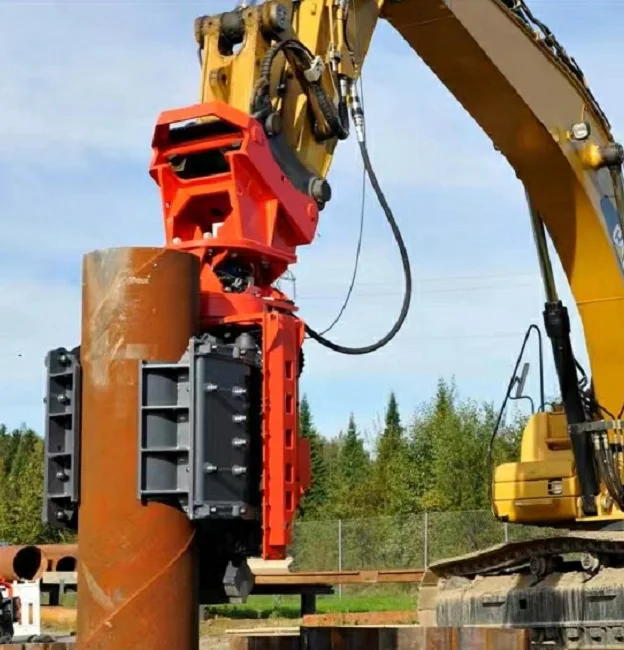

The side-clip pile driver is the best solution to meet various piling requirements, site and soil conditions. It is especially suitable for operations in high-density buildings, sensitive areas and height-restricted environments. The same equipment can complete pile clamping, positioning and piling. The entire process does not require manual operation or auxiliary mechanical equipment.

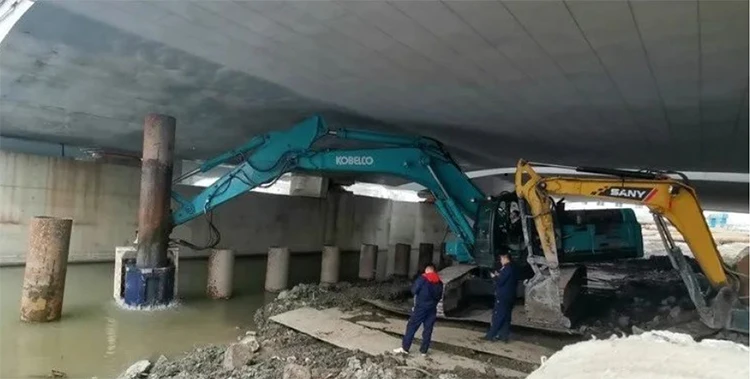

Used for implanting steel sheet piles, steel pipe piles, cement piles, etc. This product adopts the side clamping pile implantation process, which has no limit on the length of the pile, and avoids the disadvantage of modifying the extension arm to implant a larger length. In addition, for working conditions with limited space and height, this equipment is more needed for implantation or pile extraction operations.
Used for implanting steel sheet piles, steel pipe piles, cement piles, etc. This product adopts the side clamping pile implantation process, which has no limit on the length of the pile, and avoids the disadvantage of modifying the extension arm to implant a larger length. In addition, for working conditions with limited space and height, this equipment is more needed for implantation or pile extraction operations.
Specification
Side clamp excavator hammer has the following features:

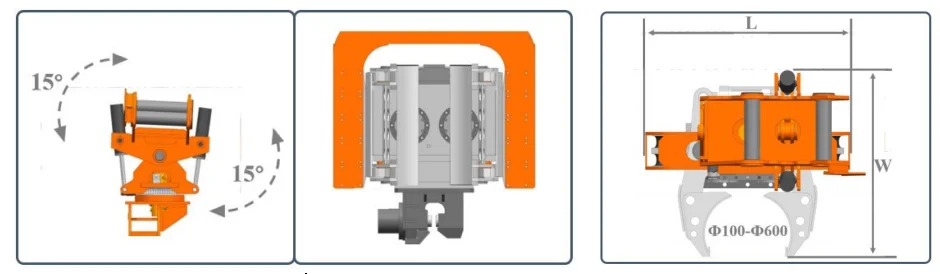

1. Flexible control, simple operation, fully hydraulic control, 360-degree full rotation, 45-degree left and right tilt, convenient pile clamping, and can be operated in sensitive areas
2. No need to modify the excavator, it can be installed and used immediately
3. Not restricted by pile length, can be constructed in height-limited spaces
4. Construction is safe, stable and efficient, and transportation is more convenient and economical

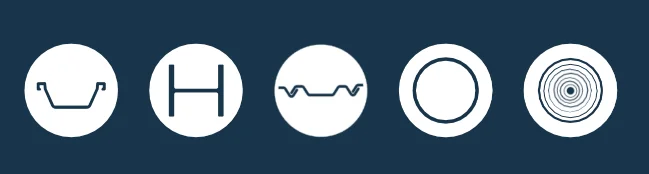

5. Suitable for steel sheet piles, section steel, pipe piles, cement piles, wood piles and other pile types, one machine can be used for multiple purposes
6. Precise design and reliable performance
1. Flexible control, simple operation, fully hydraulic control, 360-degree full rotation, 45-degree left and right tilt, convenient pile clamping, and can be operated in sensitive areas
2. No need to modify the excavator, it can be installed and used immediately
3. Not restricted by pile length, can be constructed in height-limited spaces
4. Construction is safe, stable and efficient, and transportation is more convenient and economical
5. Suitable for steel sheet piles, section steel, pipe piles, cement piles, wood piles and other pile types, one machine can be used for multiple purposes
6. Precise design and reliable performance
Model | YG450 | YG550 | YG650 | YG750 | |||
Suitable excavator | 20-23T | 24-27T | 28-35T | 34-45T | |||
Eccentric moment | 4kg.m | 5.1kg.m | 6.3kg.m | 7.5kg.m | |||
Vibration amplitude | 5mm | 6mm | 6mm | 7mm | |||
Arm stroke | 250mm | 250mm | 250mm | 250mm | |||
Hydraulic oil flow | 110Lpm | 165Lpm | 221Lpm | 256Lpm | |||
Excitation frequency | 2500 | 2500 | 2500 | 2500 | |||
Side Gripping Force | 50ton | 50ton | 60ton | 60ton | |||
Clamping Force | 29ton | 29ton | 45ton | 45ton | |||
Sheet piles | 350-800mm | 400-1000mm | |||||
H Beams | H200-H500 | H250-H500 | |||||
Timber pile | 120-400mm | 160-600mm | |||||
Tube piles | 120-400mm | 160-600mm | |||||
Machine weight | 2650kg | 2750kg | 3000kg | 3500kg | |||
Max exciting force | 48T | 60T | 66T | 78T | |||
Excitation frequency | 2800rpm | 2800rpm | 2800rpm | 2800rpm | |||
Working pressure | 32Mpa | ||||||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
