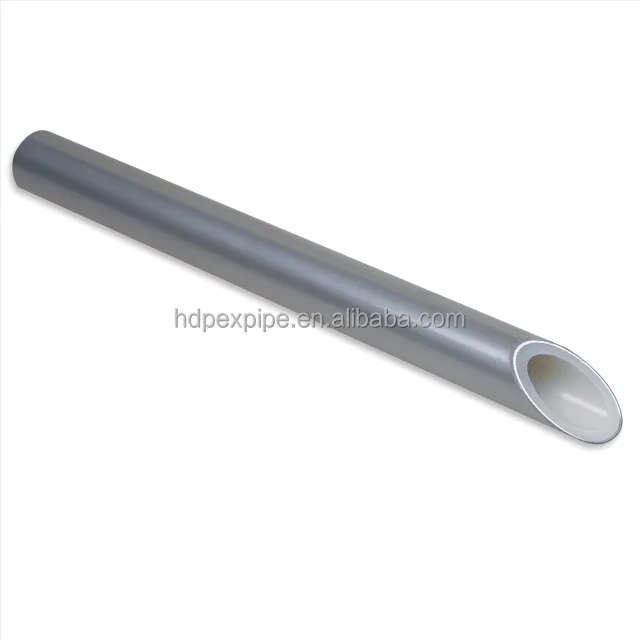

16.2x2.6 heating floor system PEX Al PERT pipe pex aluminium stabil pipe
- Category: >>>
- Supplier: Tianjin Huilide New Materials Co. Ltd.Tianjin Ltd.
Share on (1601097653144):
Product Overview
Description
Products Description

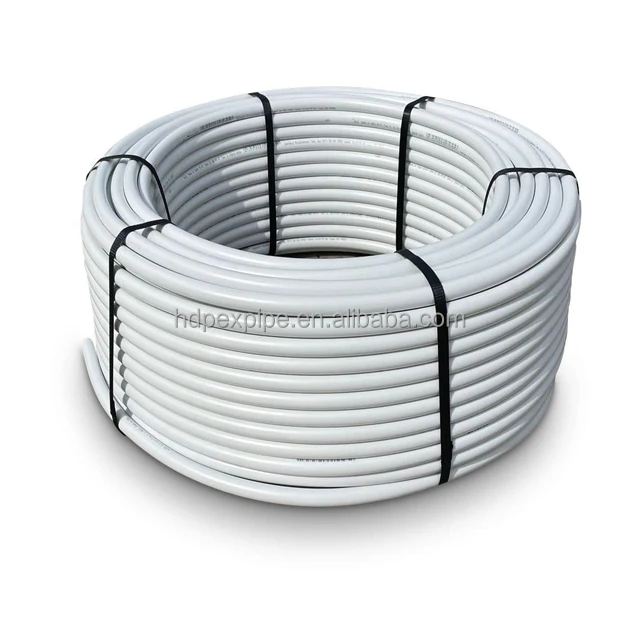

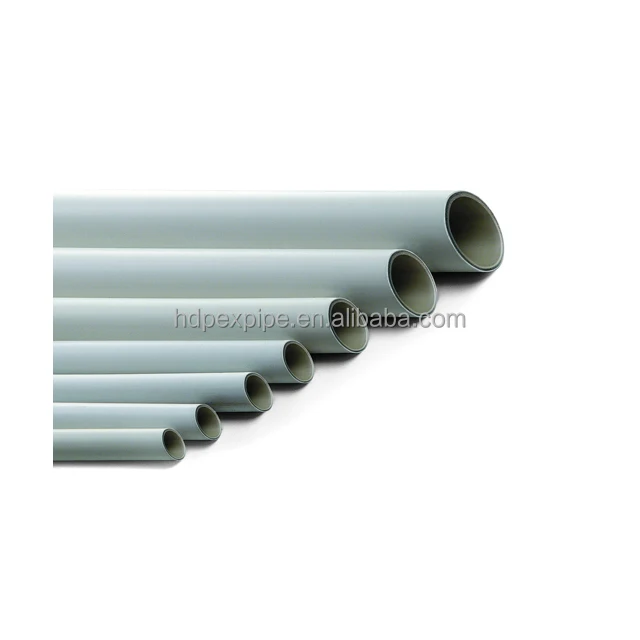

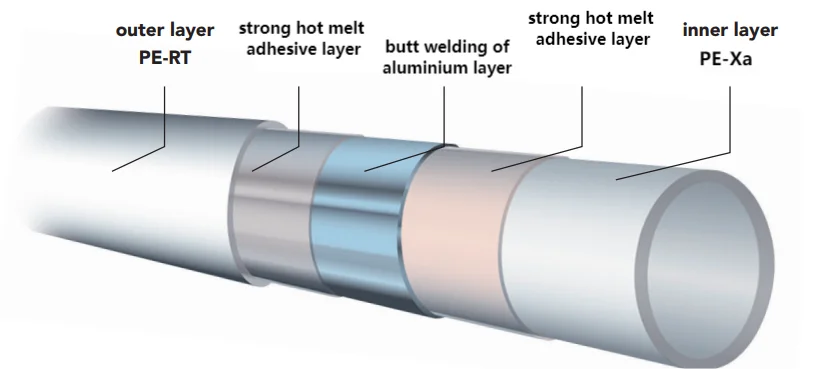

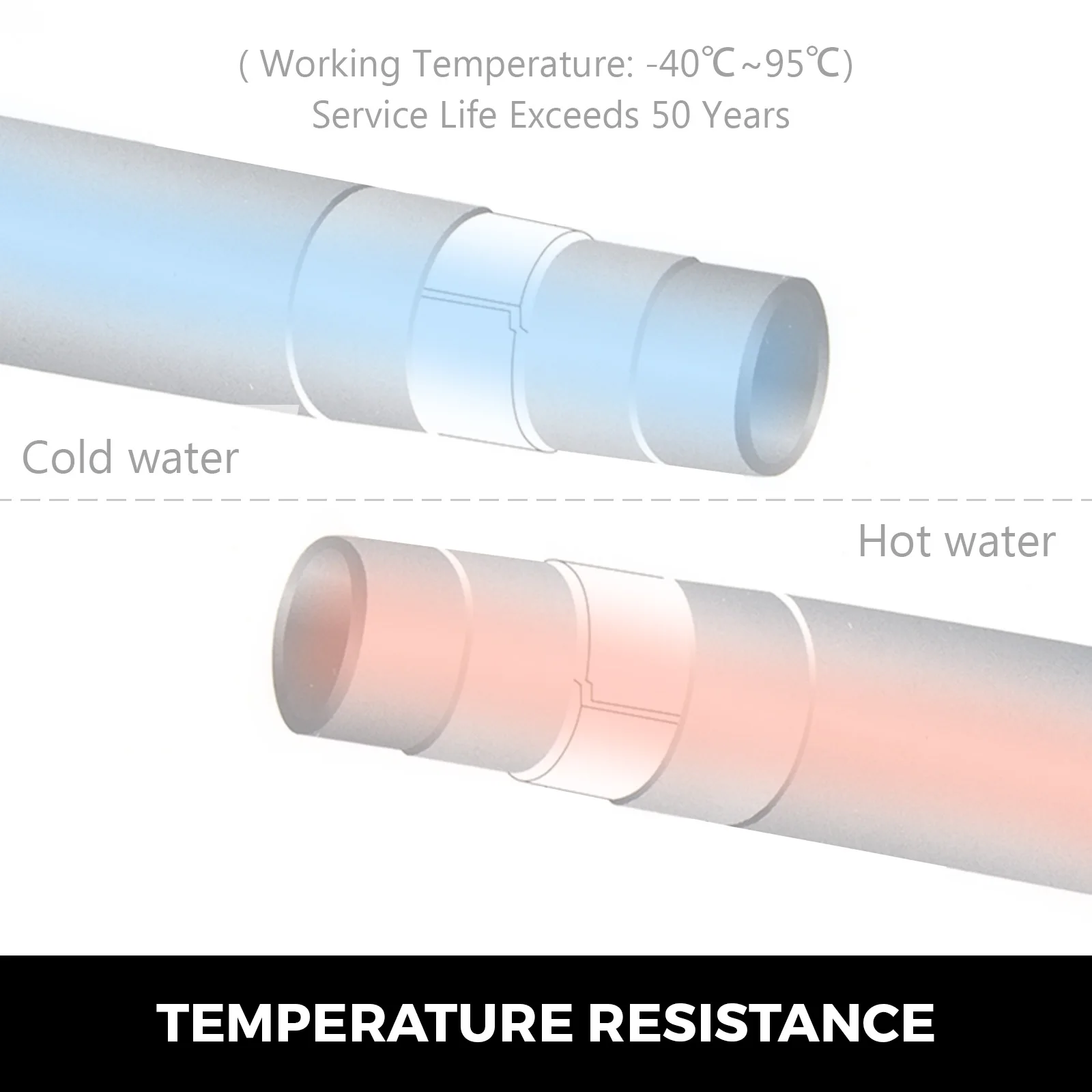

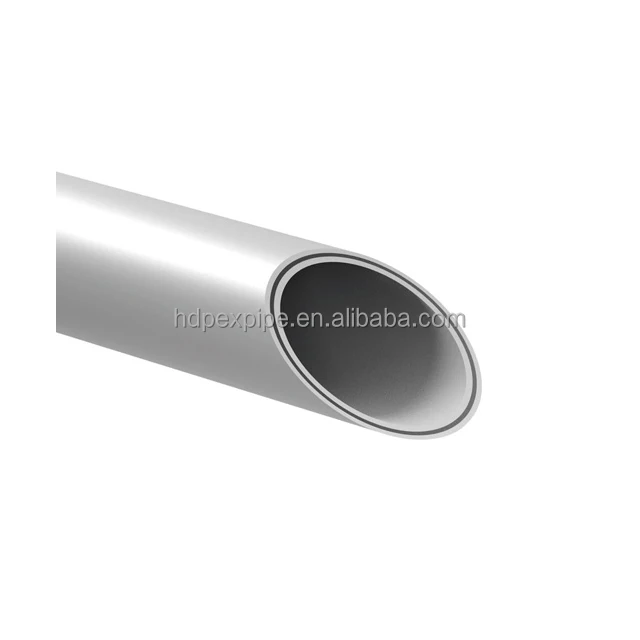

PEXa-Al-PERT Pipe is a five-layered pipe with an aluminium layer that is longitudinally welded, making it extremely safe and easy to work with. It combines the strength of the metal pipe with the durability of plastic pipe. Withstand temperatures up to 95℃ and perfect anti-oxygen barrier function, it can be widely used for plain decoration and underfloor installation.Compared with other type, the advantage of our multilayer pipe is with the characteristic of PE-Xa pipes (crosslinking degree > 75%) , which can be used for cold expansion installation and highly improved the working efficiency.
Specifications:
CODE | SIZE |
HDMLS01 | 16.2*2.6 |
HDMLS02 | 20*2.9 |
HDMLS03 | 25*3.7 |
HDMLS04 | 32*4.7 |
HDMLS05 | 16*2.0 |
HDMLS06 | 20*2.0 |
HDMLS07 | 25*2.5 |
HDMLS08 | 25*3.0 |
HDMLS09 | 32*3.0 |
Basic Resin of raw material: LG (Grade SL188) or Lotte (Grade 8100GX)
Production Standard: EN ISO 21003, GB/T 18997
Package: DN16-32 25m/50m/100m/200m per roll
DN16-32 3m/4m/5m per length
Roll length can be customized according to requirements.
Roll length can be customized according to requirements.
Color:Natural color
Production Standard: EN ISO 21003, GB/T 18997
Package: DN16-32 25m/50m/100m/200m per roll
DN16-32 3m/4m/5m per length
Roll length can be customized according to requirements.
Roll length can be customized according to requirements.
Color:Natural color

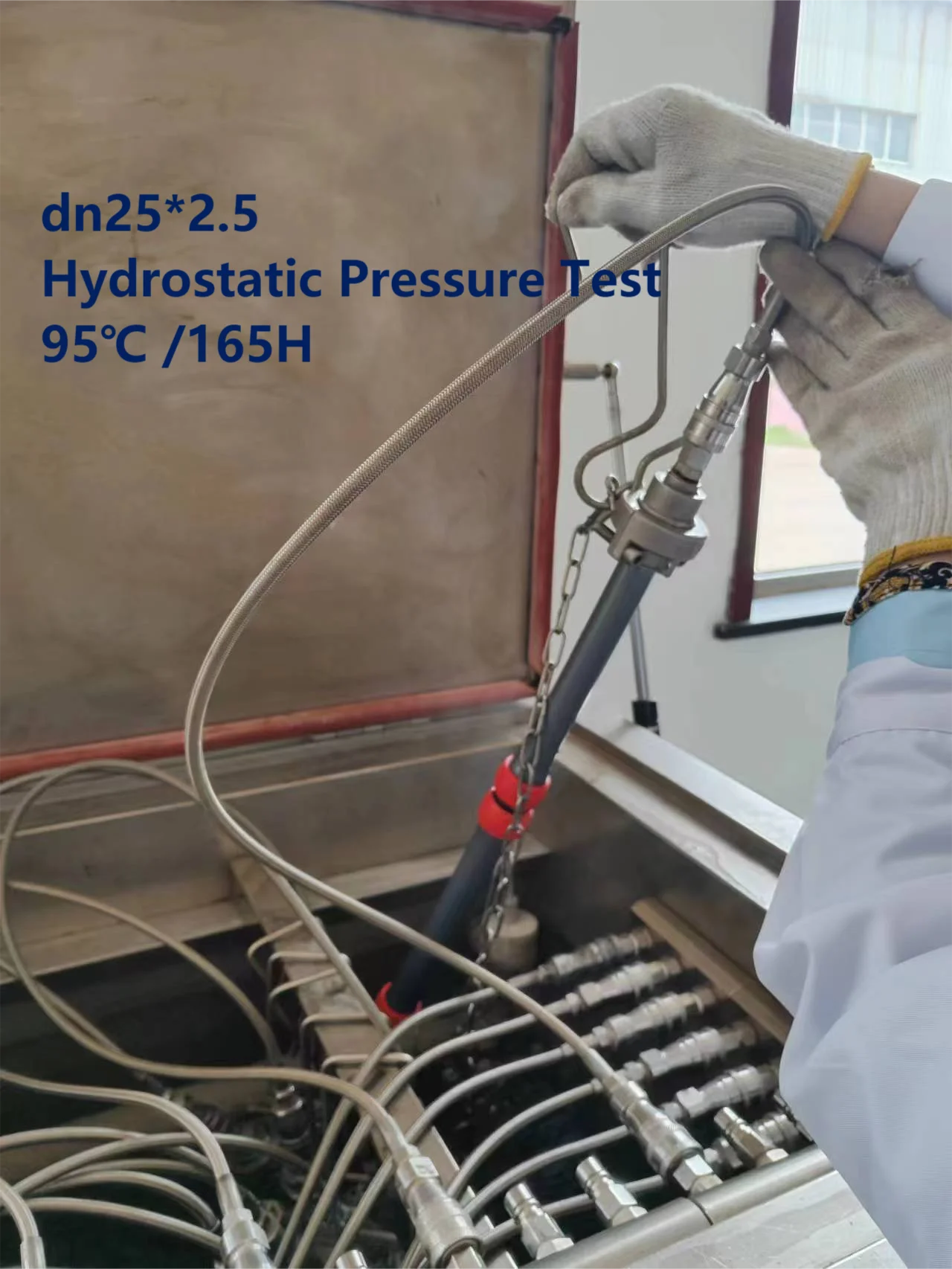

Hydrostatic Test | ||||||||||
Pipe type | Size | Temperature /℃ | Test Pressure/Mpa | Test time | Requirements | |||||
PERT-AL-PEXa | 16-32 | 95±2 | 2.42±0.05 | 1 hour | No break, No leakage. | |||||
40-50 | 2.00±0.05 | |||||||||
16-32 | 95±2 | 1.93±0.05 | 1000 hour | |||||||
40-50 | 1.90±0.05 | |||||||||
Product Application
Applications:
1.Delivery of heating and cooling water for residential and industrial installation2.Sanitary water and food industry installation
3.Irrigation installation for garden and greenhouse
4.For refrigeration installation and water treatment facilities
Water plumbing system

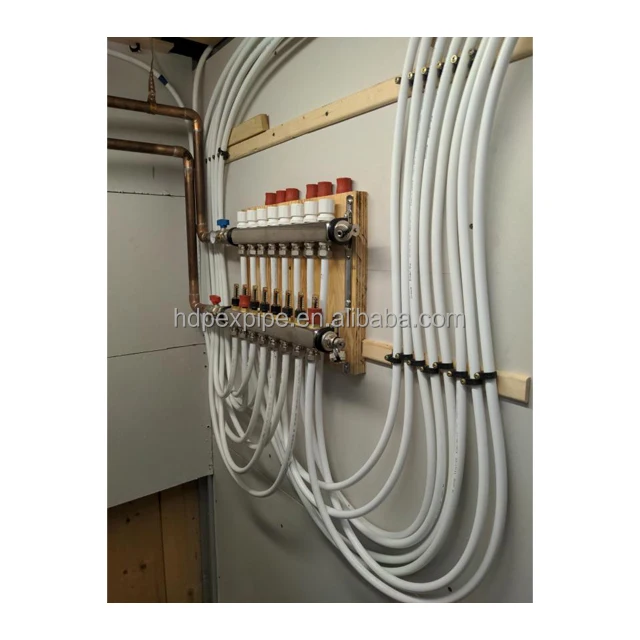

Floor Heating System
Air conditioner piping system

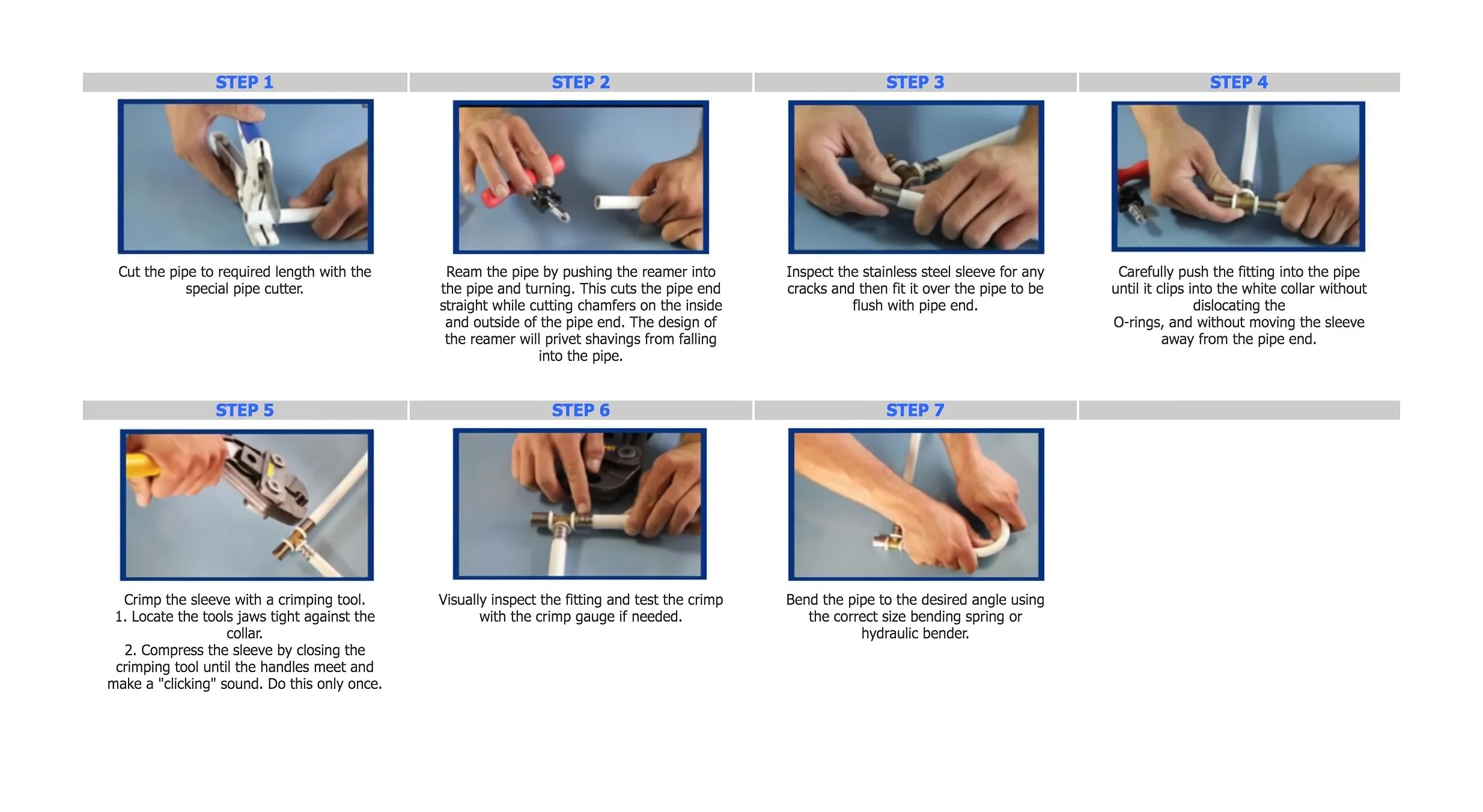

Installation:
Raw Materials
Material Features | ||
Density | 0.951 g/cm3 | |
Thermal conductivity | 0.4 W/m·k | |
VICAT softening temperature | 130-132 ℃ | |
Maximum temperature of function | 110 ℃ | |
Coefficient of linear thermal expansion | 0.15 mm/moK | |

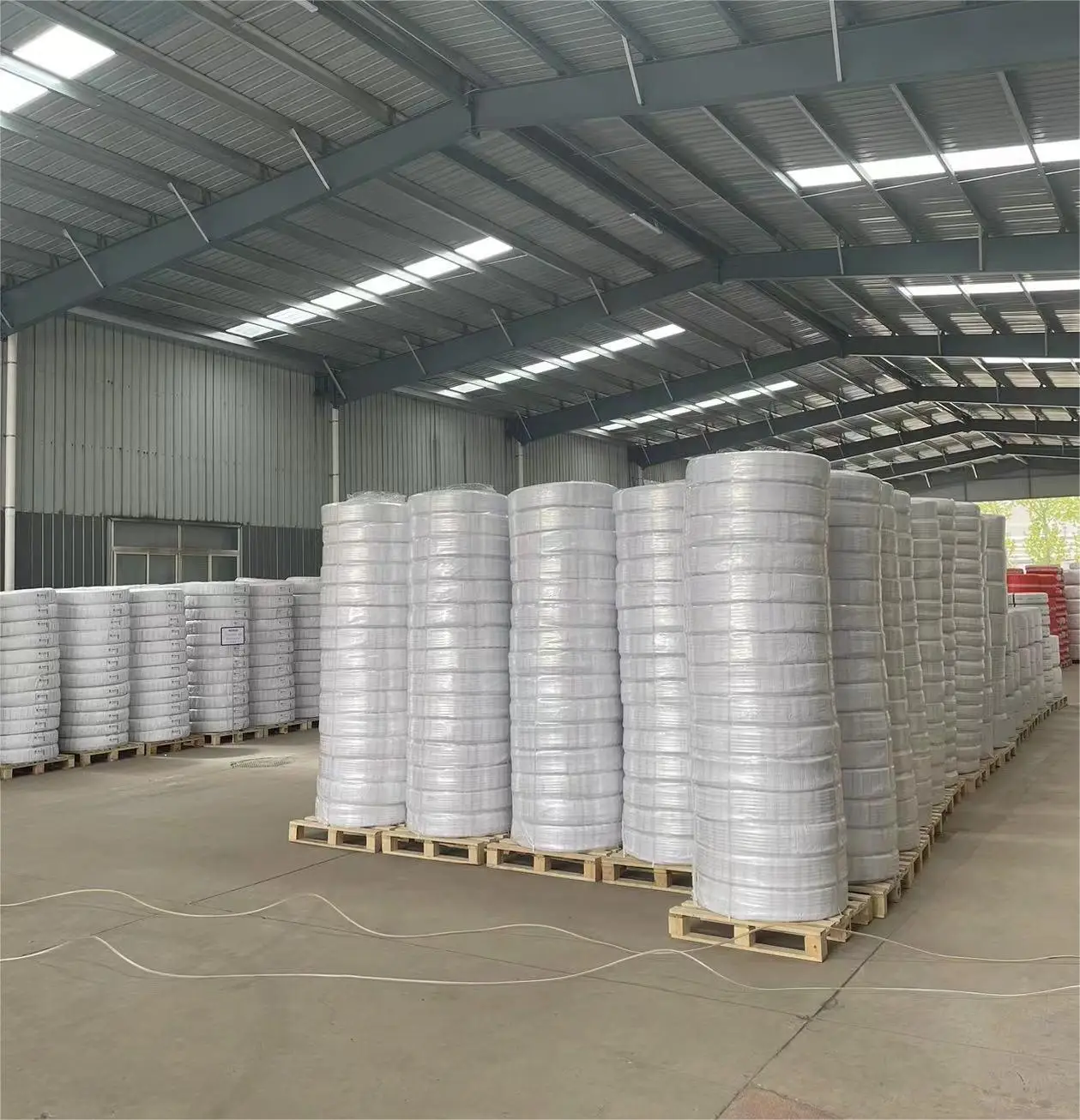

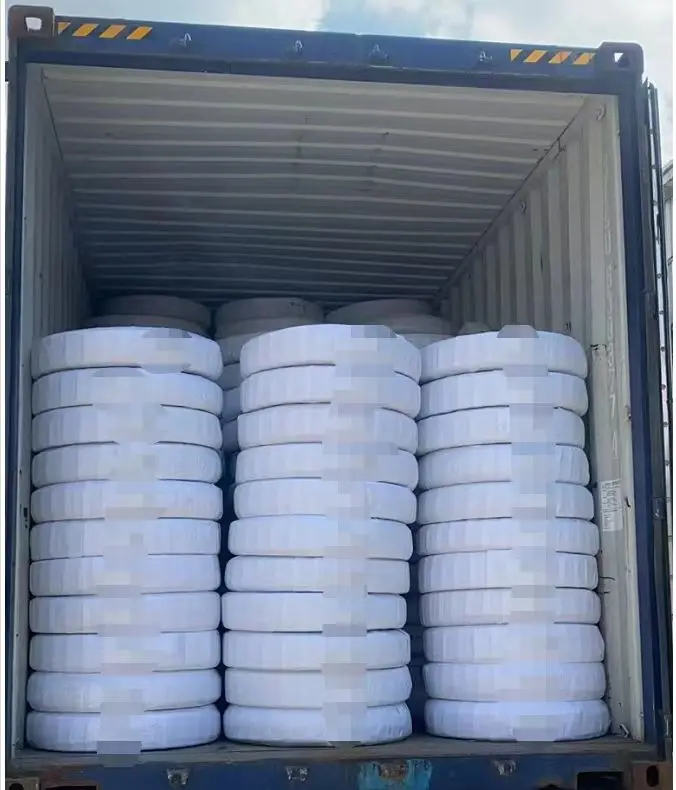

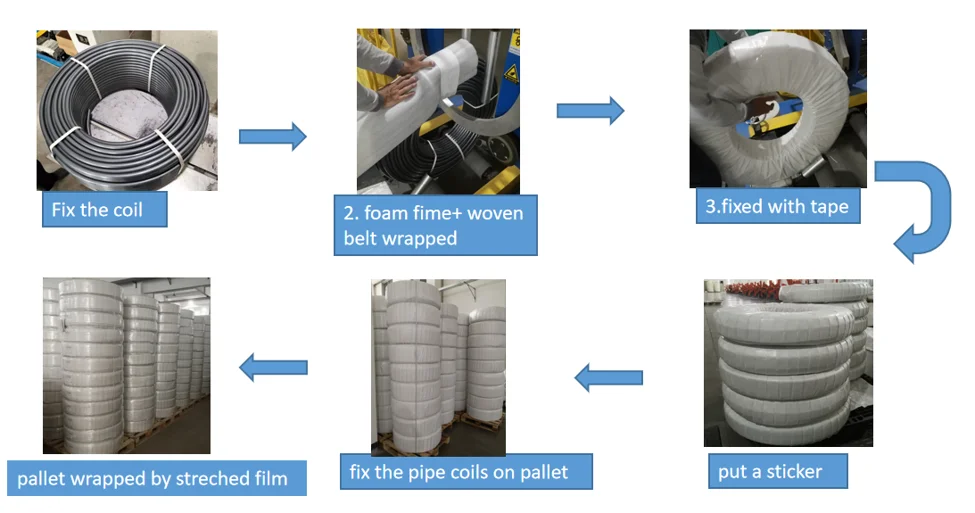

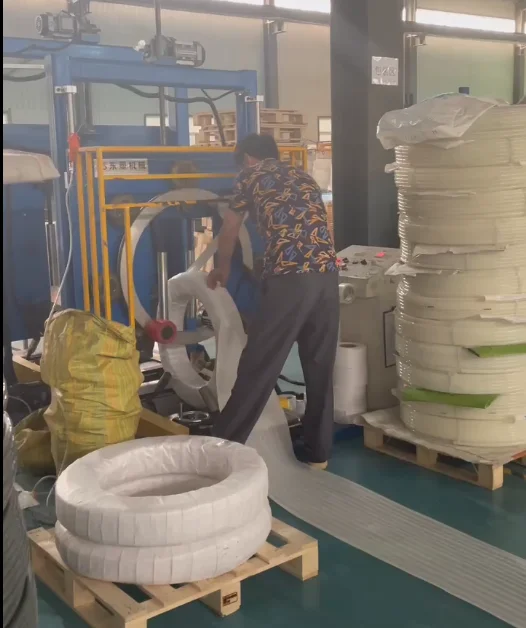

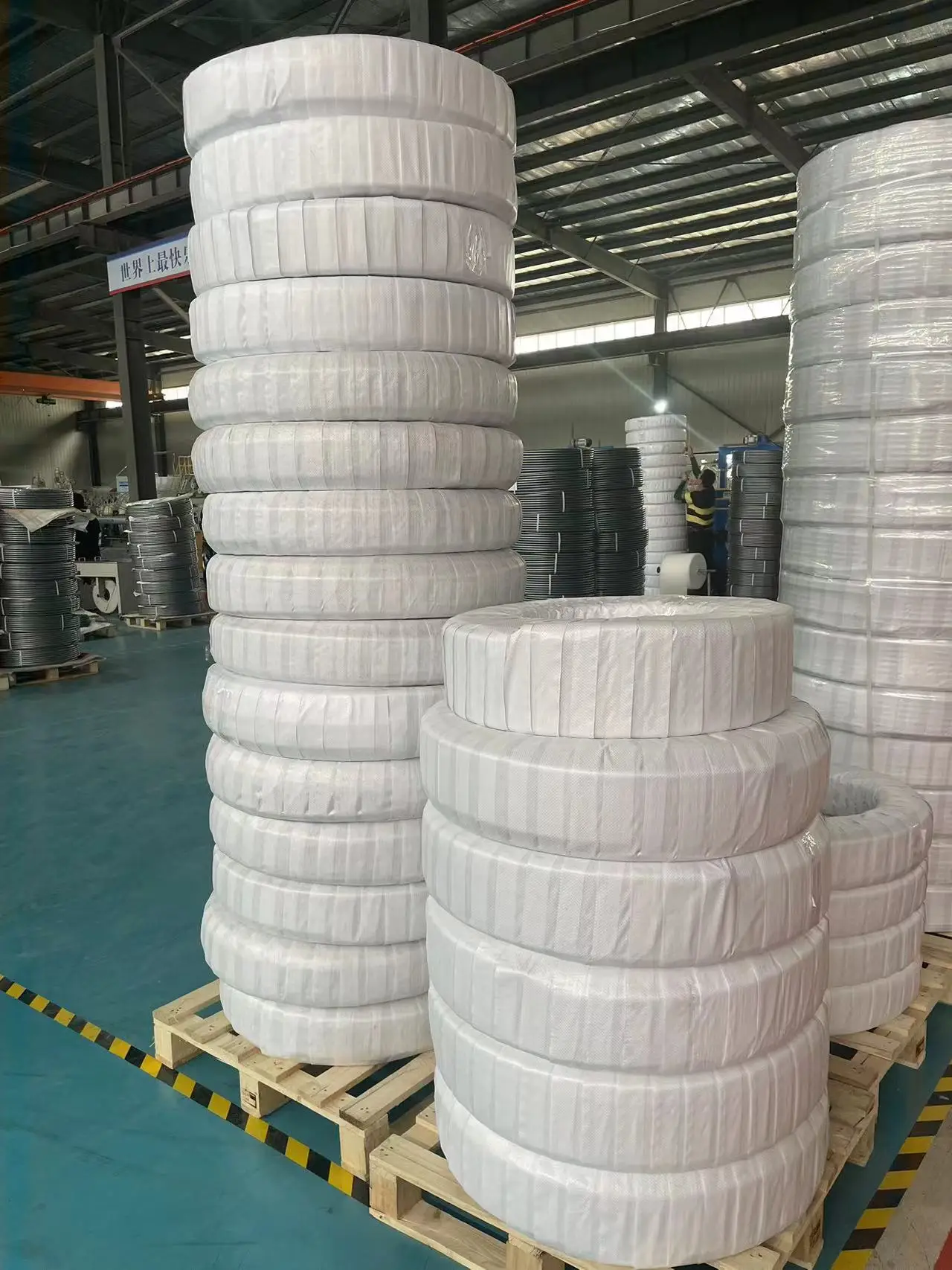

Product packaging
Company Profile

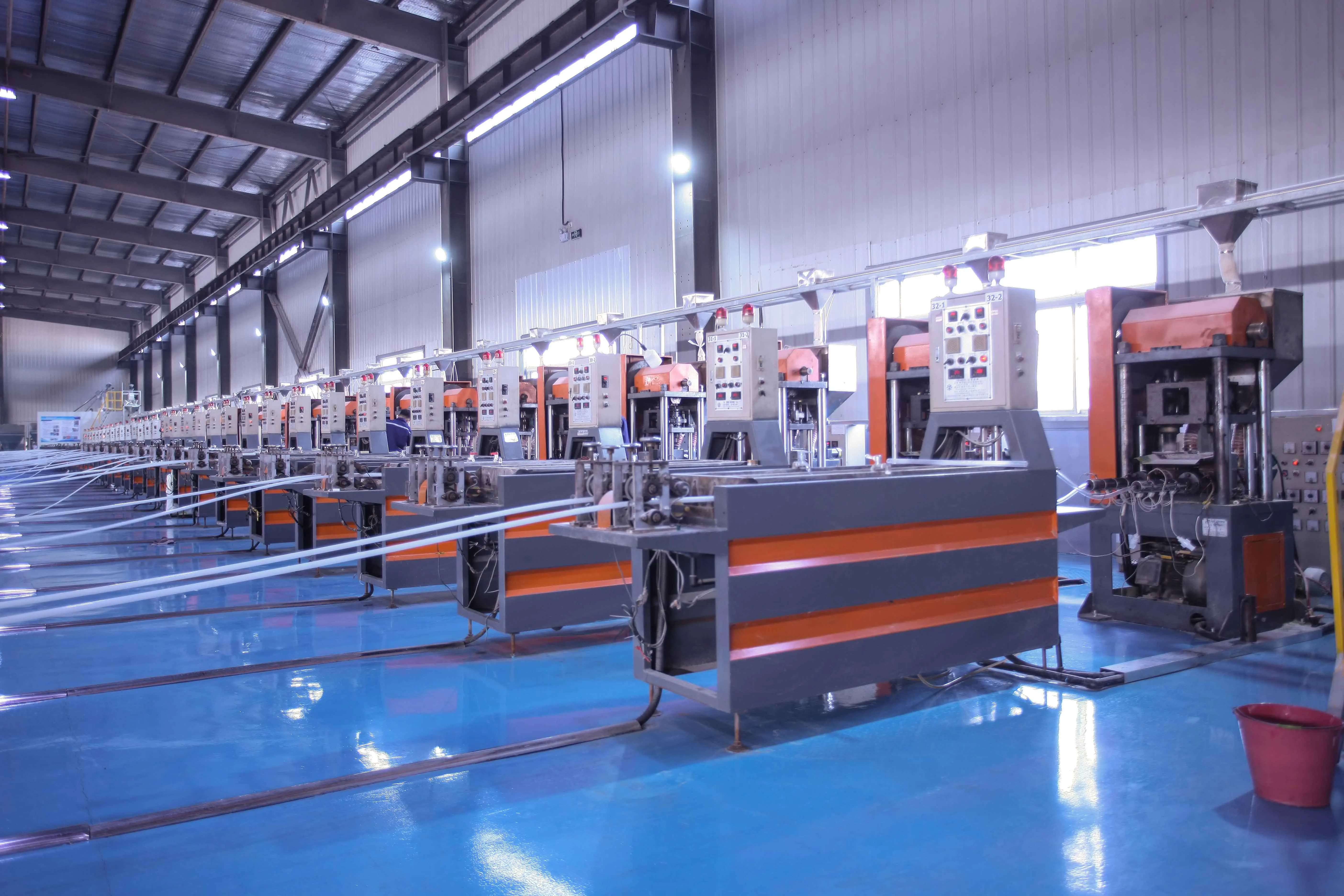

Tianjin Huilide New Materials Co., Ltd is located in the beautiful coastal city of Tianjin.Covering an area of 10,000 square meters, it has 92 advanced PEXa pipe production lines, 5 PEXa oxygen barrier production lines, 2 PERT pipe production lines, 2 PEX-Al-PERT pipe production lines, and 10 injection molding pipe fittings equipment, with an annual output of 100 million meters tube production capacity.
All raw materials produced by Tianjin Huilide are imported raw materials. For example, the raw materials of PEXa pipes come from LG SL188 or Lotte 8100GX. The raw material of PERT pipe is LG SP980. The oxygen barrier pipe adhesive layer is selected from Sonarnol’s A4412B, the oxygen barrier layer is selected from Lyondell Basell 3060 in Germany, and the aluminum-plastic pipe aluminum plate is selected from China Southwest Aluminum Industry. We use the best materials to ensure the safety of our products and pipes.

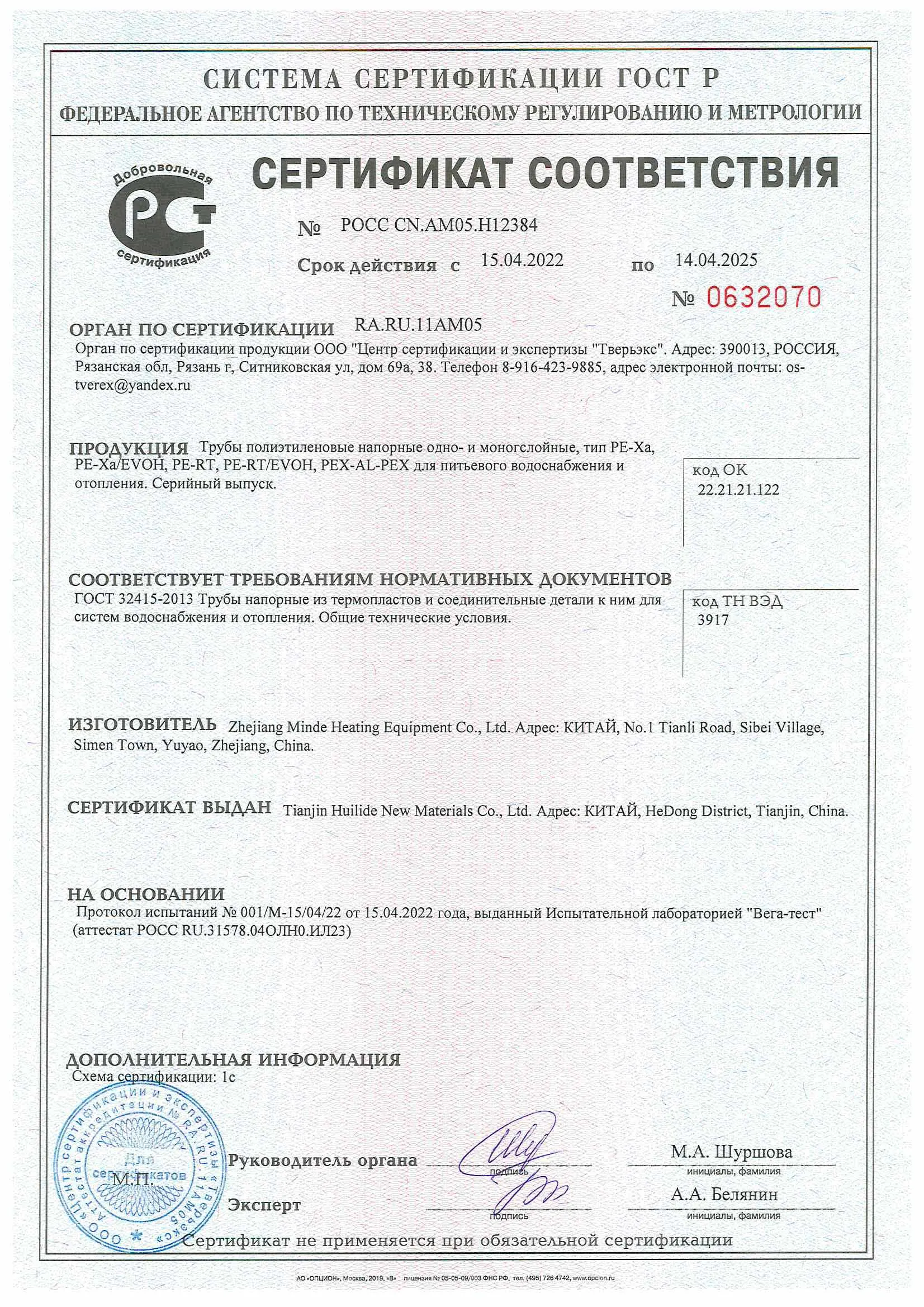

At present, all pipes of our company have been exported to Russia, Australia, Brazil, the United States and other parts of the world, and have obtained access certificates such as Russian GOST , Australian watermark and US NSF certification etc .
All raw materials produced by Tianjin Huilide are imported raw materials. For example, the raw materials of PEXa pipes come from LG SL188 or Lotte 8100GX. The raw material of PERT pipe is LG SP980. The oxygen barrier pipe adhesive layer is selected from Sonarnol’s A4412B, the oxygen barrier layer is selected from Lyondell Basell 3060 in Germany, and the aluminum-plastic pipe aluminum plate is selected from China Southwest Aluminum Industry. We use the best materials to ensure the safety of our products and pipes.
At present, all pipes of our company have been exported to Russia, Australia, Brazil, the United States and other parts of the world, and have obtained access certificates such as Russian GOST , Australian watermark and US NSF certification etc .
Why Choose Us
1 Material:
The raw materials are all well-known imported brand raw materials, such as: LGSL188, Lotte8100GX, Basell 3060, Soarnol’s A4412B, which guarantee the product stability and safety of the pipe to the greatest extent.
2 Production :
2 Production :
Among China's floor heating pipe production enterprises, the number of equipment is the top 3 , and all of them are advanced production equipment, some of which are independently developed technologies
3 Service:
3 Service:
Only focus on OEM and ODM services of the world's top brands

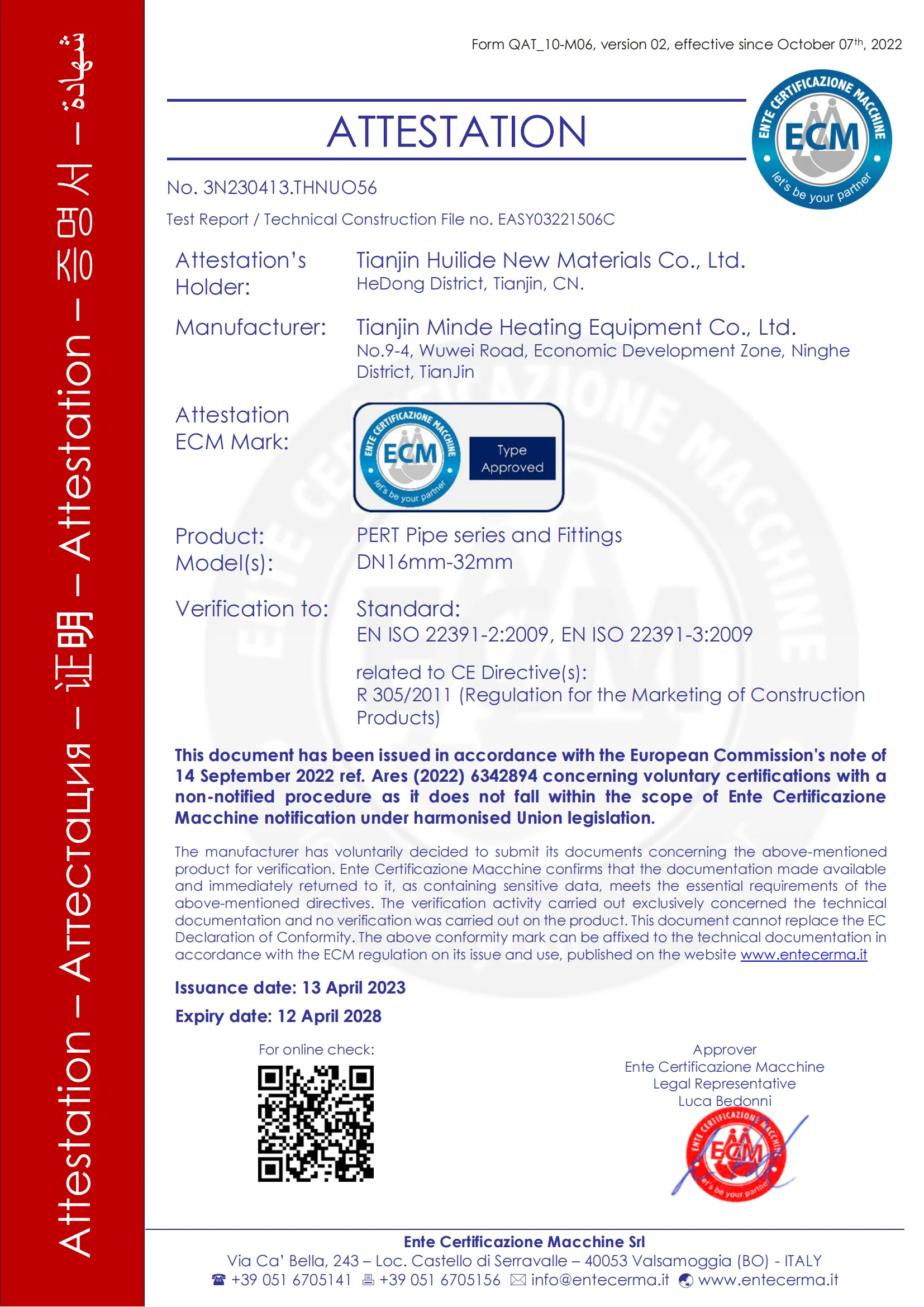

4 Certificate :
4 Certificate :

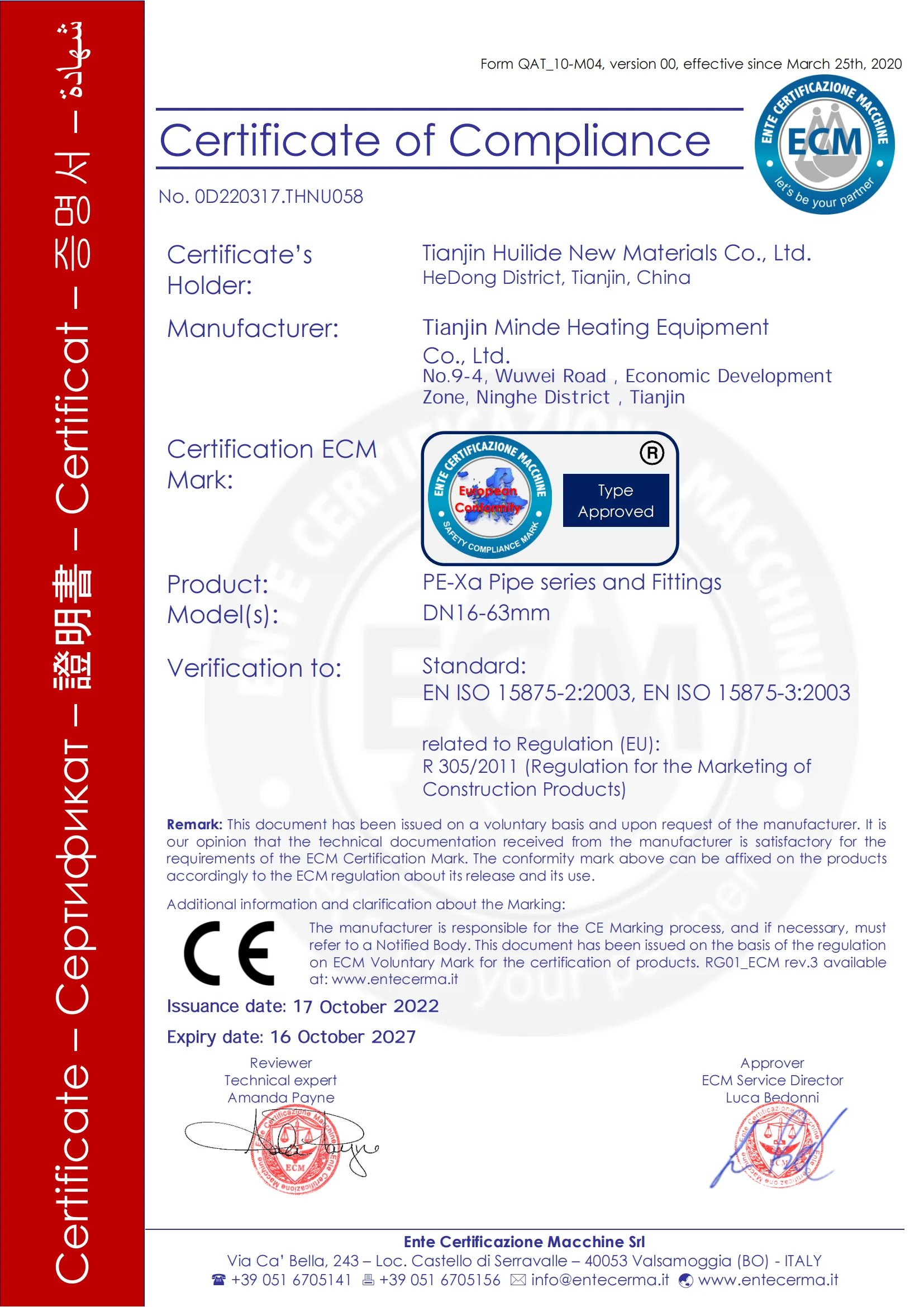

CE / GOST / Watermark / NSF / Aenor etc
FAQ
1.Are you a factory or a trading company?
Manufacturer with more than 20 years experience and loading port Tianjin.
2. How does your factory do regarding the quality control?
Quality is priority.
Manufacturer with more than 20 years experience and loading port Tianjin.
2. How does your factory do regarding the quality control?
Quality is priority.
Material :100% imported LG 188 / Lotte 8100GX / Basel 3060 / Soarnol 4412B
3. Do you do OEM/ODM service please ?
We do OEM / ODM service. At present, we have provided OEM services for global top brands
4. Can I get some samples?
Yes, free sample is available for quality check.
5. What's your payment terms?
T/T or L/C at sight as the main payment terms, and other payments can also be negotiated.
6. How long is your lead time?
7-10 days for 40HQ
7. Is the small order acceptable for you, how about your MOQ?
10000Meters for 1 dimension .
8. Is there a warranty?
Yes. All pipes and fittings come with a 24-month warranty.
9. Do you have your own brand?
Yes, Our Brand is Huilide / Minde

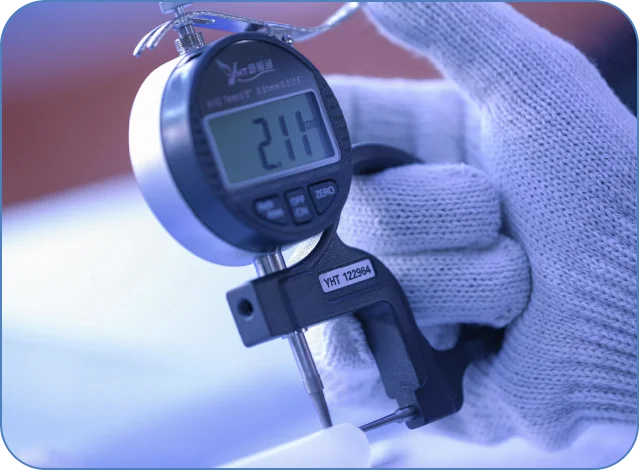

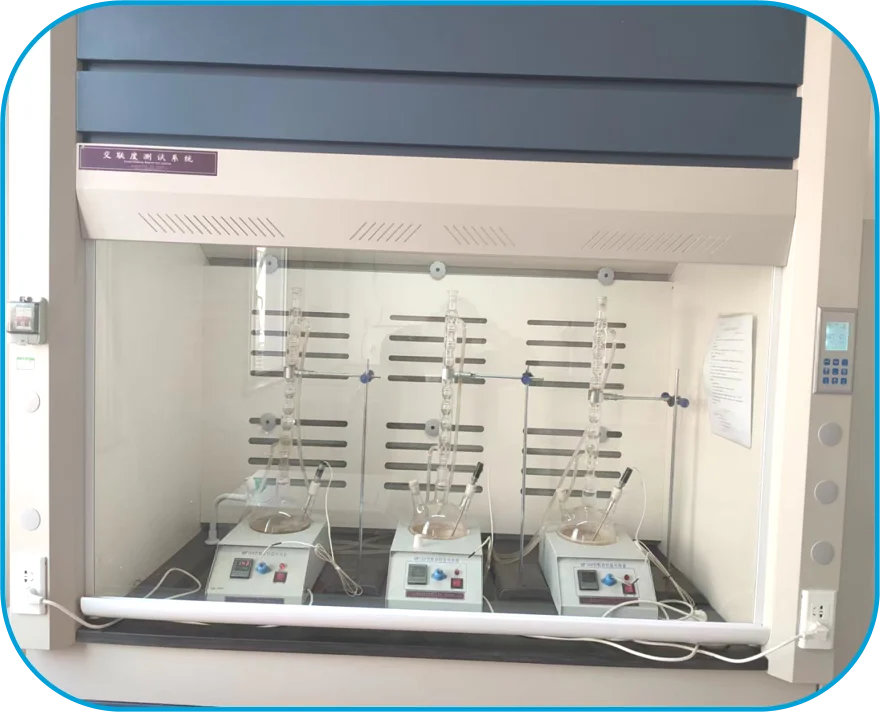

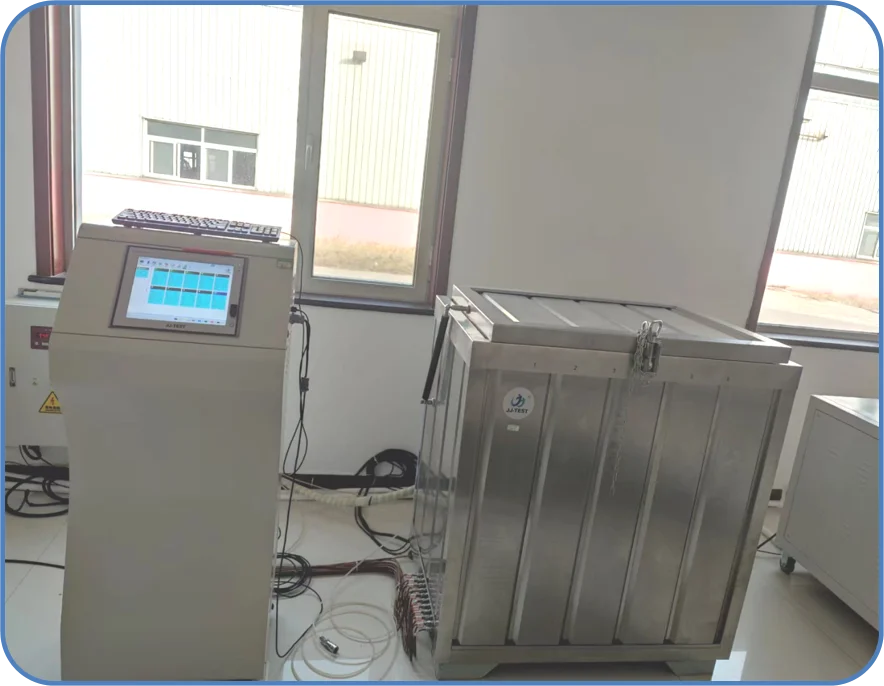

Test : 100% Pressure test / Online inspection / Batch sampling of hydrostatic and other pipe professional experiments / The third party test
Production : Workers with more than 10 years of experience in the industry,all molds are individually designed and accurate3. Do you do OEM/ODM service please ?
We do OEM / ODM service. At present, we have provided OEM services for global top brands
4. Can I get some samples?
Yes, free sample is available for quality check.
5. What's your payment terms?
T/T or L/C at sight as the main payment terms, and other payments can also be negotiated.
6. How long is your lead time?
7-10 days for 40HQ
7. Is the small order acceptable for you, how about your MOQ?
10000Meters for 1 dimension .
8. Is there a warranty?
Yes. All pipes and fittings come with a 24-month warranty.
9. Do you have your own brand?
Yes, Our Brand is Huilide / Minde
