Hot sale hydraulic shearing machine price hydraulic scrap shearing machine

Share on (1601097732166):


Price:$12,000.00 - $18,000.00

Quantity:


Product Overview

Description

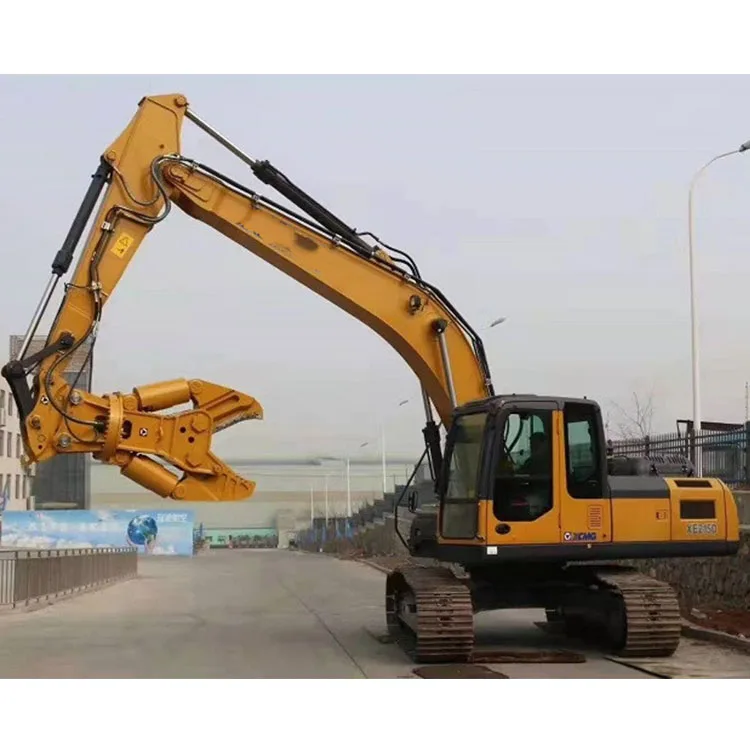

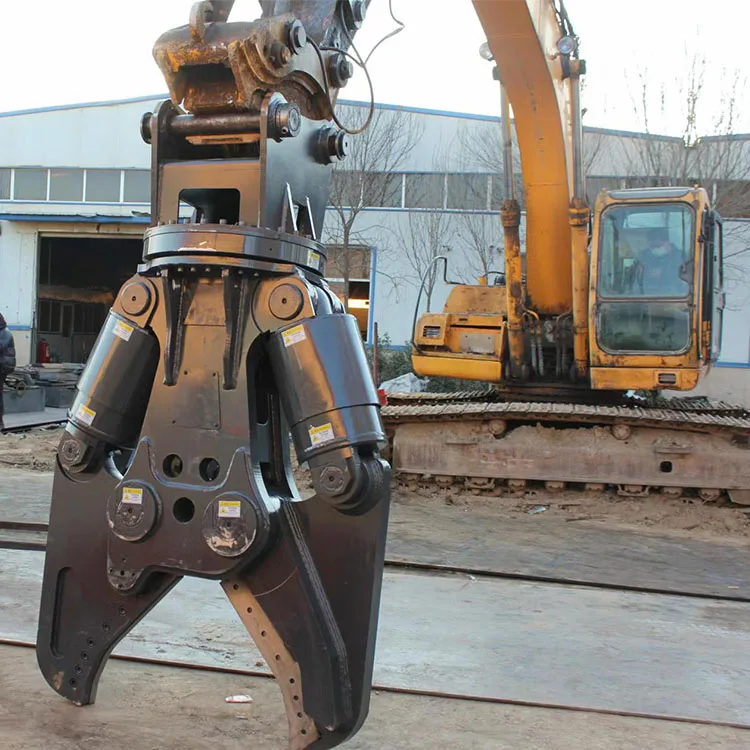

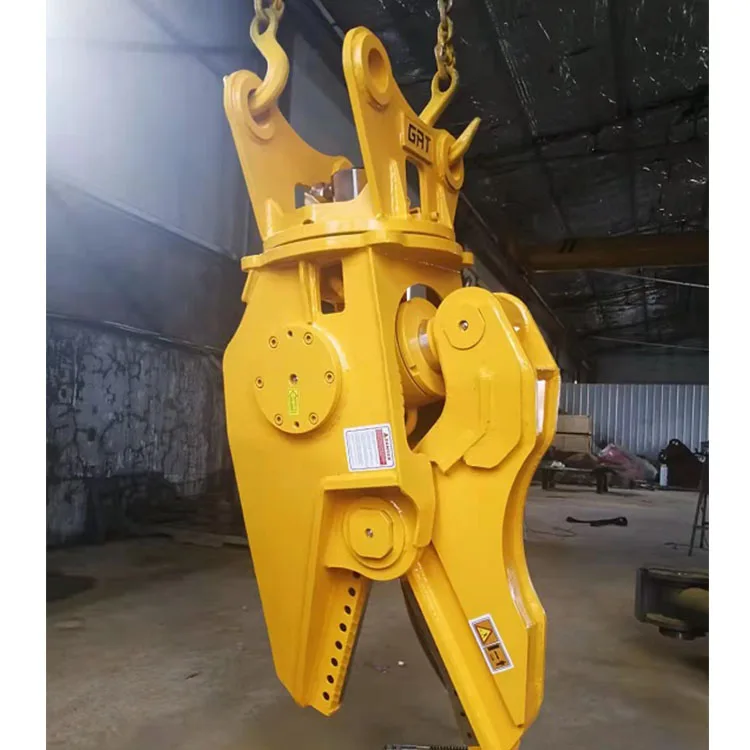

Various Tonnage Excavator Attachment Hydraulic Excavator Shear for Waste Metal Demolition

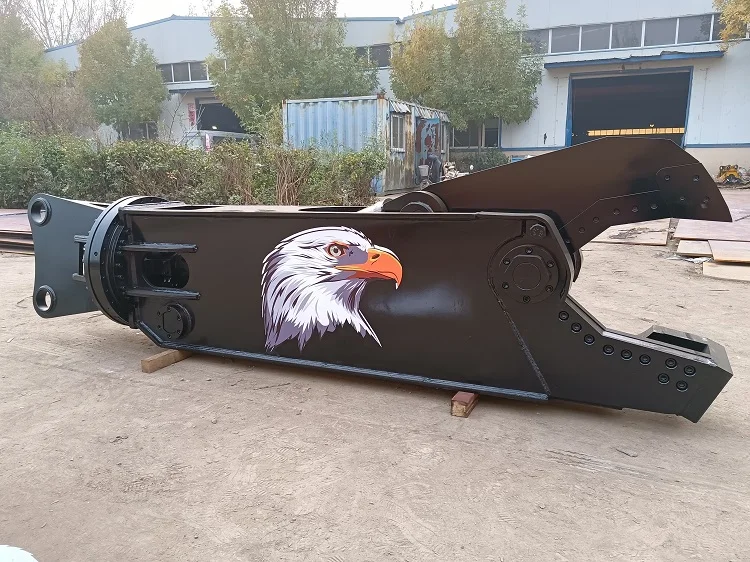

excavator shear (7).jpg






Product Description


Various Tonnage Excavator Attachment Hydraulic Excavator Shear for Waste Metal Demolition is mainly used to dismantle chemical plants, steel mills and steel structure workshops. Safe, convenient, and more efficient. When scrap is recycled and decomposed, large pieces of scrap are cut and packaged. One scrap shear can at least reduce 7-9 manual workloads and greatly improve work efficiency while avoiding manual safety concerns; suitable for large and medium-sized scrap recycling stations. Generally, the demolition plant needs to be equipped with an extension arm, and the scrap recycling station uses a standard arm.





Product  Features


1) The closed steel plate structure eliminates and reduces any side twisting or bending deformation.


2) The special blade design improves productivity, and it is convenient to replace the blade, which can reduce the downtime of mechanical failure and optimize the productivity.


3) The enlarged hydraulic cylinder greatly strengthens the closing force of the jaws so as to cut the hard steel.


4) It is made of high-grade steel, corrosion-resistant treatment and waterproof design to ensure the strength and wear resistance of the tool.





It is simple to install hydraulic shears. Connect the pin hole with the pin hole on the front end of the excavator, and connect the oil pipe on the excavator with that of the hydraulic shear,  then it’s ready to use. It is convenient for alternate use between different excavator attachments. Hydraulic shears can be installed on excavators of various brands and models. One worker can operate it and it truly realizes the versatility and economy of the product. Hydraulic shears are suitable for excavators of various brands from home and abroad.































































Model
Suitable excavator
Carrier weight
Opening
Cutting depth
Height
Width 1
Width 2
Driving Pressure
 Cycle Time
Cutting Force F1
Cutting Force F2
Cutting Force F3












































YG-280
20-28T
2100kg
485mm
525mm
2880mm
950mm
650mm
320-350 kgf/cm2
8s
75T
200T
780T












































YG-380
22-40T
3800(Forearm)4800(Big arm)
600mm
630mm
3450mm
4600mm
1200mm
320-350 kgf/cm2
10s
105T
300T
1050T























Cutting Size For Steel Rod(Diameter)
Cutting Size For Steel Pipes
Cutting Size For H-Beams
Cutting Size For I-Beams A
Cutting Size For Angle Iron
Cutting Size For Steel Plate























65mm
220*8mm
360mm
280mm
200*15mm
16mm























90mm
330*10mm
500mm
360mm
200*25mm
25mm






Product Display

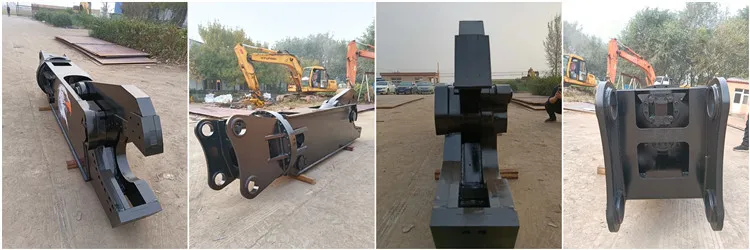

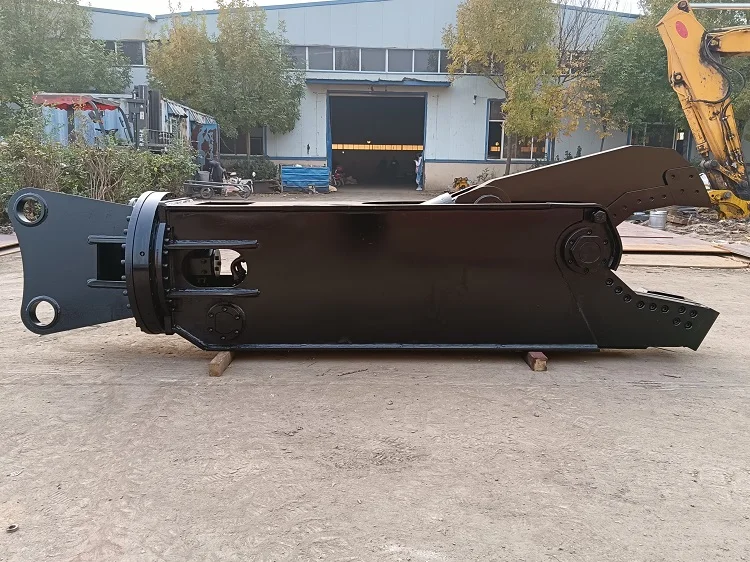

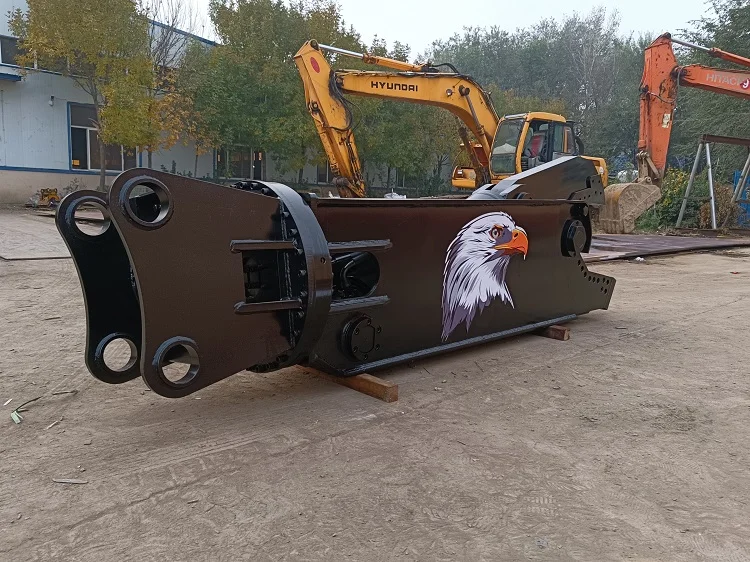

excavator shear (9).jpgexcavator shear (8).jpgexcavator shear (10).jpg

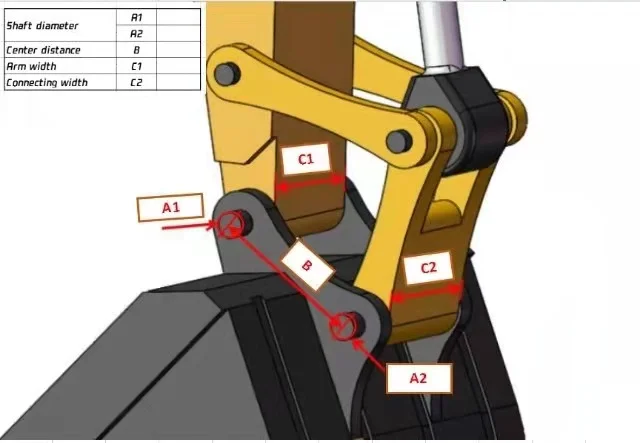

Please tell us the information as noted in the picture below. Then we can customize it as your very demands.


demolition shear (2)

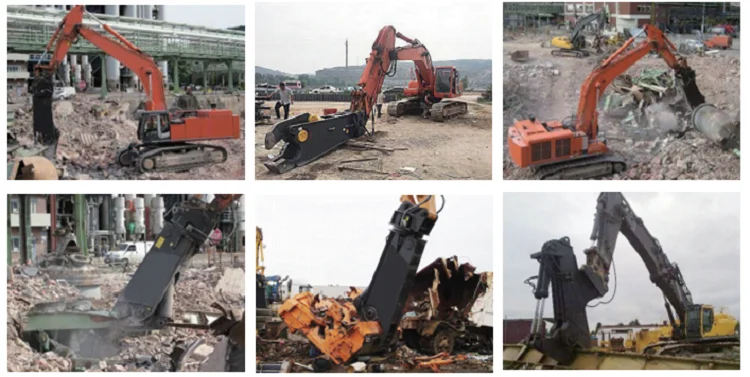

Wide Application


excavator shear (11)





FAQ


Q1: Are you trading company or manufacturer?
A1: We are original equipment manufacturer.



Q2: How long is your delivery time?
A2: It is according to the model and quantity.
    Generally it is 3-5 days if the machines are in stock.
    It will be 15-30 days if you want to customize the machines.



Q3: Do you provide samples? Is it free or extra?
A3: Yes, we could offer you the sample machine.
   But it's not free. You need to pay for the sample and the cost of freight.



Q4: What is your terms of payment?
A4: We accept T/T, Western Union, Money Gram, Paypal, Alibaba Escrow etc.
     Payment<=USD 5000, 100% in advance.
     Payment>=USD 5000, 30% T/T in advance, balance before shipment.
