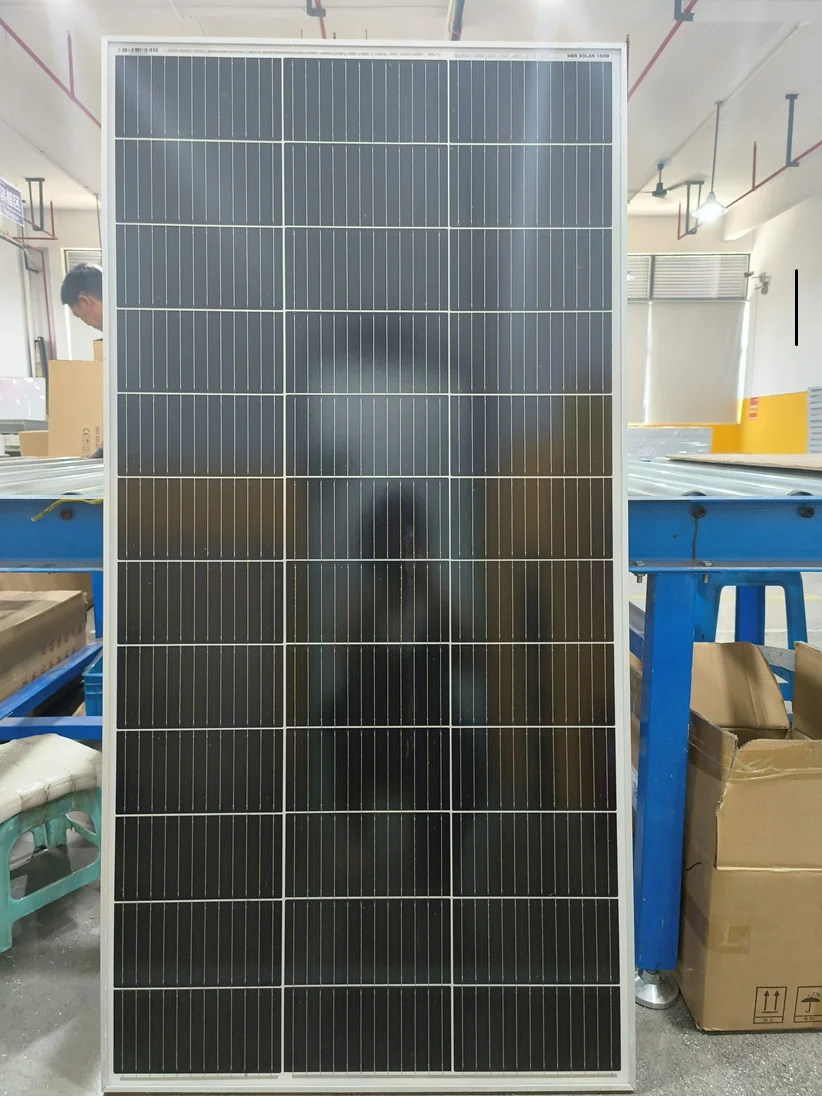

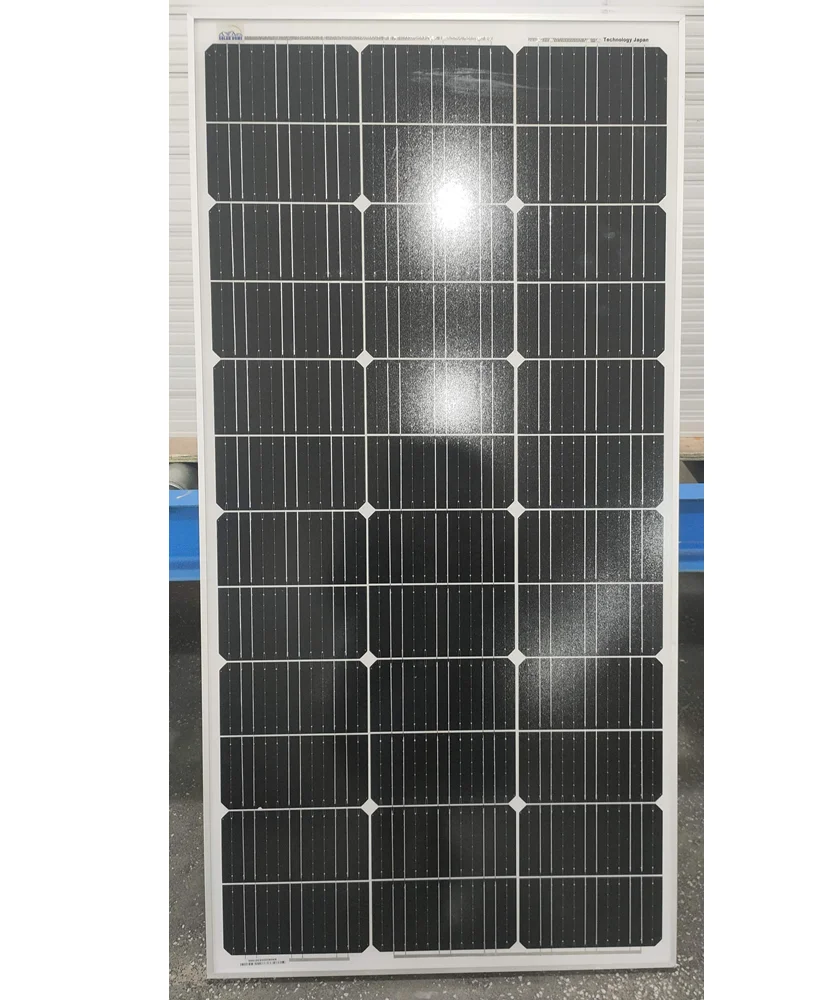

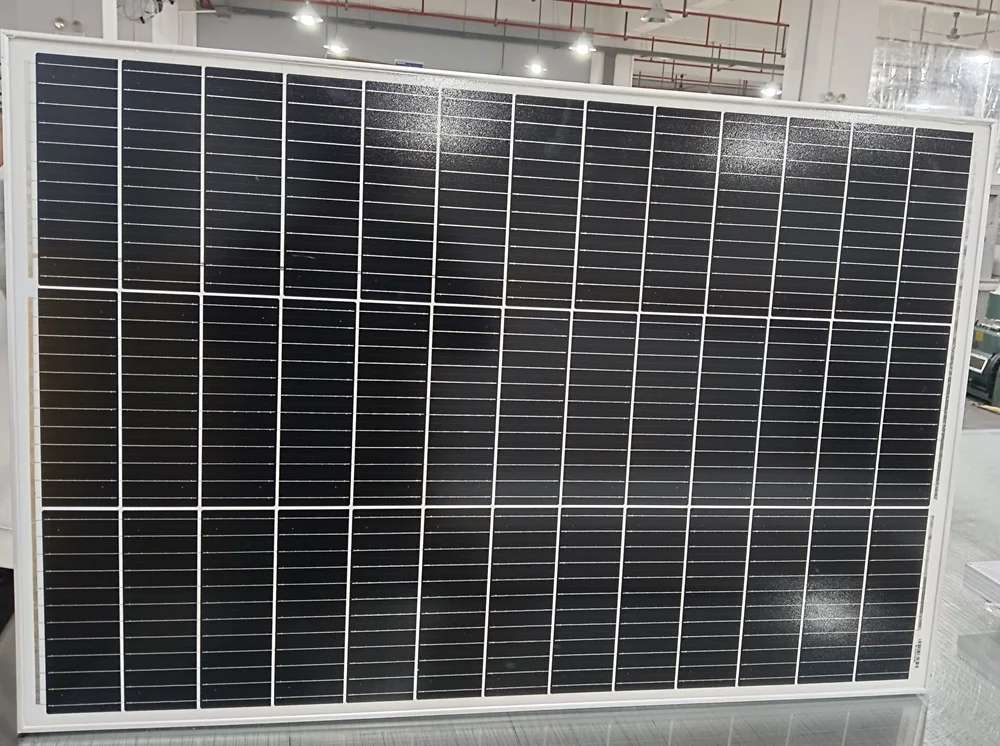

solar module flexible solar panels home use solar panel 150w mono solar panels
- Category: >>>
- Supplier: Yuyao Ollin Photovoltaic Technology Co. Ltd.
Share on (1601097740190):
Product Overview
Description
Electrical Specifications
| Module Type | OSA-33M-150 | OSA-33M-160 | ||||||||
| Testing Condition | STC | NOCT | STC | NOCT | ||||||
| Rated output (Pmp/Wp) | 150 | 113 | 160 | 121 | ||||||
| Rated voltage(Vmp/V) | 18 | 16 | 18.2 | 16.2 | ||||||
| Rated current (lmp/A) | 8.34 | 7 | 8.8 | 7.4 | ||||||
| Open circuit voltage (Voc/V) | 20.8 | 18.5 | 21 | 18.7 | ||||||
| Short circuit current (Isc/A) | 8.8 | 7.8 | 9.3 | 7.89 | ||||||
| Module efficiency (%) | 20.65% | 20.85% | ||||||||
| Power Tolerance(W) | 0~+5 | |||||||||
| Standard Test Condition(STC):Irradiance 1000W/m2,Cell Temperature 25℃, AM1.5 | ||||||||||
| Nominal Module Operating Temperature (NOCT):Irradiance 800W/m2,Ambient Temperature 20℃, AM1.5,Wind Speed 1m/s | ||||||||||
Mechanical Specifications
| Cell Type | MONO 210×105mm | ||
| No. of Cells | 33(3×11) | ||
| Dimension | 1230x670x30mm | ||
| Weight | 9.5kg | ||
| Glass | 3.2mm, Low lron Tempered Glass | ||
| Frame | Anodized Aluminium Alloy | ||
| Junction Box | IP68.3 diodes | ||
| Output Cables | 4mm²,Length 900mm or customized | ||
| Connector type | MC4 compatible | ||
Why the people choose our products?
1. Q: Are you a factory or trading company?
A : We are a factory.
2. Q: Where is your factory located? How can I visit there?
A :Our factory is located in Yuyao NO 12, Yuci North Road, Yuyao City, Zhejiang PR China. You are warmly welcomed to visit us!
3. Q: How can I get samples?
A :Please connect me for samples, my phone number: +86 13607046900.
4. Q: Can price be cheaper?
A :Of course, you will be offered a good discount for large quantities.
5. Q: Can print our company‘s logo on the pv panels?
A : Yes! And we accept the OEM orders.
6. Q:Is the glass tough?
A:Toughened glass is made of components can withstand 25 mm in diameter of hockey hit at a speed of 23 m/s.Toughed Glass: the thickness of 3.2mm ,the solar cell spectral response range of wavelengths, light transmittance over 91% , Ultraviolet light radiation , light transmittance is not falling .
7. Q: How about the EVA?
A:0. 5 mm thickness with high quality EVA film as sealant of solar cell and and the connection between the glass,and anti-aging ability. Solar cell encapsulation of EVA film after curing performance requirements:
Light transmittance is greater than 90% ; Crosslinking degree is more than 65-85% ; Peel strength (N/cm), glass/film is more than 30 ; Temperature resistance , high temperature 120° C , low temperature - 40° C .

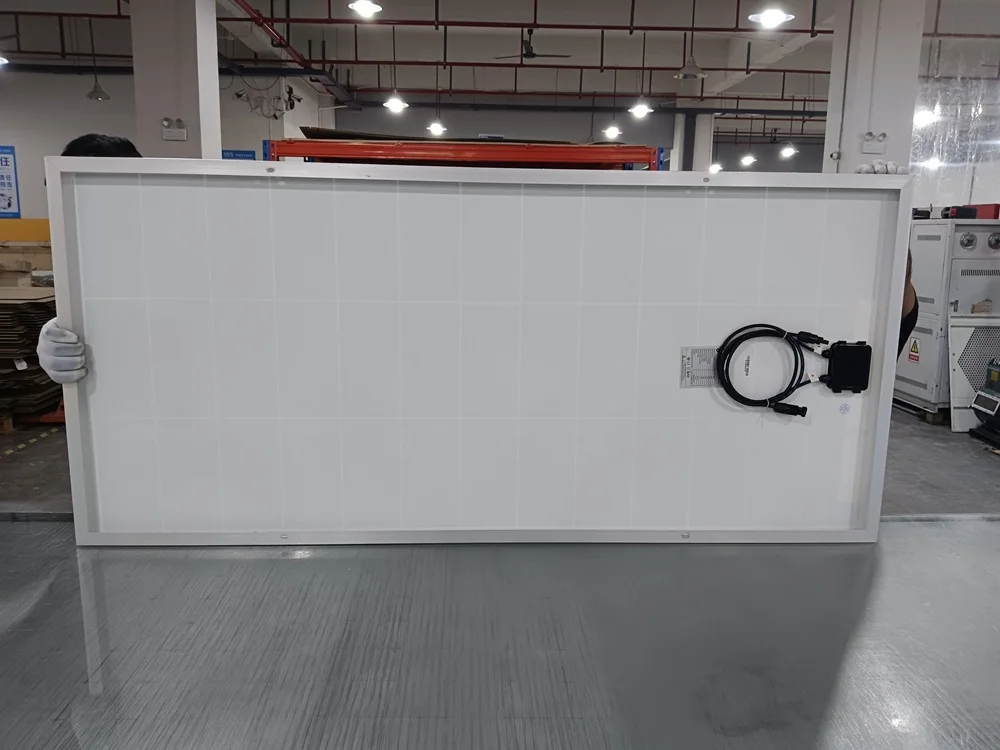

8. Q: How about the back-sheet?
A:The back of the solar panel, ageing resistance , corrosion resistance , resistance to ultraviolet radiation, airtight, etc. Basic requirements.
9. Q: How about the frame?
A:Aluminum alloy frame with high intensit , mechanical shock resistance ability.Strong, lightweight aluminum frame design with reinforced sealing and load hold to prevent freezing and warping, and stand against high wind.
