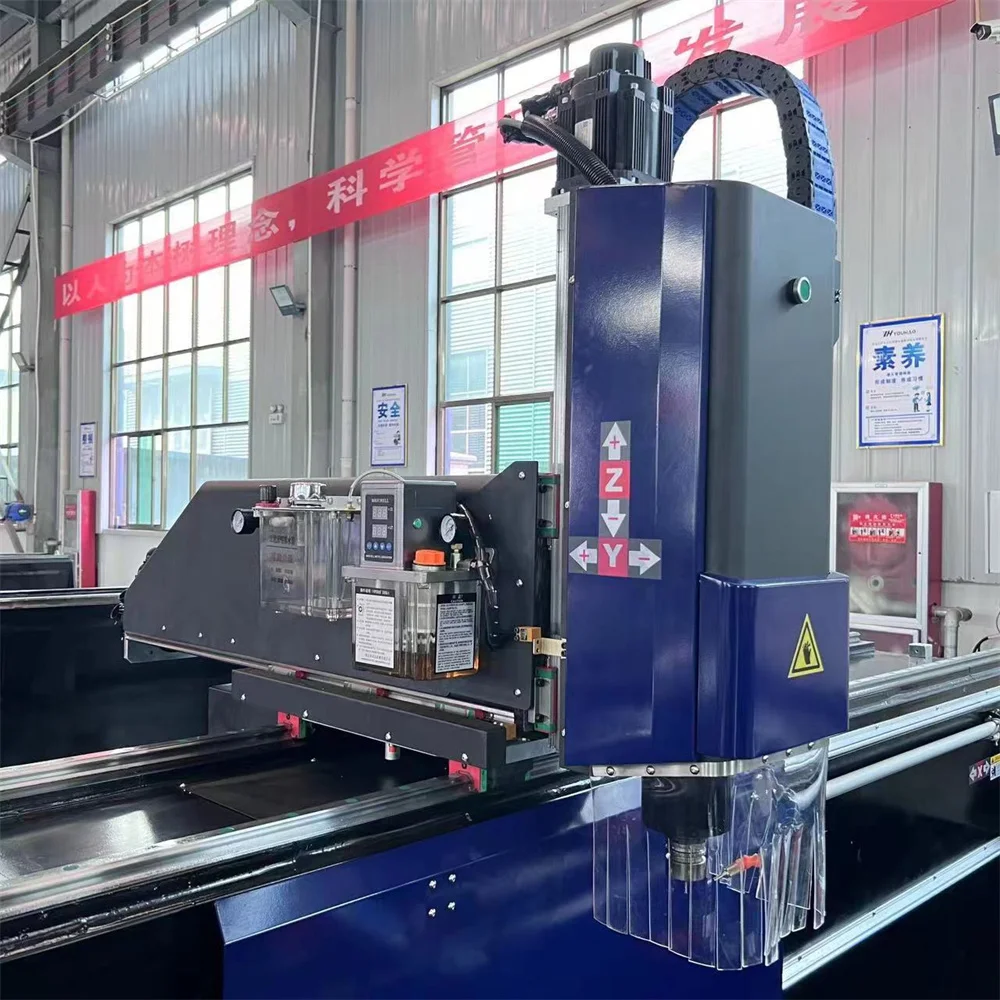

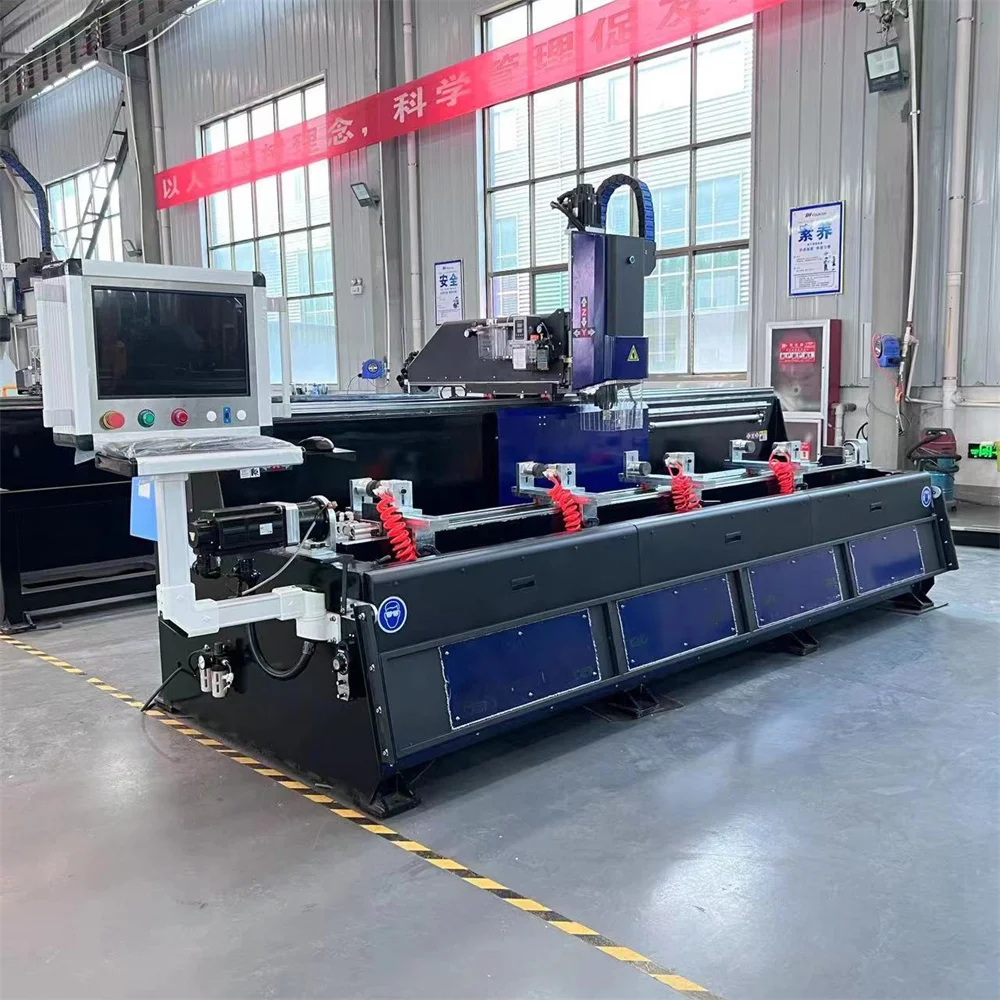

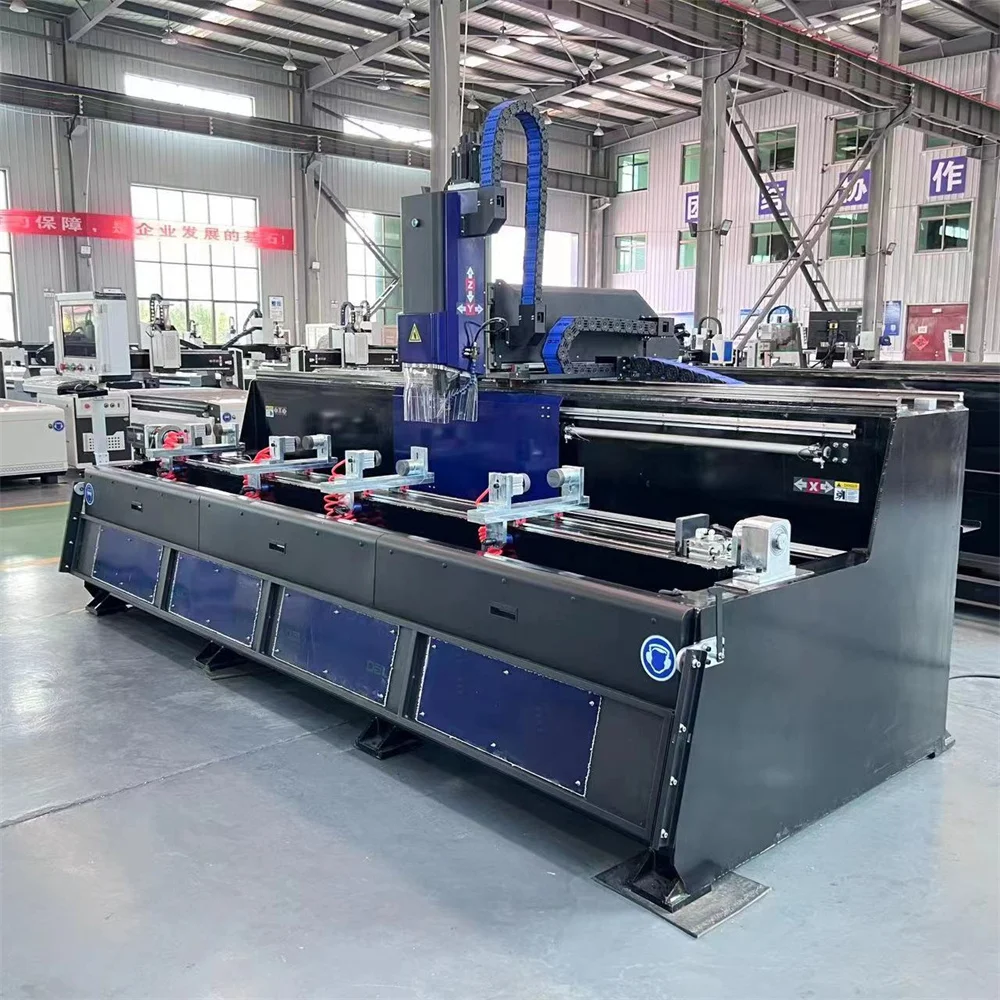

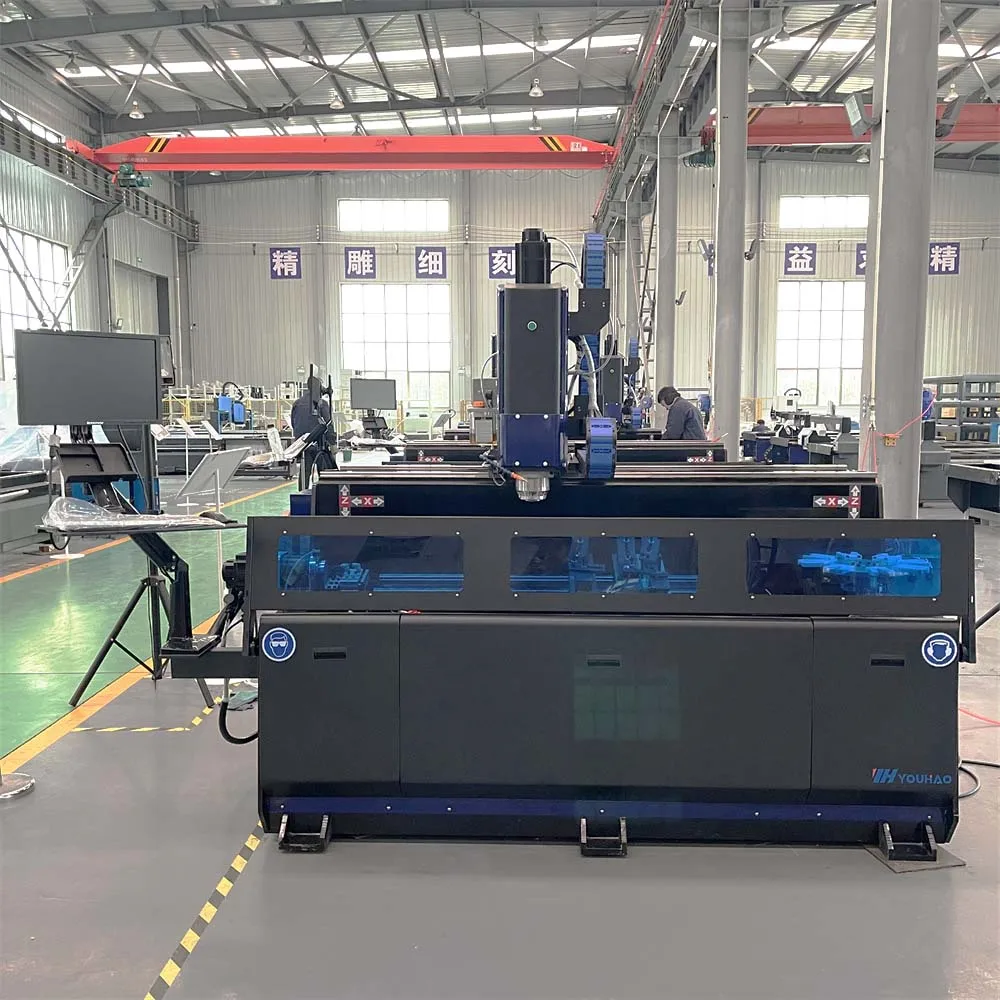

YOUHAO CNC Drilling and Milling Machine Aluminum Profile Door and Window Equipment Door Lock Hole Machine
- Category: >>>
- Supplier: Shandong Youhao Energy Technology Co. Ltd.
Share on (1601097764560):
Product Overview
Description
China supply Aluminum Windows and Doors Cutting Machine with good price
YouHao Products Description
Features of China supply Aluminum Windows and Doors Cutting Machine with good price :
2.Adopt high precision guide rail pair, ball screw, gear rack and imported high quality servo system, make sure the stable working, with better positioning and processing accuracy.
3.Adopting high speed electrical auto switching tool spindle, with good and reliable performance.

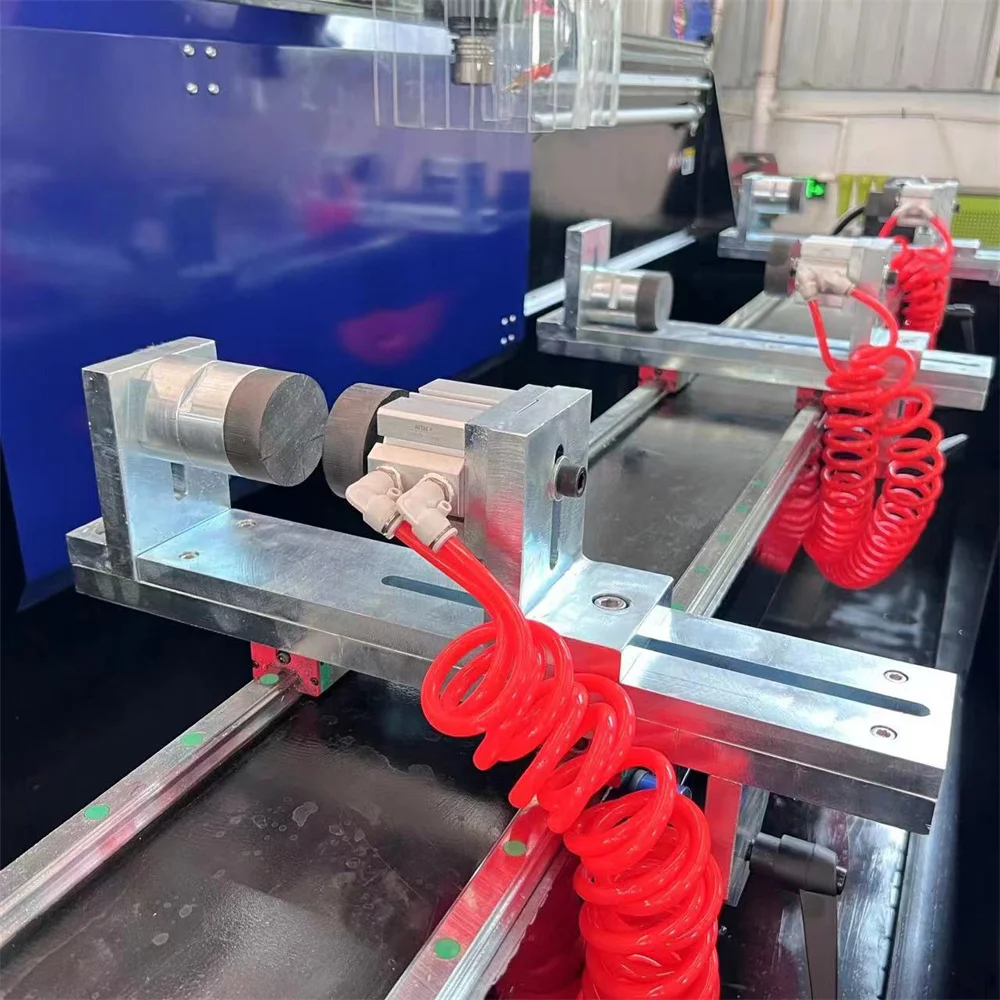

4.There are positioning devices at double ends of the worktable separately. It can realize the dual processing in two areas for short profile, which greatly improve the working efficiency.
5.Adopting semi-closed protective shield and receiver at the bottom, with better safety. And effectively avoid the chippings pollution to the environment; help building a good working environment.
6.It is convenient to operate with intelligent CNC system and brief intuitive interface
7.The rotary work table is able to change among the -90°,0°, and 90°, realized the milling and drilling processing at three surfaces for one time clamping.
Product Paramenters
Brand name | YOUHAO |
Product name | Drilling and milling machine |
Working Area | 3500*200*200mm |
Control System | Taiwan LNC MA2600A controller |
Spindle | Changsheng 7.5KW ATC spindle |
Motor and driver | Leadshine 1500w servo motor and driver |
Inverter | Fuling 9kw inverter |
Reducer | Japan Shimpo reducer |
Rail | (X/Y/Z)Taiwan HWIN 25/25/25,(Z) TBI 3025 screw |
Lubrication | Auto lubrication |
Max.speed | X/Y/Z 65/65/20 m/min |
Voltage | 380V/220V |
Autonics proximity switches, Sch neider electrical components, AirTAC cylinders, high-flex shielded wires |

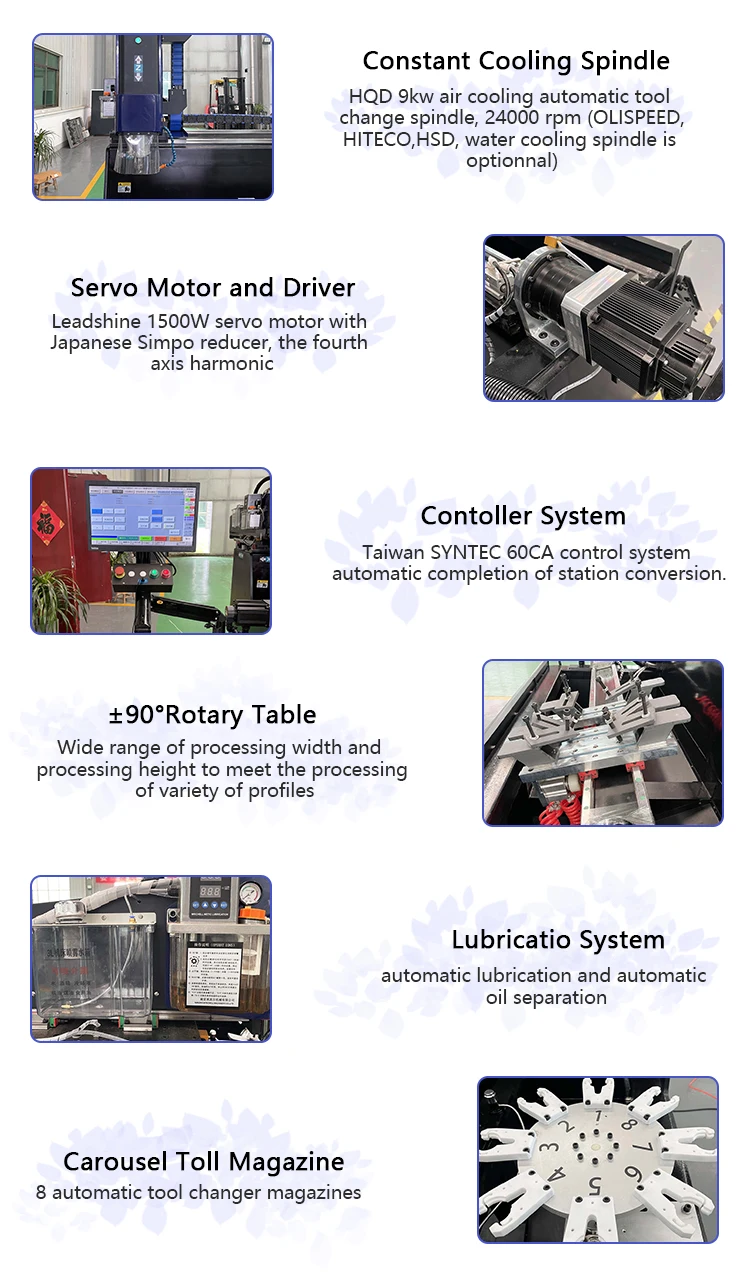

Details Images
Taiwan LNC MA2600A control system

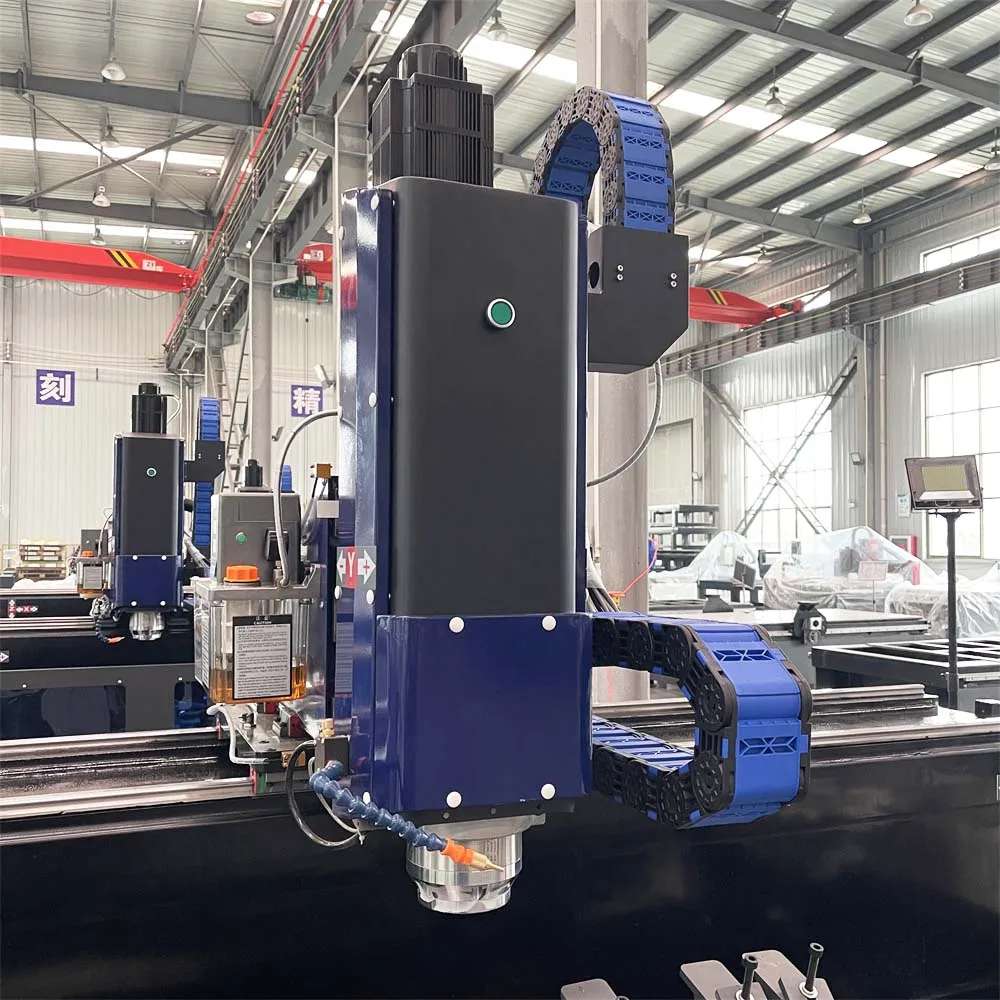

Changsheng 7.5KW water cooling spindle
Leadshine 1500W servo motor with Japanese Simpo reducer
Automatic lubrication and automatic oil separation
Relative Products
Applications
China supply Aluminum Windows and Doors Cutting Machine with good price
Used for drilling milling and cutting industry aluminum area and different shape aluminum profile, such as mould making, ship, rail traffic, car buffer beam, photovoltaic, aluminum window door and curtain wall industry, aluminum furniture, Sunroom making etc.
Packaging and delivery
Packaging Details China supply Aluminum Windows and Doors Cutting Machine with good price :
1. Outside package: Standard marine export plywood case.
2. Inner package: Three layers in total; EPE pearl cotton film+PE stretchy film.
Improved package, much more strong and environmental protection.
We can also make package according to your requests.
Delivery Detail: Shipped in 25-30 working days after payment.
1. Outside package: Standard marine export plywood case.
2. Inner package: Three layers in total; EPE pearl cotton film+PE stretchy film.
Improved package, much more strong and environmental protection.
We can also make package according to your requests.
Delivery Detail: Shipped in 25-30 working days after payment.
Guarantee and After-sale service:
1. A year warranty for the whole machine.
2. Technical support by phone, email or WhatsApp/Skype around the clock.
3. Friendly English version manual and operation video CD disk.
4. Engineer available to service machinery overseas.
Company Profile
Shandong Youhao Energy Technology Co., Ltd located in Rizhao E&D zone, is one leader of CNC manufactures in wood-working machinery industry, which dedicates to the R&D, production and sales of CNC wood Router machine, CNC panel furniture nesting machine, CNC aluminum cutting machine and CNC fiber laser cutting machine for over than 10 years.
Quality is never outsourced, all our products from the economic models to the most complicated ones, we always choose the most famous brand and best quality spare parts, like Italy HSD spindle, Japan YASKAWA servo motor and Taiwan HIWIN rails etc. We are committed to making your business success by providing qualified cutting solutions and equipment, but with lower costs thus measurable savings.
In Youhao, we are not just a manufacturing company, we are business partners and friends. Our technical experience, quality products, strength in customer service, dedication to R&D, all of these are presented to our customers in the hope of helping them succeed.
Today and always, together as a team---This is the fundament of Youhao CNC. We will uphold this principle and do even better. Looking forward to our cooperation.
Quality is never outsourced, all our products from the economic models to the most complicated ones, we always choose the most famous brand and best quality spare parts, like Italy HSD spindle, Japan YASKAWA servo motor and Taiwan HIWIN rails etc. We are committed to making your business success by providing qualified cutting solutions and equipment, but with lower costs thus measurable savings.
In Youhao, we are not just a manufacturing company, we are business partners and friends. Our technical experience, quality products, strength in customer service, dedication to R&D, all of these are presented to our customers in the hope of helping them succeed.
Today and always, together as a team---This is the fundament of Youhao CNC. We will uphold this principle and do even better. Looking forward to our cooperation.
FAQ
What criteria are decisive when buying a YOUHAO CNC Router?
If you have decided to buy a YOUHAO CNC Mill to facilitate some work or to make special work possible, immediately one question comes to mind: “What do I have to consider when buying a CNC Router?
* The size
Before I search for a suitable manufacturer, I should have a good idea of in which size I want to edit the desired material. Because the maximum traveldictates the maximum size of my workpiece. Do I perhaps prefer to process larger workpieces? Then I should observe the maximum travel of the selected machine.
* The motor and its performance
Furthermore is crucial which materials I would like to process because this depends on the required performance of the milling spindle. Soft materials such as wood consume significantly less drive power than hard metals such as steel or cast steel. Here a competent milling machine manufacturers will be happy to advise you.
* Hardness and toughness of the material
Also concerning the torsional rigidity of the machine, the material to be processed is crucial. Soft materials will demand the milling machine other than hard materials, such as aluminium and steel. The harder a material is, the stiffer the CNC Router should be built. Only in this way a high accuracy in hard materials, especially metals, are guaranteed.
* Precision
A CNC Router Machine should be as well adapted to the material to be machined as possible. Someone who workes mainly wood should get a one-on tailored CNC machine. The more accurately the machine fits the demands of the material, the more accurate the milling results.
With these four questions I quickly find out which CNC Router is suitable for my needs:
1.What size are my workpieces to be processed?
2.What engine power do I need for my hard / soft material?
3.How hard are the materials to be processed concerning the required torsional stiffness of the machine?
4.How exactly is the selected CNC Router adapted to my desired materials
* The size
Before I search for a suitable manufacturer, I should have a good idea of in which size I want to edit the desired material. Because the maximum traveldictates the maximum size of my workpiece. Do I perhaps prefer to process larger workpieces? Then I should observe the maximum travel of the selected machine.
* The motor and its performance
Furthermore is crucial which materials I would like to process because this depends on the required performance of the milling spindle. Soft materials such as wood consume significantly less drive power than hard metals such as steel or cast steel. Here a competent milling machine manufacturers will be happy to advise you.
* Hardness and toughness of the material
Also concerning the torsional rigidity of the machine, the material to be processed is crucial. Soft materials will demand the milling machine other than hard materials, such as aluminium and steel. The harder a material is, the stiffer the CNC Router should be built. Only in this way a high accuracy in hard materials, especially metals, are guaranteed.
* Precision
A CNC Router Machine should be as well adapted to the material to be machined as possible. Someone who workes mainly wood should get a one-on tailored CNC machine. The more accurately the machine fits the demands of the material, the more accurate the milling results.
With these four questions I quickly find out which CNC Router is suitable for my needs:
1.What size are my workpieces to be processed?
2.What engine power do I need for my hard / soft material?
3.How hard are the materials to be processed concerning the required torsional stiffness of the machine?
4.How exactly is the selected CNC Router adapted to my desired materials
