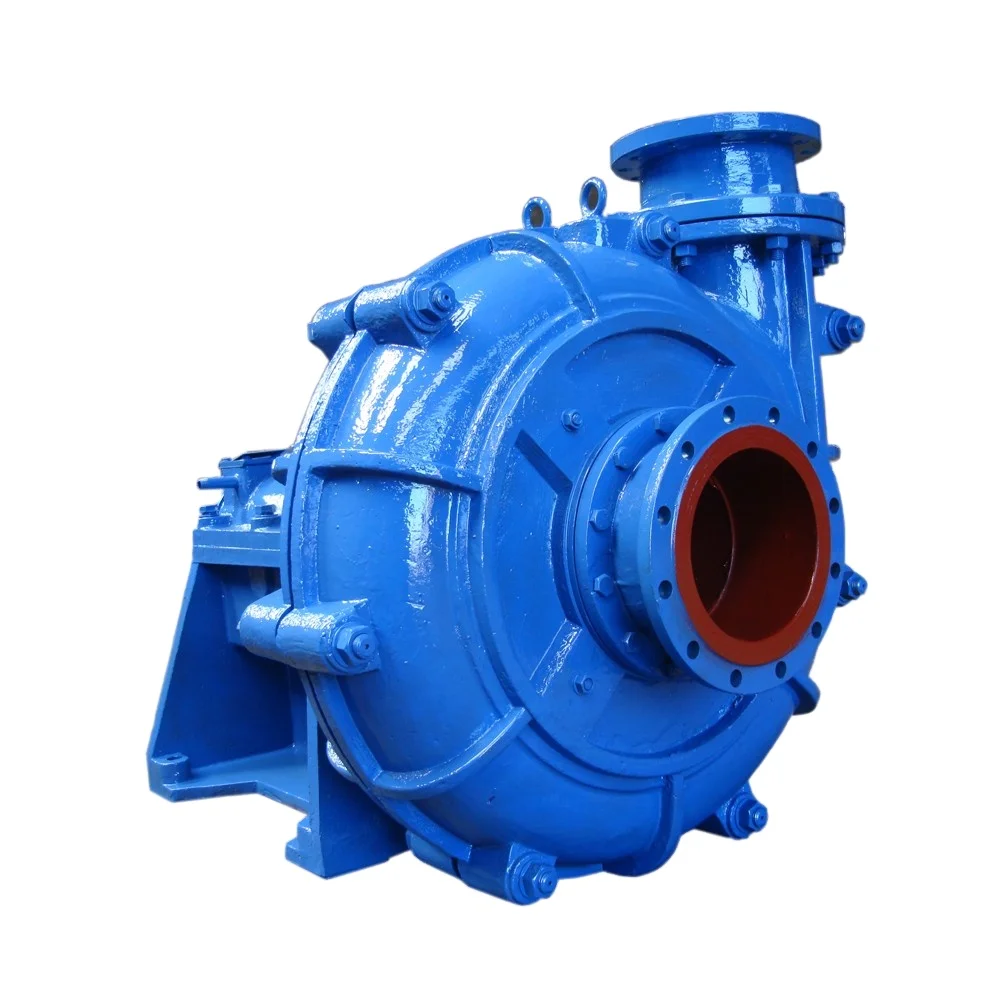

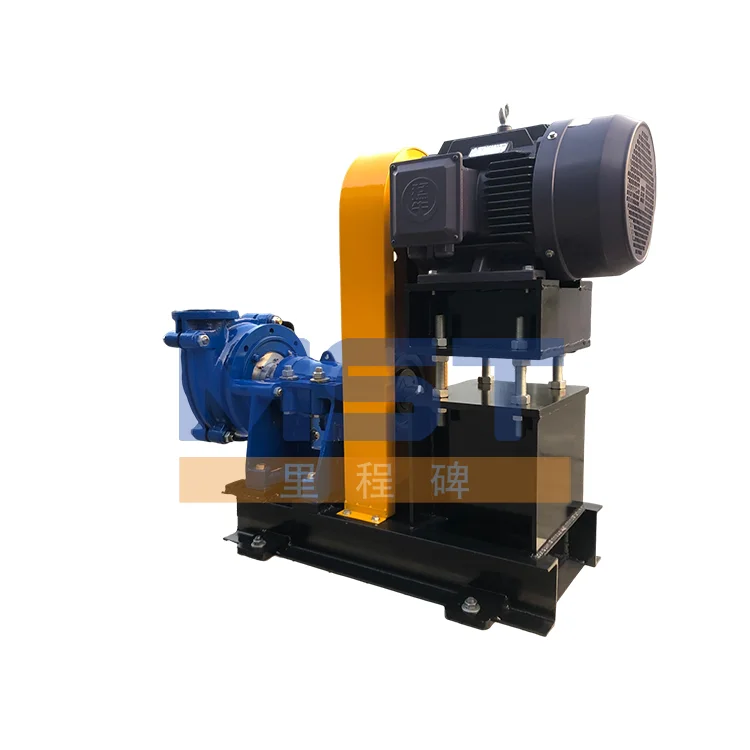

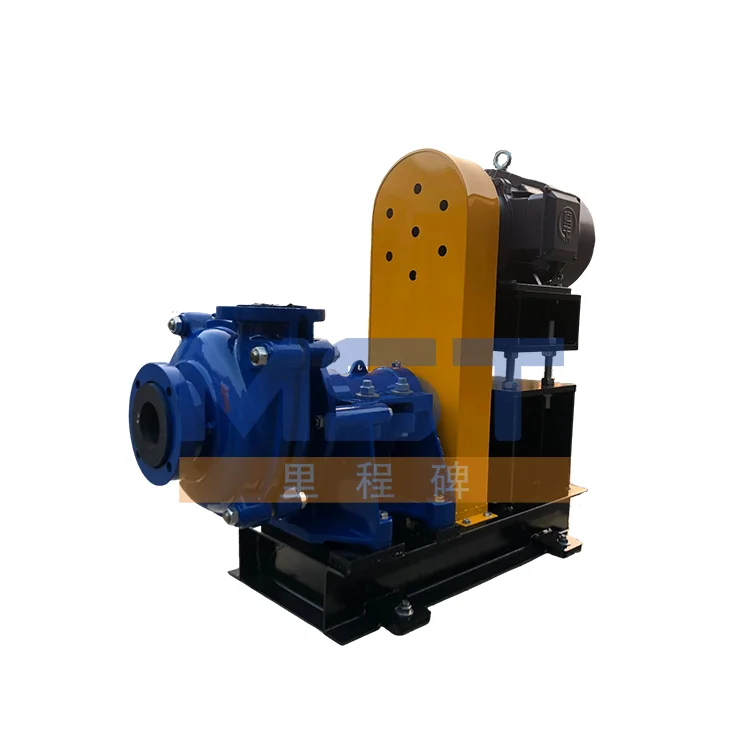

Heavy Duty Horizontal Slurry Pump Sand Gold Mining River Suction Pump Manufacturer
- Category: >>>
- Supplier: Shijiazhuang Milestone Import And Export Trading Co. Ltd.
Share on (1601097845182):
Product Overview
Description
viedo description
Products Description
MAH slurry pumps are heavy duty horizontal slurry pumps designed to handle abrasive and high density slurries in mining and heavy industry.MAH slurry pumps are available in sizes ranging from 1 inch to 18 inch discharge and feature high efficiency performance capable of flow rates from 10.8 to 5400m3/h and heads up to 125 meters for high head models.
Milestone MAH/MAHR slurry pump feature

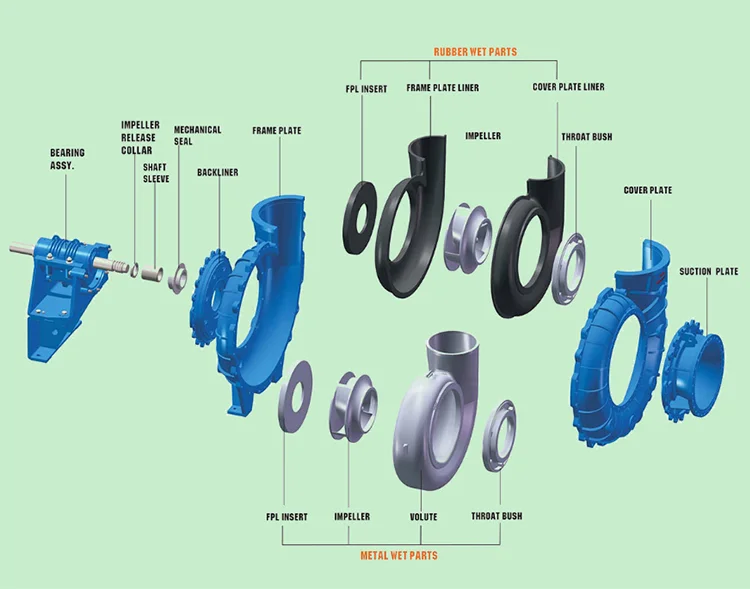

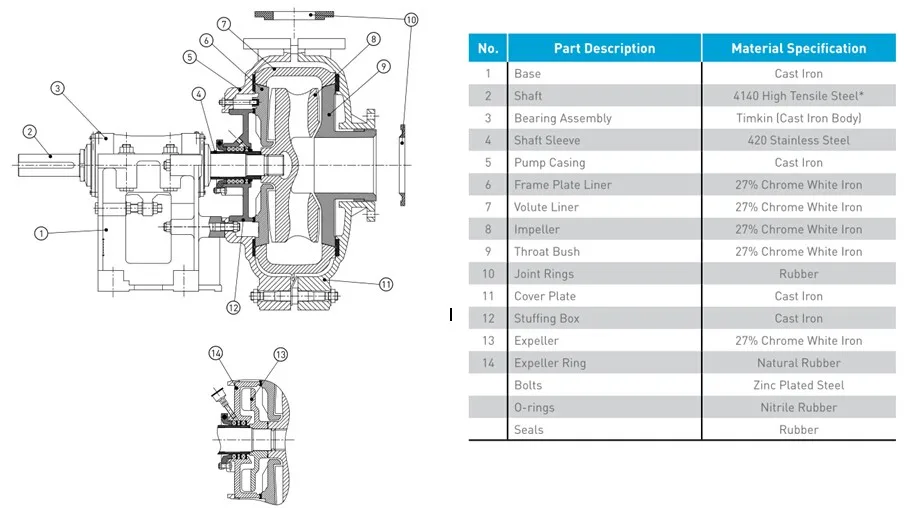

1. 27% chrome white iron, rubber or urethane replaceable wear liner. 2. 27% chrome white iron, rubber or urethane impeller. 3.
Sturdy cast iron, single piece bearing frame with only four through bolts for easy maintenance and adjustment.
Sturdy cast iron, single piece bearing frame with only four through bolts for easy maintenance and adjustment.
4. Easy access maintenance by simply removing front pump casing. 5. Regreasable or oil lubricated bearings. 6. With Large diameter
shaft with minimal overhang for reduced shaft deflection.
shaft with minimal overhang for reduced shaft deflection.
7. Ceramic, 316 stainless steel, hardened steel shaft sleeves available on request. 8. Expeller drive seal fitted as standard. 9.
Packed gland with product lubrication available. Optional external clean water flushing available.
Packed gland with product lubrication available. Optional external clean water flushing available.

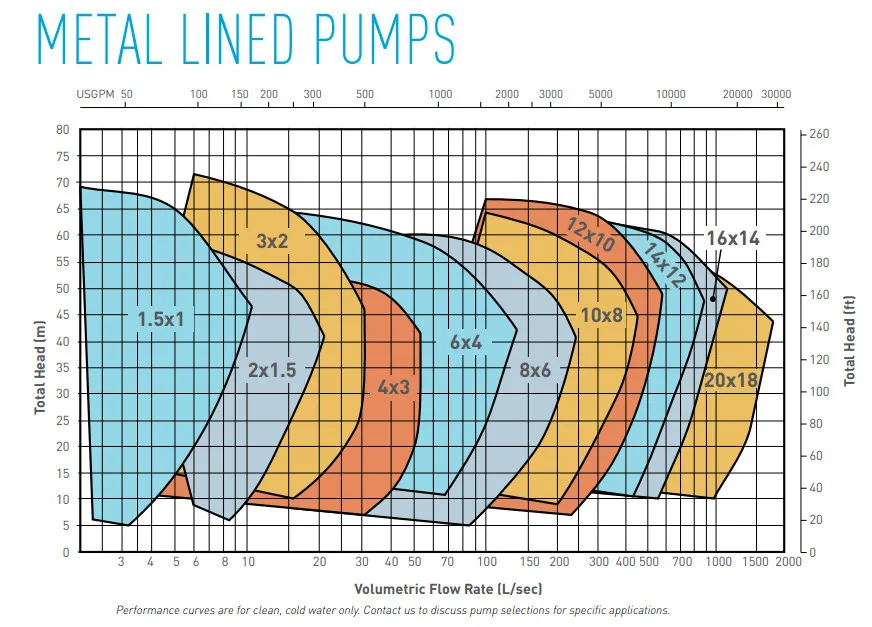

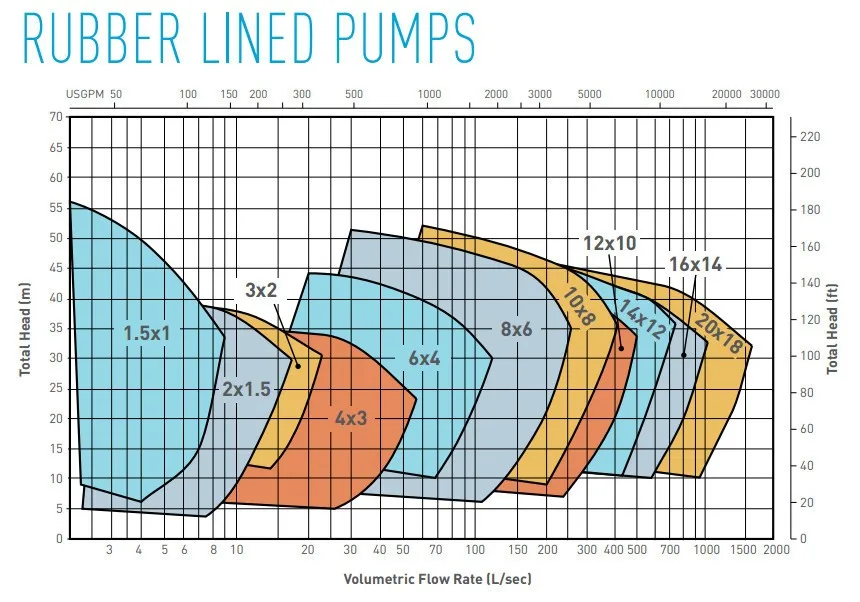

Product Paramenters
Type | Max. Power | Capacity | Head | Speed | Max. | NPSH | Impeller | Max. Particle Size | ||
Eff. | ||||||||||
Metal Liner and Impeller | (kw) | (m³/h) | (m) | (r/min) | (%) | (m) | Dia. (mm) | No. of Vanes | (mm) | |
MAH 1.5×1 | 15 | 12-28 | 6-65 | 1200-3800 | 40 | 2.5-5.5 | 150 | 5 | 14 | |
MAH 2×1.5 | 15 | 21-72 | 6-55 | 1200-3200 | 45 | 3-8 | 184 | 5 | 19 | |
MAH 3×2 | 30 | 21-108 | 10-70 | 1300-2700 | 58 | 3-12 | 214 | 5 | 25 | |
MAH 4×3 | 60 | 72-180 | 10-50 | 1000-2200 | 71 | 2-6 | 245 | 5 | 28 | |
MAH 6×4 | 120 | 72-360 | 12-63 | 800-1600 | 68 | 3-8 | 365 | 5 | 44 | |
MAH 8×6 | 300 | 144-720 | 5-60 | 500-1140 | 72 | 2-10 | 510 | 5 | 63 | |
MAH 10×8 | 560 | 360-1440 | 10-63 | 400-850 | 71 | 2-10 | 686 | 5 | 76 | |
MAH 12×10 | 560 | 360-1800 | 7-68 | 300-800 | 80 | 2-8 | 762 | 5 | 86 | |
MAH 14×12 | 560 | 1080-2880 | 13-63 | 300-600 | 77 | 4-12 | 965 | 5 | 90 | |
MAH 16×14 | 600 | 1800-3600 | 10-60 | 250-450 | 82 | 3-8 | 1067 | 5 | 120 | |
MAH 20×18 | 600 | 2520-5400 | 15-45 | 200-350 | 82 | 2-8 | 1372 | 5 | 130 | |

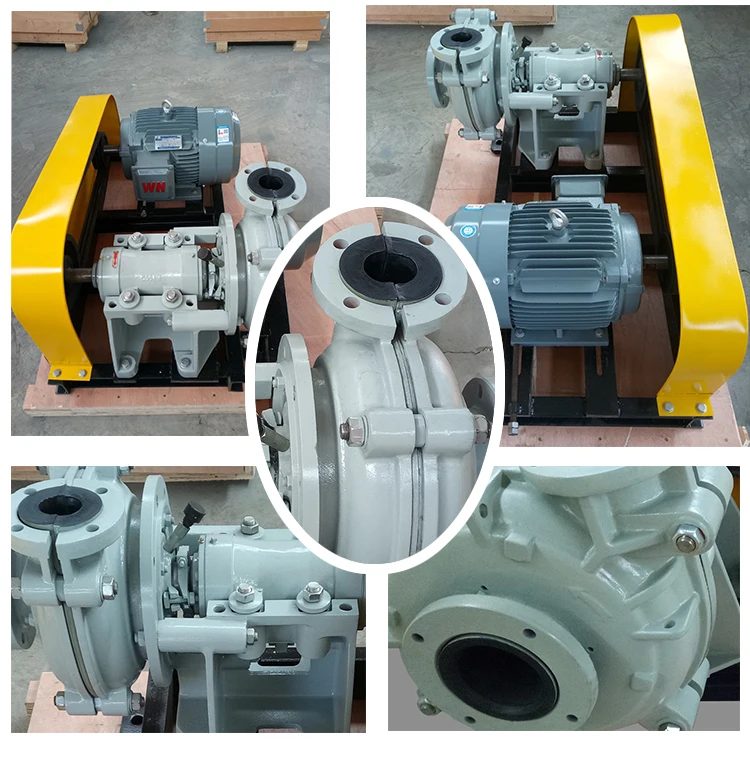

Details Images
Application

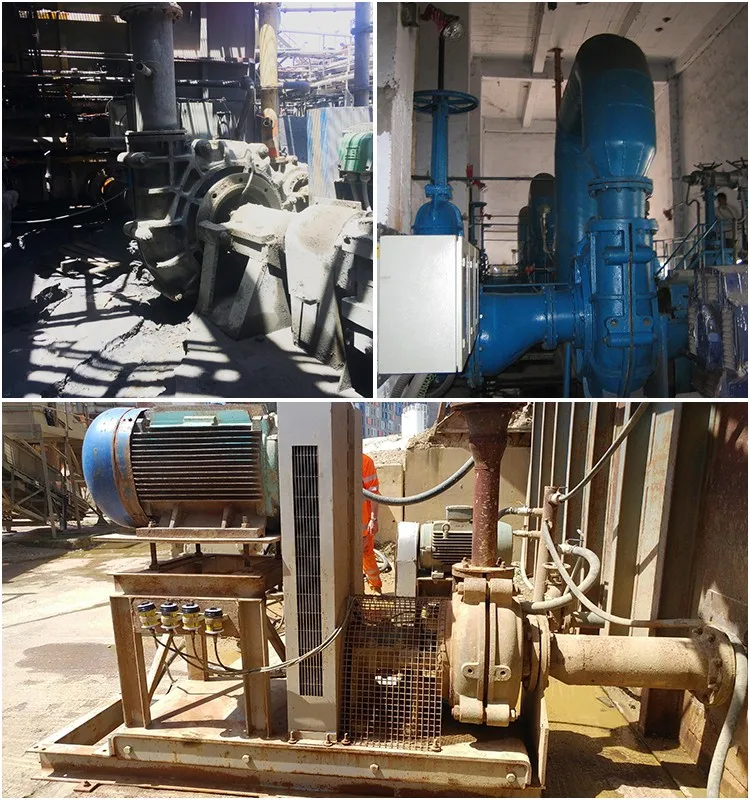

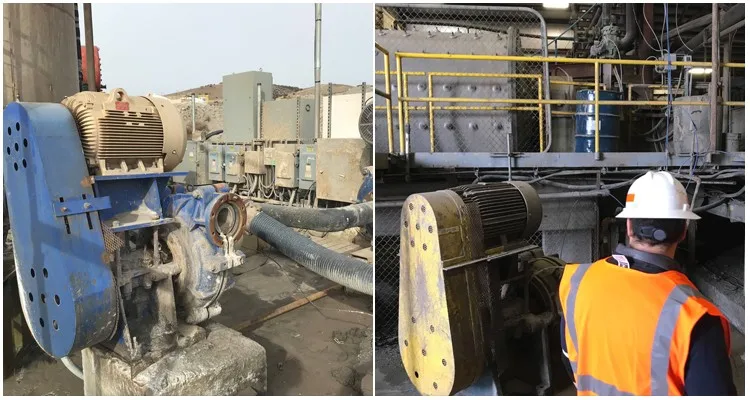

Applications of slurry pumps
It is an energy saving and special structure type equipment, mainly used for filtering and screening of various slurry and
concentrated slurry, also widely used in food, pharmaceutical, chemical, paper, environmental protection, ceramics, electric
porcelain and other industries.
concentrated slurry, also widely used in food, pharmaceutical, chemical, paper, environmental protection, ceramics, electric
porcelain and other industries.
Recommend Products

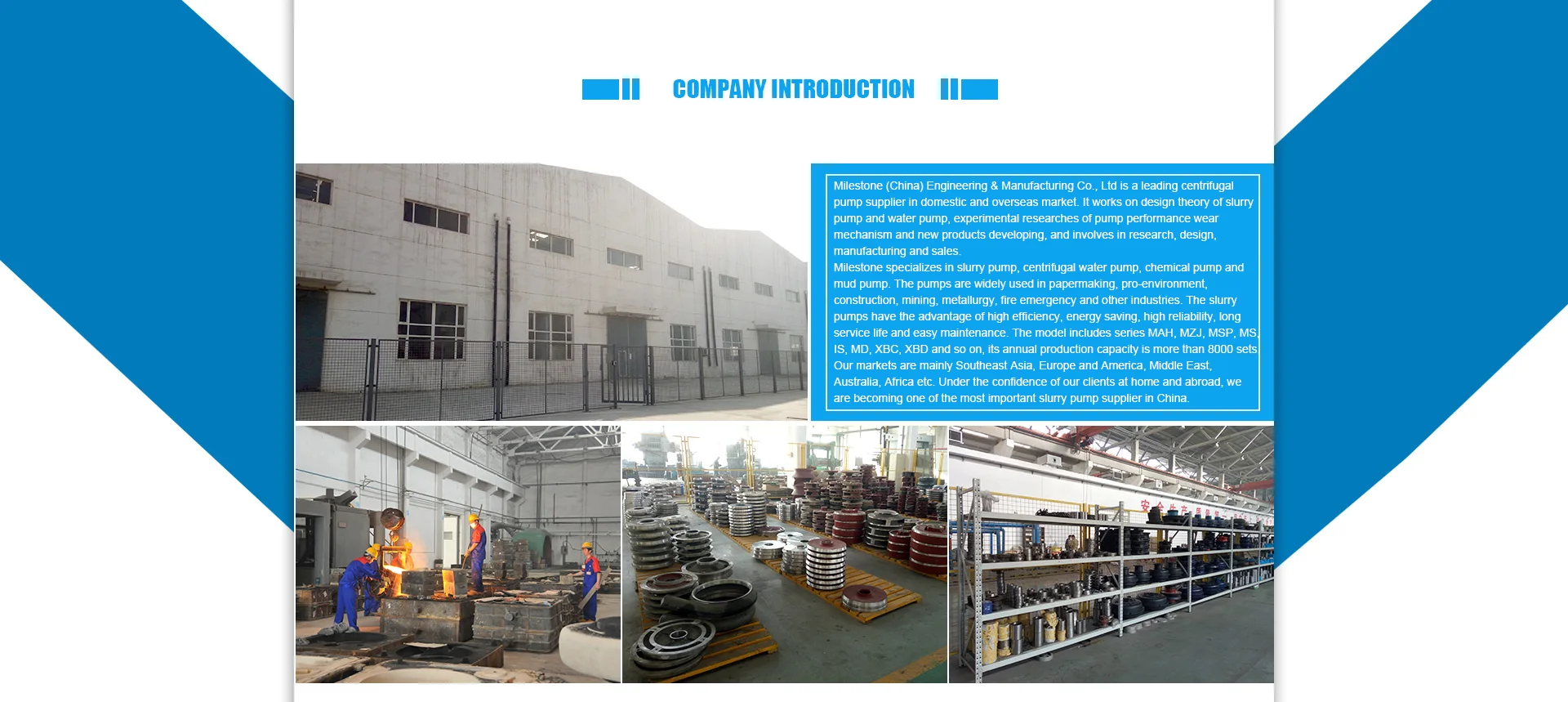

Company Profile
SHIJIAZHUANG MILESTONE ENGINEERING & MANUAFCTURING CO.,LTD
Milestone Engineering & Manufacturing is one of the leading private indenting firms of China having 10 years of experience in Mining, Fluid Transportation and Fire Emergency Field. It works on design theory of slurry pump and water pump, experimental researches of pump performance wear mechanism and new products developing, and involves in research, design, manufacturing and sales.
Milestone Engineering & Manufacturing is one of the leading private indenting firms of China having 10 years of experience in Mining, Fluid Transportation and Fire Emergency Field. It works on design theory of slurry pump and water pump, experimental researches of pump performance wear mechanism and new products developing, and involves in research, design, manufacturing and sales.
Why Choose Us
Our service - professional attentive
* Perfect Quality Control-- We own professional quality management and process inspection team
* Fast High Quality Service--In the process of service,the demands of all customers can be solved quickly and effectively.
* Supply Support Capacity--We ensures the products with good quality,suffcient quantity and diversification.
* Excellent Cost Performance--Provide the most excellent products,the most favorable price and the most perfect service to all customers.
* Perfect Quality Control-- We own professional quality management and process inspection team
* Fast High Quality Service--In the process of service,the demands of all customers can be solved quickly and effectively.
* Supply Support Capacity--We ensures the products with good quality,suffcient quantity and diversification.
* Excellent Cost Performance--Provide the most excellent products,the most favorable price and the most perfect service to all customers.
FAQ
Q1: What is your product range?
A:Centrifugal pump includes slurry pump, gravel pump, clean water pump, sewage pump, chemical pump, self-priming pump and diesel engine pump.
Q2: What’s your MOQ , payment term and lead time?
A:MOQ for centrifugal pump is 1 set.
Q3: What payment methods are supported?
A: Payment Term: T/T, L/C, Western Union, Paypal and Trade assurance.
Q4: How long is the lead time?
A:In general 7 working days for slurry pump, 15 working days for water pump.
Q5: What information I need to offer for quotation?
A: Liquid:___ ; Pump Capacity___m3/h ; PH:_____ ; Pump Head: ___m ; Specific of gravity___ ; Voltage ___V ; Frequency ___Hz
Q6: Is OEM parts available ?
A:Yes, please send me the detailed drawing. Different materials is available.
A:Centrifugal pump includes slurry pump, gravel pump, clean water pump, sewage pump, chemical pump, self-priming pump and diesel engine pump.
Q2: What’s your MOQ , payment term and lead time?
A:MOQ for centrifugal pump is 1 set.
Q3: What payment methods are supported?
A: Payment Term: T/T, L/C, Western Union, Paypal and Trade assurance.
Q4: How long is the lead time?
A:In general 7 working days for slurry pump, 15 working days for water pump.
Q5: What information I need to offer for quotation?
A: Liquid:___ ; Pump Capacity___m3/h ; PH:_____ ; Pump Head: ___m ; Specific of gravity___ ; Voltage ___V ; Frequency ___Hz
Q6: Is OEM parts available ?
A:Yes, please send me the detailed drawing. Different materials is available.
