Product Overview
Description

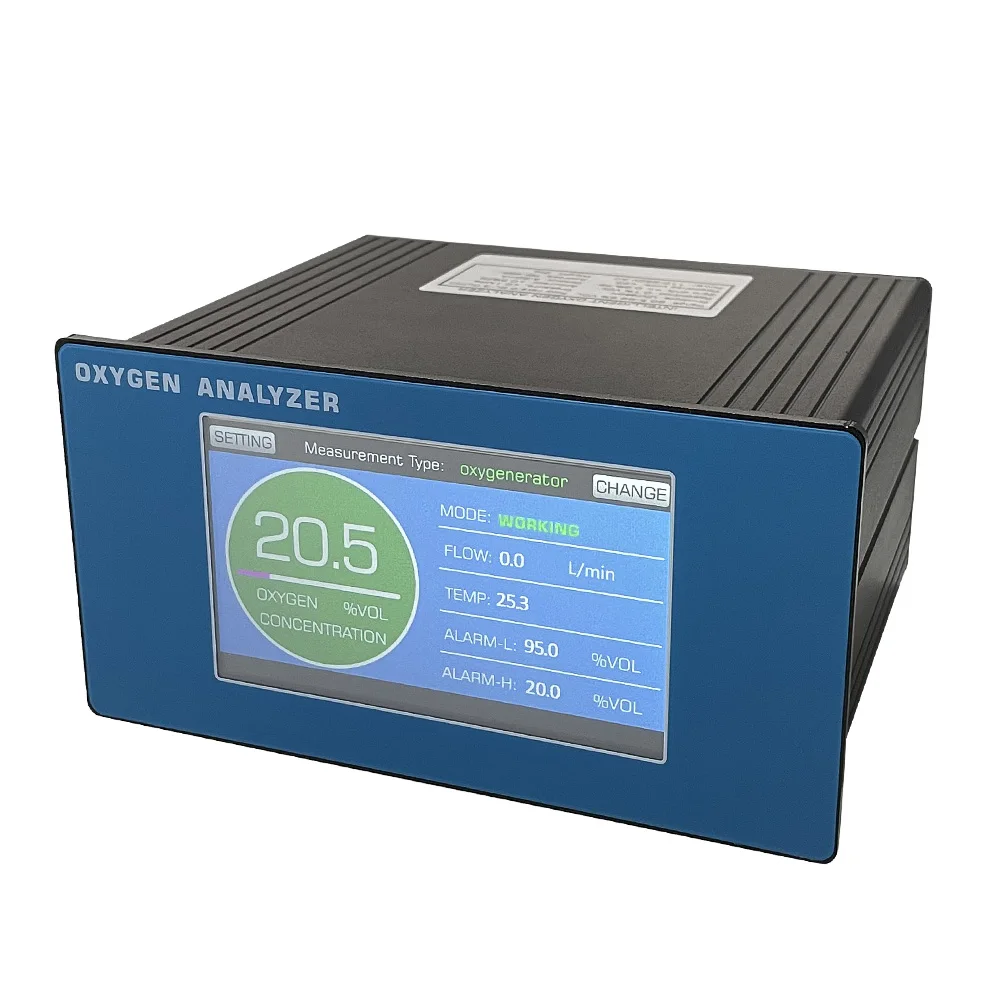

Flygoo Portable O2 Oxygen Gas Detector for Ozone Generator High Stability from 20.5 % ~99.9 %
Product Description
Online oxygen purity analyzer measures oxygen purity from 20.5-99.9% at flows up to 3 L/Min. Perfect for verifying oxygen purity from your oxygen generator real-time.
24/7 Working
Accuracy
Low Price
Signal Output
Data Storage
Compacted
Specification
Model | FG-100-O2 |
Concentration Indication Range | 20.5 % ~99.9 % |
Measurement Principle | Ultrasonic |
Repeatability | <± 1% |
Measurement Accuracy | <± 1% FS |
Analog output | 4-20mA |
Operating Ambient Humidity | 5~80%RH |
Environmental Temperature | -40°C~+85°C |
Response Time | T90 ≤ 30 Seconds |
Dimension | 150*75*120mm |
Embedded Installation | 150*75mm |
Weight | 2.0KG |
Power Supply | 110-220VAC |
Max. Pressure | 14Psi (1Bar) |
Input Flow Rate | 0.2L-3.0L/min |
Sampling method | Flow type |
Feature
1.The measurement range is 20.5-99.9% O2
2.Adopting original imported gas sensors, with accurate measurement results
3.The entire machine meets EMC design standards

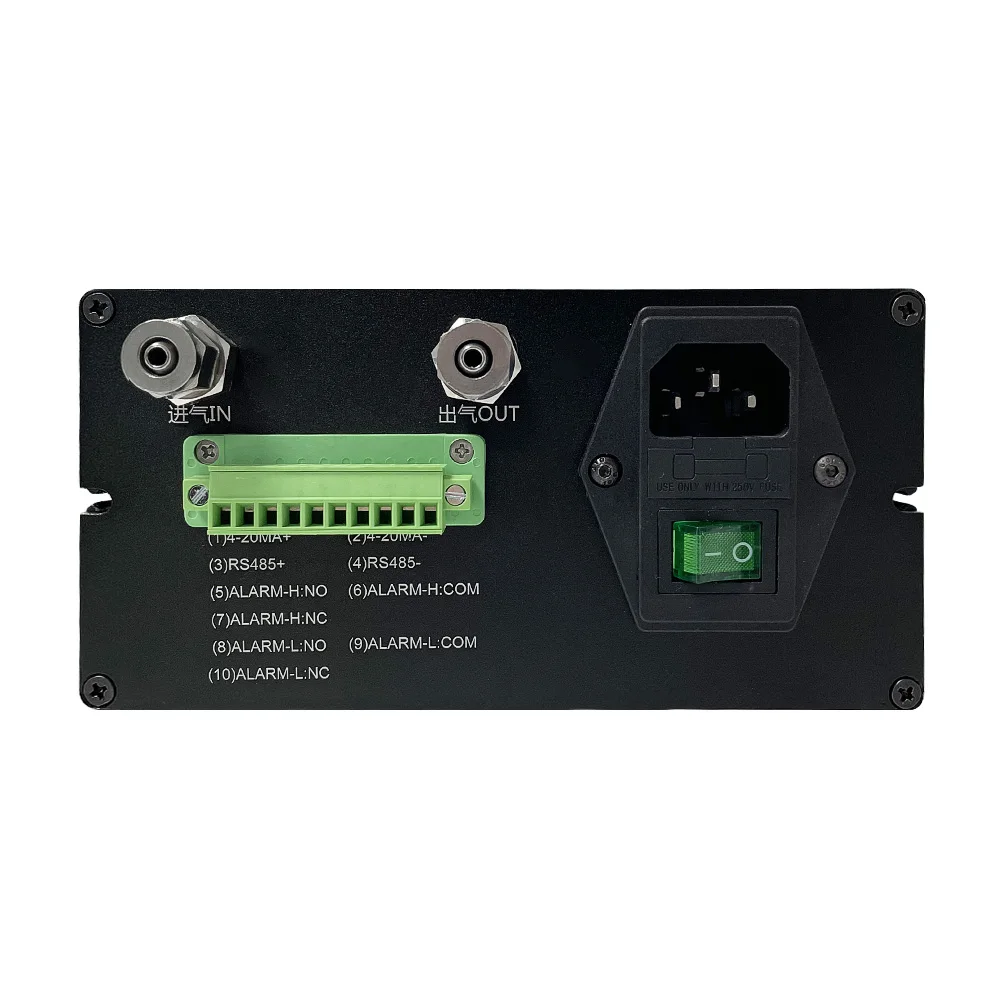

4.Signal output 4-20mA and RS485 digital signals
5.Long calibration interval, high accuracy, stability and reliability

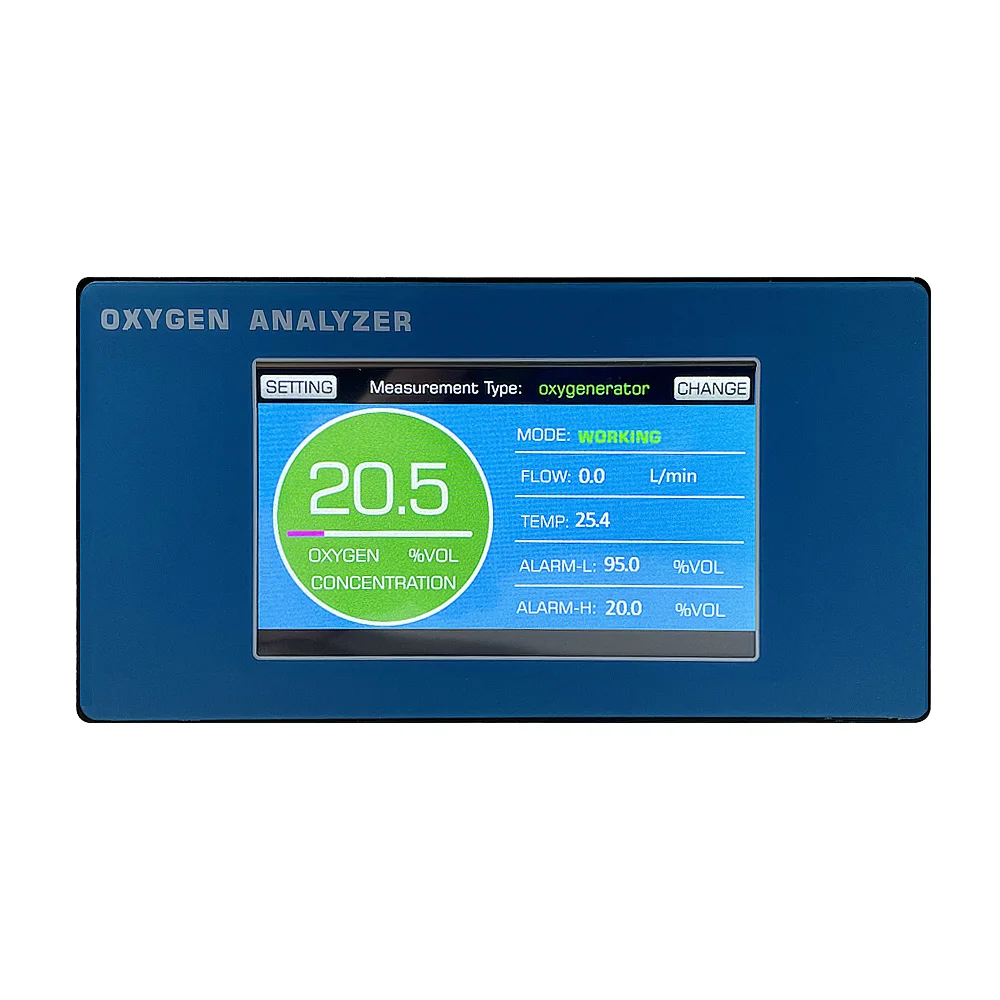

6.Touch screen operation interface
7.Longer service life and faster response speed
2.Adopting original imported gas sensors, with accurate measurement results
3.The entire machine meets EMC design standards
4.Signal output 4-20mA and RS485 digital signals
5.Long calibration interval, high accuracy, stability and reliability
6.Touch screen operation interface
7.Longer service life and faster response speed
