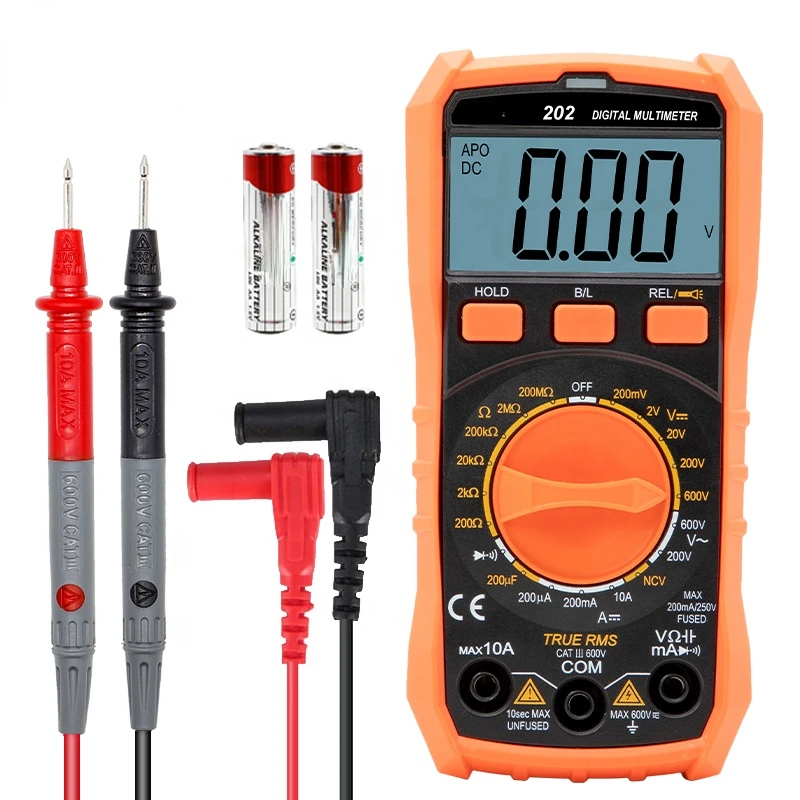

DECCA 202 1999 Counts Professional Pocket Mini Smart True RMS Multimeter Digital Manual Range AC DC 600V 10A MultiMeter digital
- Category: >>>
- Supplier: Decca Precision Measuring Instrument (Shenzhen) Co. Ltd.
Share on (1601097965291):
Product Overview
Description
Products Description
202 Manual Range Digital Multimeter1999 Counts large LCD Display With True RMS1000V/20A AC DC With Temperature Frequency
1. Description
The 202 is a handheld small and safe digital multimeter with 3 1/2 digits,full function and high performance for measuring DCV,
ACV, DCA, resistance, capacitance, diode, continuity test, thus it is a portable and ideal tool for users. Please read the safety
information and warning in this manual carefully, and strictly abide by it.

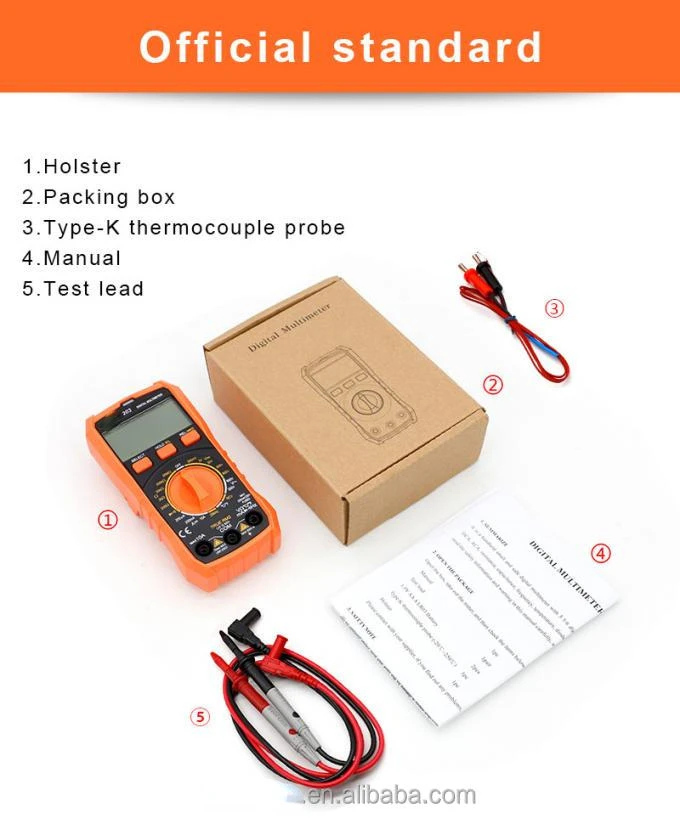

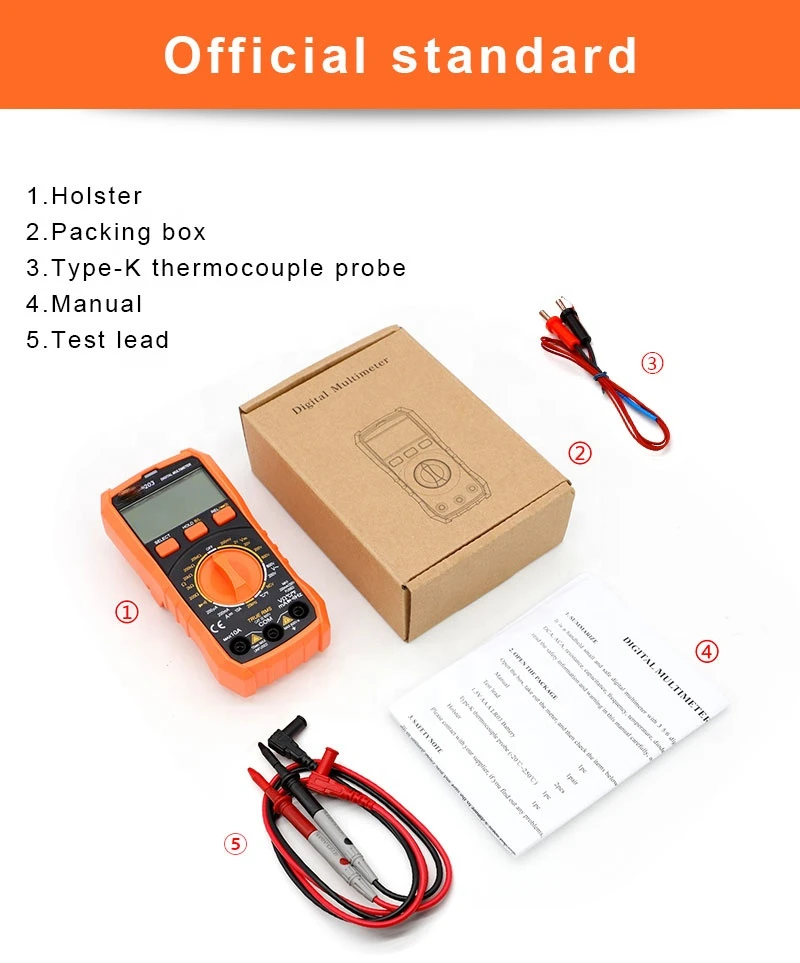

2. OPEN THE PACKAGE
Open the box, take out the meter, and then check the items below to make sure if they are missing or damaging:
Manual 1pc
Test lead 1pair
1.5V AA A LR03 Battery 2pcs
Holster 1pc
Please contact with your supplier, if you find out any problems.
3. CHARACTERISTIC
3-1. Display : LCD displaying.
3- 2. Max display: 1999(3 1/2 digit)auto polarity indication.
3-3. Measuring method: A/D conversion
3-4. Exploit the technology of button calibrating
3-5. Sampling rate: approx.3 times/second.
3-6. Over range indication: the MSD displays “OL”
3-7. Low battery indication
3-8. Operation environment: (0～40)℃
relative humidity < 75% R.H
3-9. Storage environment:(-20～60)℃
relative humidity < 85% R.H.

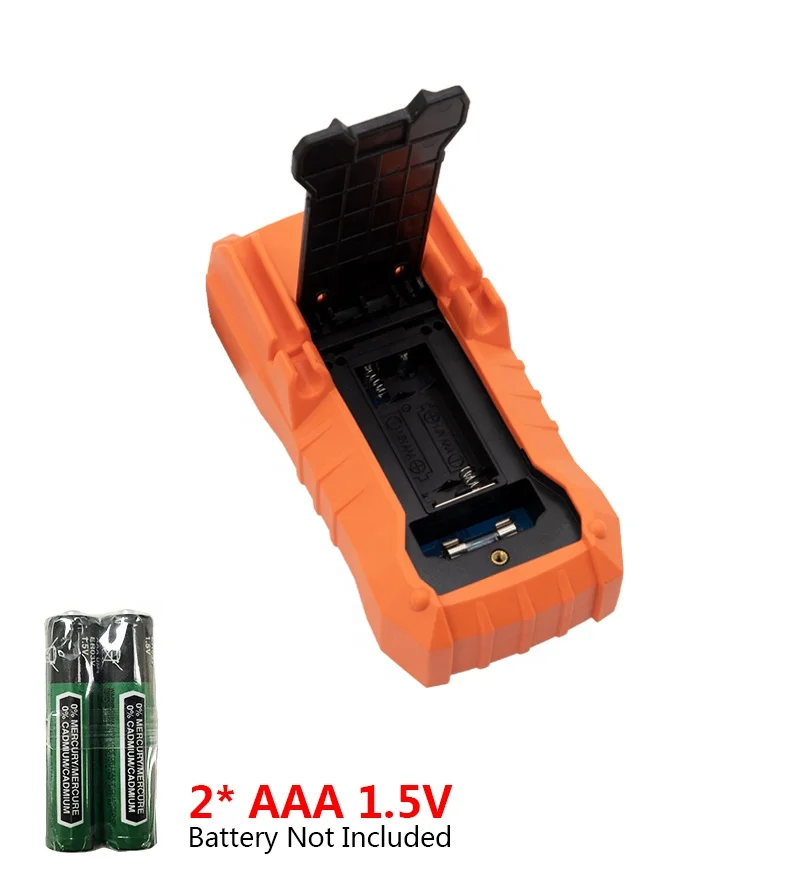

3-10. Power:2 * AAA 1.5V LR03 batteries
3-11. Size: (146*72*50) mm
3-12.Weight: approx. 232g(including batteries)
1. Description
The 202 is a handheld small and safe digital multimeter with 3 1/2 digits,full function and high performance for measuring DCV,
ACV, DCA, resistance, capacitance, diode, continuity test, thus it is a portable and ideal tool for users. Please read the safety
information and warning in this manual carefully, and strictly abide by it.
2. OPEN THE PACKAGE
Open the box, take out the meter, and then check the items below to make sure if they are missing or damaging:
Manual 1pc
Test lead 1pair
1.5V AA A LR03 Battery 2pcs
Holster 1pc
Please contact with your supplier, if you find out any problems.
3. CHARACTERISTIC
3-1. Display : LCD displaying.
3- 2. Max display: 1999(3 1/2 digit)auto polarity indication.
3-3. Measuring method: A/D conversion
3-4. Exploit the technology of button calibrating
3-5. Sampling rate: approx.3 times/second.
3-6. Over range indication: the MSD displays “OL”
3-7. Low battery indication
3-8. Operation environment: (0～40)℃
relative humidity < 75% R.H
3-9. Storage environment:(-20～60)℃
relative humidity < 85% R.H.
3-10. Power:2 * AAA 1.5V LR03 batteries
3-11. Size: (146*72*50) mm
3-12.Weight: approx. 232g(including batteries)
Specification

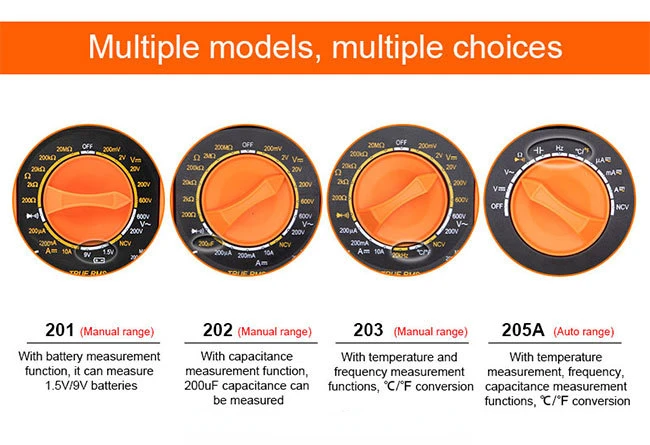

\t\t\t Function \t\t\t | \t\t\t Range \t\t\t | \t\t\t 201 \t\t\t | \t\t\t 202 \t\t\t | \t\t\t 203 \t\t\t | |||
\t\t\t DCV \t\t\t | \t\t\t 200mV \t\t\t | \t\t\t ±(0.5%+5) \t\t\t | \t\t\t ±(0.5%+5) \t\t\t | \t\t\t ±(0.5%+5) \t\t\t | |||
\t\t\t \t\t\t | \t\t\t 2V/20V/200V \t\t\t | \t\t\t ±(0.5%+3) \t\t\t | \t\t\t ±(0.5%+3) \t\t\t | \t\t\t ±(0.5%+3) \t\t\t | |||
\t\t\t \t\t\t | \t\t\t 600V \t\t\t | \t\t\t ±(1.0%+10) \t\t\t | \t\t\t ±(1.0%+10) \t\t\t | \t\t\t ±(1.0%+10) \t\t\t | |||
\t\t\t ACV \t\t\t | \t\t\t 200V/600V \t\t\t | \t\t\t ±(1.2%+10) \t\t\t | \t\t\t ±(1.2%+10) \t\t\t | \t\t\t ±(1.2%+10) \t\t\t | |||
\t\t\t DCA \t\t\t | \t\t\t 200uA \t\t\t | \t\t\t ±(1.0%+10) \t\t\t | \t\t\t ±(1.0%+10) \t\t\t | \t\t\t ±(1.0%+10) \t\t\t | |||
\t\t\t \t\t\t | \t\t\t 200mA \t\t\t | \t\t\t ±(1.2%+8) \t\t\t | \t\t\t ±(1.2%+8) \t\t\t | \t\t\t ±(1.2%+8) \t\t\t | |||
\t\t\t \t\t\t | \t\t\t 10A \t\t\t | \t\t\t ±(2.0%+5) \t\t\t | \t\t\t ±(2.0%+5) \t\t\t | \t\t\t ±(2.0%+5) \t\t\t | |||
\t\t\t Resistance \t\t\t | \t\t\t 200Ω \t\t\t | \t\t\t ±(0.8%+5) \t\t\t | \t\t\t ±(0.8%+5) \t\t\t | \t\t\t ±(0.8%+5) \t\t\t | |||
\t\t\t \t\t\t | \t\t\t 2kΩ/20kΩ/200kΩ \t\t\t | \t\t\t ±(0.8%+3) \t\t\t | \t\t\t ±(0.8%+3) \t\t\t | \t\t\t ±(0.8%+3) \t\t\t | |||
\t\t\t \t\t\t | \t\t\t 2MΩ \t\t\t | \t\t\t \t\t\t | \t\t\t ±(1.0%+5) \t\t\t | \t\t\t \t\t\t | |||
\t\t\t \t\t\t | \t\t\t 20MΩ \t\t\t | \t\t\t ±(1.0%+5) \t\t\t | \t\t\t \t\t\t | \t\t\t ±(1.0%+5) \t\t\t | |||
\t\t\t \t\t\t | \t\t\t 200MΩ \t\t\t | \t\t\t \t\t\t | \t\t\t ±[5.0%+30] \t\t\t | \t\t\t \t\t\t | |||
\t\t\t Capacitance \t\t\t | \t\t\t 200uF \t\t\t | \t\t\t \t\t\t | \t\t\t ±(5.0%+10) \t\t\t | \t\t\t \t\t\t | |||
\t\t\t Frequency \t\t\t | \t\t\t 20kHz \t\t\t | \t\t\t \t\t\t | \t\t\t \t\t\t | \t\t\t ±(1.0%+10) \t\t\t | |||
\t\t\t Temperature \t\t\t | \t\t\t -20℃~1000℃ \t\t\t | \t\t\t \t\t\t | \t\t\t \t\t\t | \t\t\t <400℃ ±(1.0%+5) \t\t\t≥400℃ ±(1.5%+15) \t\t\t | |||
\t\t\t \t\t\t | \t\t\t -4℉~1832℉ \t\t\t | \t\t\t \t\t\t | \t\t\t \t\t\t | \t\t\t < 752℉±(1.0%+5) \t\t\t≥752℉ ±(1.5%+15) \t\t\t | |||
\t\t\t Battery measurement function \t\t\t | \t\t\t \t\t\t | \t\t\t √ \t\t\t | \t\t\t \t\t\t | \t\t\t \t\t\t | |||
\t\t\t Diode test \t\t\t | \t\t\t \t\t\t | \t\t\t √ \t\t\t | \t\t\t √ \t\t\t | \t\t\t √ \t\t\t | |||
\t\t\t Continuity alarm \t\t\t | \t\t\t \t\t\t | \t\t\t √ \t\t\t | \t\t\t √ \t\t\t | \t\t\t √ \t\t\t | |||
\t\t\t Data hold \t\t\t | \t\t\t \t\t\t | \t\t\t √ \t\t\t | \t\t\t √ \t\t\t | \t\t\t √ \t\t\t | |||
\t\t\t Torch function \t\t\t | \t\t\t \t\t\t | \t\t\t √ \t\t\t | \t\t\t √ \t\t\t | \t\t\t √ \t\t\t | |||
\t\t\t Back light function \t\t\t | \t\t\t \t\t\t | \t\t\t √ \t\t\t | \t\t\t √ \t\t\t | \t\t\t √ \t\t\t | |||
\t\t\t NCV measurement \t\t\t | \t\t\t \t\t\t | \t\t\t √ \t\t\t | \t\t\t √ \t\t\t | \t\t\t √ \t\t\t | |||
\t\t\t Auto shutdown \t\t\t | \t\t\t \t\t\t | \t\t\t √ \t\t\t | \t\t\t √ \t\t\t | \t\t\t √ \t\t\t | |||
\t\t\t True RMS \t\t\t | \t\t\t \t\t\t | \t\t\t √ \t\t\t | \t\t\t √ \t\t\t | \t\t\t √ \t\t\t | |||
\t\t\t Operating method \t\t\t | \t\t\t \t\t\t | \t\t\t Manual range \t\t\t | \t\t\t Manual range \t\t\t | \t\t\t Manual range \t\t\t | |||
\t\t\t Low voltage display \t\t\t | \t\t\t \t\t\t | \t\t\t “ ” appears. \t\t\t | \t\t\t \t\t\t | \t\t\t \t\t\t | |||
\t\t\t Display method \t\t\t | \t\t\t \t\t\t | \t\t\t LCD display \t\t\t | \t\t\t \t\t\t | \t\t\t \t\t\t | |||
\t\t\t Max. display \t\t\t | \t\t\t \t\t\t | \t\t\t 1999 (3 1/2 digits) Auto polarity display \t\t\t | \t\t\t \t\t\t | \t\t\t \t\t\t | |||
\t\t\t Measuring method \t\t\t | \t\t\t \t\t\t | \t\t\t AD conversion measurement \t\t\t | \t\t\t \t\t\t | \t\t\t \t\t\t | |||
\t\t\t Sampling rate \t\t\t | \t\t\t \t\t\t | \t\t\t About 3 times/s \t\t\t | \t\t\t \t\t\t | \t\t\t \t\t\t | |||
\t\t\t Over range indication \t\t\t | \t\t\t \t\t\t | \t\t\t The MSD displays“OL” \t\t\t | \t\t\t \t\t\t | \t\t\t \t\t\t | |||
\t\t\t Dimension \t\t\t | \t\t\t \t\t\t | \t\t\t 146mm*72mm*50mm \t\t\t | \t\t\t \t\t\t | \t\t\t \t\t\t | |||
\t\t\t Weight \t\t\t | \t\t\t \t\t\t | \t\t\t About 232g (include batteries) \t\t\t | \t\t\t \t\t\t | \t\t\t \t\t\t | |||
