16 40V input 1 12V output DC DC Step down module 6A Synchronous rectifying power board

 DC-DC Step-down module  16-40V input 1-12V output. 6A Synchronous rectifying power board 5V12V

Product introduction:

The use of now more advanced synchronous rectifier controller, plus 3.7 milliohms ultra-low impedance NMOS switch tube to form a high-current and high-efficiency DC-DC step-down converter, without the use of powerful heat sink that can reliably continuously work in 6A output current, enhance ventilation and heat dissipation can work for a long time in more than 8A current.

Product parameters:

Module Model: DC-DC Step-down Voltage regulator module 6A [Code: 001135]

Module completion: Brand new

Input voltage: 16-40V (rated 24V is best)

Output voltage: 1-12V Output current: 6A (for natural heat dissipation)/Rated starting current with load 6A, maximum 7A

No-load current: 10.2mA (24V to 12V) 7.7mA (24V to 5V) Protection type: undervoltage off, over current off even if long time short circuit will not be damaged (short circuit start) Please try to avoid frequent short circuit during normal output to avoid impact and burn mos tube

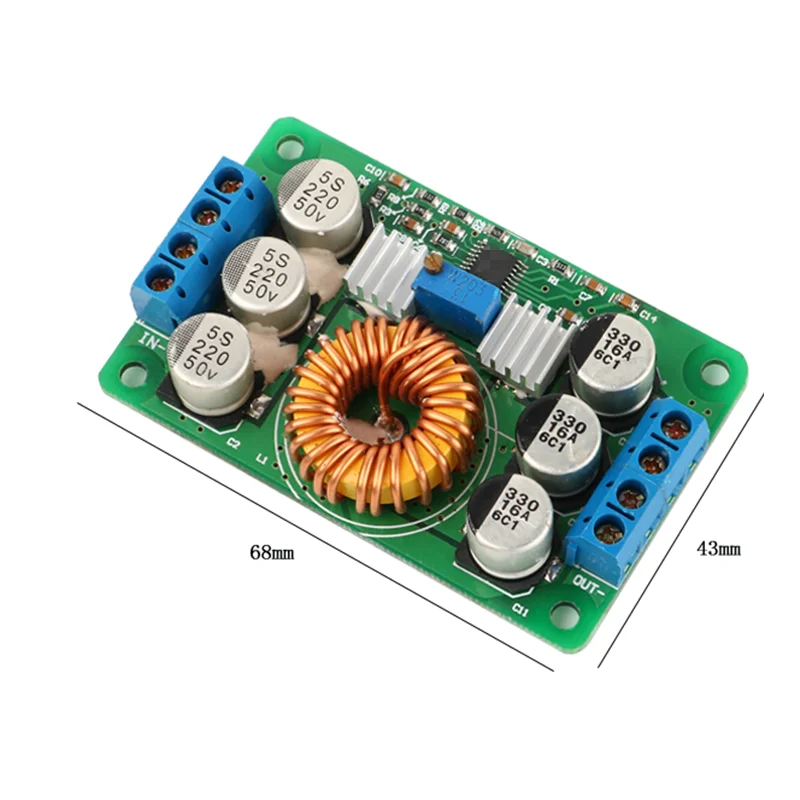

Appearance Dimension Length: (68mm) * Width (43mm) * Height (22mm)

Module weight: 46g

Note:New parts and in original factory package!

Sincerely looking forward to our cooperation!
Any feedback from you would be highly appreicately!

Selling Units:

Single item

Lead Time :

Quantity(Piece)	1 - 2000	>2000
Est. Time(days)	2	To be negotiated
