Product Overview

Description





Product Paramenters




MODEL
HG-PC2203
HG-PC-D07
HG-PC-D12
HG-PC-D18
HG-PC2213B
HG-PC-D36
HG-PC-D42
OUTPUT
DC VOLTAGE
DC12V
DC20V
DC40V
DC60V
DC80V
DC120V
DC80V
CONSTANT CURRENT REGION
280mA±5%
280mA±5%
280mA±5%
280mA±5%
280mA±5%
280mA±5%
600mA
RATED CURRENT
300ma
300ma
300mA
300mA
300mA
300mA
600mA
RATED POWER
1-5*1W
4-7*1W
8-12W
12-18W
18-24W
25-36W
48W
VOLTAGE ADJ.RANGE
DC3-17V
DC12-25V
DC24-42V
DC36-63V
DC54-85V
DC75-126V
DC54-85V
INPUT
VOLTAGE RANGE
AC100-260V
FREQUENCY RANGE
47-63Hz
POWER FACTOR(Typ.)
0.5
EFFICIENCY(Typ.)
0.88
AC CURRENT
<0.5A
PROTECTION
SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed.
OVER LOAD
Protection type: Shut down o/p voltage, re-power on to recover
Function
Dimmable Function
Non

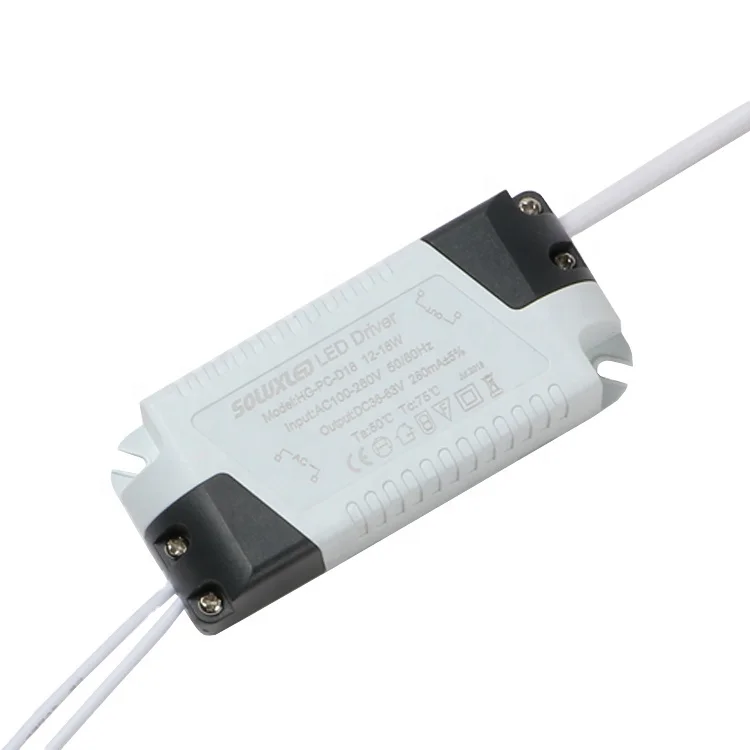

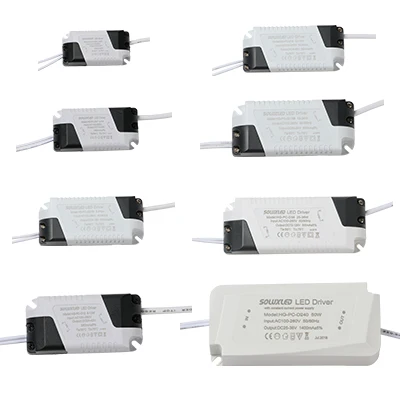

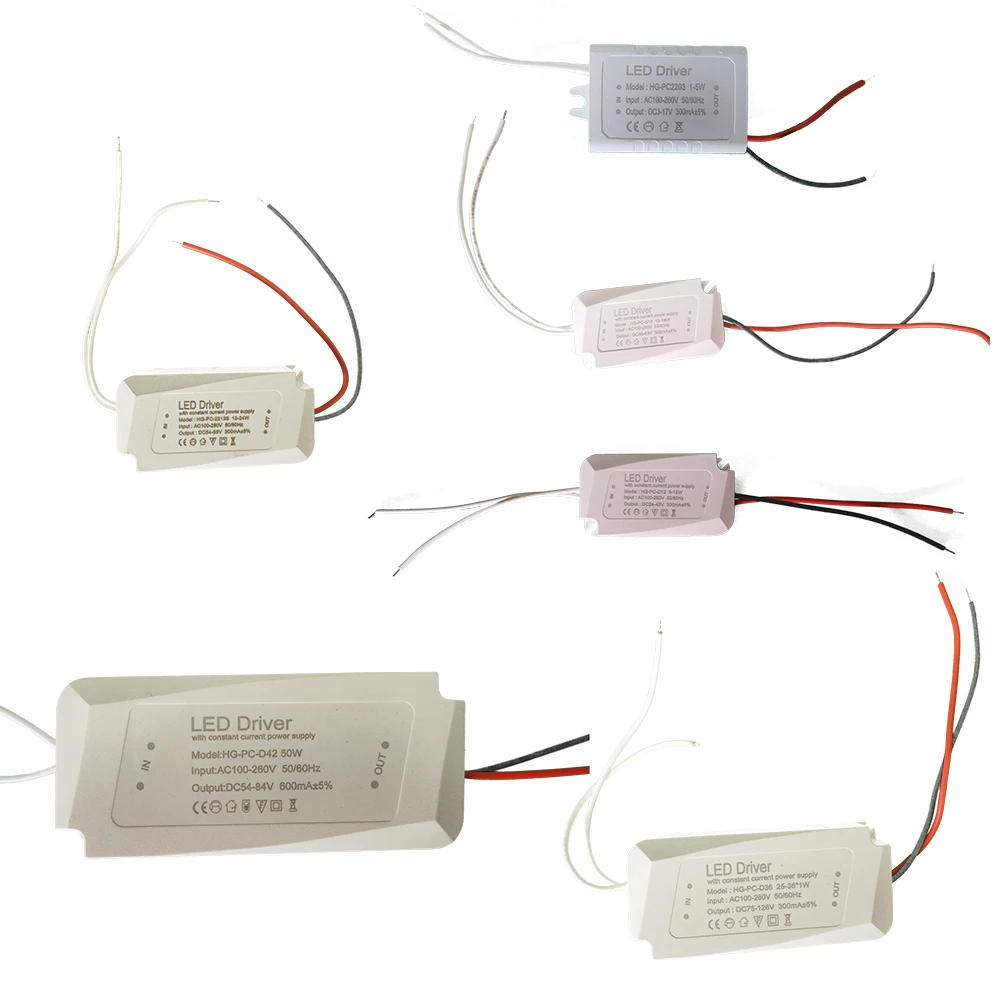

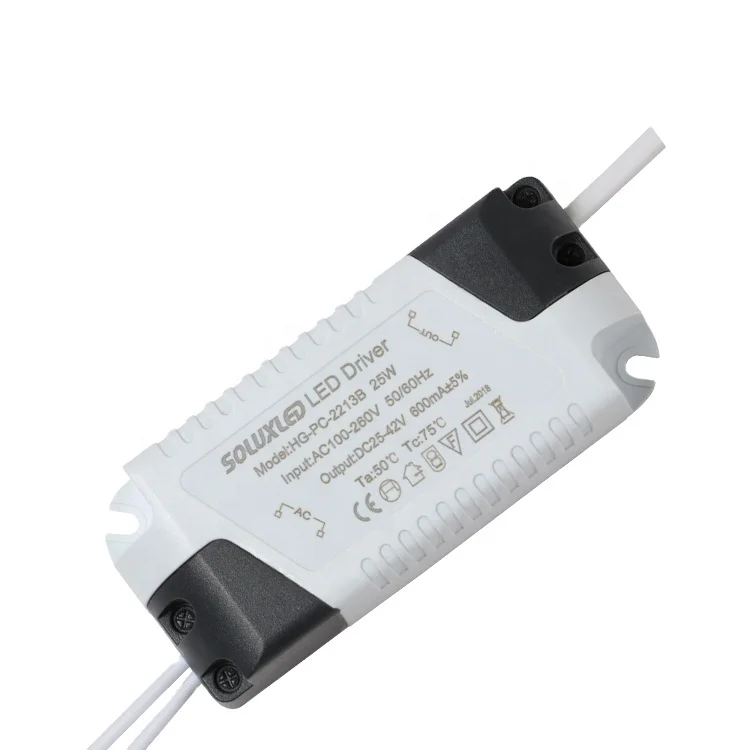

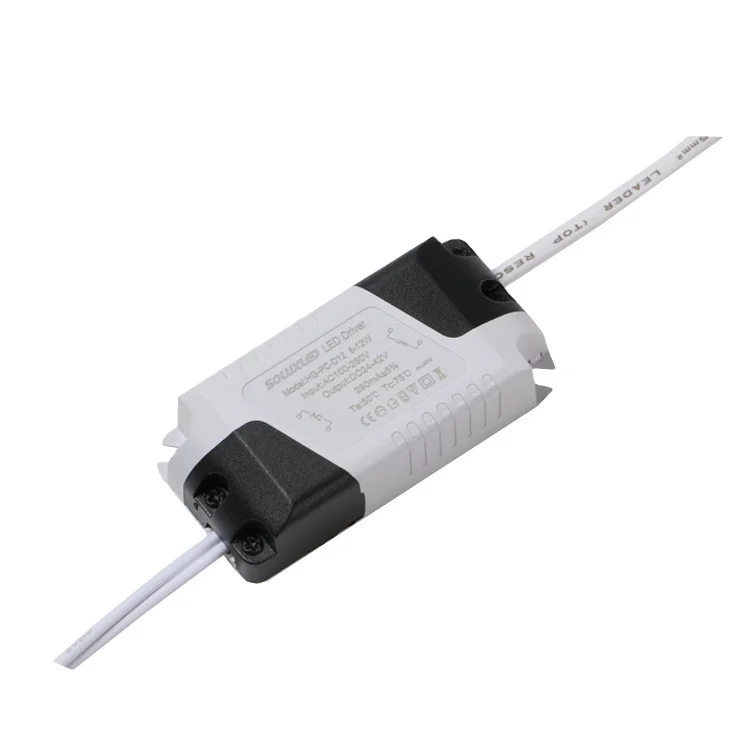

Detailed images


LED Driver Power supply IP20 , application : LED donw light , LED panel light, LED indoor lighting etc.




Related Products




Company Introduction


SOLUXLED industrial is a wholesale company that manufactures LED driver Constant current & led driver constant voltage and led lightings etc, starting from 2008. The company provides the customized products and OEM service, offer led lighting solutions, millions products sold to different counries in the world.




Our Advantages




Customer's ODM customized solution Case.
led driver constant current 45W & 90W for led street light built-in driver , customized dimension for put inside the housing,customized temperature control is required, EMC, 0% ripple with double stage power factor correction design etc.
