Football Stand with Plastic Seats for Spectator , Temporary Grandstand, Stadium Seating
- Category: >>>
- Supplier: Guangzhou Smart Truss Stage Equipment FactoryGuangzhou Factory
Share on (1601098402907):
Product Overview
Description
Football Stand with Plastic Seats for Spectator , Temporary Grandstand, Stadium Seating
Product Description
SMARTGROUP's fast assembly grandstand is modular design, can be used for many different places. They are designed for years of maintenance free use and carry one year warranties against defects in quality and workmanship.
Application
1.Outdoor Stadium.
2..Athletics, Football, Baseball, Basketball, Cricket, Hockey, Table Tennis, Volleyball, any sports field
Features:
1.Simple structure, easy to assemble and disassemble. The basic structure and special components use standard modularized design, the maximum weight of each single modular doesn't exceed 25kgs. Two workers can easily install it.
2.Logical joint structure, easy to handle, simple and light weight, large carring capacity, stable and safe. Use the self locking system. You can press the bolt to lock or disassemble.
3.Series of standardized components, convenient to transport and manage.
Key words:
Temporary grandstand, grandstand seating, football stand, fast assembly grandstand seating,temporary bleacher
Product Name | Football Stand |
Height | 4.4m ( with 1 meter elevated height & 1 meter guardrail height ) |
Seats | HDPE seat |
Length | 98 meter (can be customized) |
Rows | 8 rows (can be customized) |
The frist row Height | 300mm |
Rising Height | 300mm |
Row width | 1000mm |
Materias | Seats:Heavy duty HDPE + hardwares |
Structure:Q235B steel, hot dip galvanized | |
Deacking: iron plank | |
Aisle | 1000mm |
Carrying Capacity | 200KG/Seat. |
MOQ | 100 seats. |
Certificates | TUV / CE / SGS / ISO9001 / European Trademark &The United States trademark |
Application | Stadium, Arena,Event,race Track, Training Field, Schools, Athletic field, etc. |
Packaging | Metal Structure package by steel rack , seats packed by carton |
Delivery Time | 10-20 Days (the delivery date is according to the project plan to implement). |
Payment | T/T and Trade Assurance (50% deposit in advance, pay the balance payment before container loading) |

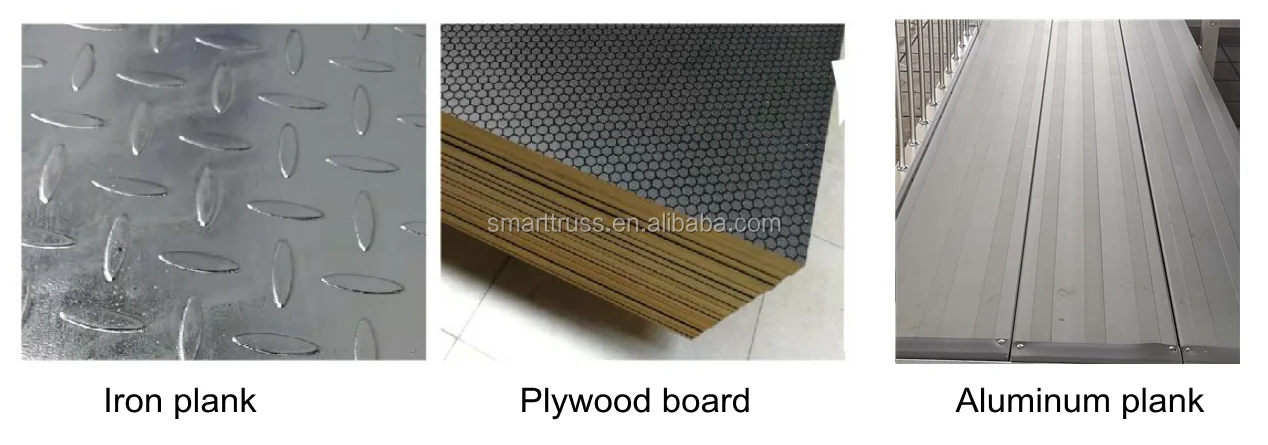

Decking Material options
Seating options
Low backrest seat
Stadium seats model: HDPE-01
Size: 420*420*170mm
Middle backrest seat
Stadium seats model: HDPE-02
Size: 450*415*310mm
Regular aluminum plank
Milled aluminum alloy
Size: 2000*240*100mm
Product After-sales Service Commitment
1. Basic situation of after-sales
There are 30 professional installers in our company, and there is a technical service center in Macao China, Hanoi Vietnam, Manila Philippines, Bangalore India . After strict professional training, we are proficient in products and fully qualified for the installation, repair and maintenance of our products.
2.Warranty
There are 30 professional installers in our company, and there is a technical service center in Macao China, Hanoi Vietnam, Manila Philippines, Bangalore India . After strict professional training, we are proficient in products and fully qualified for the installation, repair and maintenance of our products.
2.Warranty
2.1 warranty period: 2 years 2.2 During the warranty period, all product repair services are on-site services and do not charge any fees. 2.3 After the warranty period, provide life-long maintenance services, only charge the cost of accessories and consumables
3. Regular return visit and maintenance
Establish a database for each customer. After the acceptance, our company will return to the customer by telephone to understand the use of the product and make a record.
4. Free traning
We provide free training, installation, commissioning, and maintenance training for the buyer's technical personnel, users, and maintenance personnel for the movable spectator seats and fixed spectator seats. Training content inculding product material understanding, structural characteristics, maintenance and common failure analysis solutions.
3. Regular return visit and maintenance
Establish a database for each customer. After the acceptance, our company will return to the customer by telephone to understand the use of the product and make a record.
4. Free traning
We provide free training, installation, commissioning, and maintenance training for the buyer's technical personnel, users, and maintenance personnel for the movable spectator seats and fixed spectator seats. Training content inculding product material understanding, structural characteristics, maintenance and common failure analysis solutions.
1. Swiss SGS. Quality and integrity. Report Number: QIP-ASI181293
2. Europe CE certification. Factory production control standard : EN 1090-1:2009+A1:2011 . Certificate number CCGD1412104774
3. German TUV Technical Test. Technical Report No. 68.190.17.0411.01A
4. ISO Management System Certificate. Meeting the requirements of GB/T1900112016/ISO9001:2015 . Certificate Number: 117 18
QU0241-05ROS
2. Europe CE certification. Factory production control standard : EN 1090-1:2009+A1:2011 . Certificate number CCGD1412104774
3. German TUV Technical Test. Technical Report No. 68.190.17.0411.01A
4. ISO Management System Certificate. Meeting the requirements of GB/T1900112016/ISO9001:2015 . Certificate Number: 117 18
QU0241-05ROS
