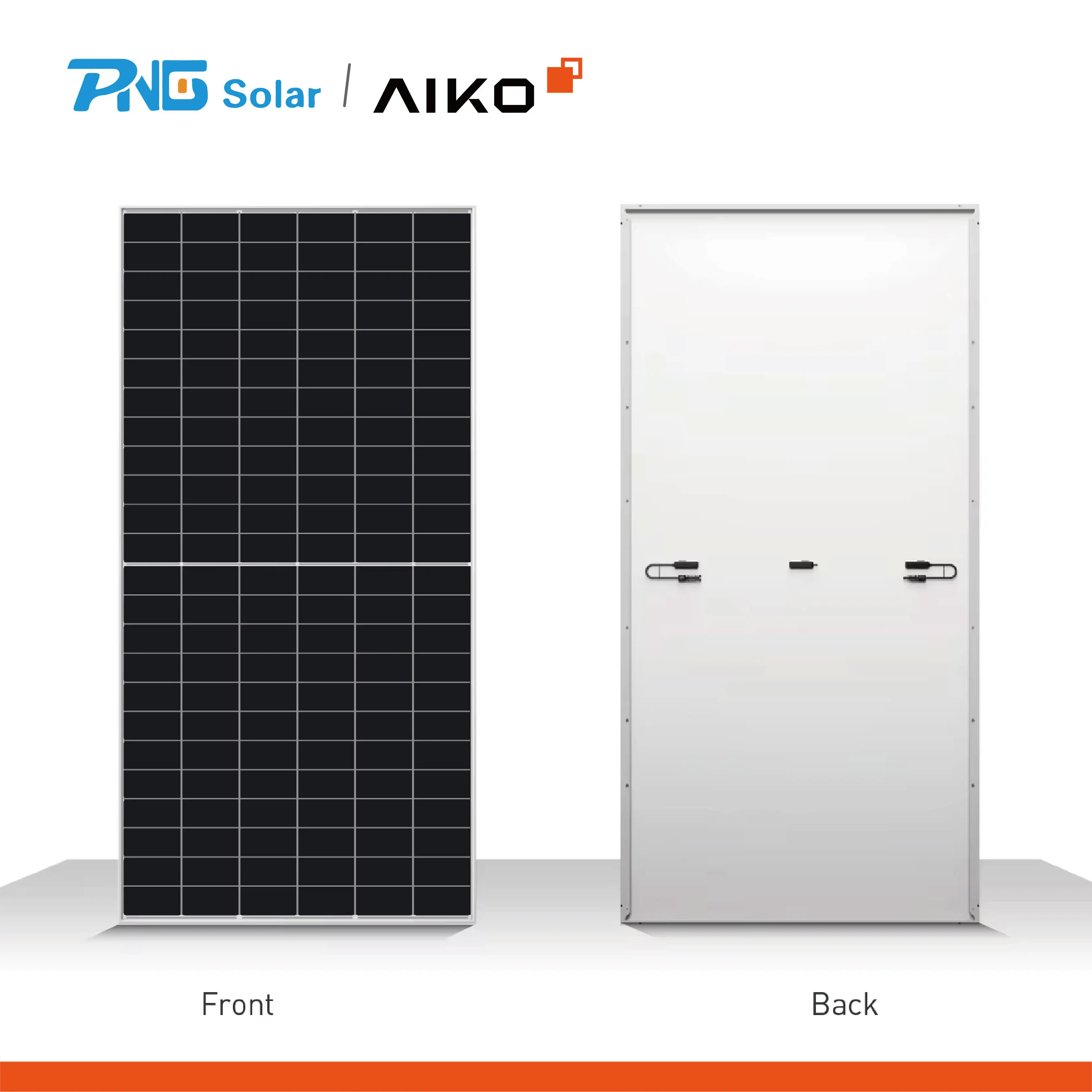

Aiko China Large Power Longi Solar Panel 590Watt Monocrystalline Solar Panel Price For Home Dual glass 595W 600W 605w 610W
- Category: >>>
- Supplier: Hefei Pinergy Solar Technology Co. Ltd.Hefei Ltd.
Share on (1601098457505):
Product Overview
Description
Product Description
Specifications

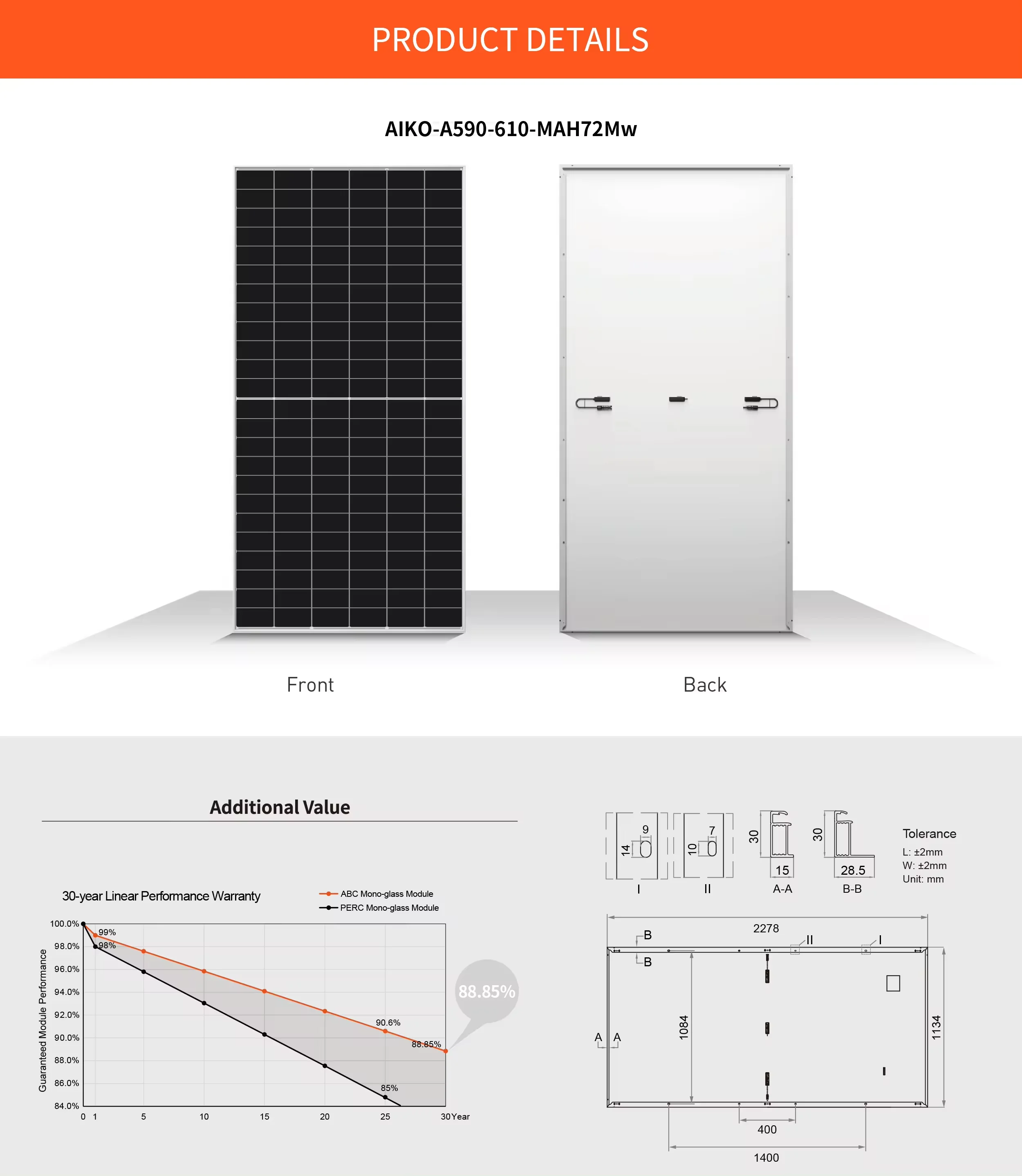

MECHANICAL DATA | ||||||
Module Dimensions | 2278*1134mm*30mm | |||||
Weight | 27.5kg | |||||
Glass | 3.2 mm tempered glass | |||||
Junction-Box | IP68,3 bypass diodes | |||||
Cables | 4mm2, positive 400 / negative 200mm, length can be customized | |||||
Cell Orientation | 144cells(6*24) | |||||
ELECTRICAL CHARACTERISTICS | ||||||||||
Minimum performance at standard test conditions, stc1 (power tolerance 0~+5w) | ||||||||||
Model | AIKO-A590-MAH72Mw | AIKO-A595-MAH72Mw | AIKO-A600-MAH72Mw | AIKO-A605-MAH72Mw | AIKO-A610-MAH72Mw | |||||
Max. Power | 590 | 595 | 600 | 605 | 610 | |||||
Open Circuit Voltage | 53.79 | 53.89 | 53.99 | 54.09 | 54.19 | |||||
Short Circuit Current | 14.03 | 14.11 | 14.20 | 14.28 | 14.36 | |||||
Max. Power Voltage | 43.48 | 44.58 | 44.68 | 44.78 | 44.88 | |||||
Max. Power Current | 13.27 | 13.35 | 13.44 | 13.52 | 13.60 | |||||
Efficiency² | 22.8 | 23.0 | 23.2 | 23.4 | 23.6 | |||||
Company Profile

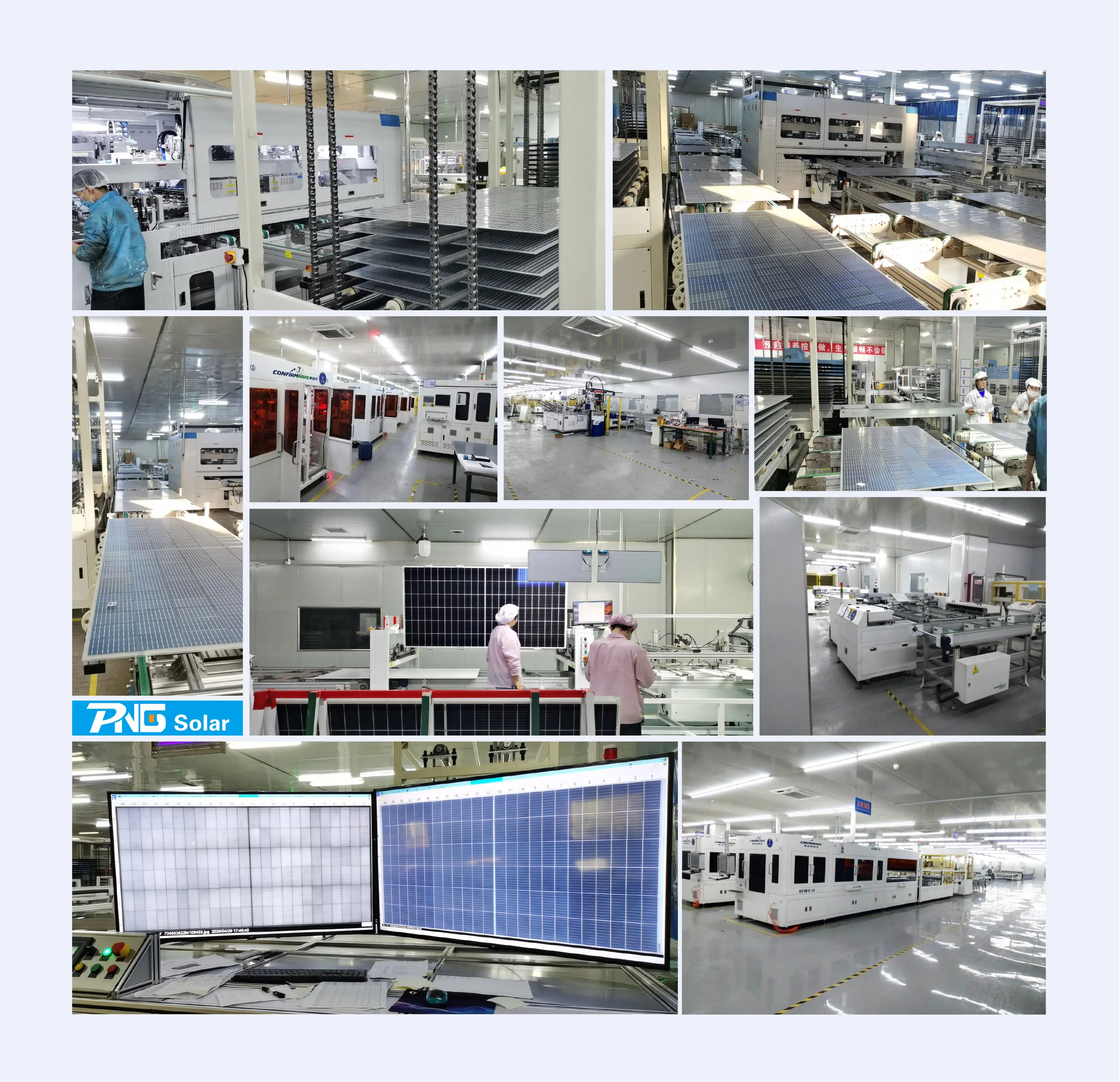

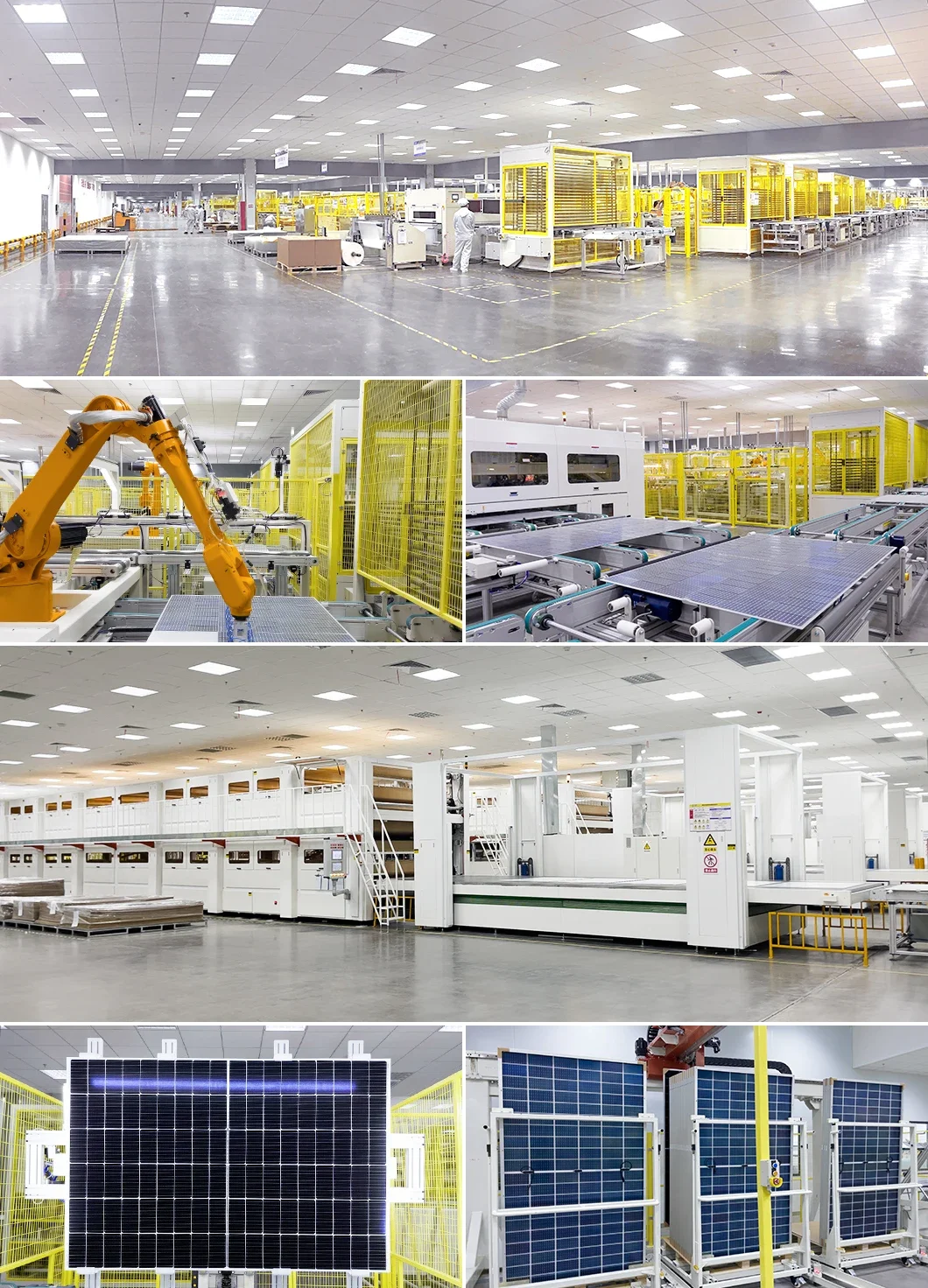

Factory

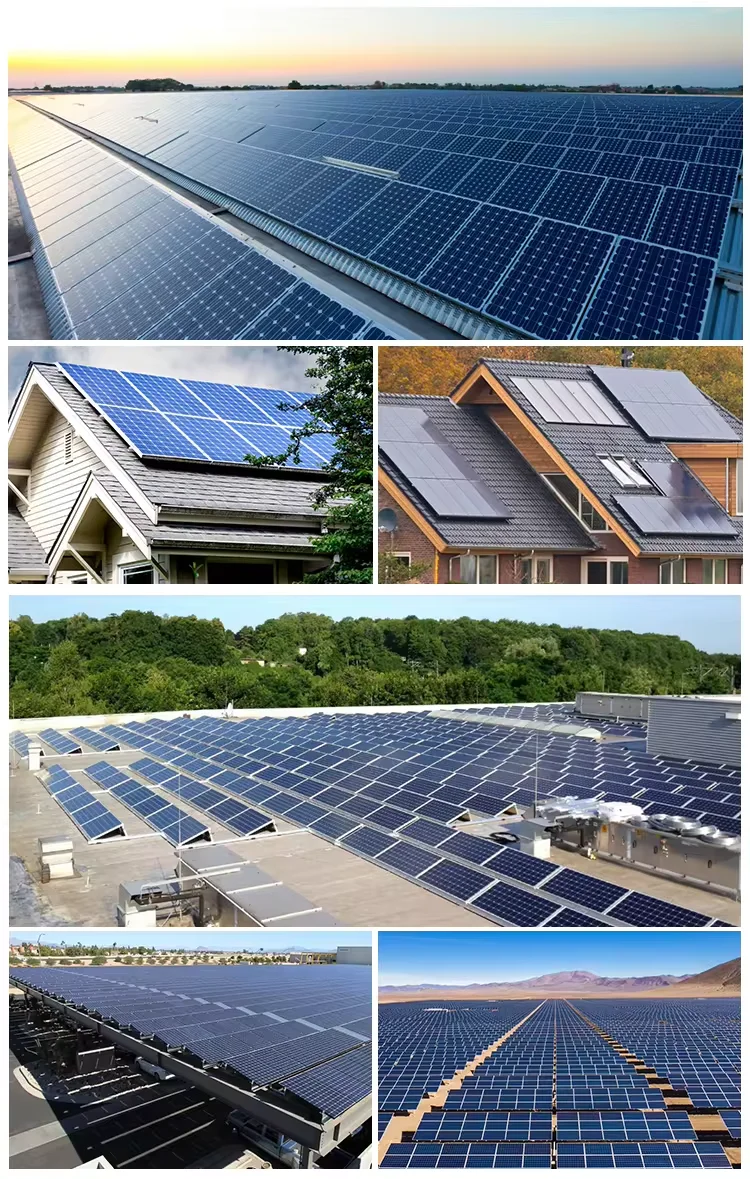

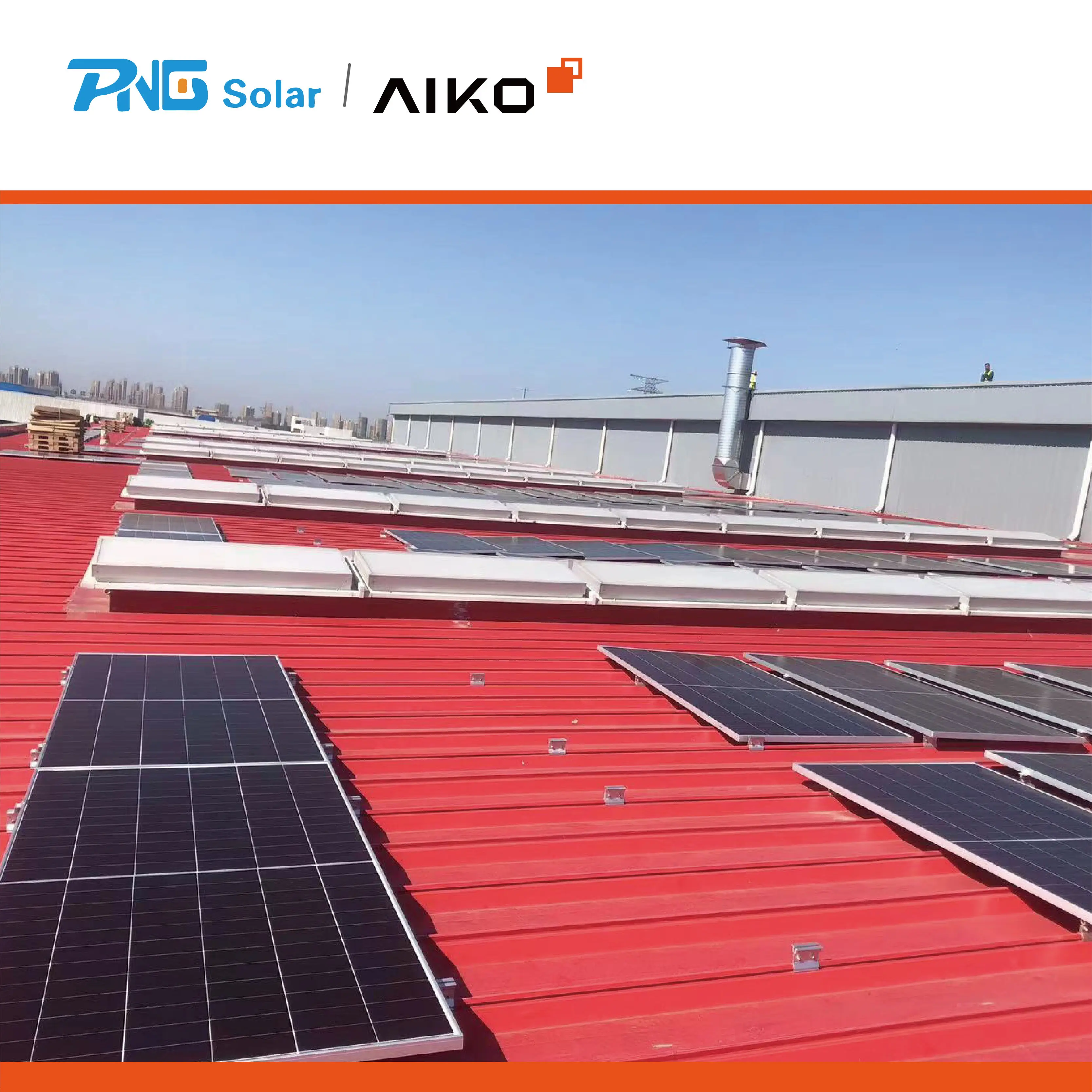

Project Case

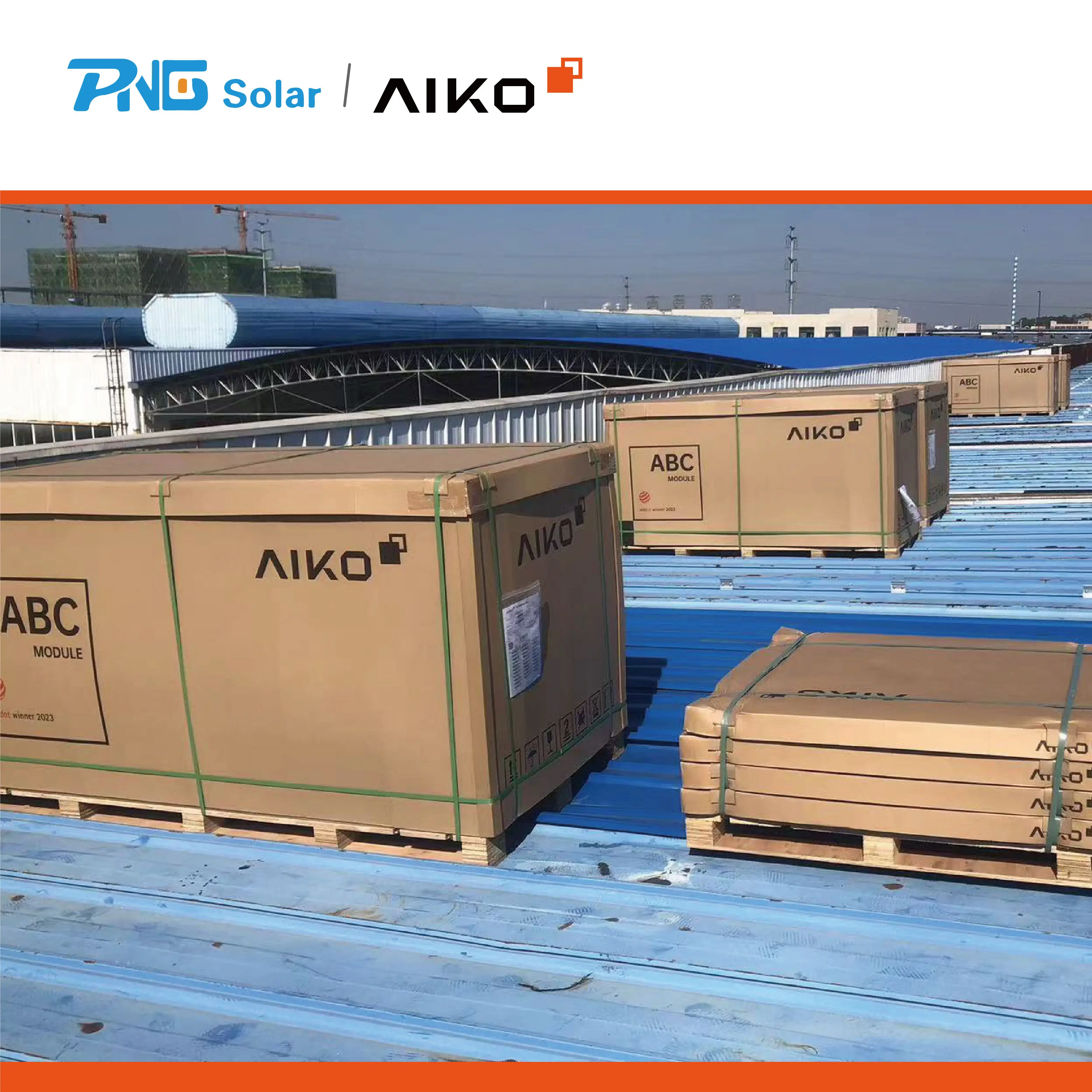

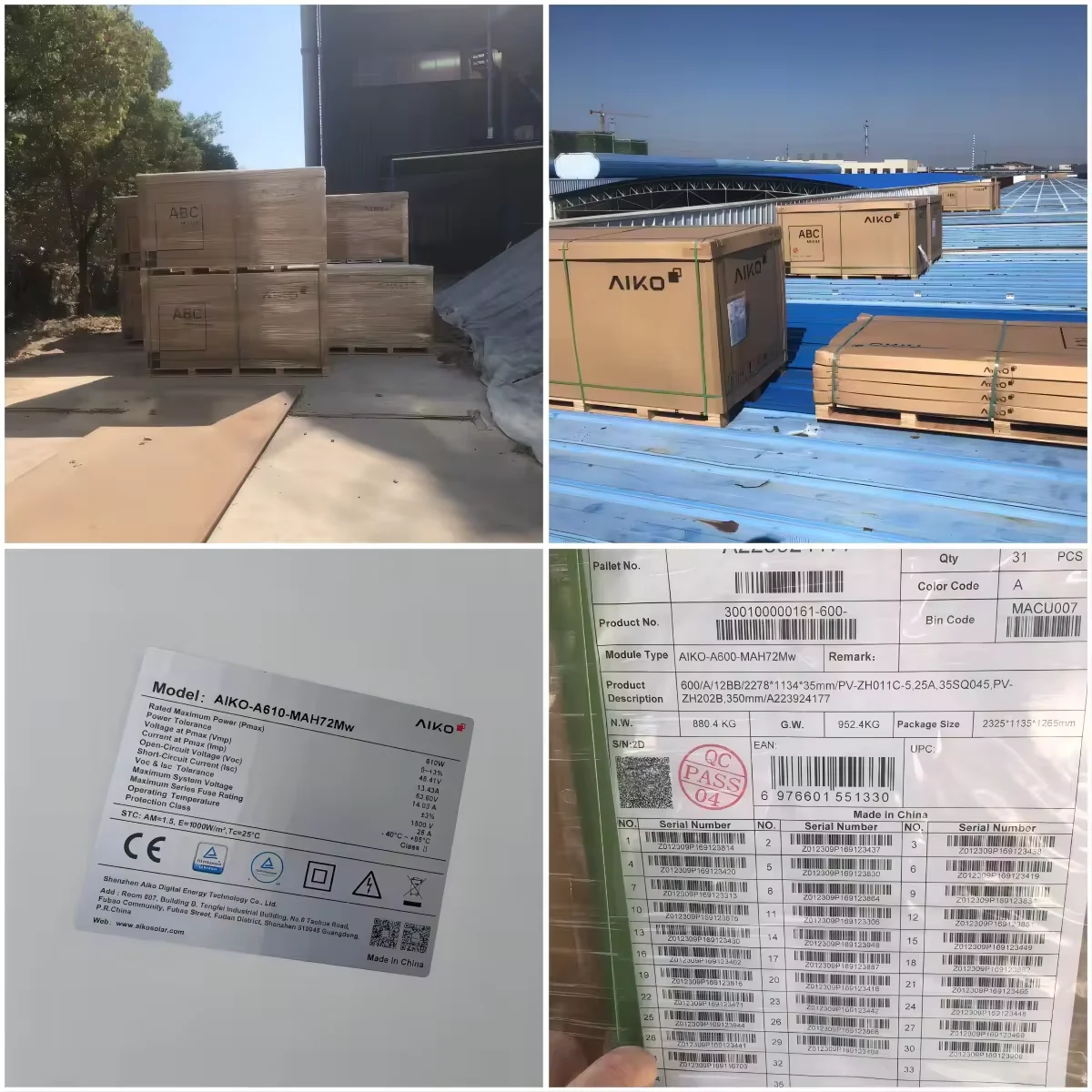

Packing & Delivery
