Single Colors Plastic Bag Label Printer Flexo Printing Machine Flexographic Printer
$34,000.00-35,000.00
New Hot selling 6 colors flexography printing machine ldpe hdpe bopp pvc film flexo printer
- Category: >>>
- Supplier: Wenzhou Lisheng Printing And Packaging Machinery Co. Ltd.
Share on (1601098710317):
Product Overview
Description
Product Description

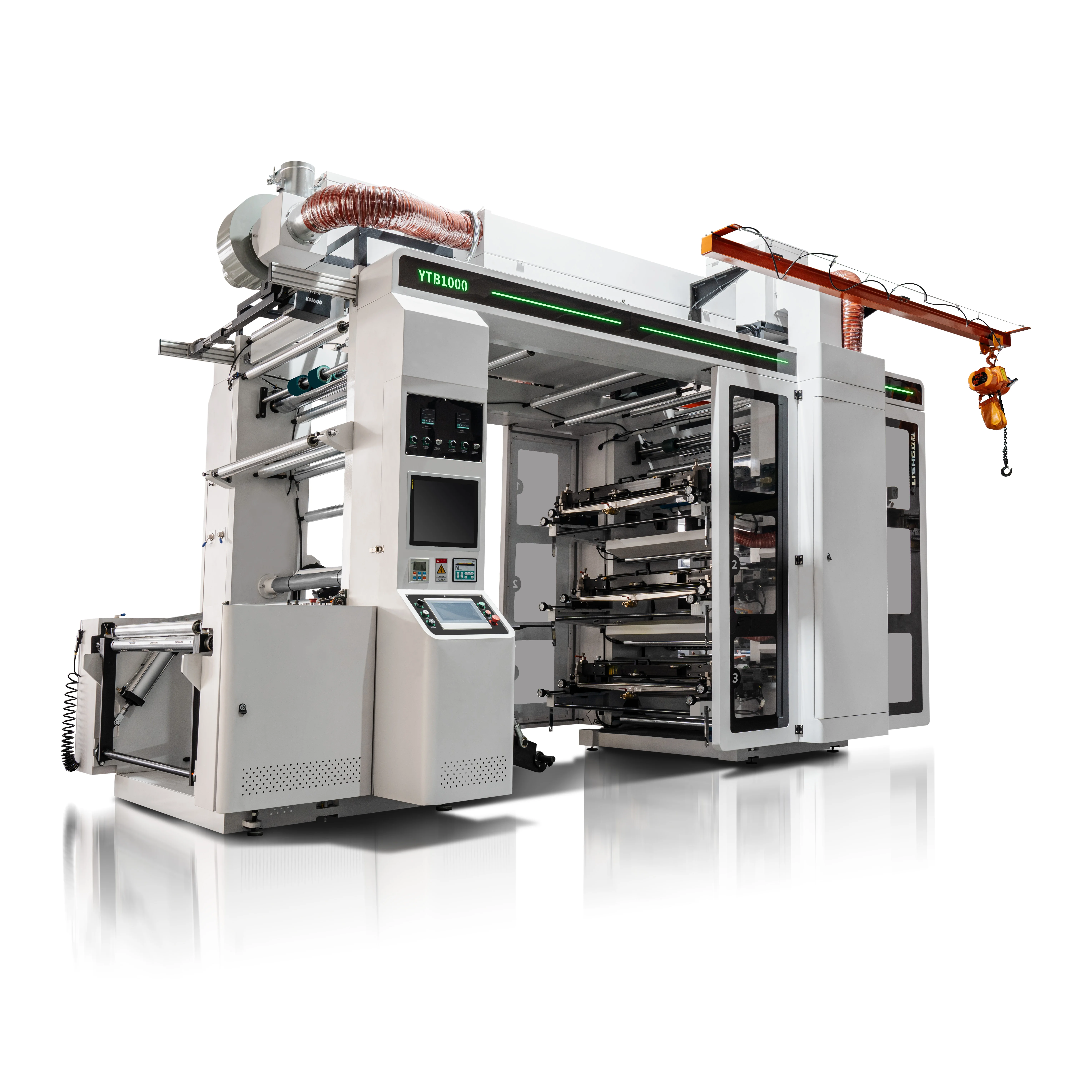

High Speed High accuracy 6 color flexographic printing machine for paper woven bag plastic bag printing
This machine is suitable for printing such packing materials as PE, PP bag, cellophane and roll paper, etc. It is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.
Model | YTB 6600-YTB62000 |
Material feeding width | 300~2000mm |
Printing Width | 0~1960mm |
Printing length | Standard is within 400mm, Customized is available from 280-1000mm |
Max Printing speed | 80m/min |
Max machine speed | 100m/min |
Register precision | ±0.3mm |
Color printing system | 6 sets, can print 1,2,3,4,5,6colors according to plate making company design |
Material | Non-woven fabric. Paper. Aluminum foil. Film (PVC. OPP. PE. BOPP. NY. PET. CPP)... |
Structure type | Stack |
Transmission of printing rollers | Helical gear |
Machine transmission way | synchronous belt |
Drying method | Blower and heater |
Max. oven temp. | Max. 80℃(room temp. 20℃）with temperature control system |
Web fixing method for un/rewinder | Safety chuck+ Air expanding shaft |
Thickness of plate (including two-sided glue paper) | 1.14mm.1.7mm 2.28mm.2.84mm. 3.94mm Customized is available |
Gear module | 1.5mm |
Unwinder/rewinder paper | core 3＂ |
Max.unwinder/rewinder dia. | 1000mm |
Adhesive tape thickness for stick printing cylinder | 0.38mm or 0.5mm |
Suitable Ink | Water based ink / Solvent ink |
Machine weight | 6500kg |
Machine Size | 4500*2000*3200mm |
HS code | 844316009 |
Detailed Images

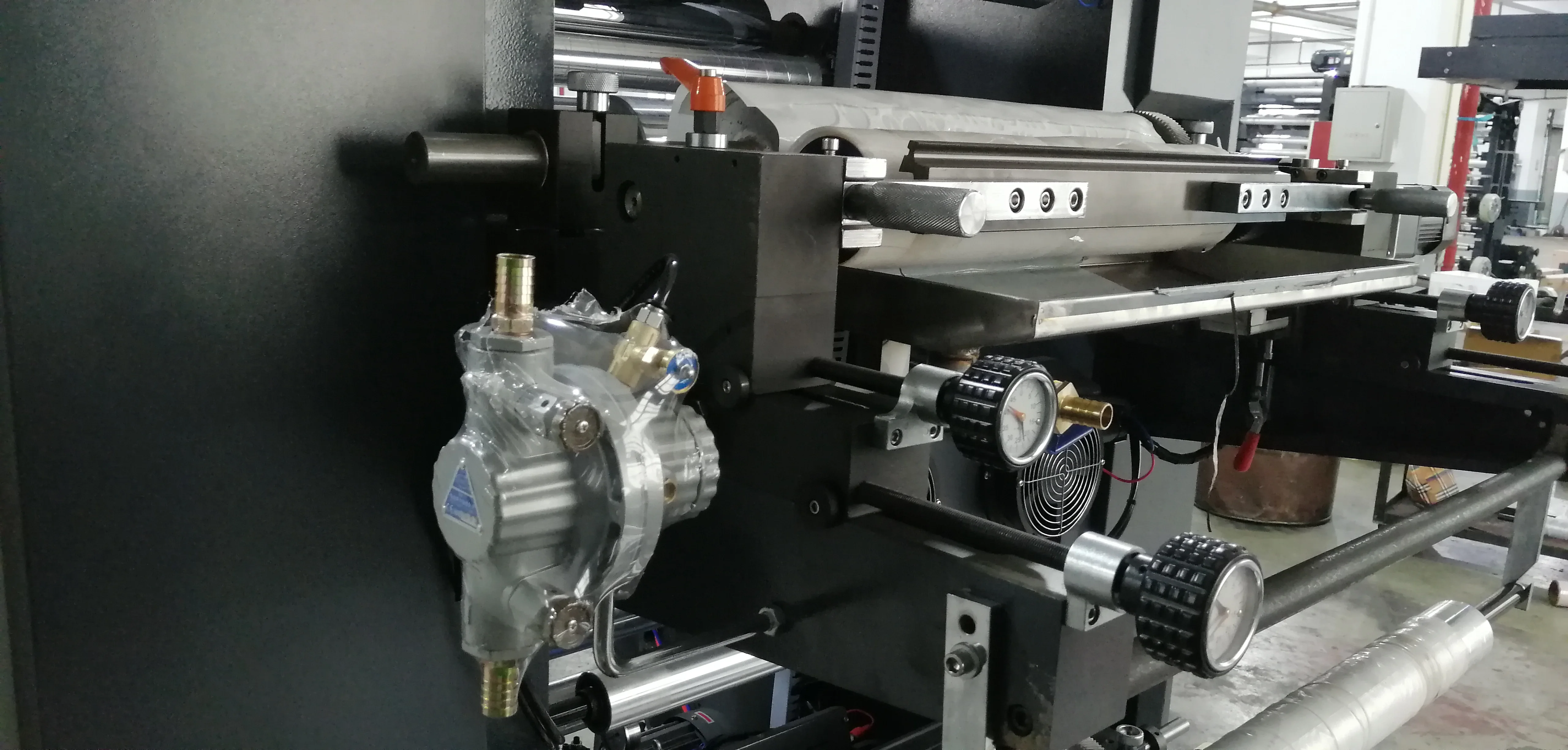

Printing Unit

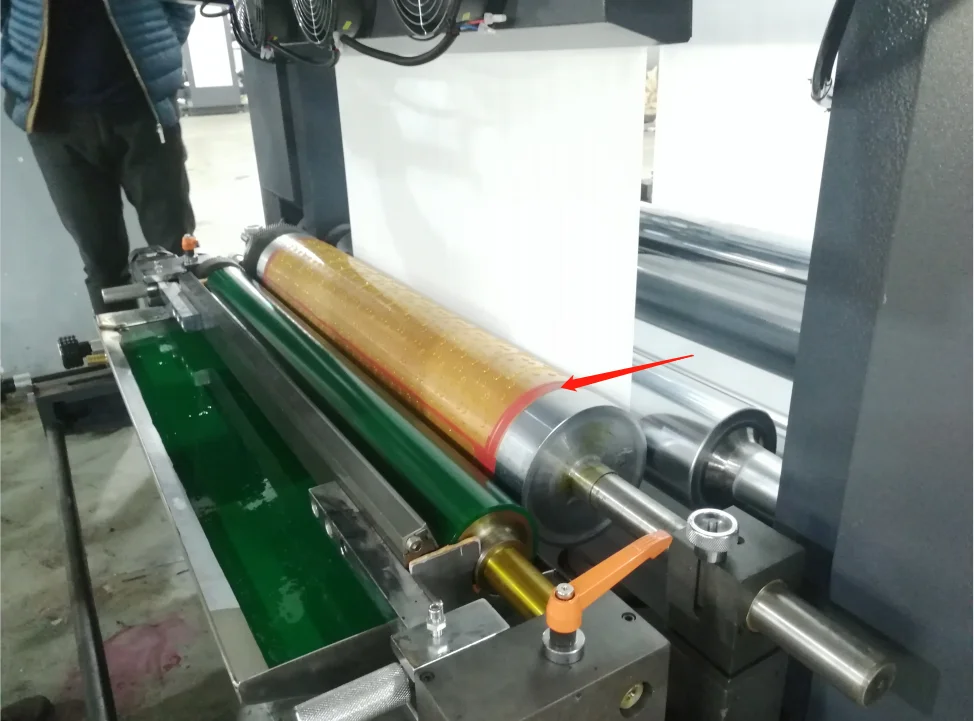

Plate cylinder:
standard 400mm for machine , making
plate range 191--1000mm.
Made in plate factory from Ruian city
Can be customized.
Ceramic Anilox Roller:
Transfer ink evenly, improve the printing effect.
80-600 lines/inch
Single Doctor Blade:
Evenly ink when printing process;

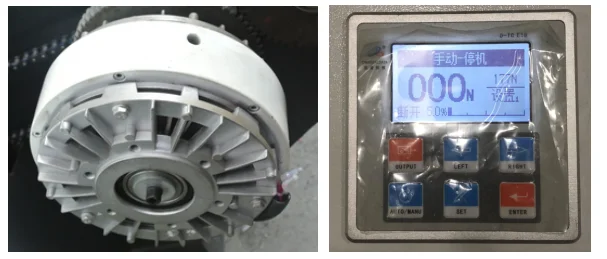

Auto Tension Control
Control un&rewind parts material balance on both side.

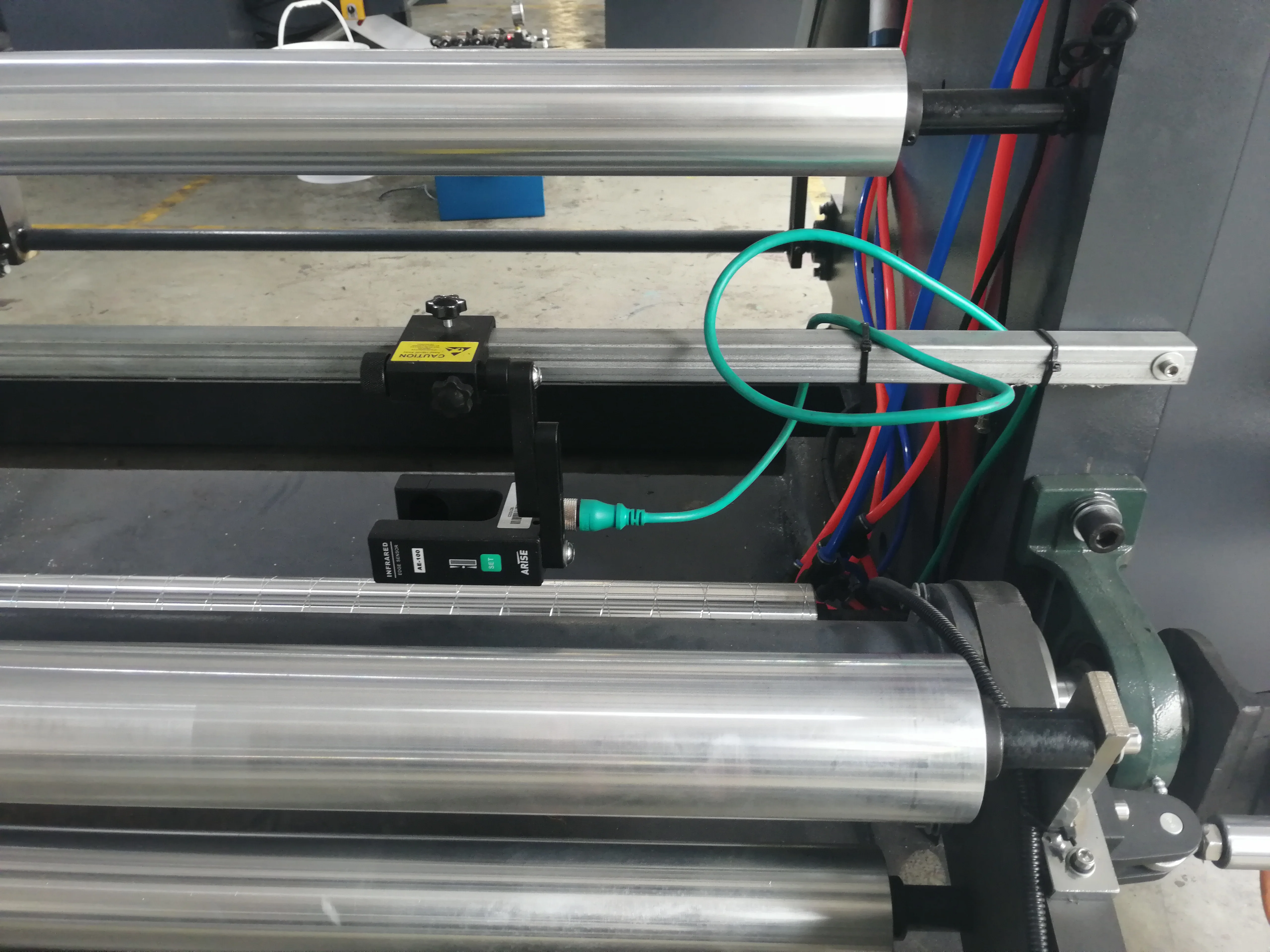

Web Guide
Swift tracking print photo .
Ultrasonic web guide

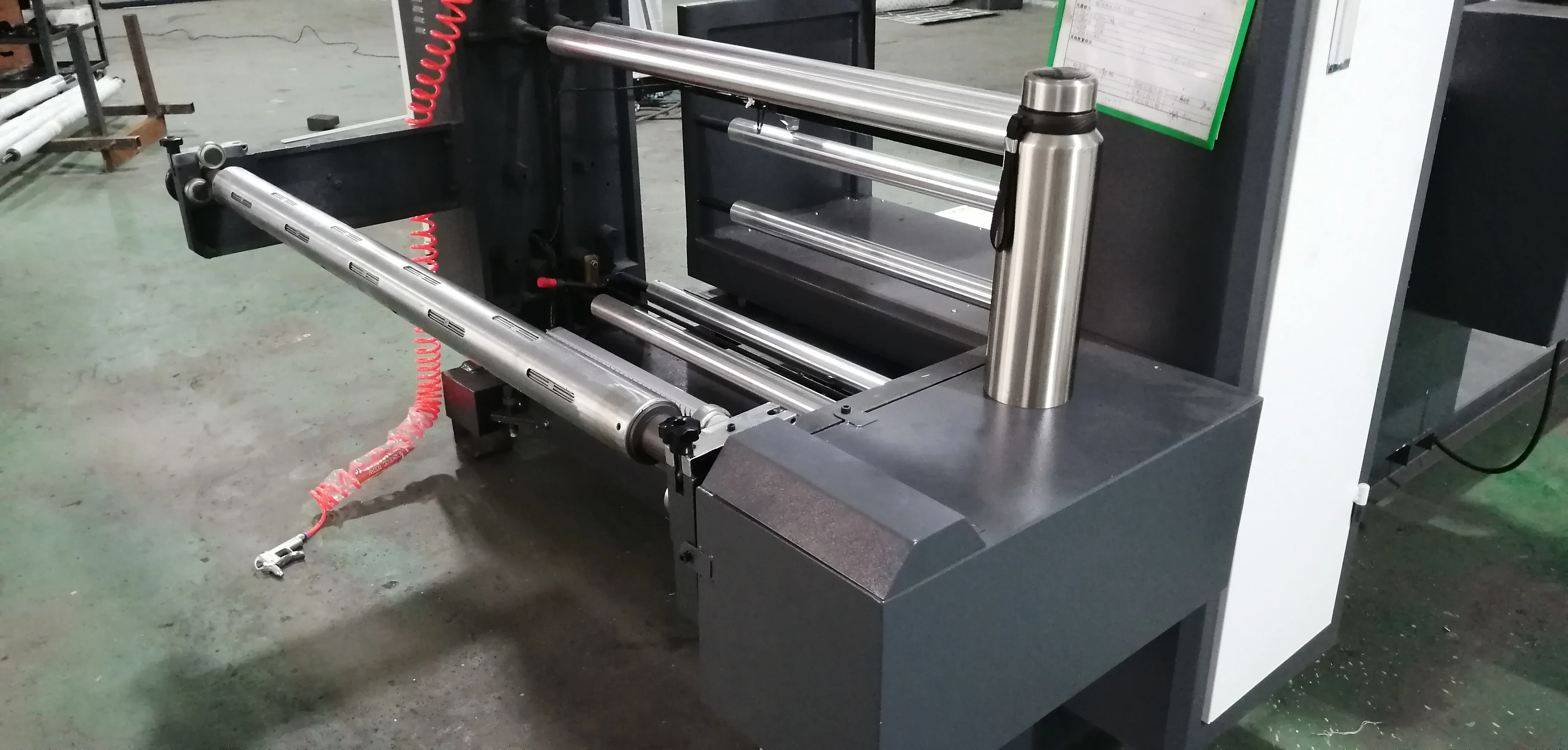

Air shaft
tight to material ,flat material , better printing

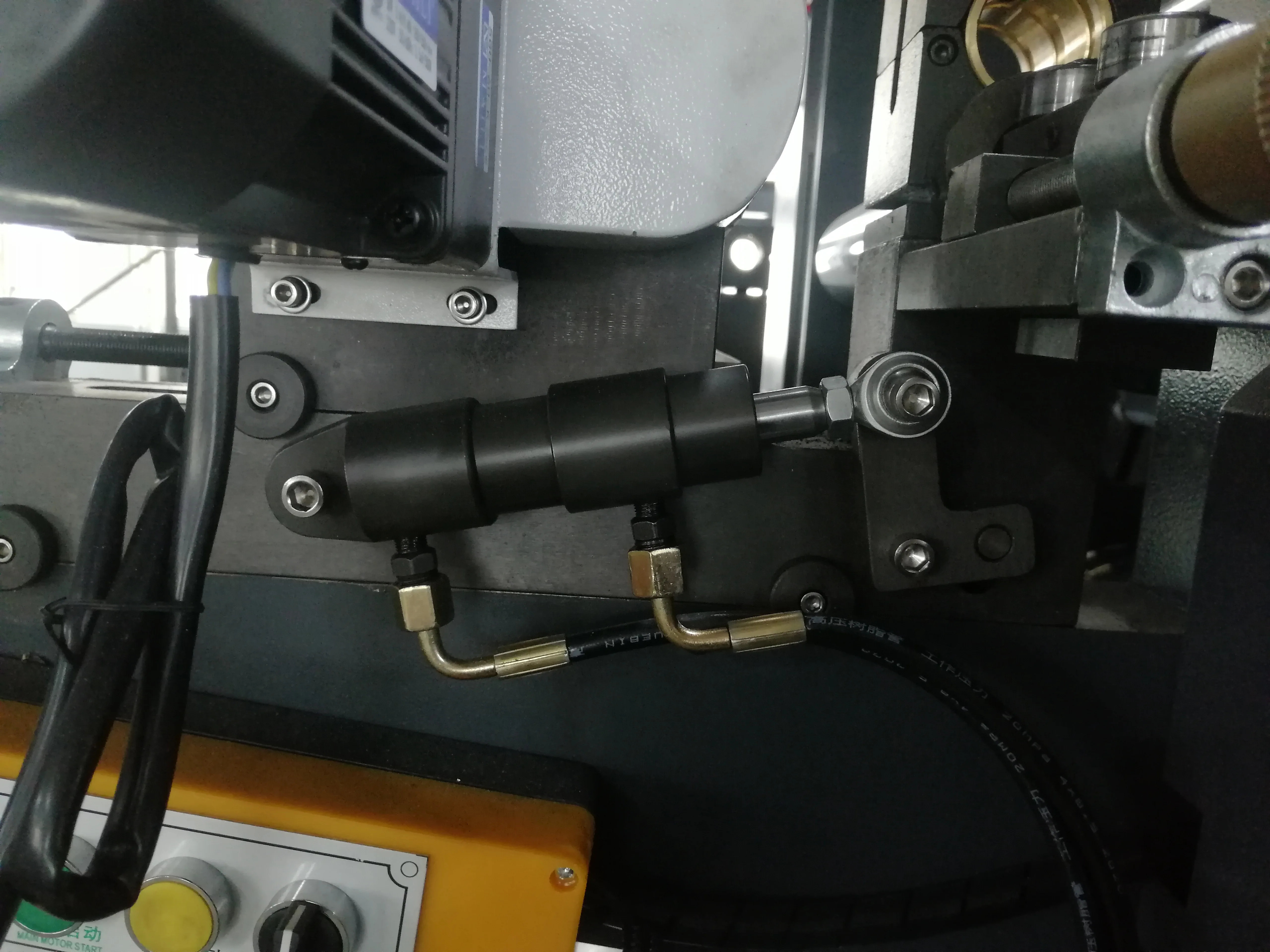

Hydraulic Lift & down printing roller
Adopt the hydraulic pressure rising and down the printing plate automatically.
Auto ink pump
Suck the ink automatically
Adop the automatic circle system.

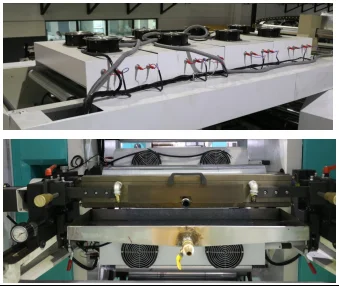

Drying system
Enclosed Drying Oven:
Offer heat wind to dry.

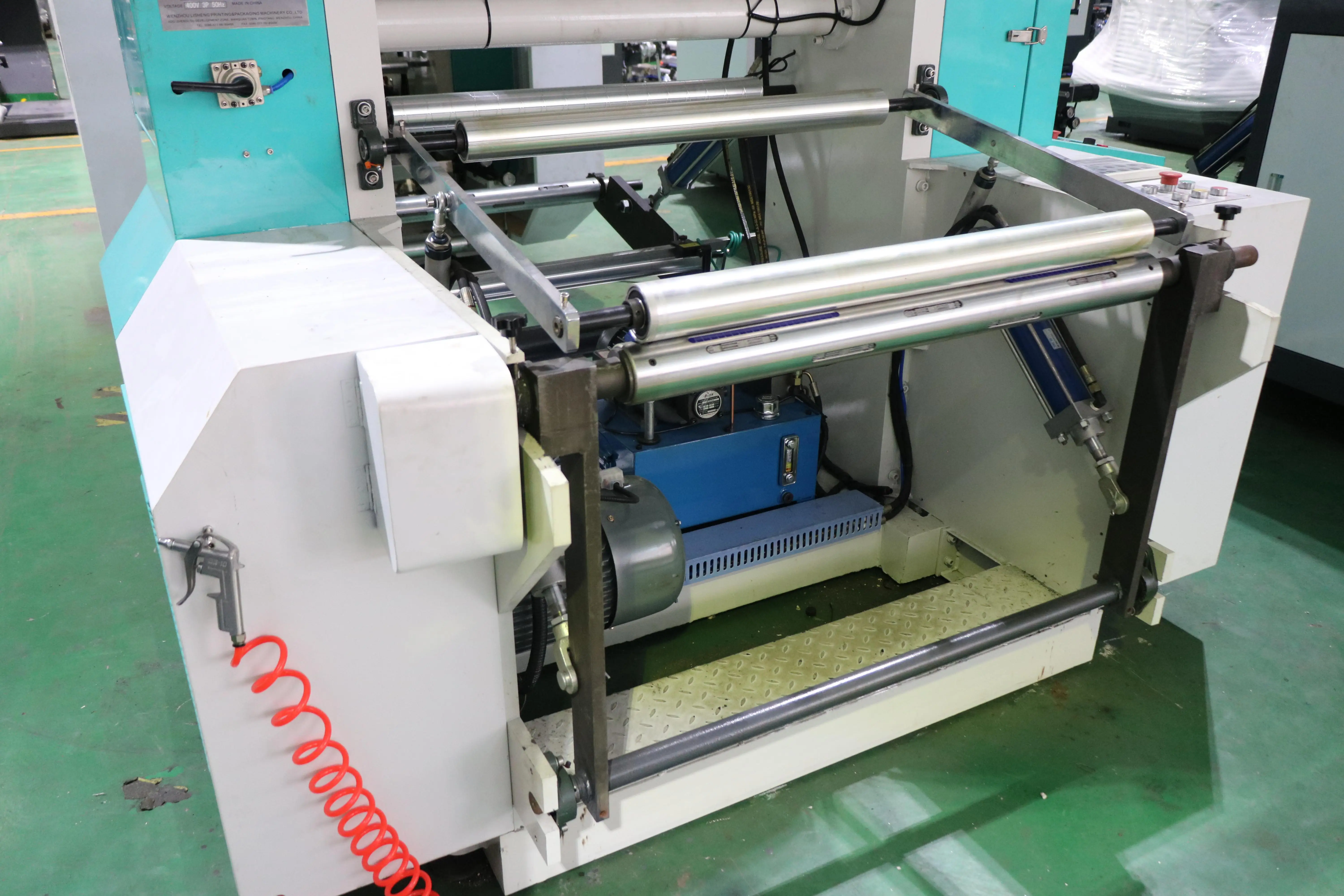

Rewind system
include air shaft, tension control
Sample
Certifications
Packing & Delivery
Our Service
Installation: The seller will send total 1 engineers to install. 1 engineer to install and test the printing machine and train customers’ workers in buyers’ factory. It will take one week for whole installation and training. The buyer should cover engineers’ salary, visa cost, Round air tickets, accommodations, transportation in buyers’ country, food, medical care, safety cost, and related cost happens in buyers’ country. Also, the buyer should prepare enough labor, electric wire outside the control panel and tools for installations | ||||||||
Engineer’s Salary: USD 120/day, depending on how the engineer make you satisfied. The date he arrives and leaves shall be counted as paid day. The dates which wait for spare parts coming on seller’s duty are exclusive of salary paying. | ||||||||
Warranty: Warranty period for the delivered equipment will be 12month after completion of erection but not later than 12months after shipment. In case any item proves to be defective and the damage is confirmed by seller’s technicians within this period, the seller will at their choice either send engineer to repair or supply a new one for replacement free of charge on the basis of CNF delivery. The above item does not include the parts, which have regular spares or the parts damaged from normal wear, abnormal operation, improper maintenance and inadequate civil works. The seller is not liable for any production loss under any circumstances. | ||||||||
Packing： As per export standard, they will also be treated before delivery against damage and rusting. | ||||||||
Our Team
Related Products
FAQ
All machine will be tested before shipment. And send video, sample, and container load photo one by one.
1.Are you a factory or trading company? A: We are a factory, the real manufacturer not trader. | ||||||||
2.Where is your factory and how can I visit it? A: Our factory is located in Ruian City, Zhejiang Province, China about 40 minutes by plane from Shanghai ( 5 hours by train) | ||||||||
3.What is your after-sale service? A: We have been in flexo printing machine business for many years, we will send our professional engineer to install and test machine. Beside, we can also provide online support, video technical support, matching parts delivery, etc. So our after-sales services is always reliable. | ||||||||
4.How to get machines price? A: Pls provide following information: 1)The color number of printing machine; 2)Material width and effective print width; 3)What material to print; 4)The photo of printing sample. | ||||||||
