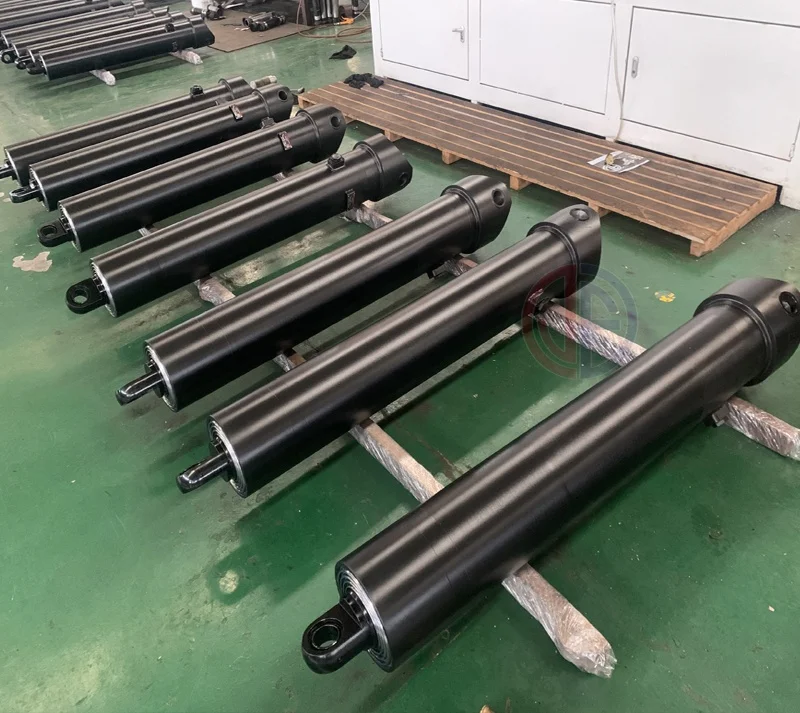

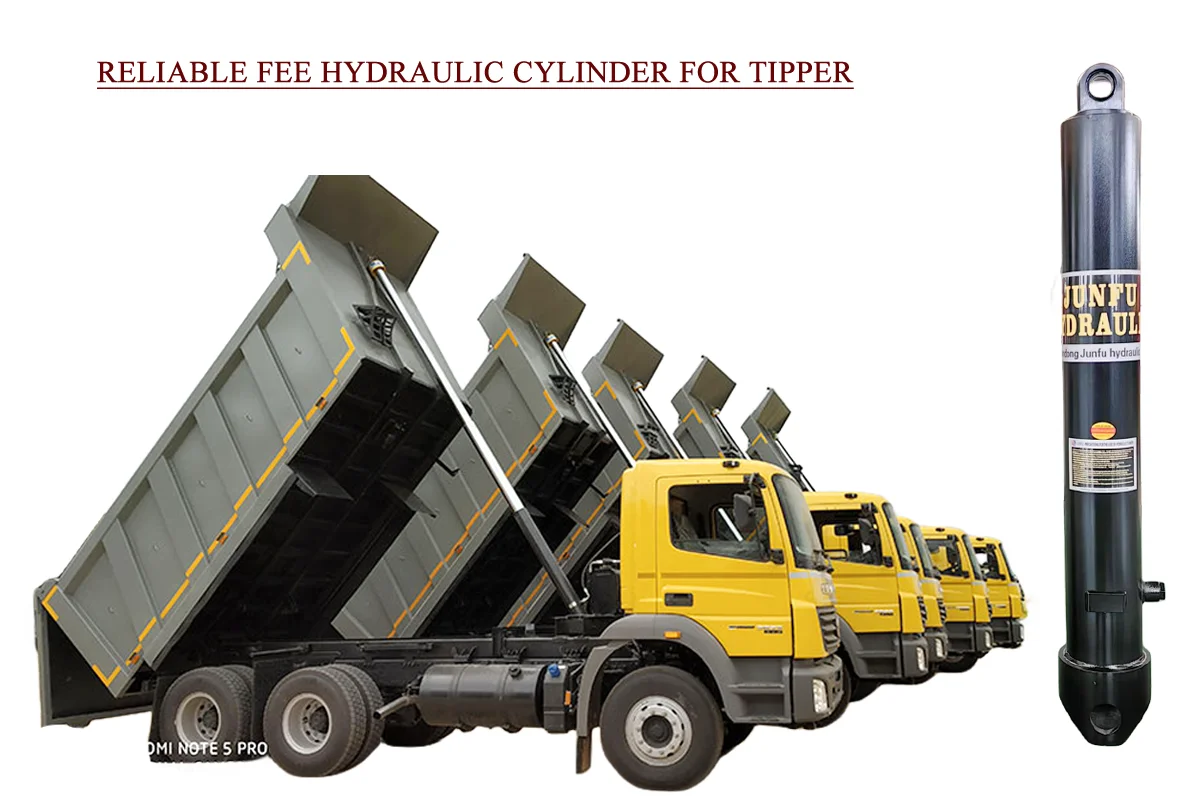

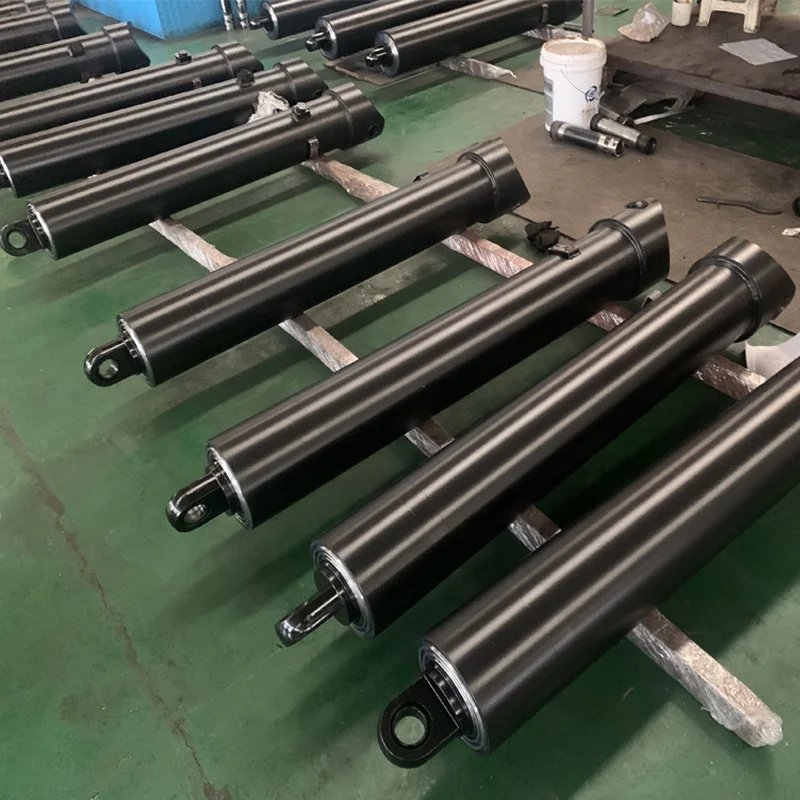

FEE cylinder hydraulics for dumper truck trailer
- Category: >>>
- Supplier: Shandong Junfu Hydraulic Technology Co. Ltd.Shandong Ltd.
Share on (1601098712352):
Product Overview
Description
Products Description

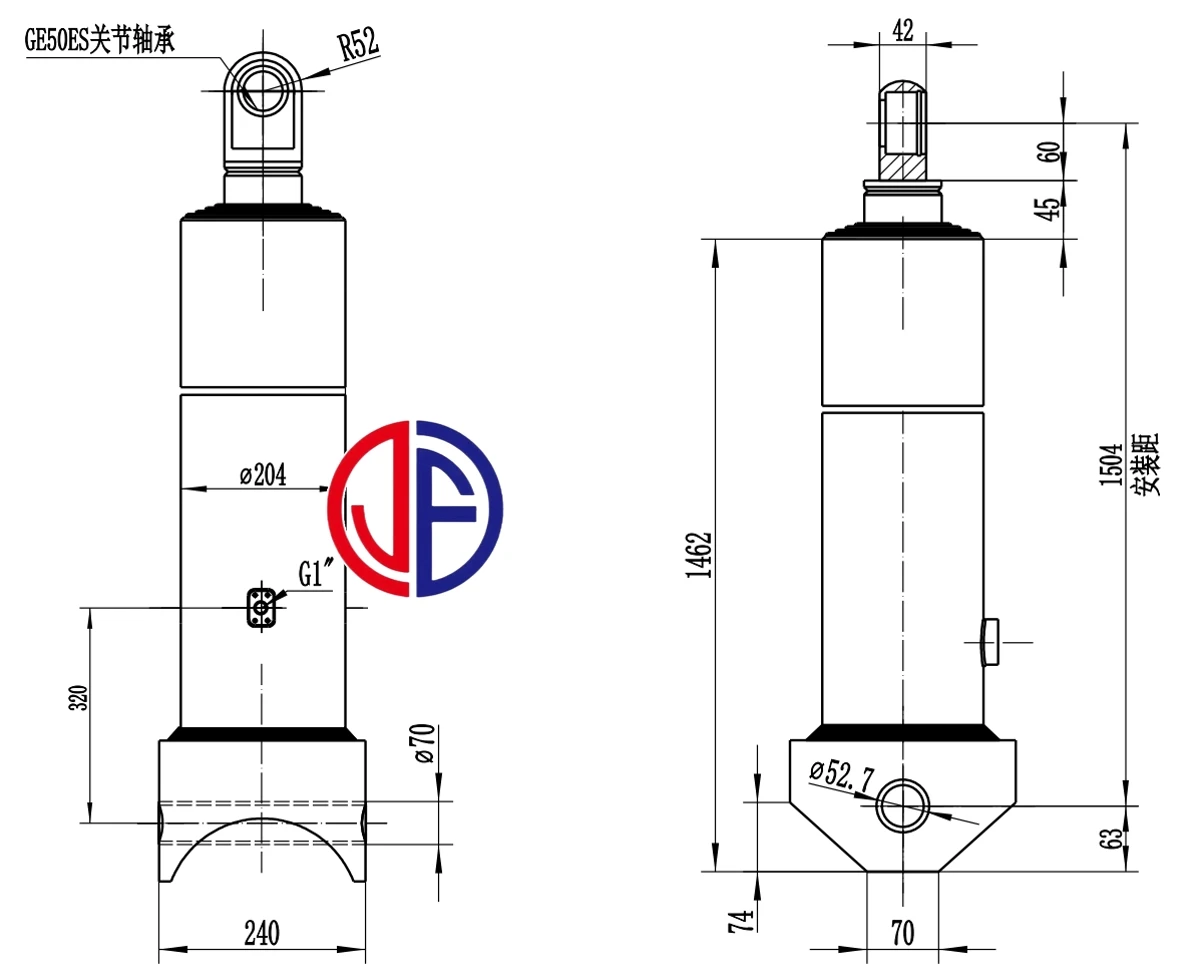

Technical Specs
Type | cylinder dia (mm) | rated pressure (MPA) | installation distance (mm) | stroke (mm) | total length (mm) | weight (kg) | ||||||
FEE129-3-3220 | 129 | 22 | 343 | 3220 | 1387 | 191 | ||||||
FEE129-4-3480 | 129 | 22 | 343 | 3480 | 1218 | 178 | ||||||
FEE137-3-3830 | 137 | 22 | 343 | 3830 | 1640 | 244 | ||||||
FEE137-4-4280 | 137 | 22 | 343 | 4280 | 1455 | 236 | ||||||
FEE157-4-3830 | 157 | 22 | 343 | 3830 | 1350 | 260 | ||||||
FEE157-4-4650 | 157 | 22 | 343 | 4650 | 1555 | 280 | ||||||
FEE157-4-5000 | 157 | 22 | 343 | 5000 | 1650 | 300 | ||||||
FEE157-5-3830 | 157 | 22 | 343 | 3830 | 1170 | 230 | ||||||
FEE157-5-4650 | 157 | 22 | 343 | 4650 | 1275 | 245 | ||||||
FEE179-4-4280 | 179 | 22 | 343 | 4280 | 1480 | 235 | ||||||
FEE179-4-5390 | 179 | 22 | 343 | 5390 | 1755 | 360 | ||||||
FEE179-4-6100 | 179 | 22 | 343 | 6100 | 1940 | 390 | ||||||
FEE179-5-3830 | 179 | 22 | 343 | 3830 | 1170 | 265 | ||||||
FEE179-5-4650 | 179 | 22 | 343 | 4650 | 1282 | 283 | ||||||
FEE179-5-5000 | 179 | 22 | 343 | 5000 | 1405 | 305 | ||||||
FEE179-5-5800 | 179 | 22 | 343 | 5800 | 1570 | 350 | ||||||
FEE179-5-6300 | 179 | 22 | 343 | 6300 | 1655 | 360 | ||||||
FEE179-5-7300 | 179 | 22 | 343 | 7300 | 1850 | 400 | ||||||
FEE191-5-5780 | 191 | 22 | 343 | 5780 | 1530 | 273 | ||||||
FEE191-5-6500 | 191 | 22 | 343 | 6500 | 1670 | 410 | ||||||
FEE191-5-6800 | 191 | 22 | 343 | 6800 | 1735 | 738 | ||||||
FEE191-5-7300 | 191 | 22 | 343 | 7300 | 1835 | 458 | ||||||
FEE191-54-6100 | 191 | 22 | 343 | 6100 | 1955 | 273 | ||||||
FEE196-4-6180 | 196 | 22 | 343 | 6180 | 1940 | 479 | ||||||
FEE196-5-6350 | 196 | 22 | 343 | 6350 | 1710 | 450 | ||||||
FEE202-4-6100 | 202 | 22 | 343 | 6100 | 1935 | 479 | ||||||
FEE202-5-6800 | 202 | 22 | 343 | 6800 | 1765 | 465 | ||||||
FEE202-6-7000 | 202 | 22 | 343 | 7000 | 1570 | 440 | ||||||
FEE214-5-7300 | 214 | 22 | 343 | 7300 | 1900 | 530 | ||||||
FEE214-7-7600 | 214 | 22 | 343 | 7600 | 1455 | 450 | ||||||
FEE240-5-9030 | 240 | 22 | 343 | 9030 | 2270 | 820 | ||||||
Pipe dia: 202/179/157/137/118/99/80 240/214/191/169/149/129/110/90/70 | ||||||||||||

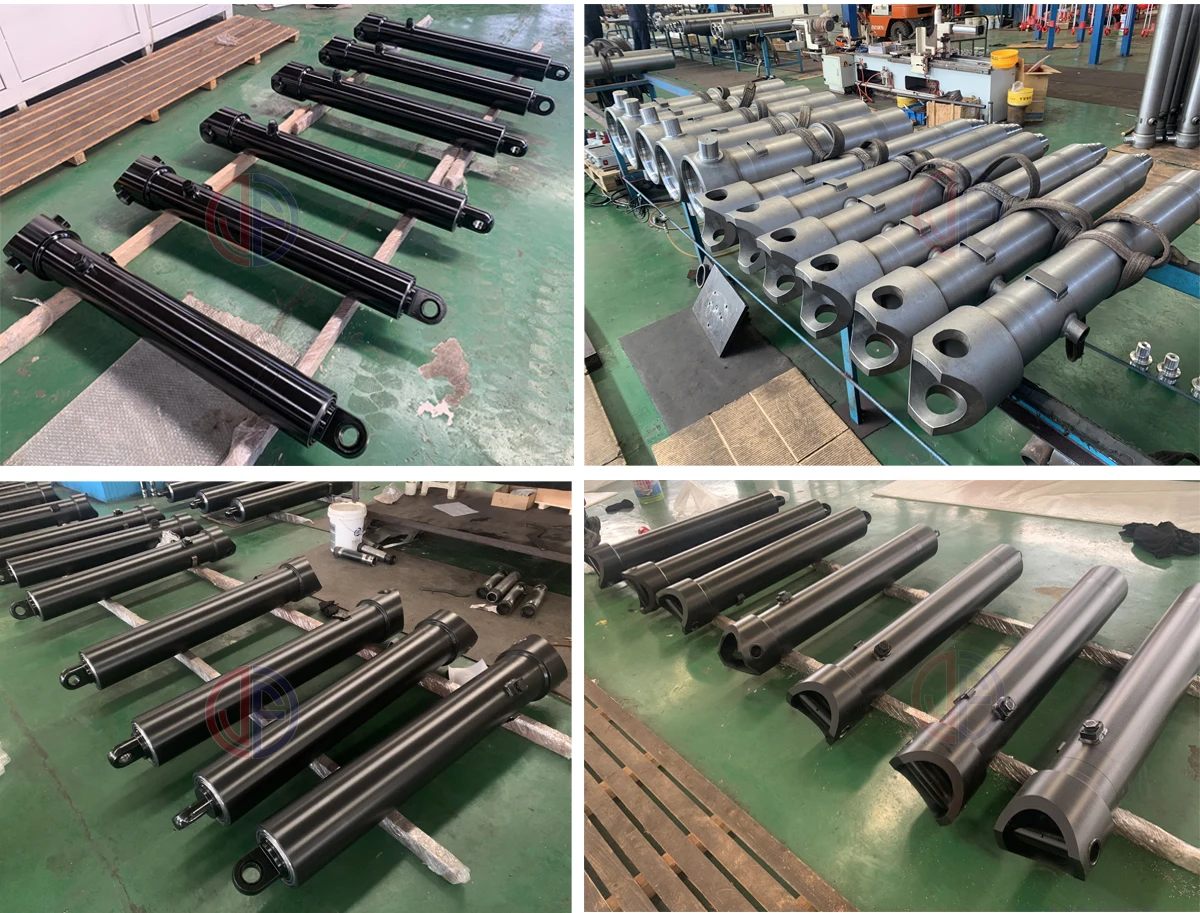

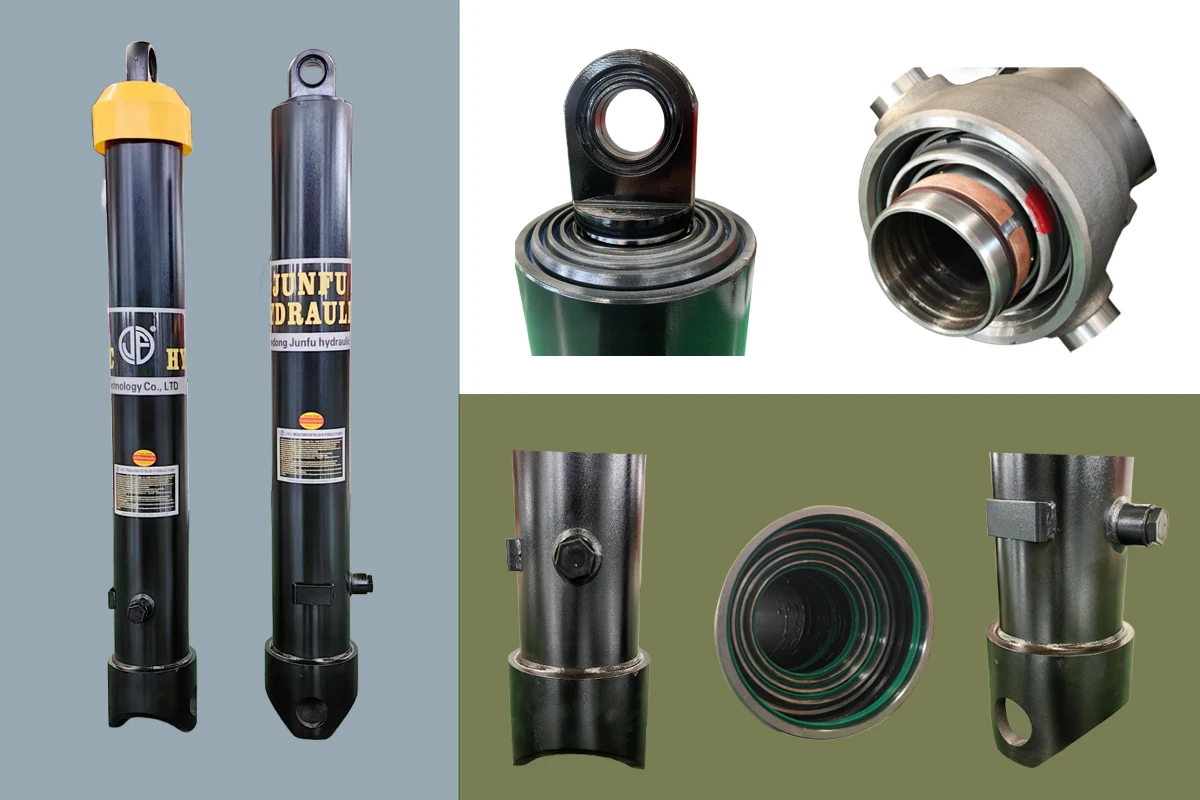

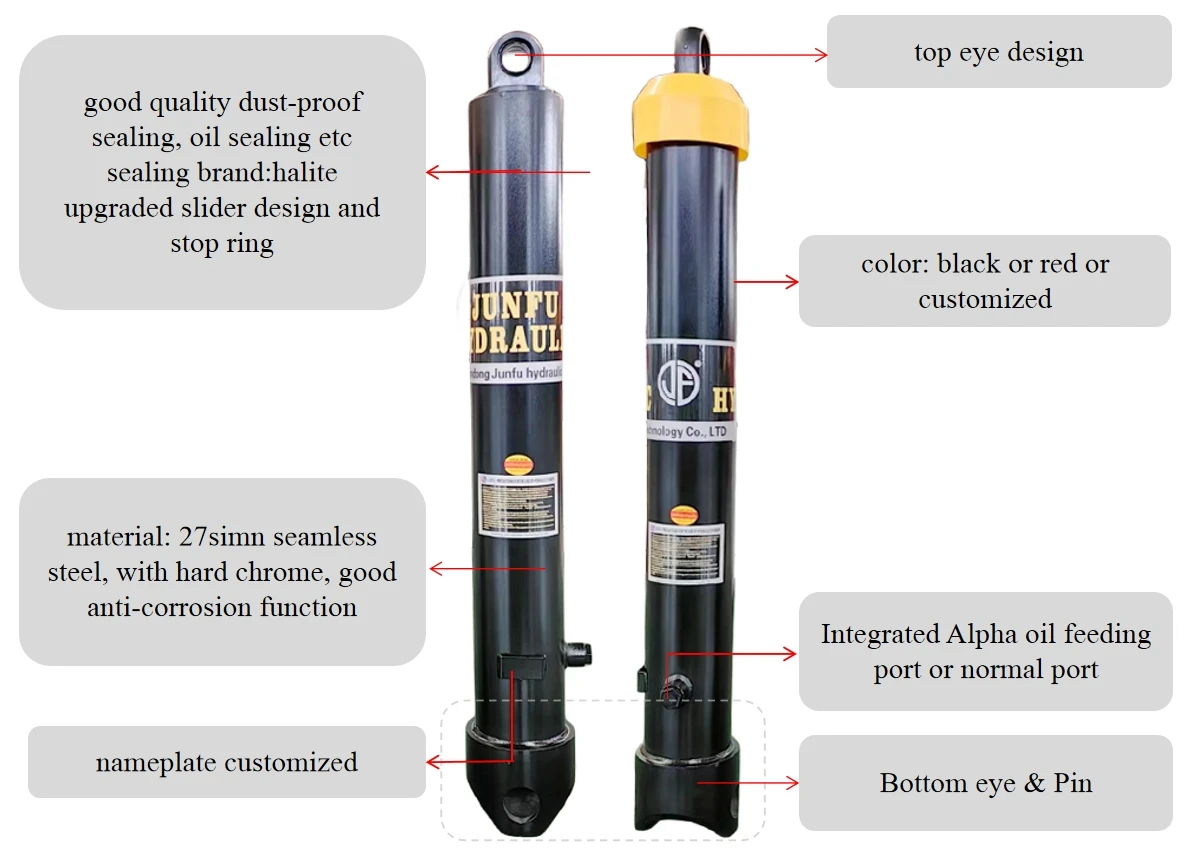

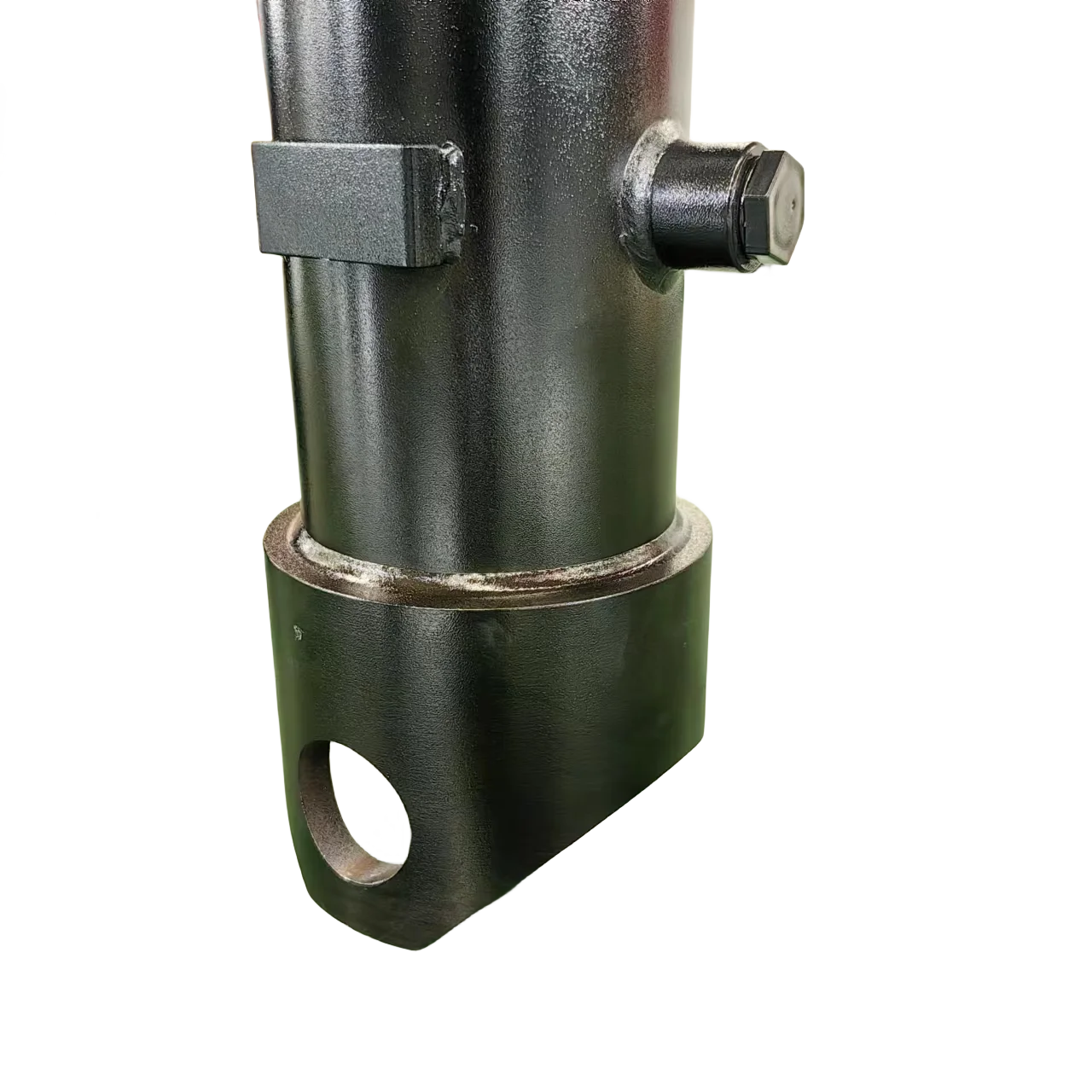

Details Images
Our Advantages
1. Safer
Junfu hydraulic cylinder adopts excellent structural design and new material application, which can withstand theharshest working conditions and continue to work stably without disconnection, ensuring the safety of drivers and vehicles, and creating the most valuable safety for users.
2. faster unloading
Junfu series oil cylinder adopts excellent structural design to improve the unloading speed of the oil cylinder!
3.higher lift frequency
junfu series oil cylinders are suitable for all-weather short barge and high-frequency operations, with stable performance,extremely low failure rate, increasing the number of transfers and reducing downtime!
4. Greater adaptability to the environment
junfu series oil cylinder adopts innovative sealing technology and new material application, which can adapt to the temperaturerange of -40~110ºC, and can achieve excellent performance in high temperature and low temperature environment operation!
5. lighter
Compared with other products of the same series, Junfu series cylinders reduce the dead weight by 15%~20%, and increase the lifting force by 10%~15%!
6. Greater lifting force
Compared with other products of the same series, the lifting force of junfu series cylinders is increased by 10%~15%. More lift,more load, more profit! Lighter dead weight, greater lifting force, more lightness!
2. faster unloading
Junfu series oil cylinder adopts excellent structural design to improve the unloading speed of the oil cylinder!
3.higher lift frequency
junfu series oil cylinders are suitable for all-weather short barge and high-frequency operations, with stable performance,extremely low failure rate, increasing the number of transfers and reducing downtime!
4. Greater adaptability to the environment
junfu series oil cylinder adopts innovative sealing technology and new material application, which can adapt to the temperaturerange of -40~110ºC, and can achieve excellent performance in high temperature and low temperature environment operation!
5. lighter
Compared with other products of the same series, Junfu series cylinders reduce the dead weight by 15%~20%, and increase the lifting force by 10%~15%!
6. Greater lifting force
Compared with other products of the same series, the lifting force of junfu series cylinders is increased by 10%~15%. More lift,more load, more profit! Lighter dead weight, greater lifting force, more lightness!

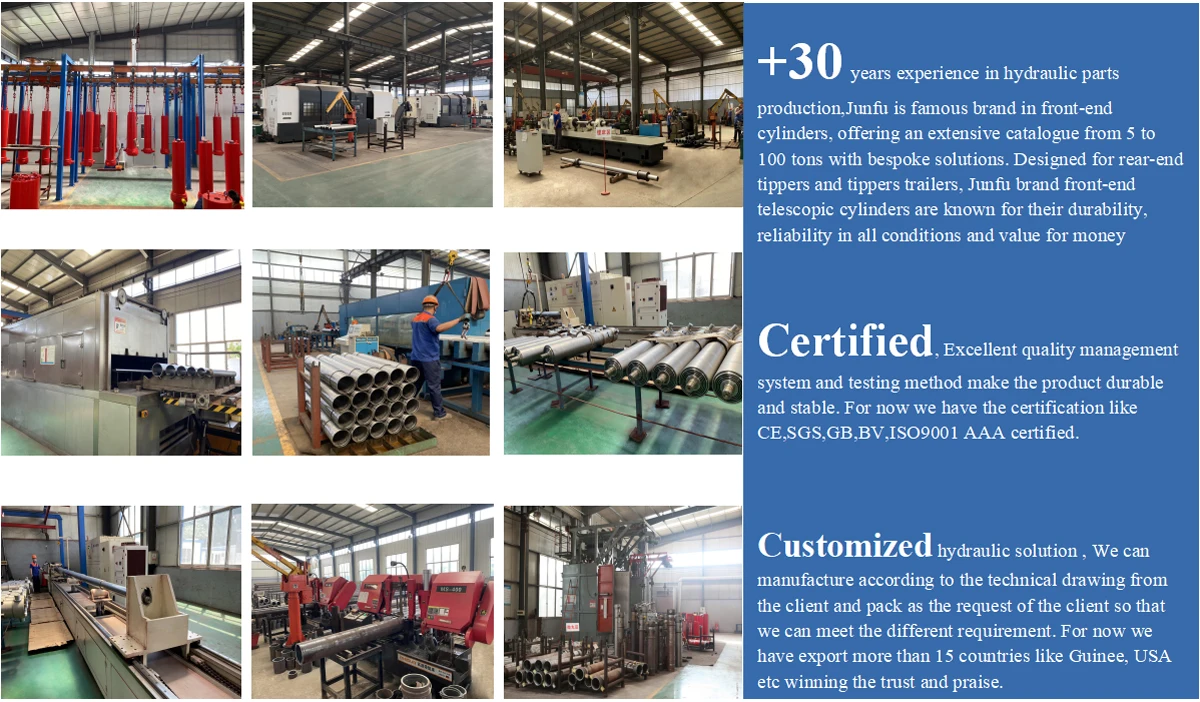

Company Profile

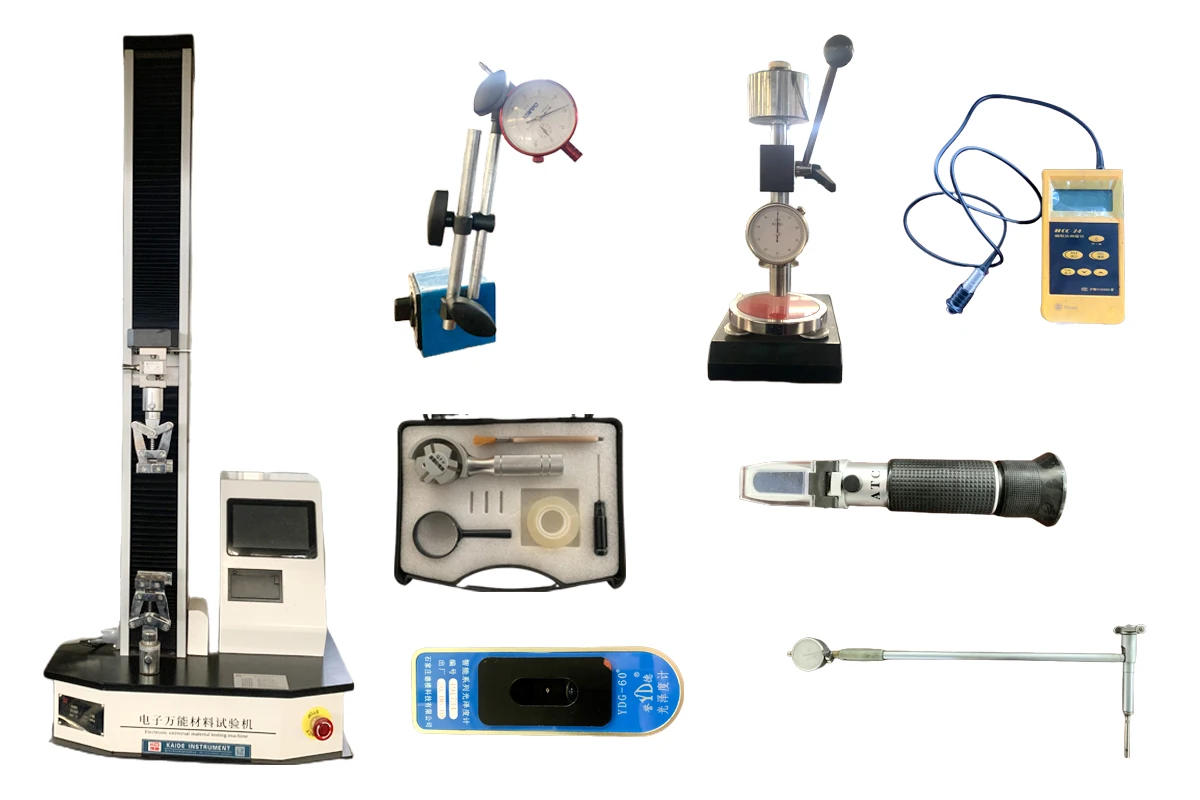

Well Quality Management system
1. Trial Operation Test2. Start-up Pressure Test
3. Pressure-Tight Test4. Leak Test
5. Full Stroke Test6. Buffer Test
7. Testing the Effect of Limit8. Load Efficiency Test
9. Reliability Test

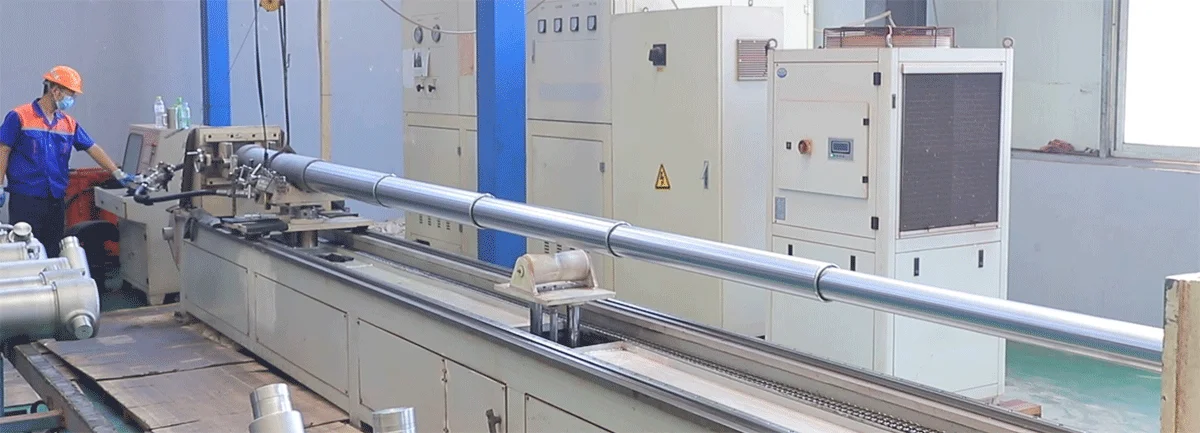

Every piece hydraulic cylinder will be tested before deliver
1. Trial Operation Test2. Start-up Pressure Test
3. Pressure-Tight Test4. Leak Test
5. Full Stroke Test6. Buffer Test
7. Testing the Effect of Limit8. Load Efficiency Test
9. Reliability Test
Every piece hydraulic cylinder will be tested before deliver
Our customer

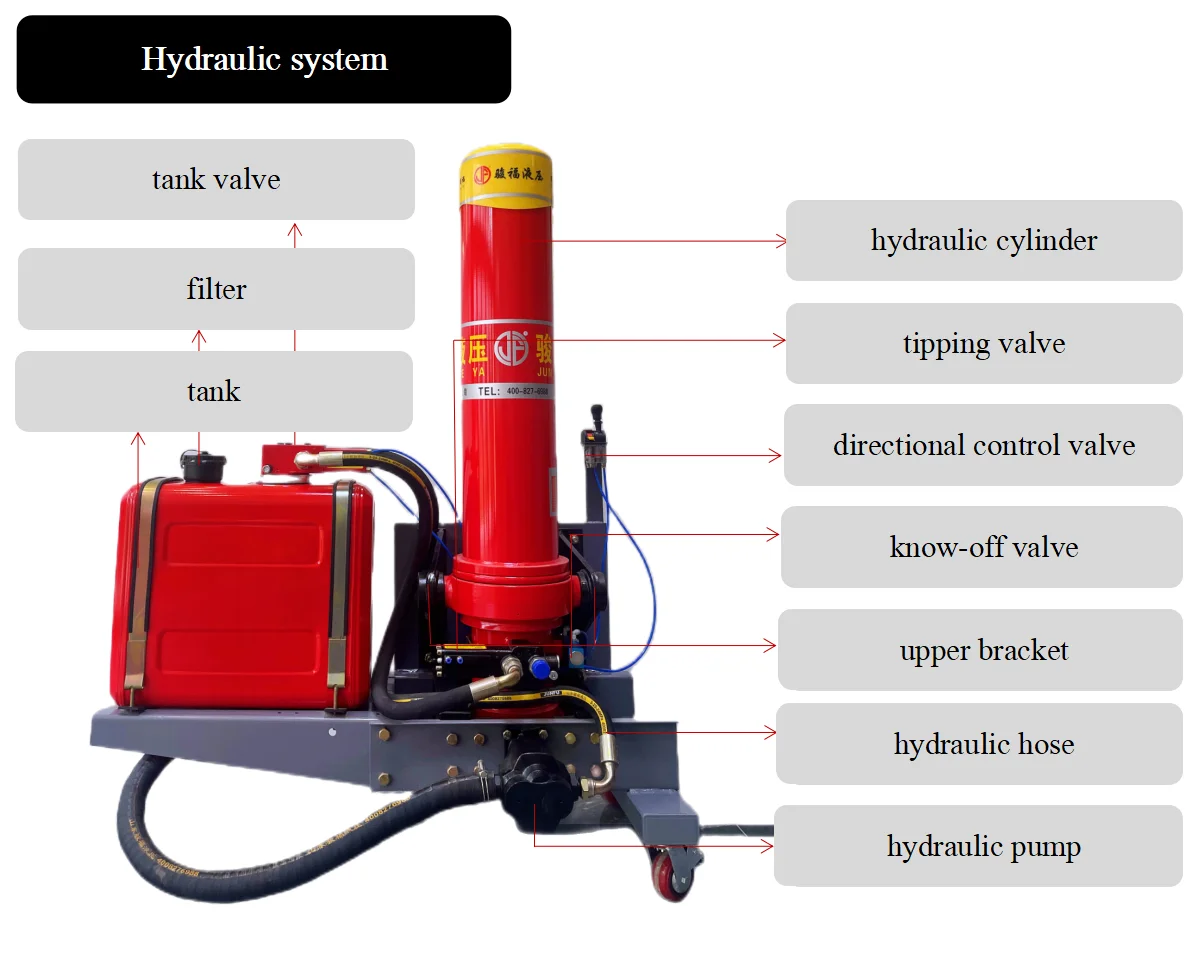

Full set Hydraulic System is available as blew
FAQ
Q1: How about the quality?
one year warranty, full life service
Q2: What's your cylinder's advantages ?
The cylinders are manufactured by advanced equipments and made under strictly quality control processing.
The steel is tempered and all raw materials are good quality from world famous companies.
Competitive price!
Q3: When your company be established ?
Our company be established in 2002, professional manufacturer of hydraulic cylinders more than 20 years.
We had passed IATF 16949:2016 Quality control system, ISO9001, CE.
Q4: How about the delivery time ?
30 days approximately.
one year warranty, full life service
Q2: What's your cylinder's advantages ?
The cylinders are manufactured by advanced equipments and made under strictly quality control processing.
The steel is tempered and all raw materials are good quality from world famous companies.
Competitive price!
Q3: When your company be established ?
Our company be established in 2002, professional manufacturer of hydraulic cylinders more than 20 years.
We had passed IATF 16949:2016 Quality control system, ISO9001, CE.
Q4: How about the delivery time ?
30 days approximately.
