HENGXIANG 1024 ppr heavy duty absolute encoder SJ50 parallel NPN/PNP 5 30V 10bit with protection circuit
- Category: >>>
- Supplier: Shanghai Hengxiang Optical Electronics Co. Ltd.
Share on (1601098891324):
Product Overview
Description
Products Description

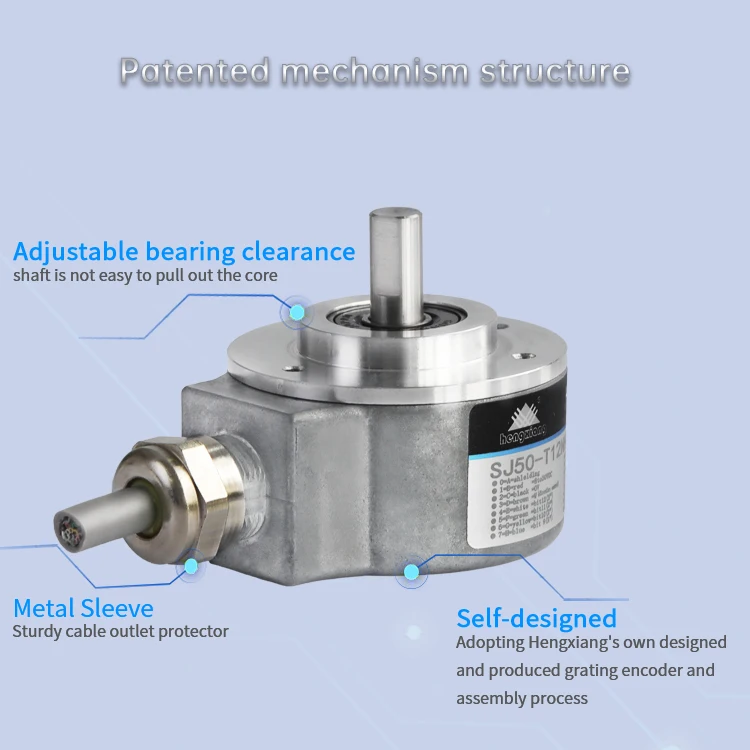

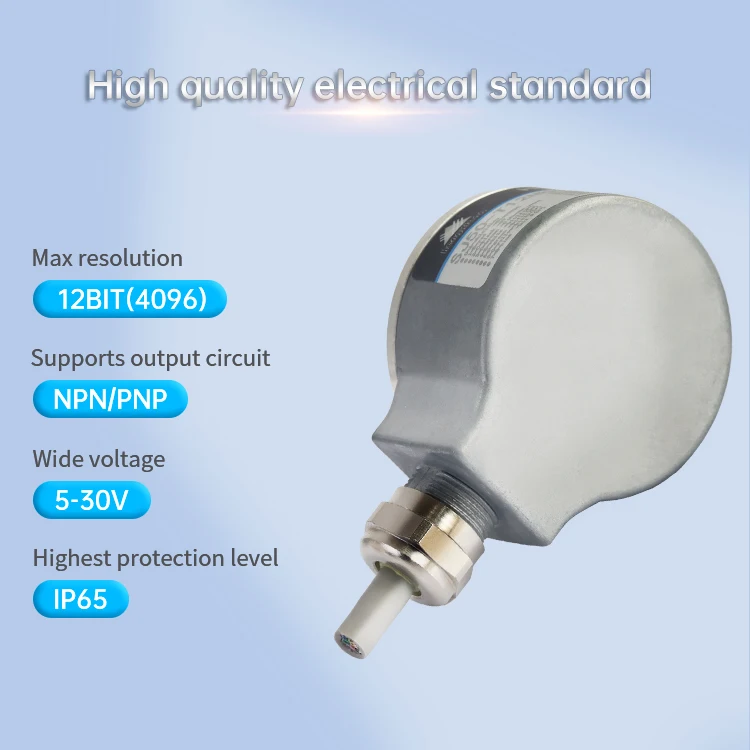

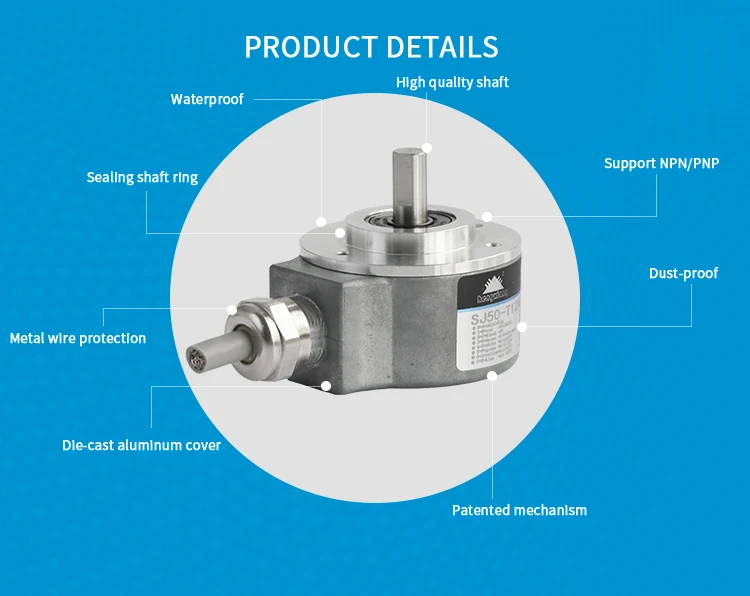

1.Highlights of SJ50 encoder

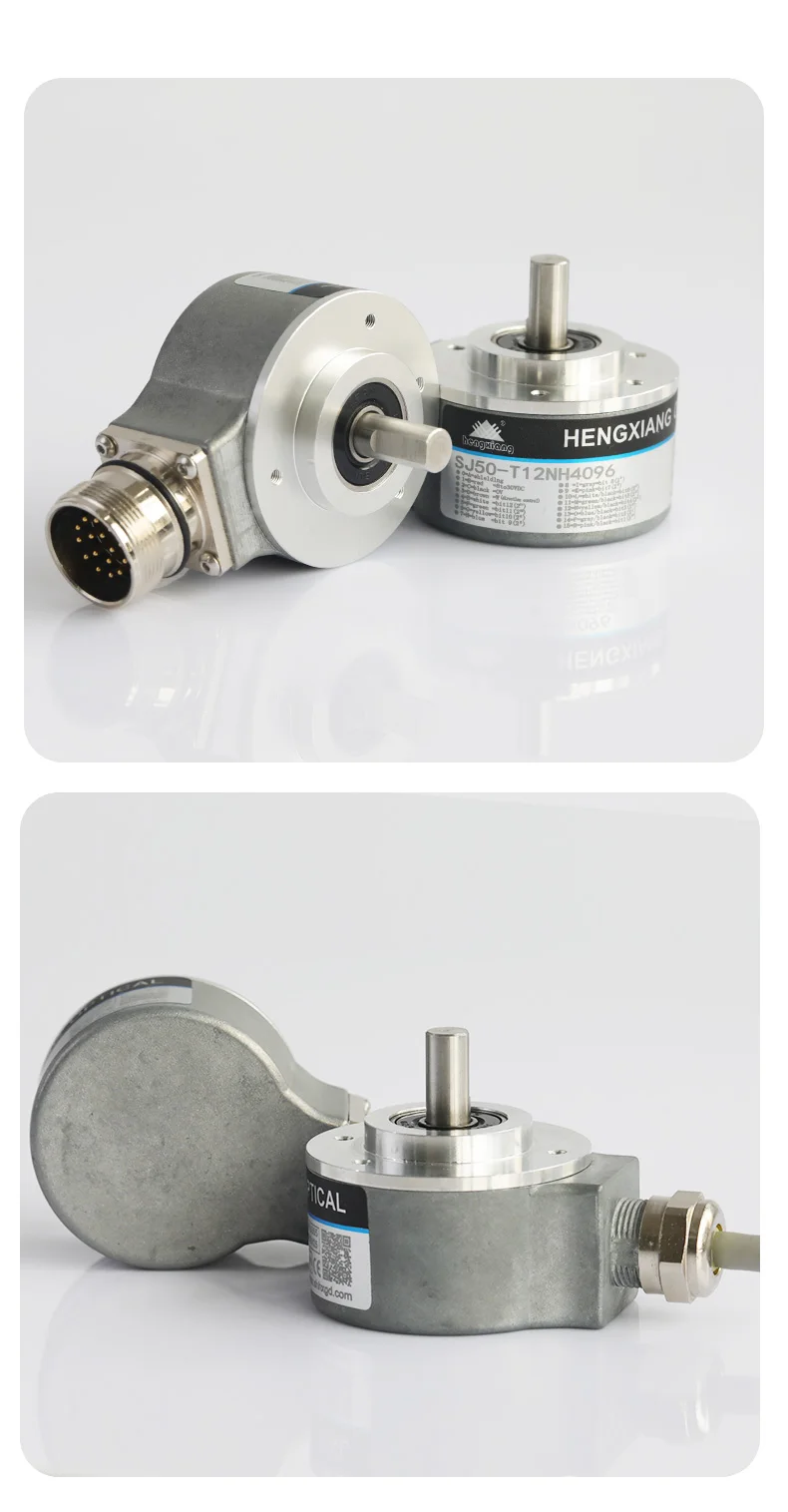

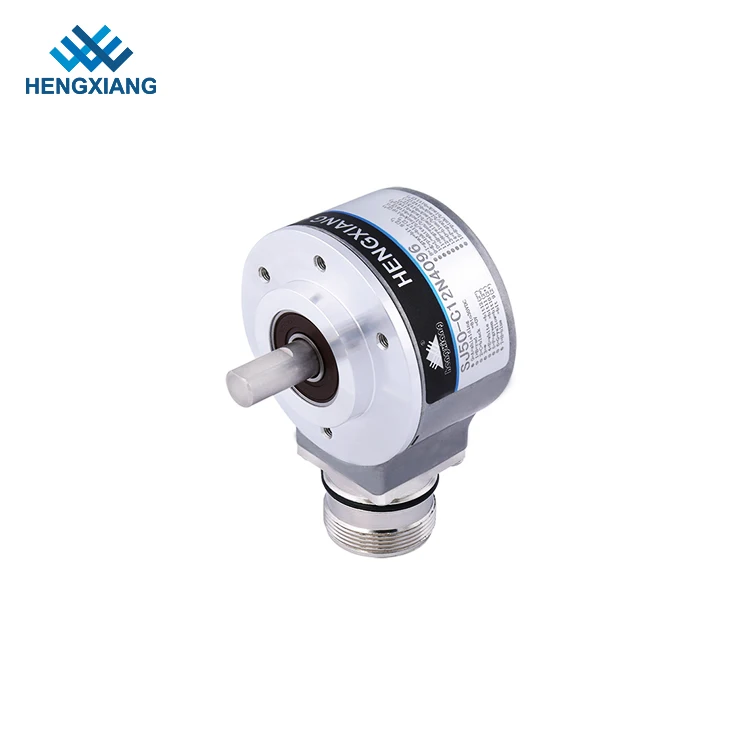

2.Real product image

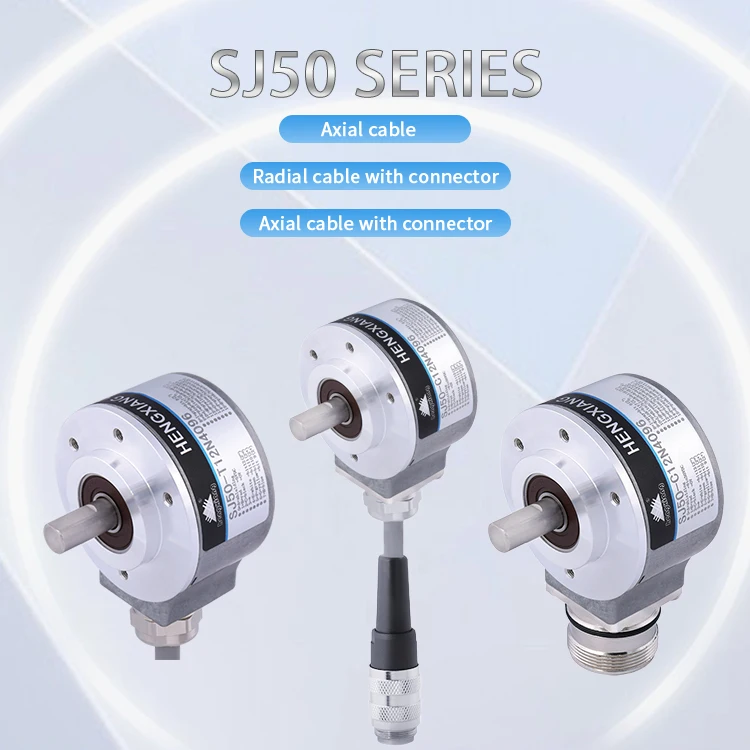

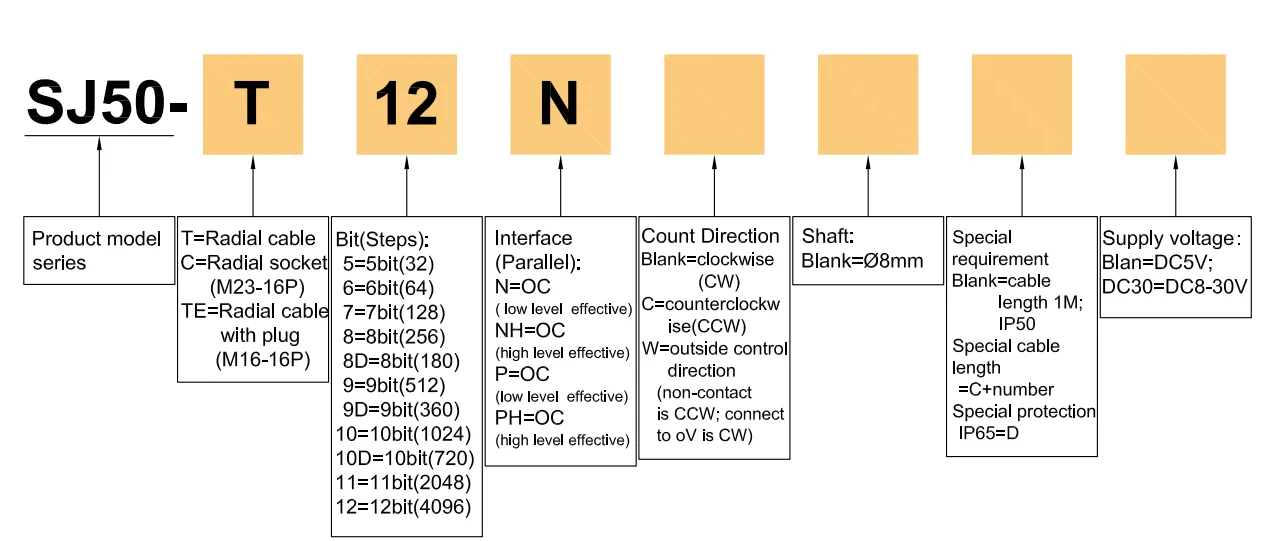

Model Selection Guide

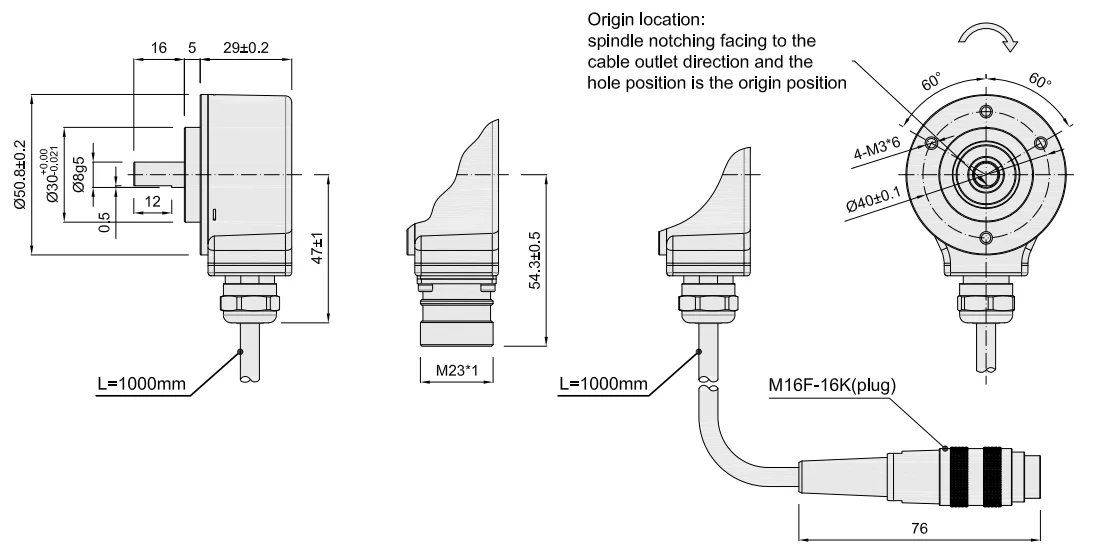

3.Dimension
4.Electrical parameters
Brand | HENGXIANG | |
Encoder type | absolute encoder | |
External diameter | 51mm | |
Thickness | 29mm | |
Installation dimension | 40mm diameter | |
Shaft length | 16mm | |
Solid Shaft diameter | 8mm D shape | |
Bit(steps) | 5 bit;6 bit;7 bit;8bit;9bit;10 bit;11 bit;12bit | |
Supply voltage | DC5V ； DC8-30V | |
Outlettype | radial cable | |
radial socket | ||
radial cable with plug | ||
Count direction | counterclockwise | |
outside control direction | ||
clockwise | ||
Interface | NPN/PNP low level effective | |
NPN/PNP high level effetive | ||
Protection grade | IP50 ; IP65 | |
Cable length | 1M (cable length could be added appropriately by | |
require, but it need payment individually) | ||
Consumption current | 100mA MAX | |
Top response frenquency | 100KHZ | |
Allowable ripple | ≤3%rms | |
Load Voltage | ≤DC30V | |
Output code | gray code | |
Precision | 360/(resolution x 4) | |
Insulation strength | AC500V 60s | |
Insulation resistance | 10MΩ | |
GND | not connect to encoder | |
starting torque | less than 5x 10-3N.m | |
Intertia moment | less than 3x 10-6kg.m2 | |
Shaft load | Radial 50N; Axial 30N | |
Top REV | 4000RPM ;IP65≤3000r rpm | |
Bearing life | 1.5x109 revs at rated load(100000hrs at 2500RPM) | |
Environmental temperature | Operating:-20 ～+85°C；storage:-25 ～+90°C | |
Enviromental humidity | Operating and storage: 35-85%RH(noncondensing) | |
Vibration(endure) | Amplitude 0.75mm,5-55Hz,2 hours for three axis individually | |
Sock(endure) | 490m/s2 , three times for X,Y,Z direction individually | |
Shaft Material | Stainless steel | |
Shell Material | Dia cast aluminium | |
Cable length | 1000mm(cable with shielding) | |
Certification | CE | |
package | Carton box | |
Net weight | About 300g (with package) |
