Tobee Effluent Handling
$12,600
Oil Industry Multistage Pump
- Category: >>>
- Supplier: Zhejiang Xiandai Pump Co. Ltd.
Share on (1601098941748):
Product Overview
Description
Product Overview

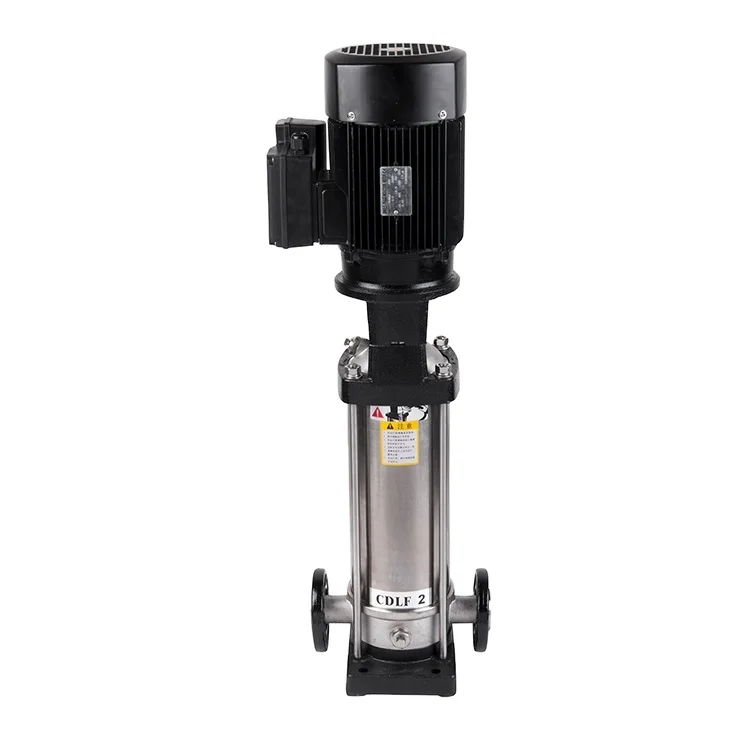

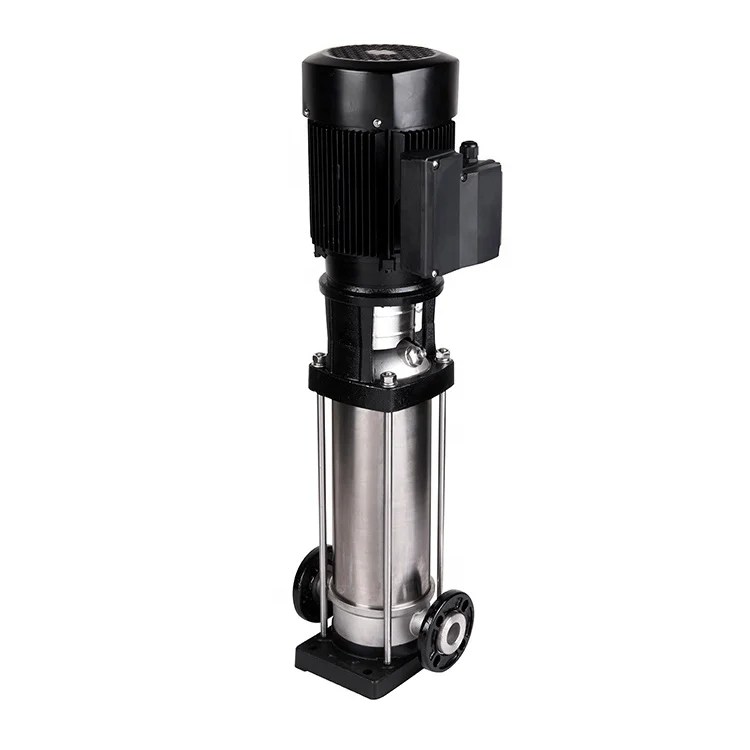

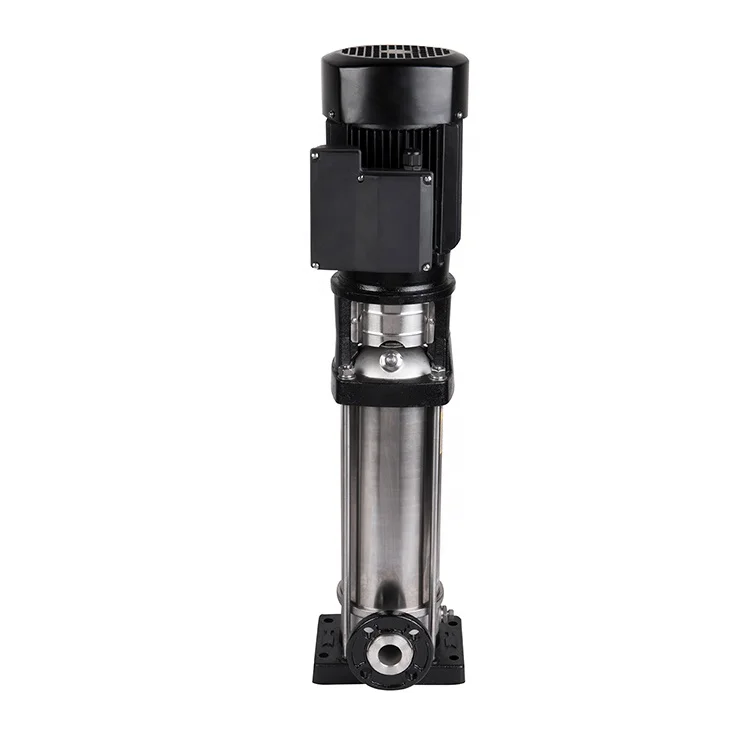

Multistage Vertical Centrifugal Pump
Multistage Vertical Centrifugal Pump is a kind of vertical non-self priming multistage centrifugal pump ,which is driven by a standard electric motor .The motor output shaft directly connects with the pump shaft through a coupling .The pressure-resistant cylinder and flow passage components are fixed between pump head and inlet outlet section with stay bolts .The inlet and outlet are located at the pump bottom at the same plane .
FEATURES AT A GLANCE
COMPACT DIMENSIONS
SAFETY FRAME
SIMPLE CONTROL
HIGH PRESSURE
PRODUCT SPECIFICATIONS
No | Item | Data | ||
1 | Power | 4KW | ||
2 | Flow | 4 m3/h | ||
3 | Head | 144 m | ||
4 | Max. Flow | 8 m3/h | ||
5 | Max. Head | 180m | ||
6 | Impeller | SS304 | ||
7 | Inlet /Outlet | 32 mm | ||
8 | Flange | PN16 |
SALES AND SERVICE NETWORK
SIMILAR PRODUCTS
FAQ
Q1：MOQ
A1：1 Set
