HENGXANG printer optical encoder sensor 360ppr 720ppr 1000ppr 1024ppr Shaft Type Angle Sensor

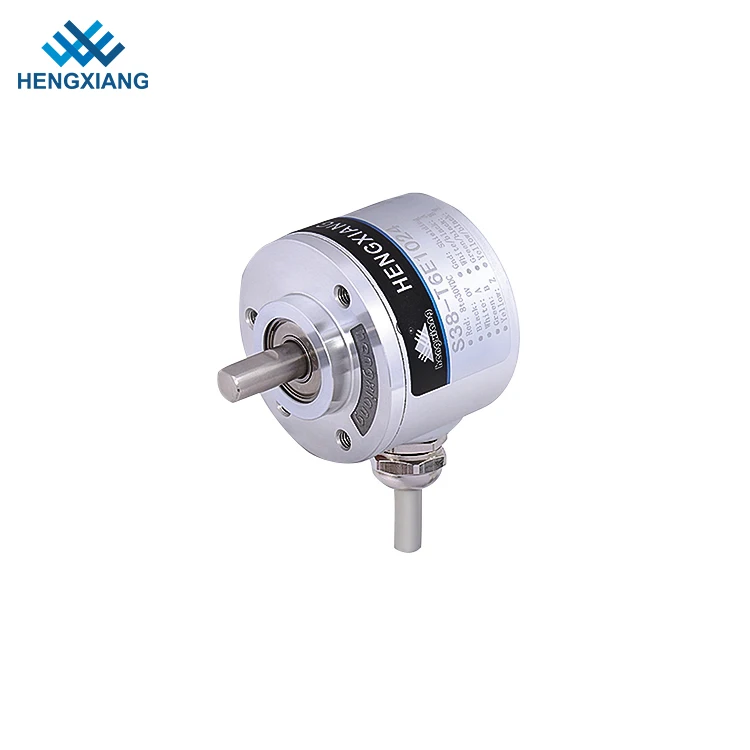

- Category: >>>
- Supplier: Shanghai Hengxiang Optical Electronics Co. Ltd.
Share on (1601099047141):
Product Overview
Description
Products Description

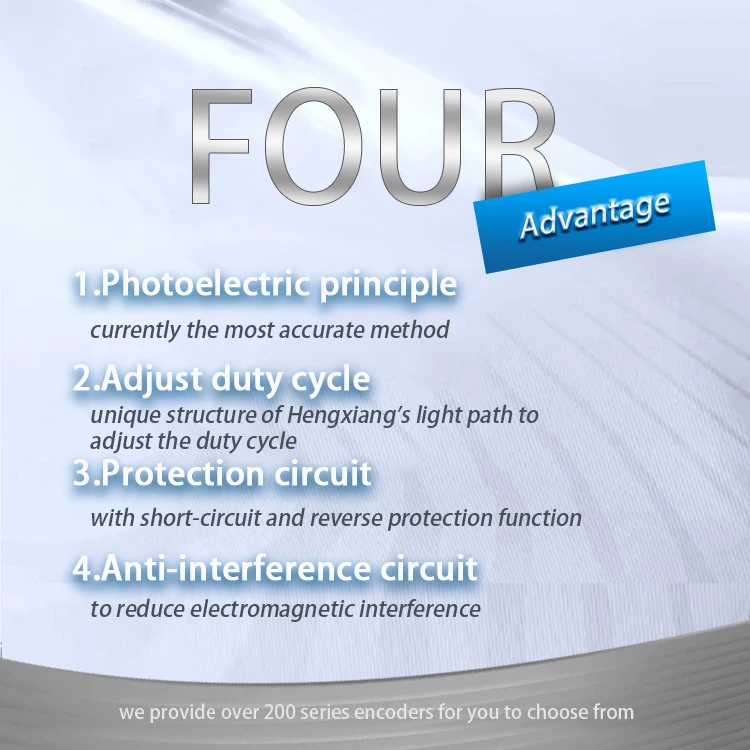

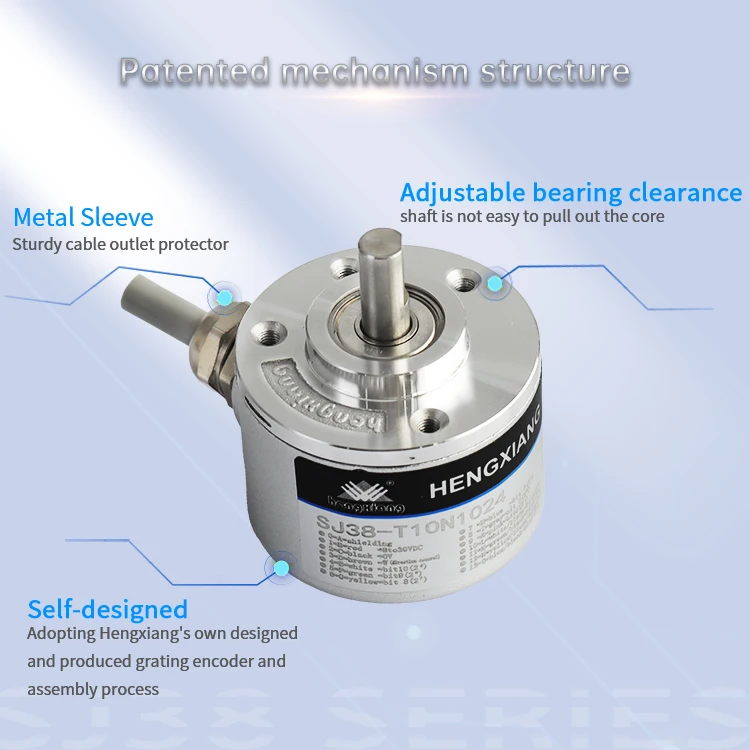

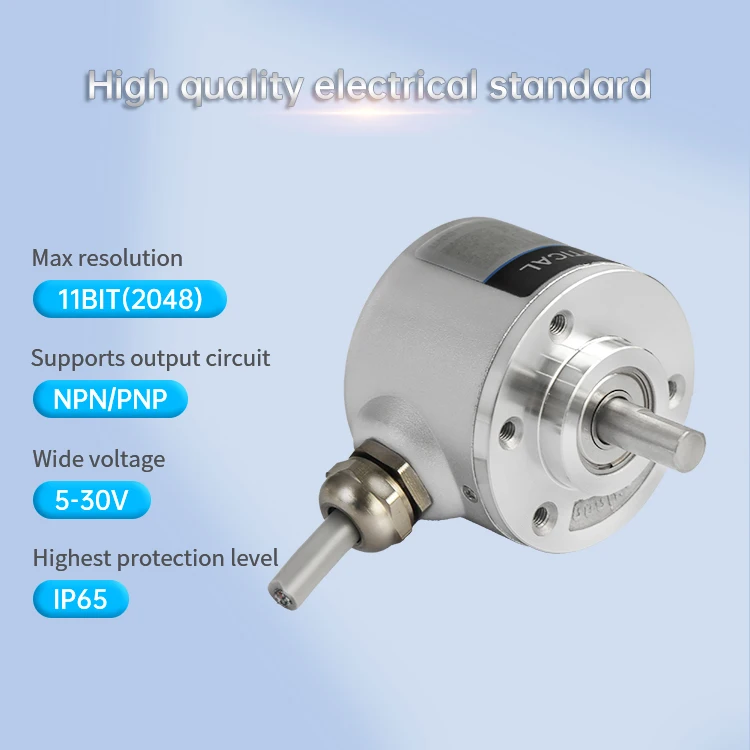

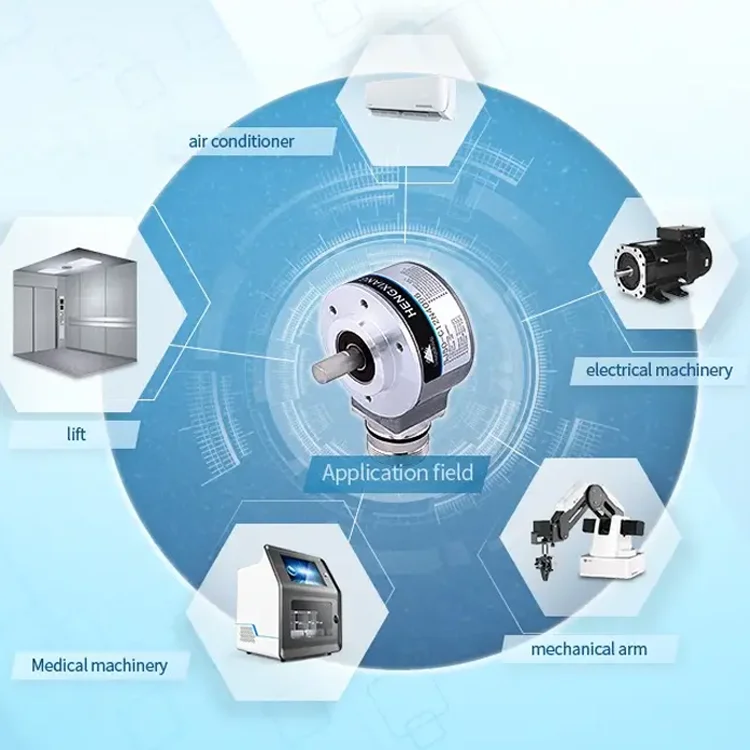

1.Highlights of S38 encoder

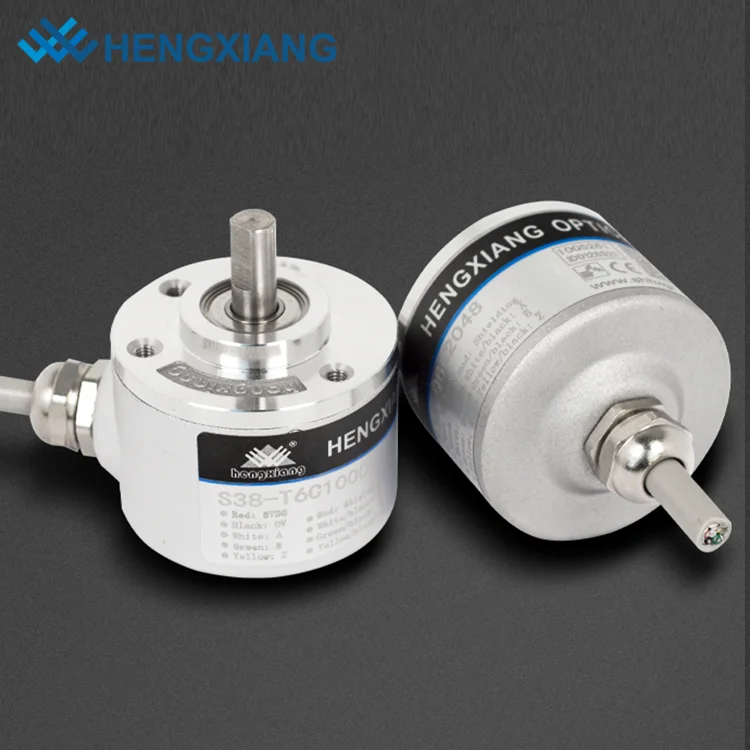

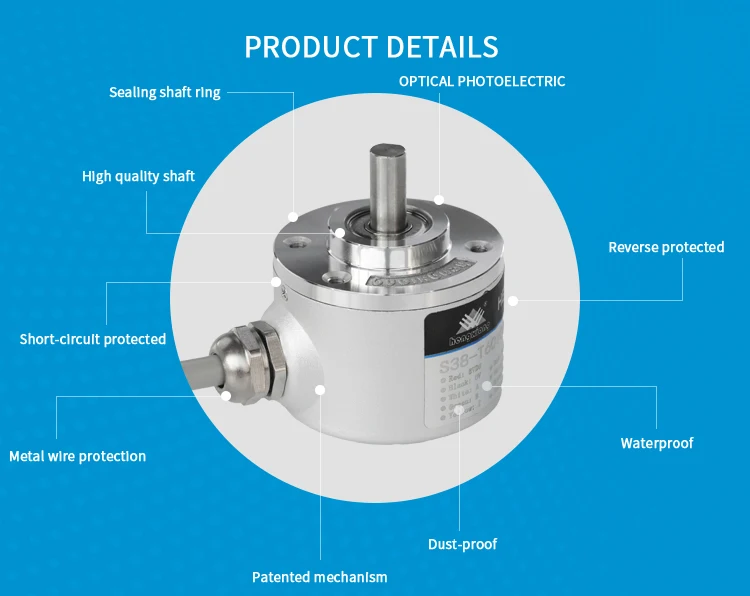

2.Real product image

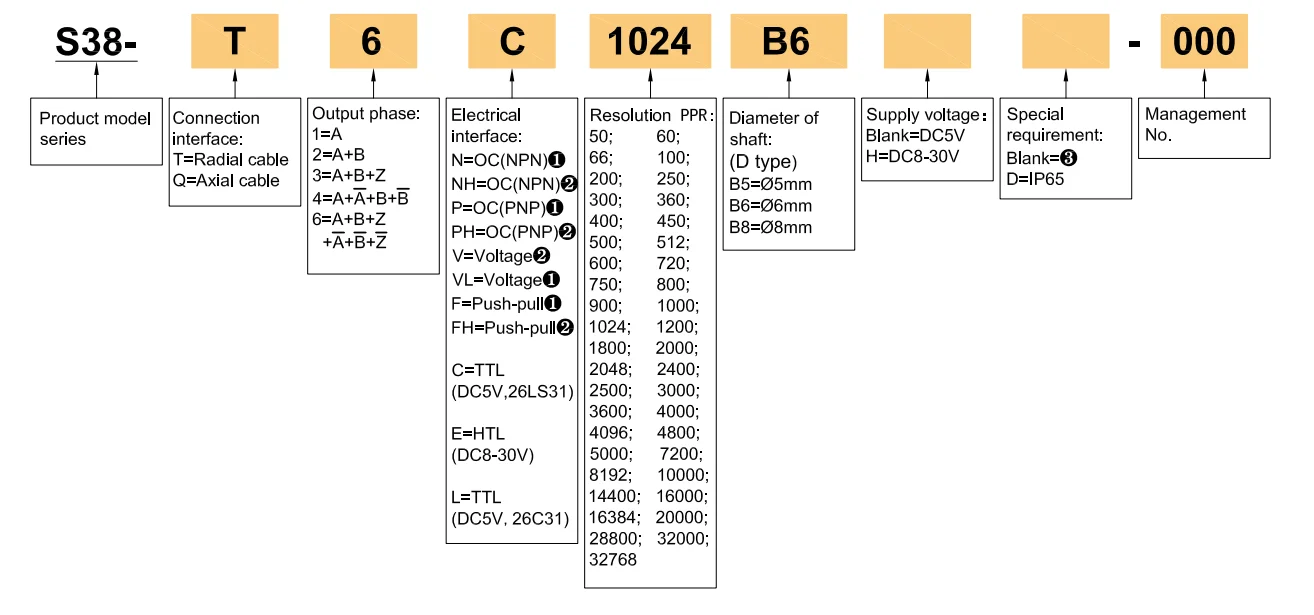

Model Selection Guide

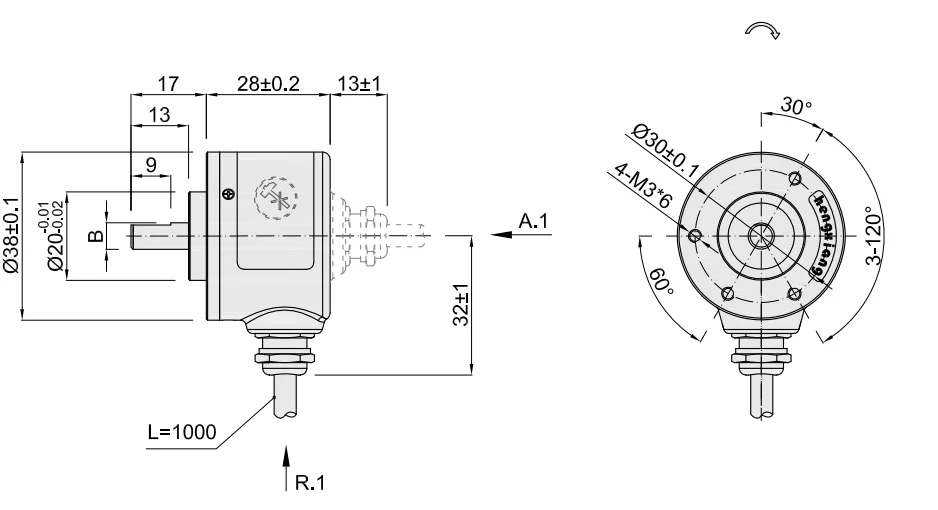

3.Dimension
4.Electrical parameters
ITEM | PARAMTERS | |
Brand | HENGXIANG | |
Encoder type | Incremental encoder | |
External diameter | 38mm | |
Thickness | 28mm | |
Shaft length | 13mm | |
Solid Shaft diameter | 6mm(D shape) | |
Resolution | 50;60;66;100;200;250;300;360;400;450;500;512; | |
600;720;750;800;900;1000;1024;1200;2000;2048;2500; | ||
3600;4000;4096;4800;5000;7200;8192;10000;16384 | ||
20000;28800;32000;32768 | ||
Output mode | NPN&PNP | |
Voltage output | ||
Push-pull output | ||
Difference output(TTL,HTL,RS422) | ||
Reverse polarity protection | √ | |
Short circuit protection | √ | |
Output phase | Phase A,B,Z,A-,B-,Z- | |
Outlet type | Radial cable 7 Axial Cable | |
Protection grade | IP50 & IP65 | |
Cable length | 1000MM | |
package | Carton box | |
Net weight | About 120g (with package) | |
starting torque | less than 4.4X10-3 N.m | |
Intertia moment | less than 1.5x 10-6kg.m2 | |
Shaft load | Radial 30N; Axial 20N | |
Top REV | 6000RPM ;IP65≤4000r rpm | |
Environmental temperature | Operating:-20 ～+90°；storage:-25 ～+95° | |
Enviromental humidity | Operating and storage: 35-85%RH(noncondensing) | |
Vibration(endure) | Amplitude 0.75mm,5-55Hz,2 hours for three axis individually | |
Sock(endure) | 490m/s2 ,11 ms three times for X,Y,Z direction individually | |
Shaft Material | Stainless steel | |
Shell Material | Alminium alloy | |
Cable length | 1000mm(cable with shielding) | |
Certification | CE |
