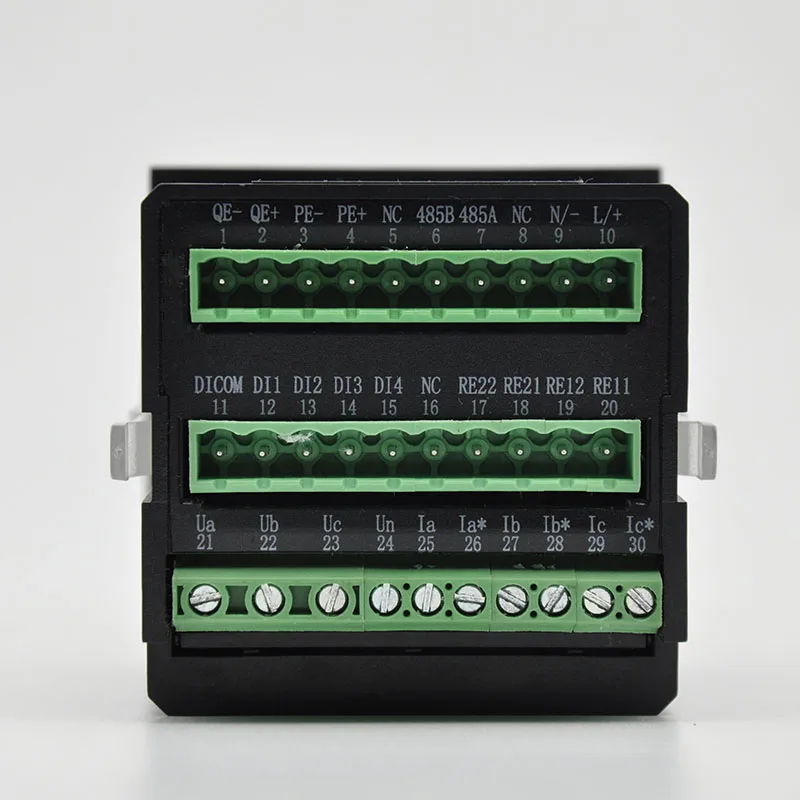

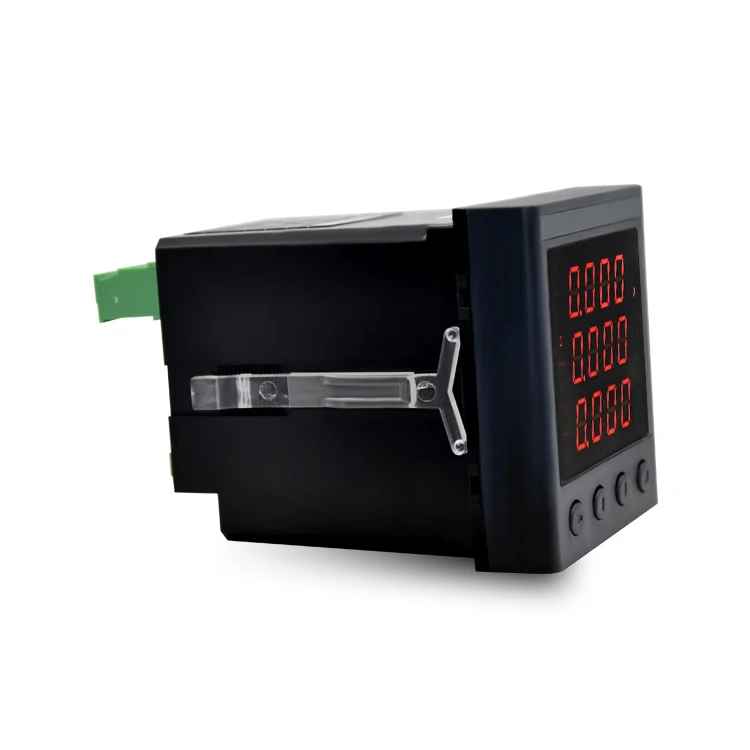

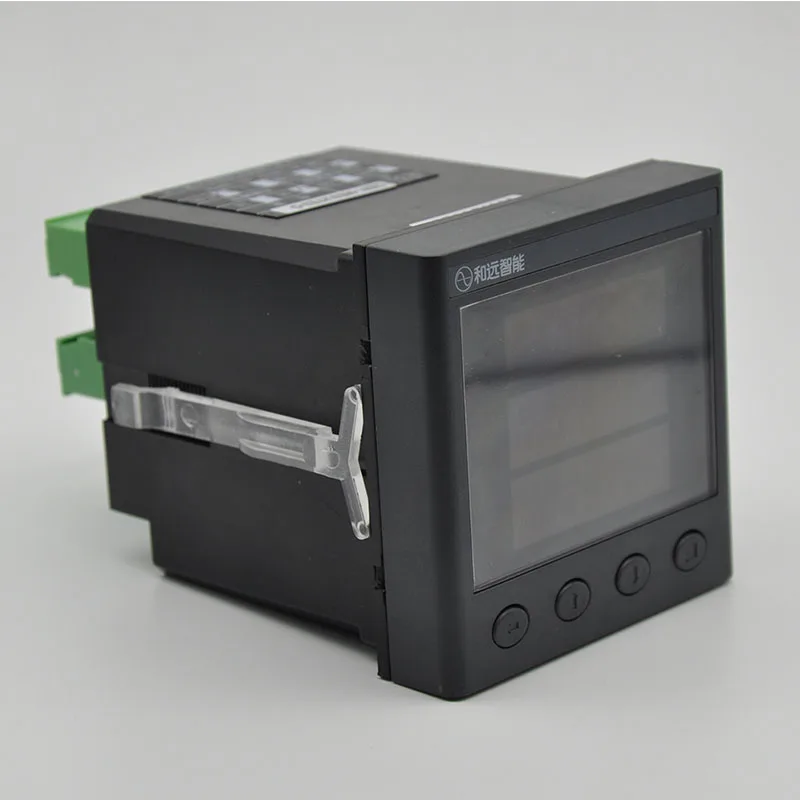

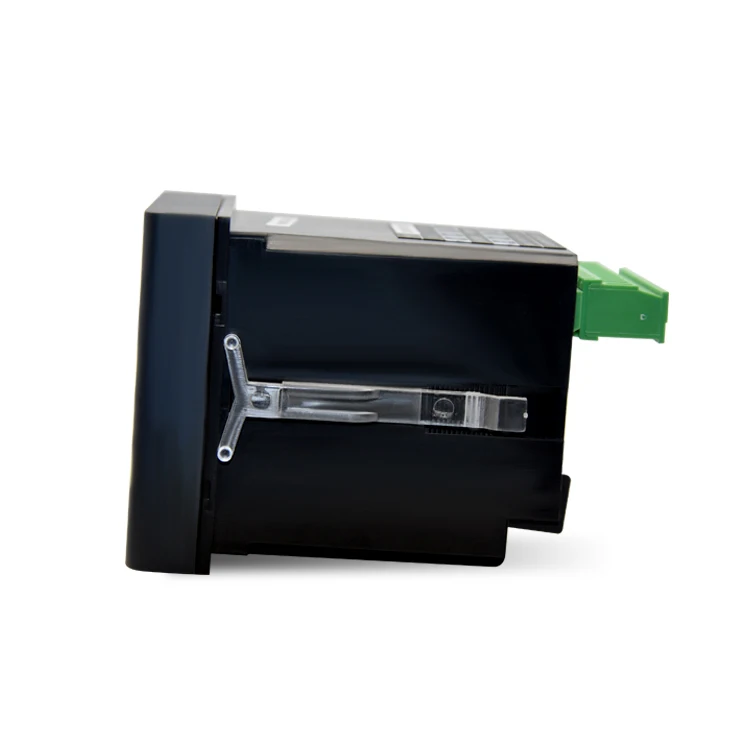

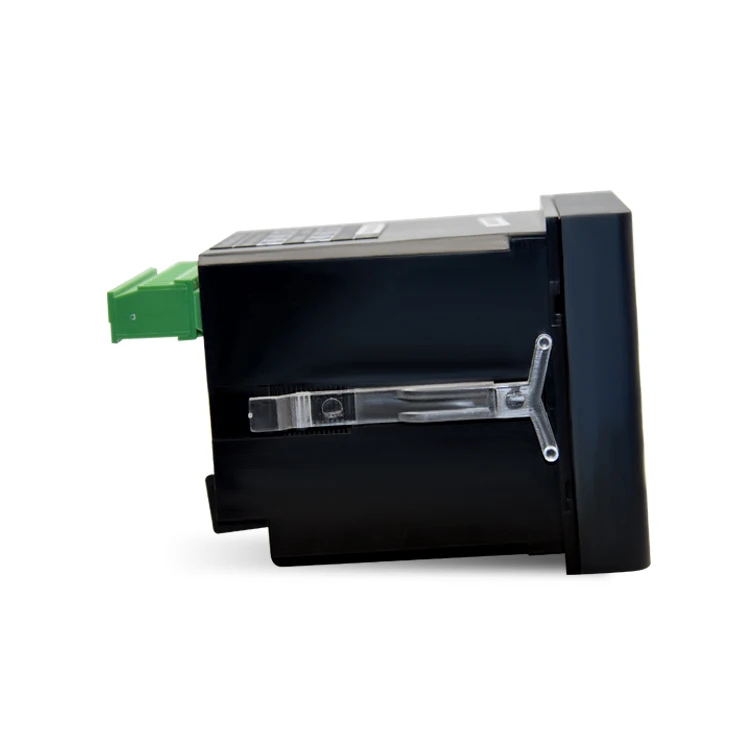

HEYUAN Multi Meter Digital Multimeter MS3UI7E3 Electric Meter Digital Way Lcd Display 3 Phase 100 Amp Panel Meter
- Category: >>>
- Supplier: Heyuan Intelligence Technology Co. Ltd.
Share on (1601099137772):
Product Overview
Description
PRODUCT DESCRIPTION
The three phase multifunction Power &Energy Meter fulfills electrical parameter real –time monitoring, data transmission, and ideal for application in automation and commercial facilities.
Measuring three phase voltage, current, line voltage, active power, reactive power, apparent power, power factor, frequency,
active energy, reactive energy, voltage unbalance, current unbalance
1* programmable energy pulse outputactive energy, reactive energy, voltage unbalance, current unbalance
Analysis of current/voltage harmonic (2-31times)
SOE records accurate to milliseconds
Communication: Modbus-RTU via RS485; LoRa (Optional)
Digital input & output: 4 DI; 2DO
Accuracy: Active energy accuracy: 0.5S, Voltage & Current accuracy: 0.2%
Power supply: AC: 85-265V; DC: 85-300V
CT/PT connection
Display: 4 Figures; LED screen
Dimensions:72mm*72mm*90mm
PRODUCT PARAMETERS
Technical Parameters-MS3UI7E3 | ||||
Accuracy Class | Voltage: 0.2; Current: 0.2; Frequency: 0.05 Hz; Power Factor: 0.5 | |||
Active Power: 0.5; Reactive Power: 0.5; Apparent Power: 0.5 | ||||
Active Energy:0.5S/1; Reactive Energy: 2 | ||||
Input | Rated Value | Voltage: 100V/400V; Current: 1A/5A | ||
Overload | Voltage: Sustained Overload: 1.2 times of the rated value Momentary Overload: 2 times of the rated value Current: Sustained Overload: 1.2 times of the rated value Momentary Overload: 2 times of the rated value | |||
Frequency | 45-60Hz | |||
Functional Module | Pulse output | 2 | ||
Interface | 1 RS485; Modbus RTU Integration; Baud Rate: 1200-19200 | |||
DI | 2-4 DI optional, dry point mode | |||
DO | 2 DO optional,(AC250V/5A, DC30V/5A) | |||
Power Supply | Working Range | AC: 85-265V; DC: 85-300V | ||
Consumption | < 3W | |||
Working Condition | Temperature | Operating: -20℃~+70℃ Storage: -40℃~+80℃ | ||
Humidity | Relative Humidity: < 93% Place Without Corrosive Gas | |||
Altitude | <4000m | |||

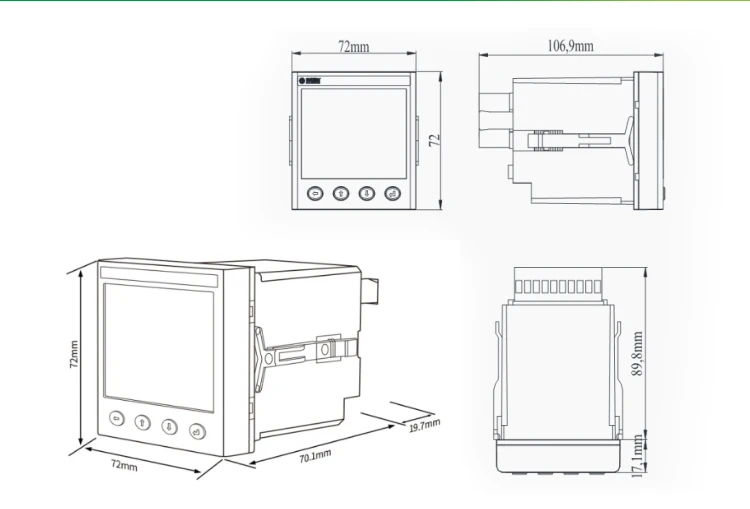

Installation | Panel installation,Cut-out size: 68*68mm Diemnsion: 72*72mm | |||

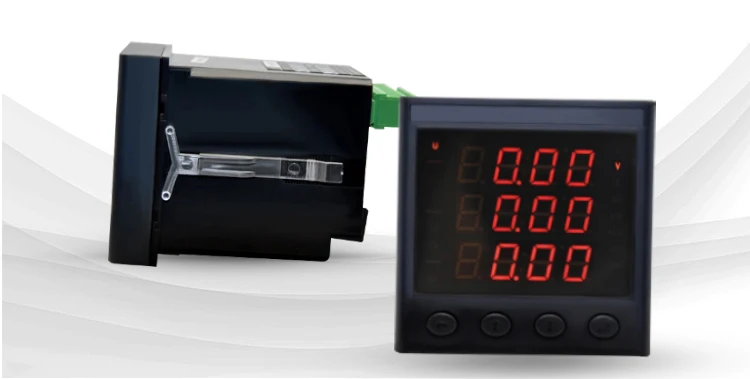

PRODUCT DETAILS

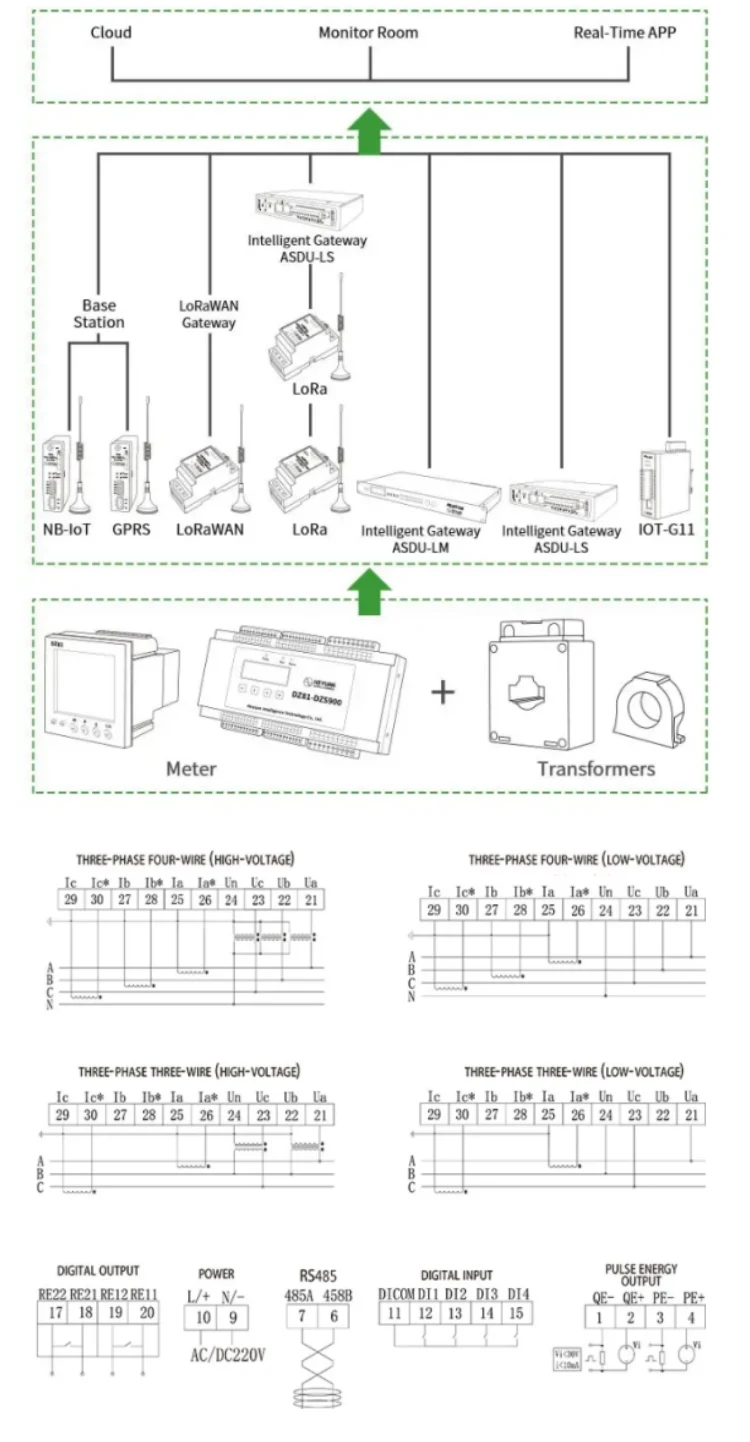

APPLICATION
APPLICATION SCENARIOS
COMPANY PROFILE
Equipped with advanced production, calibration & packaging equipment, and efficient production lines, Heyuan’s factory has a strong daily production capacity. Heyuan’s QC inspectors and workers do their best in each procedure to guarantee quality. Its advanced warehouse management system ensures a fast delivery cycle. Our products are approved by the ISO9001 international quality system.
Since its establishment in 1997, the company has always adhered to the core values of "innovation, efficiency, unity, and integrity", adhered to the business philosophy of customer first and win-win cooperation, committed to digitizing all scenarios, making all data valuable, and providing better services for power system users and microgrids.
Since its establishment in 1997, the company has always adhered to the core values of "innovation, efficiency, unity, and integrity", adhered to the business philosophy of customer first and win-win cooperation, committed to digitizing all scenarios, making all data valuable, and providing better services for power system users and microgrids.
PRODUCTION PROCESS
FAQ
Q 1: Can I get a sample to test firstly?
A: Yes, Sample order is available.
Q 2 Can you provide solution for our site application?
A: yes, we can provide you solution & system with harware and software.
We have been focusing on electricity industry for 18 years.
Successful cases can be shared for your reference firstly.
Q 3: Can you customize according to our design?
A: Yes, our great R&D team can support you.
Q 4 Can you source for me and ship it with your goods?
A: Yes, we are pleased to help source CTs or other accessories.
If you assign the supplier, that will be great !
Q 5: What is the lead time?
A: 1-3days for sample order, 10~20days for bulk order.
Q 6: Do you accept OEM with our logo printing and packaging?
A :Yes, we can make it for bulk order.
A: Yes, Sample order is available.
Q 2 Can you provide solution for our site application?
A: yes, we can provide you solution & system with harware and software.
We have been focusing on electricity industry for 18 years.
Successful cases can be shared for your reference firstly.
Q 3: Can you customize according to our design?
A: Yes, our great R&D team can support you.
Q 4 Can you source for me and ship it with your goods?
A: Yes, we are pleased to help source CTs or other accessories.
If you assign the supplier, that will be great !
Q 5: What is the lead time?
A: 1-3days for sample order, 10~20days for bulk order.
Q 6: Do you accept OEM with our logo printing and packaging?
A :Yes, we can make it for bulk order.
