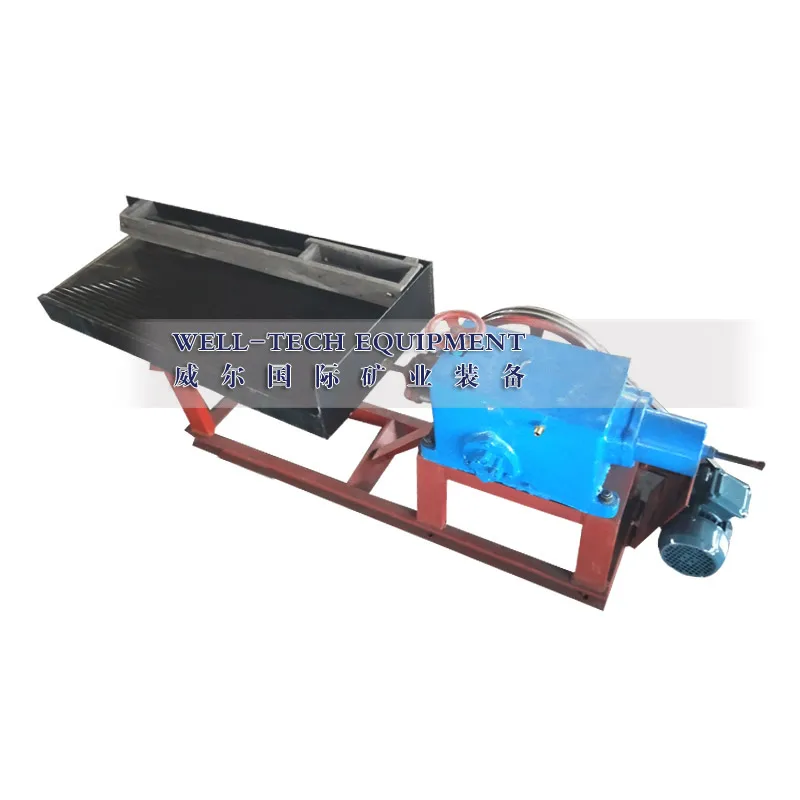

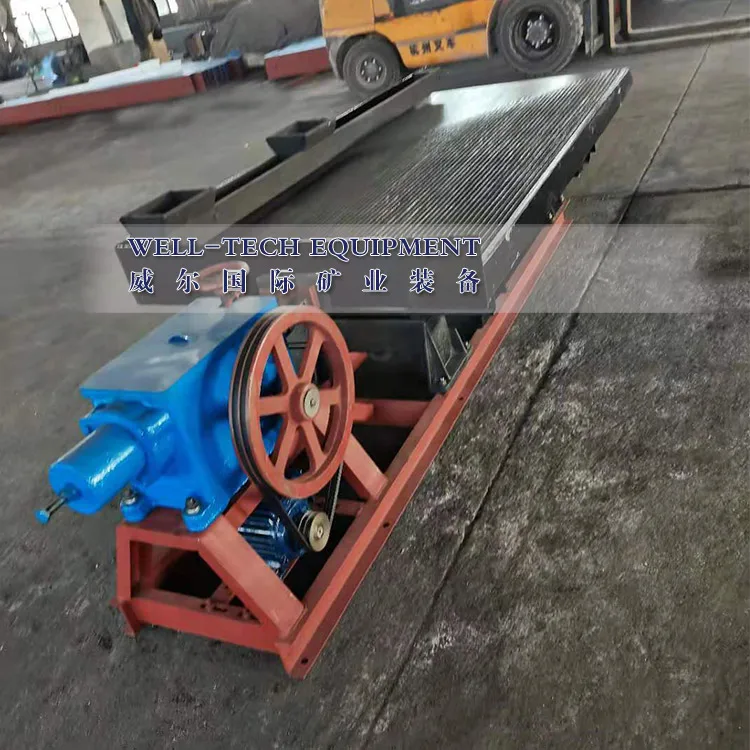

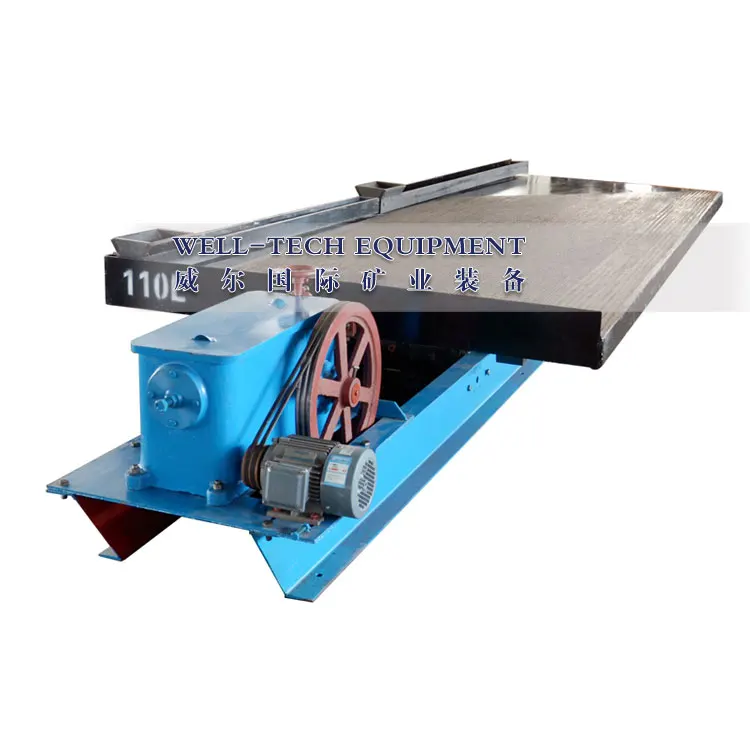

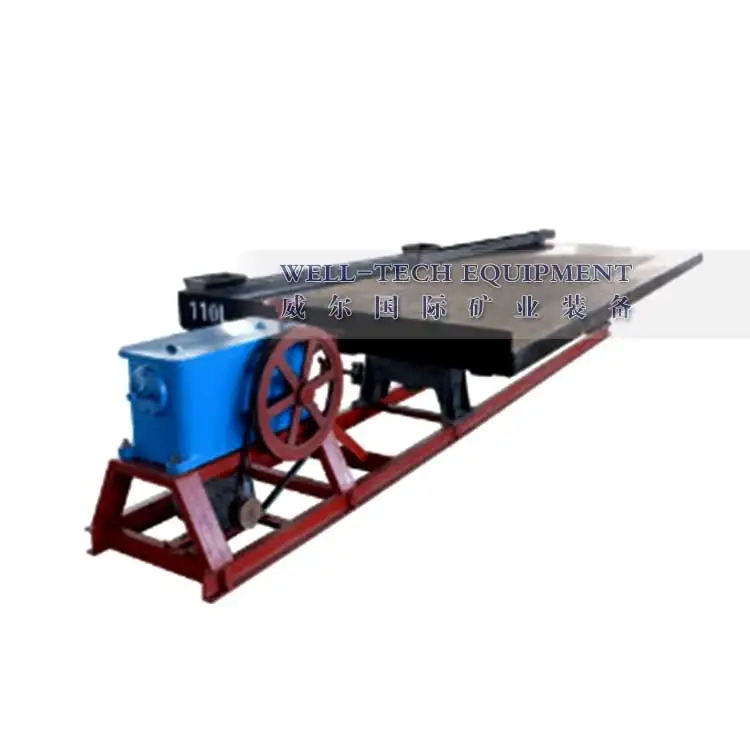

Supplier gold shaking table 6s small mini Lab shaker Table for sale mining msi
Gold seperation small vibrating fiberglass deck wet shaking table
- Category: >>>
- Supplier: Jiangxi Well-Tech International Mining Equipment Co. Ltd.
Share on (1601099147623):
Product Overview
Description

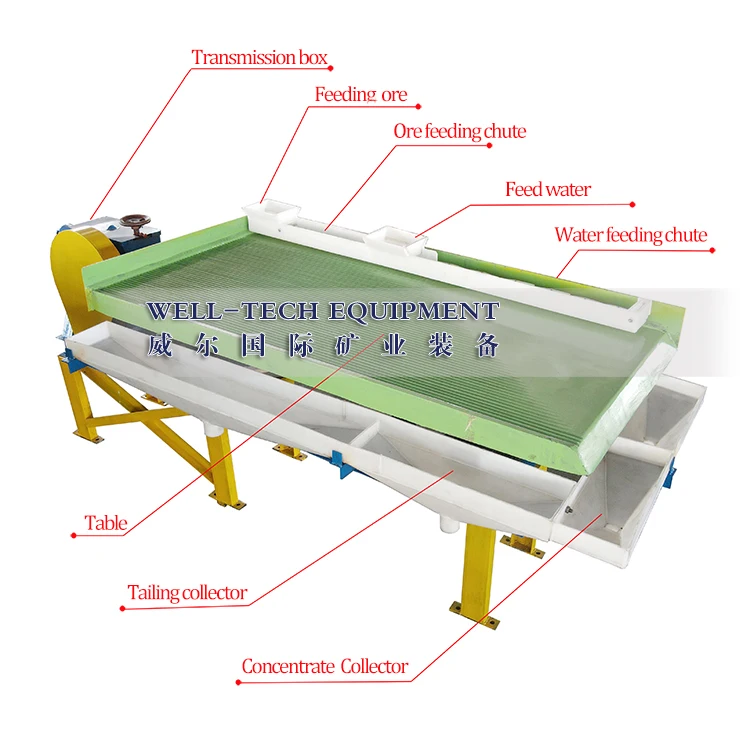

Gold mining machinery high recovery gold chrome
Tin tungsten Antimony ore mining equipment shaking table
Technical Specifications Contact us
Model | 6-S 7.6 | 6-S 4.08 | 6-S 1.95 | 6-S 0.5 | |||

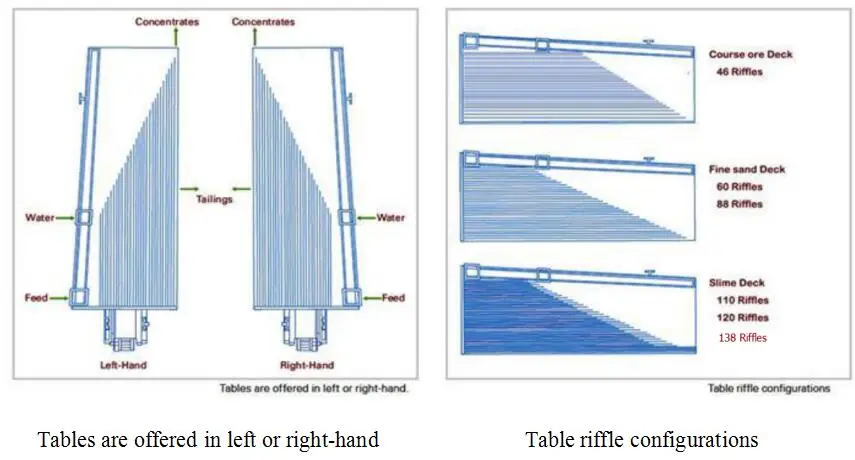

Deck type | Coarse ore Deck | Fine sand | Slime Deck | Three different kinds of decks are available | |||
Beneficiation area (m2) | 7.6 | 7.6 | 7.6 | 4.08 | 1.95 | 0.5 | |
Deck Size | Length (mm) | 4500 | 4500 | 4500 | 3000 | 2100 | 1100 |
Transmission end width (mm) | 1850 | 1850 | 1850 | 1320 | 1050 | 500 | |
Concentrate end width (mm) | 1550 | 1550 | 1550 | 1100 | 850 | 430 | |
Maximum feeding size (mm) | 2 | 0.5 | 0.074 | Sand -2 Slime -0.1 | Sand -2 Slime -0.074 | Sand -2 Slime -0.074 | |
Capacity (t/h) | 1-1.8 | 0.5-1 | 0.3-0.5 | 0.4-1.5 | 0.3-0.8 | 0.05-0.2 | |
Feeding density (%) | 20-30 | 18-25 | 15-20 | 10-30 | |||
Stroke (mm) | 16-22 | 11-16 | 8-16 | 6-30 | 12-28 | 9-17 | |
Frequency of stroke (r/min) | 220 | 250 | 280 | 210-320 | 250-450 | 280-460 | |
Water consumption (t/h) | 0.7-1 | 0.4-0.7 | 0.4-0.7 | 0.3-1.5 | 0.2-1 | 0.1-0.5 | |
Groove shape of deck | Rectangular | Saw-tooth | Triangle | Available Rectangular, Saw-tooth, Triangle | |||
Power (Kw) | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 0.55 | |
Supplier gold shaking table 6s small mini Lab shaker Table for sale mining msi

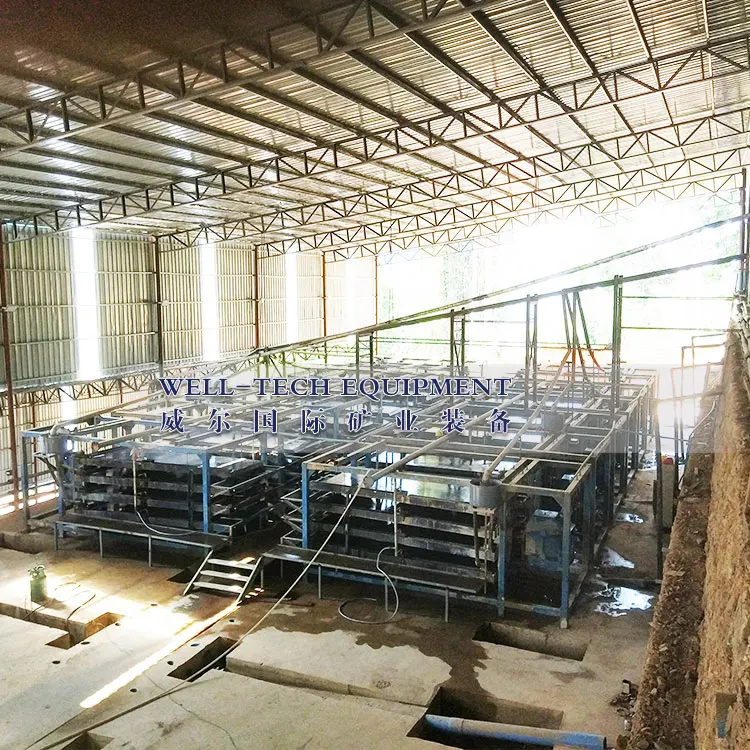

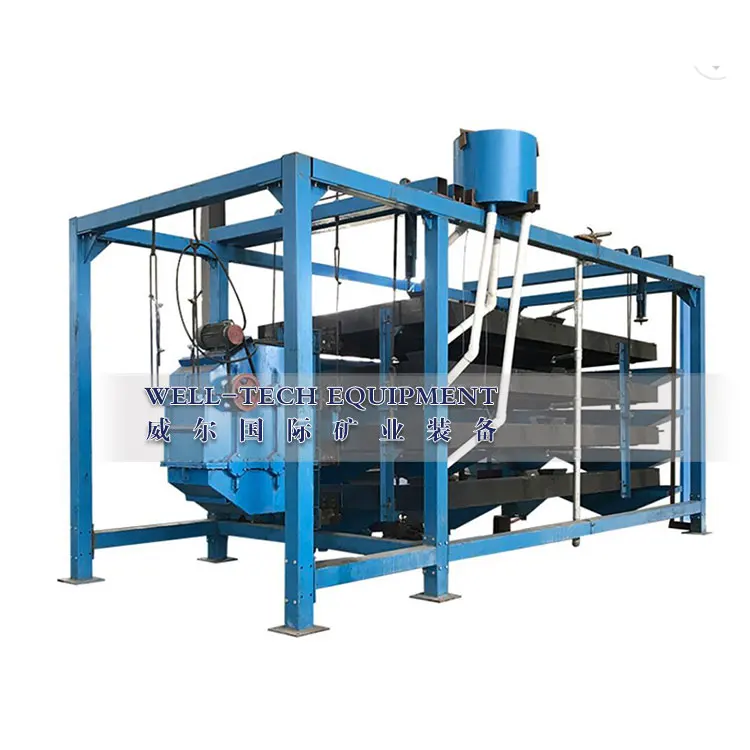

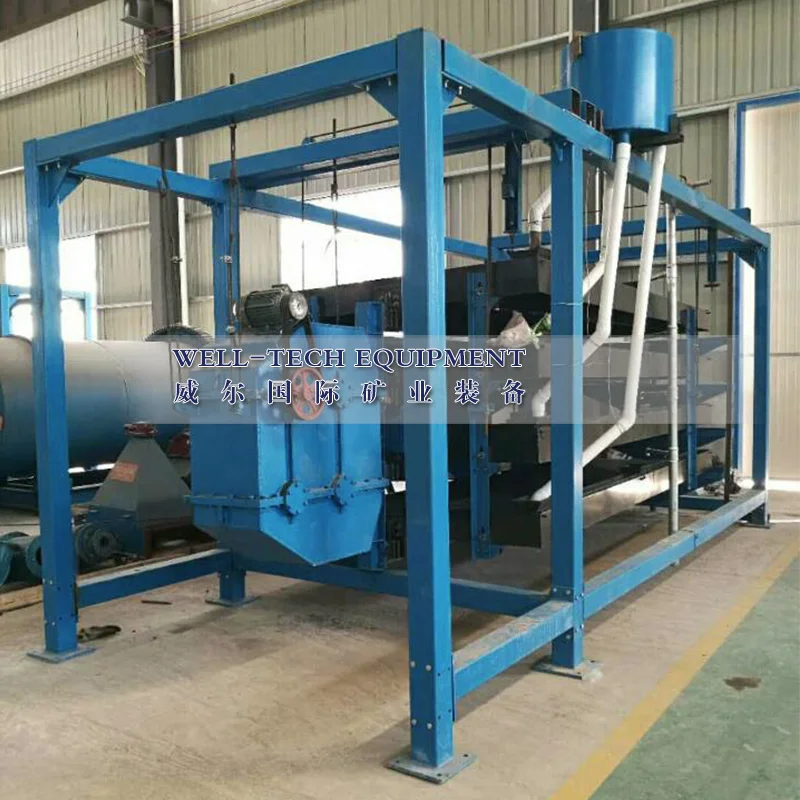

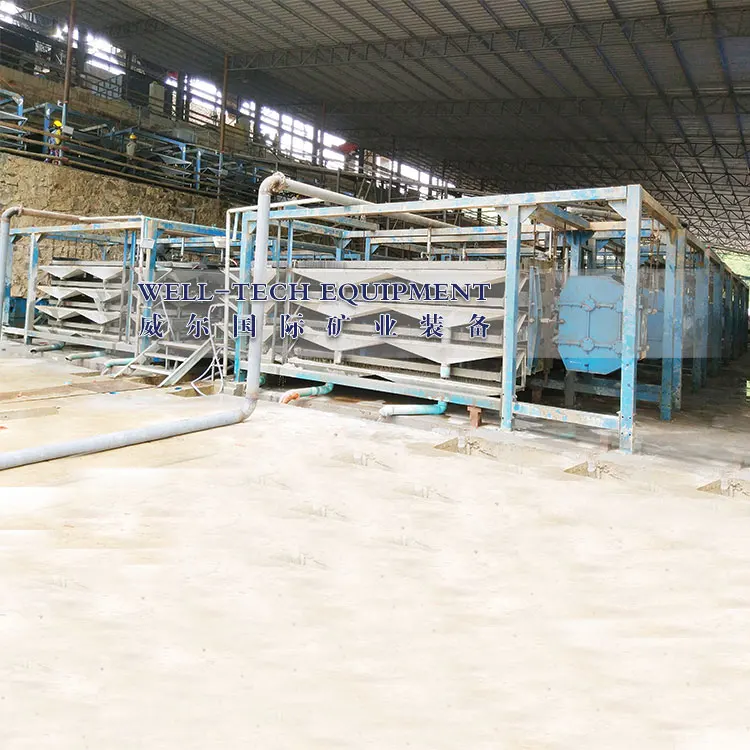

4layer Shaking table Advantages and Characteristics
l Ingenious structure of inertial gearing, self balanced vertical force component. No vertical jump because no vertical vibrating force. It can be installed on the building floor, or on the bracket
l Lift type, minimal consumption of friction, reduce vibration and energy-saving, non-required bulky base, quick and flexible installation

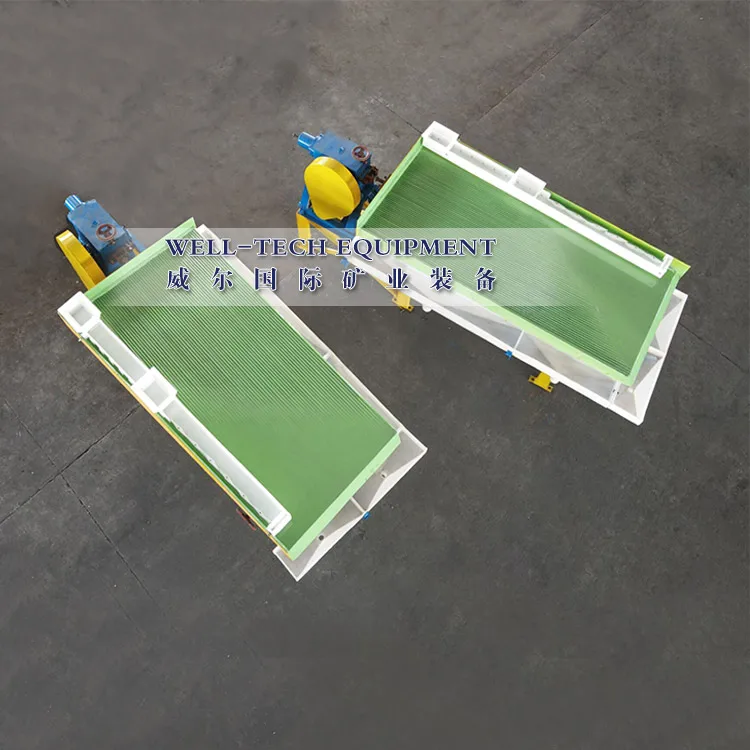

l It adopts fiberglass deck with wear-resistant layer, wear-resistant, waterproof, anti-dry, anticorrosion, non-deformed, less maintenance, long service life
l The deck installed in an uniform frame Layer-by-layer, easy to install and unload, increase processing capacity per unit area. Replace different weight blocks can change the stroke of shaking table
l It adopts variable-frequence governor, easily change frequency of stroke to adapt different material with different particle size and feature

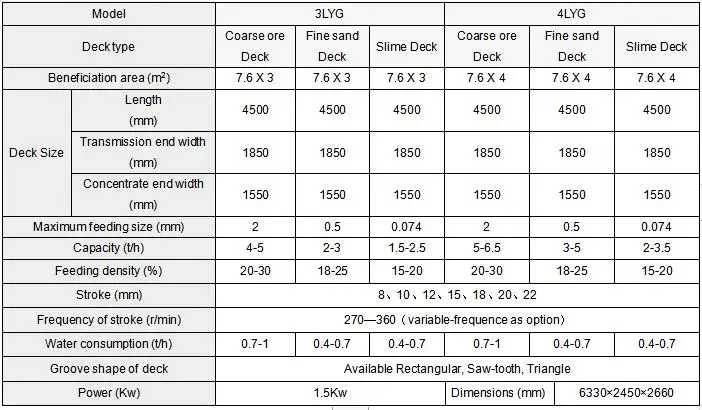

Multideck Lift Type Shaking Table Main Technical Parameters
Why Choose Us
Pre-Sales Service
Inquiry and consulting support.
Sample testing support.View our Factory.
After-Sales Service
Training how to instal the machine, training how to use the machine.
Engineers available to service machinery overseas.
