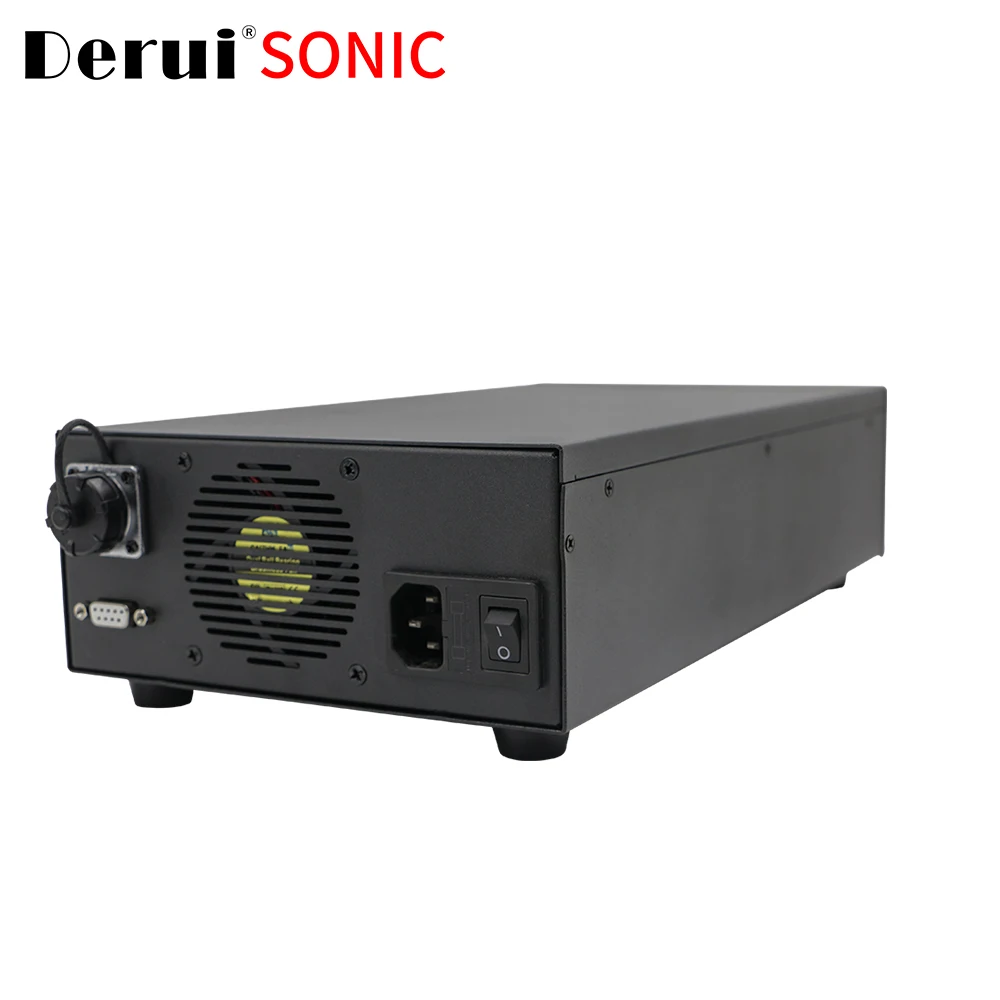

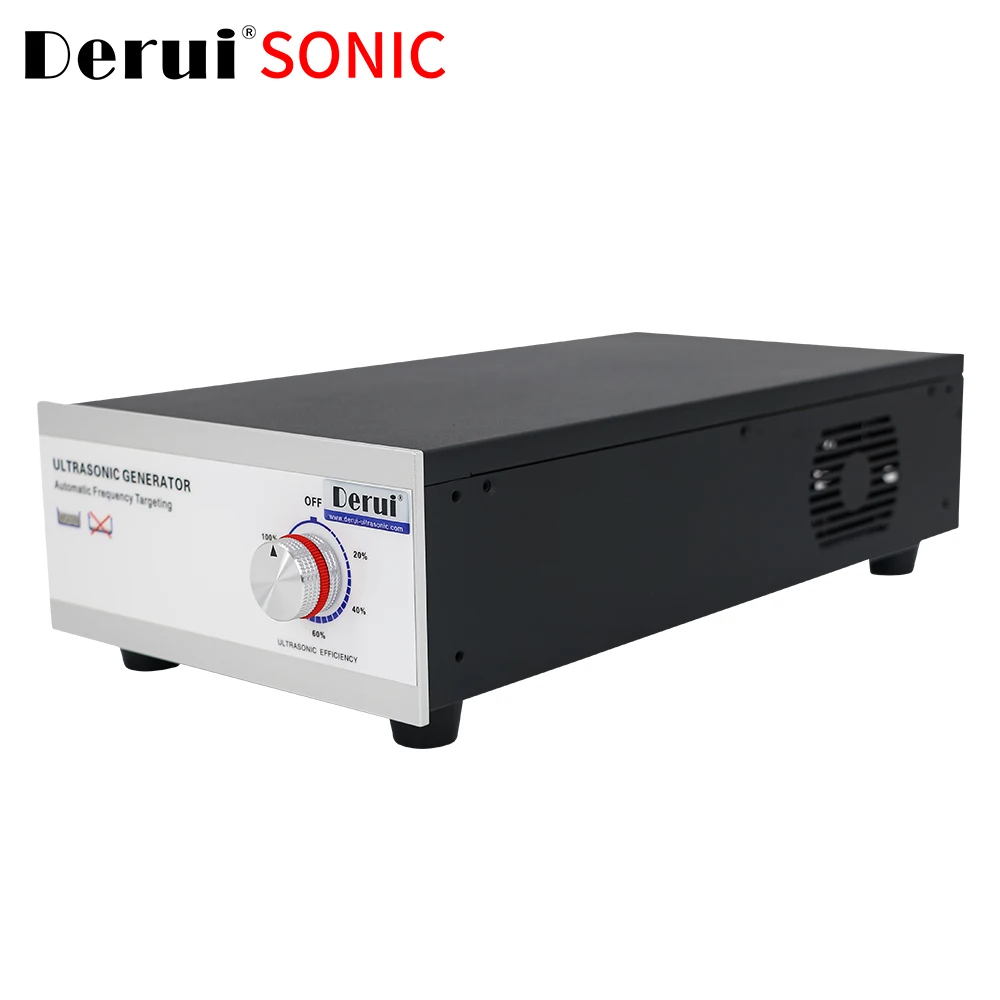

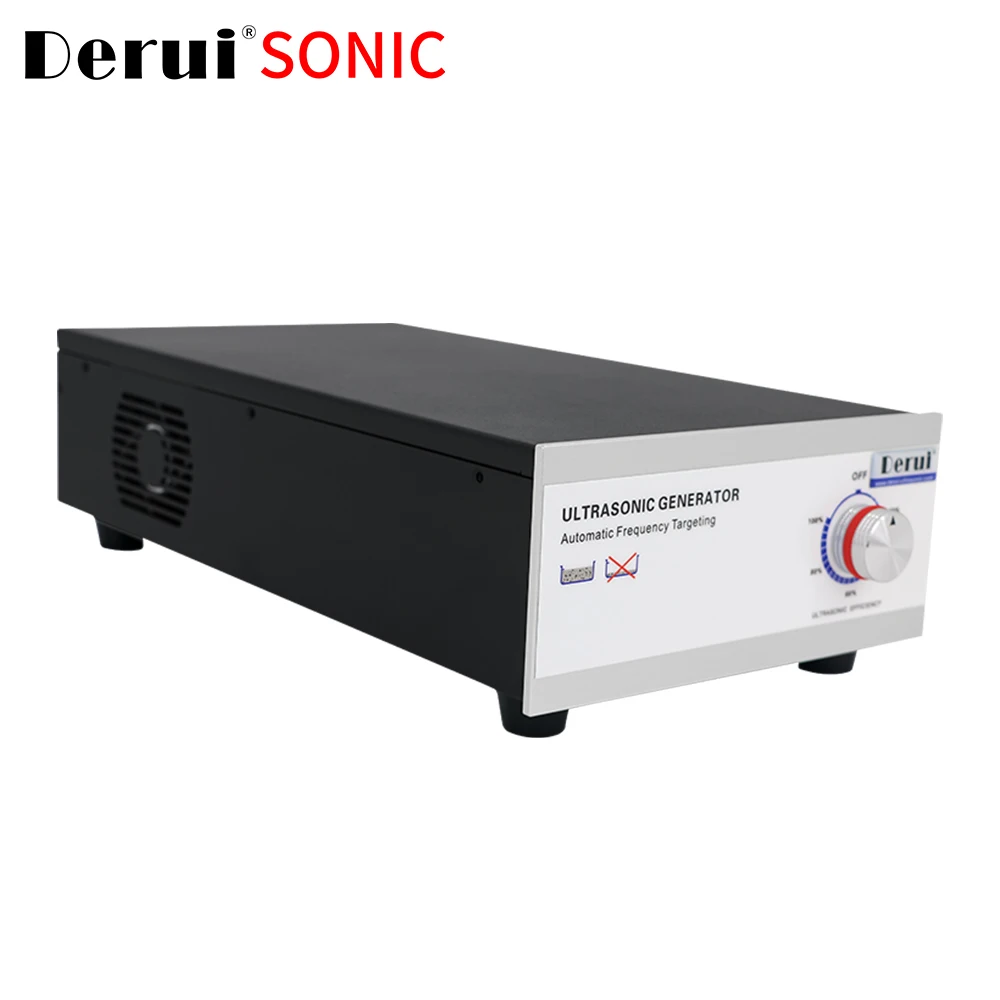

Customized Frequency 17Khz to 135Khz Ultrasonic Generator 200W to 3000W Power for Cleaner and submersible vibration plates
- Category: >>>
- Supplier: Shenzhen Derui Ultrasonic Equipment Co. Ltd.
Share on (1601099200122):
Product Overview
Description

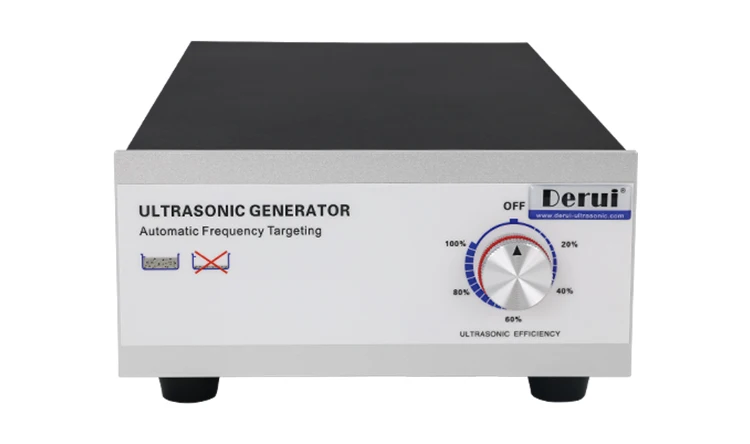

ULTRASONIC GENERATOR
When placing an order,please indicate the style,model,quantity,capacitance and working voltage of the generator,so that we can ship it.
lf you are interested in further details and applicability of the generator,please contact us at derui-ultrasonic.com.
lf you are interested in further details and applicability of the generator,please contact us at derui-ultrasonic.com.
PRODUCT PARAMETERS
Ultrasonic Frequency | 17kHz-135kHz |
Ultrasonic Power(supply voltage) | 200-1200W(110-120/220-240VAC) 1300-2600w(220-240VAc) |

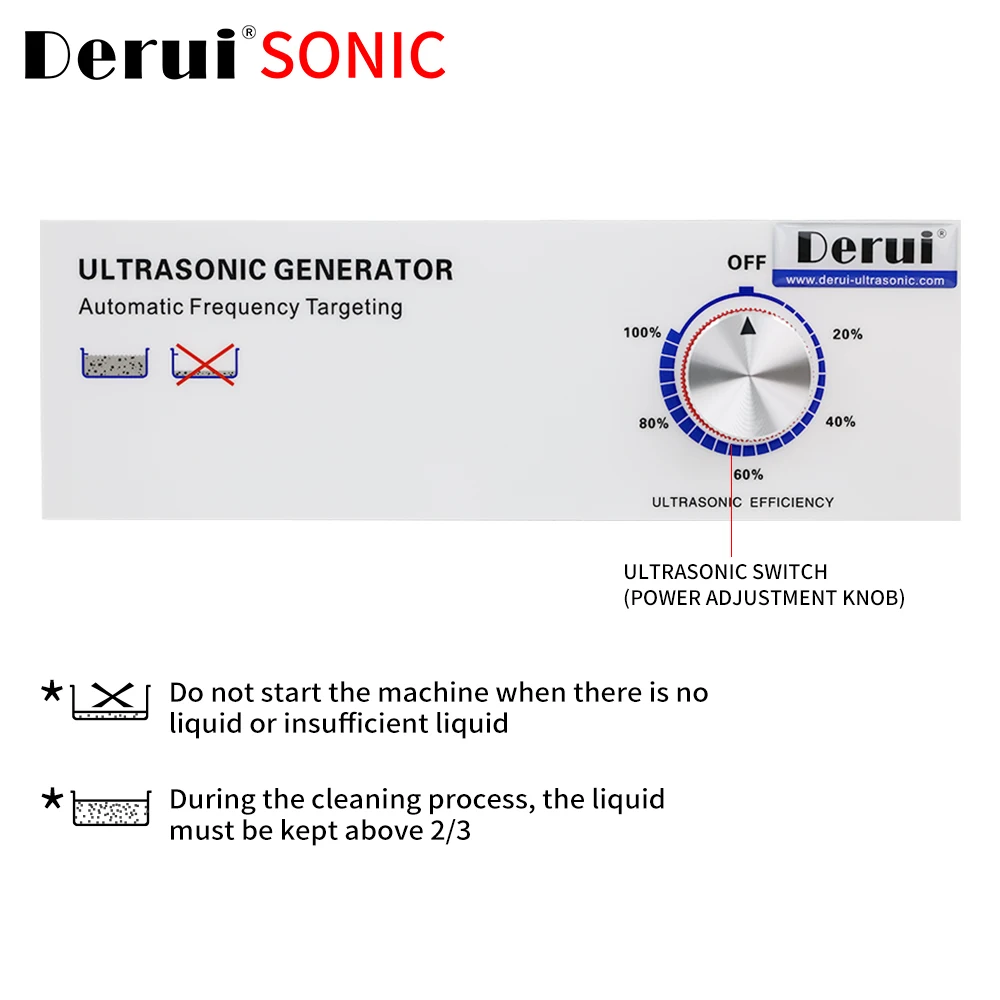

Power Adjustable | 0%-100% |
Full Bridge Phase Shift | Yes |
Constant Power Control | Yes |
Automatic Frequency-tracking | Yes |
Load Self-adaption | Yes |
Communication Interface | RS485(MODBUS RTU) |
working Temperature | 0-40°C/0-90%RH |
Protection Class | IP21 |
Size | 85*390*195 mm(L*W*H) |
Weight | 4.9kg |
Self Protection | Overcurrent、Overtemperature Overvoltage、Short Circuit |
Our Advantage
1.The factory integrating R&D, design, production and sales has better product adaptability, longer service life, faster after-sales service and lower maintenance costs. Optimum performance, fit and controllability.
2.Low resistance, high conversion performance, low parameter change with temperature change.
3.The ultrasonic circuit board is fully upgraded and adopts the V1.3 control system, stronger vibration and more stable power.
1.The factory integrating R&D, design, production and sales has better product adaptability, longer service life, faster after-sales service and lower maintenance costs. Optimum performance, fit and controllability.
2.Low resistance, high conversion performance, low parameter change with temperature change.
3.The ultrasonic circuit board is fully upgraded and adopts the V1.3 control system, stronger vibration and more stable power.

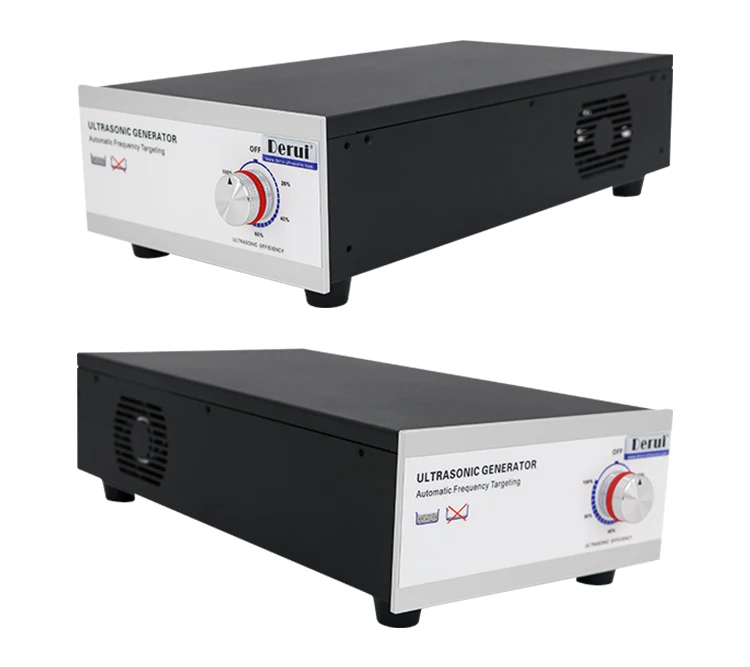

PRODUCT DISPLAY
TU series generator is an ultrasonic generator located in the field of industrial cleaning
developed by Derui after more than ten years of experience. Developed with V1.3 new
technology, it is an ultrasonic technology product with full-bridge phase shifting, constant
power output, automatic frequency tracking and automatic impedance change, which can
further improve the adaptability and stability of the generator for different working conditions.
developed by Derui after more than ten years of experience. Developed with V1.3 new
technology, it is an ultrasonic technology product with full-bridge phase shifting, constant
power output, automatic frequency tracking and automatic impedance change, which can
further improve the adaptability and stability of the generator for different working conditions.

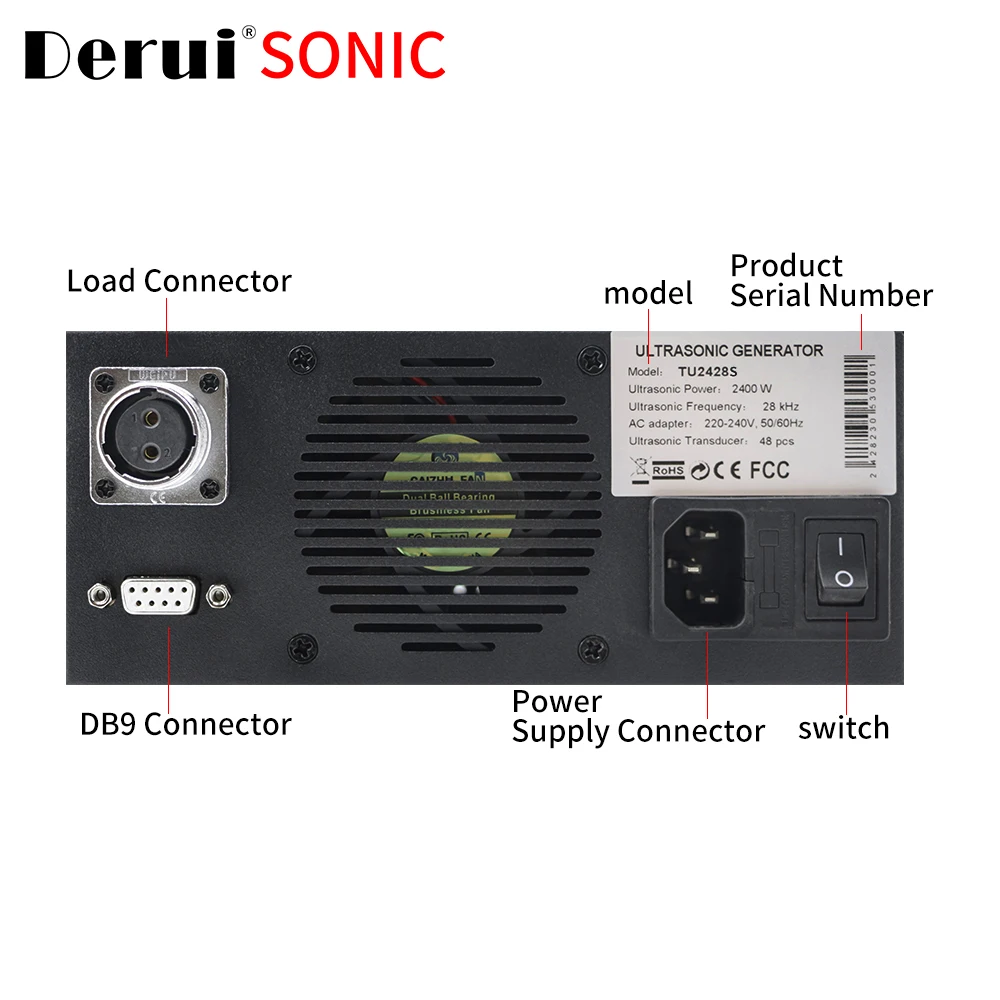

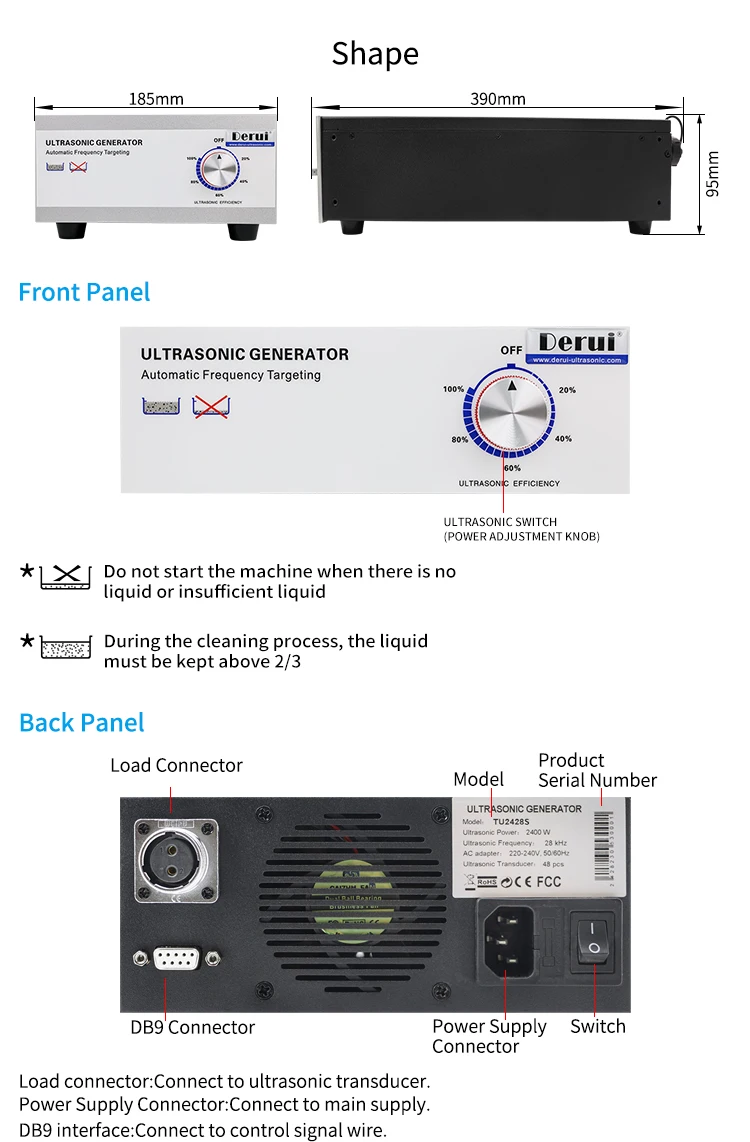

PRODUCT DETAIL

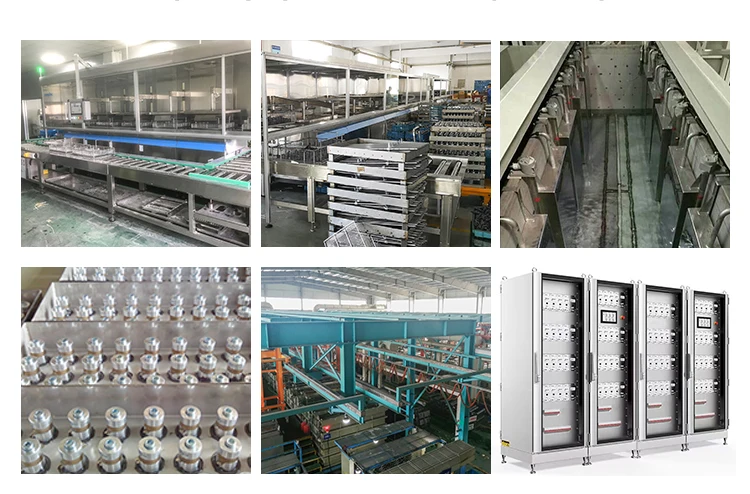

PRODUCT APPLICATION
Features
1.Adopts the V1.3 control system, stronger vibration and more stable power.
2.Develop compound cleaning working mode for stubborn stains.
3.IGBT full bridge phase shift technology,20-100% power adjustable linearly.
4.Constant power output for different working conditions.
5.Automatic frequency tracking and impedance change technology to ensure that the generator works at a suitable frequency point.
6.1.2 Times peak power technology which has better cleaning
effect to stubborn stains.
7.Frequency sweep function which can effectively eliminate
stand wave and improve ultrasonic performance.
8.Conversion efficiency up to 95%.
9.LCD touch screen, support parameter setting and status monitoring.
10.Internal protection for over current,over voltage and short circuit.
11.Remote control,connectable to PLC and HMI etc.
12.Support RS485 and MODBUS RTU communication.
13.Can be integrated into 19’’cabinet.
2.Develop compound cleaning working mode for stubborn stains.
3.IGBT full bridge phase shift technology,20-100% power adjustable linearly.
4.Constant power output for different working conditions.
5.Automatic frequency tracking and impedance change technology to ensure that the generator works at a suitable frequency point.
6.1.2 Times peak power technology which has better cleaning
effect to stubborn stains.
7.Frequency sweep function which can effectively eliminate
stand wave and improve ultrasonic performance.
8.Conversion efficiency up to 95%.
9.LCD touch screen, support parameter setting and status monitoring.
10.Internal protection for over current,over voltage and short circuit.
11.Remote control,connectable to PLC and HMI etc.
12.Support RS485 and MODBUS RTU communication.
13.Can be integrated into 19’’cabinet.

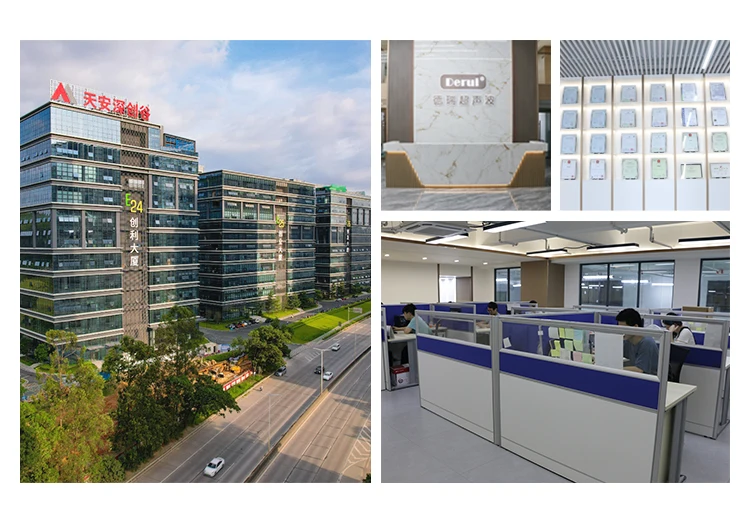

ABOUT US
About Us

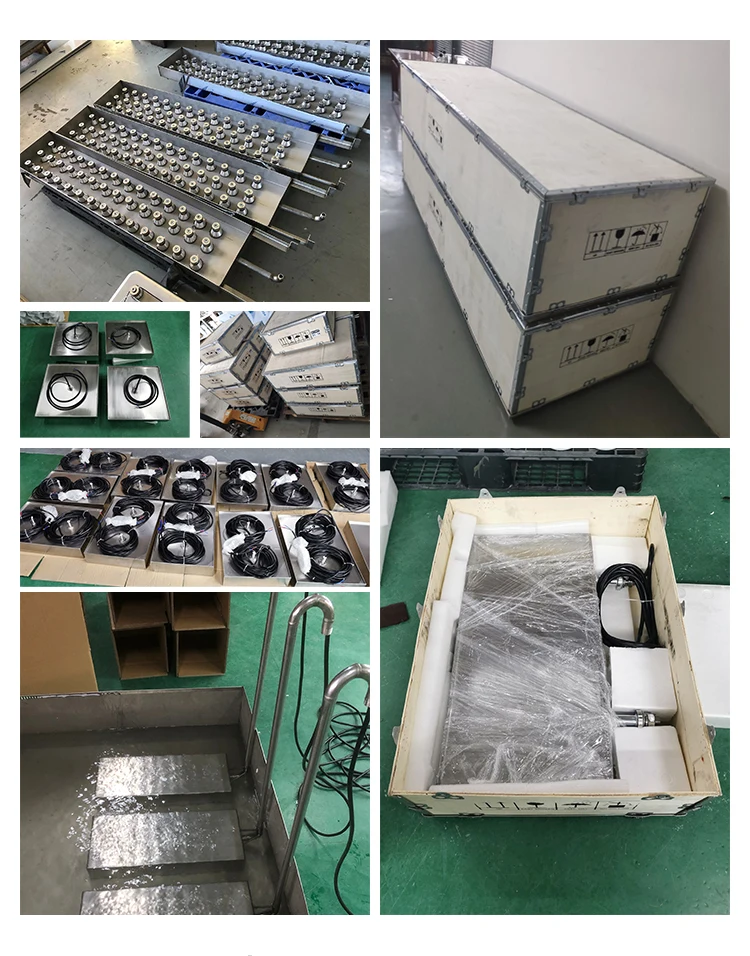

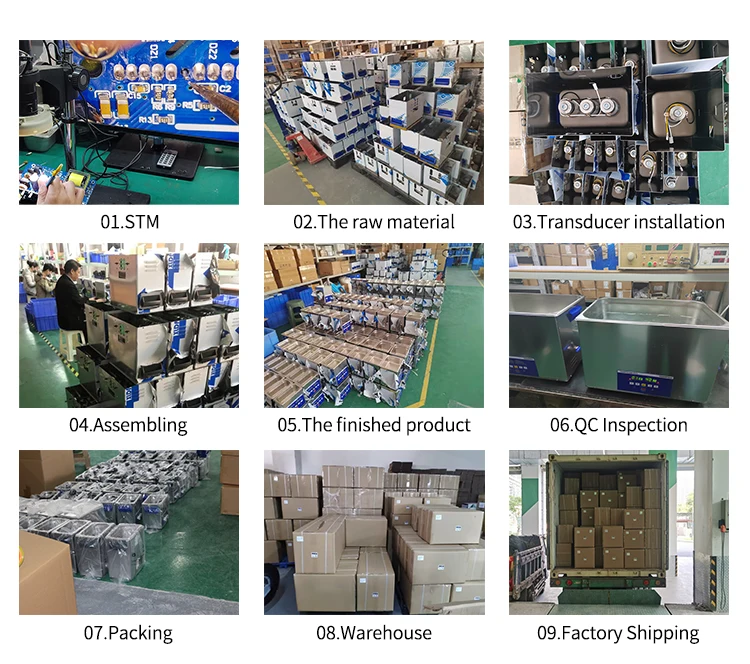

Process of production

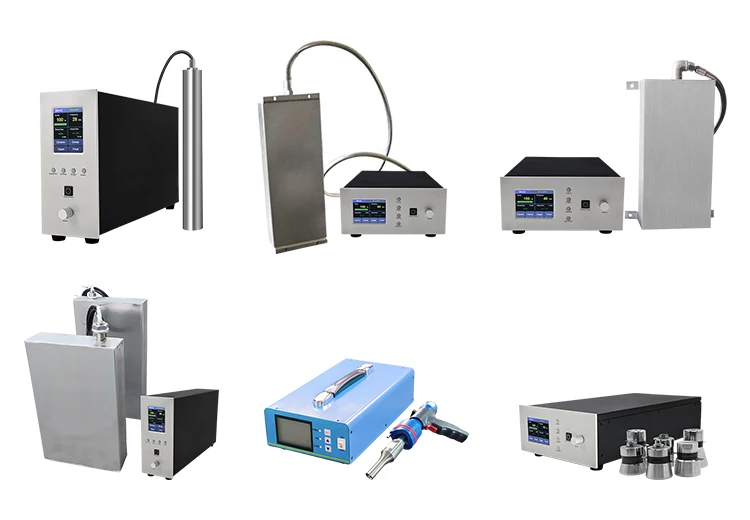

OTHER SERIES PRODUCTS
Submersible transducer and
ultrasonic generator
Power and frequency and size can be customized
according to customer requirements
ultrasonic generator

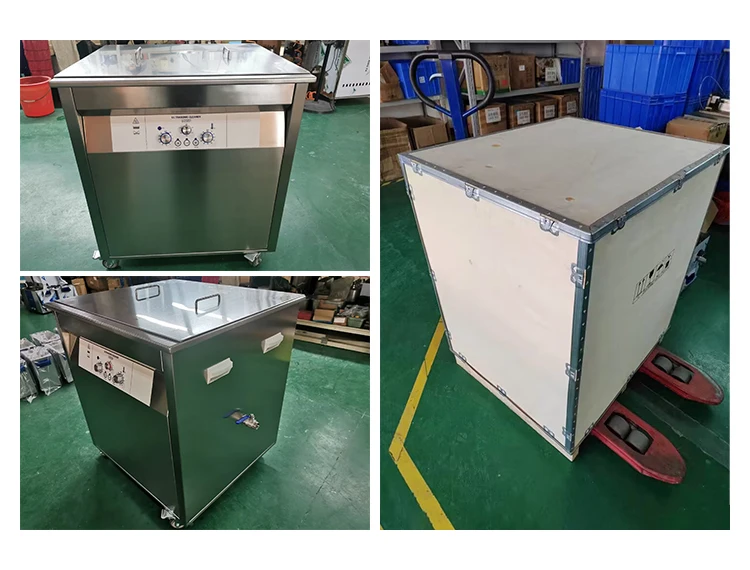

Large industrail ultrasonic cleaner
