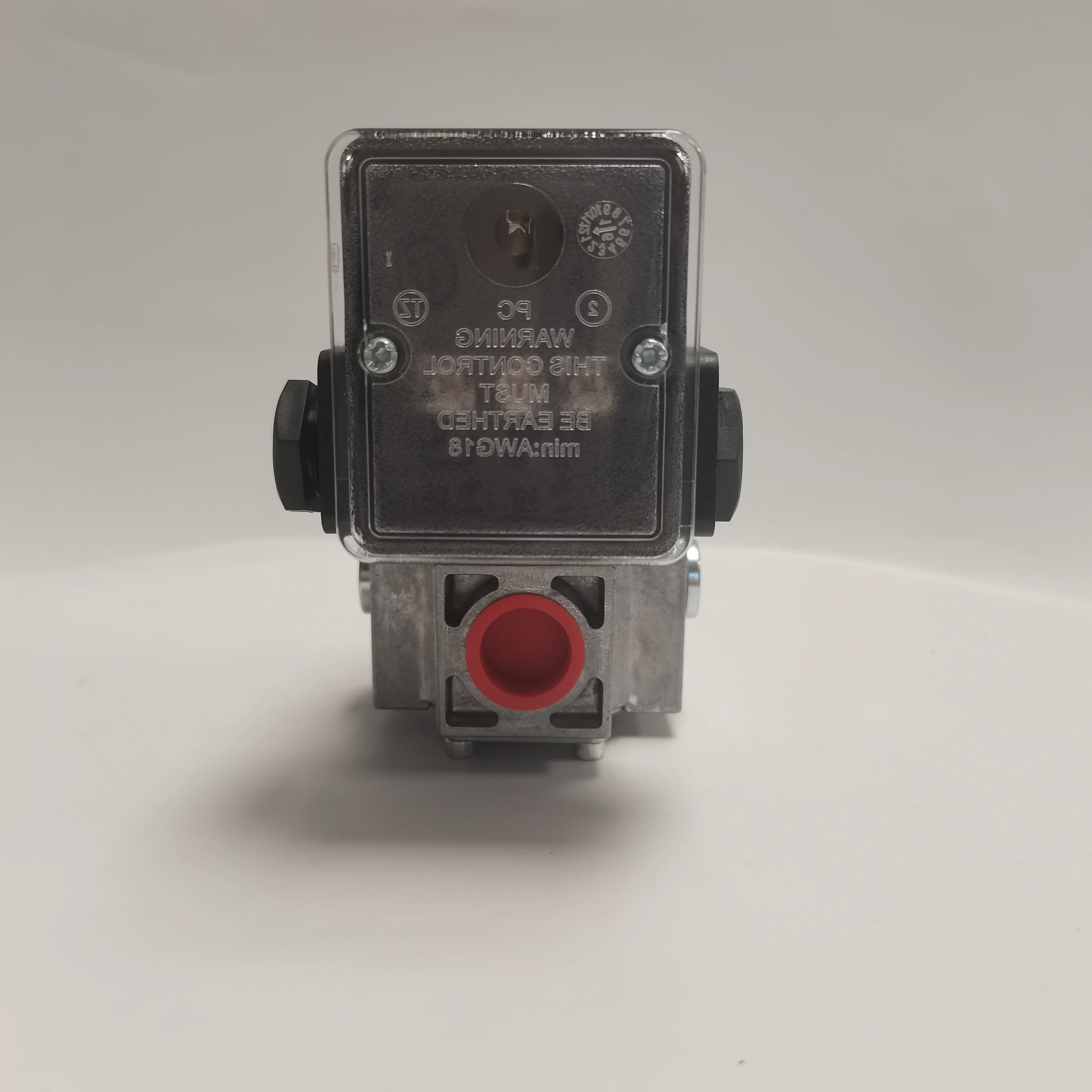

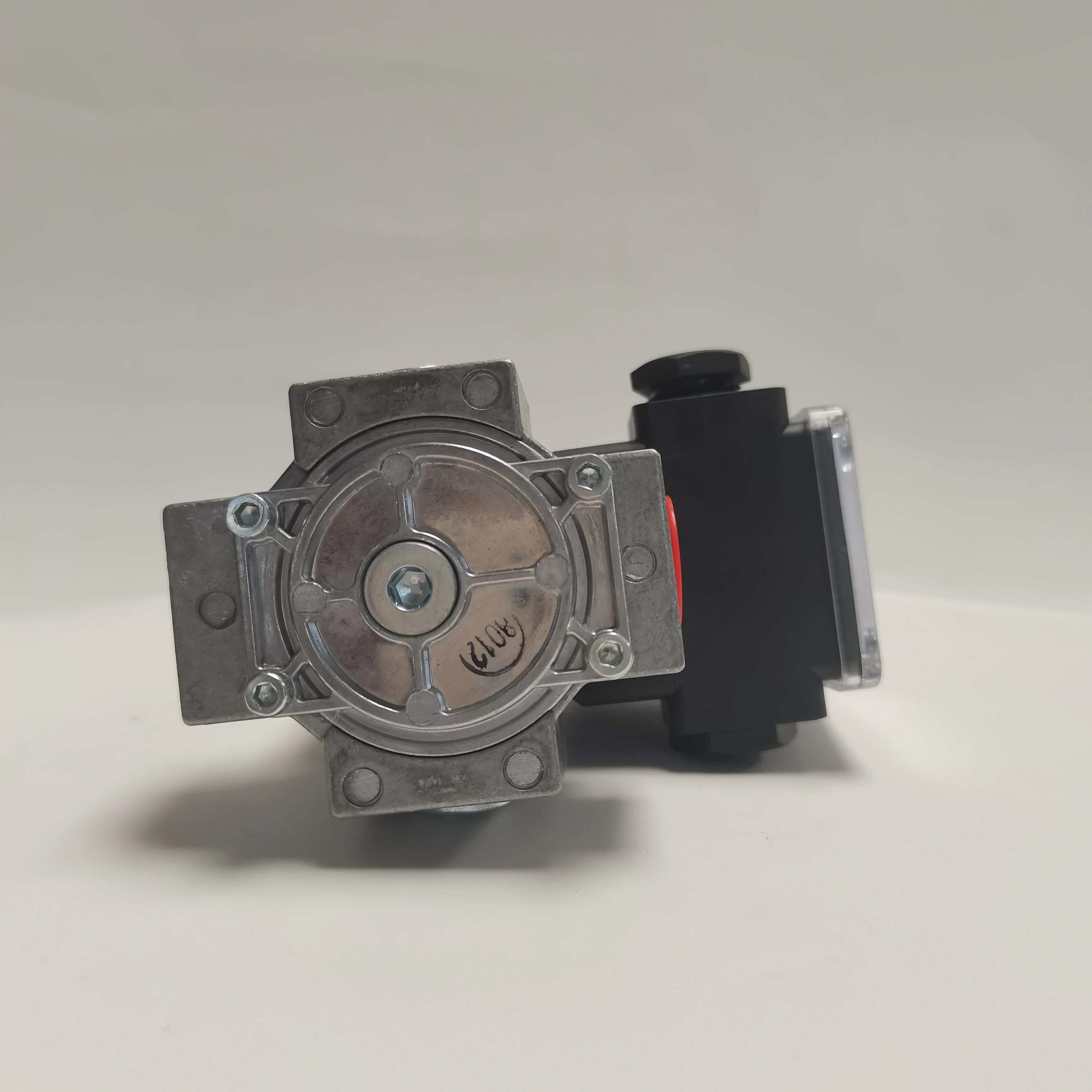

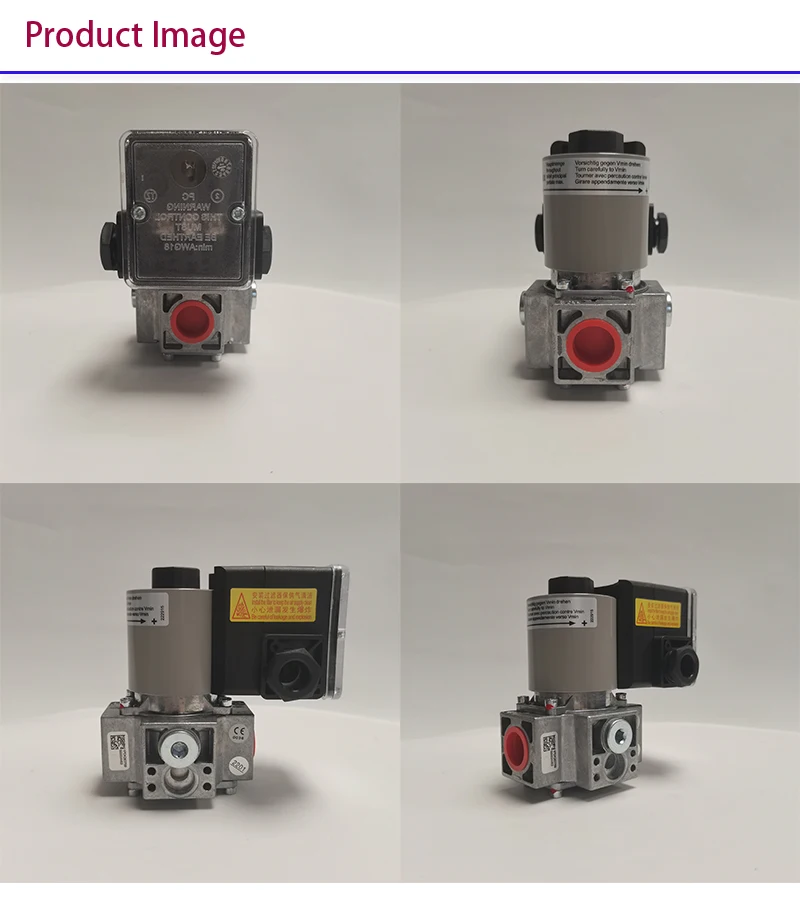

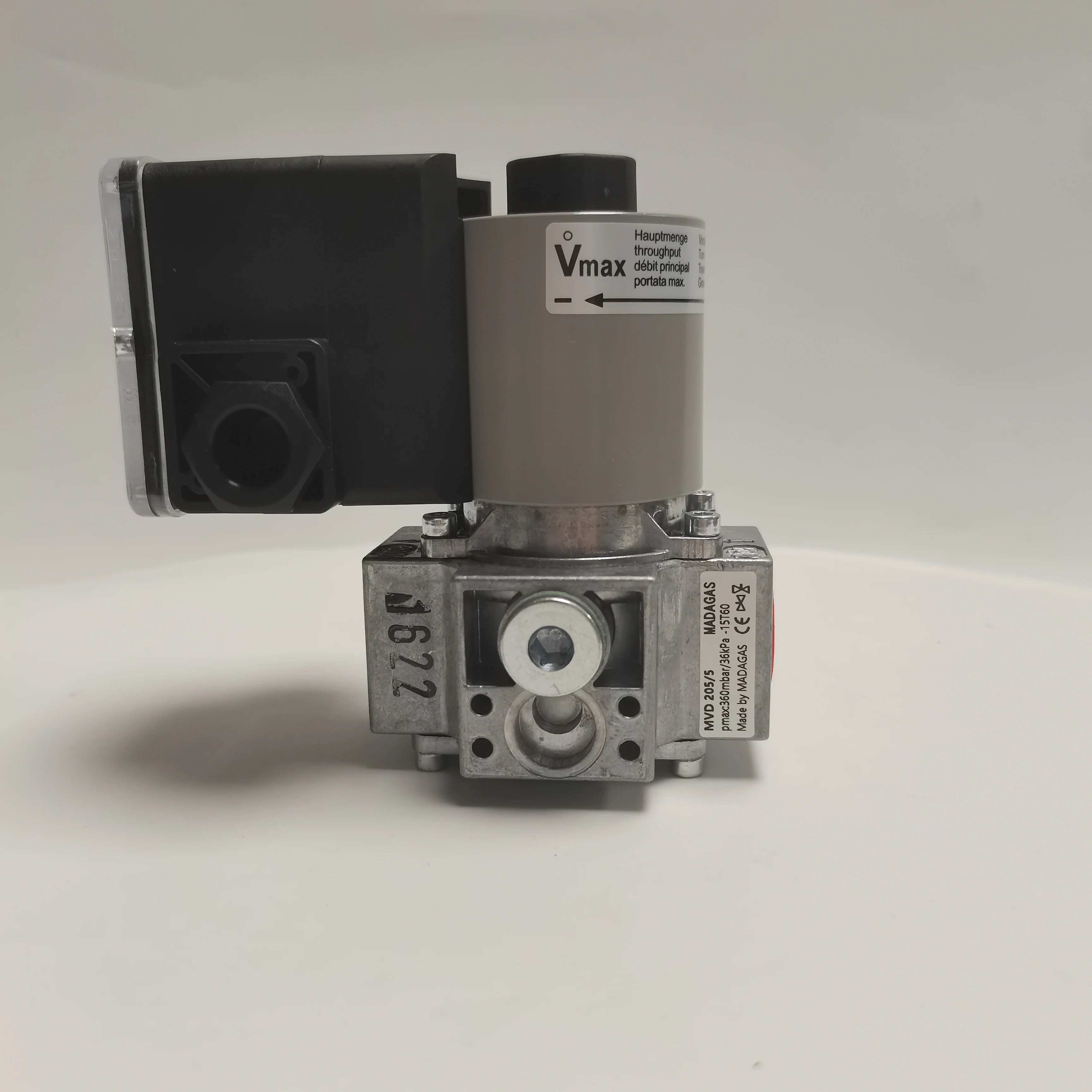

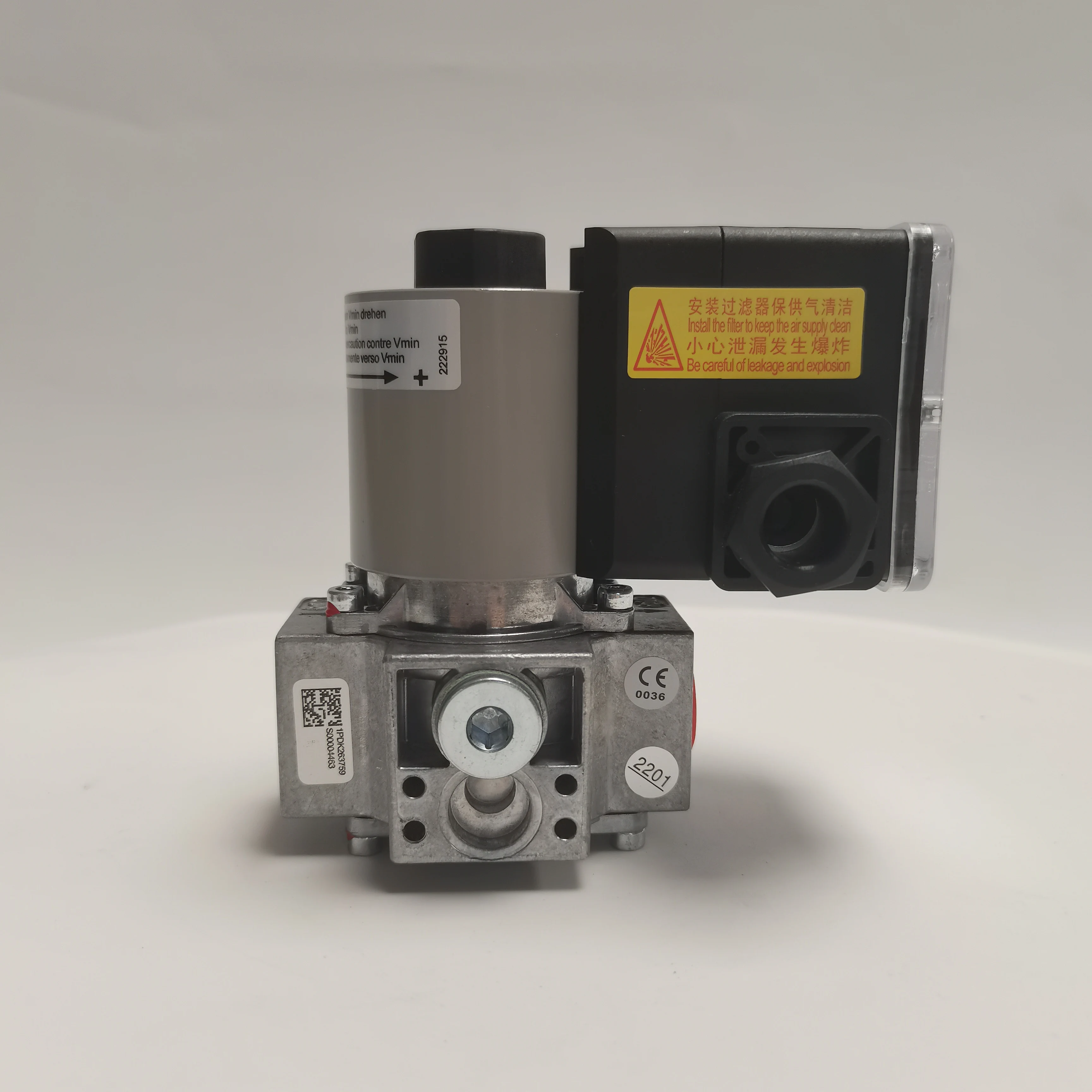

Industrial Gas solenoid valve Dungs MVD 205/5 230V IP54 PMAX Single Stage Safety Proportional gas controls Solenoid Valves
- Category: >>>
- Supplier: Foshan Jingran Electromechanical Equipment Co. Ltd.
Share on (1601099218157):
Product Overview
Description

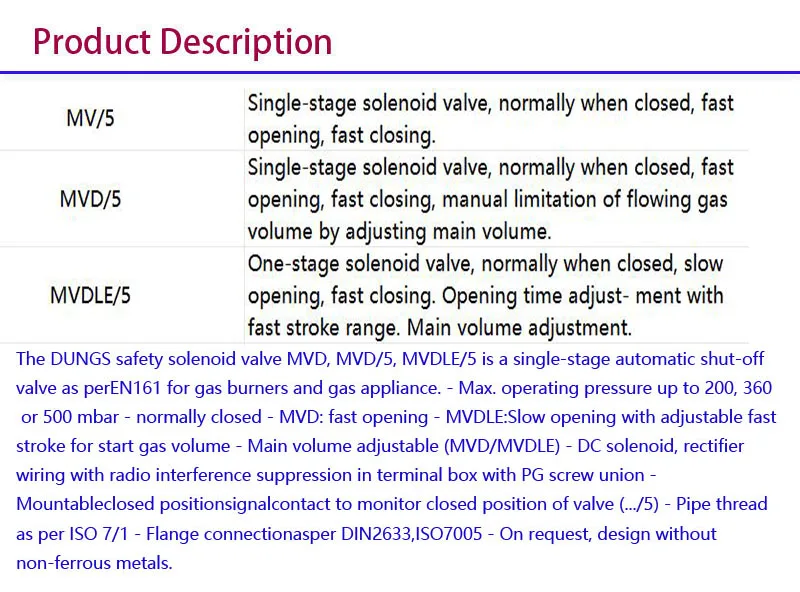

| MV | Single-stage solenoid valve, normally when closed, fast opening, fast closing |
| MVD | Single-stage solenoid valve, normally when closed, fast opening, fast closing, manual limitation of flowing gas volume by adjusting main volume. |
| MVDLE | One-stage solenoid valve, normally when closed, slow opening, fast closing. Opening time adjust- ment with fast stroke range. Main volume adjustment. |
| Medium | 1, 2, 3 and other neutral gaseous media |
| Ambient temperature | -15 ° C to +60 ° C |

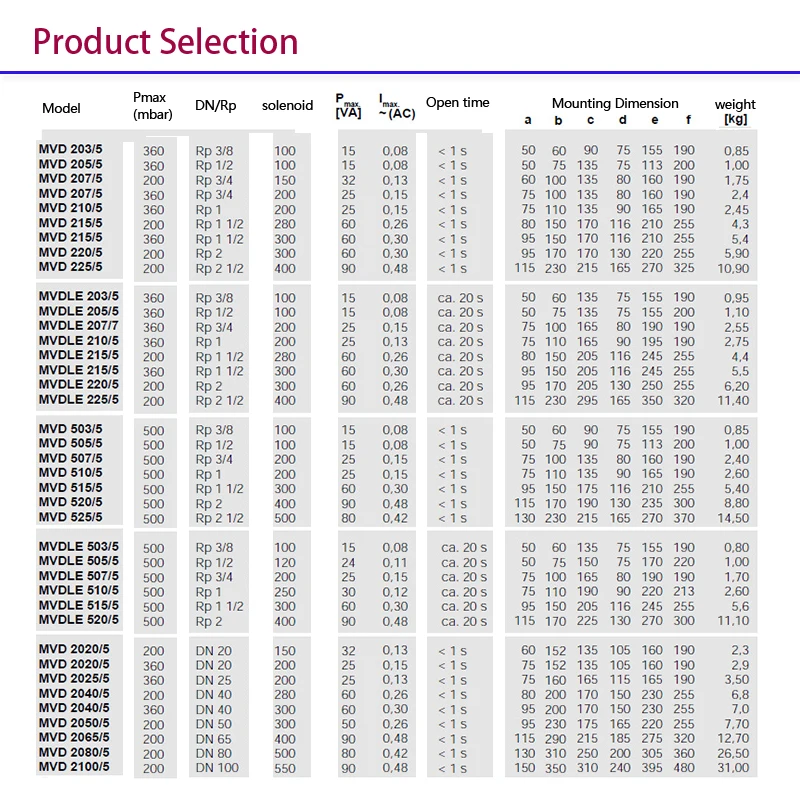

| Nominal diameters | 10 15 20 25 40 50 65 80 100 125 150 |
| RP 3/8 1/2 3/4 1 1-1/2 2 2-1/2 | |
| Max. operating pressure | Up to 200 mbar (20 kPa), 360 mbar (36 kPa) or up to 500 mbar (50 kPa) - refer to type overview |
| Solenoid valve | Class A, Group 2, single-stage mode |
| Closing time | <1S |
| Opening time | <1S, for MVDLE approx. 20s at room temperature 20°C and without fast stroke |
| Materials of gas-conveying parts | Housing: aluminium, steel, brass |

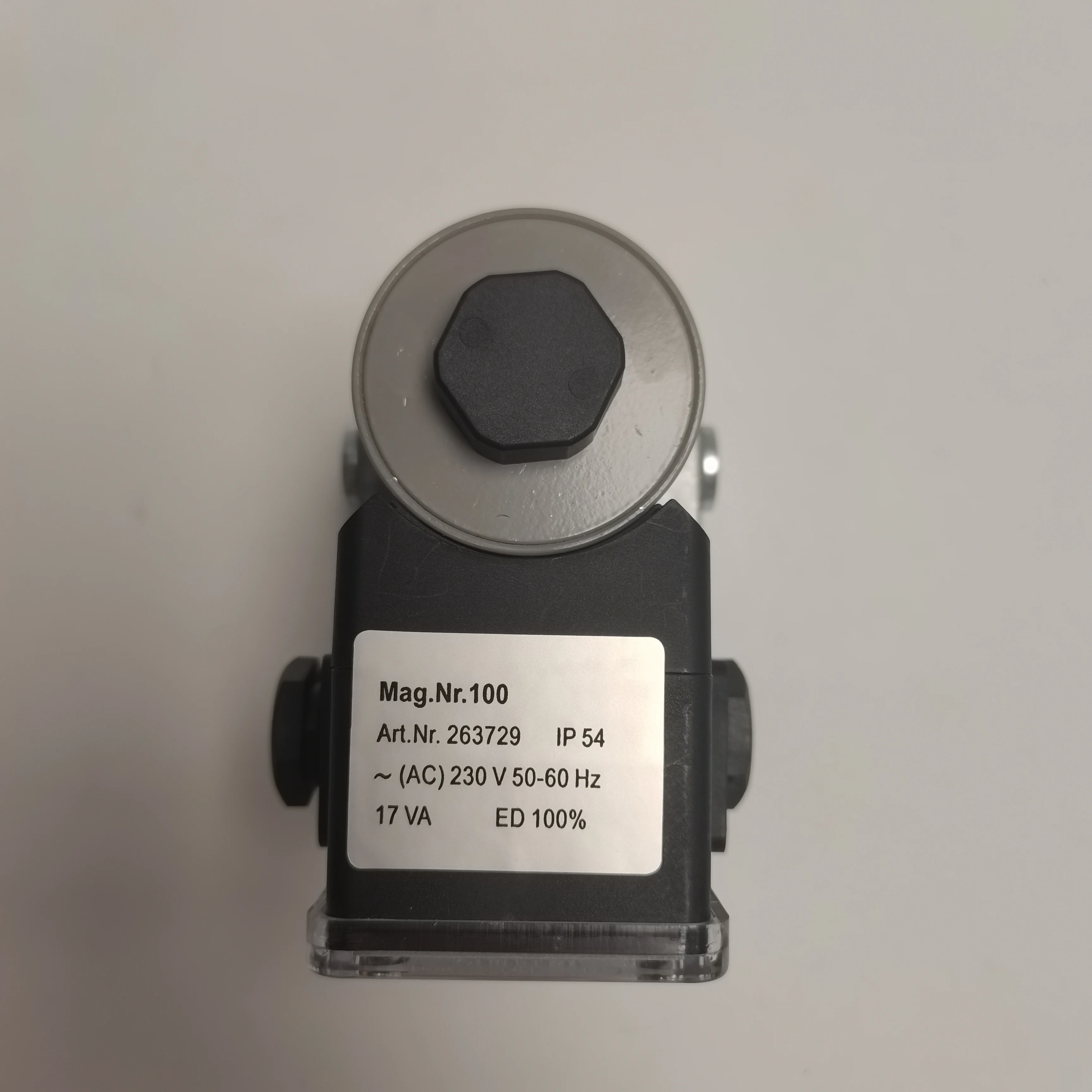

| Rating / power consumption | 230 V AC (+10 % -15 %); 50-60 Hz - other voltages on request, Refer to type overview |
| Degree of protection | IP54 |
| Electrical connection | Spring quick wire terminal, screw terminal, solenoid valve special wiring, plug can be offered additionally |
| Working status display: LED indicator shows blue as working status | |
| Measuring/ignition gas connection | On both sides in inlet section, additionally G 3/4 on input side, from size DN 40 (flange) upwards |
| Switching rate | MV/MVD series:max1000/h |
| MVDLE series:max 100/h | |
| Dirt trap | Sieve installed, mesh width 1 mm |
| Installation position | Solenoid from vertically upright to horizontally lying |
