FSC BP108B RTLS URL/UID/TLM Personal Asset Tracking iBeacon CR3032 Smallest Smart Sensors Bluetooth Air Tag for IoT Solution
- Category: >>>
- Supplier: Shenzhen Feasycom Co. Ltd.
Share on (1601099310047):
Product Overview
Description
Products Description

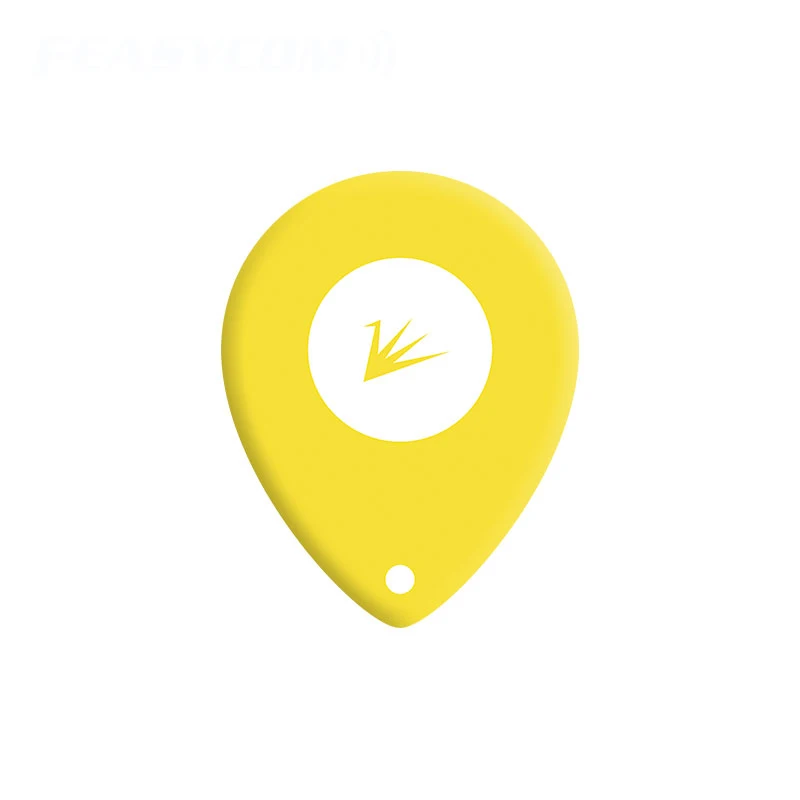

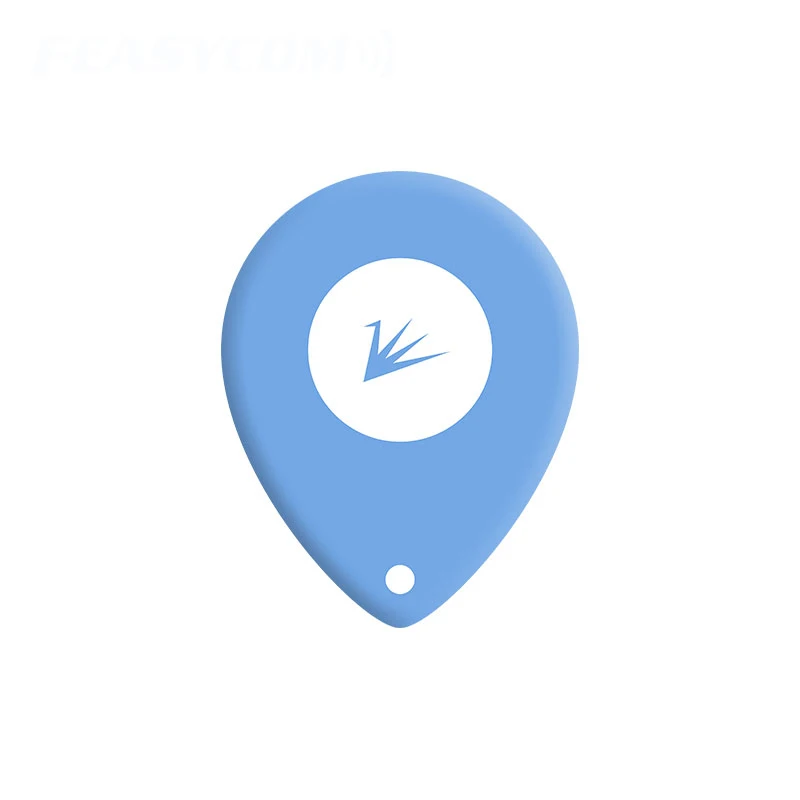

FSC-BP108B is an innovative waterproof IP67 Bluetooth 5.1 Low Energy smart beacon with a super-long battery life up to 6 years (battery can be replaced when it is exhausted). It simultaneously supports iBeacon, Eddystone (e.g. URL, UID, TLM), and AltBeacon for broadcasting and provides the ability to advertise up to 10 slots of advertising frames.
With the iOS & Android FeasyBeacon SDK, the developers can take advantage of the flexibility of the SDK and focus on their own applications, such as Broadcast, Proximity Marketing, Digital Signage, Indoor Location, Asset Tracking, Vehicle Tracking, etc.
Features
* Advertising distance up to 400m (open area)
* IP67 waterproof protection
* FCC/IC/CE/TELEC/KC certifications
* Locator-Shape Bluetooth Beacon with design patent
* Bluetooth 5.1 compliant
* Pre-programmed with Feasycom standard beacon firmware

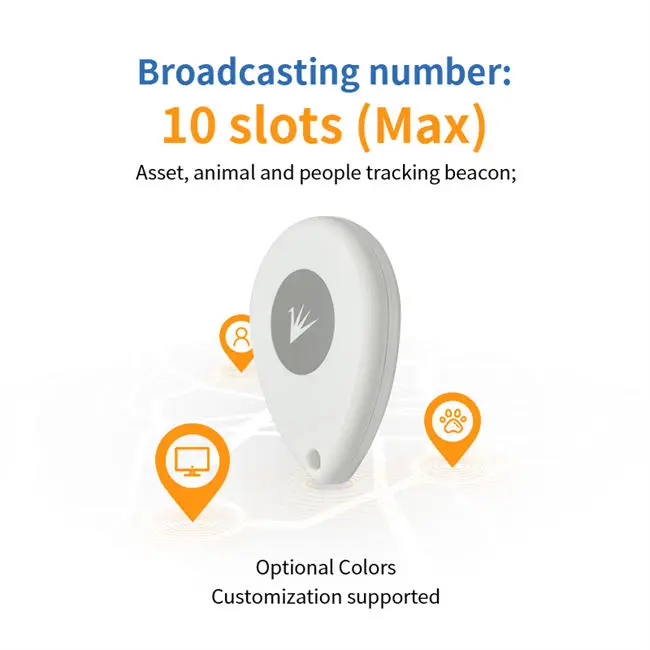

* Up to 10 slots of advertising frames
* Portable smart beacon with 6 years battery life (by default settings)

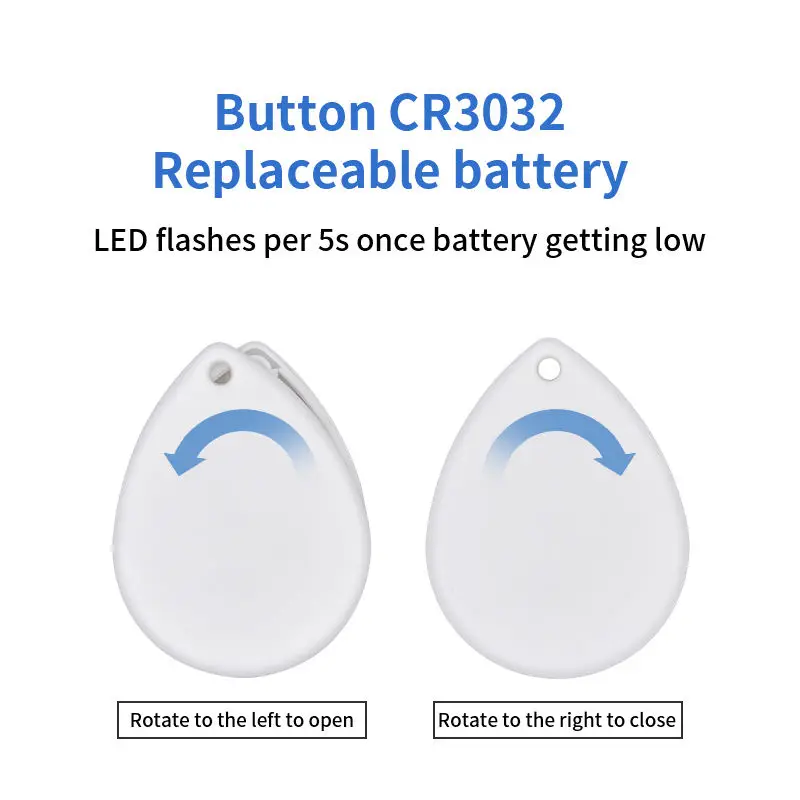

* Battery can be Replaced when it is Exhausted

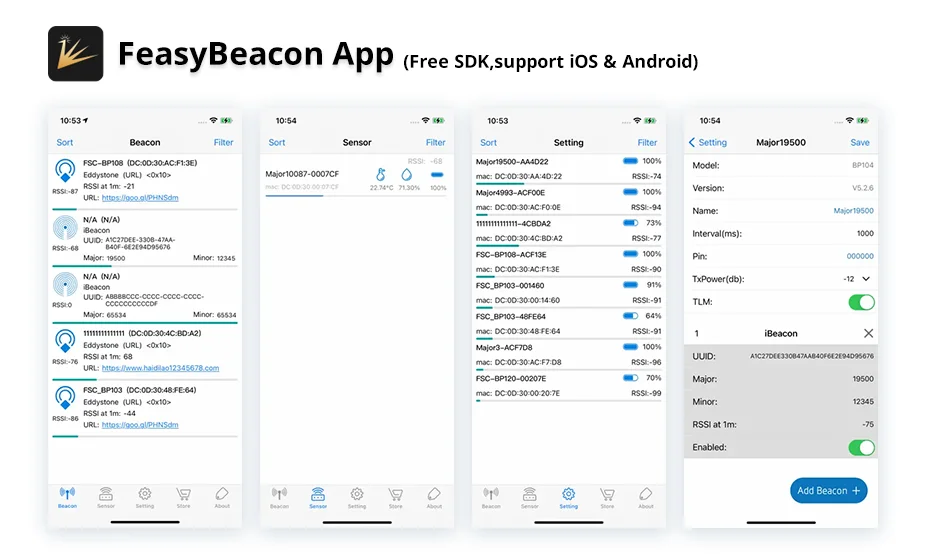

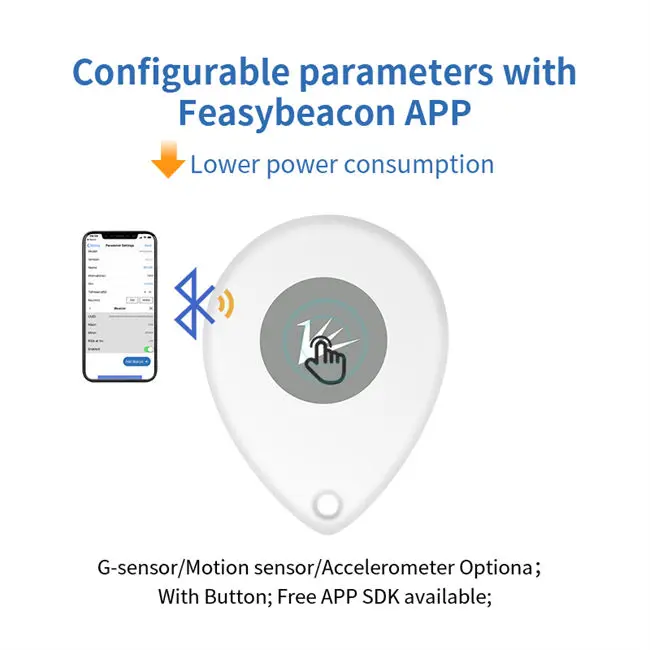

* Configurable by free FeasyBeacon mobile App and SDK
* Customizable color, logo, hardware and software
* IP67 waterproof protection
* FCC/IC/CE/TELEC/KC certifications
* Locator-Shape Bluetooth Beacon with design patent
* Bluetooth 5.1 compliant
* Pre-programmed with Feasycom standard beacon firmware
* Up to 10 slots of advertising frames
* Portable smart beacon with 6 years battery life (by default settings)
* Battery can be Replaced when it is Exhausted
* Configurable by free FeasyBeacon mobile App and SDK
* Customizable color, logo, hardware and software

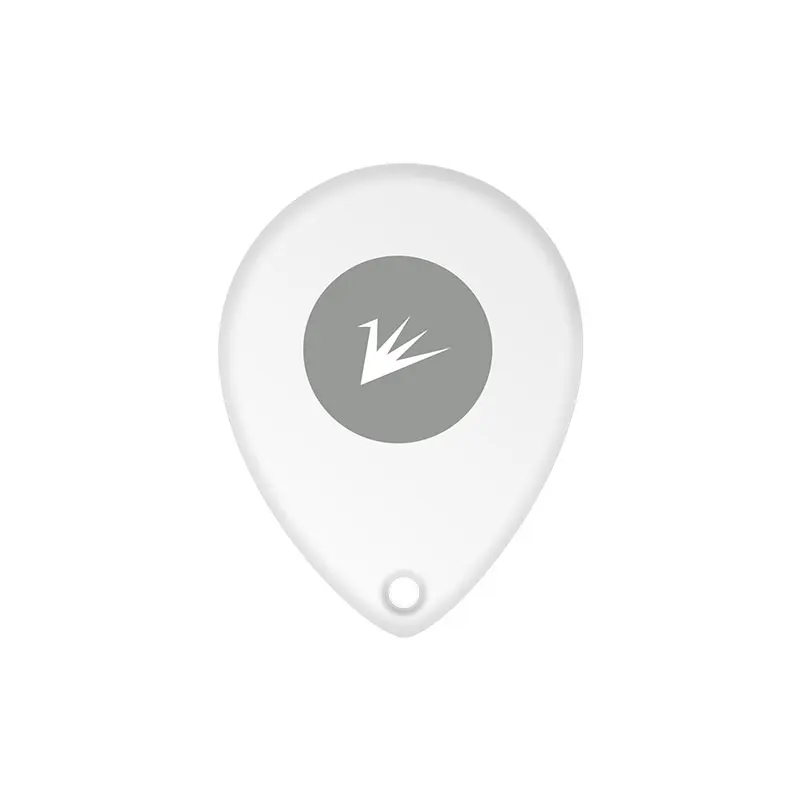

With coin battery design and plastic material, the bluetooth advertising beacon is very small in size and the location tracking beacon is convenient to take and it is wearable through a hole designed on the top of the beacon.
Addtional functions
1. Button beacon: it is a panic SOS button beacon;
2. 3 axis accelerometers beacon: it is a beacon which can track the movement of things;
3. IP67 Waterproof BLE beacon: it can be used in outside wet environment;
Addtional functions
1. Button beacon: it is a panic SOS button beacon;
2. 3 axis accelerometers beacon: it is a beacon which can track the movement of things;
3. IP67 Waterproof BLE beacon: it can be used in outside wet environment;
Specification
Functional Specifications | ||
Item | Description | |
Advertising Format | Eddystone(URL/UID/TLM),iBeacon,AltBeacon | |
Configuring Method | FeasyBeacon SDK compiled app (e.g.FeasyBeacon app) | |
Advertising Interval | Default 1300ms,range from 100 ms to 10000 ms | |
Security | Access password required,Default Pin Code 000000 | |
Max Number of Broadcast | 10 Slots configurable advertising frames | |
Default Broadcast Interval | iOS 7.0+, Android 4.3+ | |

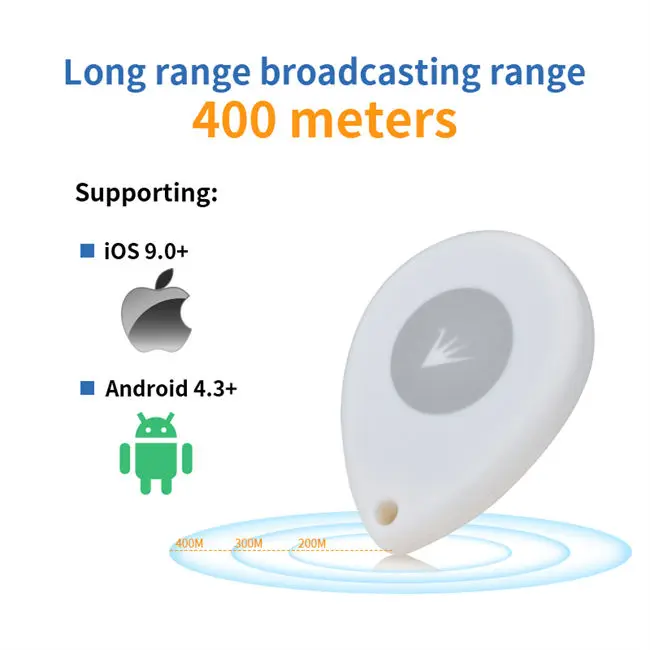

Advertising Distance | Up to 400m (open area) | |
Firmware Upgrading | OTA (upgrade firmware over the air) | |
Product Specifications | ||
Item | Description | |
Chipset | DA14531 | |
Bluetooth Version | Bluetooth 5.1 | |
TX Power | -19.5 dBm to +2.5 dBm | |
Antenna | PCB serpentine antenna | |
Power Supply | CR3032 | |
Battery Lifre | 6 Years (ADV Intercal = 1300 ms; TX Power = 0dBm) | |
Material | ABS plastic | |
Color | White, Blue, Yellow, or Customized | |

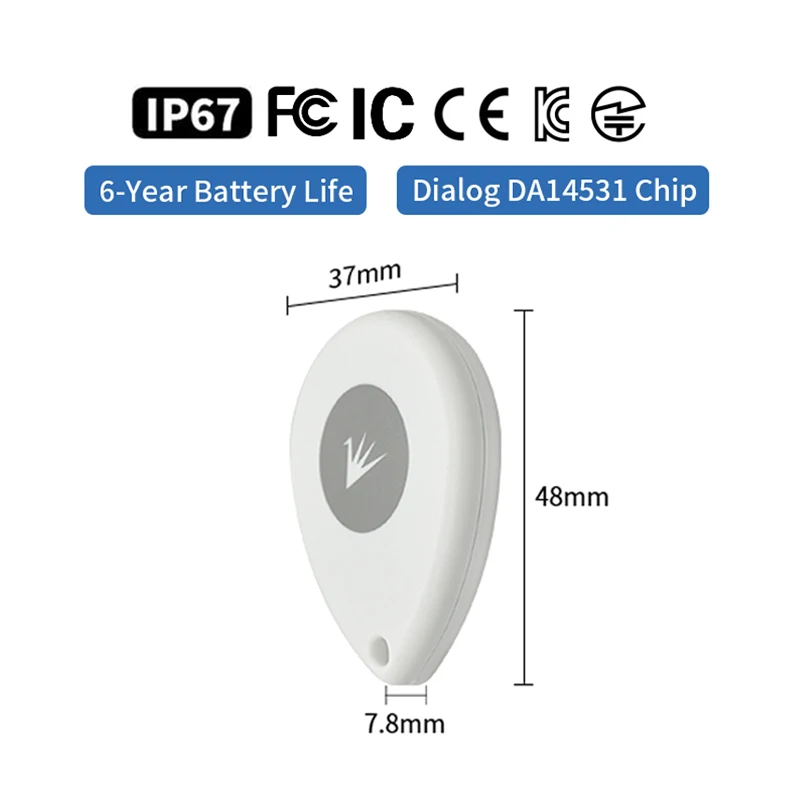

Size | 48(L)mm * 37(W)mm * 7.8(H)mm | |
Net weight | 15g | |
Protection | IP67 | |
Operating temperature | -20℃ to +60℃ | |
Application Scenario
Beacon is a class of bluetooth low energy BLE devices that broadcast their identifier to nearby portable electronic devices such as mobilephone, tablet and so on.
The portable electronic devices can use the broadcast identifier to determine and track the beacon's physical location, monitor the movement tacks, or trigger a location based action on device such as a check-in social media or a push notification.

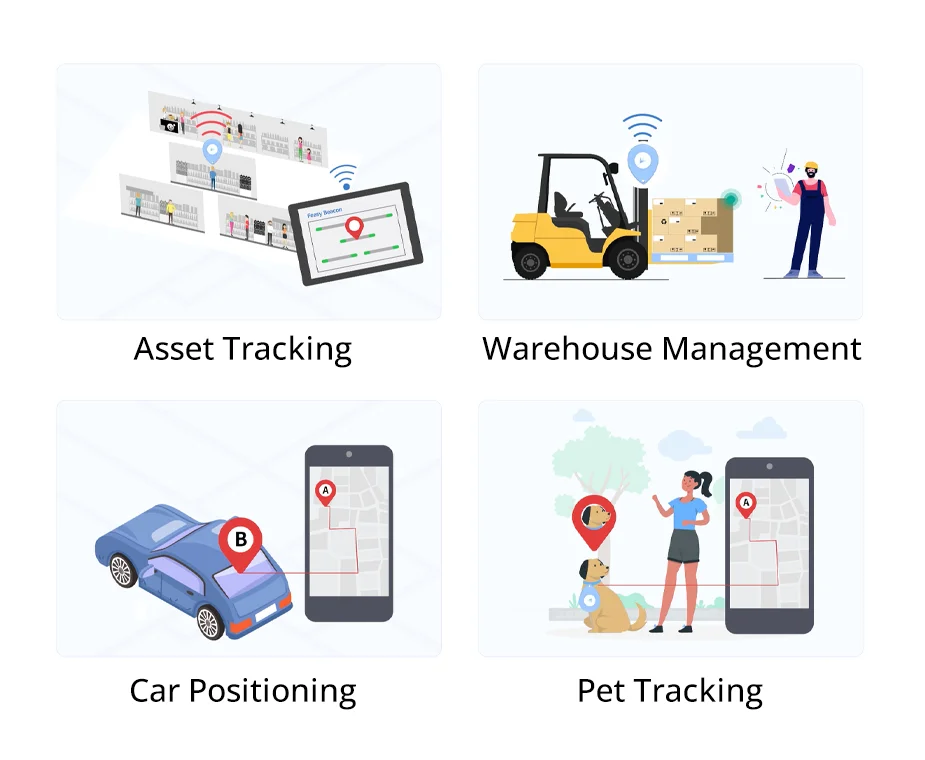

By catching the broadcastions, beacons's application scenarios are:
By catching the broadcastions, beacons's application scenarios are:
Marketing messages or notification push:
1. One application is distributing messages or notifications to the mobilephone's screen, such as at the gate of shopping mall, parking slots, a bus stop and do on.
1. One application is distributing messages or notifications to the mobilephone's screen, such as at the gate of shopping mall, parking slots, a bus stop and do on.
Positioning of beacon's carrier:
people(baby, student, the senior, patient,), assets (property), animal (pets), things and so on.
2. The other applications is an indoor positioning system, which helps smartphone users to know the beacon's approximate location.
2. The other applications is an indoor positioning system, which helps smartphone users to know the beacon's approximate location.
It simultaneously supports iBeacon, Eddystone (e.g. URL, UID, TLM), AltBeacon for broadcasting and provides the ability to advertise up to 10 slots of advertising frames.
Company Profile
Feasycom focuses on the researching and developing of IoT (internet of things) products, including Bluetooth Modules
,Bluetooth&Wi-Fi modules and beacons. With more than 10-year experiences in the wireless connectivity, which ensure us have the ability of R&D, manufacturing, QC and shortening product customization cycle to thousands of diverse customer worldwide.
Feasycom's engineering and design services include:
,Bluetooth&Wi-Fi modules and beacons. With more than 10-year experiences in the wireless connectivity, which ensure us have the ability of R&D, manufacturing, QC and shortening product customization cycle to thousands of diverse customer worldwide.
Feasycom's engineering and design services include:
* SDK
* APP Support
* PCB Design
* Development Board
* Firmware Development
*Depth Customization
* Certification Request
* Turn-Key Production Testing & Manufacturing
Our products and services mainly apply to Automotive, Point of Sale, Home Automation, Healthcare and Engineering, Banking, Computing, Vending Business, Location,
Lighting and more. Aiming at "Make Communication Easy and Freely", Feasycom is dedicated to design and develop high-quality products, efficient services to customers, for today, and all days to come.
Exhibition
Certifications
Customer Evaluation
FAQ
Q1.Are you a manufacturer or a trading company?
A1: We are a manufacturer.
Q2.Can you do ODM or OEM for us?
A2: We are glad to offer custom service for you, we have an experienced engineers team who will provide you with a complete solution according to your requirements.
Q3.What payment mothods do you accept?
A3:Paypal,T/T,W/U,Bank Transfering,Credit Card,Trade Assurance Payment,etc.
Q4.Lead time for sample orders/mass production orders?
A4:Samples,within 3 working days; Mass production,within 15 working days usually.
Q5.What shipping methods do you use?
A5:For samples,DHL/UPS/FEDEX/TNT,etc; For bulk orders,Air shipping and others.
A1: We are a manufacturer.
Q2.Can you do ODM or OEM for us?
A2: We are glad to offer custom service for you, we have an experienced engineers team who will provide you with a complete solution according to your requirements.
Q3.What payment mothods do you accept?
A3:Paypal,T/T,W/U,Bank Transfering,Credit Card,Trade Assurance Payment,etc.
Q4.Lead time for sample orders/mass production orders?
A4:Samples,within 3 working days; Mass production,within 15 working days usually.
Q5.What shipping methods do you use?
A5:For samples,DHL/UPS/FEDEX/TNT,etc; For bulk orders,Air shipping and others.
