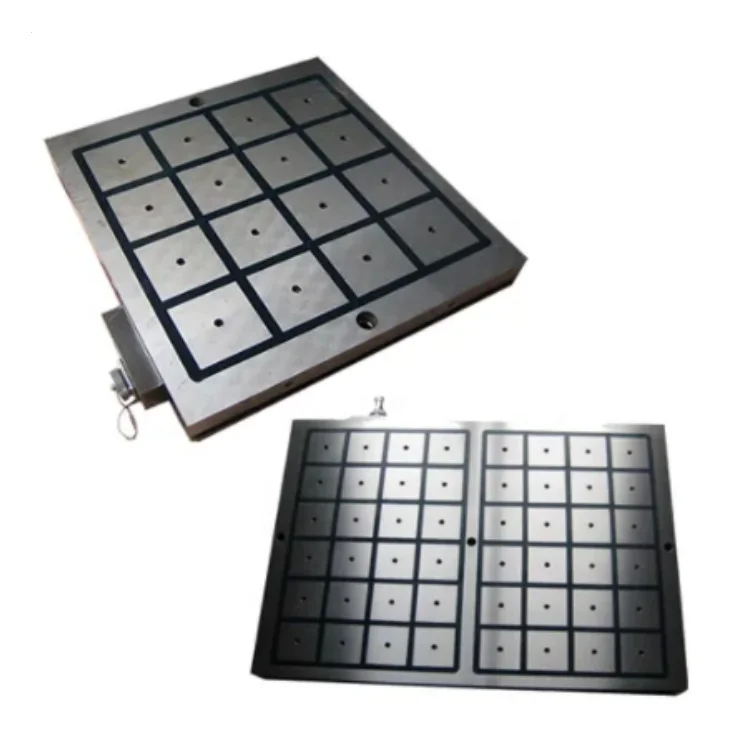

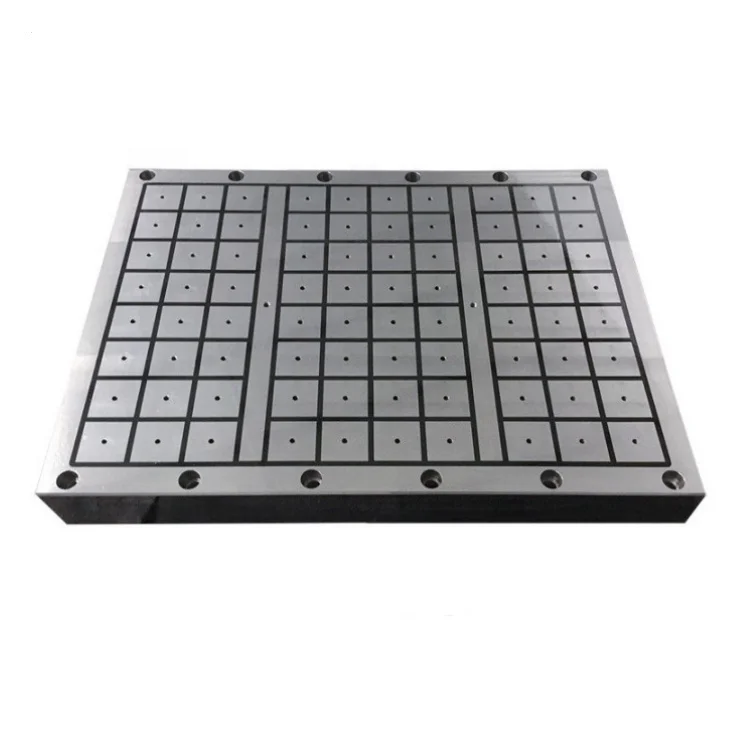

Custom 300x400 500x600 600x800 Electro Magnetic Chuck For Spark Milling Machine Tool
- Category: >>>
- Supplier: Xiamen Ten Magnetics Industry Co. Ltd.
Share on (1601099316484):
Product Overview
Description
Product Description

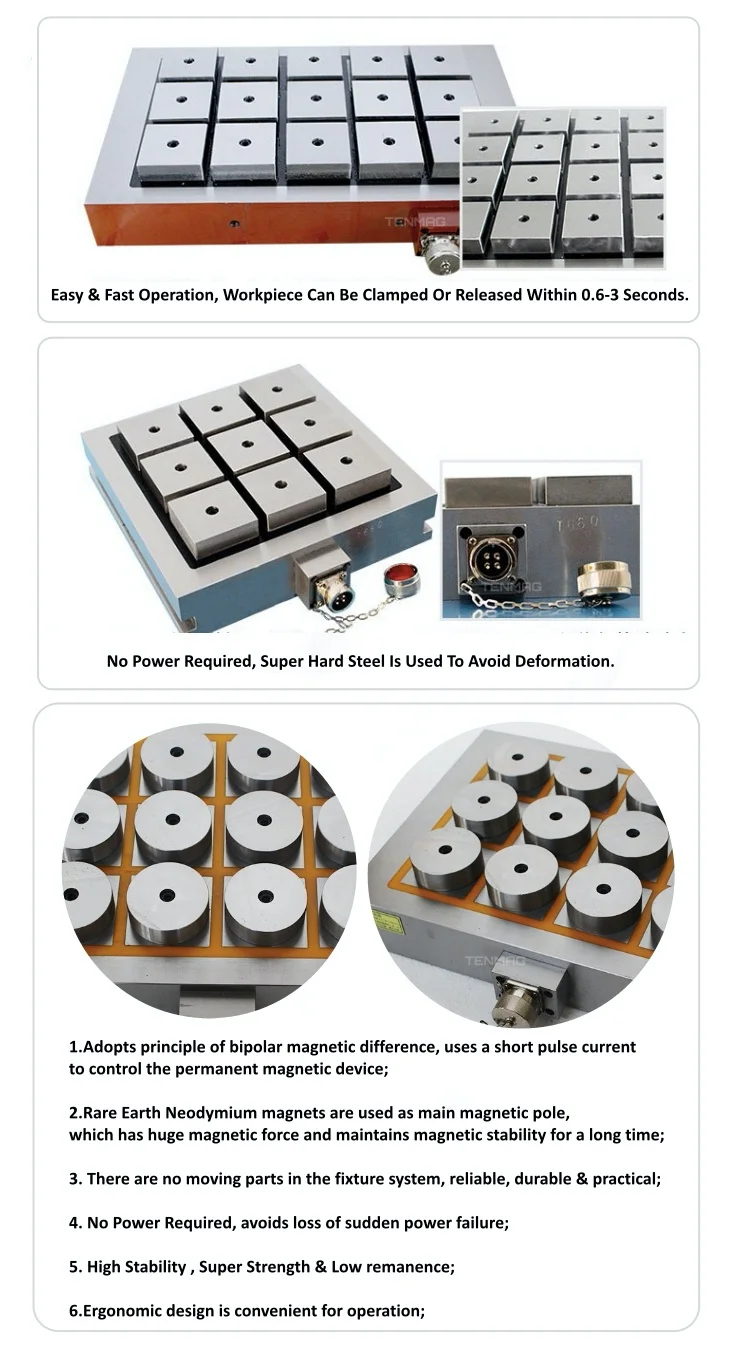

Adopts the principle of bipolar magnetic difference, and the permanent magnetic device controlled by the transient pulse current. Because the rare earth permanent magnetic material is used as the main magnetic pole, it has huge magnetic force and maintains the stability of magnetic force for a long time.
The conversion process of magnetizing and demagnetizing takes only 1-2 seconds, and the efficiency of clamping and loosening the workpiece is very high. Strong suction and low remanence.
Power off without loss of excitation, safe to use. Small thermal deformation, no moving parts, long service life and reliable operation. Convenient card loading and labor saving.
Five-face machining, no knife blocking phenomenon, matching with the magnet can also be chamfered on the bottom. The suction cup adopts an integral structure with high rigidity and stability.
The large-capacity suction cup adopts dual-element control circuit and phase balance, so the higher harmonic is very small and does not interfere with other equipment. The suction of the suction surface after excitation shall not be less than 28 kg per square centimeter.
The electric permanent magnet chuck does not need electric energy in the work, only relies on the permanent magnet suction to hold the workpiece, avoiding the danger of the workpiece falling off due to the loss of magnetic force when the electromagnetic chuck is suddenly powered off and the dragging line is damaged. The use method of the electric permanent magnet chuck is very simple and fast. There are no moving parts in the fixture system, which is reliable, durable and practical.
The conversion process of magnetizing and demagnetizing takes only 1-2 seconds, and the efficiency of clamping and loosening the workpiece is very high. Strong suction and low remanence.
Power off without loss of excitation, safe to use. Small thermal deformation, no moving parts, long service life and reliable operation. Convenient card loading and labor saving.
Five-face machining, no knife blocking phenomenon, matching with the magnet can also be chamfered on the bottom. The suction cup adopts an integral structure with high rigidity and stability.
The large-capacity suction cup adopts dual-element control circuit and phase balance, so the higher harmonic is very small and does not interfere with other equipment. The suction of the suction surface after excitation shall not be less than 28 kg per square centimeter.

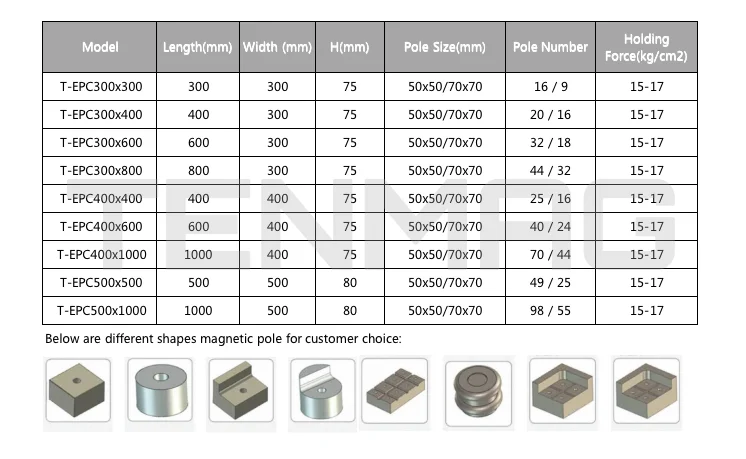

Product Name | 300*400 500*600 400x800 600x800 Electro Magnetic Chuck For Spark Milling Machine Tool |
Material | Permanent Magnet, Copper, Stainless Steel |

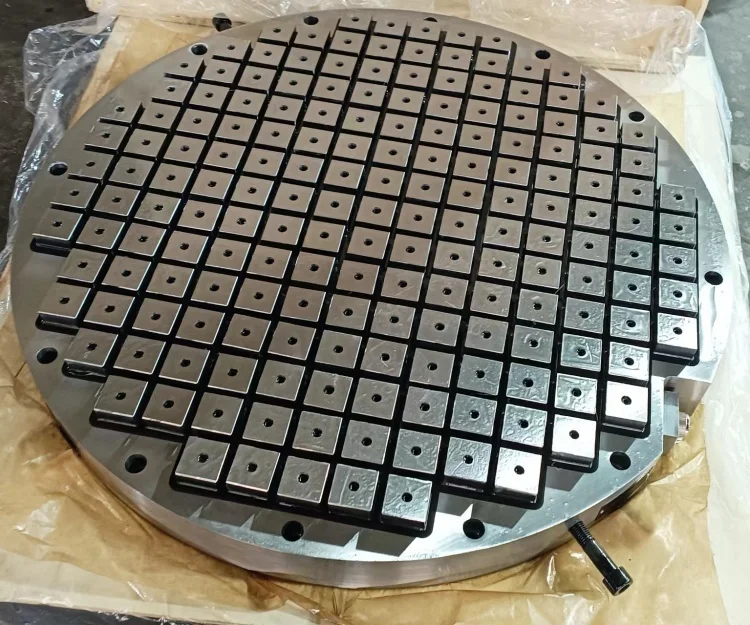

Shape | Rectangular, Square, Round |
Custom Sizes | Available |
Packing | Export standard plywood carton |

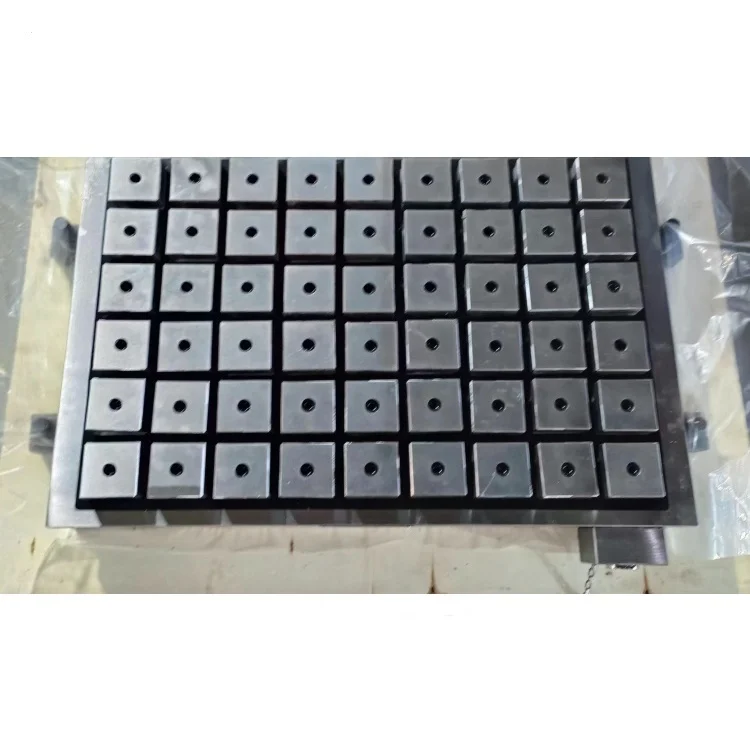

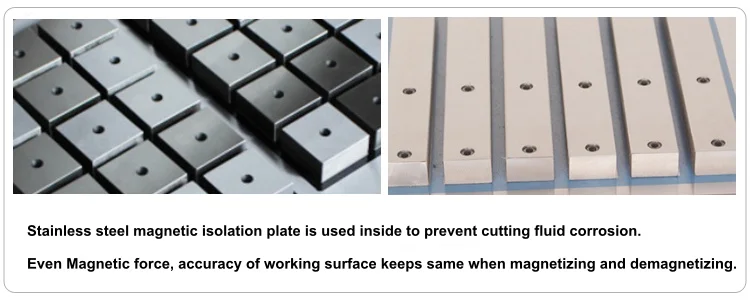

Details Images

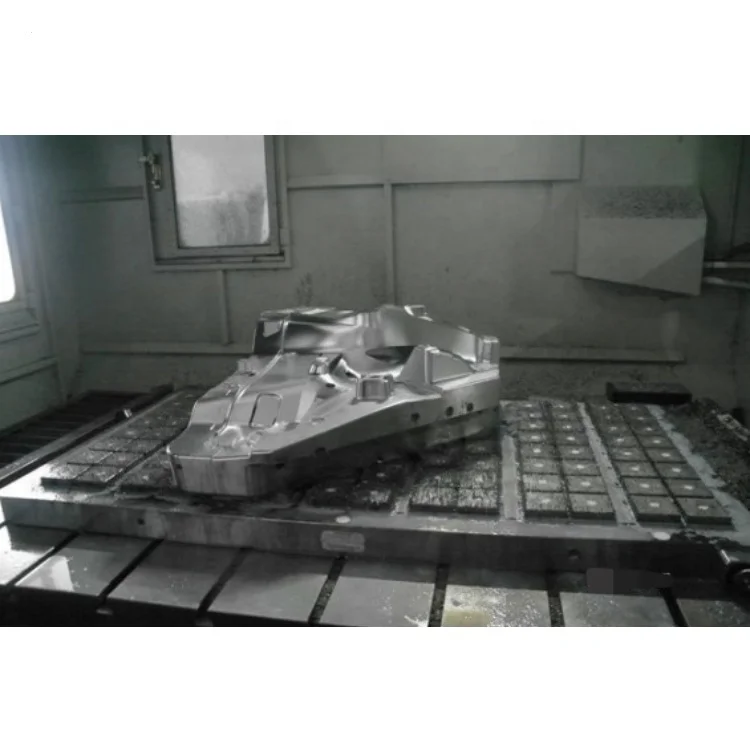

Product Usage

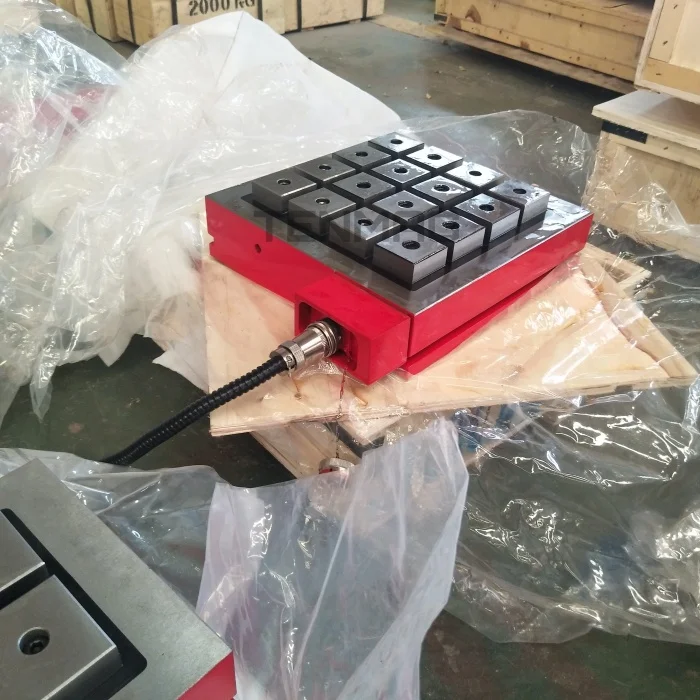

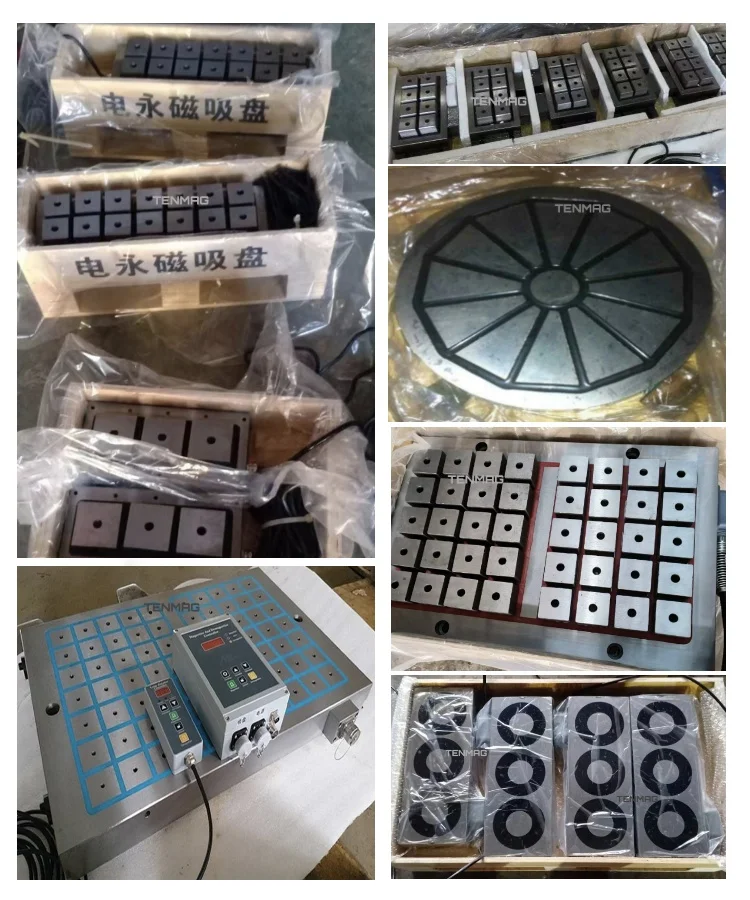

Packing&Shipping
Company Introduction
Certificate
FAQ
Q: Are you trading company or manufacturer ?
A: We are a professional magnets manufacturer with strong R&D team.
Q: Could I get samples?
A: Yes.
Q: How about your delivery date?
A: Regularly, 7-15 days for samples and 15-25 days for mass production.
For special custom item, will be double checked before order.
Q:Do you have any MOQ limit?
A: No MOQ, 1pc sample for check is available.
Q: What is the usual payment method?
A: T/T, Paypal, L/C, VISA, e-Checking,Western Union.
Q: How to ship and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT, takes 3-5 days to arrive. Air and sea shipping also optional.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shipment.
A: We are a professional magnets manufacturer with strong R&D team.
Q: Could I get samples?
A: Yes.
Q: How about your delivery date?
A: Regularly, 7-15 days for samples and 15-25 days for mass production.
For special custom item, will be double checked before order.
Q:Do you have any MOQ limit?
A: No MOQ, 1pc sample for check is available.
Q: What is the usual payment method?
A: T/T, Paypal, L/C, VISA, e-Checking,Western Union.
Q: How to ship and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT, takes 3-5 days to arrive. Air and sea shipping also optional.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shipment.
