Description

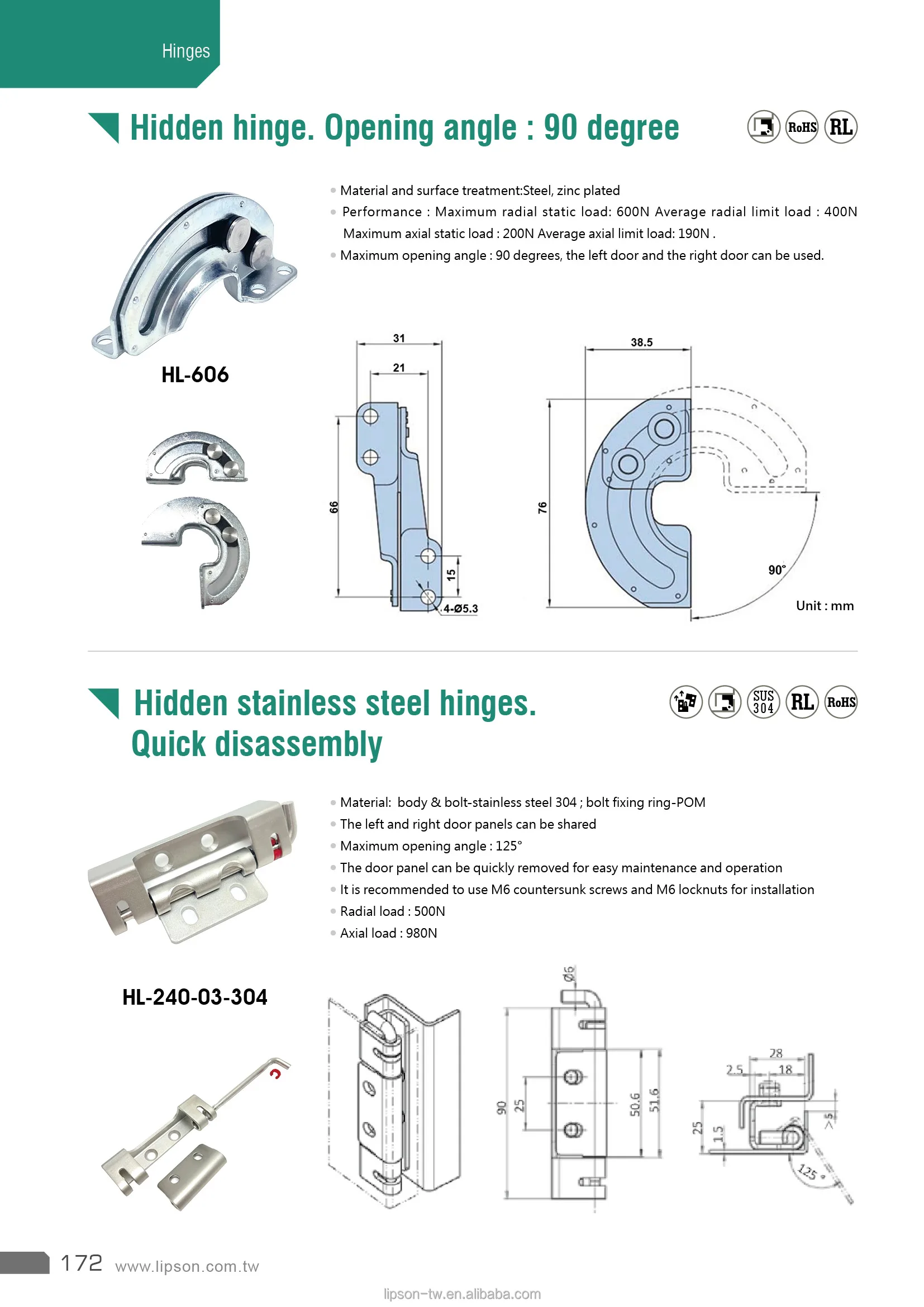

HL-240-03-304 Telecom 5G Cabinet Prominent Door Electric Panel Pin Offset Detachable Removable Industrial Hidden Concealed Hinge







1.Material: body & bolt-stainless steel 304 ; bolt fixing ring-POM
2.The left and right door panels can be shared
3.Maximum opening angle: 125°
4.The door panel can be quickly removed for easy maintenance and operation
5.It is recommended to use M6 countersunk screws and M6 locknuts for installation
6.Radial load: 500N
7.Axial load: 980N

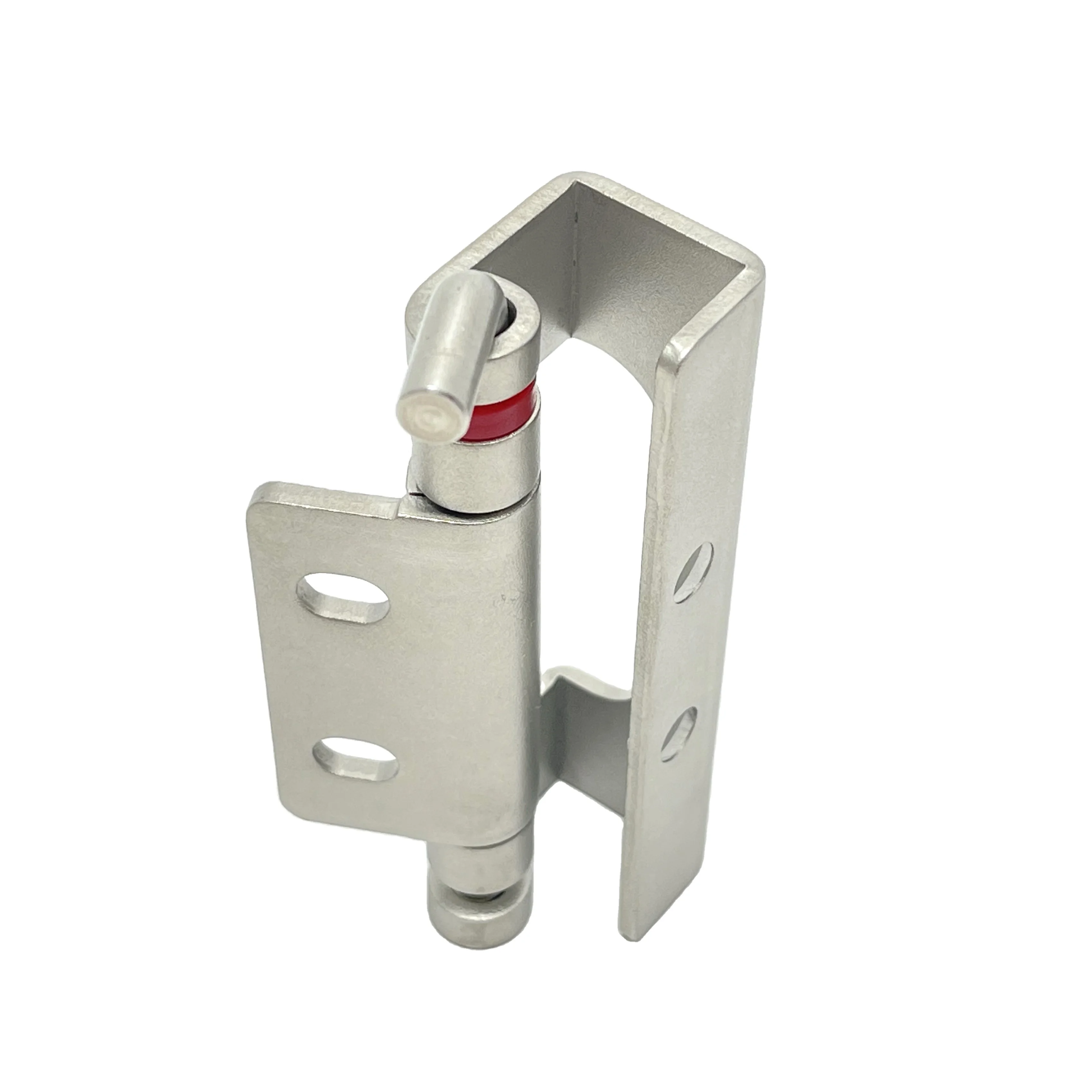

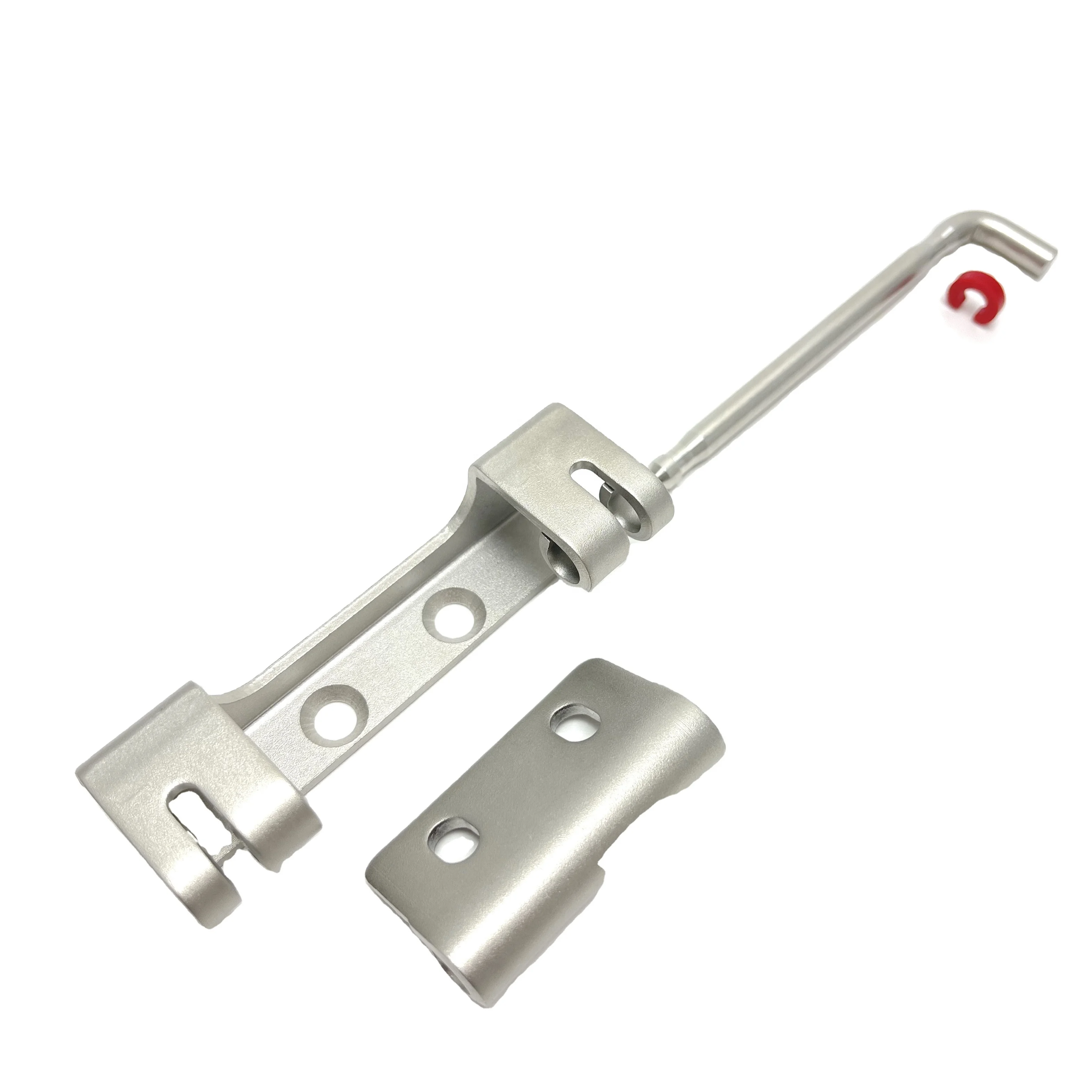

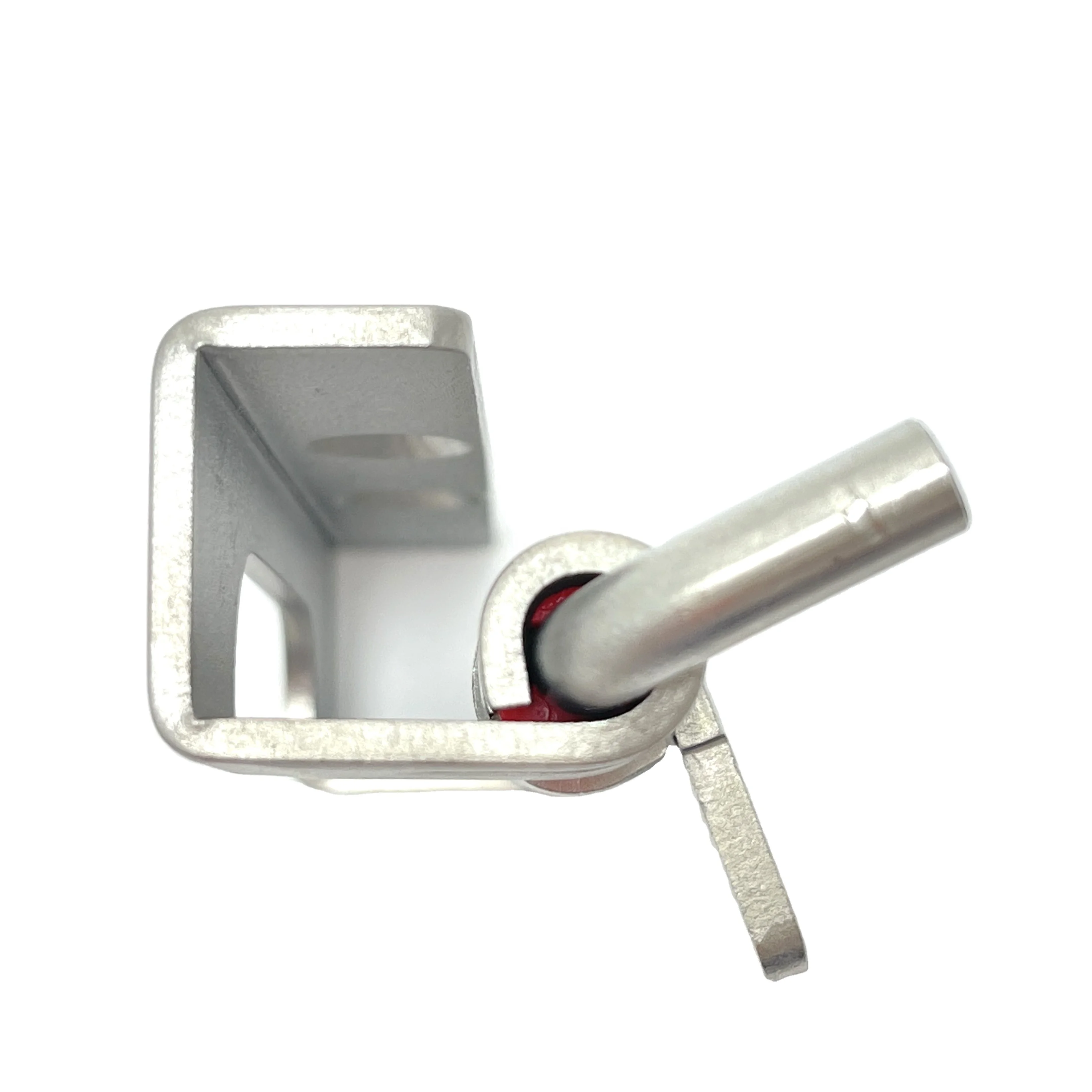

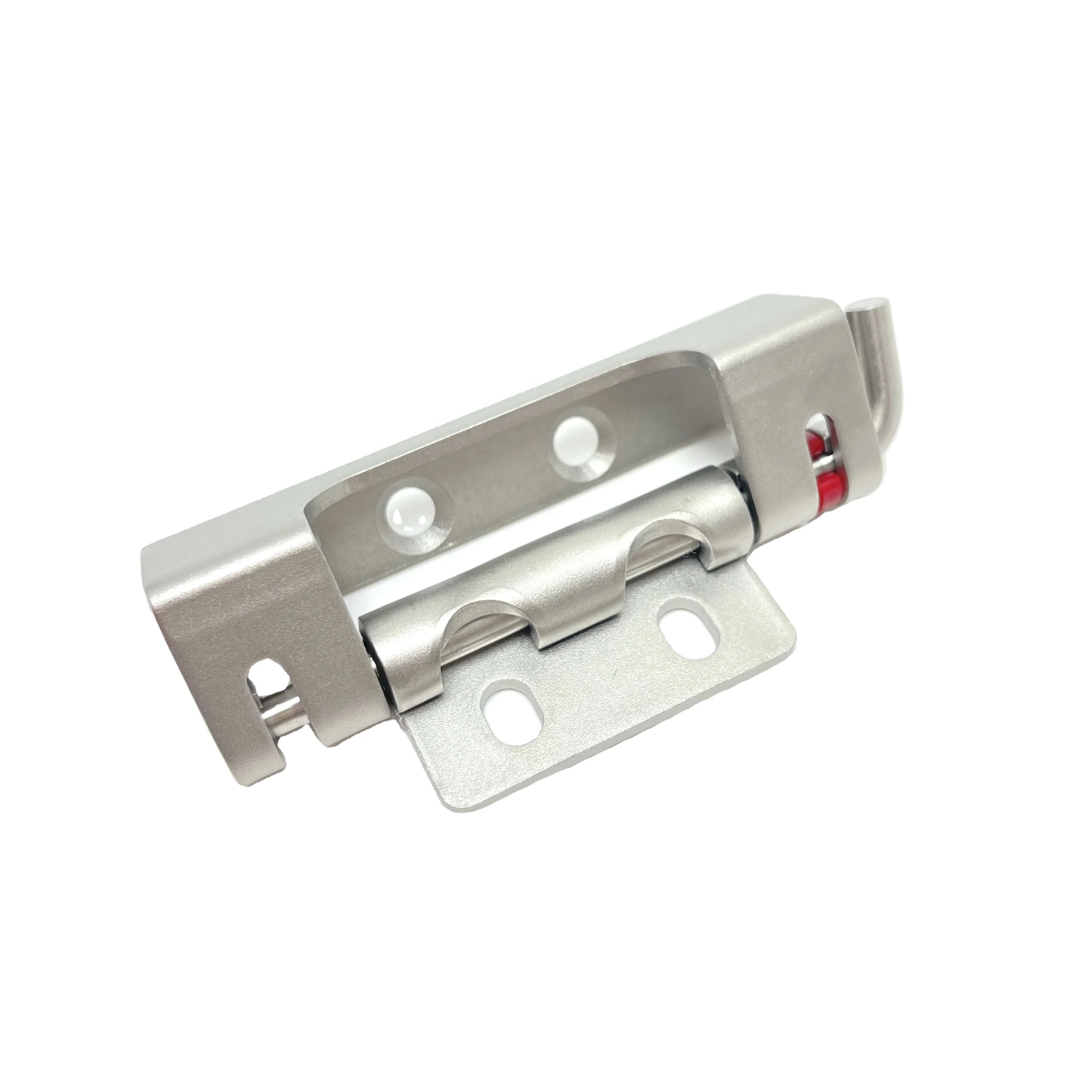

More pictures of concealed hinge





















More similar product introductions







Product Name	stainless steel concealed hinges, concealed removable hinge, removal door hinge, industrial concealed hinge,Concealed Door Removal Hinges,detachable hinge, removable pin hinges,electrical panel hinge,industrial cabinet hinge
Advantage	1) Hinge and hardware are concealed
	2)Completely concealed hinges allow for flush exterior surface design, more security and better aesthetics
	3) Allows for quick easy door removal
Material	HL-211-1:Frame leaf, door leaf are both steel with zinc plated.
	HL-211-2:Frame leaf, door leaf are both stainless steel 304.
Similar products	HL-211-1, HL-211-2, HL-201
Industry Applications	Electronics Enclosures, Industrial Enclosures, Industrial Equipment, Industrial Machinery, Marine, Telecommunications.
Lipson Website	www.lipson.com.tw
Package	200CS/CTN Carton size:34*23.5*21cm
Sample	Free sample,Freight amount should be paid by customer.
MOQ	100 PCS
Certification	ISO9001:2008
Payment	T/T, L/C, Paypal
OEM/ODM orders are accepted
