China Factory Price 30L 20CC Accurately Metered Gear Melt Extrusion Pump For Plastic Extruder Machine


Operating Parameter Of High Viscosity Polymer Booster Thermoplastic Melt Pumps
Theory: Positive Displacement Gear Pump
Structure: Gear Pump
Usage: Plastic, Rubber Pump And Fiber

ZB series standard thermoplastic melt pump is mainly used for extruder or pressurization, stabilizing flow and transportation of medium or high viscosity polymer. This series dosing melt pump adopts electric heating, and appliers to PS, PP, PET, PVC, PC, PMMA, PA, ABS, P-LLD, etc.

Application:


01.
Polymer Extrusion Molding, Such As Granulation, Film, Pipe, Plate, Sheet...etc.
02.
High-Viscosity Materials Such As Pc, Pmma, Abs, Hips, Pet, Pvb, Ps, Pp, Pa, Pe, Pva...etc.
03.
Rubber, Asphalt, Paint, Adhesives, Coatings, Lubricants, Polyalcohol, Non-Particulate Impurities.
04.
Polyester For Cotton-Fiber, Polypropylene And Other Chemical Fiber Melt.


Product Description


Type
CC/Rev
Capacity (L/H)
Heating Power (kw)
Dirven System (kw)
Pressure
Temperature
ZB-0.2
0.2
0.2-0.6
0.5
0.37
Inlet Pressure:≥0Mpa

Outlet Pressure: ≤35Mpa
Operating Temperature:≤350℃

Clearing Temperature:≤450℃

ZB-1
1
1-3
1
0.5


ZB-2
2
2-6
1
0.75


ZB-5
5
5-15
1
1.1


ZB-10
10
10-30
1
1.5


ZB-20
20
20-60
2
2.2


ZB-50
50
50-150
2
4


ZB-100
100
100-300
3
5.5


ZB-150
150
150-450
4
7.5


ZB-200
200
200-600
4
11


ZB-250
250
250-750
5
15


ZB-315
315
300-900
6
18.5


ZB-400
400
400-1200
8
22


ZB-500
500
500-1500
10
30


ZB-800
800
800-2400
15
45






Technical Parameters


Theory
Positive Displacement Gear Pump
Structure
Gear Pump
Usage
Plastic, Rubber Pump and Fiber
Power
Electric or Oil
Fuel
No Need
Pressure
High Pressure
Volume Range
0.5CC - 3200CC
Viscosity
≤40000 Pas
Working Temperature
≤400° C (750° F)
Cleaning Temperature
≤450° C (850° F)
Outlet Pressure
40MPa(6000psi)
Differential Pressure
≤25Mpa

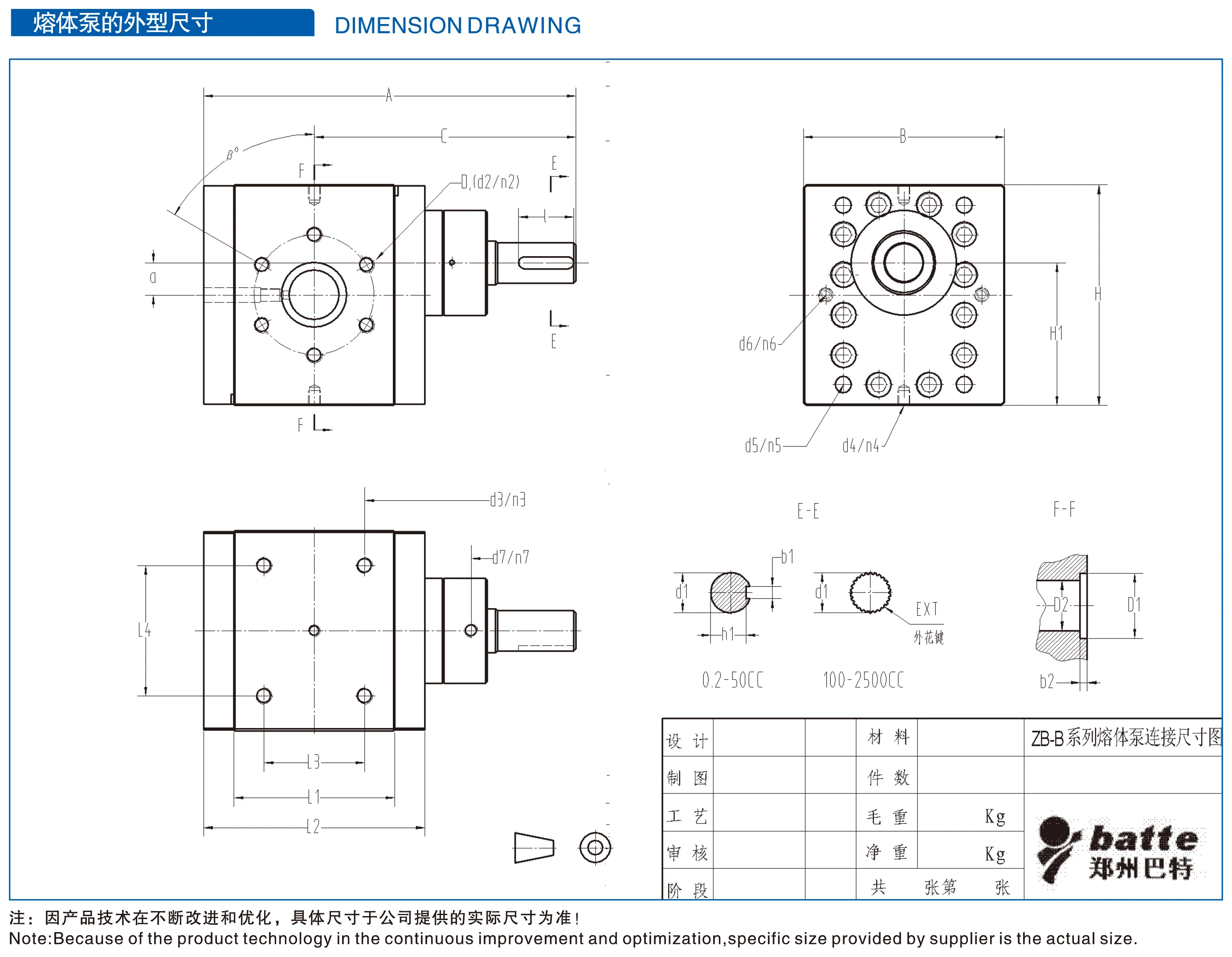

Outline Dimension


Melt Geat Pump Body
High Temperature Tool Steel, Chromium-Nickel Steel
Gear
High Temperature Tool Steel, Nitrided Steel
Tooth Profile
Straight Tooth, Helical Tooth, Herringbone Tooth
Sliding Bearing
High Temperature Tool Steel
Shaft Sealing
Screw Sealing, Packing Seal, Screw Sealing+Packing Seal, Other Combined Sealing




Details Images
