Custom RGB Light Panel Back Light Counter ONE LED cut RGB RGBW RGBTW led sheet light SMD5050 high quanlity panel factory sell
- Category: >>>
- Supplier: Shenzhen Ql Light Company Limited
Share on (1601100414710):
Product Overview
Description

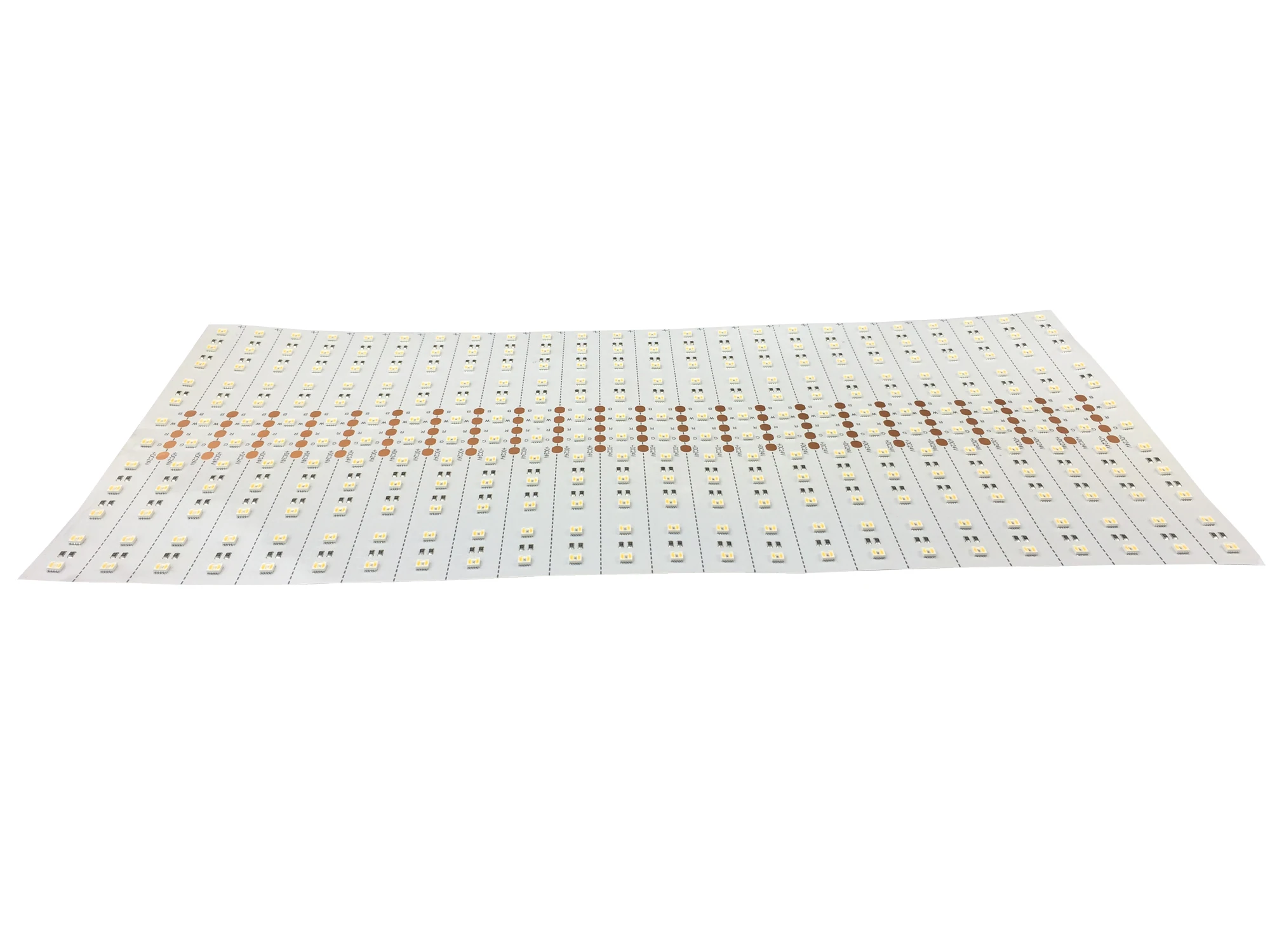

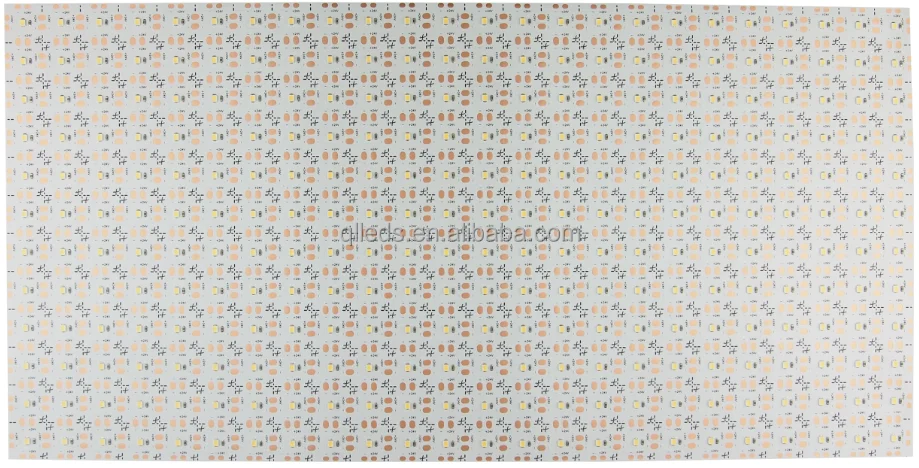

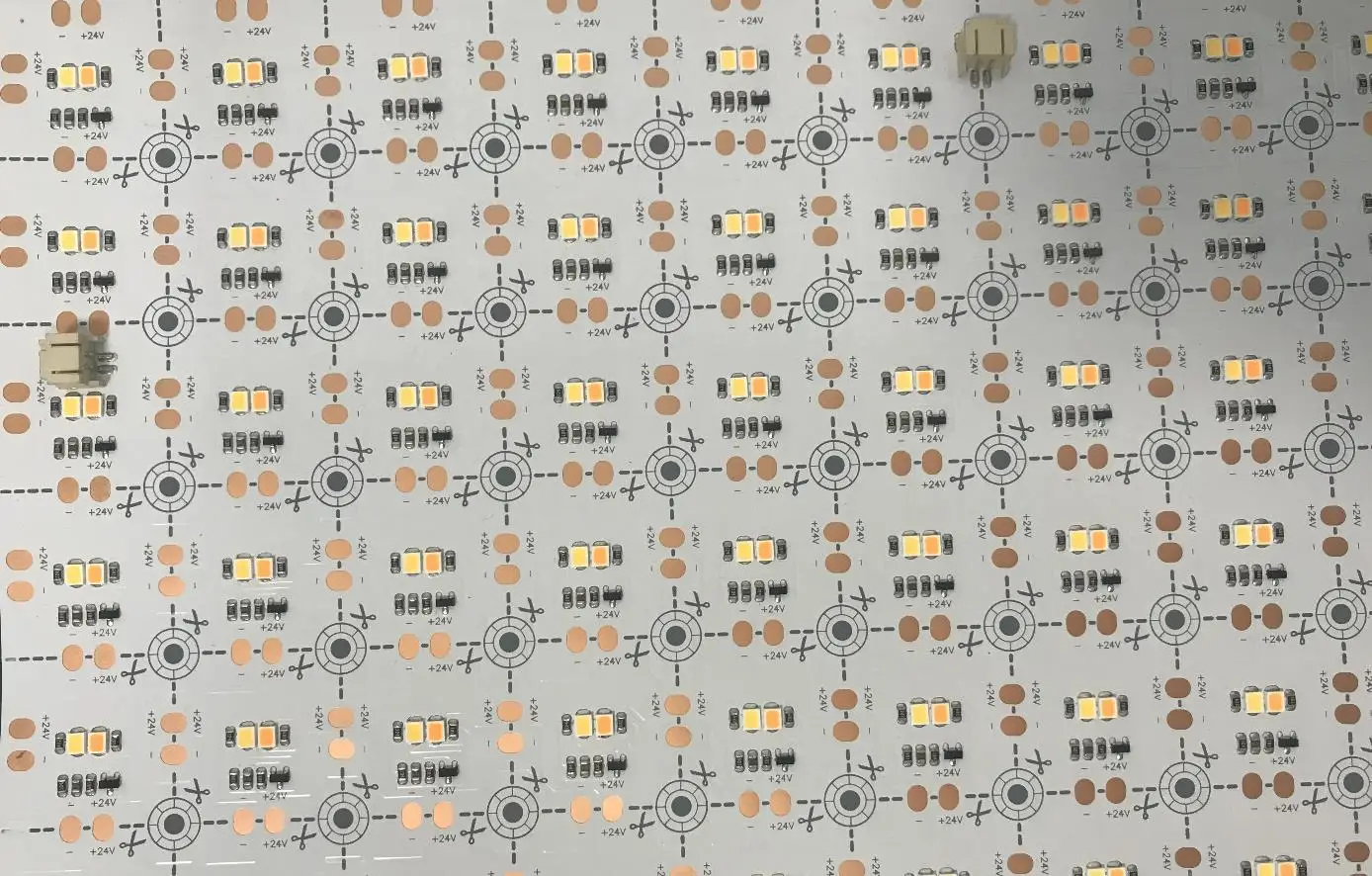

RGB LED module (65W/pcs@288LED/pcs and 45W/pcs@72LED/pcs
RGB Soft LED Module | ||
480mm*240mm | ||
65W/pcs | ||
DC24V | ||
288LED/m | ||
2400lm/pcs | ||
OEM/ personalized | ||

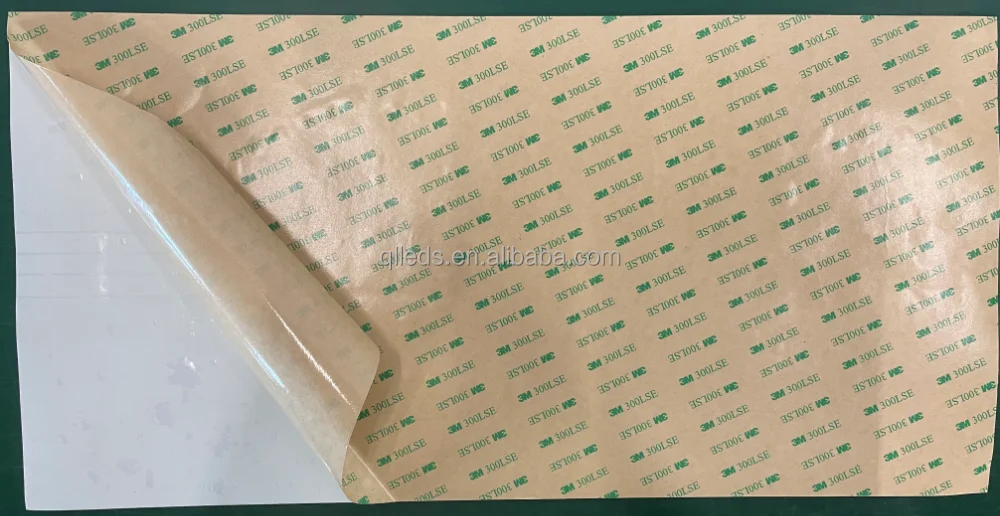

with 3M strong adhesive backing, easy to install.
Each line can be cut

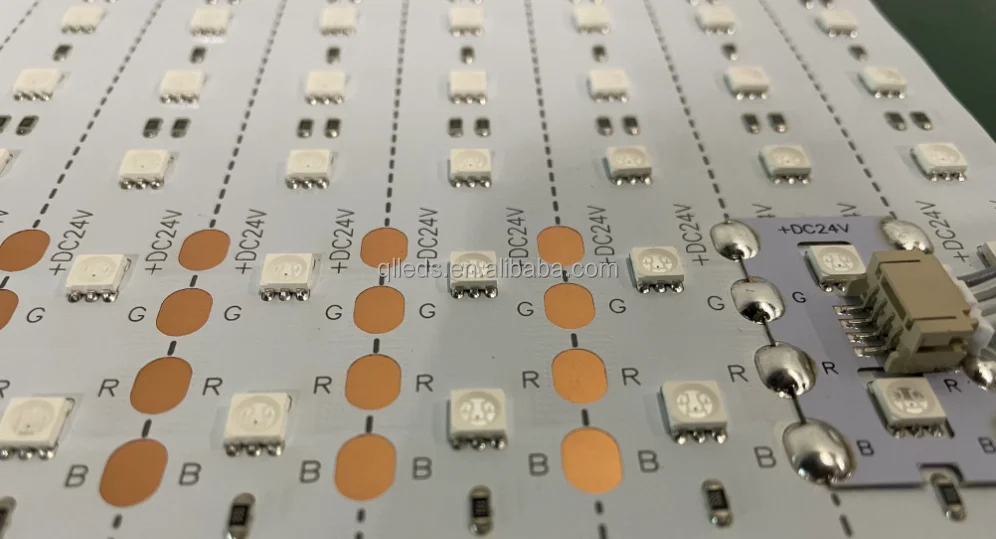

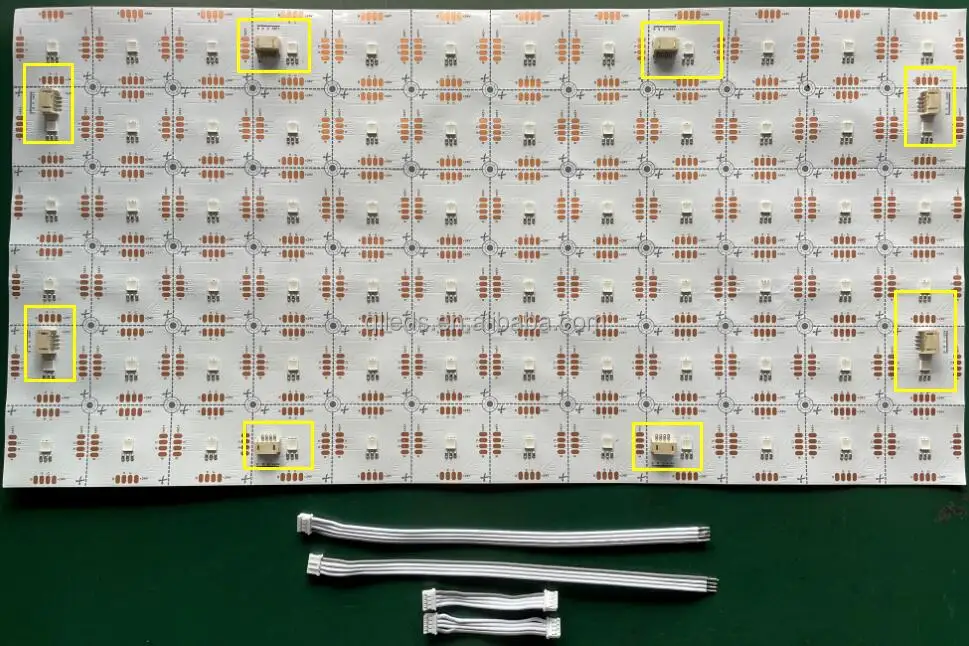

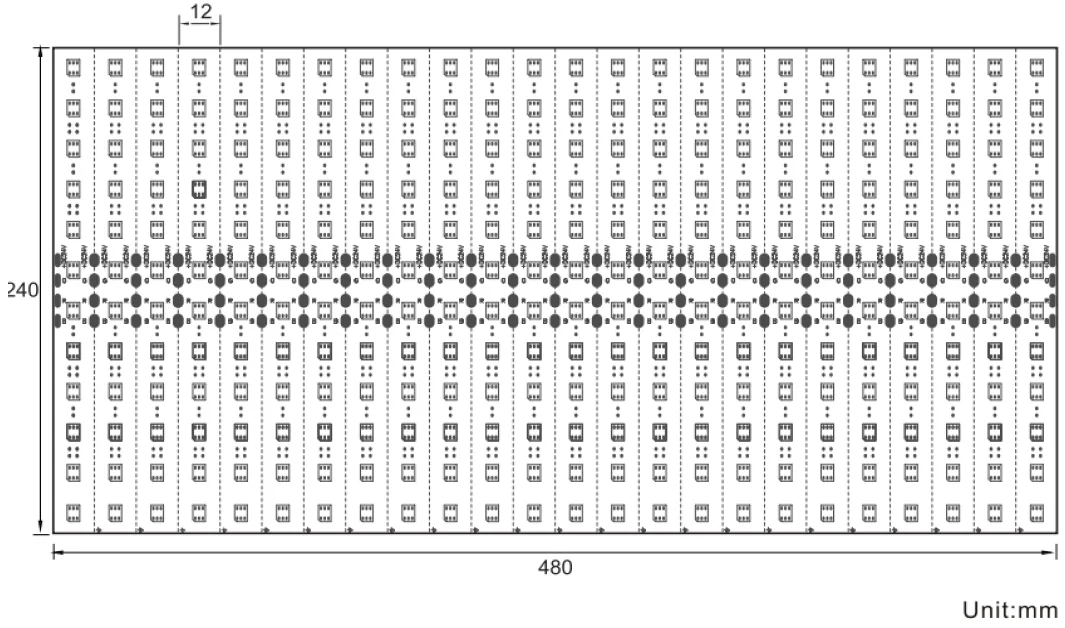

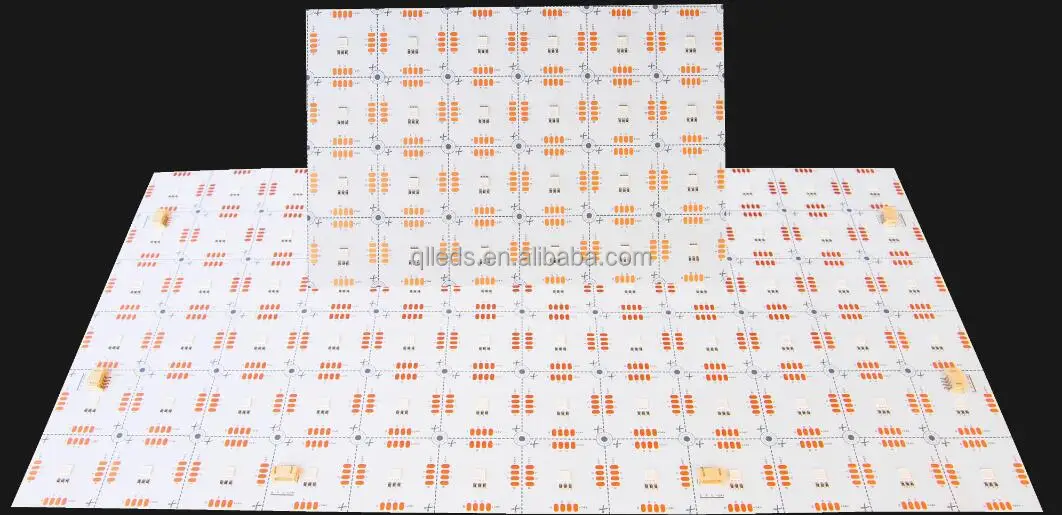

Newly 1-LED-CUT RGB Soft LED Module | ||
480mm*240mm/pcs | ||
45W/pcs( or the power you need) | ||
DC24V | ||
72LED/m | ||
Lumen | R: 580lm G:1300lm B:250lm | |
Cut size | ||
Others LED Module
Soft back light module also called: LED module,Soft panel sheet, soft panel light, LED sheet, Llight paper etc.
Besides RGB soft panel sheet, we are available for:
Besides RGB soft panel sheet, we are available for:
1) Single color soft panel sheet (1-LED-Cut, CRI>95)
2) Dual white color soft panel sheet (2-LED-Cut, CRI>95)
3) RGBW soft panel sheet
4) RGB+dual white soft panel sheet
5) Dim-to-warm soft panel sheet
6) 160 degree soft panel sheet( LED with lens)
......
2) Dual white color soft panel sheet (2-LED-Cut, CRI>95)
3) RGBW soft panel sheet
4) RGB+dual white soft panel sheet
5) Dim-to-warm soft panel sheet
6) 160 degree soft panel sheet( LED with lens)
......

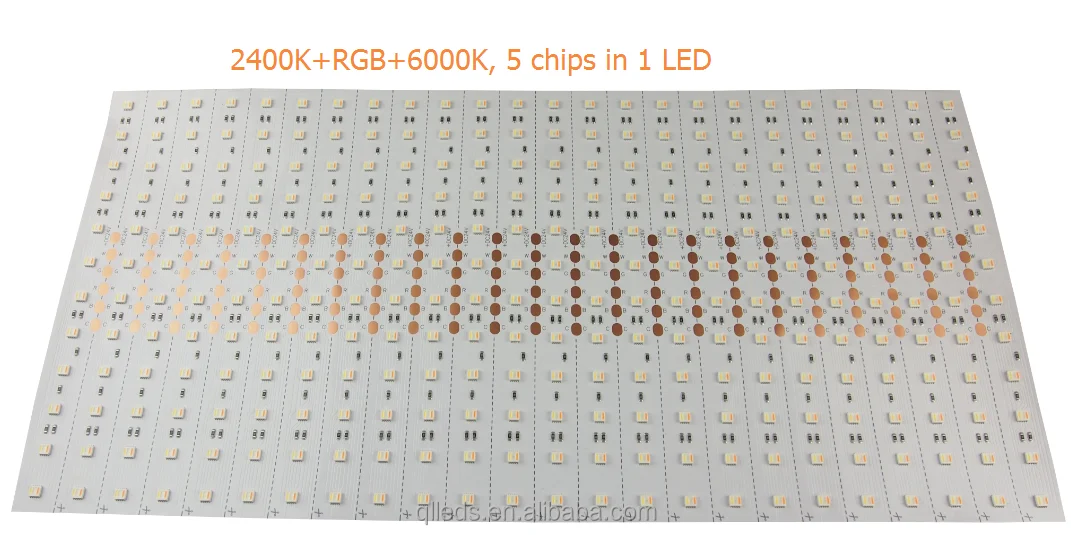

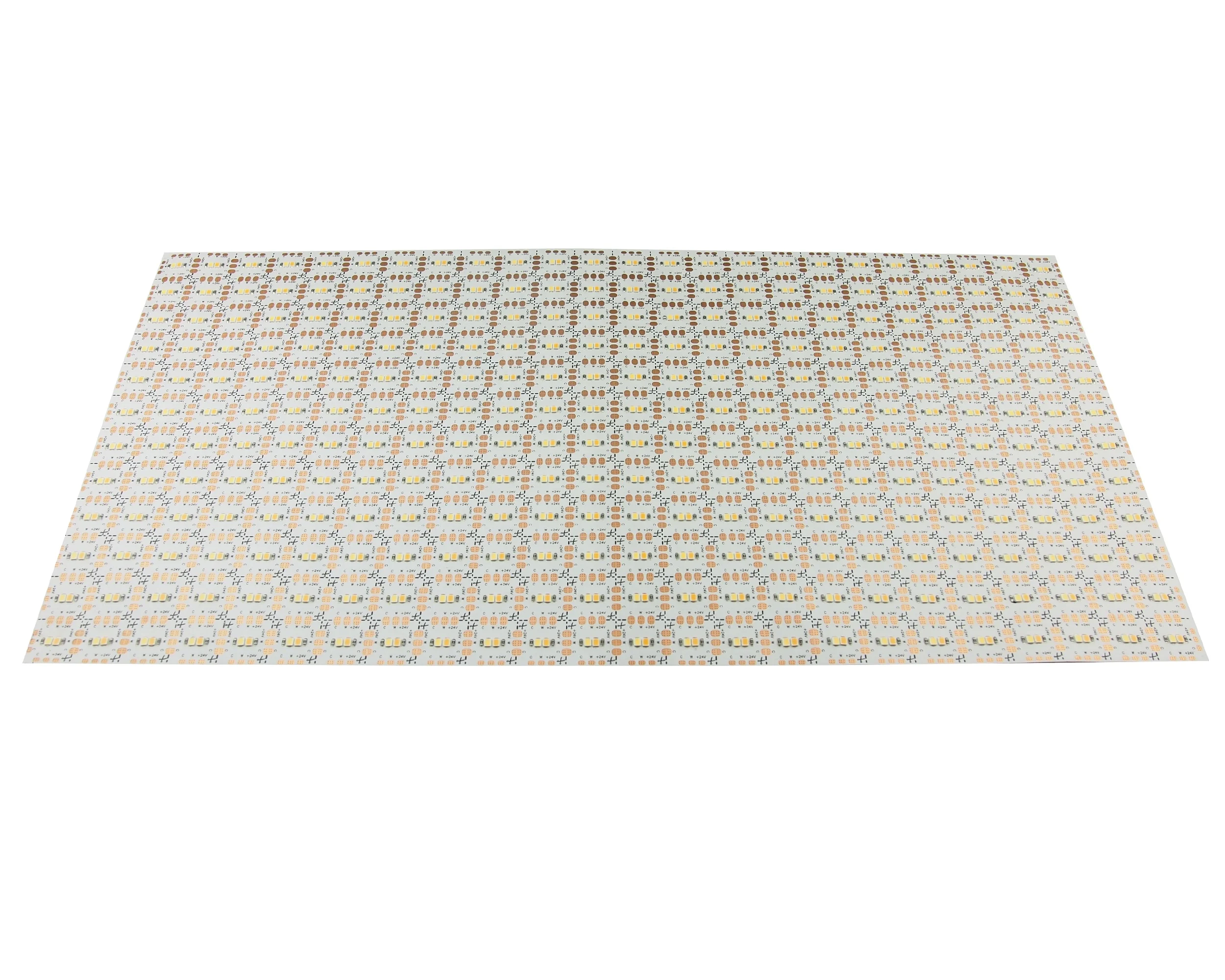

RGBCCT Soft LED Module
5 chips in 1 LED
Voltage: DC24V
Voltage: DC24V
Wattage: 115W/pcs
LED Qty: 288led/pcs
Size: 480mm*240mm
Color: 2400K+RGB+6000K
Lumen: RGB: 2400lm /pcs
White: 3900lm/pcs
LED Qty: 288led/pcs
Size: 480mm*240mm
Color: 2400K+RGB+6000K
Lumen: RGB: 2400lm /pcs
White: 3900lm/pcs
RGBW Soft LED Module
5 chips in 1 LED( 2 same white chips)
Voltage: DC24V
Voltage: DC24V
Wattage: 115W/pcs
LED Qty: 288led/pcs
Size: 480mm*240mm
Color: 2200K+RGB+2200K
2700K+RGB+2700K
3000K+RGB+3000K
4000K+RGB+4000K
6000K+RGB+6000K
Lumen: RGB: 2400lm /pcs
White: 3400-4000lm/pcs
LED Qty: 288led/pcs
Size: 480mm*240mm
Color: 2200K+RGB+2200K
2700K+RGB+2700K
3000K+RGB+3000K
4000K+RGB+4000K
6000K+RGB+6000K
Lumen: RGB: 2400lm /pcs
White: 3400-4000lm/pcs
Dual-White LED Module
Every 2 LEDs can be cut
Voltage: DC24V
Wattage: 72W/pcs and 120W/pcs
LED Qty: 324led/pcs and 576led/pcs
CRI: 95
Size: 480mm*240mm
Color: 2700K-6500K adjustable
Lumen: 6800lm/pcs and 12000lm/pcs
Voltage: DC24V
Wattage: 72W/pcs and 120W/pcs
LED Qty: 324led/pcs and 576led/pcs
CRI: 95
Size: 480mm*240mm
Color: 2700K-6500K adjustable
Lumen: 6800lm/pcs and 12000lm/pcs
Dim To Warm（PWM） LED Module
Every 2 LEDs can be cut
Voltage: DC24V
Wattage: 72W/pcs
LED Qty: 324led/pcs
CRI: 90
Size: 480mm*240mm
Lumen: 6500lm/pcs
Color: 1800K-2800K adjustable
Voltage: DC24V
Wattage: 72W/pcs
LED Qty: 324led/pcs
CRI: 90
Size: 480mm*240mm
Lumen: 6500lm/pcs
Color: 1800K-2800K adjustable

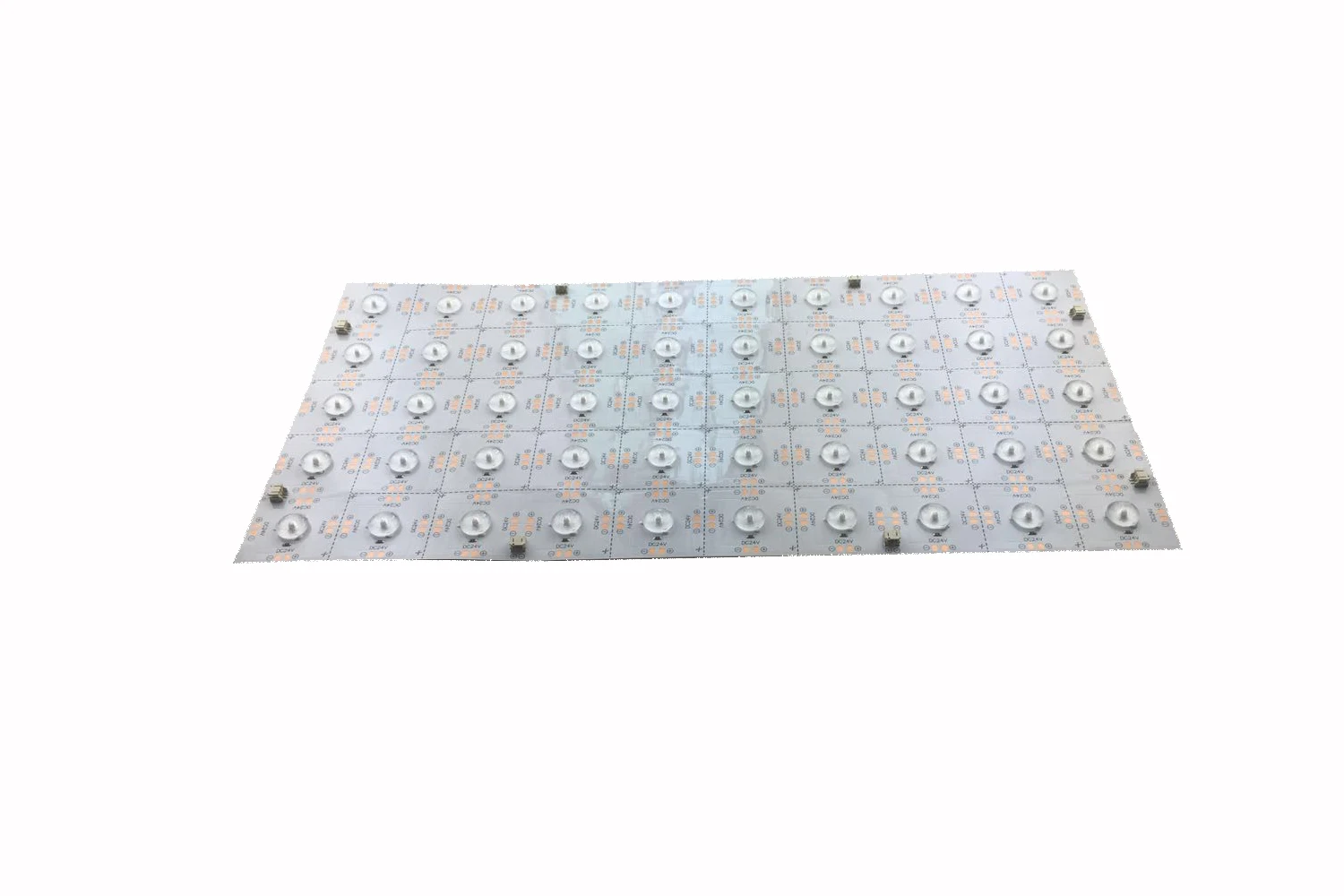

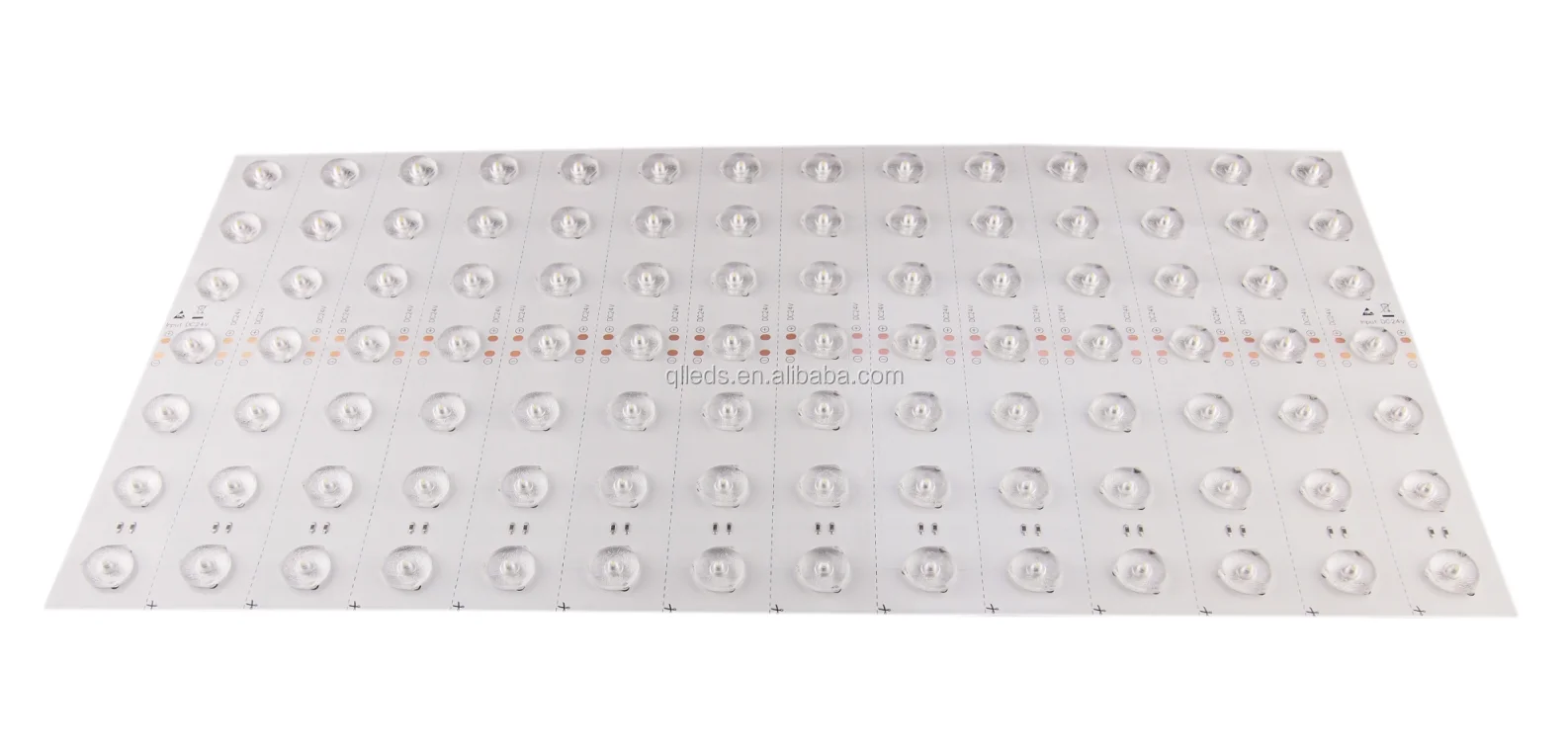

160 Degree LED Module
LED with lens
Voltage: DC24V
Wattage: 34W/pcs
LED Qty: 98led/pcs
CRI: 90
Size: 480mm*240mm
Voltage: DC24V
Wattage: 34W/pcs
LED Qty: 98led/pcs
CRI: 90
Size: 480mm*240mm
Lumen: 3200lm/pcs
Color: 2700K/3000K/4000K/6000K
Color: 2700K/3000K/4000K/6000K
160 Degree LED Module
Every LEDs can be cut, LEDs with lens
Voltage: DC24V
Wattage: 36W/pcs
LED Qty: 50led/pcs
CRI: 90
Size: 480mm*240mm
Voltage: DC24V
Wattage: 36W/pcs
LED Qty: 50led/pcs
CRI: 90
Size: 480mm*240mm
Lumen: 3200lm/pcs
Color: 2700K/3000K/4000K/6000K
Color: 2700K/3000K/4000K/6000K

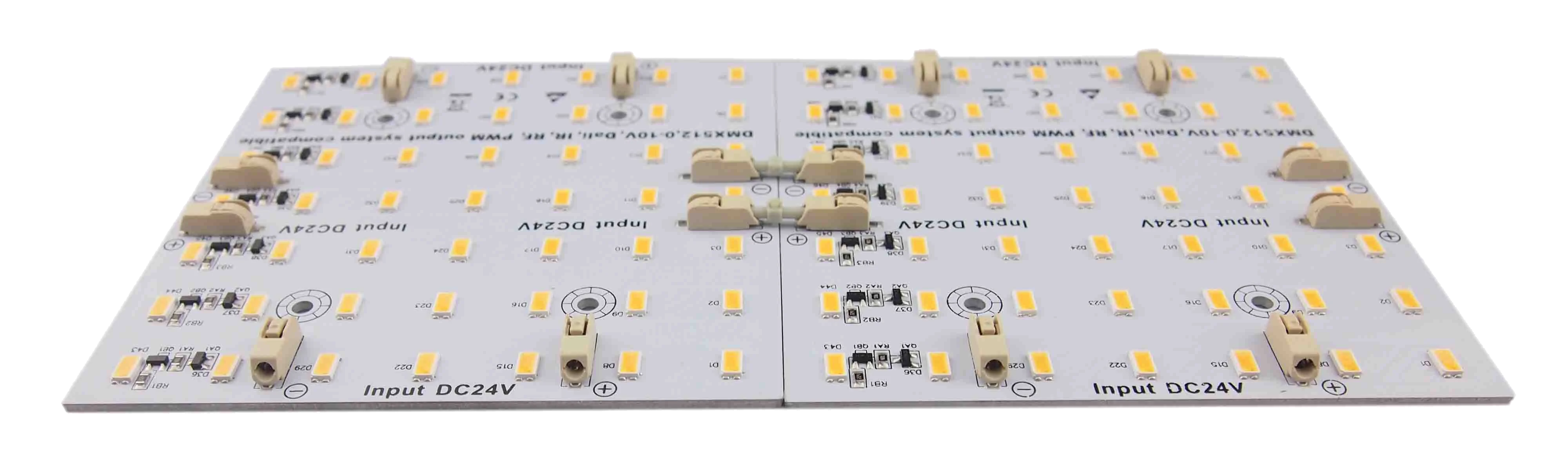

SAMSUNG SMD5630 LED Module
Rigid module
Voltage: DC24V
Wattage: 10W/pcs
LED Qty: 49led/pcs
CRI: 80
Size: 100mm*100mm
Voltage: DC24V
Wattage: 10W/pcs
LED Qty: 49led/pcs
CRI: 80
Size: 100mm*100mm
Lumen: 1400lm/pcs
Color: 2700K/3000K/4000K/6000K
Color: 2700K/3000K/4000K/6000K

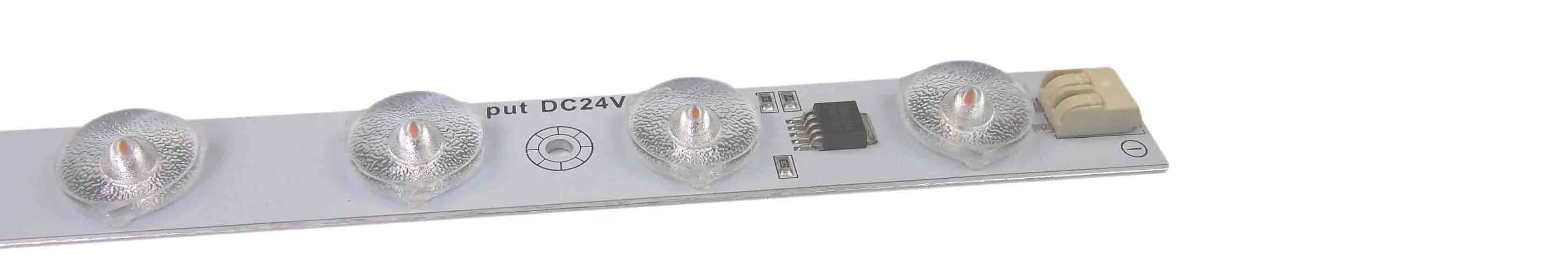

160 Degree Back Light Bar
Voltage: DC24V
Wattage: 7.2W/pcs, 14.4W/pcs
LED Qty: 7LEDs/pcs, 14LEDs/pcs
CRI: 90
Size: 250mm*20mm, 500mm*20mm
Voltage: DC24V
Wattage: 7.2W/pcs, 14.4W/pcs
LED Qty: 7LEDs/pcs, 14LEDs/pcs
CRI: 90
Size: 250mm*20mm, 500mm*20mm
Lumen: 600lm/pcs , 1200lm/pcs
Color: 2700K/3000K/4000K/6000K
Color: 2700K/3000K/4000K/6000K
Single color CRI≥95 LED Module
Every LED can be cut
Color is available for 2700K/3000K/4000K/6000K; Size: 480mm*240mm/pcs.
Option 1: DC24V, 16W/pcs, 72LED/pcs, 1550lm/mpcs;
Option 2: DC24V, 36W/pcs, 162LED/pcs, 3400lm/mpcs;
Option 3: DC24V, 60W/pcs, 288LED/pcs, 6300lm/mpcs;
Color is available for 2700K/3000K/4000K/6000K; Size: 480mm*240mm/pcs.
Option 1: DC24V, 16W/pcs, 72LED/pcs, 1550lm/mpcs;
Option 2: DC24V, 36W/pcs, 162LED/pcs, 3400lm/mpcs;
Option 3: DC24V, 60W/pcs, 288LED/pcs, 6300lm/mpcs;

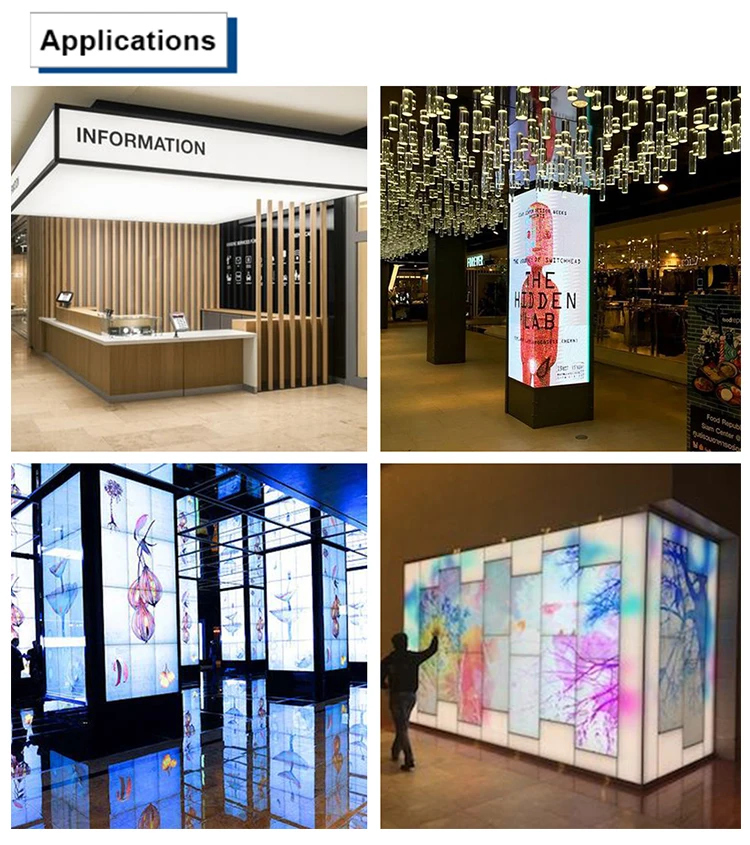

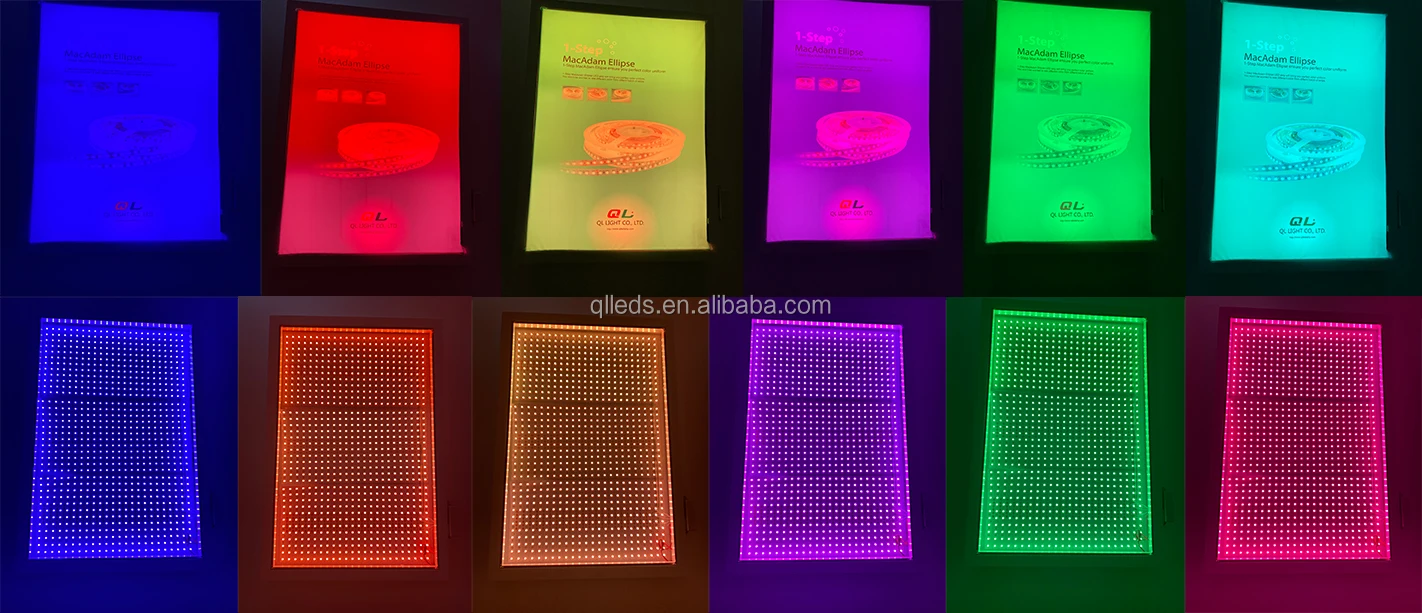

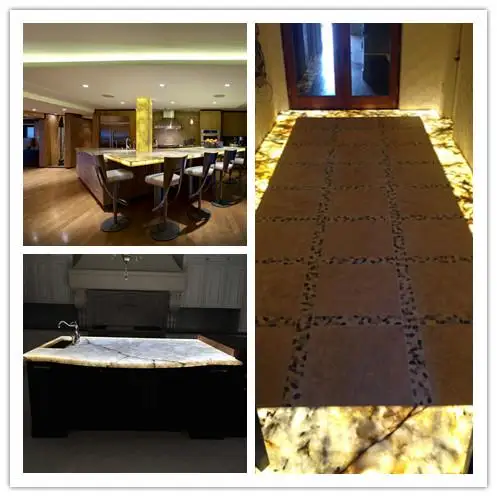

Application of LED module
1) Light box lighting: Such as advertising box in subway, shoppind mall, movie theather etc.
1) Light box lighting: Such as advertising box in subway, shoppind mall, movie theather etc.

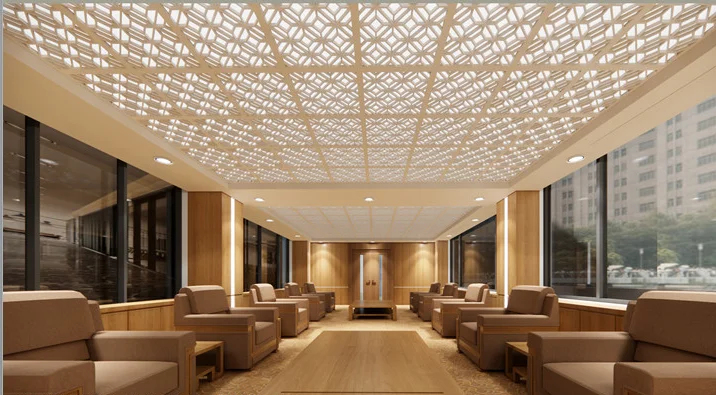

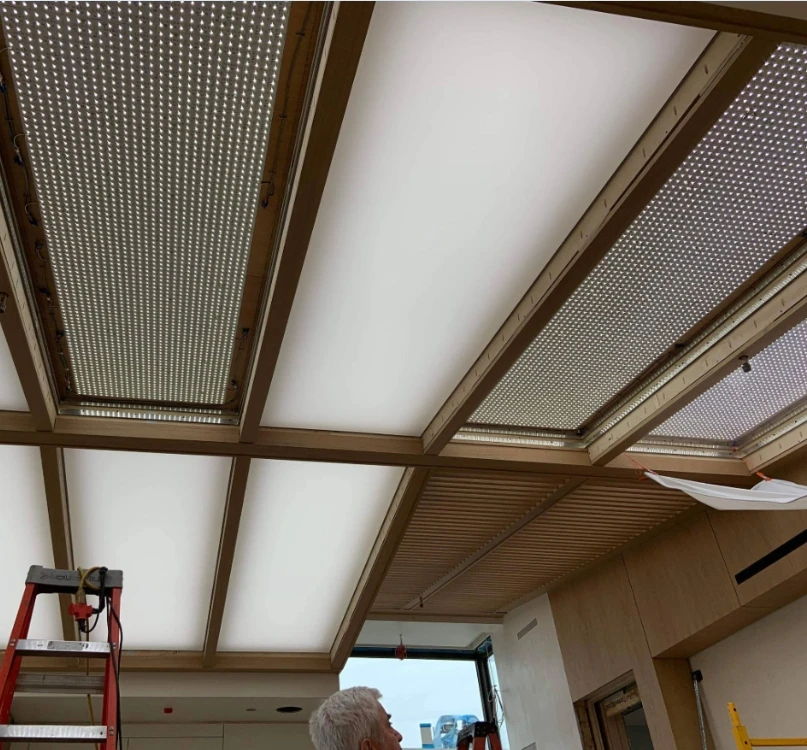

2) Ceiling lighting.

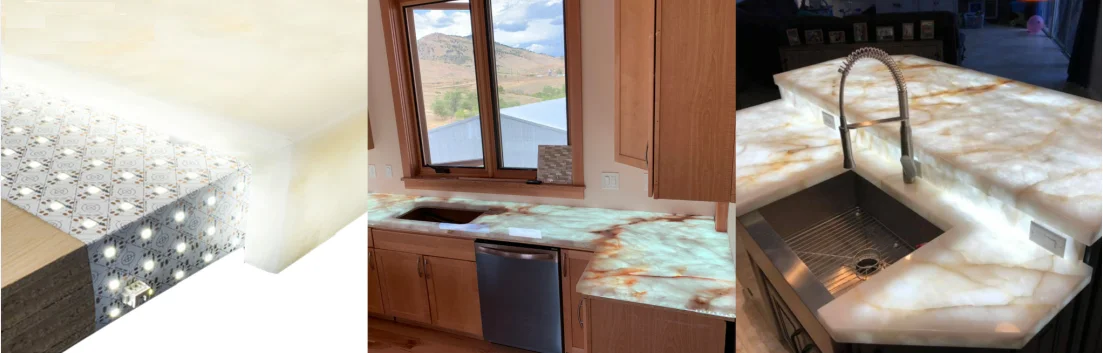

3) marble lighting: Such as meeting table, hotel reception etc.
....
Remark: If you looking for difference wattage soft panel light module, please feel free to contact with us, we can make it.
3) marble lighting: Such as meeting table, hotel reception etc.
....
Remark: If you looking for difference wattage soft panel light module, please feel free to contact with us, we can make it.

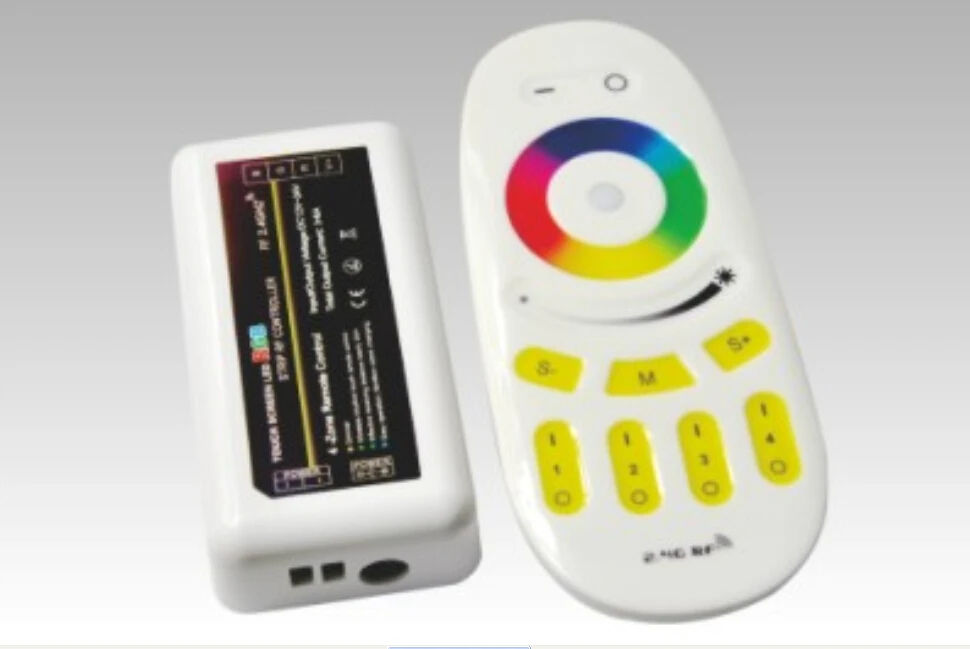

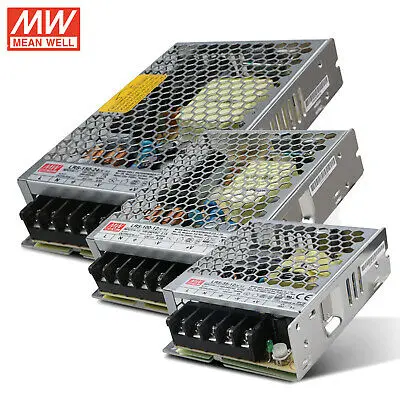

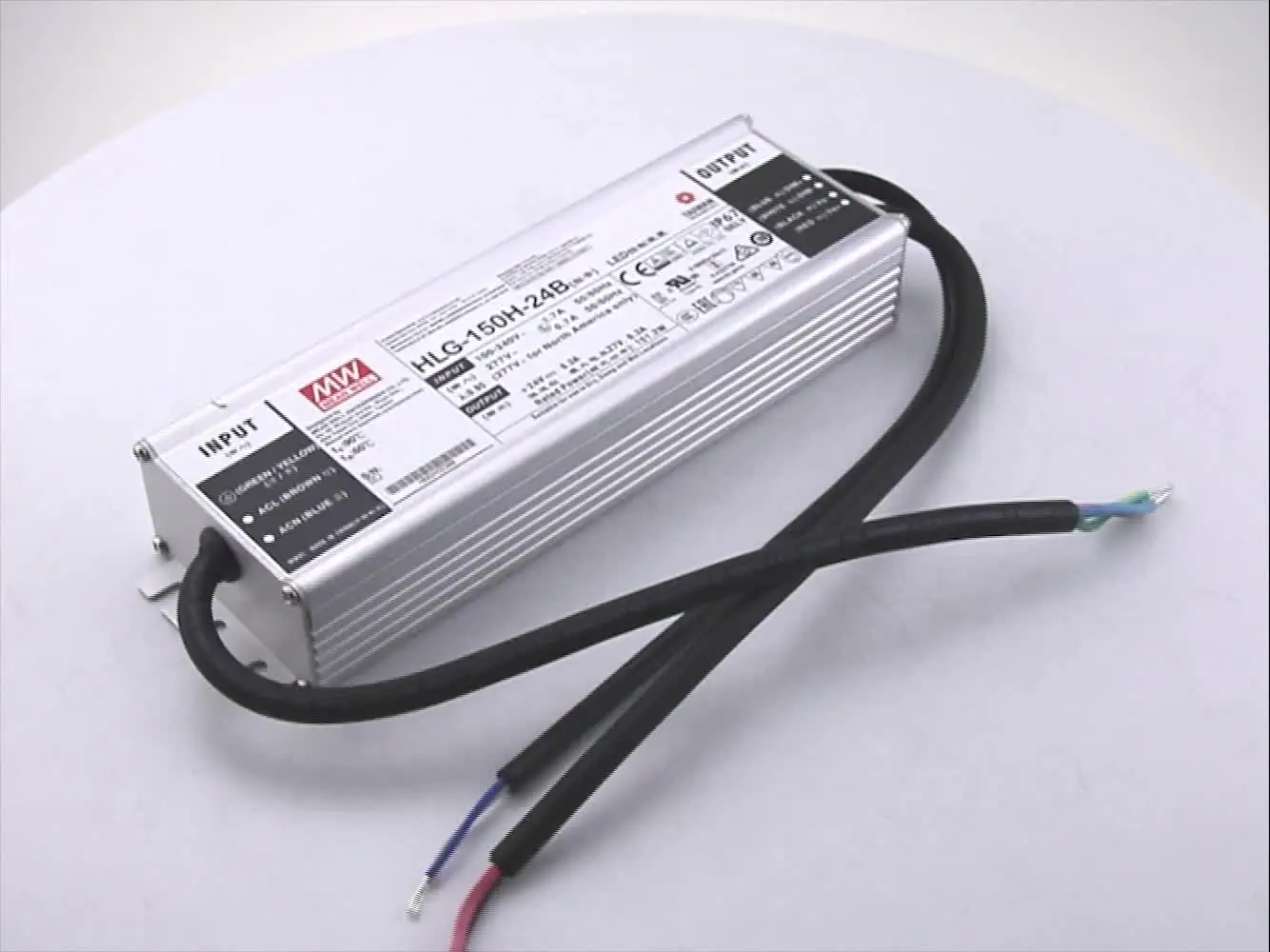

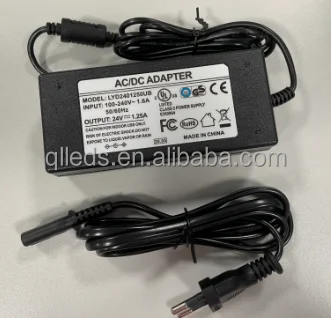

Power supply( Driver) and controllers available.
Related Products

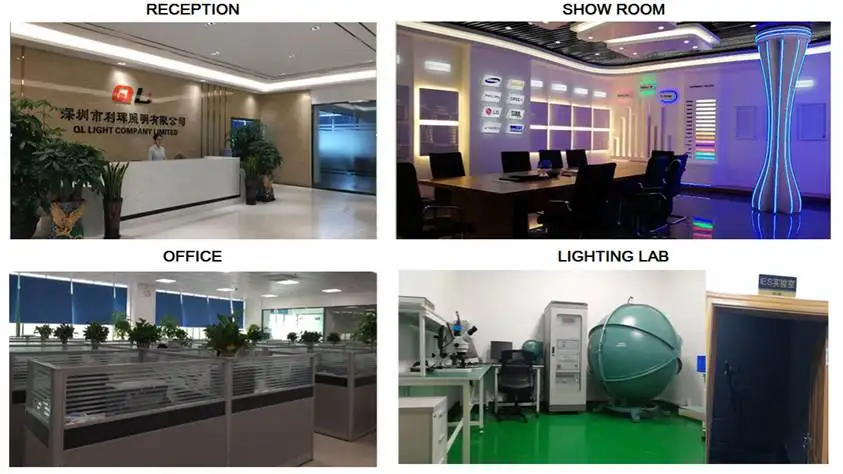

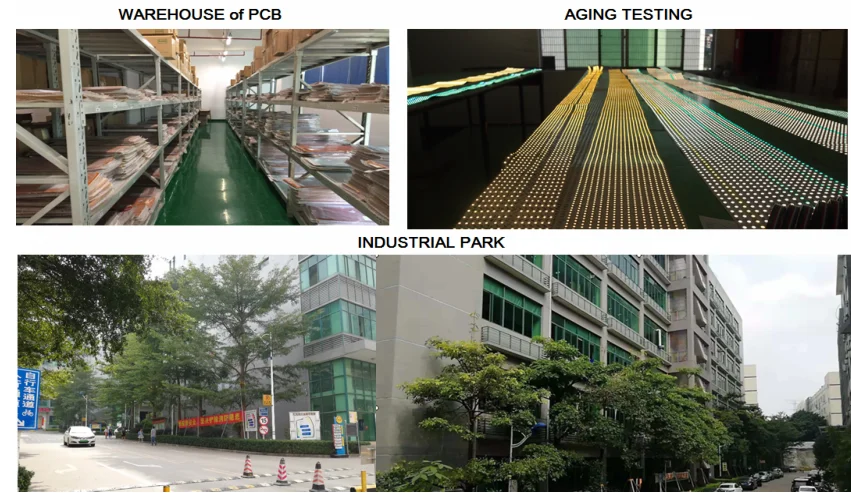

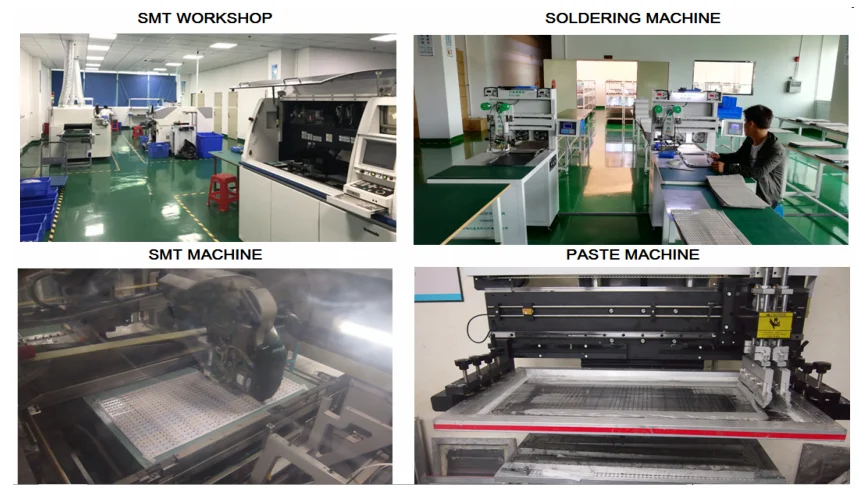

Company Profile
We are a led lighting manufacturer located in Shenzhen, Guangdong Province. Our mian items are led strips and soft panel sheet. Besides, we are also available for power supply, aluminum profiles, connectors, controllers etc.
More details of our led products are as below:
1. Our customers mostly are the project user, base on their experience and our knowledge, our products focus on the applications.
2. Energy save products: We now have 200lm/W LED strip, it can reach 5000lm/m on 25W/m and 2300lm/m on 11.5W/m, full spectrum LED strips, soft panel sheet etc.
3. Longer connection strips: for 5W/m strip, can be 30m continuous connection; 10W/m strip, can be 20m continuous connection; 15W/m, can be 15m continuous connection, It may require less cables and looks beautiful and save the labor cost.
4. No MOQ, several meters or reels also workable.
5. Flexible delivery time, it depends on the specific requirement.
6. OEM design welcomed also.
Payment and Contact:
Payment:
T/T, Western Union/TransferWise
Contact: Abby Huang
E-mail: sales6@qlledstrip.com
WeChat: QL-Light0156
QQ: 2427719722
More details of our led products are as below:
1. Our customers mostly are the project user, base on their experience and our knowledge, our products focus on the applications.
2. Energy save products: We now have 200lm/W LED strip, it can reach 5000lm/m on 25W/m and 2300lm/m on 11.5W/m, full spectrum LED strips, soft panel sheet etc.
3. Longer connection strips: for 5W/m strip, can be 30m continuous connection; 10W/m strip, can be 20m continuous connection; 15W/m, can be 15m continuous connection, It may require less cables and looks beautiful and save the labor cost.
4. No MOQ, several meters or reels also workable.
5. Flexible delivery time, it depends on the specific requirement.
6. OEM design welcomed also.
Payment and Contact:
Payment:
T/T, Western Union/TransferWise
Contact: Abby Huang
E-mail: sales6@qlledstrip.com
WeChat: QL-Light0156
QQ: 2427719722
FAQ
1 Do you offer free sample?
Yes, we can offer several 25cm free samples.
2 Do you have MOQ?
NO, one piece always welcome.
3 What is the lead time?
Usually 7-10 working days for formal order, 3-5 days for sample order. For OEM products, delivery time is around a month.
4 Do you have warranty for products?
Our products are 3 years warranty, Once quality issues and certified by QL Light engineers, we would replace new items with freight paid by us.
5 What products you can provide?
LED strips, Baklight module, Aluminum Profile, Power supply, Controllers, Connectors...
6 Can you do custom assembly or offer OEM product?
Yes, we have a wealth experience on OEM assembly of LED strip lighting. The strips can have different size, layout, customer logos and labels .We will strictly follow the principal that we won’t disclose or sell customer unique designs or jointly developed products to another third party.
7 How to buy products?
You can leave the massage to us; We will feedback in 24 hours on working days.
Yes, we can offer several 25cm free samples.
2 Do you have MOQ?
NO, one piece always welcome.
3 What is the lead time?
Usually 7-10 working days for formal order, 3-5 days for sample order. For OEM products, delivery time is around a month.
4 Do you have warranty for products?
Our products are 3 years warranty, Once quality issues and certified by QL Light engineers, we would replace new items with freight paid by us.
5 What products you can provide?
LED strips, Baklight module, Aluminum Profile, Power supply, Controllers, Connectors...
6 Can you do custom assembly or offer OEM product?
Yes, we have a wealth experience on OEM assembly of LED strip lighting. The strips can have different size, layout, customer logos and labels .We will strictly follow the principal that we won’t disclose or sell customer unique designs or jointly developed products to another third party.
7 How to buy products?
You can leave the massage to us; We will feedback in 24 hours on working days.
