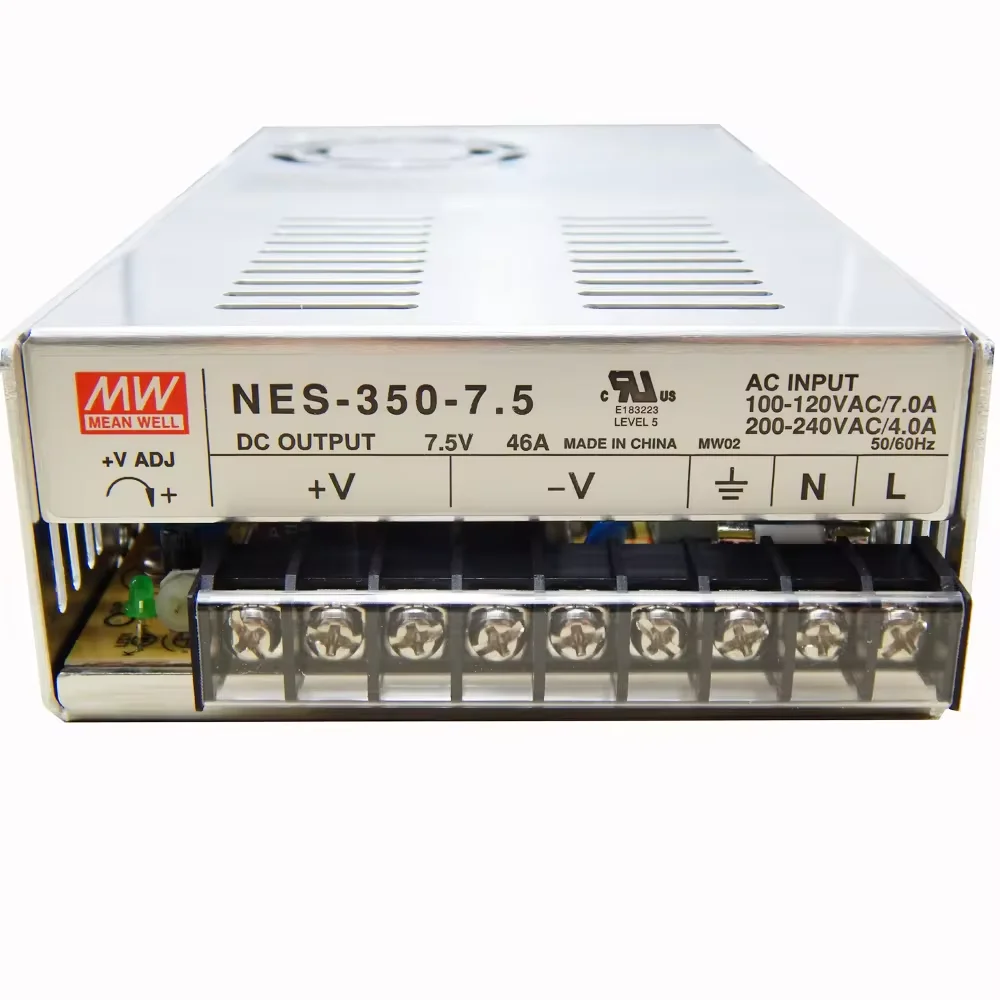

Original Mean Well 7.5v 46a NES 350 7.5 Meanwell power supply 350W

Product Overview

Description



One Stop Shopping for ALL MEANWELL models!

Quick delivery guaranteed, all with WARRANTY!

EXPORTING MEANWELL since 2009, oldest on Alibaba!



Welcome to the world of MEAN WELL!



NES-350-7.5

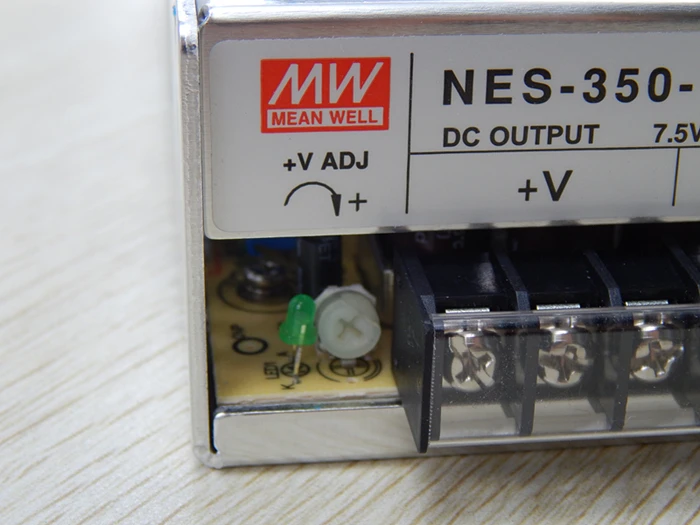

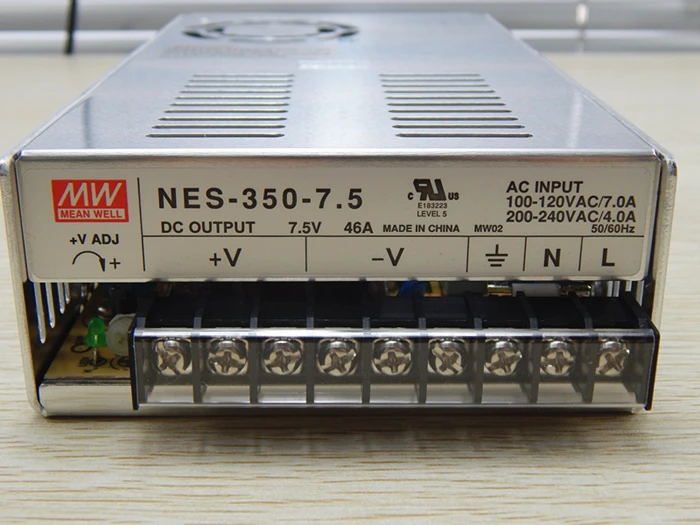

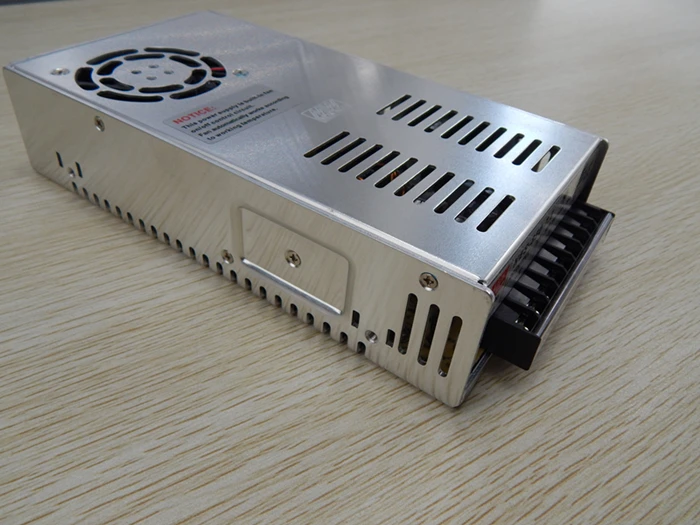

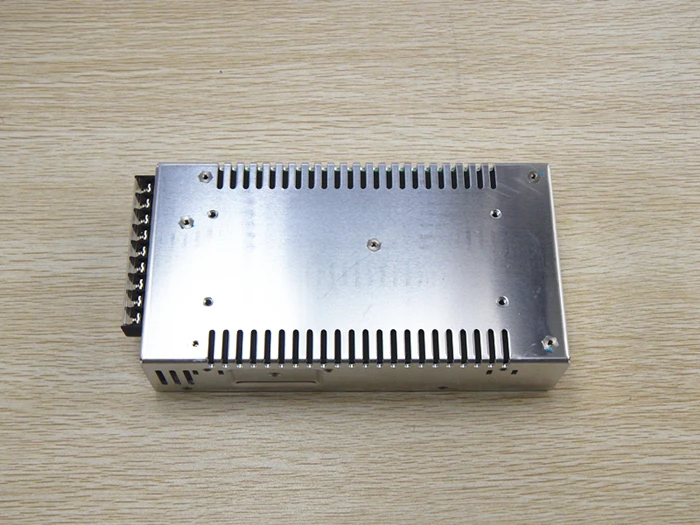

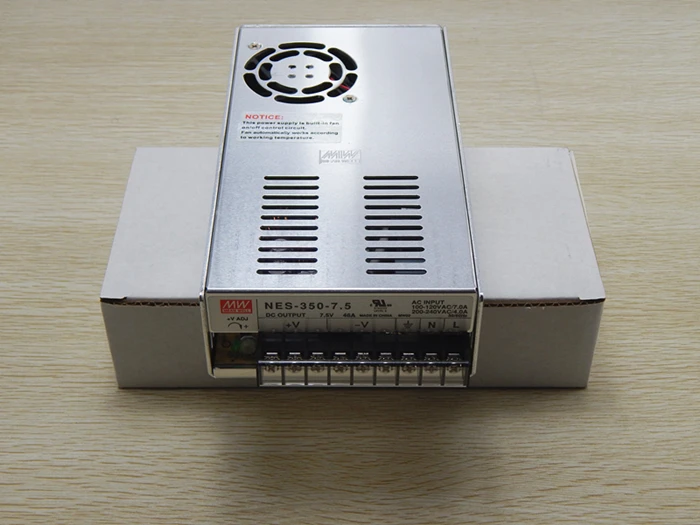

Product Pictures



Here is the detailed info for my mean well 350w switching power supply 7.5v NES-350-7.5 ac direct led driver. Hope you like it.



























  Product Information



Features:

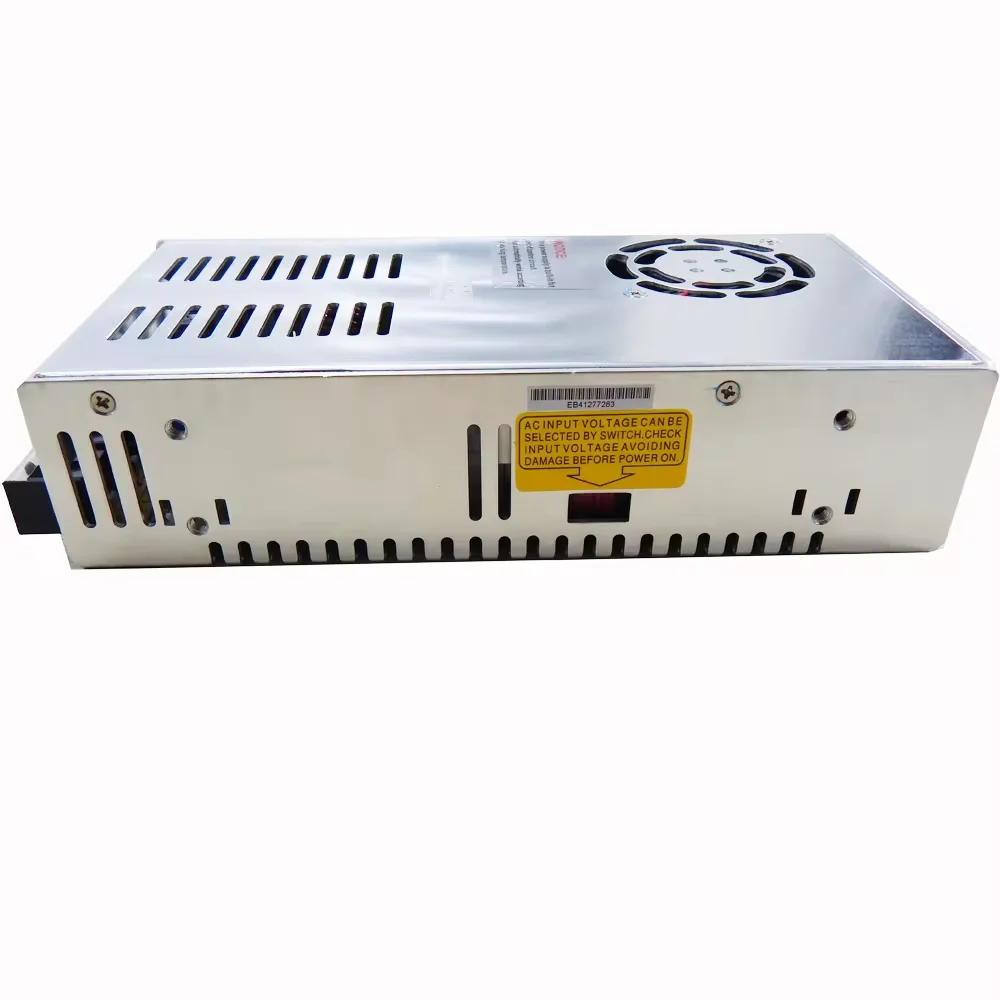

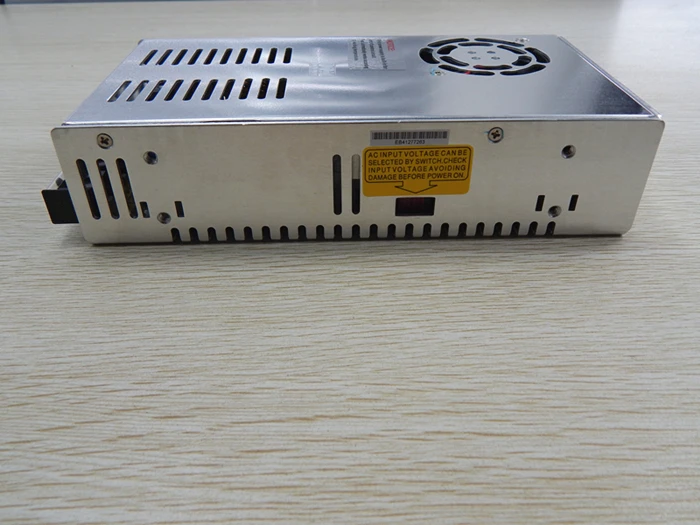

• AC input range selectable by swith


• Protections: Short circuit / Overload / Over voltage / Over temperature


• Withstand 300VAC Surge input for 5 seconds


• forced air Cooling by built-in DC fan


• Built-in cooling Fan ON-OFF control


• Built-in constant current limiting circuit


• Low cost / High reliability


• LED indicator for power on


• 100% full load burn-in test


• Fixed switching frequency at 100KHz


• 2 years warranty


• It's for mean well ac direct led driver

MODEL		NES-350-7.5
OUTPUT	DC VOLTAGE	7.5V
	CURRENT RANGE	0~46A
	RATED CURRENT	46A
	RATED POWER	345W
	RIPPLE & NOISE (max.) Note.2	150mVp-p
	VOLTAGE ADJ. RANGE	6~9V
	VOLTAGE TOLERANCE Note.3	±2.0%
	LINE REGULATION	±0.5%
	LOAD REGULATION	±2.0%
	SETUP, RISE TIME Note.5	1000ms, 50ms/230VAC 1000ms, 50ms/115VAC at full load
	HOLD UP TIME (Typ.)	20ms/230VAC 16ms/115VAC at full load
INPUT	VOLTAGE RANGE Note.5	90 ~ 132VAC / 180 ~ 264VAC by switch 254 ~ 370VDC
	FREQUENCY RANGE	47 ~ 63Hz
	EFFICIENCY (Typ.)	80%
	AC CURRENT (Typ.)	7A/115VAC 4A/230VAC
	INRUSH CURRENT (Typ.)	40A/115VAC 60A/230VAC
	LEAKAGE CURRENT	<3.5mA / 240VAC
PROTECTION	OVERLOAD	105 ~ 150% rated output power,  Protection type:Constant current limiting, recovers automatically after fault condition is removed
	OVER VOLTAGE	9.4 ~ 11.25V Protection type : Hiccup mode, recovers automatically after fault condition is removed
	OVER TEMPERATURE	90°C±5°C(3.3~7.5V), 85°C±5°C(12V~15V), 80°C±5°C(24V), 75°C±5°C(27V~48V) (TSW1) detect on case Protection type : Hiccup mode, recovers automatically after temperature goes down
FUNCTION	DC OK SIGNAL	RTH2>=50 FAN ON, <=45FAN OFF (3.3 ~ 7.5V) RTH2>=55 FAN ON, <=50 FAN OFF (12 ~ 48V)
ENVIRONMENT	WORKING TEMP.	-20 ~ +60°C (Refer to output load derating curve)
	WORKING HUMIDITY	20 ~ 90% RH non-condensing
	STORAGE TEMP., HUMIDITY	-20 ~ +85°C , 10 ~ 95% RH
	TEMP. COEFFICIENT	±0.03%/°C(0 ~ 50°C)
	VIBRATION	10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMC	SAFETY STANDARDS	UL60950-1 approved
	WITHSTAND VOLTAGE	I/P-O/P:3KVAC     I/P-FG:2KVAC     O/P-FG:0.5KVAC
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 °C/ 70% RH
OTHERS	MTBF	234.3K hrs min. MIL-HDBK-217F (25°C)
	DIMENSION	215*115*50mm (L*W*H)
	PACKING	1.07Kg; 12pcs/13.5Kg/0.92CUFT

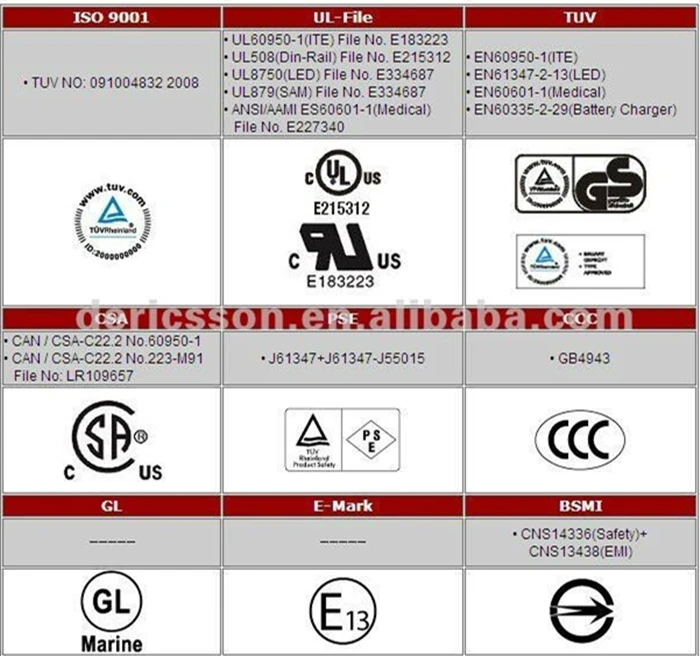

Certificate

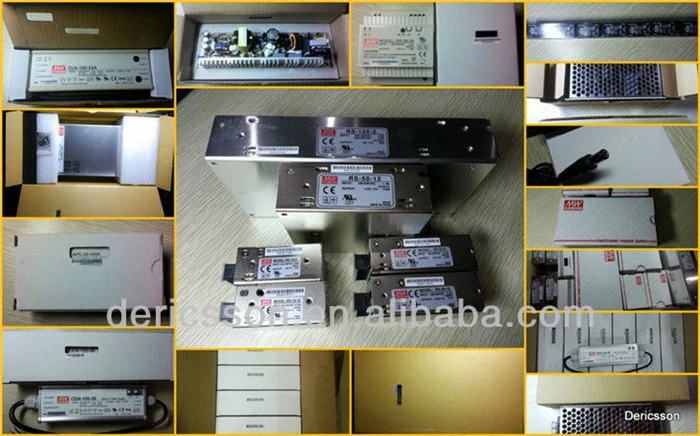

Storage and Packing
