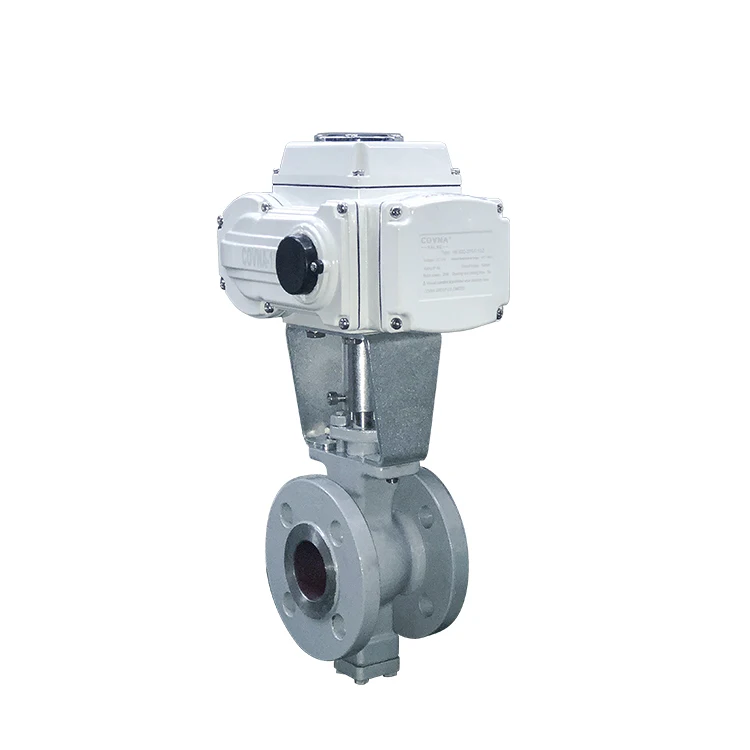

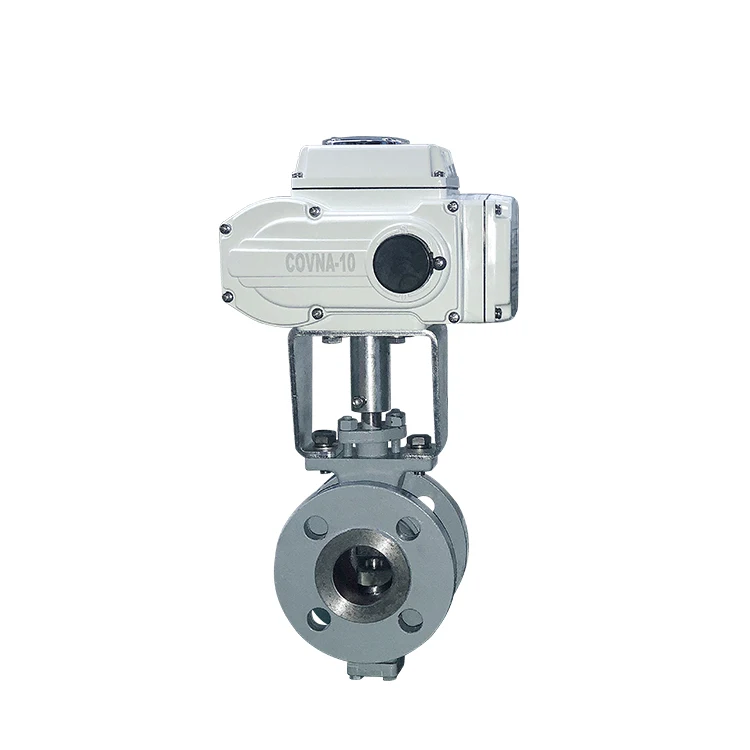

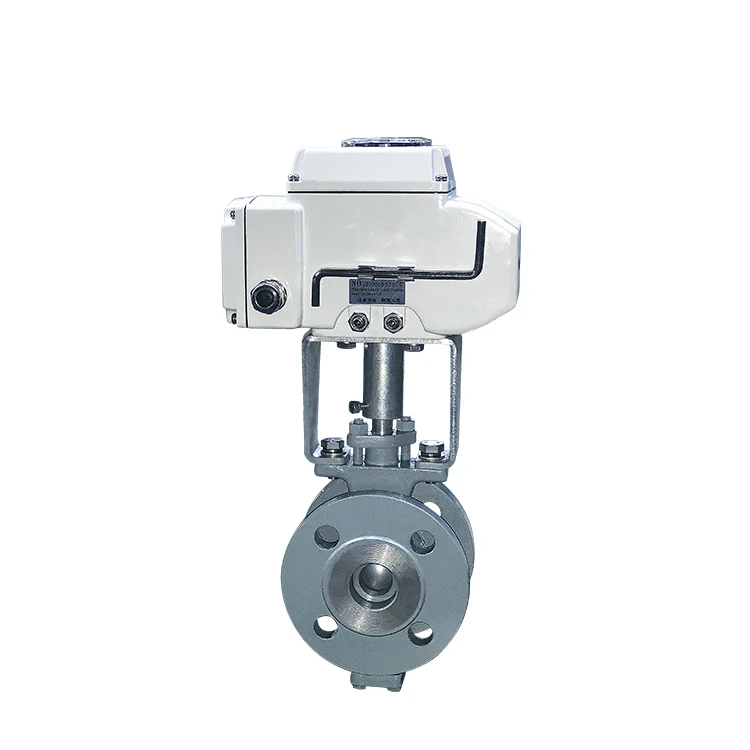

COVNA Motorized Valves DN50 2 Inch 220V 230V 240V 304 SS Two Way Electric Shut Off V Type Ball Valve
- Category: >>>
- Supplier: Dongguan Chuancheng Pneumatic Components Co. Ltd.
Share on (1601100498522):
Product Overview
Description
Recommend Products
Specification
Item | DN50 2 Inch 220V 230V 240V 304 SS Two-Way Electric Shut Off V-Type Ball Valve | ||||
Applicable Standards | GB, DIN, ANSI, ASME, JIS, API | ||||
Size Range | DN15 to DN400 | ||||
Operating Pressure | PN10/16/25/40/64 | ||||
Body Material | Stainless Steel, WCB, CF8, CF8M, CF3M | ||||
Ball Valve | 2Cr13, 304, 316 | ||||
Sealing Material | PPL, PTFE | ||||
Structure | 2 way flange v-port ball valve | ||||
End Connection | Flange end connection | ||||
Applicable Medium | Control of Water, Air, Gas, Oil, Liquid, Steam | ||||
Temp. of Media | Range from -10 to +180°C (14 to 356°F) | ||||
Application | Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper, Mining, Boiler and Power Industries | ||||

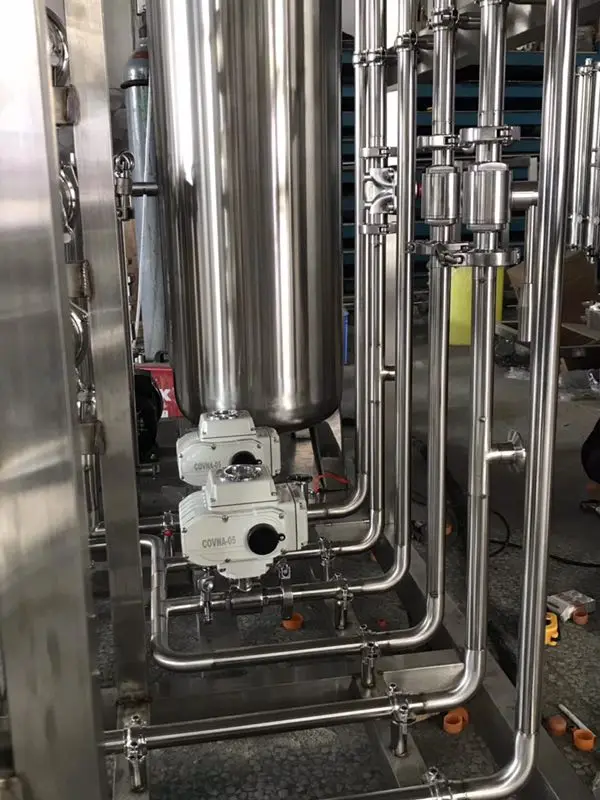

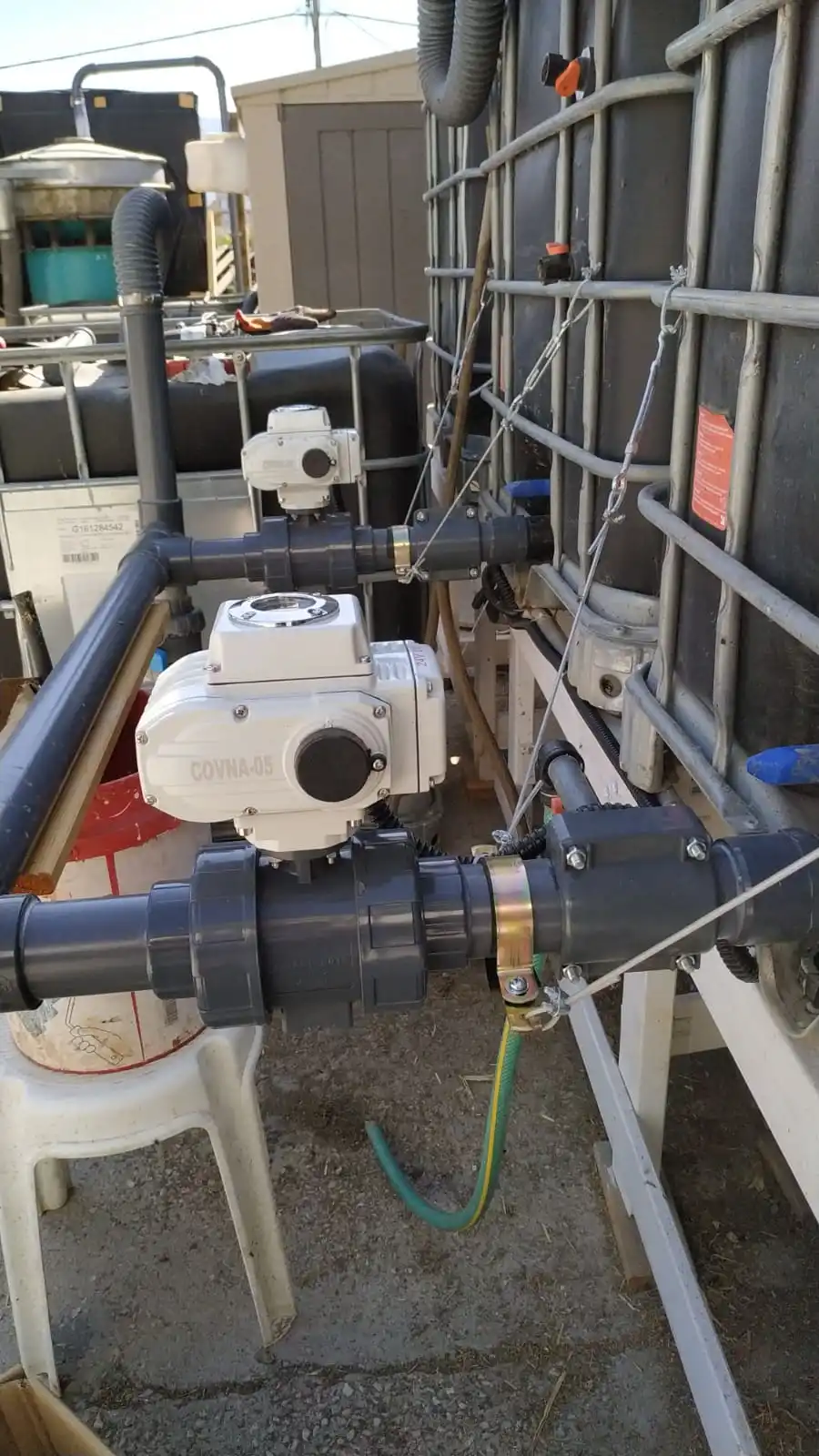

Project Reference:
Technical Parameter for Actuator | ||||||
Features Of COVNA Quarter-Turn Electric Actuator:
● 90 degree rotation
● Available in ON/OFF type, modulating type and intelligent type for your choice to allow you flow control easier
● Available in ON/OFF type, modulating type and intelligent type for your choice to allow you flow control easier
● AC/DC power supply, signal control and manual override
● High output torque up to 4000N.m
● Low failure rate, overloading protection
● ISO5211 mounting for ball and butterfly valve
● IP65 weather proof protection class for outdoor use
● Offering online technical support to help you install the actuator and valve
● 1 Year warranty
● High output torque up to 4000N.m
● Low failure rate, overloading protection
● ISO5211 mounting for ball and butterfly valve
● IP65 weather proof protection class for outdoor use
● Offering online technical support to help you install the actuator and valve
● 1 Year warranty
Series | 05 | 10 | 16 | 30 | 60 | 125 | 250 | 400 | |||||||
Torque Output | 50Nm | 100Nm | 160Nm | 300Nm | 600Nm | 1250Nm | 2500Nm | 4000Nm | |||||||
90° Cycle Time | 20S | 15/30S | 15/30S | 15/30S | 30S | 100S | 100S | 100S | |||||||
Angle Of Rotation | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | |||||||
Working Current | 0.23A | 0.35A | 0.4A | 0.45A | 0.6A | 1.03A | 1.85A | 2.7A | |||||||
Drive Motor | 50W | 75W | 80W | 100W | 130W | 210W | 285W | 360W | |||||||
Voltage Options | DC12V, DC24V, AC24V, AC110V, AC220V, AC380V | ||||||||||||||
Input Signal | 4-20mA, 1-5VDC, 0-10VDC | ||||||||||||||
Output Signal | 4-20mA, 1-5VDC, 0-10VDC | ||||||||||||||
Protection Class | IP65 protection class | ||||||||||||||
Ambient Temp | -20 to +60°C | ||||||||||||||
Wiring Diagram | A: ON/OFF type with light indicator signal feedback B: ON/OFF type with passive contact signal feedback C: ON/OFF type with resisance potentiometer signal feedback D: ON/OFF type with resistance potentiometer and neutral posistion signal feedback E: Regulation type with servo control module F: DC24/DC12V direct ON/OFF type G: AC380V 3-phase power supply with passive signal feedback H: AC380V 3-phase power supply with resistance potentiometer and neutral posistion signal feedback | ||||||||||||||
About COVNA
Company Profile
● Solenoid valve
● Electric actuator valve
● Pneumatic actuator valve
● Ball valve/Butterfly valve
● Check valve/Gate valve/Globe valve
As you see, we are a one-stop valve solution provider. We have offer automation solution for more than 2,000 companies. 20 Years experience in valve manufacture and automation solution. We are confident that we could offer the suitable valve and cost-effective solution for you.
Consult us and we are willing to help you resove the problem!
Factory View:
Certifications
Packing
Each valve will be packed in foam with carton, master carton or wood pallet to keep it safe during shipment.
Ship by air, by sea or by express is available.
