Single Colors Plastic Bag Label Printer Flexo Printing Machine Flexographic Printer
$34,000.00-35,000.00

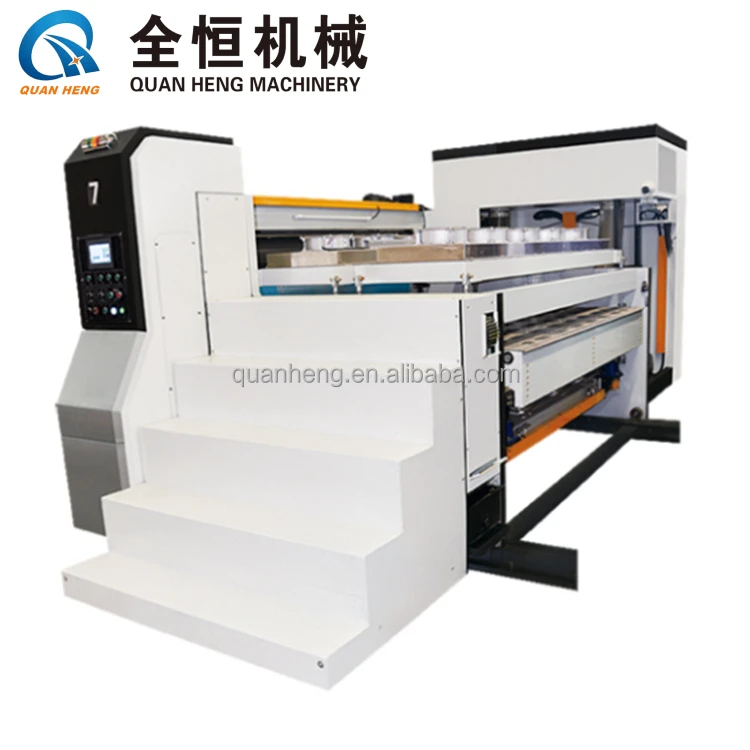

Corrugated carton box high definition flexo ink printer slotter varnish dyer rotary die cutter machine
- Category: >>>
- Supplier: Cangzhou Quanheng Imp & Exp Trade Co. Ltd.
Share on (1601100693062):
Product Overview
Description

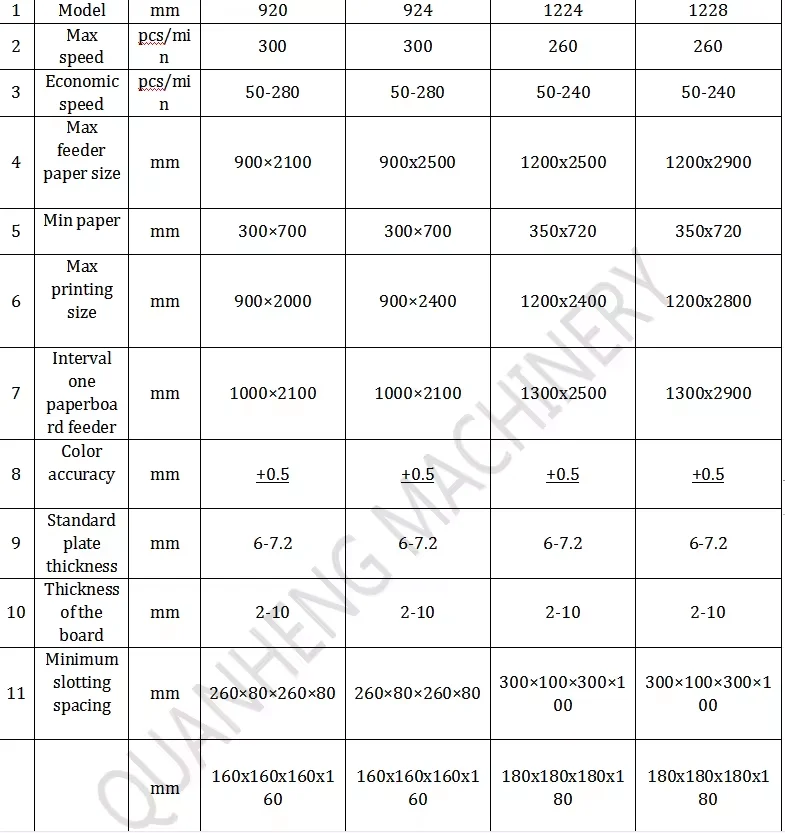

Item | Data |
max paperboard size | 1200x2500mm |
min paperboard size | 350x720mm |
max printing area | 1200x2400mm |
max die cutting area | 1200x2500mm |
max slotting depath | 300mm |
Product Paramenters

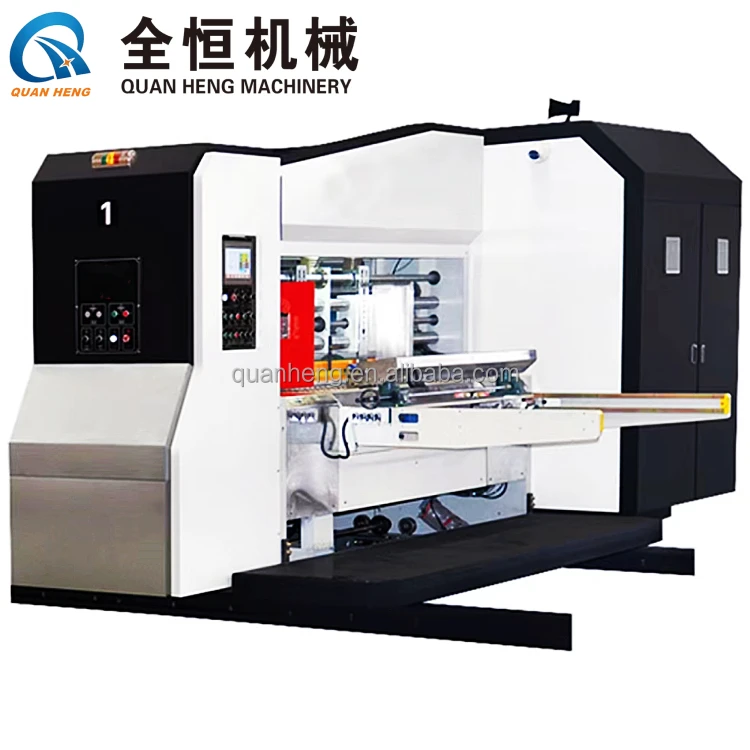

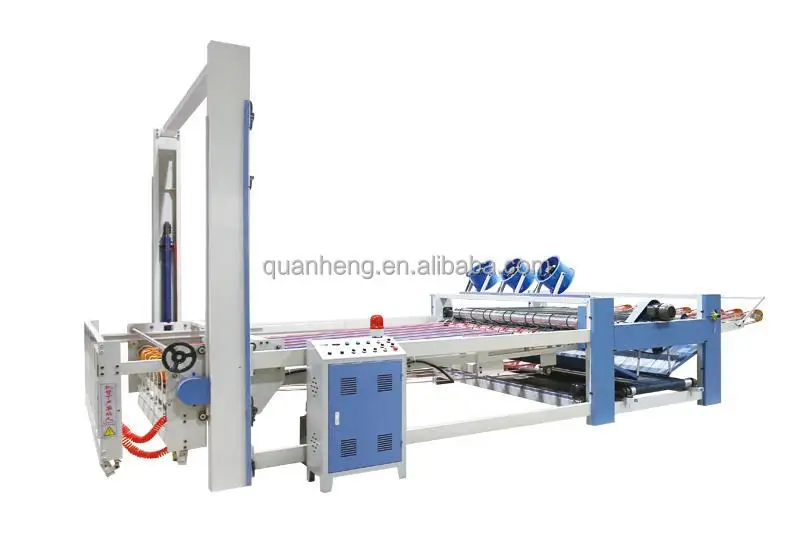

Feeder unit
1.Electric control machine clutch attached to an alarm, warning road between the continuous ringing, to ensure the safety of
workers.
2.Equipped with high effective brush roller and rows of brushes dust removal device.
3.Feeding unit is designed to be a perfect feeding system with functions of two vacuum suction transmission box, feeding roller,
bush roller, and electrostatic dust.
4.Carton use automatic zero device, two test print can be adjusted to the correct position, reduce the waste of cardboard.
workers.
2.Equipped with high effective brush roller and rows of brushes dust removal device.
3.Feeding unit is designed to be a perfect feeding system with functions of two vacuum suction transmission box, feeding roller,
bush roller, and electrostatic dust.
4.Carton use automatic zero device, two test print can be adjusted to the correct position, reduce the waste of cardboard.

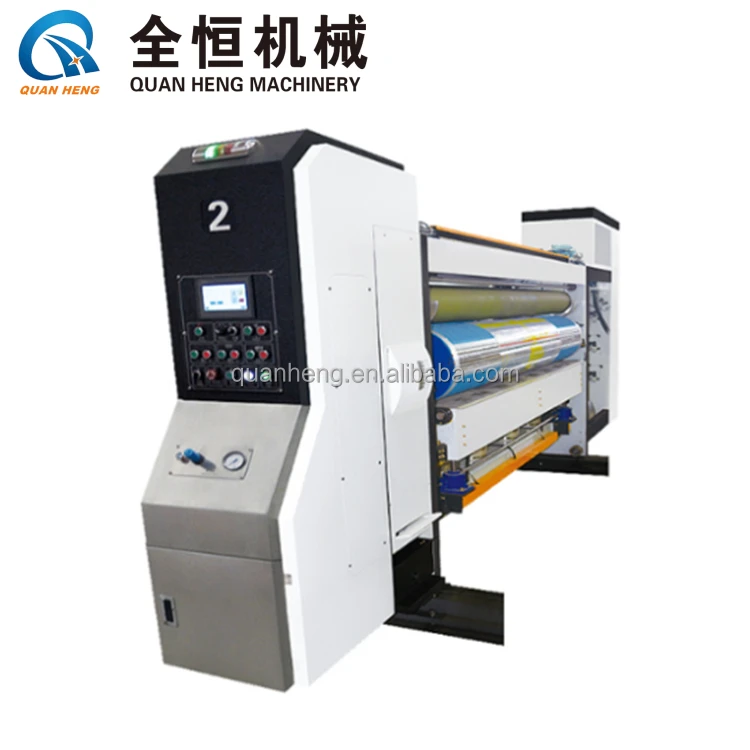

Print unit
1.High quality cerimic anilox printing roller with doctor blade.
2.The anilox roller with quick-change structure, convenient maintenance and maintenance of the machine.
3.Full vacuum transfer type with belower,high precesion transfer vacuum box.
4.The printing nip Worm electric adjustment, digital display, the adjustment range of 0-12mm.
5.Automatic induction ink detection system, including warning lights and alarm bells.
2.The anilox roller with quick-change structure, convenient maintenance and maintenance of the machine.
3.Full vacuum transfer type with belower,high precesion transfer vacuum box.
4.The printing nip Worm electric adjustment, digital display, the adjustment range of 0-12mm.
5.Automatic induction ink detection system, including warning lights and alarm bells.
Dyer Unit
Infrared drying system
1,Infrared heating system, rapid and stable temperature rise. The heating power of each group is about 20 kw.
2,Temperature constant temperature control, sectional heating, saving electric heating power.
3, Temperature alarm, automatic alarm when the temperature exceeds the standard, safe and reliable.
* Strong fan circulation, so that the drying speed is faster.
4,The drying chamber is pneumatically adjusted for lifting and lowering, which is convenient for installing and replacing lamp
tubes, and for adjusting drying effect at the same time.
1,Infrared heating system, rapid and stable temperature rise. The heating power of each group is about 20 kw.
2,Temperature constant temperature control, sectional heating, saving electric heating power.
3, Temperature alarm, automatic alarm when the temperature exceeds the standard, safe and reliable.
* Strong fan circulation, so that the drying speed is faster.
4,The drying chamber is pneumatically adjusted for lifting and lowering, which is convenient for installing and replacing lamp
tubes, and for adjusting drying effect at the same time.

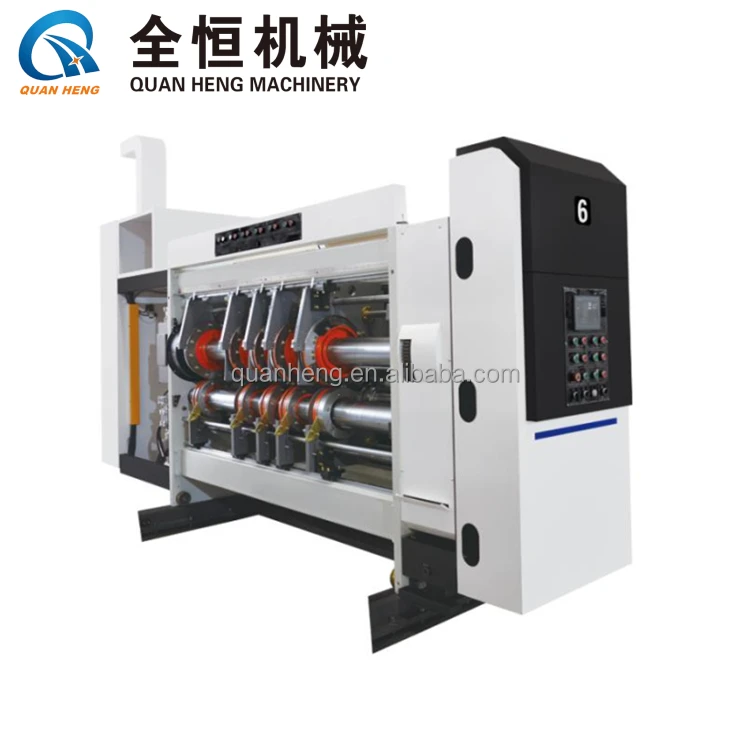

Computer Slotter unit
1.The device self-locking function, the preload and quick adjustment mechanism ensures the
long-term accuracy between the disc and the shaft, and reduces the cracking of the paper when pressing.
long-term accuracy between the disc and the shaft, and reduces the cracking of the paper when pressing.
2.There are buttons, left and right synchronous intersections, electric axial movement, so that the upper and lower pressure line
wheels, the upper and lower grooved knives are adjusted synchronously, and the electric adjusting box is highly functional.
wheels, the upper and lower grooved knives are adjusted synchronously, and the electric adjusting box is highly functional.
3.A planetary gear type phase adjustment mechanism with digital display function is used for electric adjustment of the slotting
phase and the height of the slotting box.
phase and the height of the slotting box.

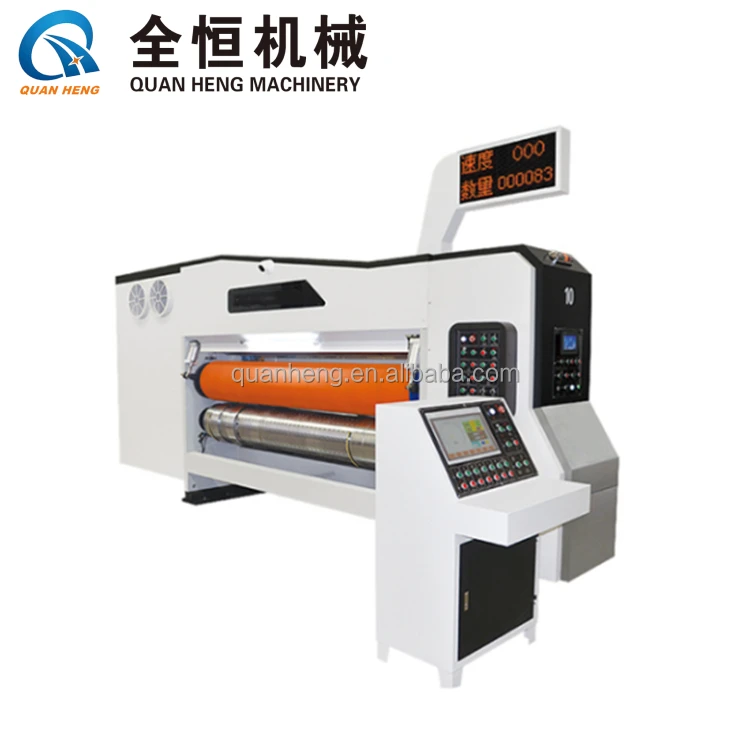

Rotary Die Cutter unit
1.Die cutter phase adopt gear system, can be electric adjust 360 degree.
2.If stop feeding, the roller auto lifting,less demage
3.Rubber plate roller can be lift right adjust 30mm,each balde cut in different position.
4.Up and down roller diameter different,but the line speed is same.can be control the die knives no stop working.make the plate
grinding uniform.
grinding uniform.
5.Line speed compensation device,when the rubber roller diameter chnage,the line speed will be compensation use this system.

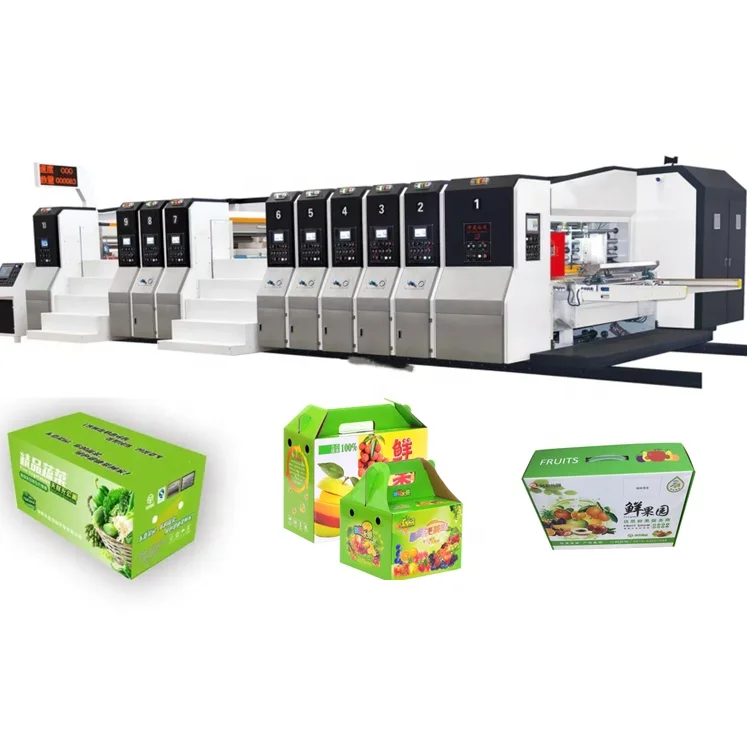

Finished samples
