Product Overview
Description

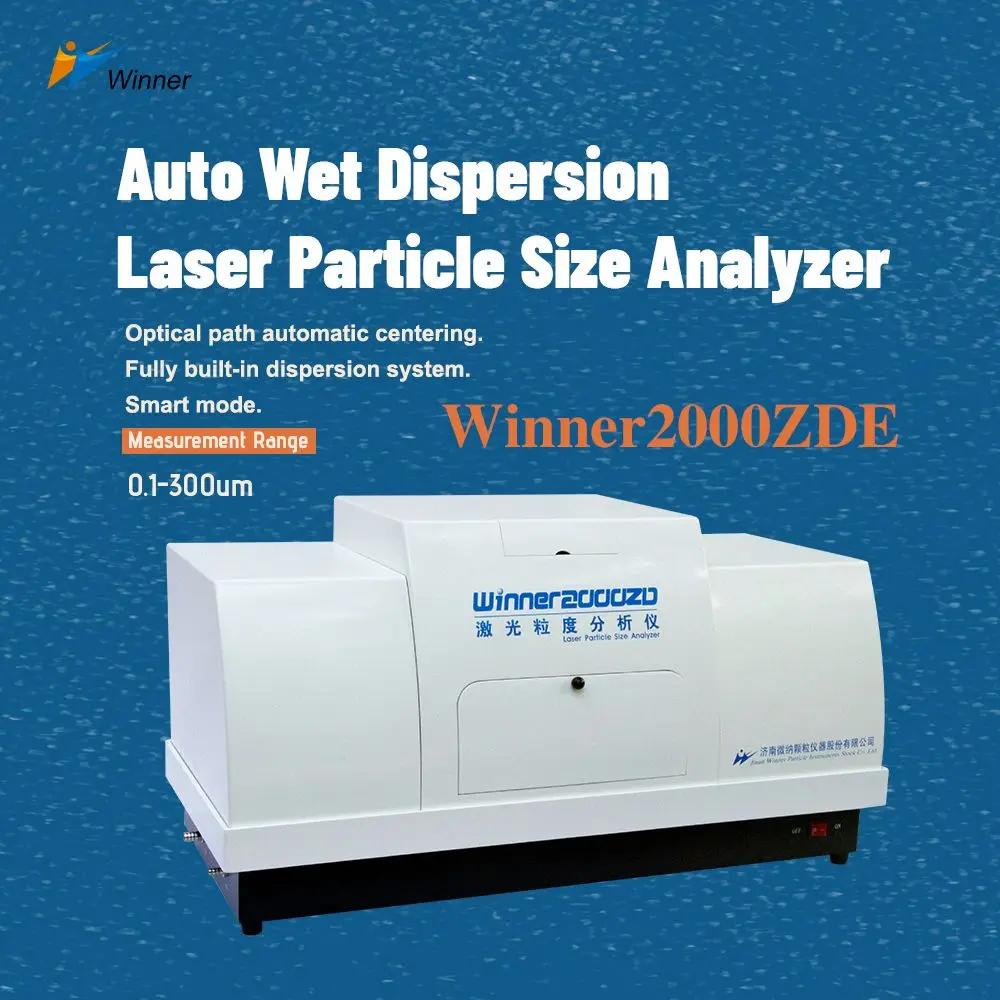

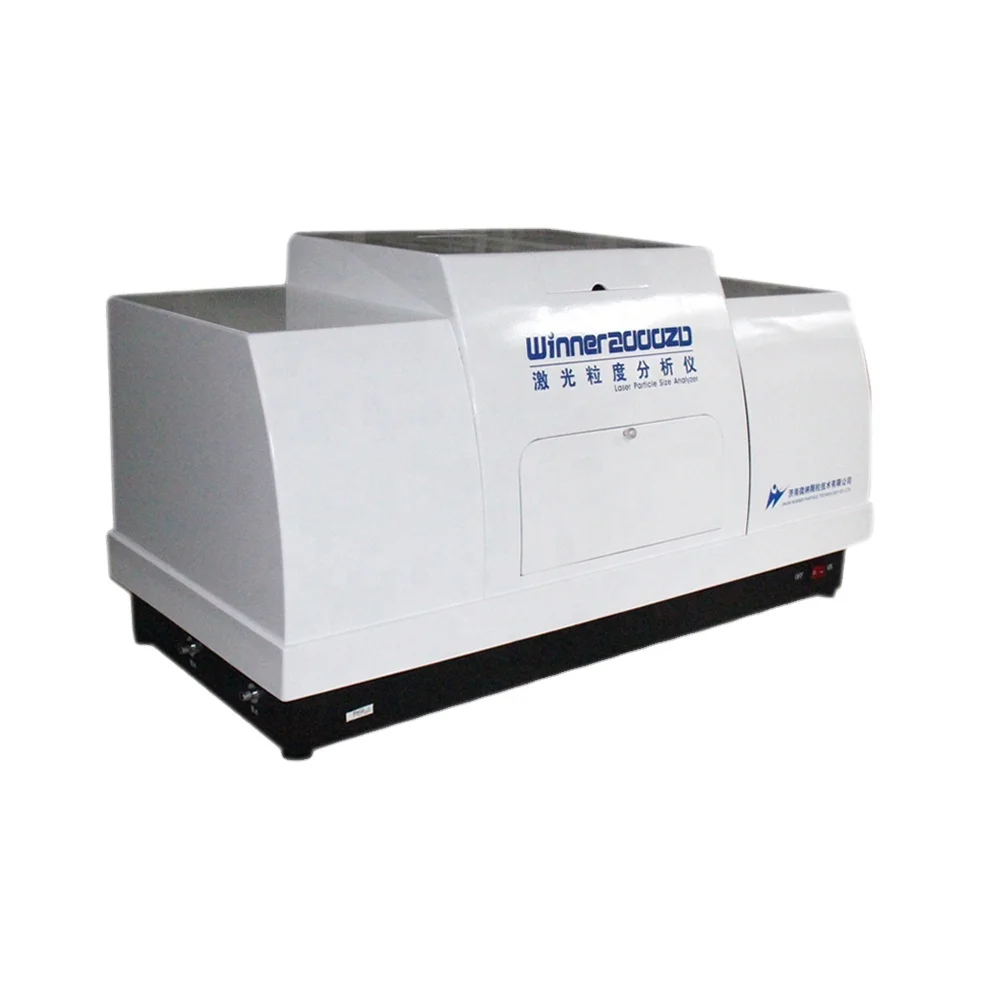

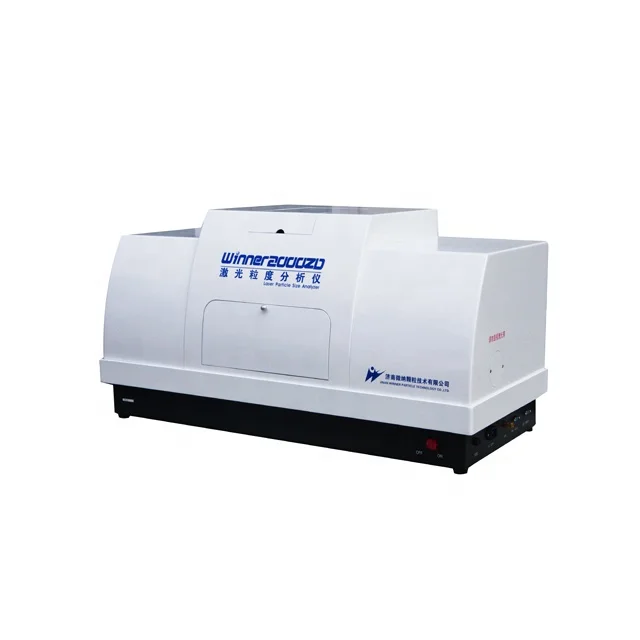

2000ZDE Intelligent Laser Particle Size Analyzer
Product Description
Winner2000ZDE intelligent laser particle size analyzer, perform auto test, auto alignment, auto water supply, auto drainage, auto bubble removing, auto ultrasonic dispersion, auto cleaning etc., really realize one-key operation. It adopt full built-in sampling system, effectively prevents large particles sedimentation problems in the circulation pipeline, ensure good accuracy. It adopts comprehensive Laser diffraction particle size measurement principle with highly sensitive ring photoelectric detector improving the test accuracy greatly, Original designed unconstrained free fitting software technology, a true reflection of the particle size distribution, to ensure truth and accuracy of the test results. Therefore especially suits the laboratories of enterprises, colleges and universities and research institutes to use.
Proudct Details
Winner2000ZDE intelligent laser particle size analyzer, perform auto test, auto alignment, auto water supply, auto drainage, auto bubble removing, auto ultrasonic dispersion, auto cleaning etc., really realize one-key operation. It adopt full built-in sampling system, effectively prevents large particles sedimentation problems in the circulation pipeline, ensure good accuracy. It adopts comprehensive Laser diffraction particle size measurement principle with highly sensitive ring photoelectric detector improving the test accuracy greatly, Original designed unconstrained free fitting software technology, a true reflection of the particle size distribution, to ensure truth and accuracy of the test results. Therefore especially suits the laboratories of enterprises, colleges and universities and research institutes to use.
Main Features:

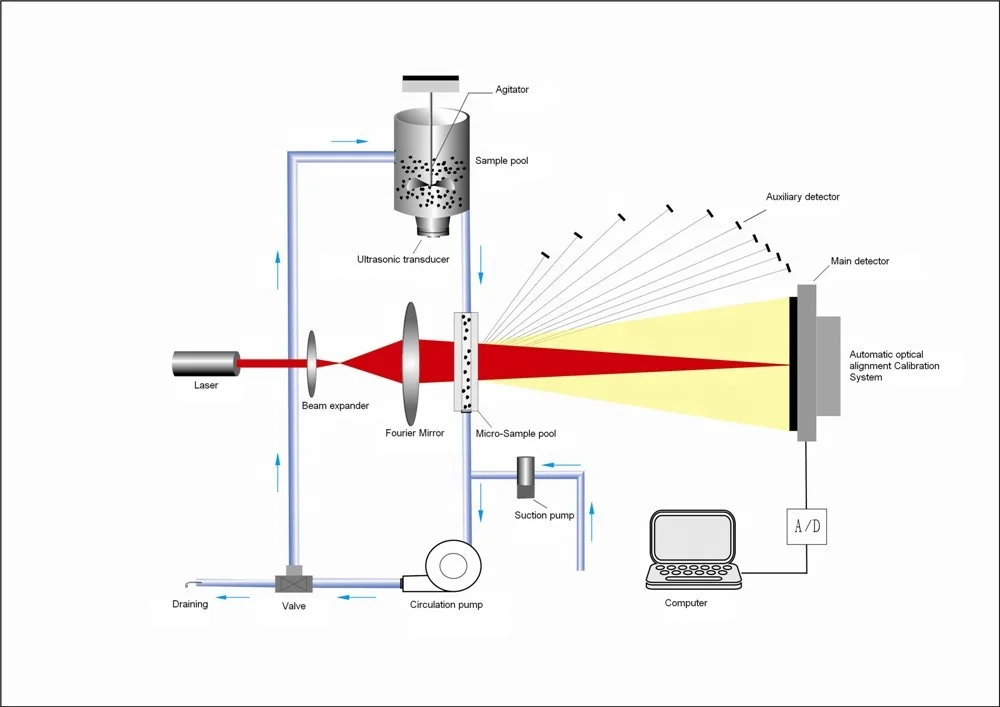

1. The laser particle size analyzer adopts advanced optical path design:
The patented technology of Converging Light Fourier Transform releases the scattered light with large scattering angle from the limitation of Fourier lens aperture. Shorten the focal length to increase the resolution of the instrument.
2. The laser particle size analyzer uses a built-in dispersion device:
We carefully aligned the stirring device, ultrasonic dispersion device and sample circulation pipes and fixed them inside the instrument. Such a built-in design effectively prevents uneven dispersion and sedimentation of large particles. It can be seen from the design that these dispersion units are separated from the instrument that the sample will be fully dispersed if the sample circulation pipeline is too long.
The patented technology of Converging Light Fourier Transform releases the scattered light with large scattering angle from the limitation of Fourier lens aperture. Shorten the focal length to increase the resolution of the instrument.
2. The laser particle size analyzer uses a built-in dispersion device:
We carefully aligned the stirring device, ultrasonic dispersion device and sample circulation pipes and fixed them inside the instrument. Such a built-in design effectively prevents uneven dispersion and sedimentation of large particles. It can be seen from the design that these dispersion units are separated from the instrument that the sample will be fully dispersed if the sample circulation pipeline is too long.
3,Unconstrained fitting techniques:
The particle analysis software uses a unique unconstrained data fitting technique that we developed to obtain data of unknown size distribution, this is particularly important for researchers.
4,Micro sample chamber(optional):
The capacity of the sample chamber is as small as only 10ml. This helps with measuring expensive/precious samples, or
samples difficult to be dispersed within medium.
samples difficult to be dispersed within medium.

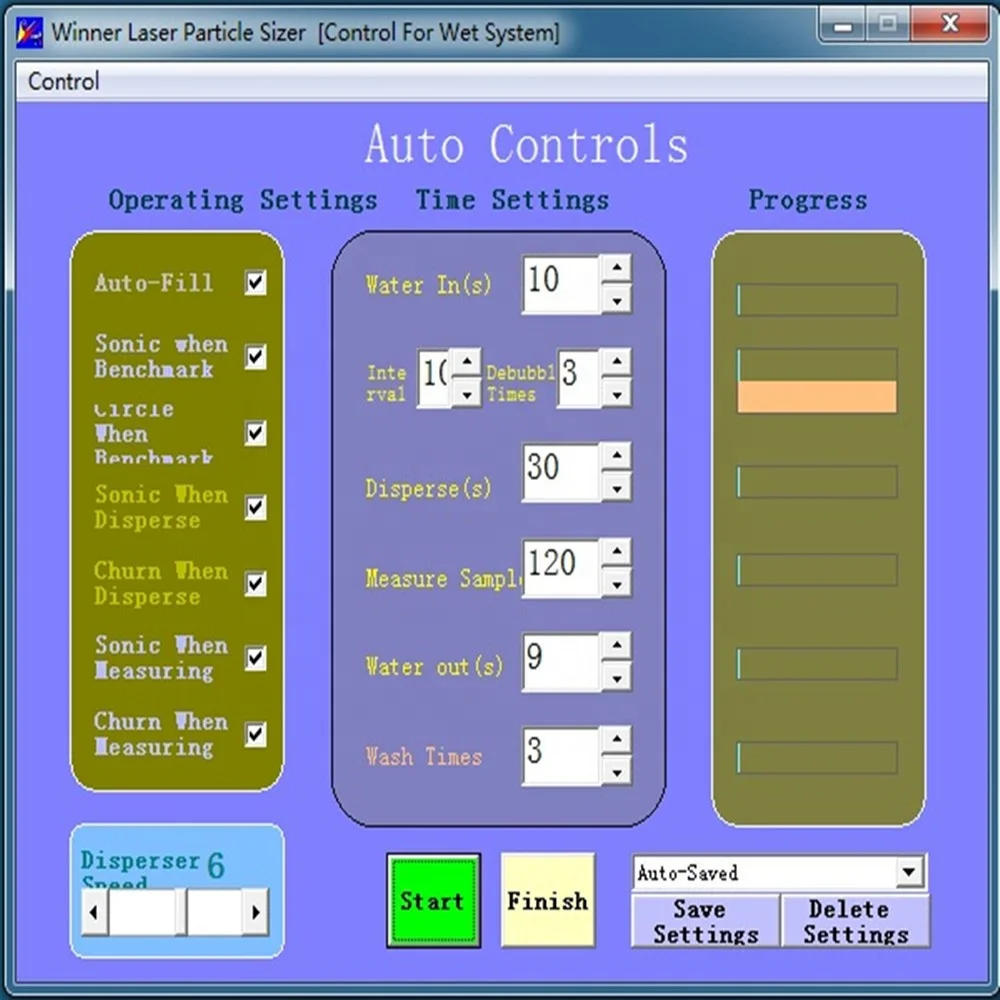

5,Modern measurement control:
Users can perform all measurement procedures by simply operating on the PC and have ideal results in a very short time.
6,User-friendly Operation:
manual mode and the automatic mode, freely choose, to measure according to the sample features. In some conditions (e.g. the sample have unknown features or there are special requirements for the measurements), users can make a test measurement in the manual mode first, and after having an idea of the sample features and the measurement conditions, measure the samples in the automatic mode.
7,Fully automatic light
path alignment: A precise four phase hybrid stepping motor automatically aligns the optical path and can adjust it at any moment.
This releases users from manual adjusting the optical path and improved accuracy
path alignment: A precise four phase hybrid stepping motor automatically aligns the optical path and can adjust it at any moment.
This releases users from manual adjusting the optical path and improved accuracy
Laser Particle Size Analyzer Application Field
1.Non-metallic powders such as calcium carbonate, talcum powder, kaolin, zirconium silicate, wollastonite, graphite, silica powder, tourmaline, mica, barite, plaster, bentonite, diamond, quartz, diatomite, feldspar, calamite,clay, garnet, vermiculite, Titanium white power, etc.
2. Metallic powder such as aluminum powder, iron powder, magnesium powder, molybdenum powder, copper powder, zinc powder, other rare metal power and varied alloy powder, etc.
3. Pharmaceutical, agricultural pesticide, grinding particle, foodstuff, scientific research, teaching, cement, ceramic, glass, chemical industry, military industry, soil, toner,pigment, oil exploration, geological analysis, river silt and electronic particle, etc.
2. Metallic powder such as aluminum powder, iron powder, magnesium powder, molybdenum powder, copper powder, zinc powder, other rare metal power and varied alloy powder, etc.
3. Pharmaceutical, agricultural pesticide, grinding particle, foodstuff, scientific research, teaching, cement, ceramic, glass, chemical industry, military industry, soil, toner,pigment, oil exploration, geological analysis, river silt and electronic particle, etc.
Specification
Model Name | Winner2000ZDE | ||||
Standard | ISO13320-1:2009/ GB/T19077.1-2016, Q/JWN001-2020 | ||||
Principle | MIE scattering principle | ||||
Measuring Range | 0.1-40μm/0.6-120μm/1-300μm | 0.1-40μm/0.6-120μm/1-300μm | |||
Channels Number | 76*3 pcs | 76*3 pcs | |||
Accuracy error | <1% (National Standard Sample D50 ) | ||||
Repeatability error | <1% (National Standard Sample D50 ) | ||||
Light source | High performance He-Ne Laser (λ= 632.8nm, P>2MW) Lifetime>25000hour | ||||
Dispersion Method | Ultrasonic | Frequency:40KHz Power:35W, Time: ≥1S | |||
Stir | Revolutions Speed: 0-3000RPM (Adjustable) | ||||
Circulate | Rated Flow:8L/min Rated Power:10W | ||||
Sample Pool | Volume:350mL | ||||
Micro- Sample Pool | Volume: 10mL ( Available) | ||||
Operation Mode | Full automatic and manual control, freely choose | ||||

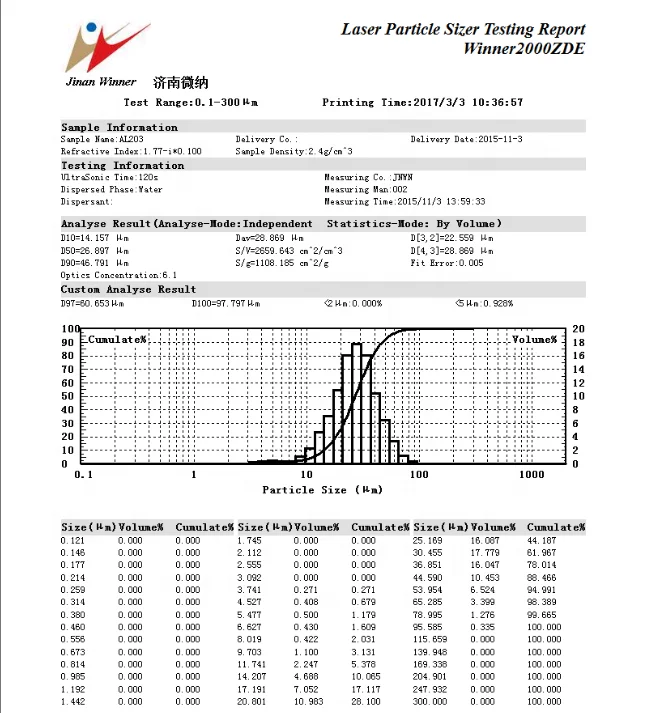

Output parameter | D10,D50,D90,D100,S/V referent parameters | ||||
Optical Calibration System | Full automatic | ||||
Test Speed | <2mins for each time | ||||
Volume | L88cm×W39cm×H46cm | ||||
Net Weight | 41Kg | ||||
Principle
1. Strictly conforming to ISO9001-2000 quality management system,
2. Strict control from purchasing materials, process inspection to final particle size distribution test,
3. QC department to execute quality control regulations,
4.Only qualified components will be assembled and total laser particle size analyzer must be inspected completely before sale.
5, Laser particle size analyzer will be processed preventing -shake test before delivery.
After sale service
1. Provide operation demonstration video.
2. Provide free installation and training services.
3. The warranty period is 1 year after receipt of the goods, and technical support is provided for life.
4. If repair parts are provided, we will provide parts at favorable prices, only charge cost prices, and provide long-term maintenance.
2. Provide free installation and training services.
3. The warranty period is 1 year after receipt of the goods, and technical support is provided for life.
4. If repair parts are provided, we will provide parts at favorable prices, only charge cost prices, and provide long-term maintenance.
Company Profile
Jinan Weiner Particle Instrument Co., Ltd. has been specialized in particle size analyzers for more than 30 years since it undertook the development of particle size analyzers, a national scientific and technological project in 1985.
We are the first origin manufacturer in China to produce nanoparticle size analyzers.
Our particle size analyzers will give you a better understanding of your materials and save you time and costs. Reliable data enables scientists, researchers and engineers to improve formulations and processes with confidence. Our products guide research and product development, manage and control manufacturing quality and optimize yields.
We work with the world's leading businesses, universities and research institutions. They value not only the solutions we provide, but also our professional knowledge, cooperation philosophy and integrity.
Currently, we have laser particle size analyzers, image particle size analyzers, spray particle size analyzers, particle counters and nanoparticle size analyzers, etc. At the same time, we have created more than 30 China's first particle size patented technologies!
For example, there are utility model patents for three-dimensional automatic centering systems, invention patents for nanoscale particle detection devices, and utility model patents for drop-type particle image online monitoring equipment.
We are committed to providing you with the best particle size analysis solutions.
Your satisfaction is our eternal goal!
We are the first origin manufacturer in China to produce nanoparticle size analyzers.
Our particle size analyzers will give you a better understanding of your materials and save you time and costs. Reliable data enables scientists, researchers and engineers to improve formulations and processes with confidence. Our products guide research and product development, manage and control manufacturing quality and optimize yields.
We work with the world's leading businesses, universities and research institutions. They value not only the solutions we provide, but also our professional knowledge, cooperation philosophy and integrity.
Currently, we have laser particle size analyzers, image particle size analyzers, spray particle size analyzers, particle counters and nanoparticle size analyzers, etc. At the same time, we have created more than 30 China's first particle size patented technologies!
For example, there are utility model patents for three-dimensional automatic centering systems, invention patents for nanoscale particle detection devices, and utility model patents for drop-type particle image online monitoring equipment.
We are committed to providing you with the best particle size analysis solutions.
Your satisfaction is our eternal goal!
Packing & Delivery
Winner particle testing equipment is Wooden box package.
We would ship machine by DHL, FeDex, China express, by sea and by air.
Certifications
Recommend Products
Exhibition
Our Customers
Our goal is to provide super quality and competitive price laser particle size analyzer for clients all over the world!
We created more than 30 first particle size analysis technology in China!
We created more than 30 first particle size analysis technology in China!
FAQ
Purchase laser particle size analyzer need know points:
(1) What materials need test?
If suspension/emulsion, must choose liquid dispersion particle size analyzer, and some materials are also reacted with water, so need liquid dispersion particle size analyzer also. Generally, cement, metal powders and pharamcy materials need dry dispersion model particle size analzyer.
(1) What materials need test?
If suspension/emulsion, must choose liquid dispersion particle size analyzer, and some materials are also reacted with water, so need liquid dispersion particle size analyzer also. Generally, cement, metal powders and pharamcy materials need dry dispersion model particle size analzyer.
(2) What size range need test?
By now, Based on MIE scattering, laser particle size analyzer can test the particle range is 0.01um-2000um.
If materials range is not so wide, for example, 10um-20um, smaller range of particle size distributon choose closer range model will be preciser, no need to buy large range model.
By now, Based on MIE scattering, laser particle size analyzer can test the particle range is 0.01um-2000um.
If materials range is not so wide, for example, 10um-20um, smaller range of particle size distributon choose closer range model will be preciser, no need to buy large range model.
(3) What is dispersion media?
For liquid model, in order that sample can disperse well and circualte in the laser particle size analyzer, generally we need use water, alochol or organic solvent as dispersion media.For dry dispersion model, just use compressed air as dispersion media.In the current market, Dry laser particle size analyzer cost is higher than liquid dispersion models, so if can test well, liquid model is better.
For liquid model, in order that sample can disperse well and circualte in the laser particle size analyzer, generally we need use water, alochol or organic solvent as dispersion media.For dry dispersion model, just use compressed air as dispersion media.In the current market, Dry laser particle size analyzer cost is higher than liquid dispersion models, so if can test well, liquid model is better.
More questions, please contact us, we will offer you the best suitable laser particle size analyzer for you!
